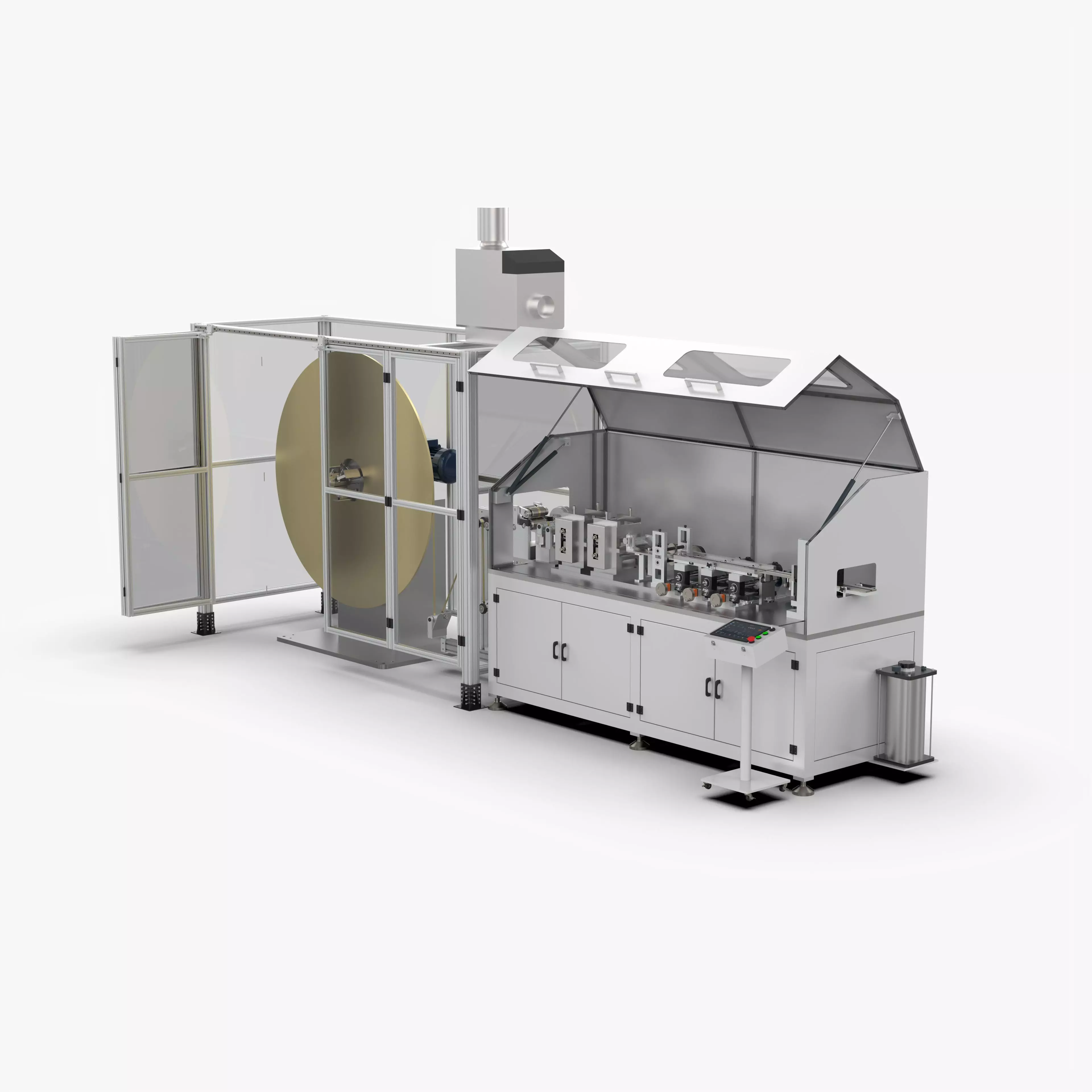

Automatic Aluminum Fin Forming Machine 3D model

Automatic Aluminum Fin Forming Machine

Introduction

Fin forming machine, aluminum foil forming machine, servo cutter, closed-loop tension control, and uncoiling mechanism equipment are mainly used for automatic forming of aluminum foil for automobile radiators.

• Feeding speed 170 m/min
• Cutting times 90 times/min
• Material thickness 0.06~0.12MM

Material Aluminum Foil

• Fin Height 5~12MM
• Fin Width 12~26MM
• Fin Density 1.6~3.2
• Single Material Rack Maximum 1800MM
• Roll Inner Diameter 200~350MM
• Fin Height Error 0.03+/-
• Adjustment Range 0.05+/-
• Fin Length 5MM 500 +/-
• Average fin density 0.1+/-
• Cut wave number 1+/-

File Formats

• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 3,082,345
• Vertice: 9,247,035
