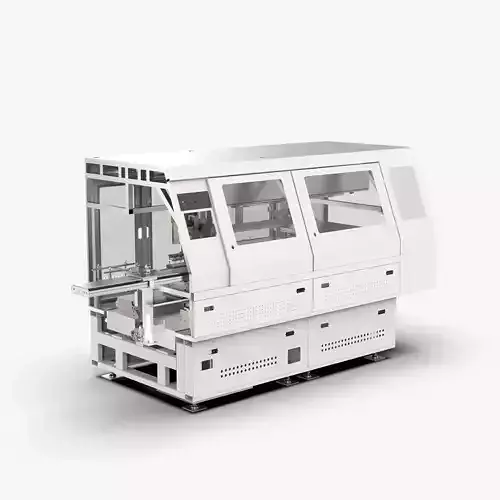

AOI Equipment Korean LCD Panel Industry 3D model

AOI Equipment Korean LCD Panel Industry

Introduction

In the field of liquid crystal panel technology, AOI pressure equipment for liquid crystal panels includes a machine body. The first end of the machine body is provided with a feed end, and the second end of the machine body is provided with a discharge end. The feed end is connected with the discharge end of the OLB process equipment. , the body is equipped with a stage platform for receiving glass and positioning and moving the glass, a glass support beam for ensuring the attitude of the glass, and a mechanical arm for transporting the glass from the discharge end to the next process. The whole machine adopts solidworks design, which is exactly the same as the Korean AOI pressure equipment, and can be used as a design reference for related equipment! ! !

File Formats

• SolidWorks 2018 | Keyshot 10
• FBX (Filmbox)
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)
• x_t (Parasolic Model Part File)

Geometry

• Polygons: 18,235,999
• Vertice: 54,707,997
