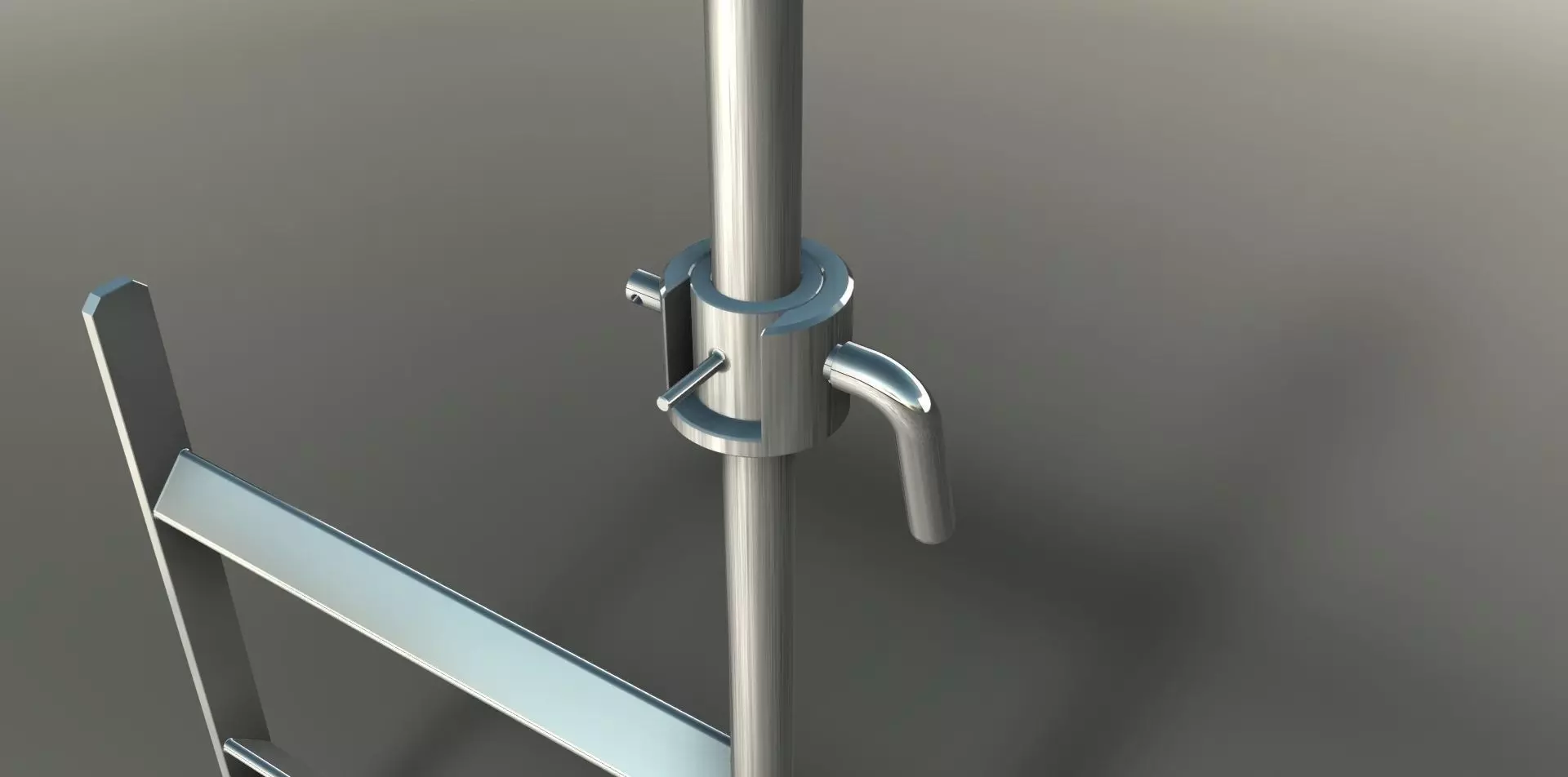

AgitatorShaft Coupling Solution 3D model
Description
This is a solution I designed to engage/disengage the agitator from the main shaft of an industrial mixer. The problem was that the agitator could not move downwards, and the shaft could not move upwards, so the only way to remove the agitator was laterally.
AgitatorShaft Coupling Solution
Royalty Free License
AgitatorShaft Coupling Solution
Royalty Free License
3D Model formats
Format limitations
- Stereolithography (.stl)900 KB
- Autodesk Inventor (.iam, .ipt) (2 files)4.36 MB
- STEP (.stp)522 KB
3D Model details
- Publish date2015-04-02
- Model ID#123665
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Ready for 3D Printing
