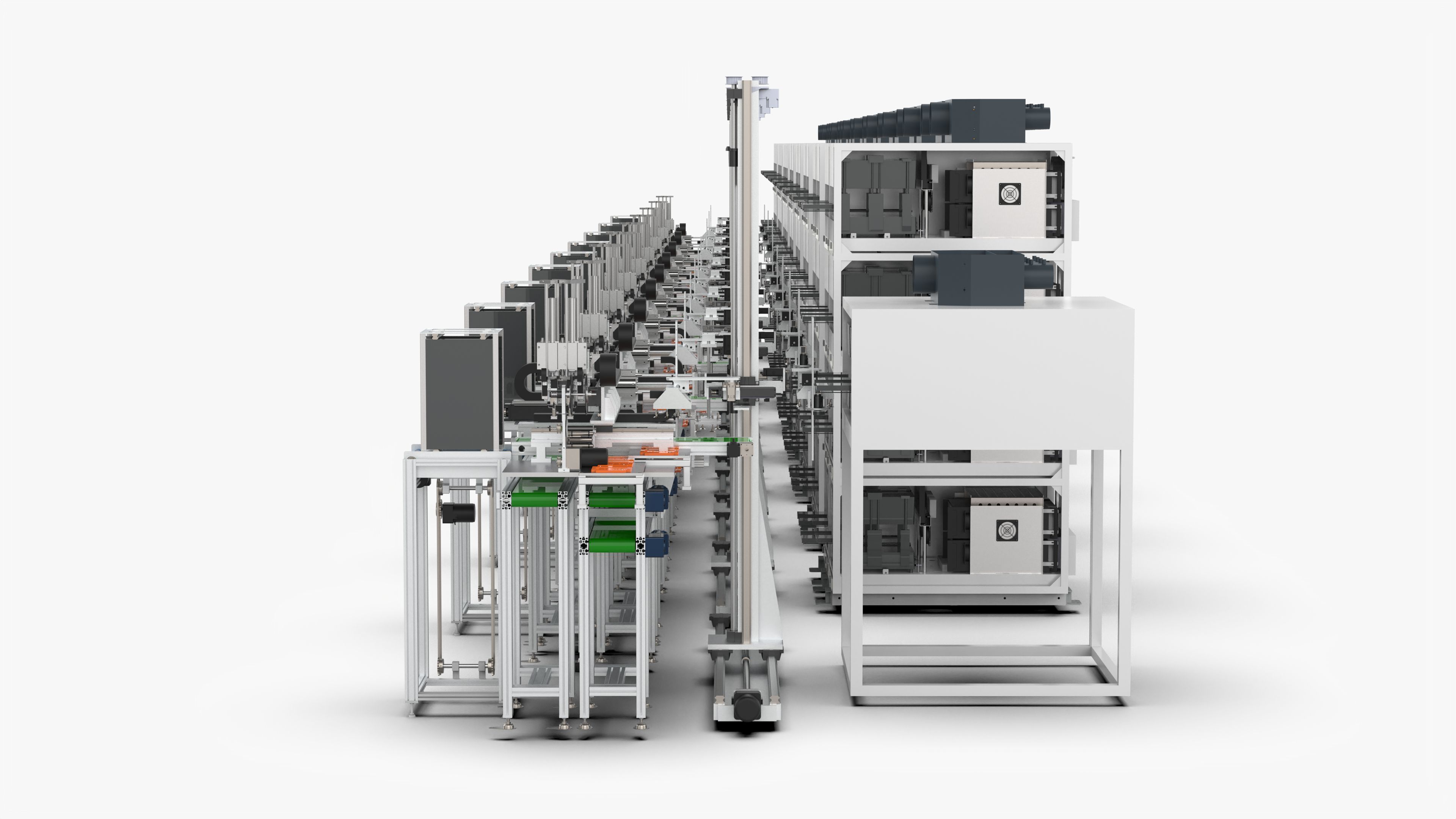

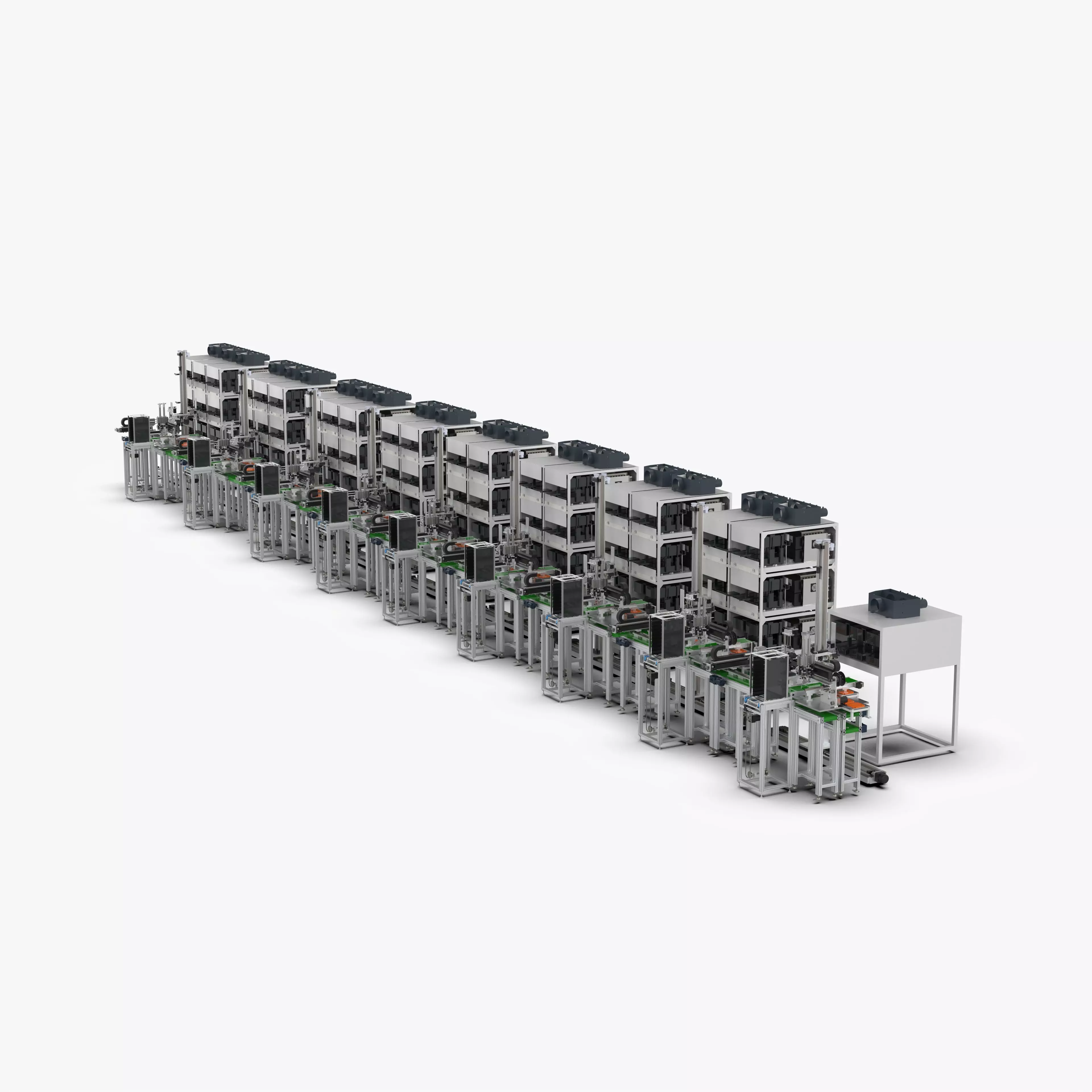

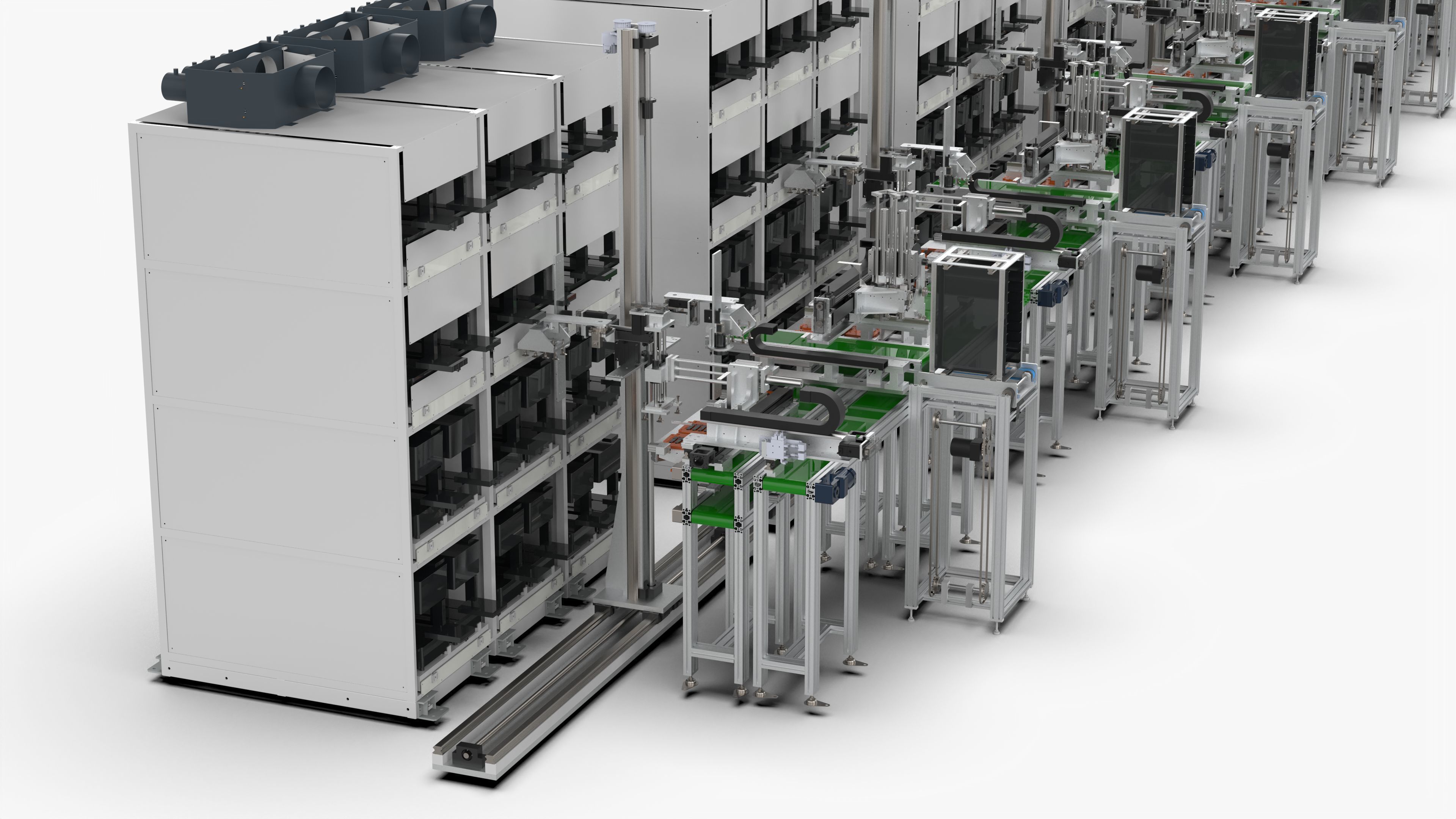

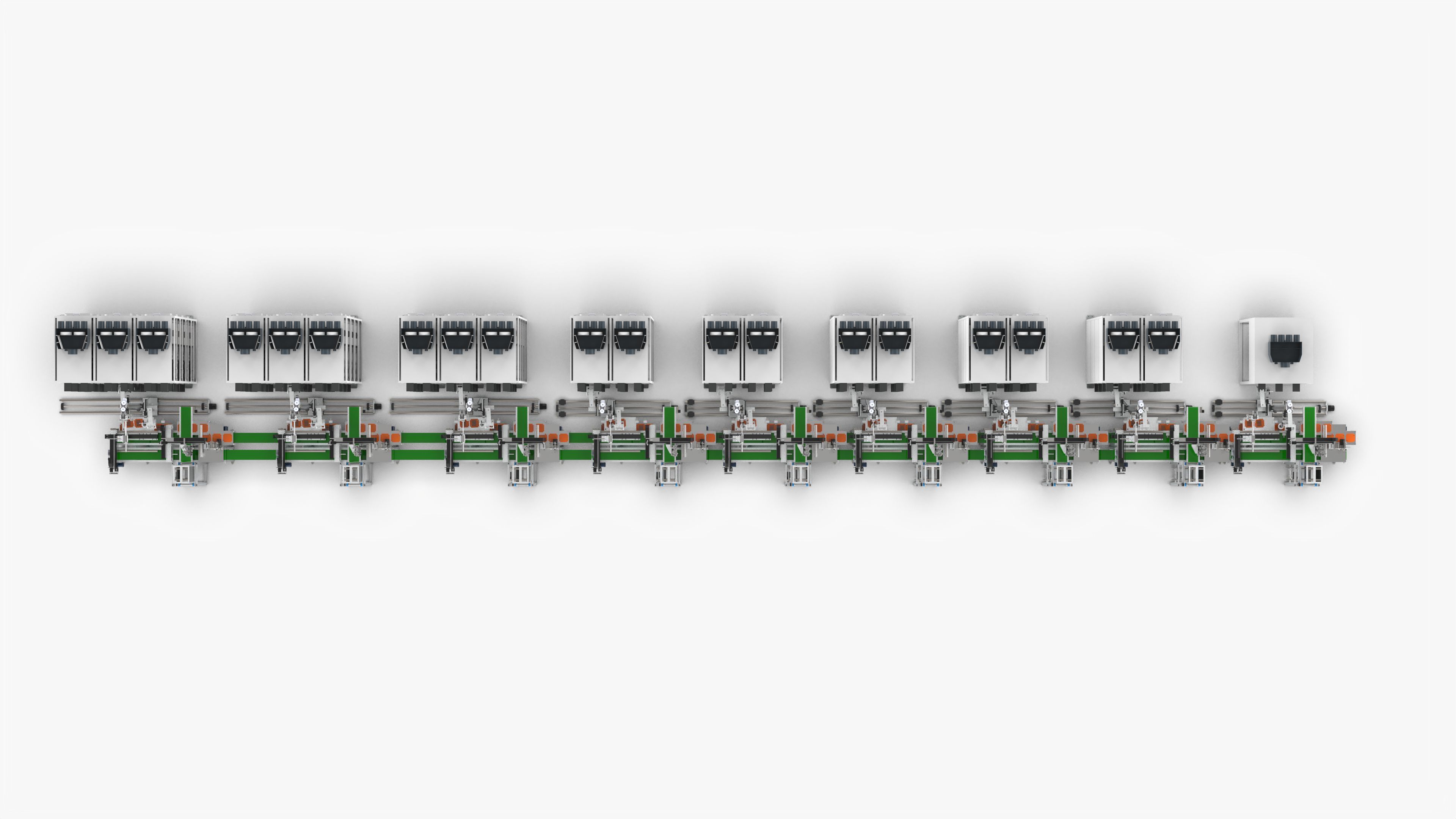

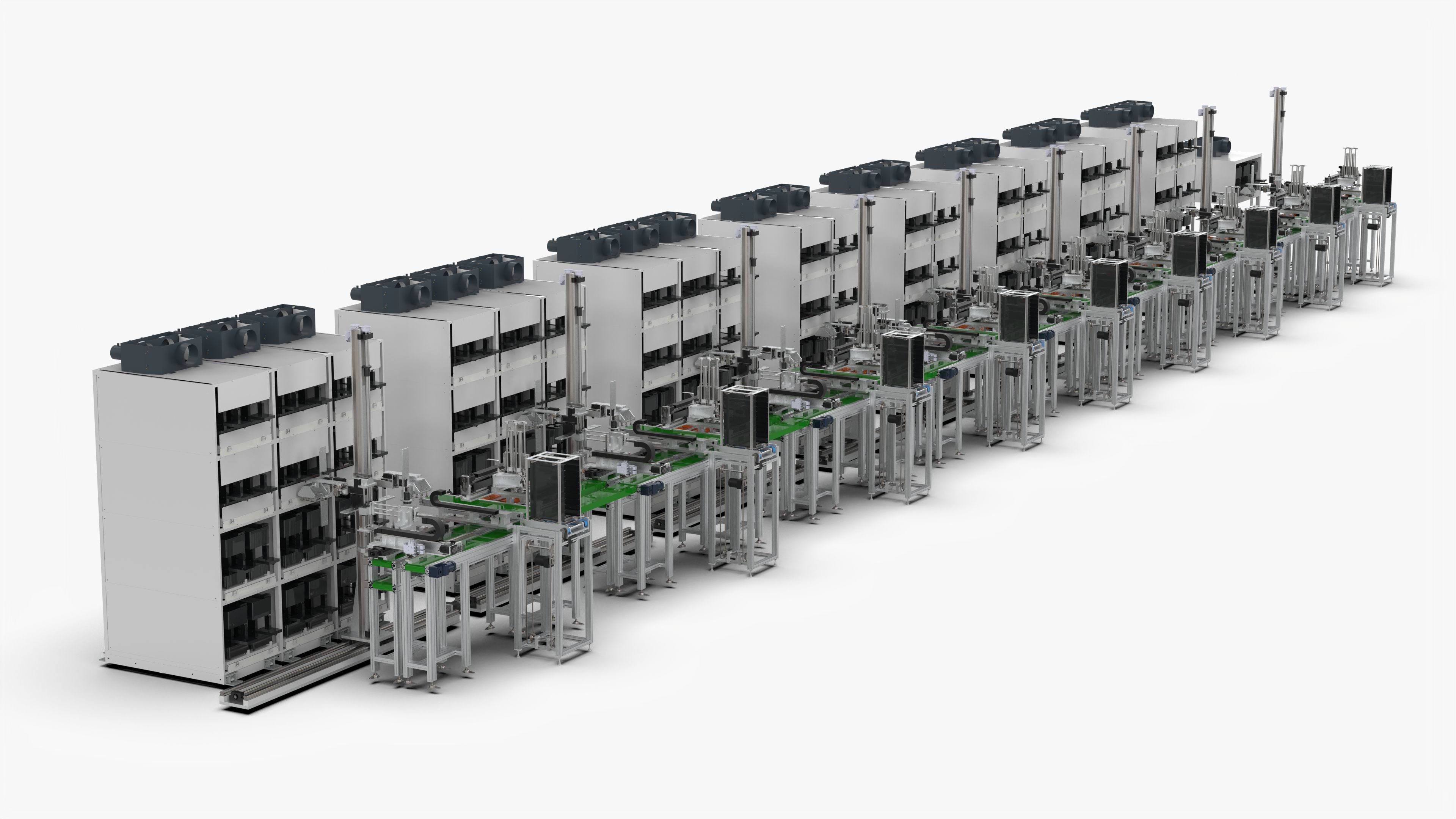

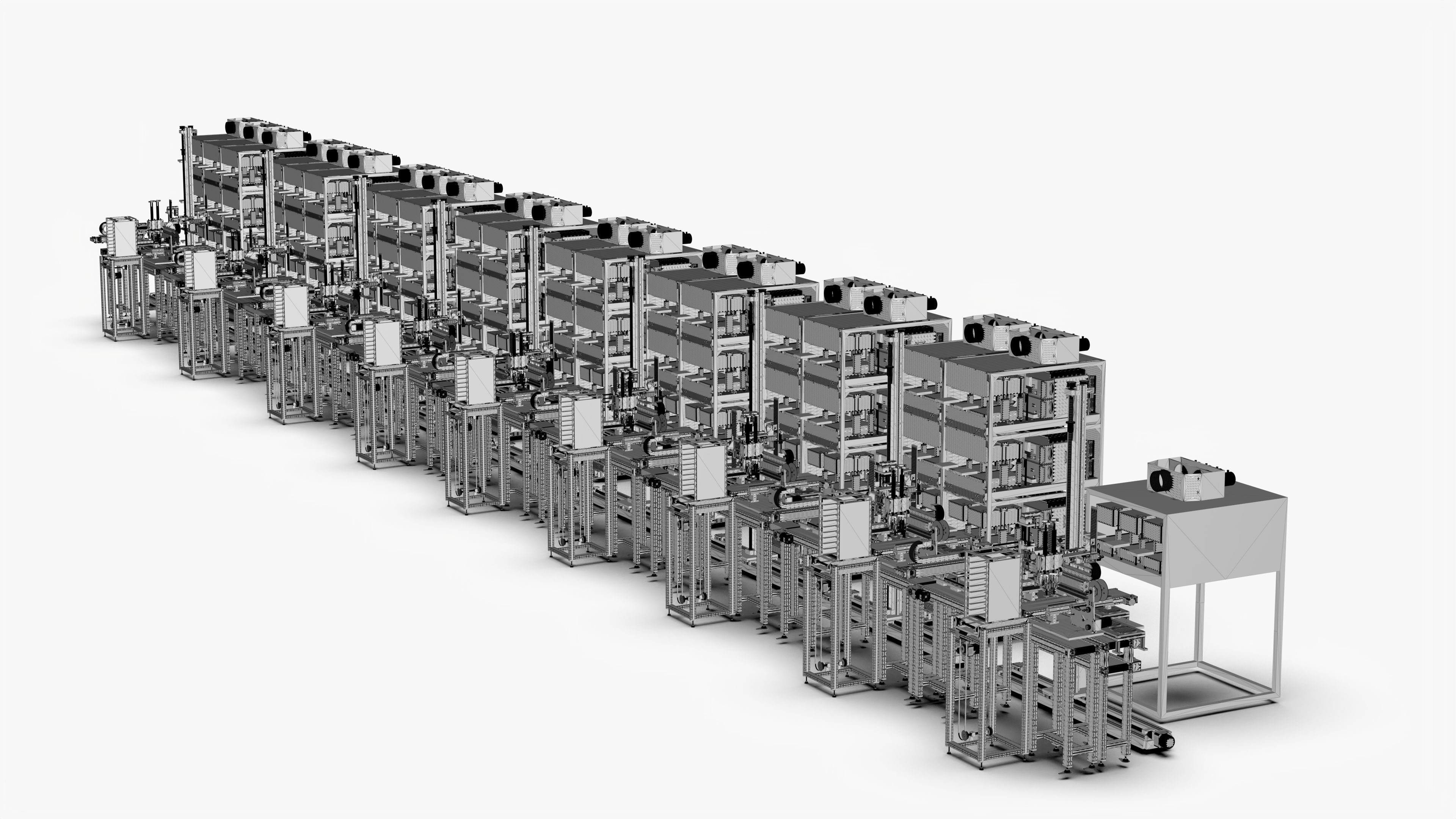

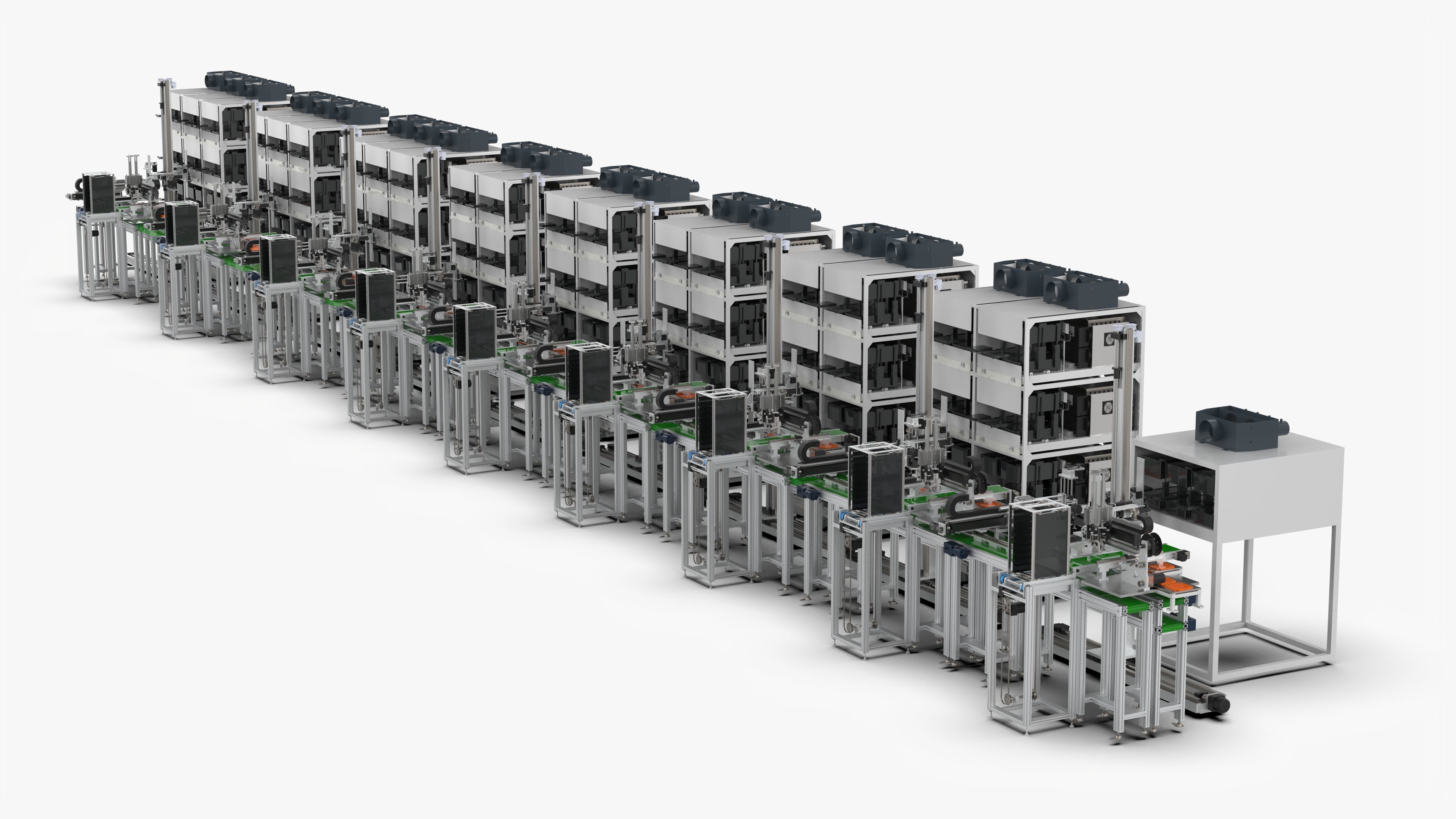

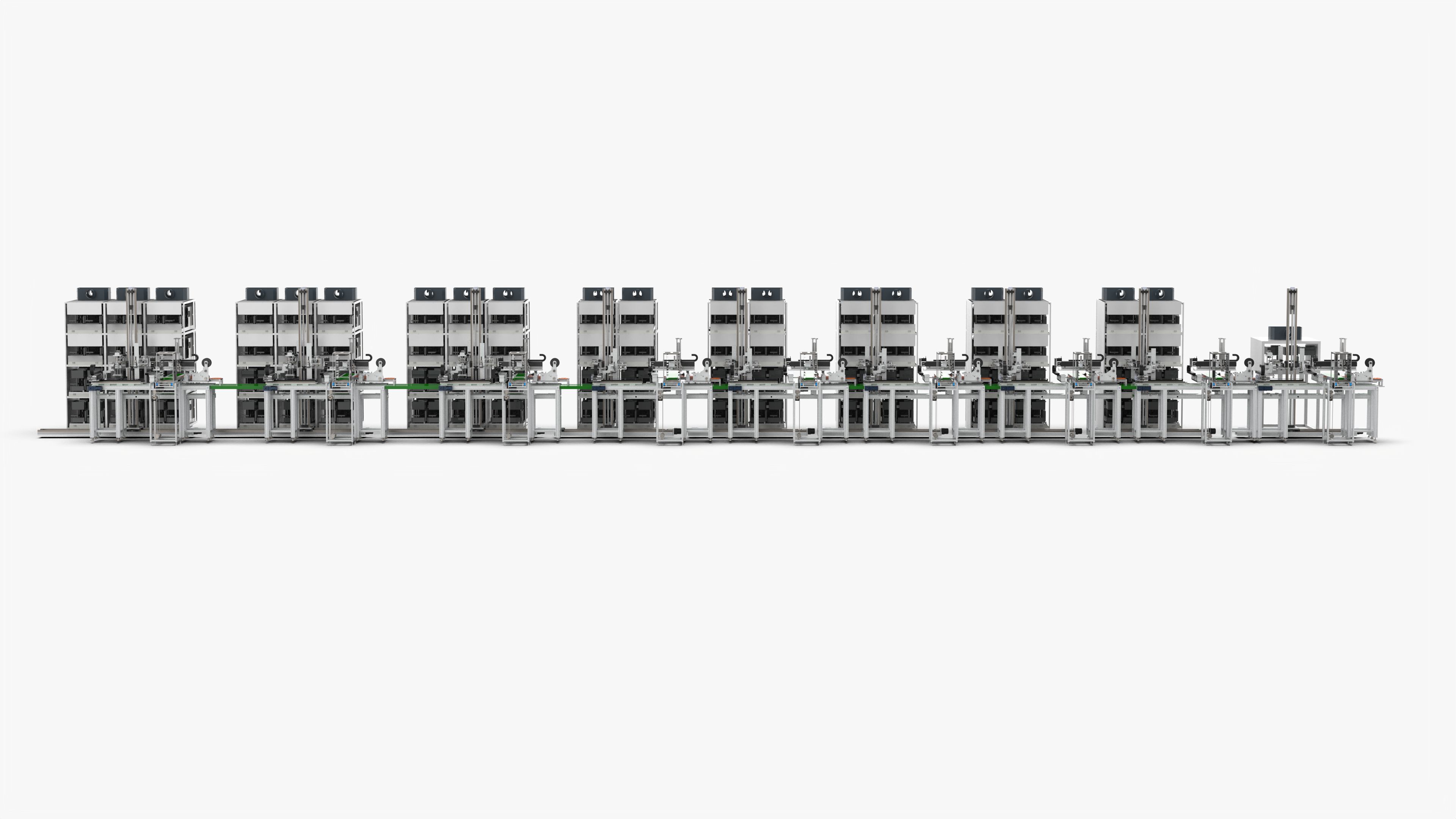

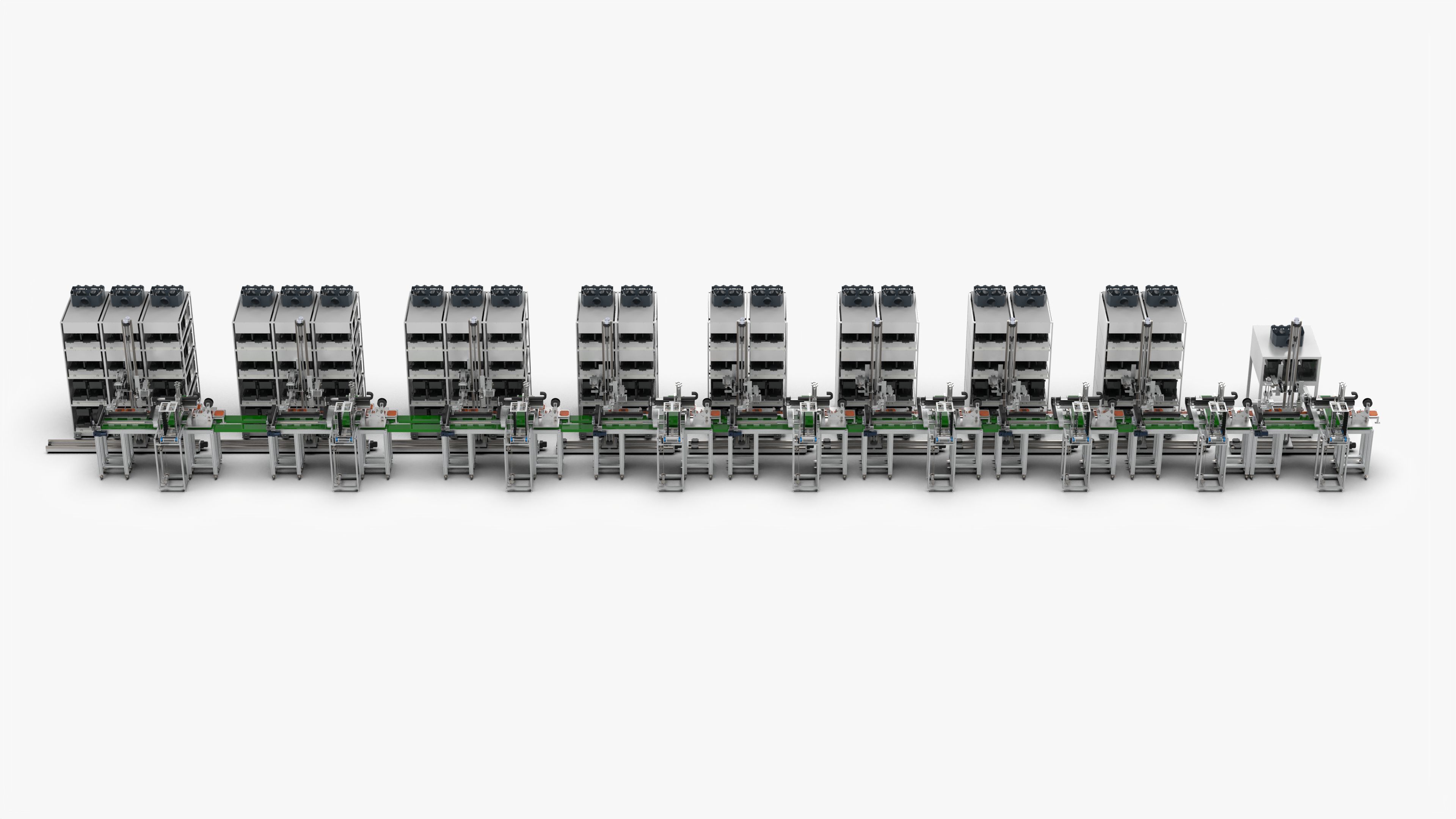

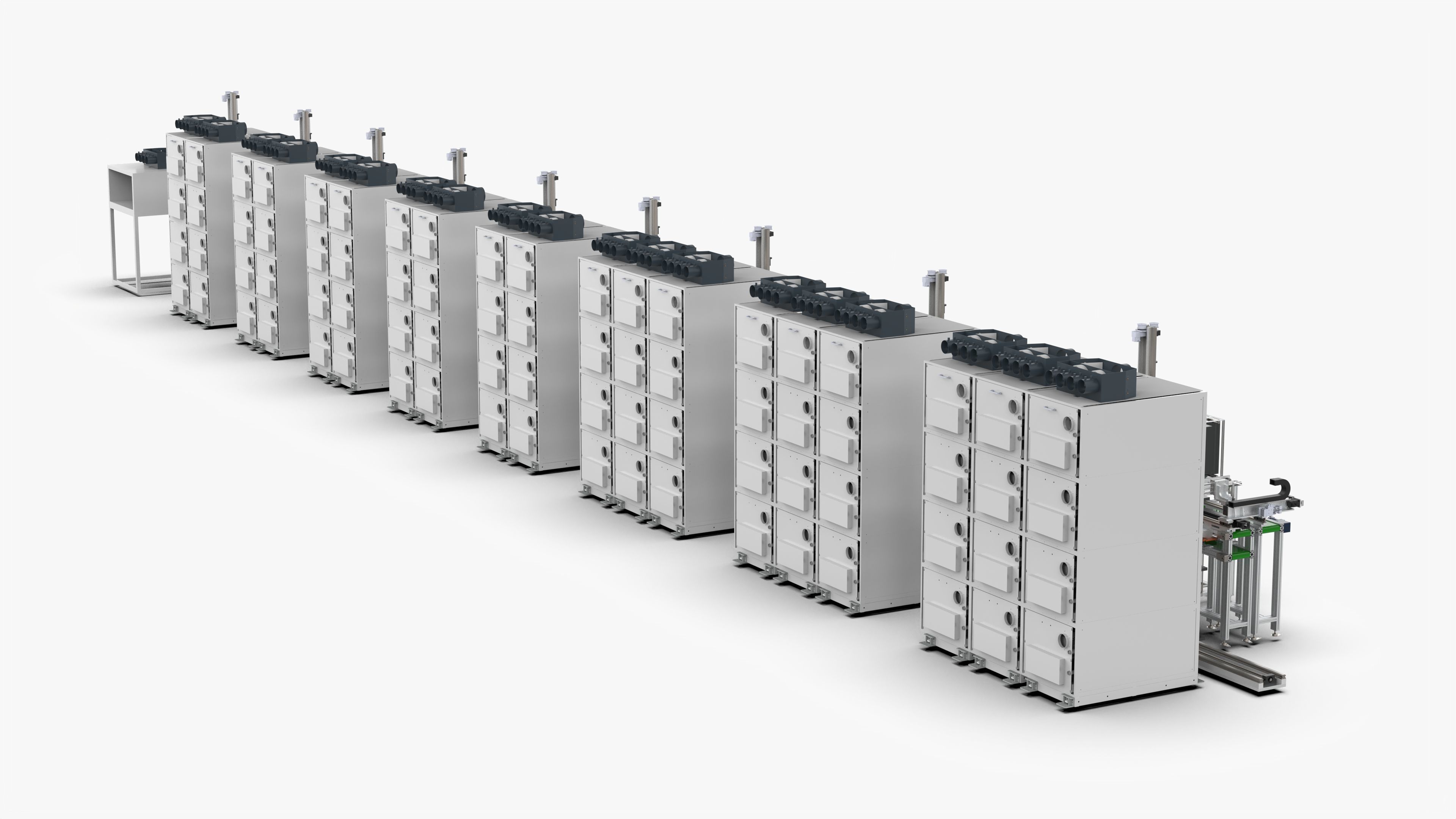

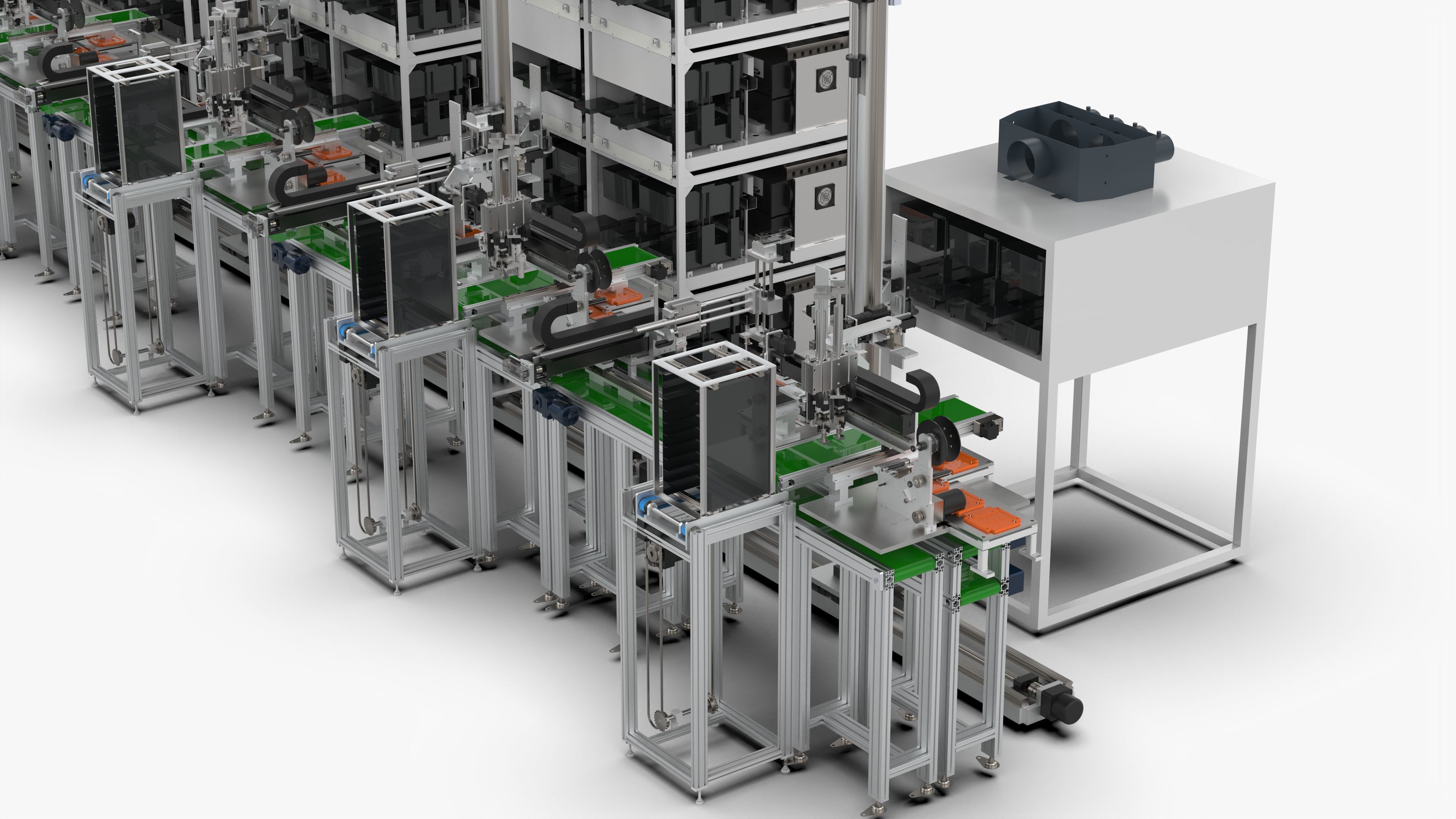

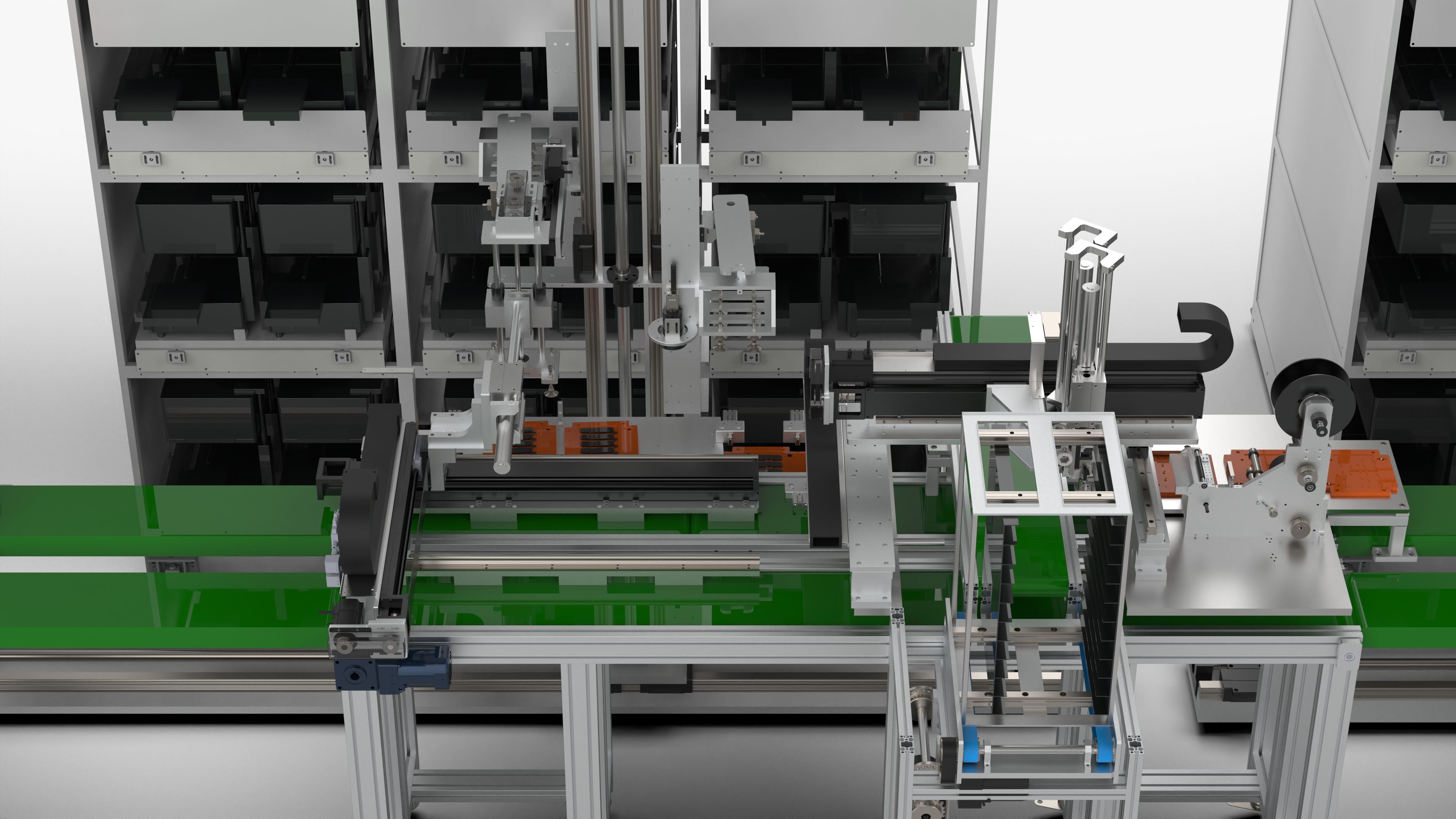

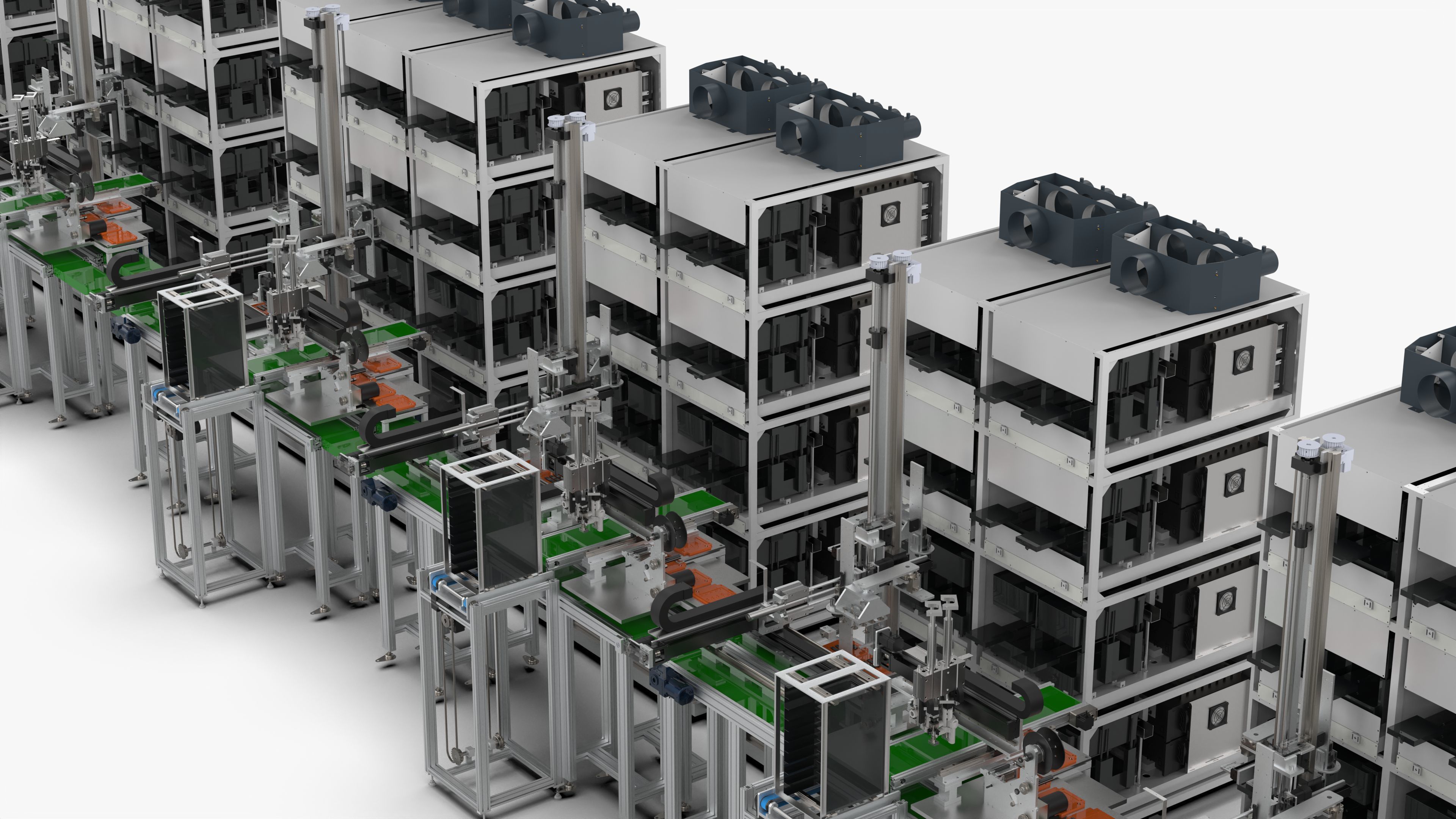

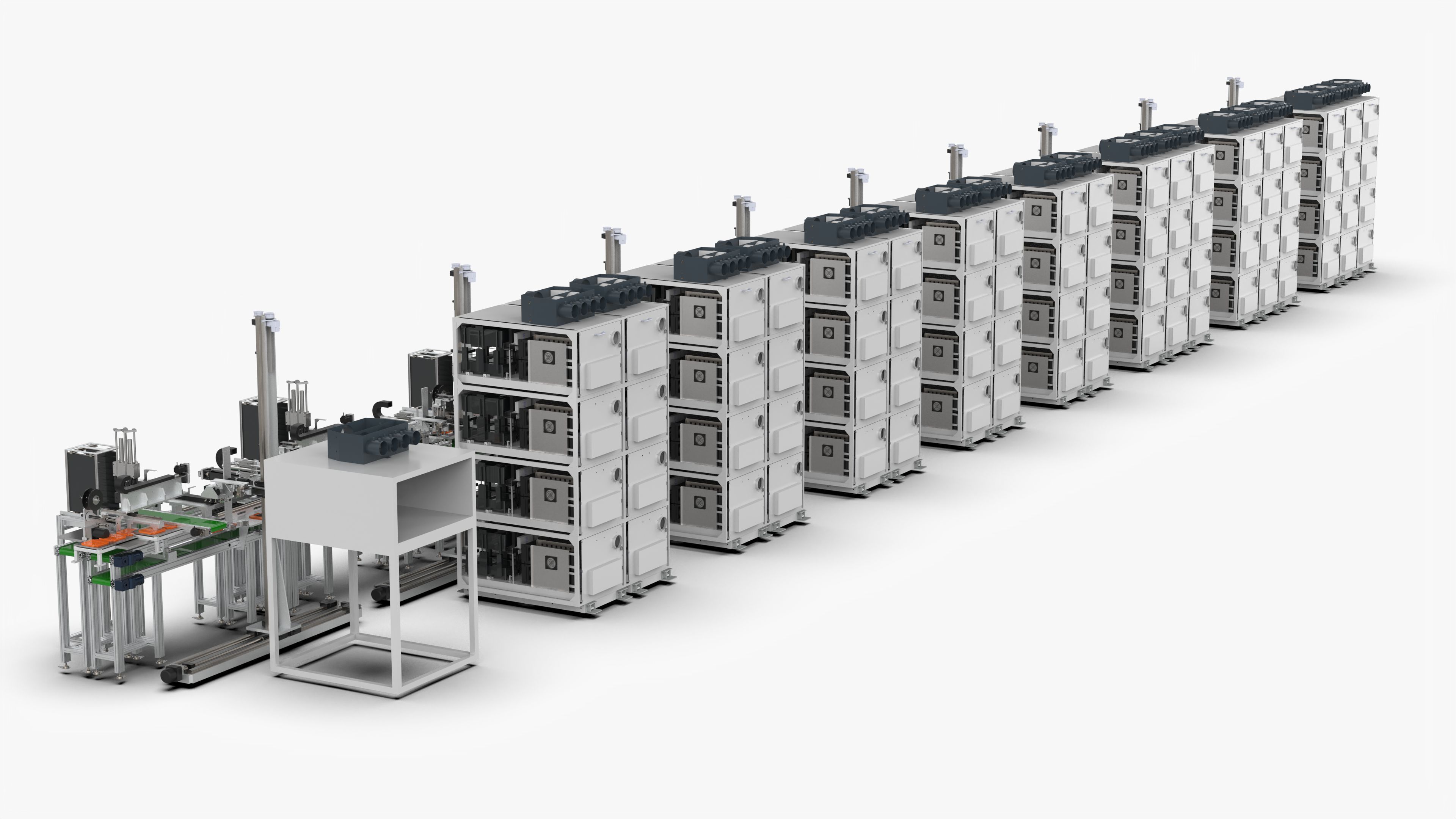

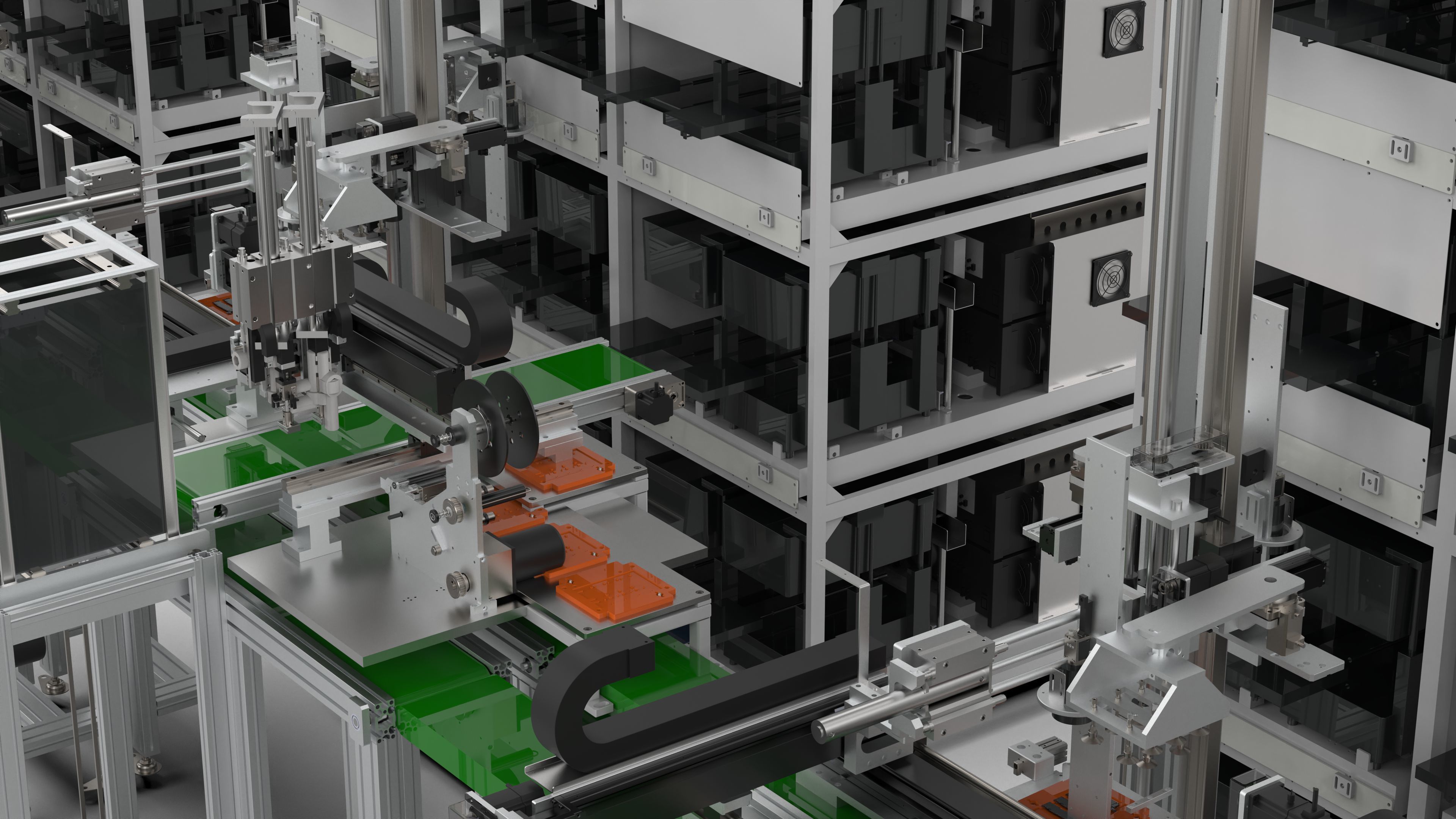

Aging Labeling Test Line Body SMT 3D model

Aging Labeling Test Line Body SMT

Introduction

Each position of the aging labeling test line SMT can control the force and test separately, the test force is adjustable, the adjustment force: 0~1KG; configure a set of computer and software to record the number of tests; it can accurately record the force of the product and the emergency response Stop under the state, with the setting function for electrical safety. The automatic control force mechanism adopts a pulse-type servo motor to drive the ball screw nut mechanism, and presses down to test the contact force between the roller and the mouse wheel. The force is given by the pressure sensor to set the force model. When the set value is reached, the servo motor stops.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 512,478,707
• Vertice: 788,310,612
