Aerial Work Platform JLG X1000AJ

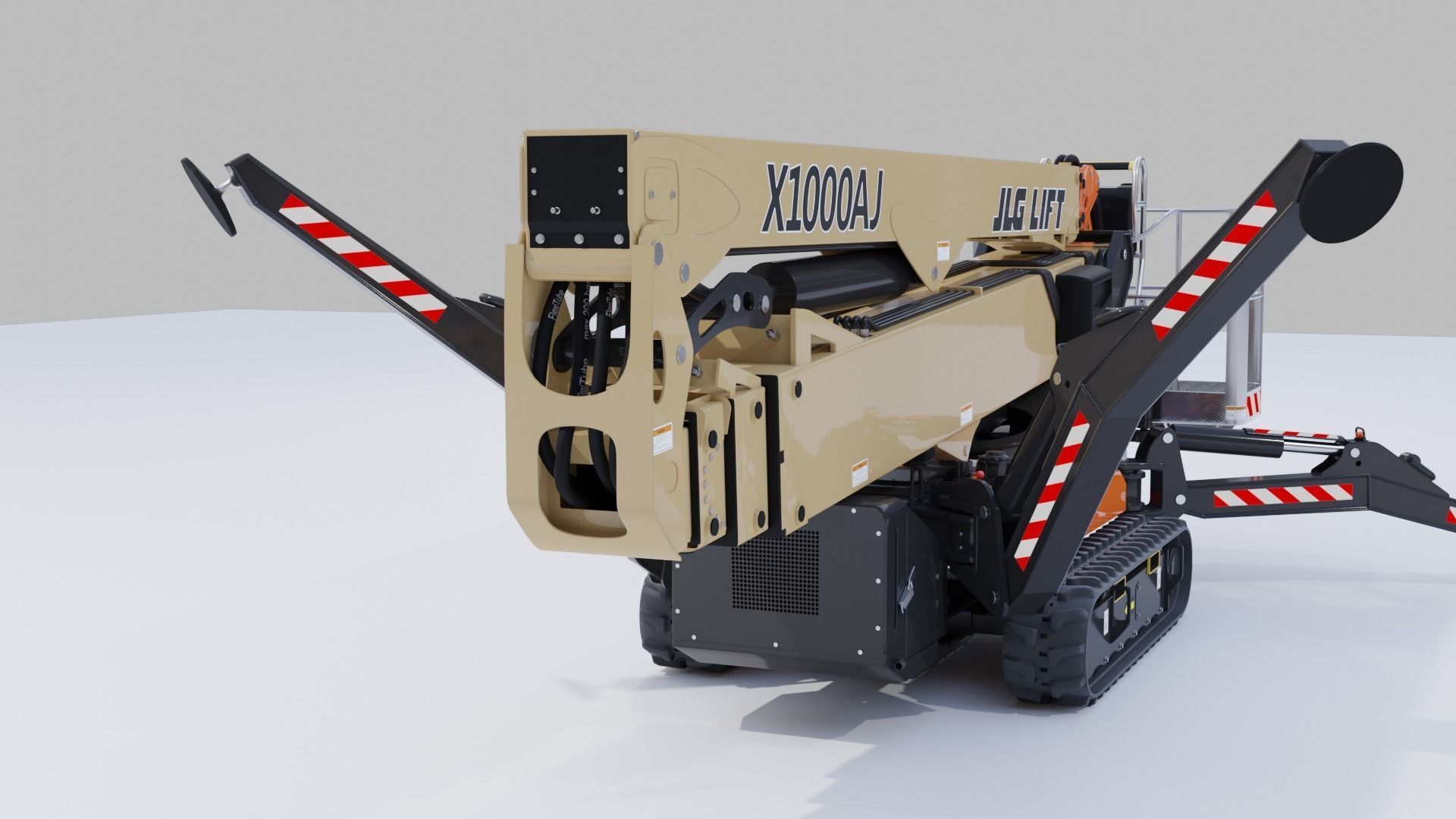

Aerial Work Platform JLG X1000AJ 3D model

Description

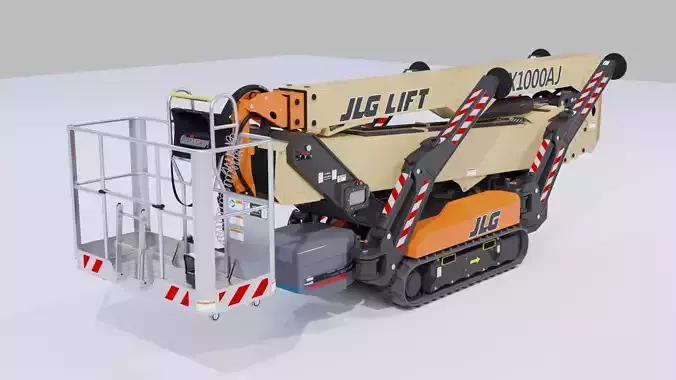

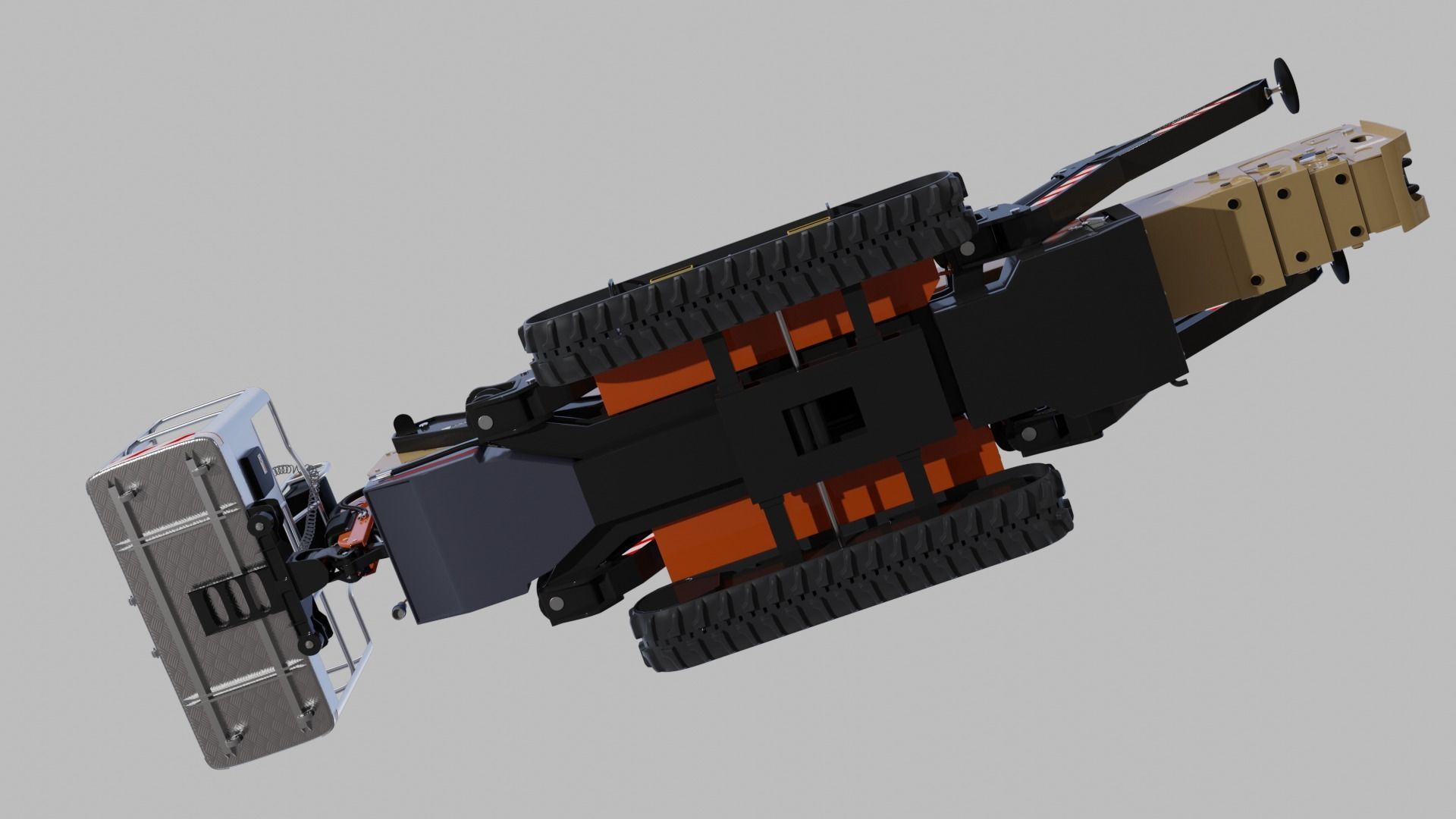

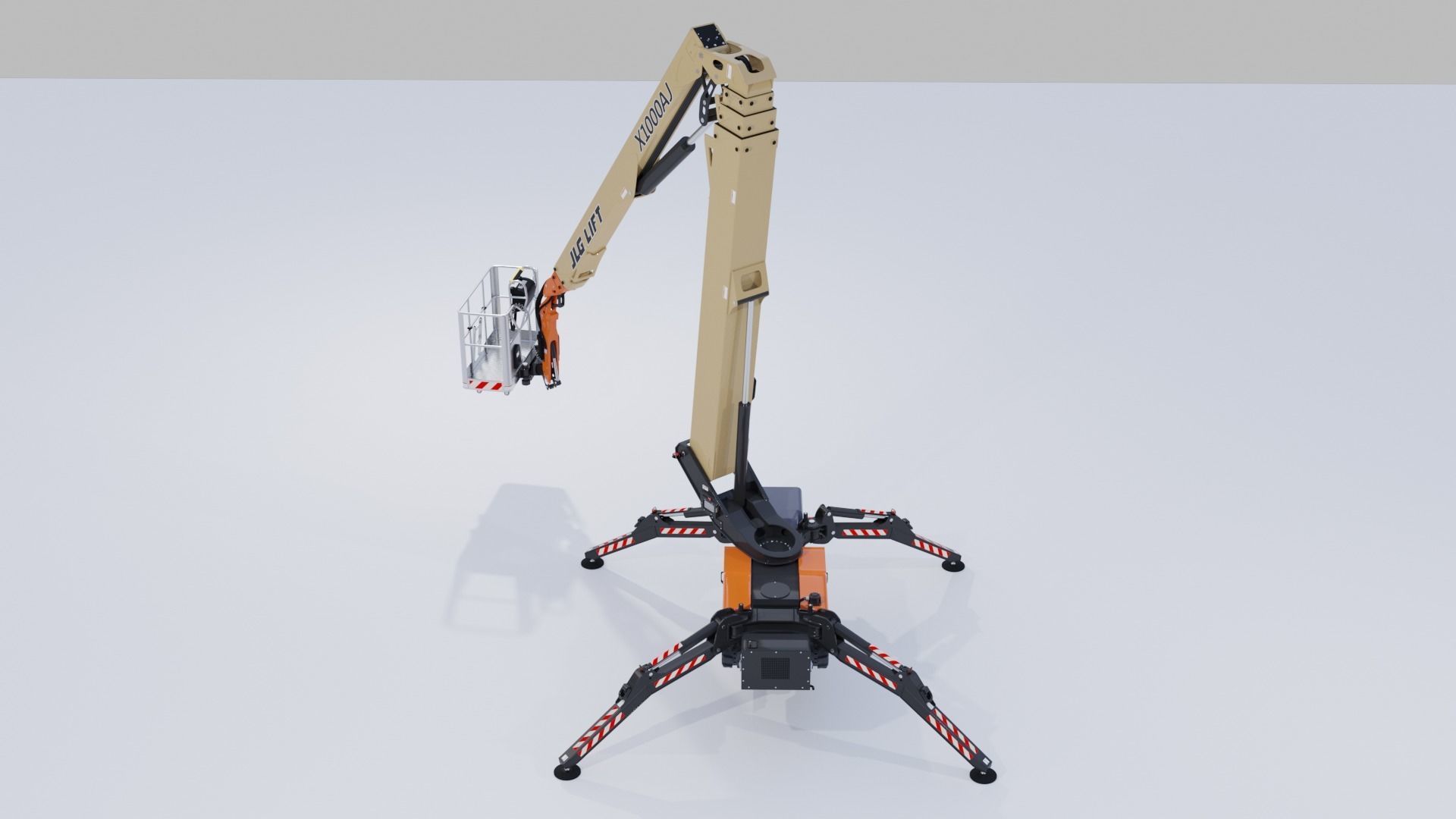

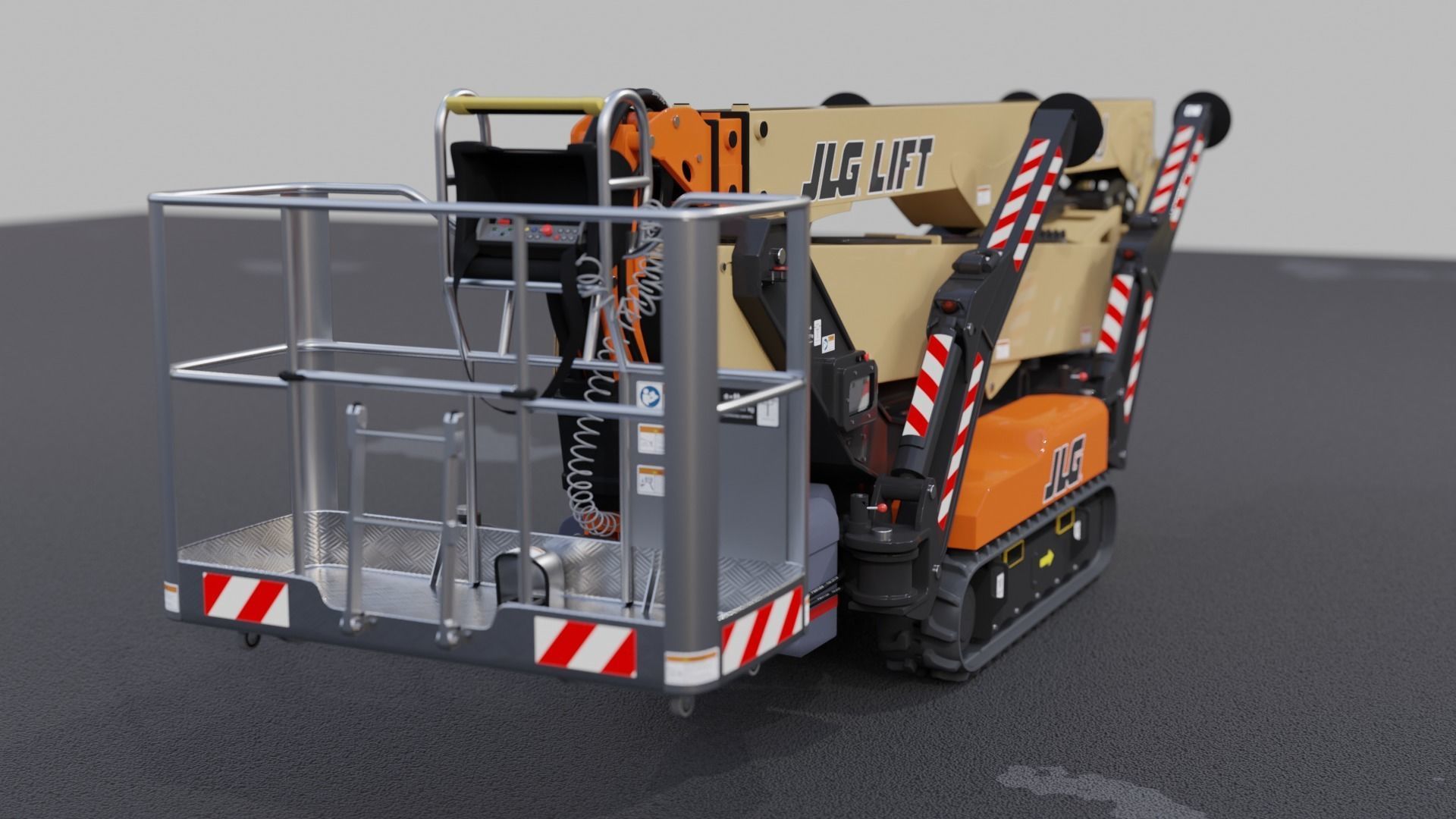

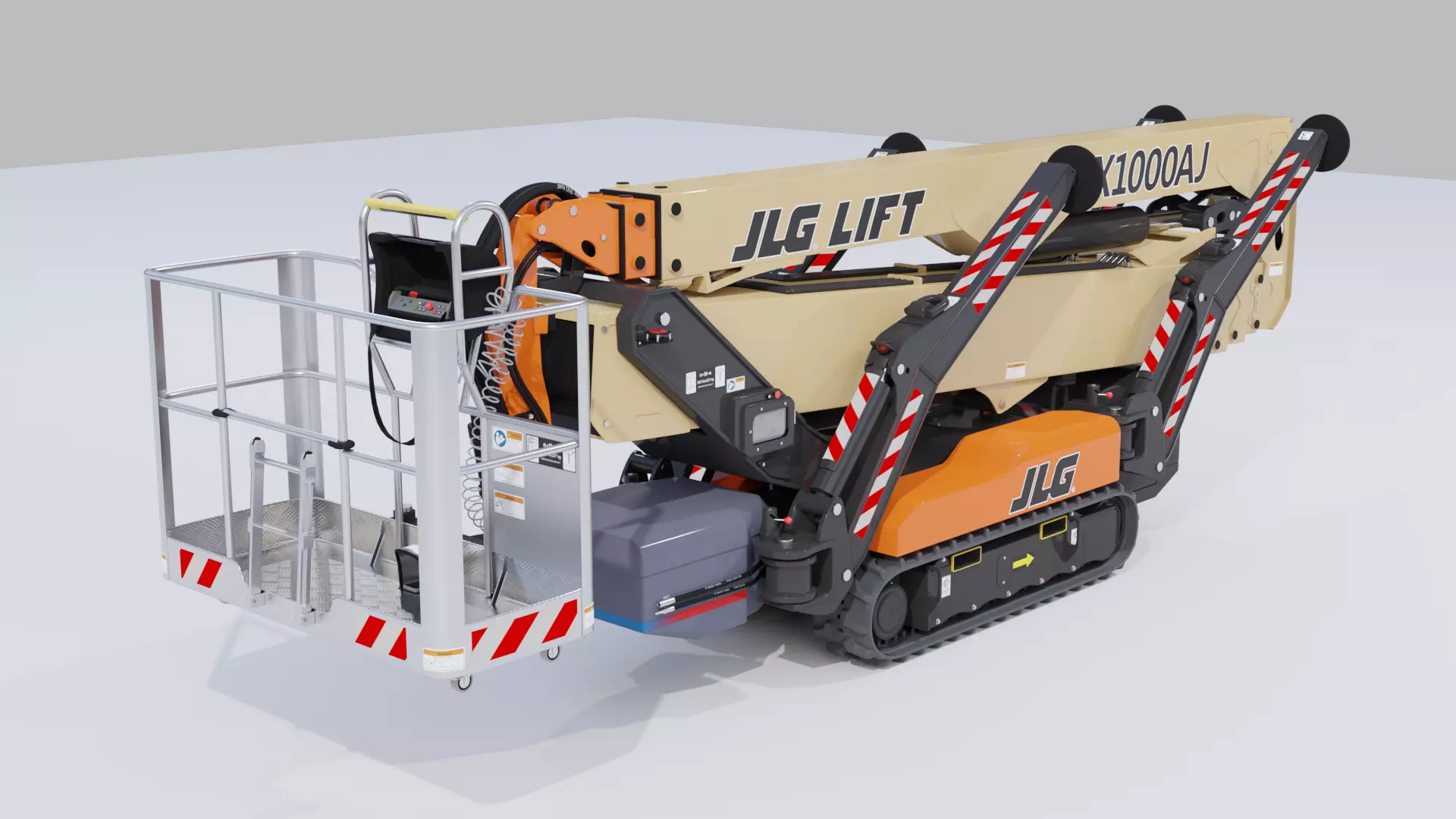

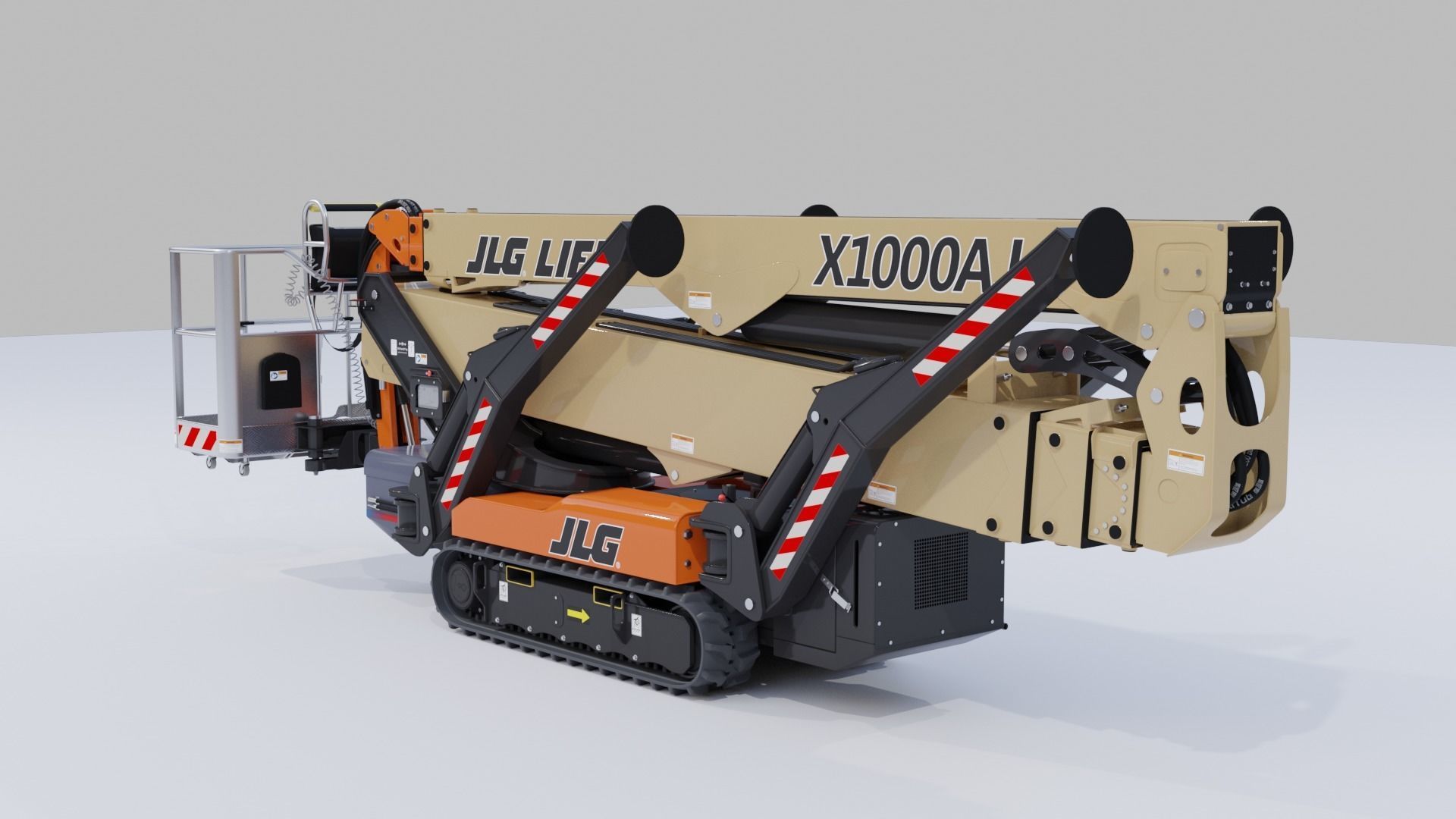

Extremely detailed, fully rigged model of a mobile elevating work platform based on JLG X1000AJ / X33JP and Hinowa LL33.17 machines. Original file created in Blender 2.81 for Cycles and Eevee render engine.

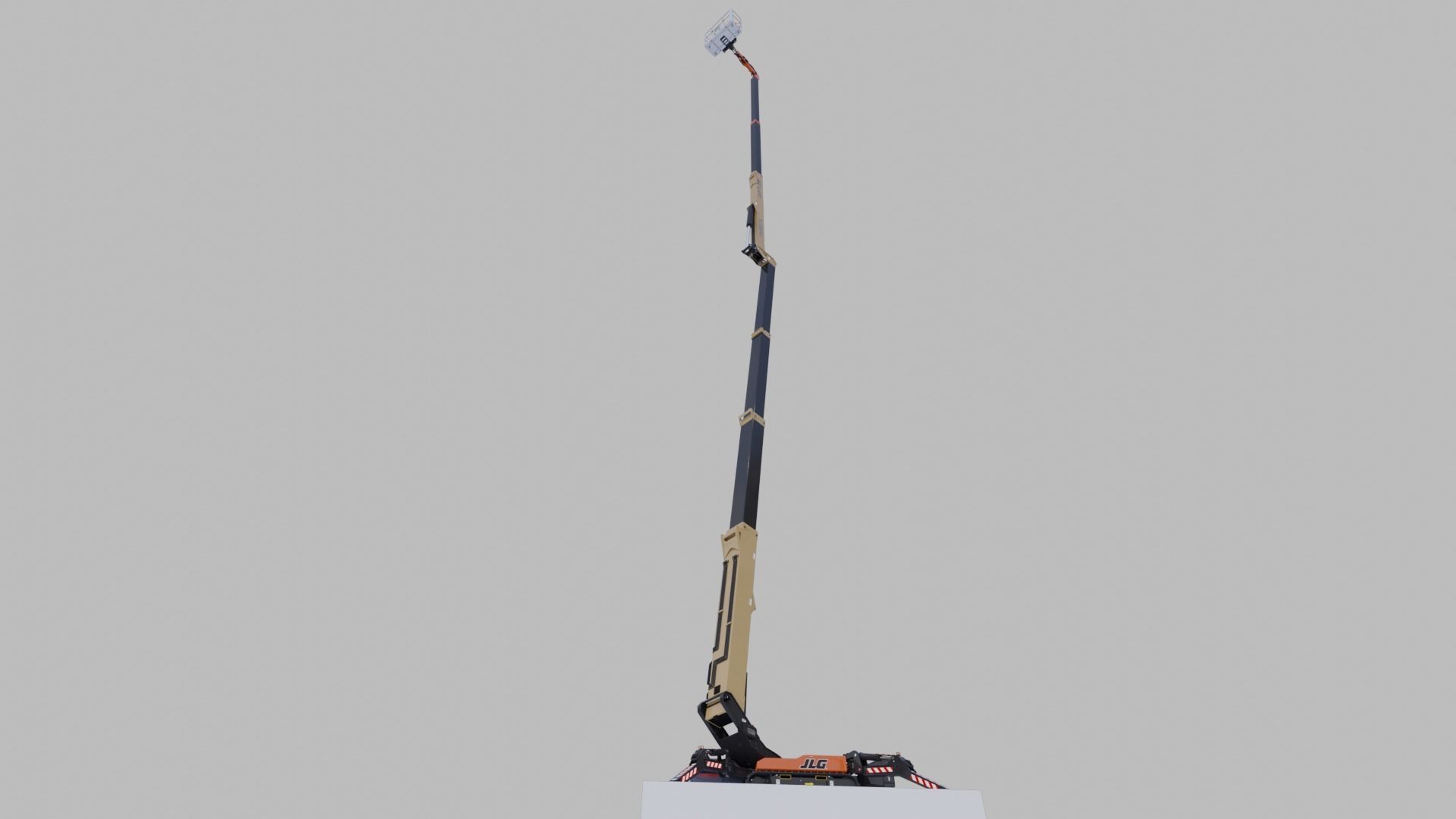

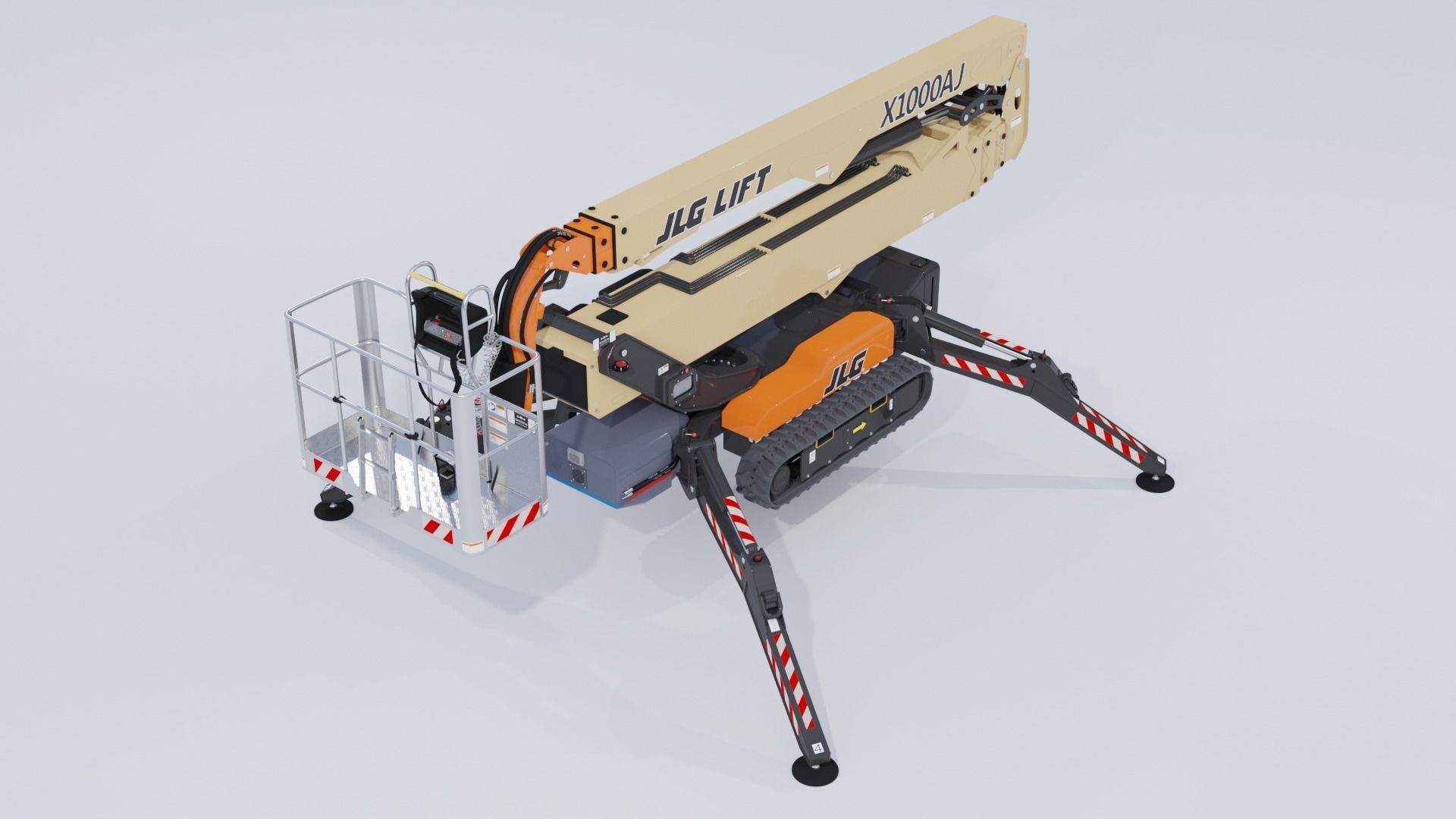

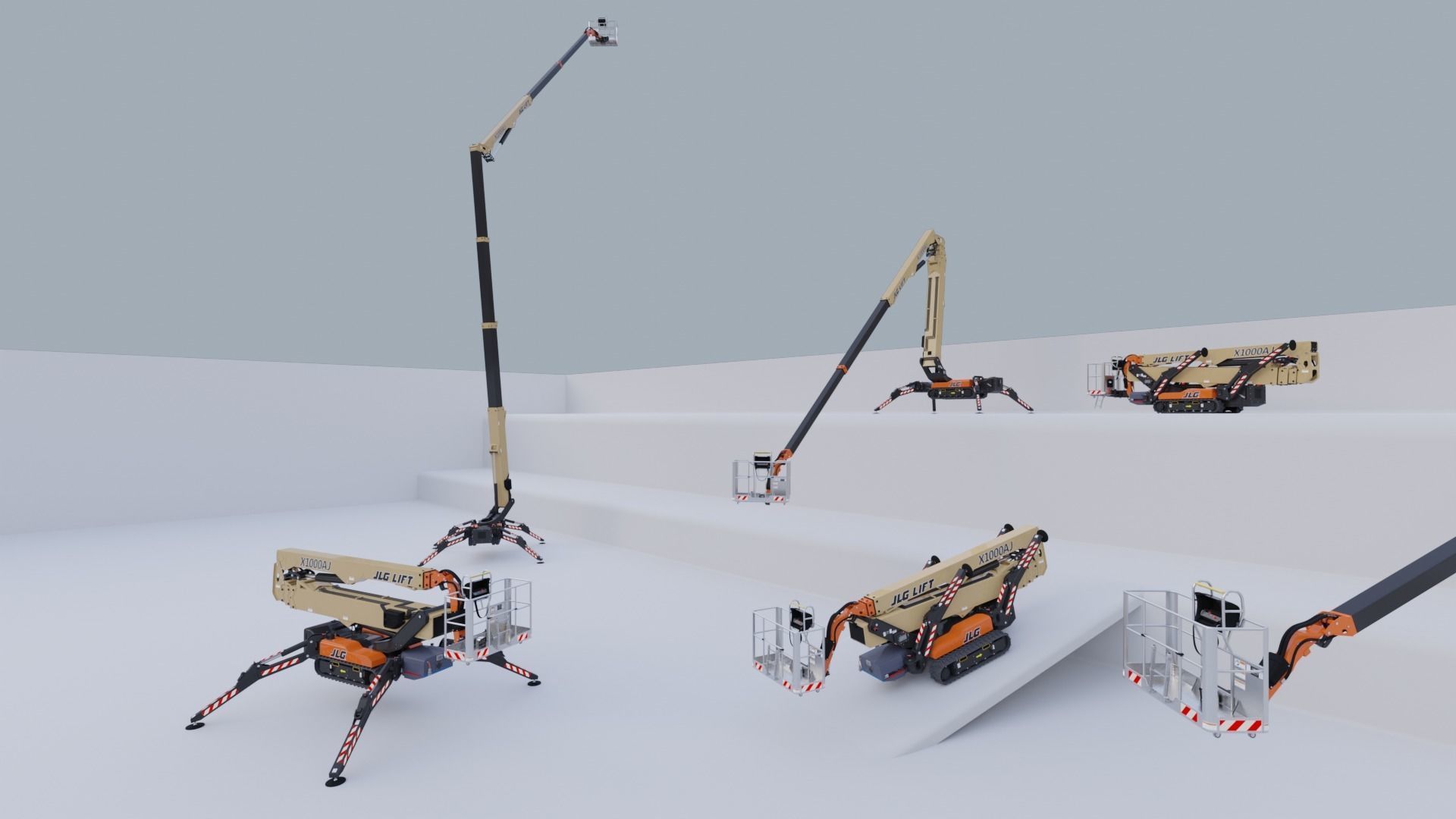

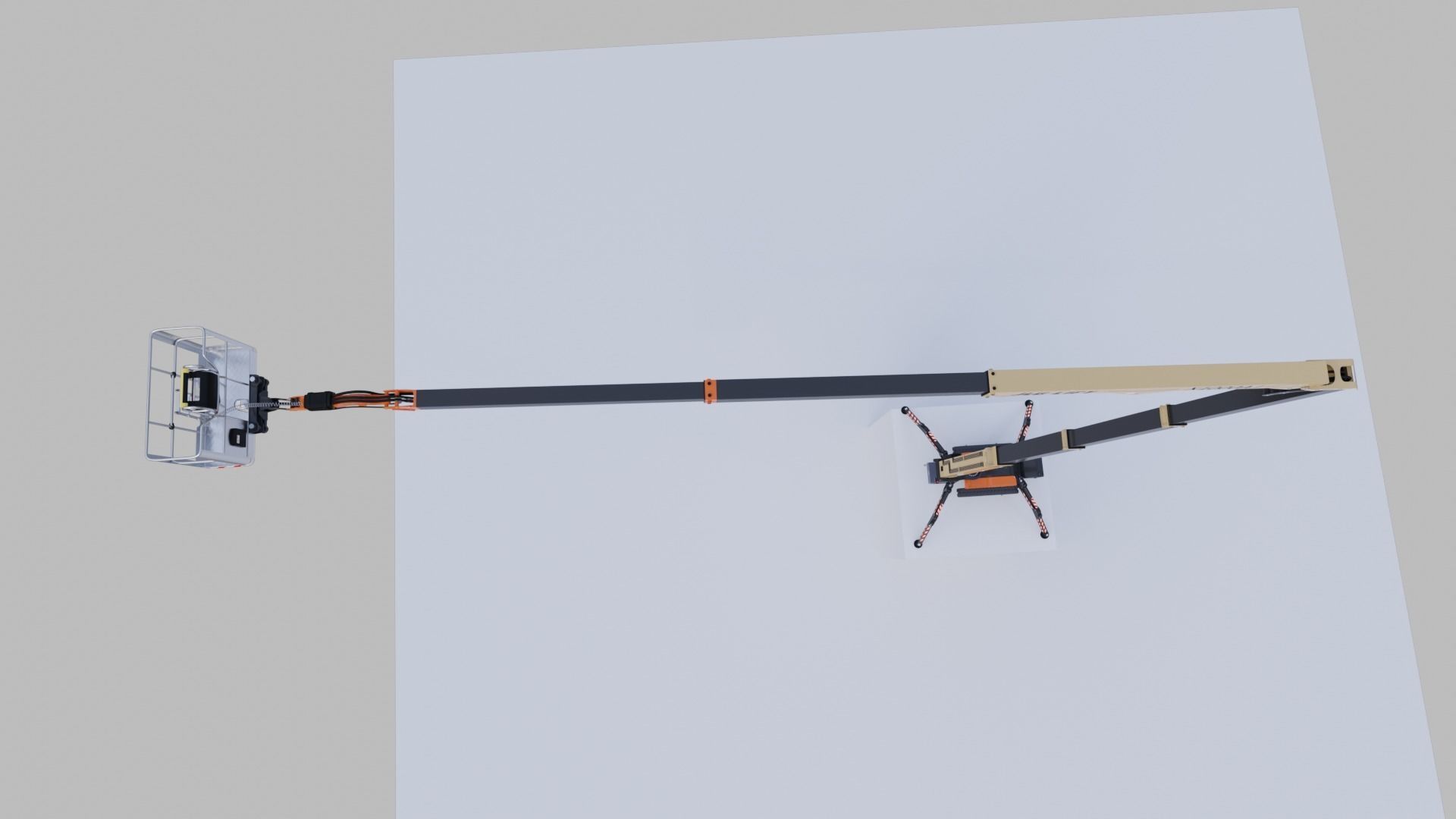

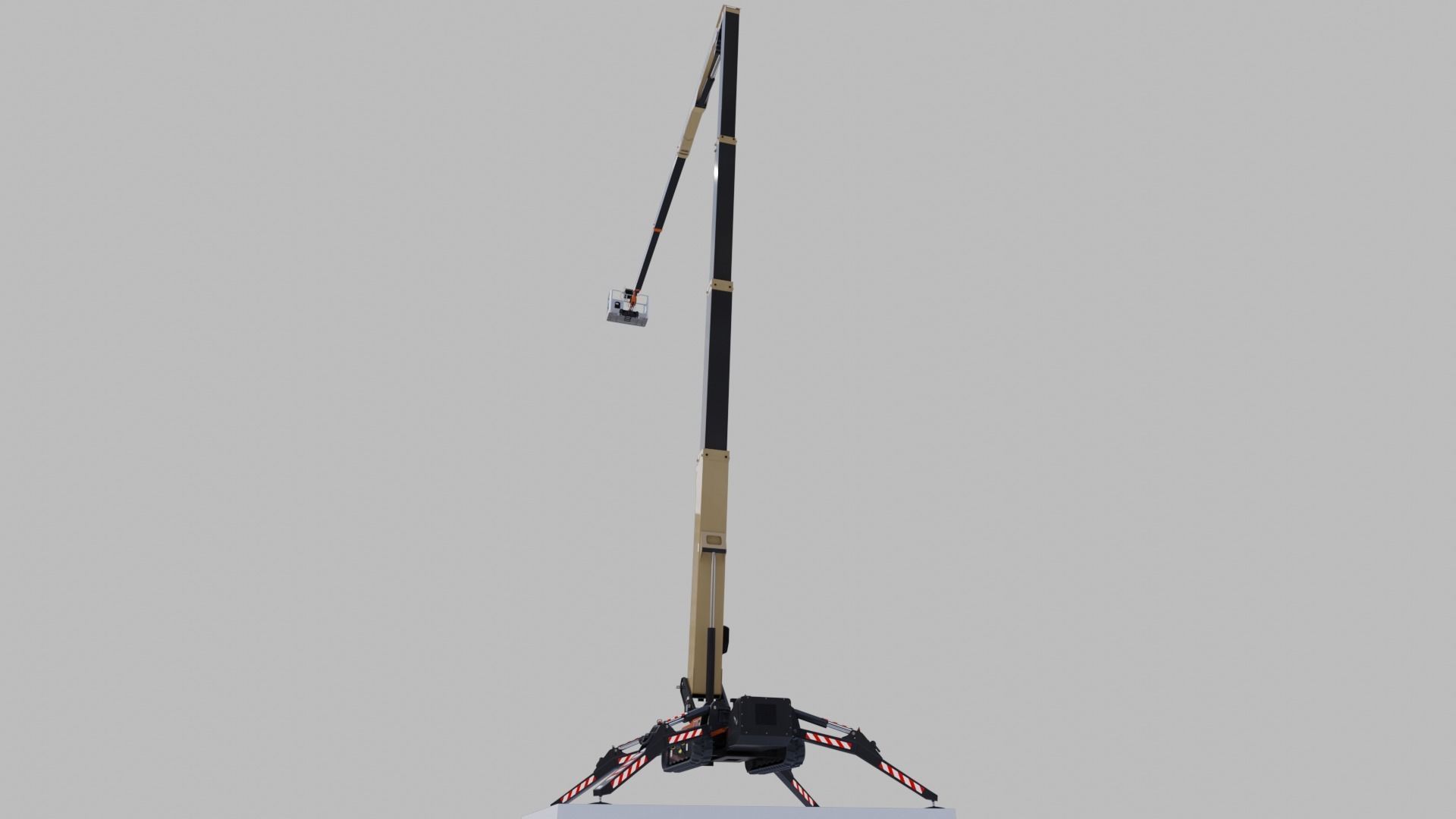

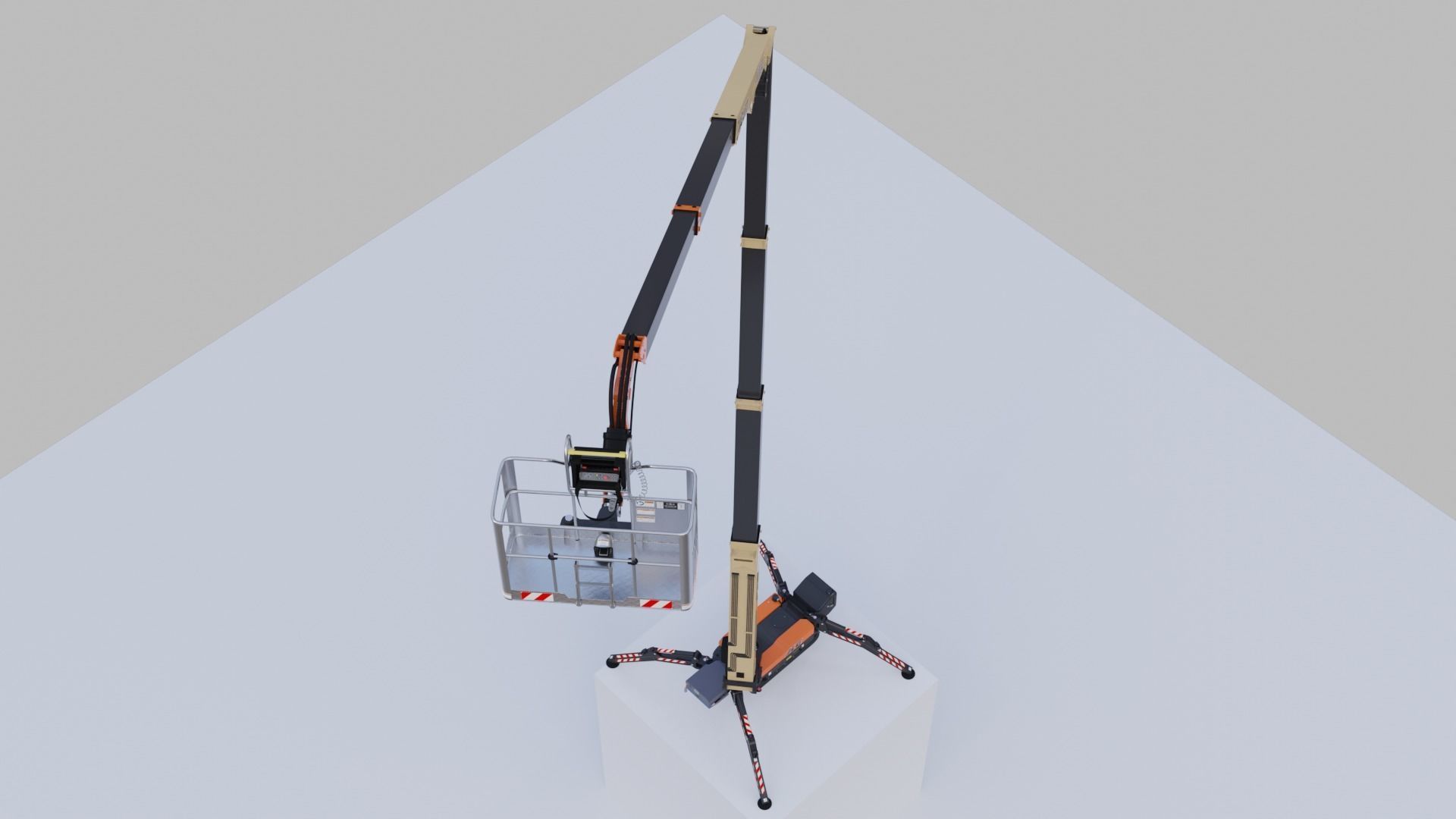

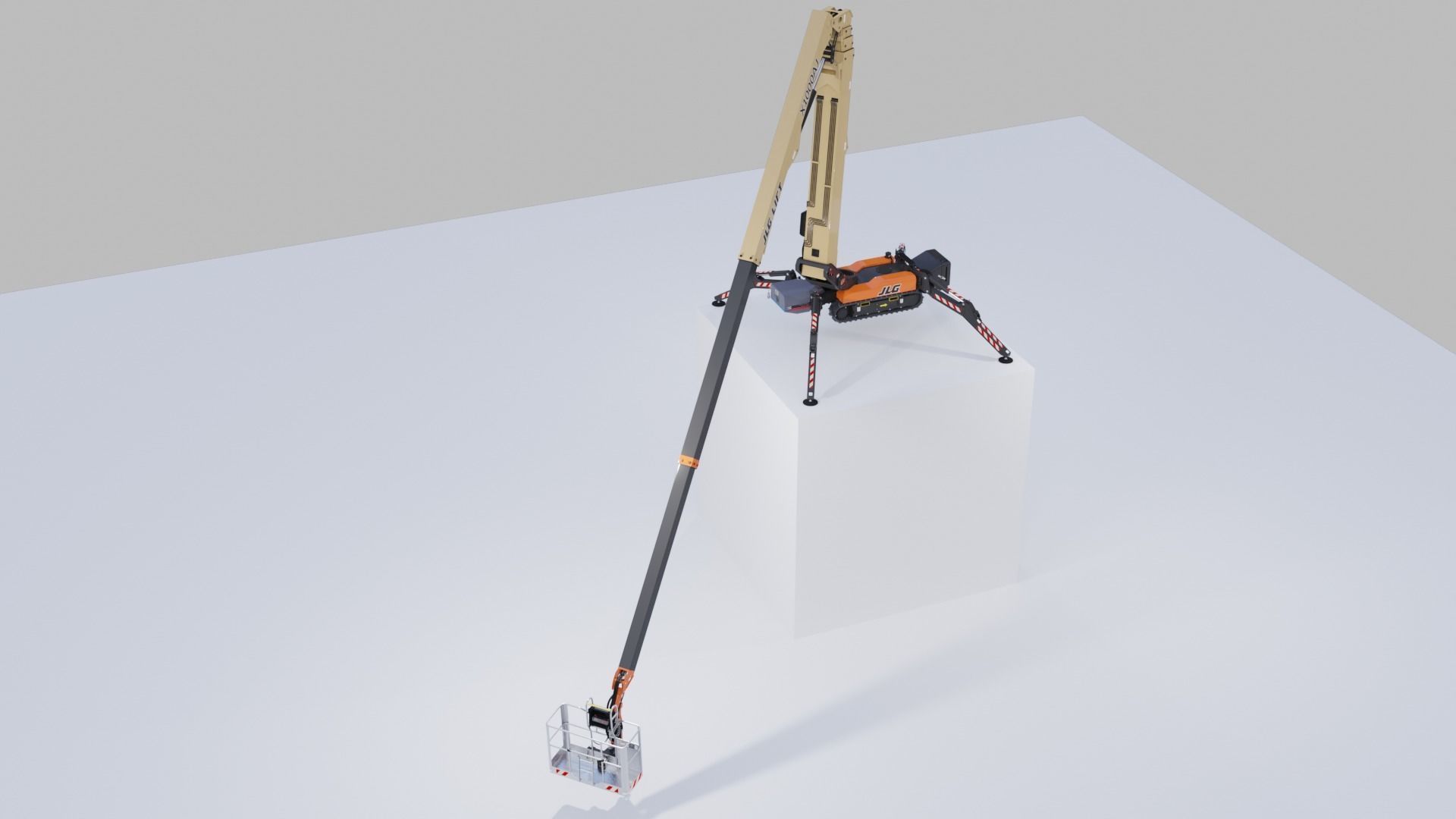

  • Fully rigged: stabilizer movements, track extension, aerial rotation, tower lift, tower extension, boom lift, boom extension, jib lift, basket levelling, basket rotation and basket ladder
  • Correct scaling
  • Optimized polygon count

  • Objects named and organized in collections (see Screenshot)

  • Materials are named

  • Mostly procedural textures

  • Where image textures are used, UV unwrapping done and image textures (including .blend and gimp files) part of download

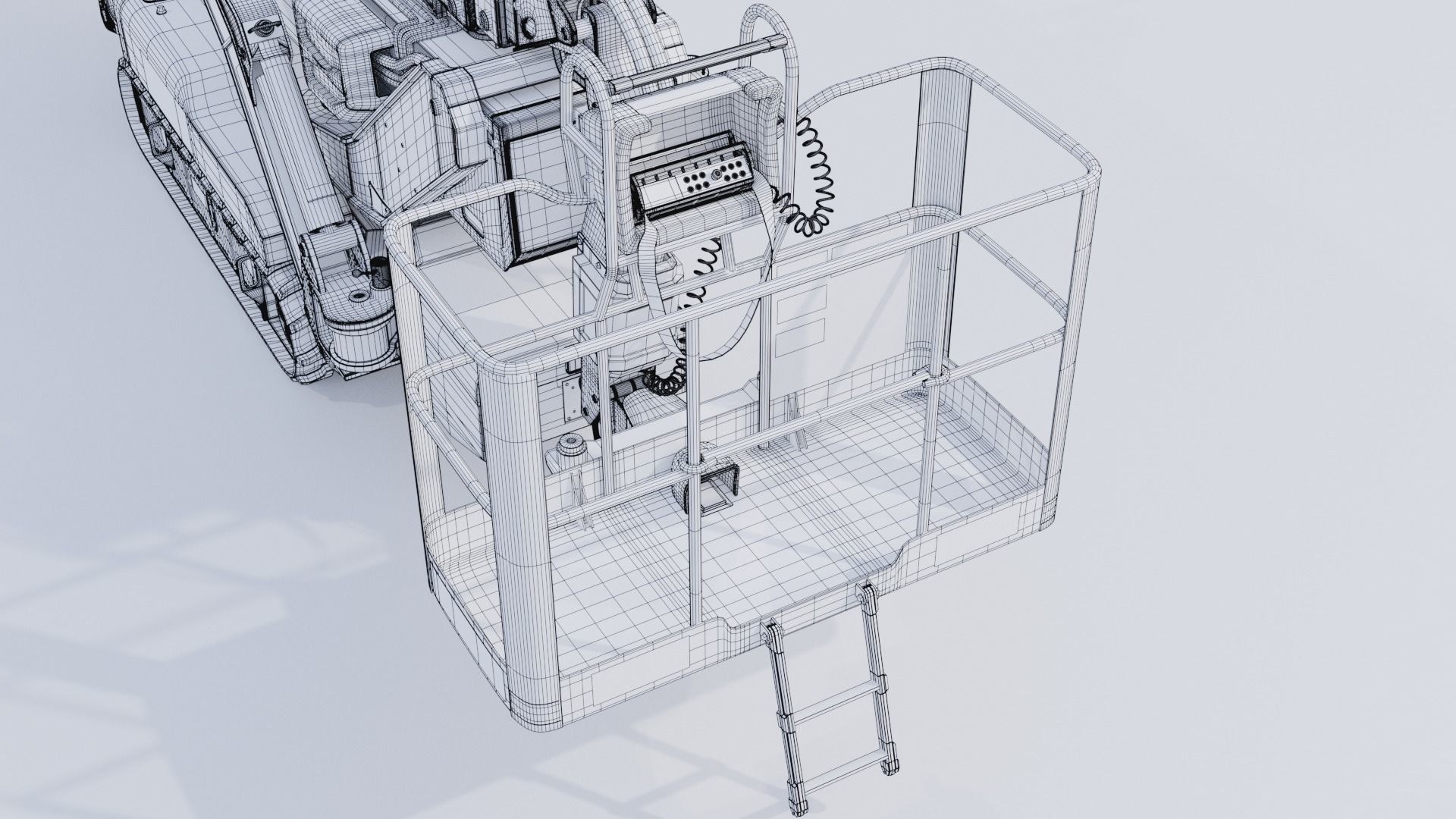

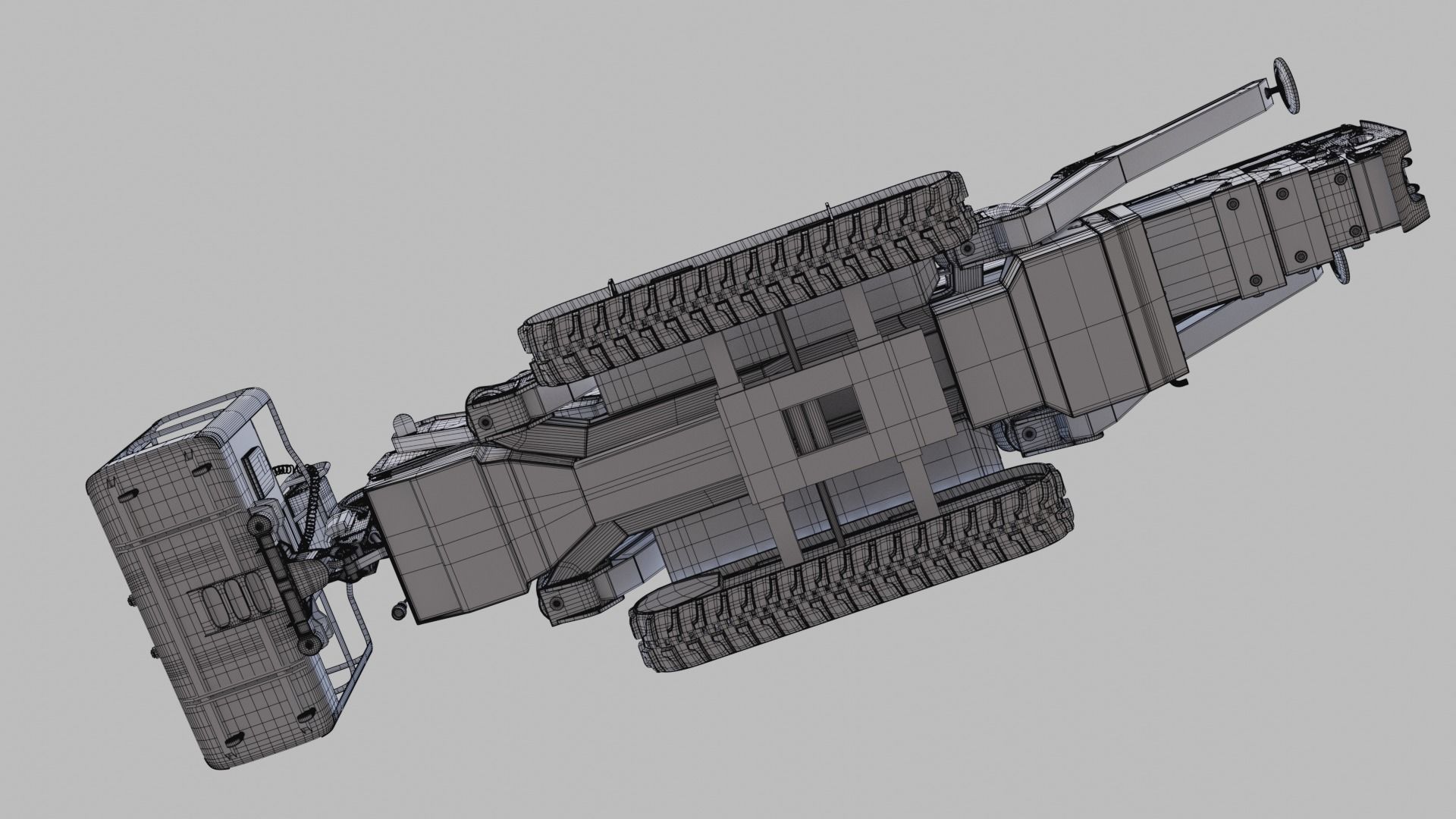

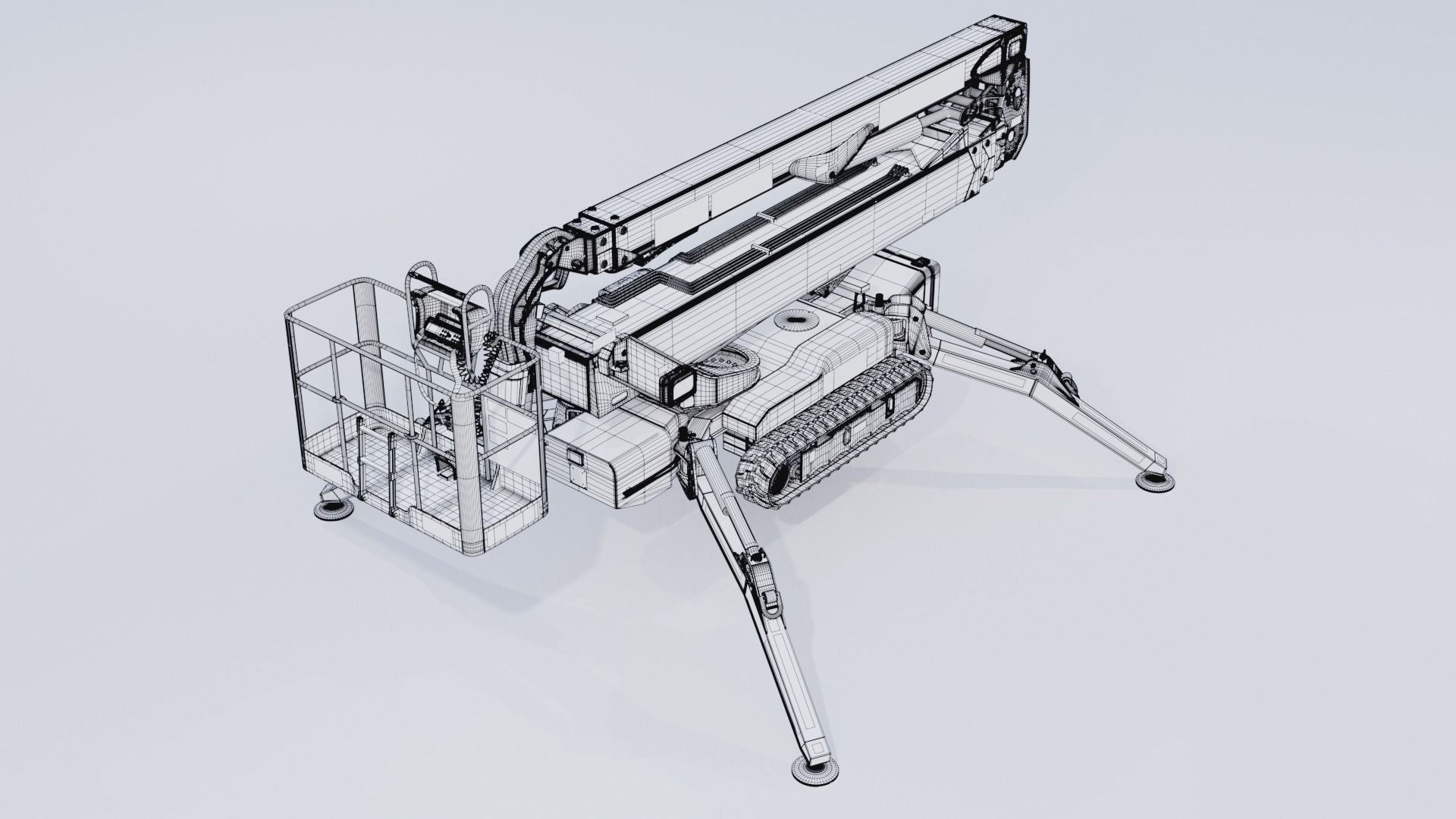

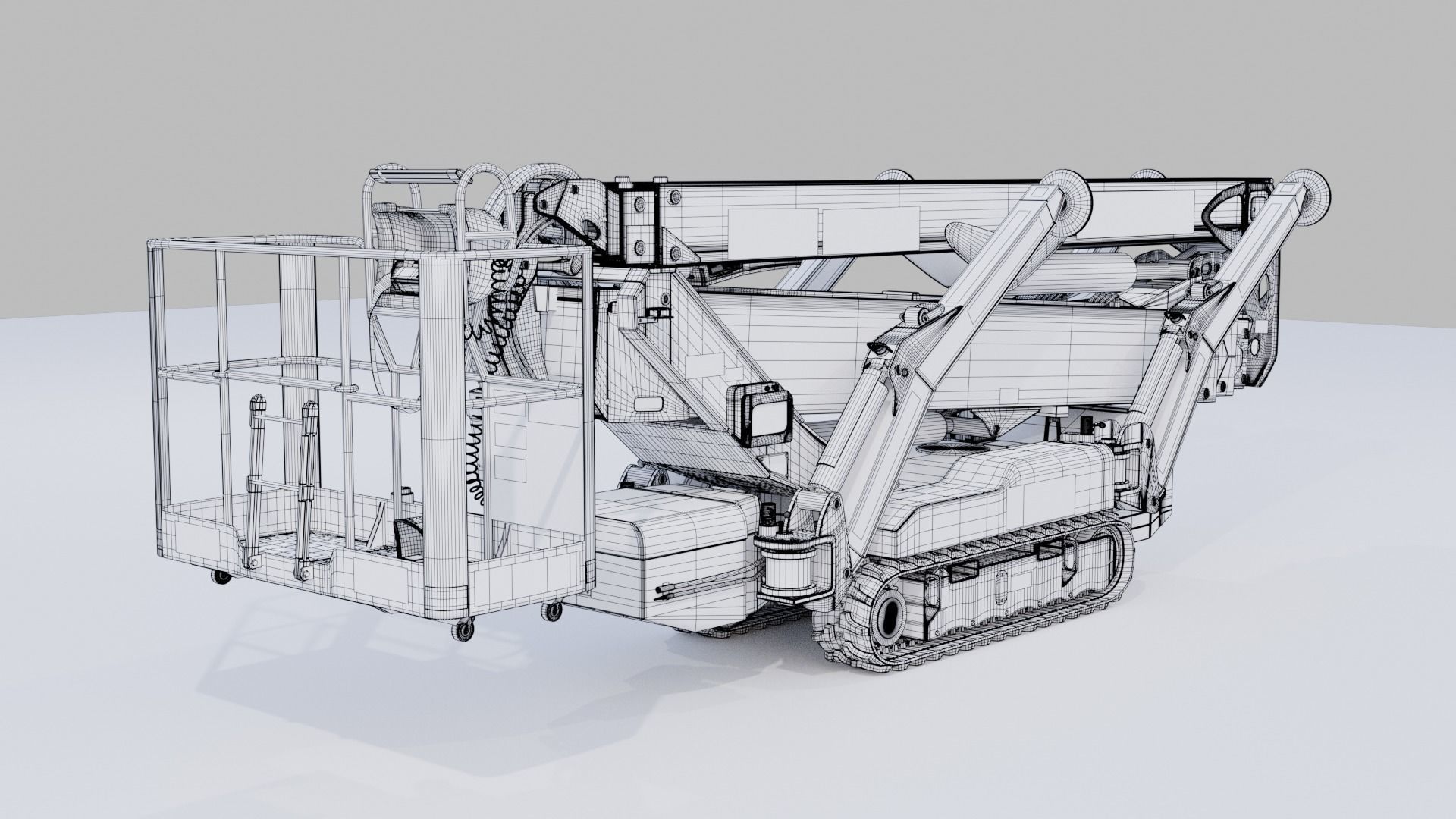

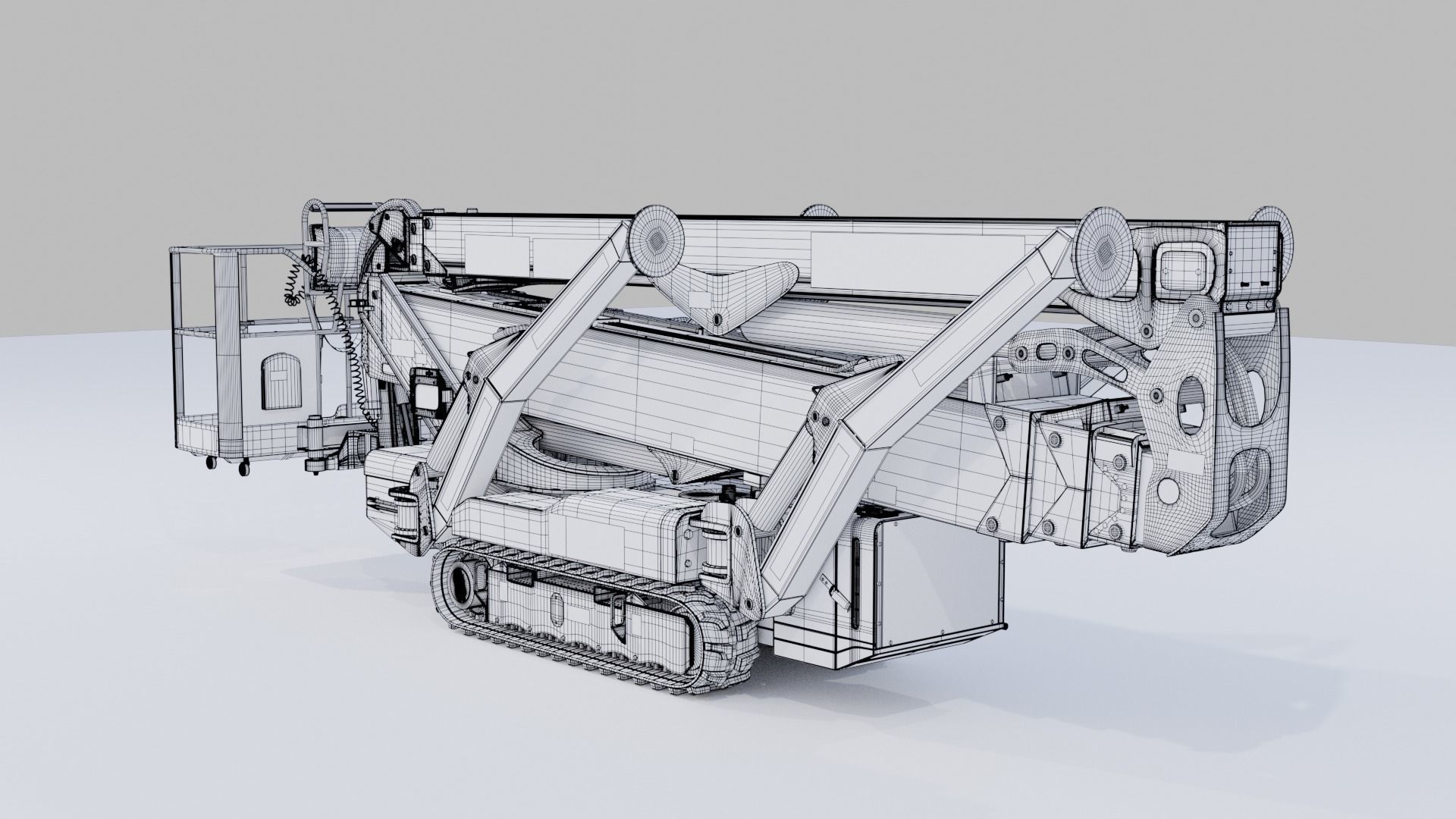

  • Clean meshes: only quads (no n-gons and no triangles)

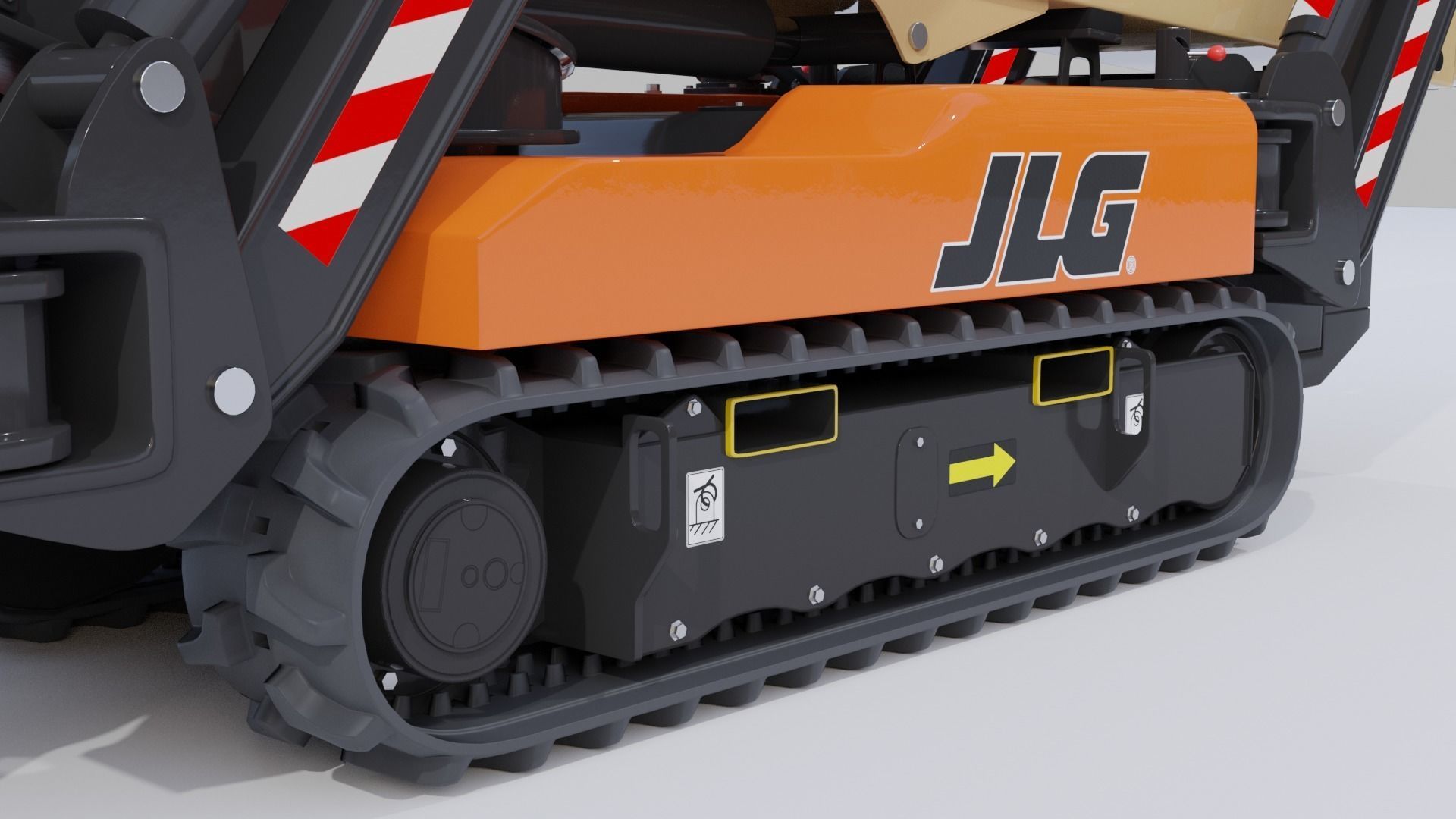

  • For tracks animation a pyhton script is delivered that calcuates track movement speed

Important: OBJ, STL and FBX are delivered with all modifiers (incl. subdivision) applied, NO MATERIALS and NO RIGGING.

.blend

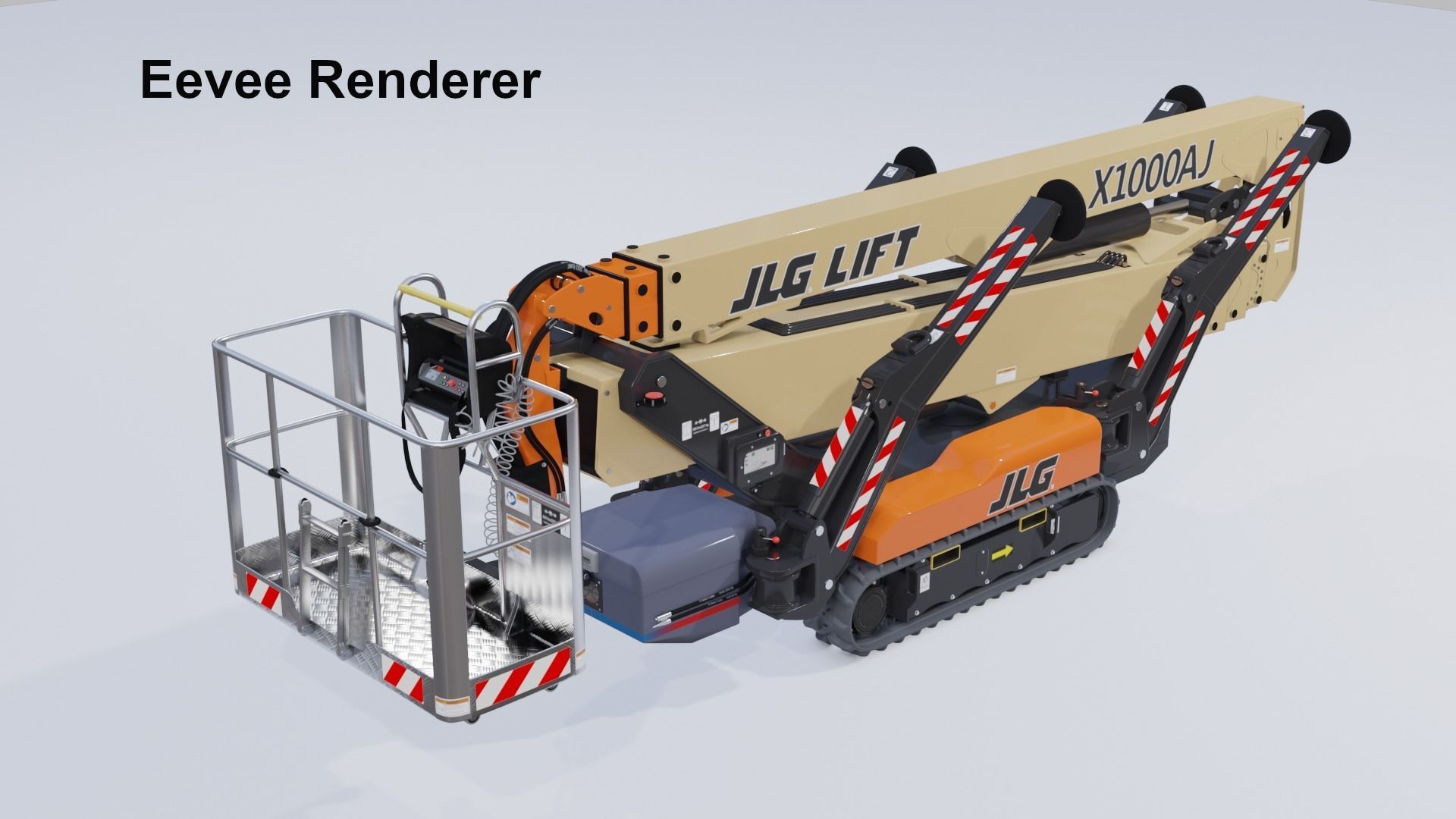

Blender 2.81 file for Cycles and Eeve containing:

  • Machine model

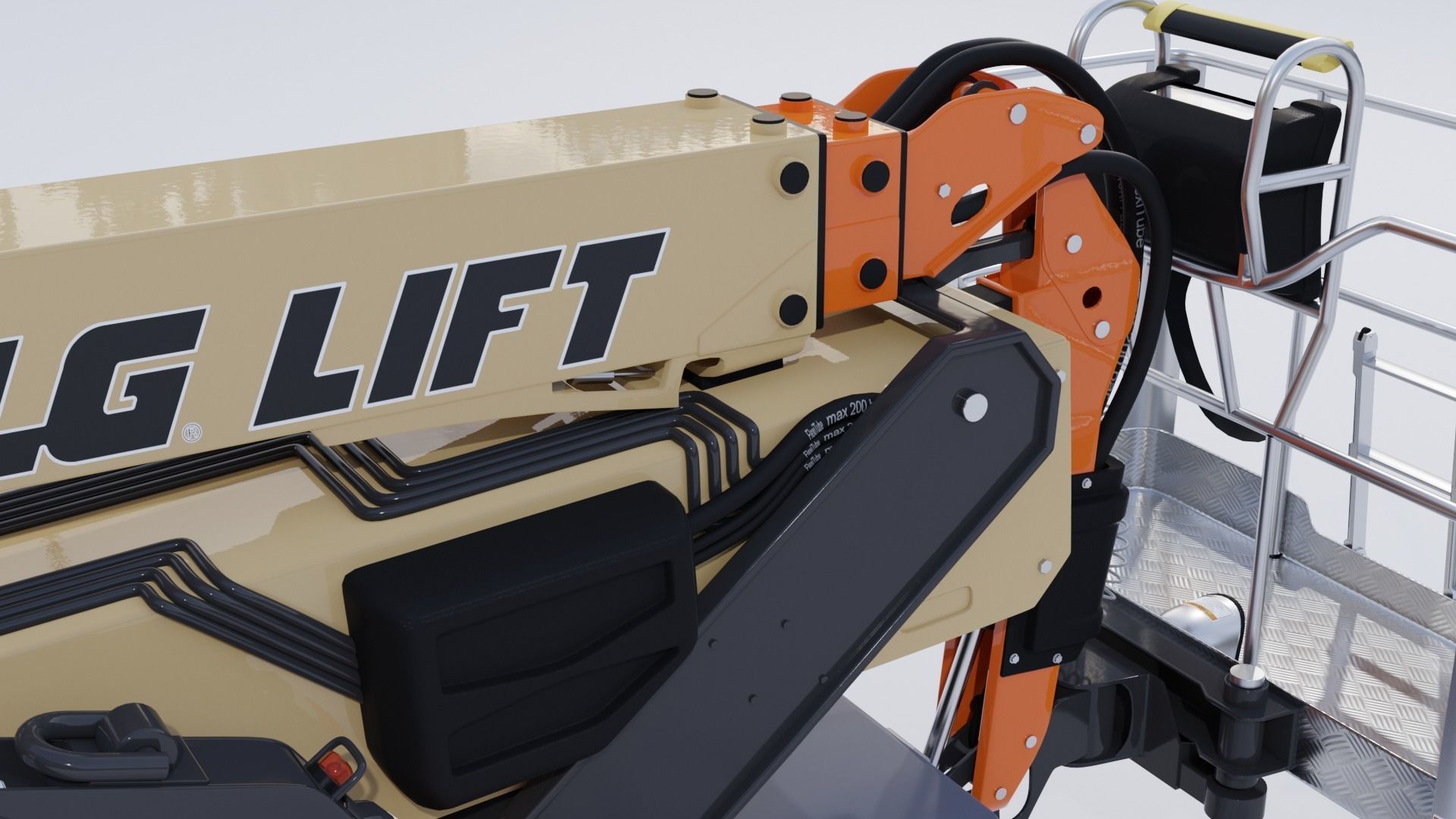

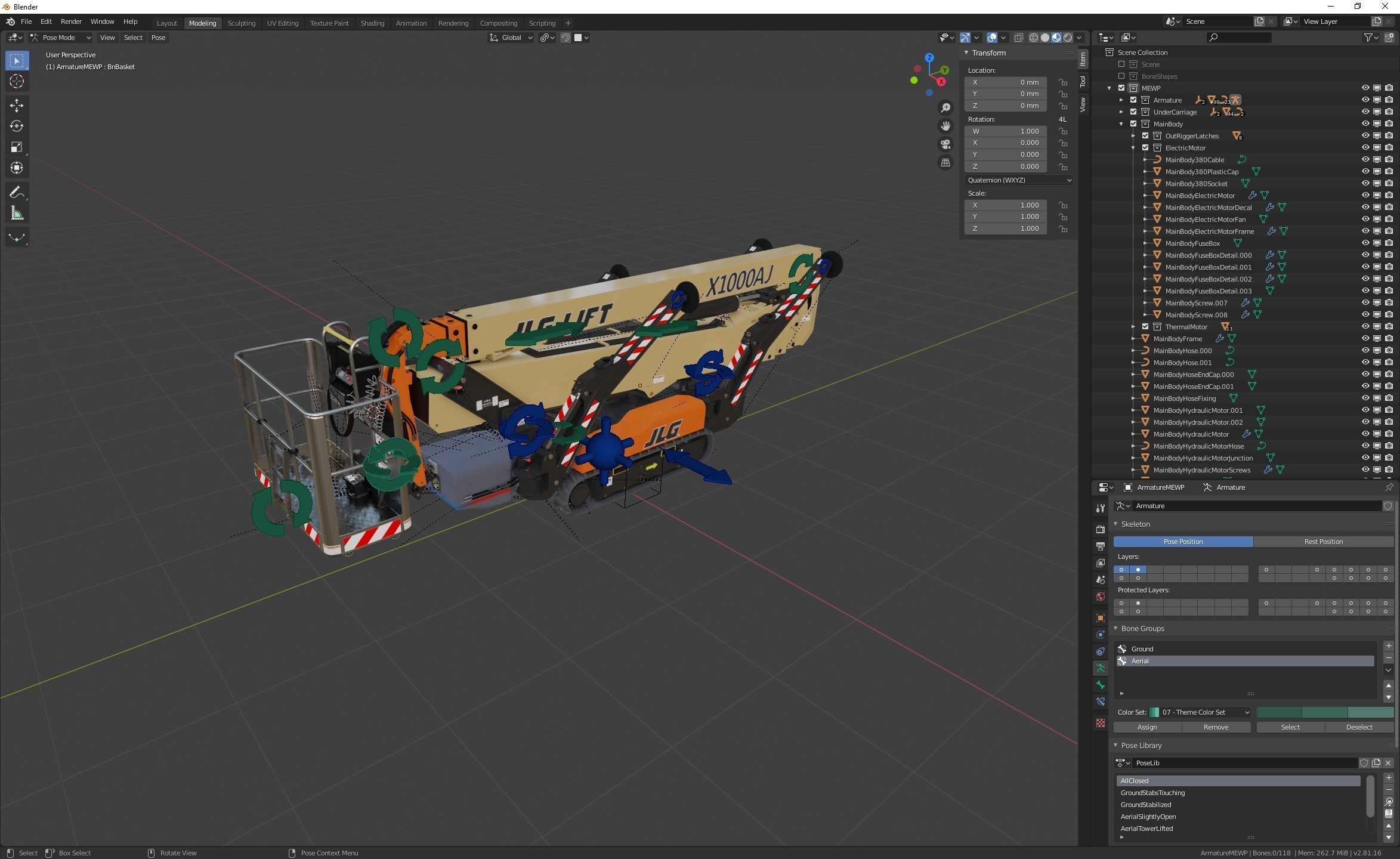

  • Full Armature: about 12 easy-to-use movements mapped onto clearly identifiable bones - see screenshot (while in the background about 100 bones handle the main movements themeselves, but also hose and electric wire animations
  • Basic scene (as used for rendering most example images) with lights, ground and cam in dedicated collection

.obj

Export from blender only / no scene with no materials / no rigging On request an export in a specific pose is possible.

.fbx

Export from blender only / no scene with no materials / no rigging On request an export in a specific pose is possible.

.stl

Export from blender only / no scene with no materials / no rigging On request an export in a specific pose is possible.

C
cgjoe 2023-10-31 05:13:10 UTC
1:1!
G
GAF 2020-01-05 20:36:55 UTC
cool
Item rating
0 0
Aerial Work Platform JLG X1000AJ
$89.00

Editorial No Ai License
Aerial Work Platform JLG X1000AJ
$89.00

Editorial No Ai License
Response 95% in 1.5h

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)20.5 MBVersion: 2.81Renderer: Cycles Version: 2.81Renderer: Eevee
Exchange
  • Autodesk FBX (.fbx)19.5 MB
  • OBJ (.obj, .mtl)11.5 MB
  • Stereolithography (.stl)16.8 MB
  • Python Script (.py, .pyc)10.2 MB

3D Model details

  • Publish date2020-01-05
  • Model ID#2221796
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 460,000
  • Vertices 475,000
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
