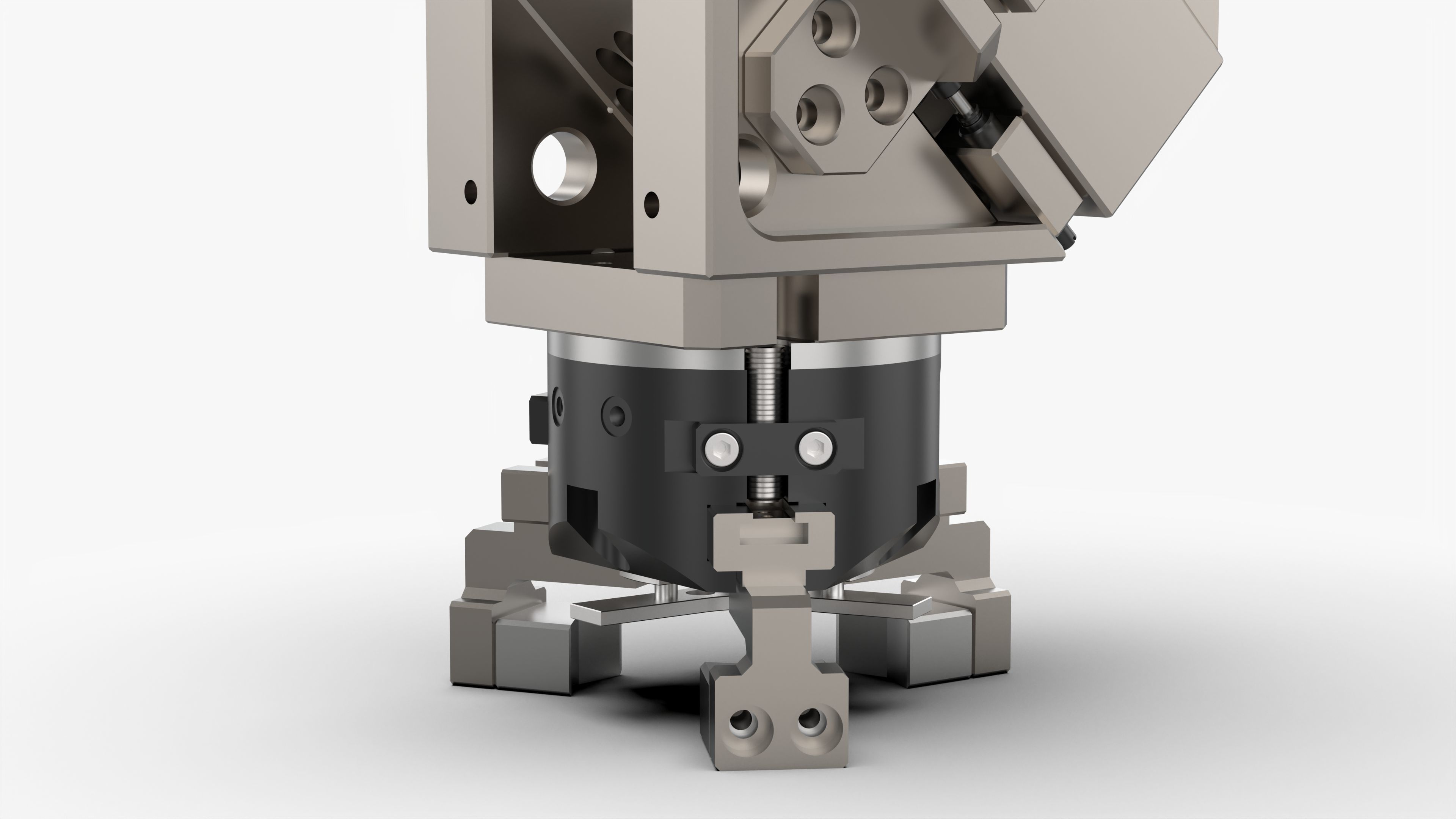

90 Degree Rotating Manipulator Arm 3D model
Description

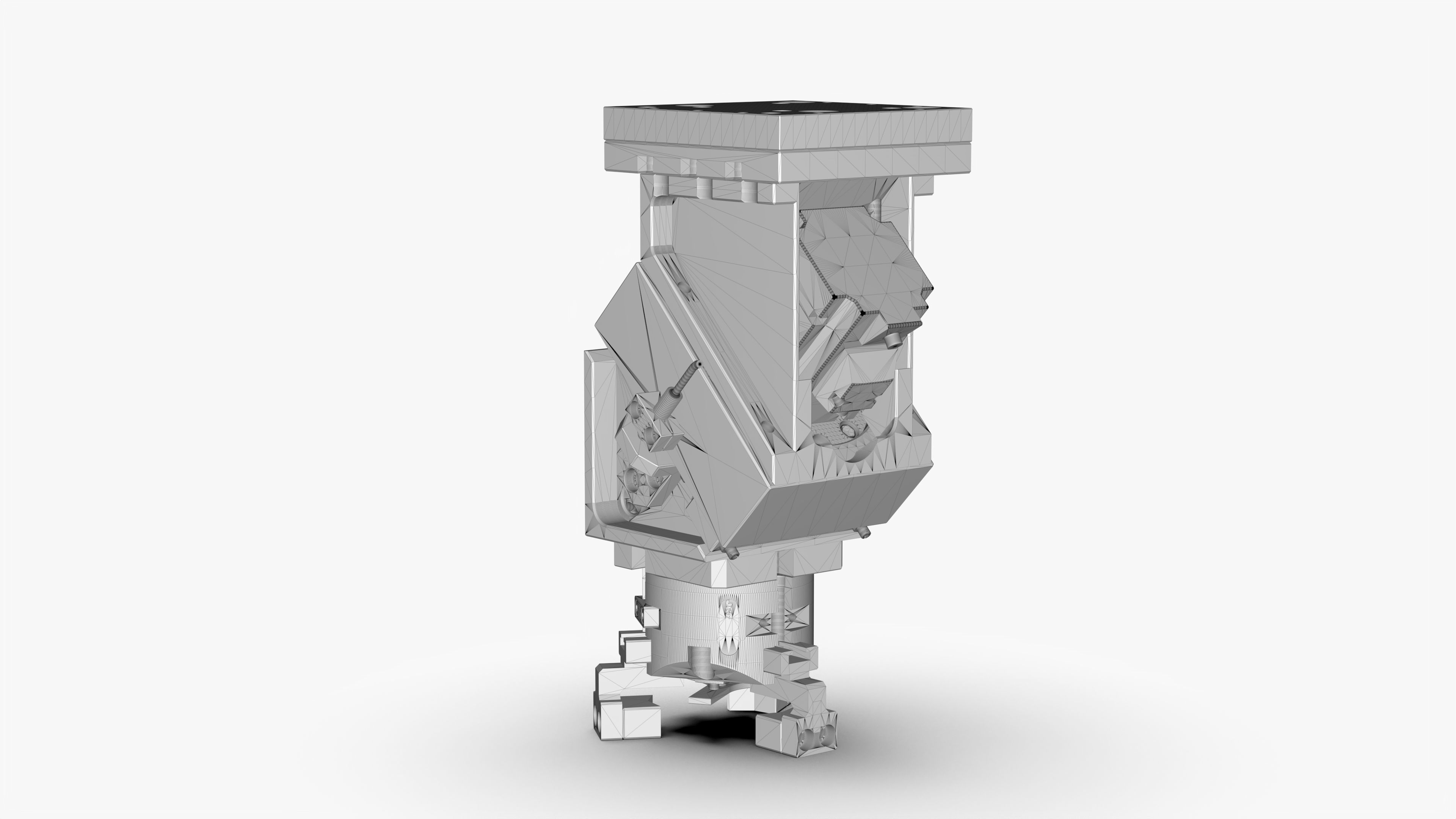

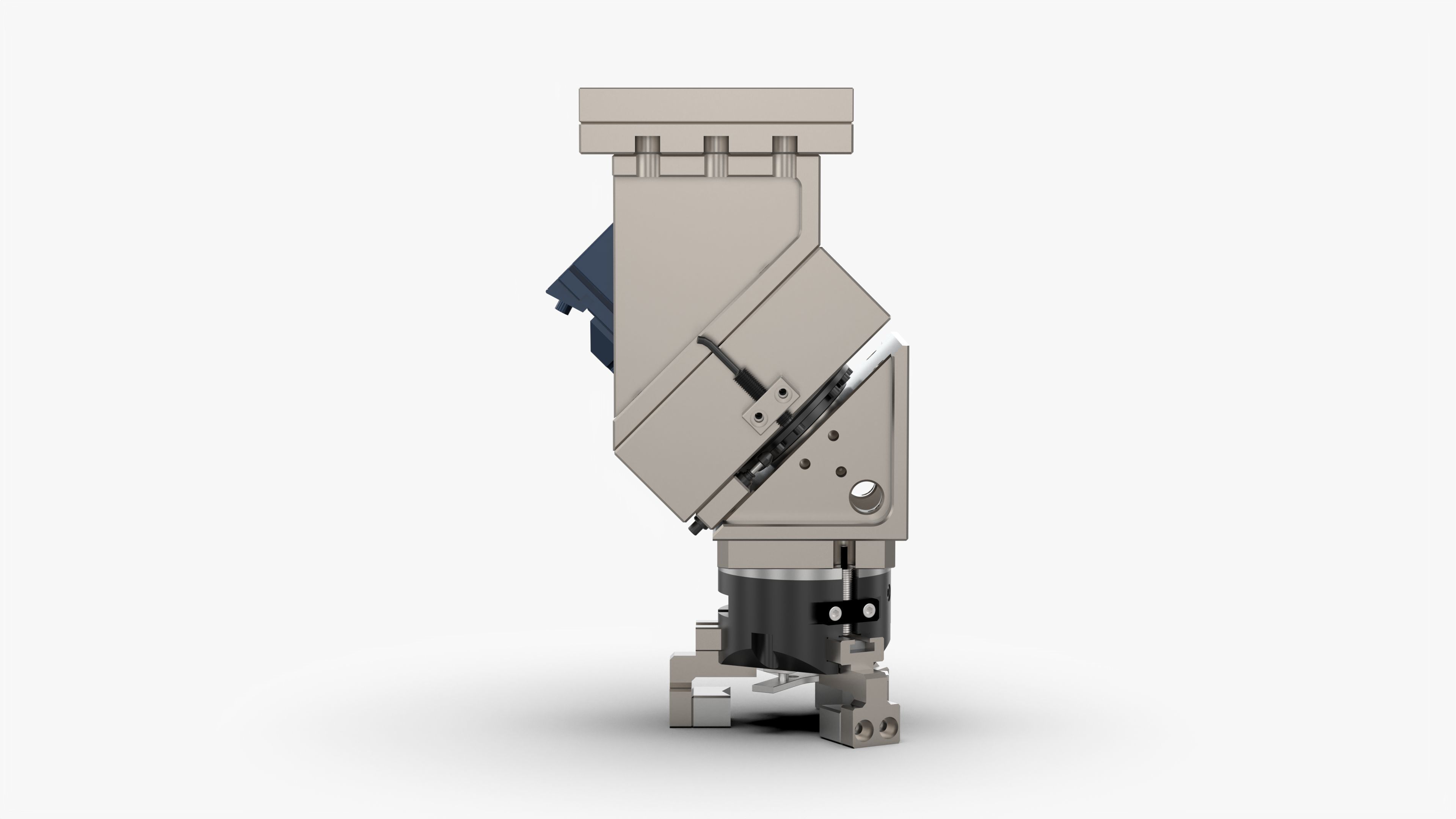

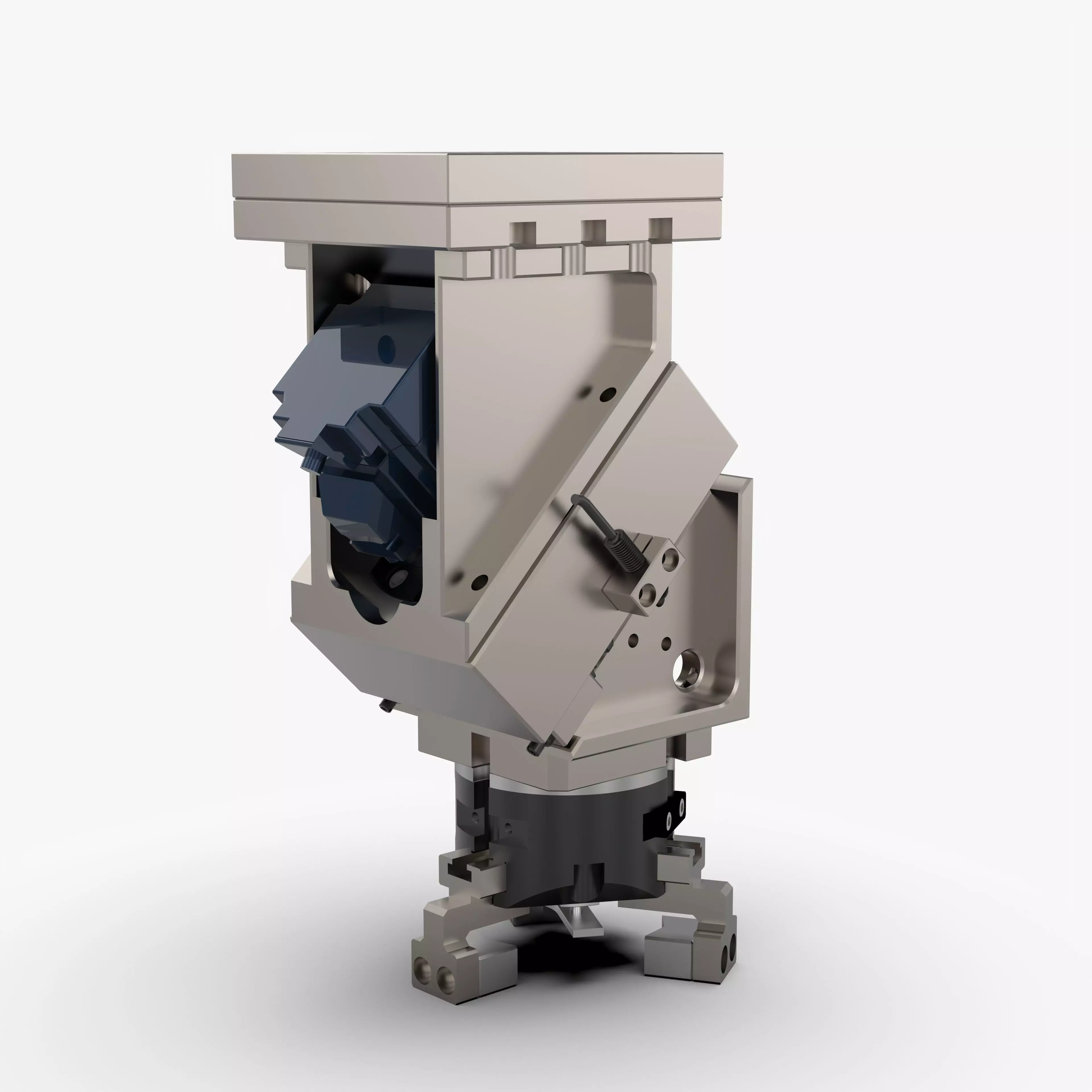

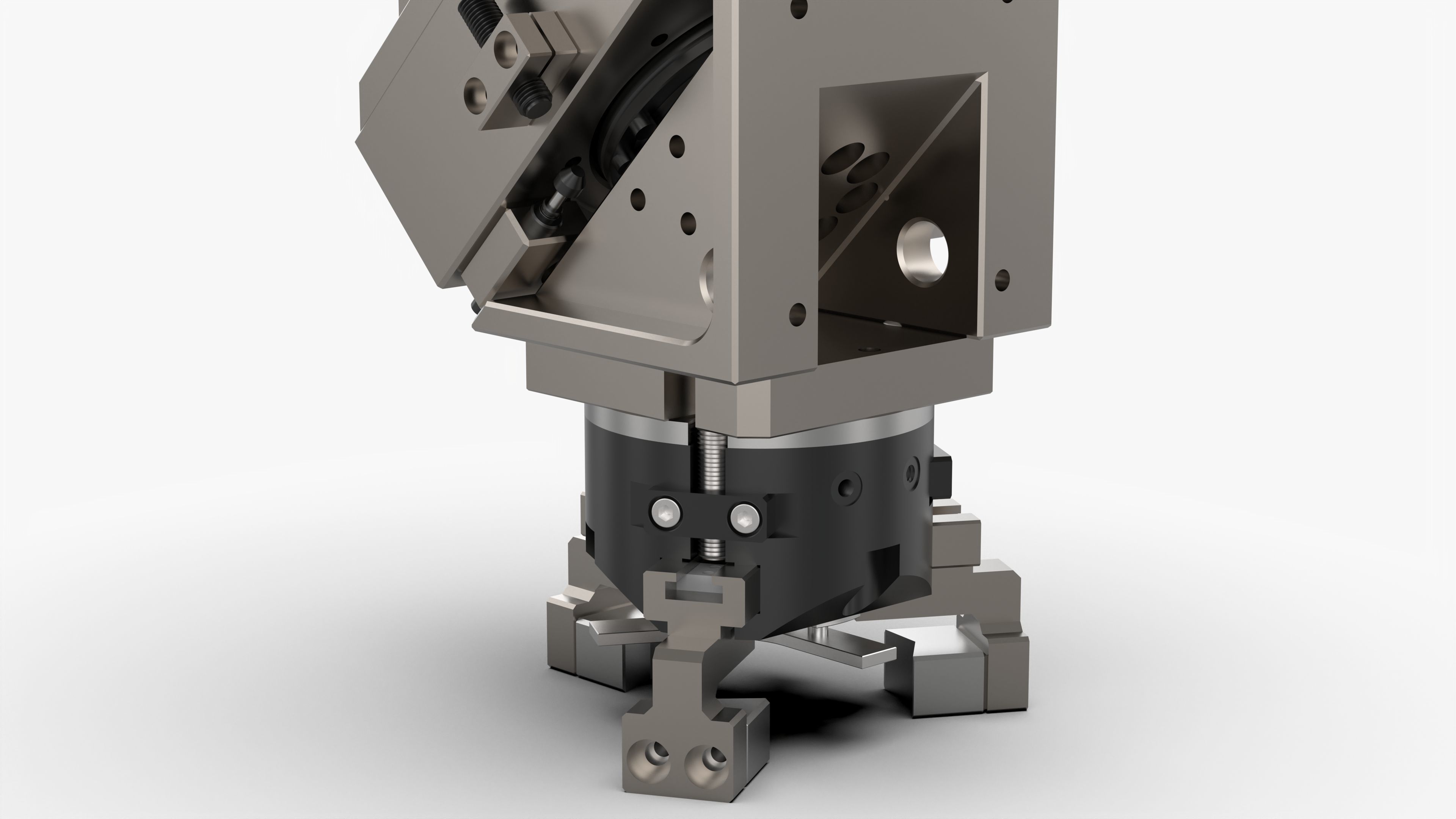

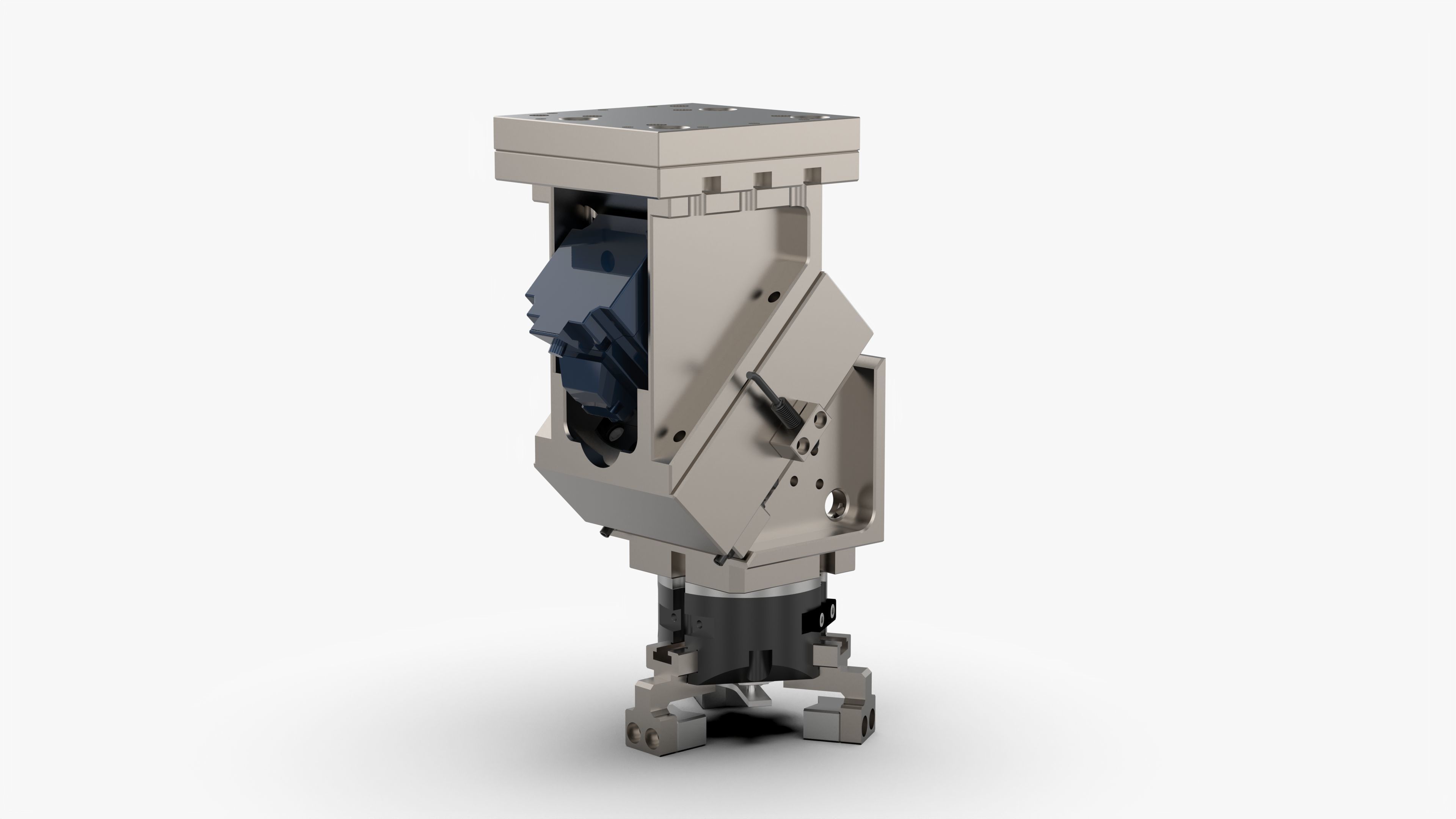

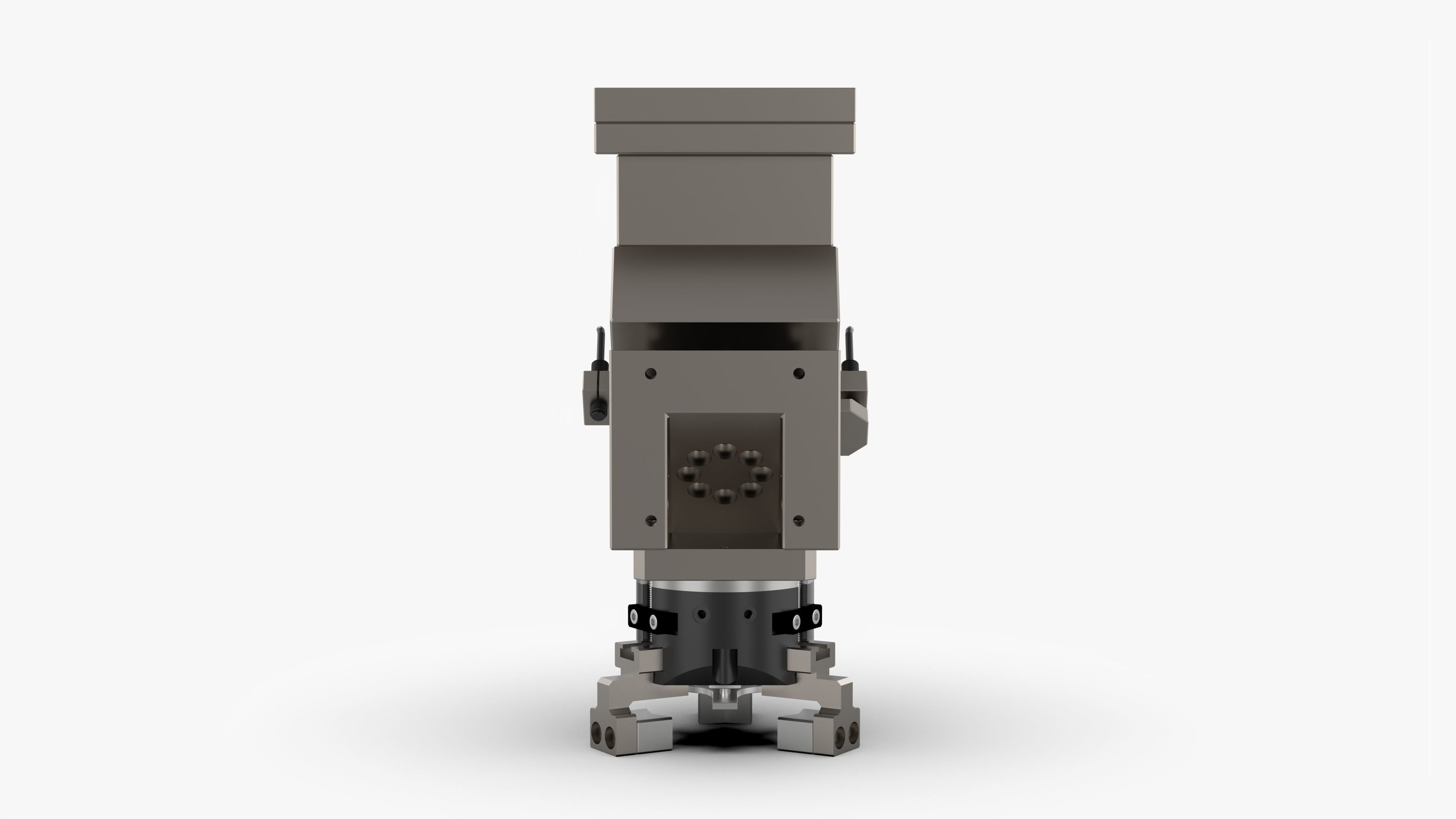

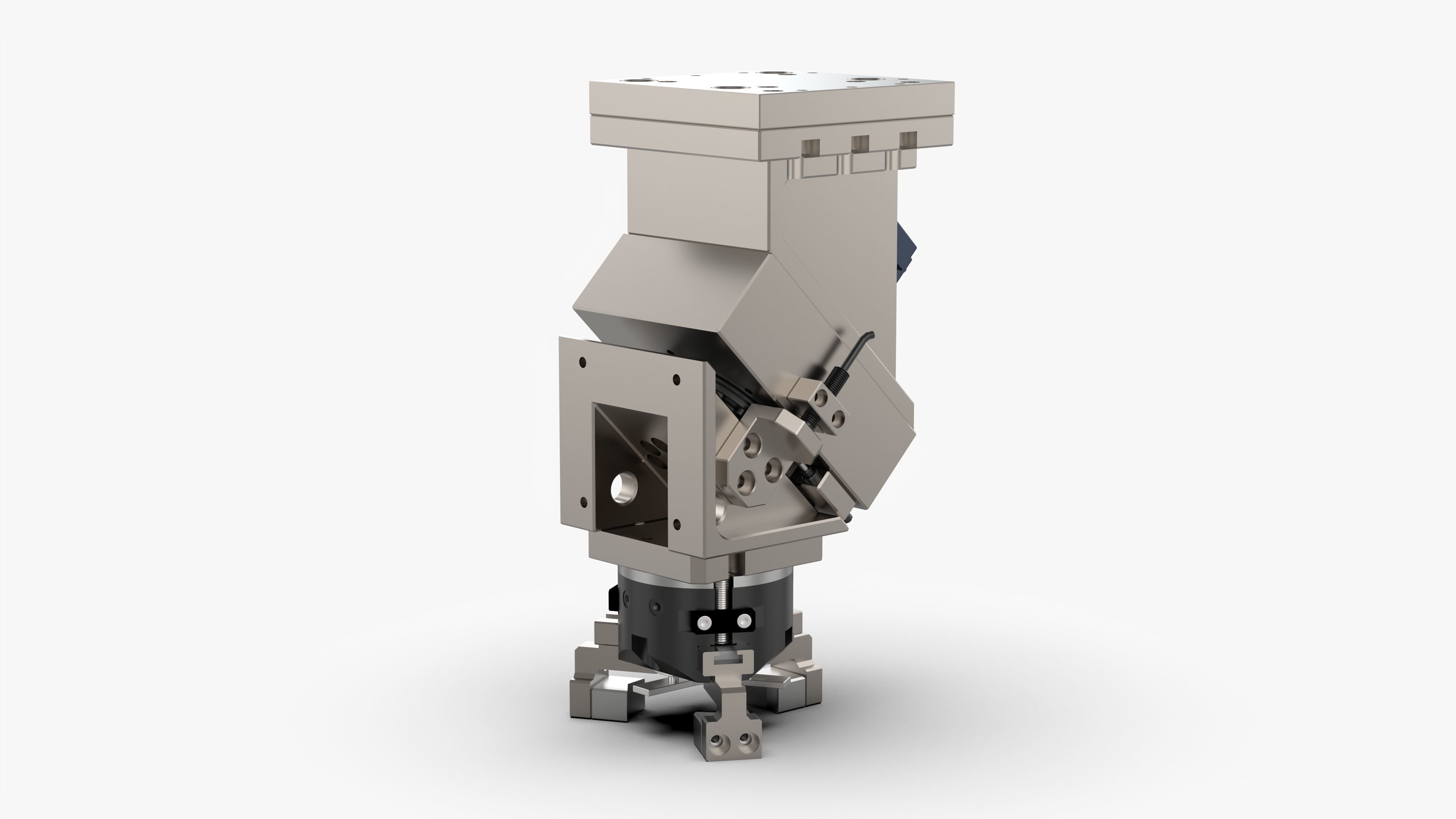

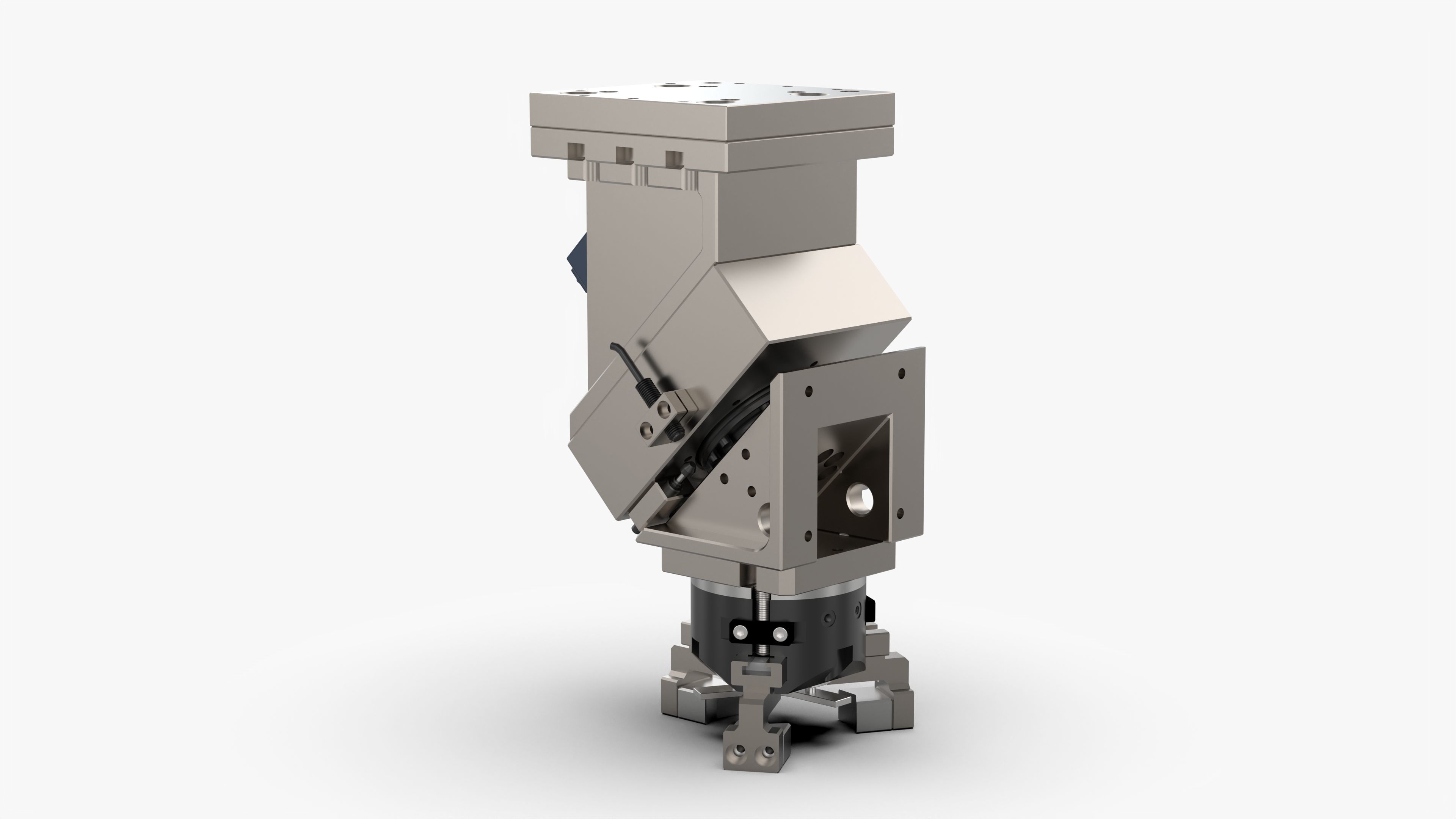

90 Degree Rotating Manipulator Arm
Introduction
The design model of the grasping manipulator is a transmission form suitable for operation close to the machine body. This drawing does not contain the terminal manipulator structure, just the transition arm for the manipulator to rotate. It can provide mechanical engineers with a design reference idea, which is convenient for design and learning.
File Formats
- SolidWorks 2018 | Keyshot 10
- STEP (Standard for the Exchange of Product Data)
- IGES (Initial Graphics Exchange Specification)
- STL (Standard Tessellation Language )
- OBJ (Object Files)
Geometry
- Polygons: 159,638
- Vertice: 478,914
90 Degree Rotating Manipulator Arm
Royalty Free License
90 Degree Rotating Manipulator Arm
Royalty Free License
3D Modeling
Rendering
Post Production
PBR modeling
3D Model formats
Format limitations
Native
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)7.38 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
- IGES (.ige, .igs, .iges)19.3 MB
- STEP (.stp)3.45 MB
- Stereolithography (.stl)7.61 MB
- OBJ (.obj, .mtl)10.1 MB
3D Model details
- Publish date2023-03-10
- Model ID#4351692
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 159,638
- Vertices 478,914
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
