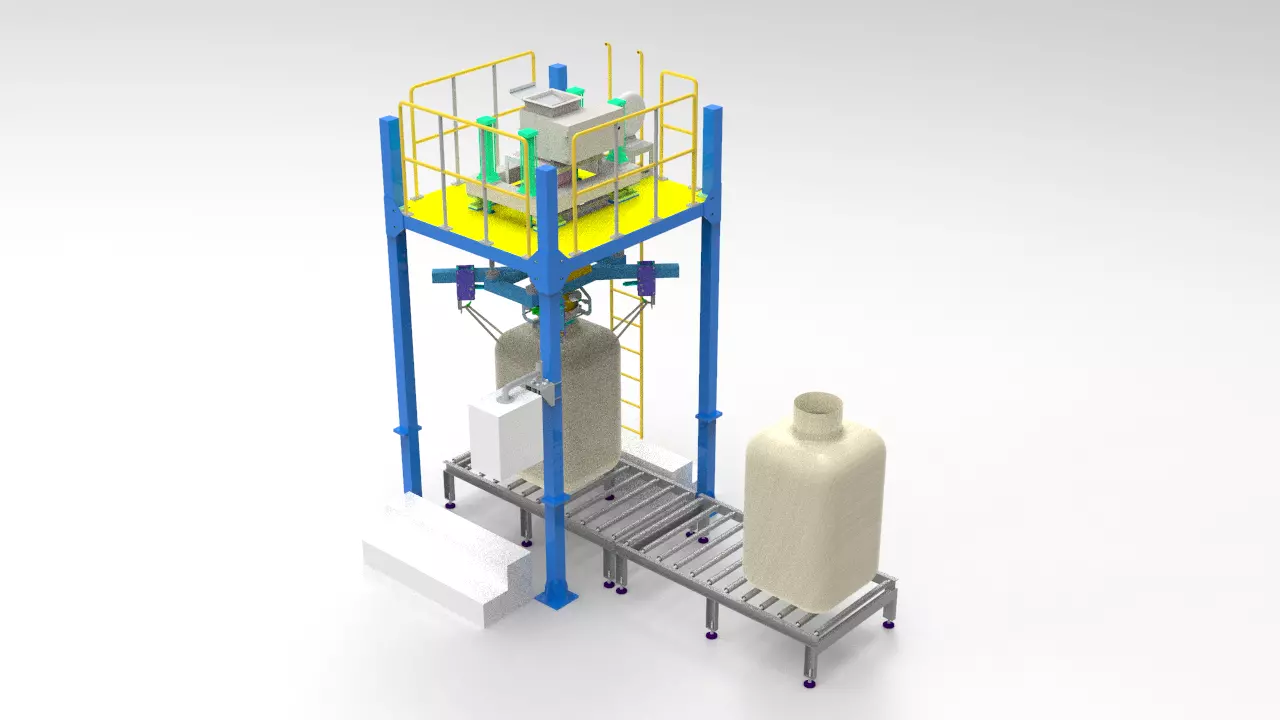

3d design model of ton bag packing machine 3D model

T-Bag packaging machine is a large-scale weighing packaging equipment for ton bag packaging materials. It is a multi-purpose packaging machine integrating electronic weighing, automatic bag removal and dust removal. It has the advantages of high automation, high precision, adjustable speed and superior structure. The hydraulic lifting system is very easy for handling ton bag packaging and convenient for the subsequent process. This machine is suitable for packing materials in mineral, chemical, building materials, grain and feed industries.

TECHNICAL NOTE:

1. The heavy bag packing machine is upper weighing, which can avoid the material corrosion caused by lower weighing.
2. All materials in contact with materials are made of SS 304 material.

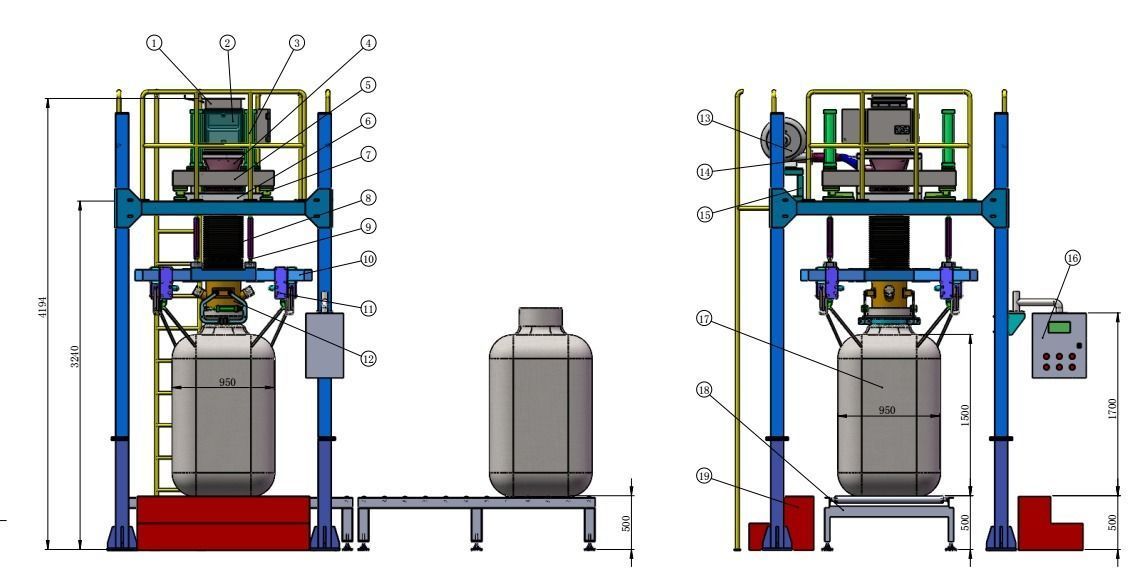

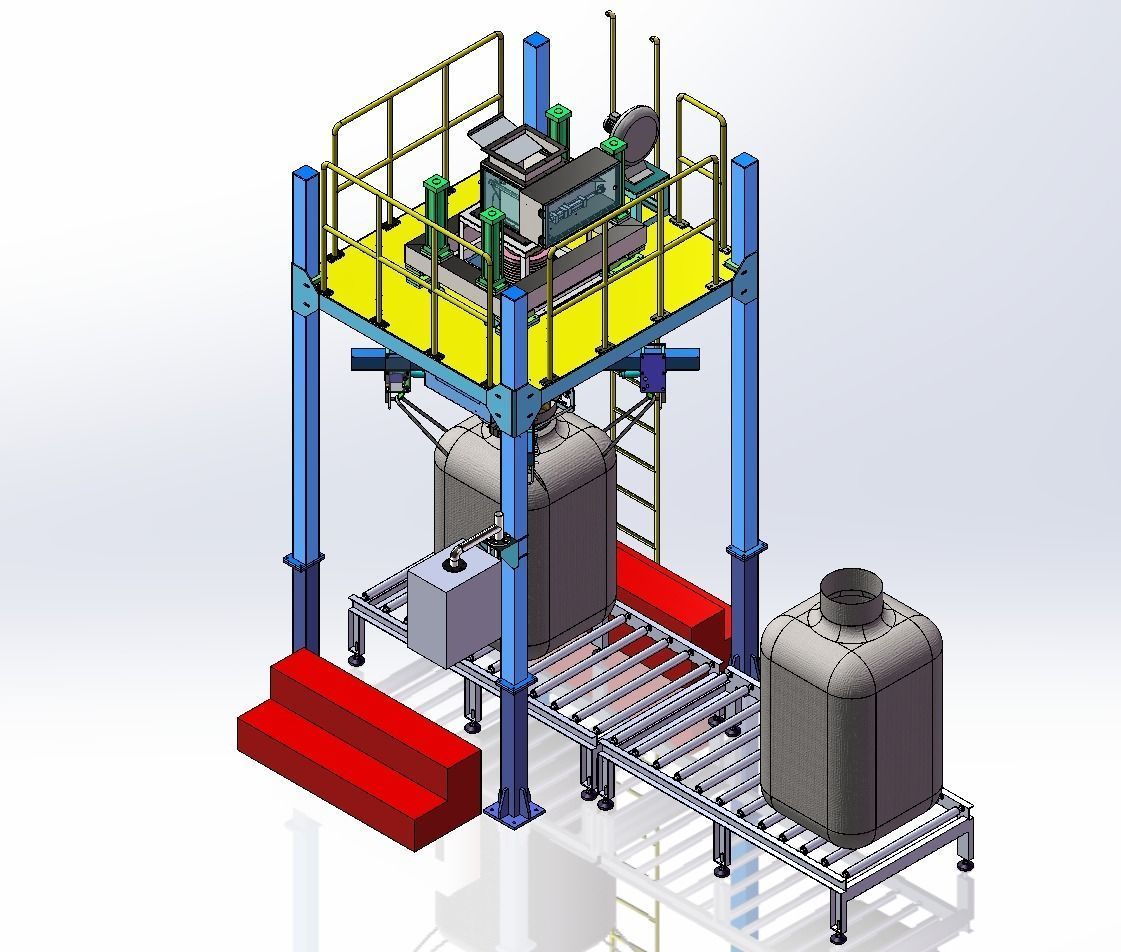

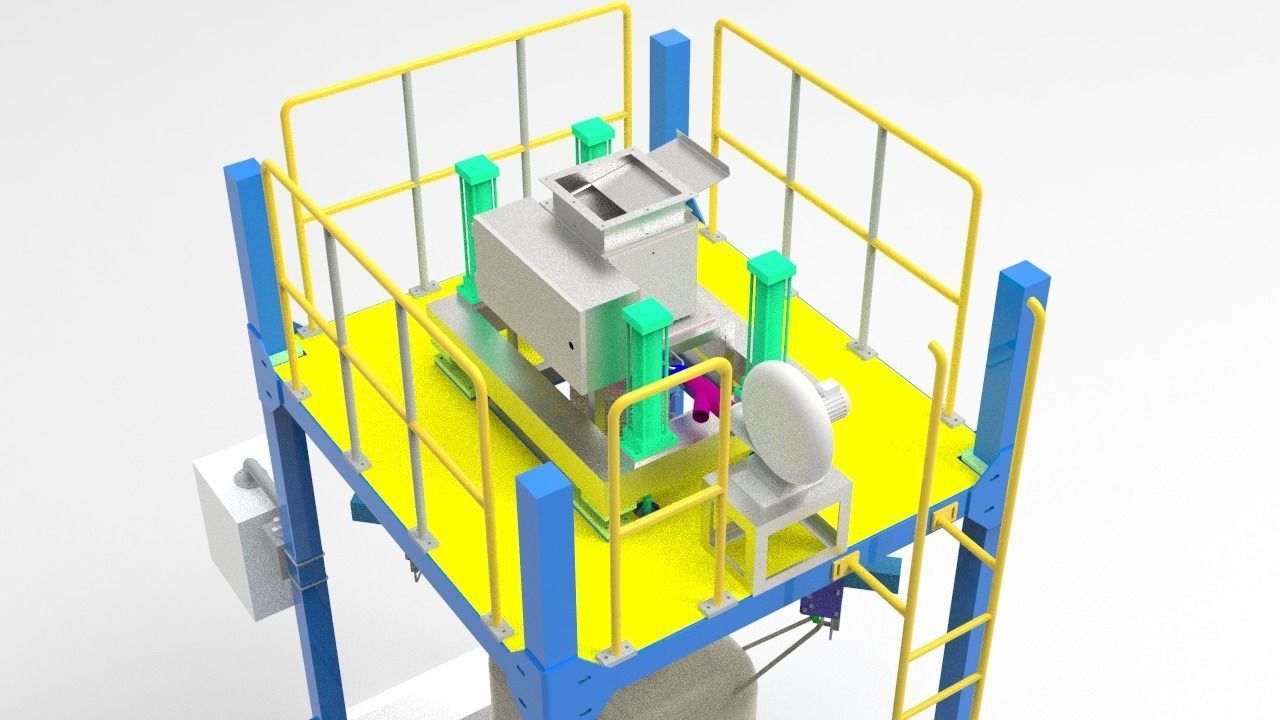

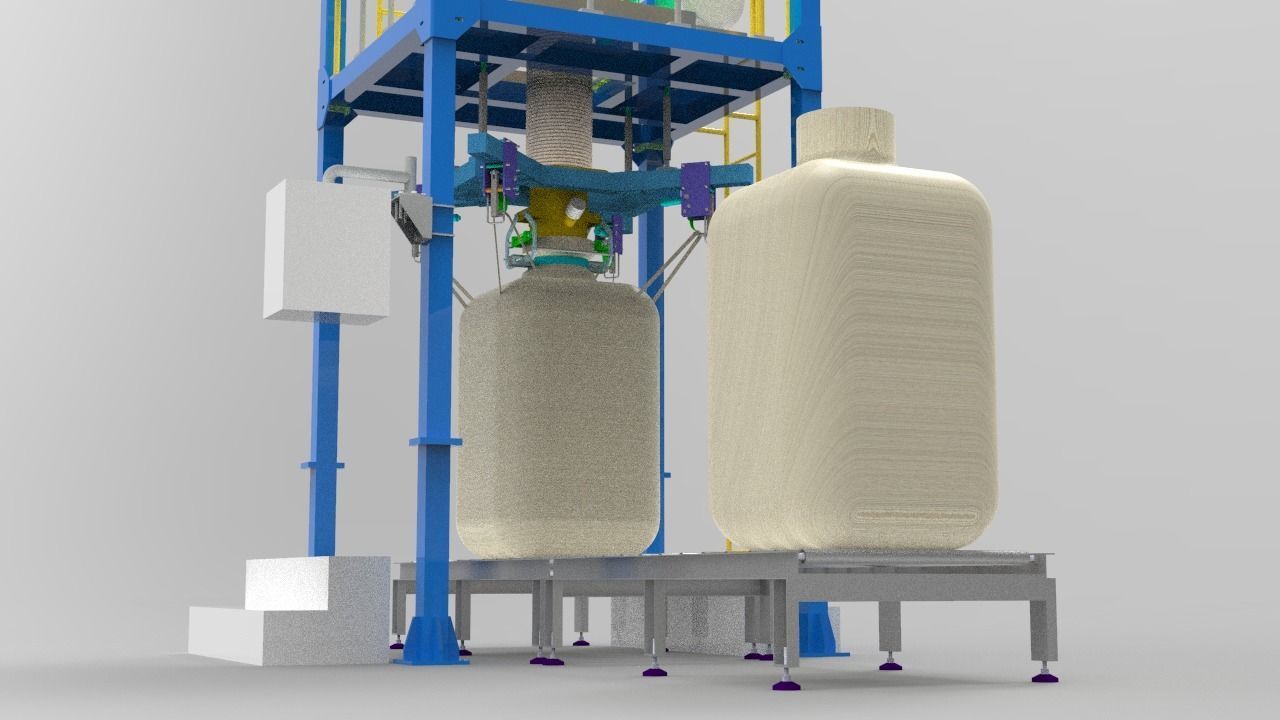

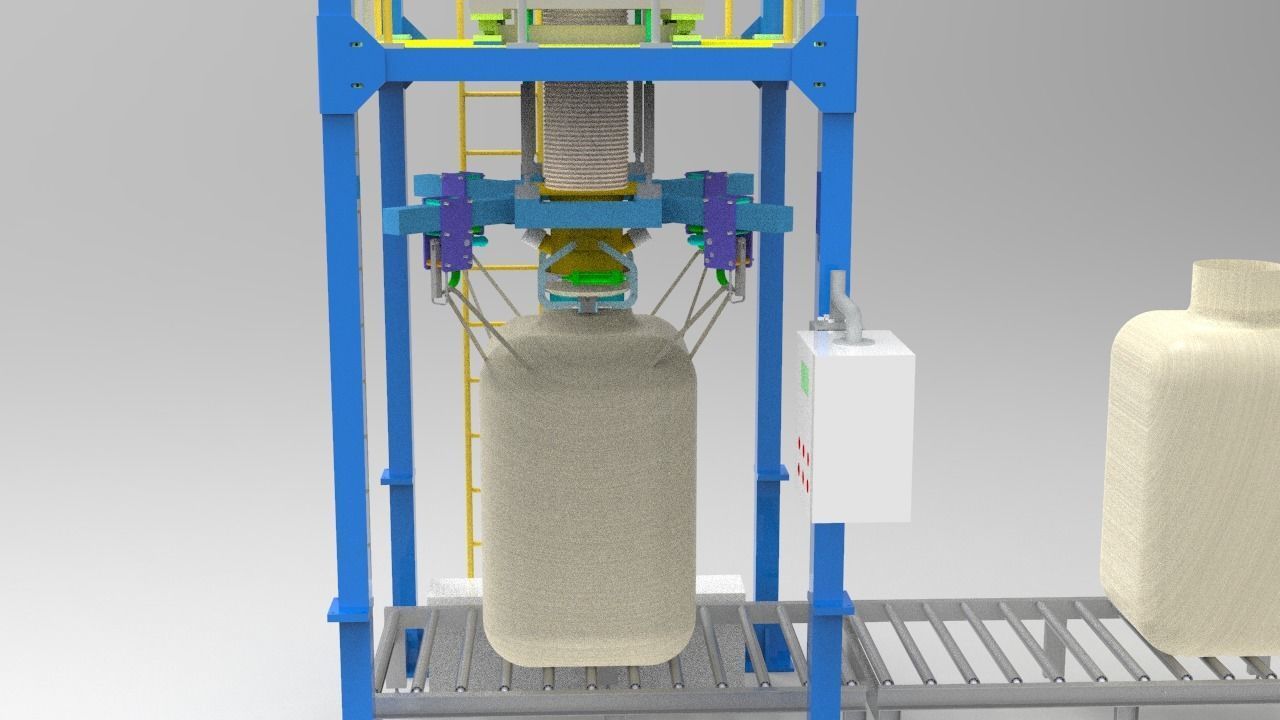

This 3D model designed by SolidWorks 2018, detailed design including every part like pictures below, step and 2D files included for you.

TECHNICAL FEATURES:

1. The ton bag packing machine is designed according to the characteristics of powder materials and the requirements of different manufacturers. The equipment is advanced in technology, durable and less wearing parts.
2. With stepless speed regulation of feeding and packaging of ton bag packing machine, the equipment has stable performance, high packaging precision and high speed.
3. Programmable electronic control system, highly reliable control process.
4. Advanced dust control design, reduce dust pollution in the working environment.
5. The weighing system is an electronic scale platform type measurement, which adopts digital adjustment and parameter setting. It has the functions of weight accumulation display, automatic peeling, automatic zero calibration and automatic drop correction, with high sensitivity and strong anti-interference ability.
6. The instrument is equipped with communication interface, which is convenient for on-line networking, real-time monitoring and network management of packaging machine.
