280S B35 Top 4-8 Pole IEC electric motor - 3D CAD model 3D model
Description

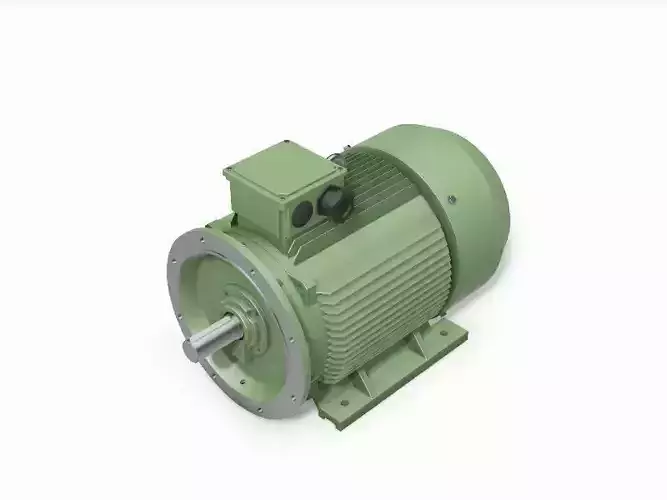

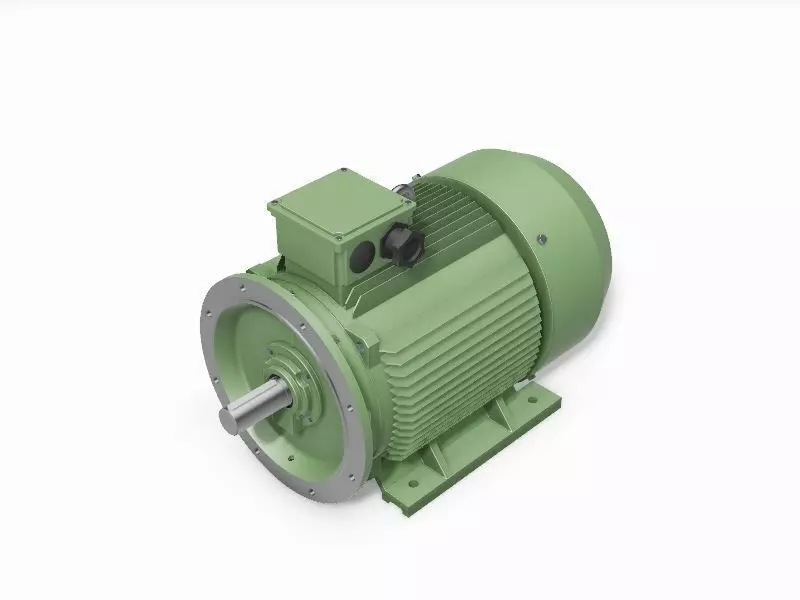

Electric motor IEC 280S B35 - IM2001 (flange-foot mount)
4-8 Pole
■ 75 kW - 1500 r.p.m. (4 pole)(100 Horse Power )
■ 45 kW - 1000 r.p.m. (6 pole)(60 Horse Power)
■ 37 kW - 750 r.p.m. (8 pole)(50 Horse Power)
Terminal box position = top
Is this not the type of motor you need?
280S B35 Top 4-8 Pole IEC electric motor - 3D CAD model
Royalty Free License
280S B35 Top 4-8 Pole IEC electric motor - 3D CAD model
Royalty Free License
3D Model formats
Format limitations
- STEP (.stp)6.07 MB
- AutoCAD 2010 (.dwg)2.09 MB
- Autodesk Inventor 2015 (.iam, .ipt)6.06 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs
- Plugins used
- Publish date2016-07-31
- Model ID#632152
