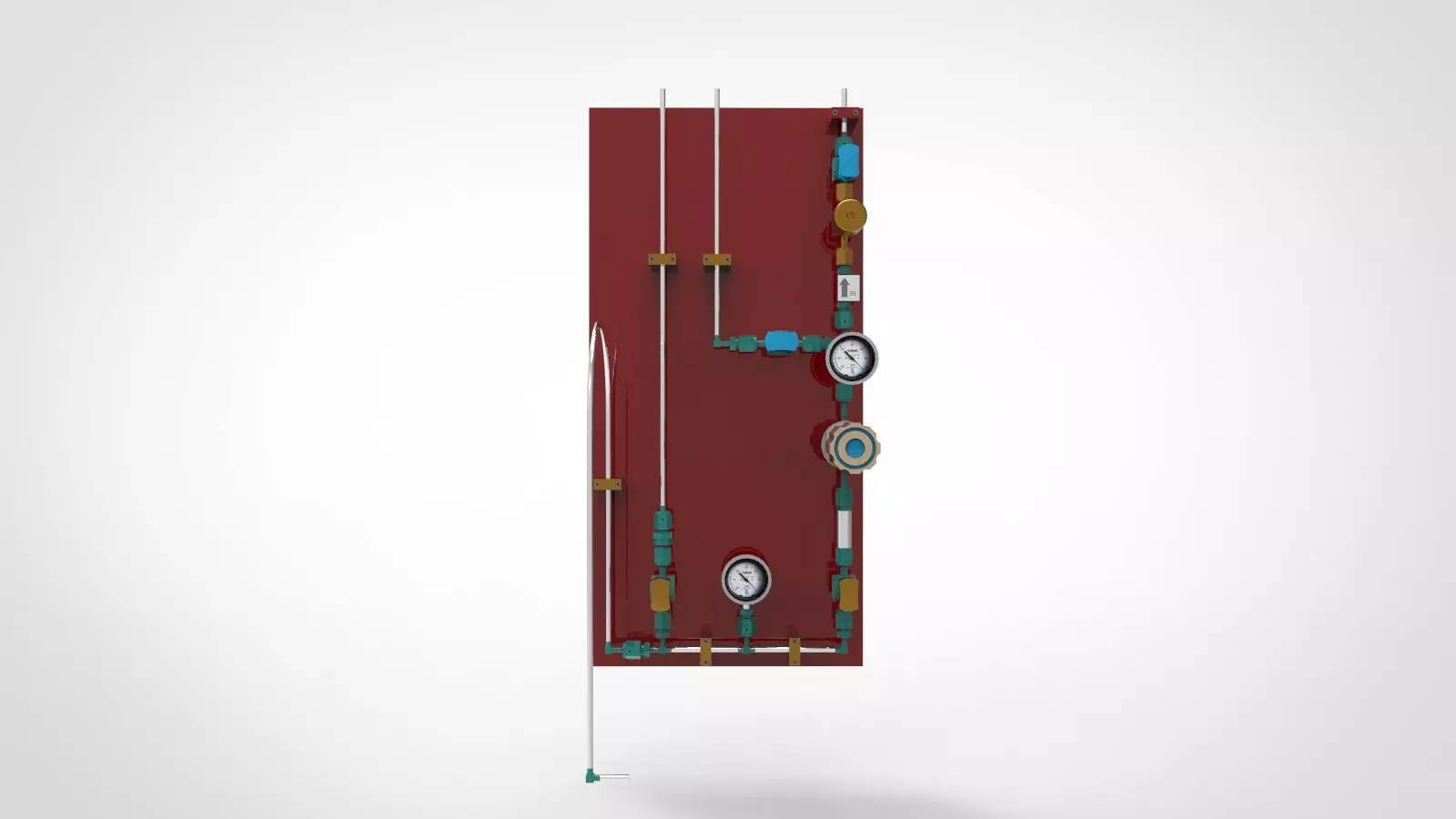

Gas cylinder Manifold 3D model

A gas cylinder manifold is a system that allows the simultaneous connection and distribution of multiple gas cylinders to a common outlet. It is a crucial component in industries and applications where a large volume of gas supply is required, such as in manufacturing facilities, laboratories, or hospitals.

The gas cylinder manifold consists of a set of interconnected valves and pipes that enable the controlled flow of gases from multiple cylinders to a centralized distribution point. It ensures a continuous and uninterrupted gas supply, as well as provides convenience and efficiency in managing gas cylinders.

The manifold system typically includes a main valve or header, which serves as the central point of control. The gas cylinders are connected to the manifold via individual pressure regulators, which regulate the pressure of gas coming from each cylinder. These regulators help ensure a consistent and safe pressure level throughout the system.

The manifold also incorporates safety features to prevent any potential hazards. Pressure relief valves are installed to release excess pressure and prevent over-pressurization of the manifold. Additionally, the manifold may include gauges or indicators to monitor the pressure levels and ensure proper functioning of the system.

One of the main advantages of a gas cylinder manifold is the ability to switch between cylinders without interrupting the gas supply. When one cylinder is emptied, it can be disconnected and replaced with a full cylinder while the others continue to provide a steady flow of gas. This feature minimizes downtime and allows for continuous operations in industries where a constant gas supply is essential.

Proper installation, maintenance, and periodic inspections are crucial for the safe and efficient operation of a gas cylinder manifold. It is important to follow manufacturer guidelines and industry standards to ensure the integrity of the system and prevent any leaks or malfunctions that could compromise safety.

In conclusion, a gas cylinder manifold is a vital system for centralized gas distribution from multiple cylinders. It provides a reliable and efficient way to manage and supply gases in industries and applications where a large volume of gas is required. By ensuring continuous gas supply and incorporating safety features, the manifold enhances productivity while maintaining safety standards.
