Vernier Caliper PBR Low-poly 3D model

Digital 3D model of steel vernier caliper.

MODEL

• Model dimensions (LWH): 8,1 x 0,7 x 20,8 cm (3.2 x 0.3 x 8.2 in).
• Objects count - 2 polygonal objects, no groups.
• Model is triangulated and not subdividable.
• Polycount:
• Polys - 758
• Tris - 758
• Verts - 392

MATERIALS

• Materials are prepared for Corona renderer.
• Materials are PBR compliant
• FBX and GLTF formats should render same, or close to preview images, asuming your 3D software supports PBR standard.
• Scanline, FBX and OBJ formats has only basic materials and will NOT render the same as in preview images.

UV COORDINATES

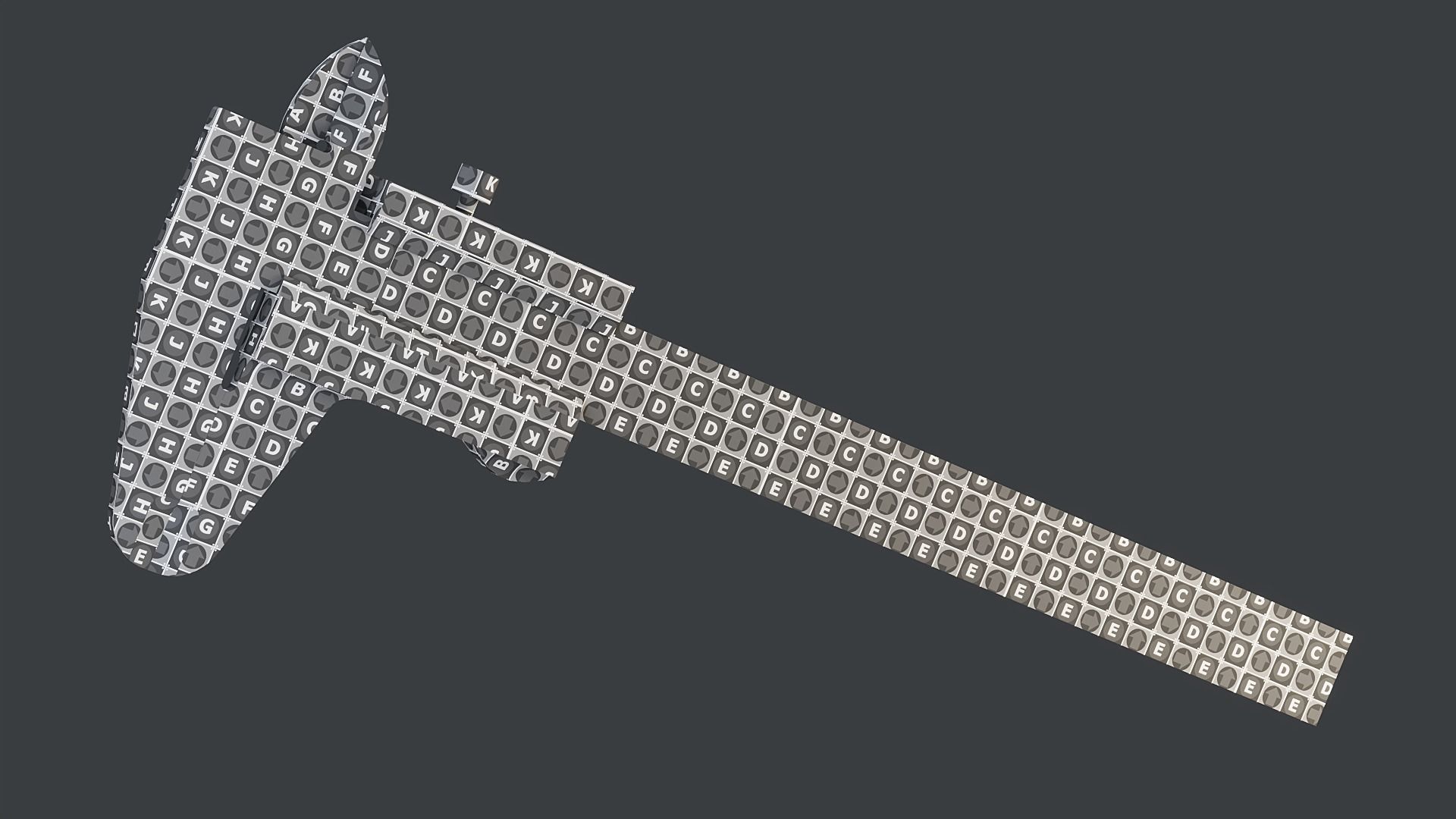

• The model is fully unwrapped with no overlapping
• UVs are packed into 0-1 UV space

TEXTURES

• Format - PNG and JPG
• Total count - 10
• Texture sets - 1

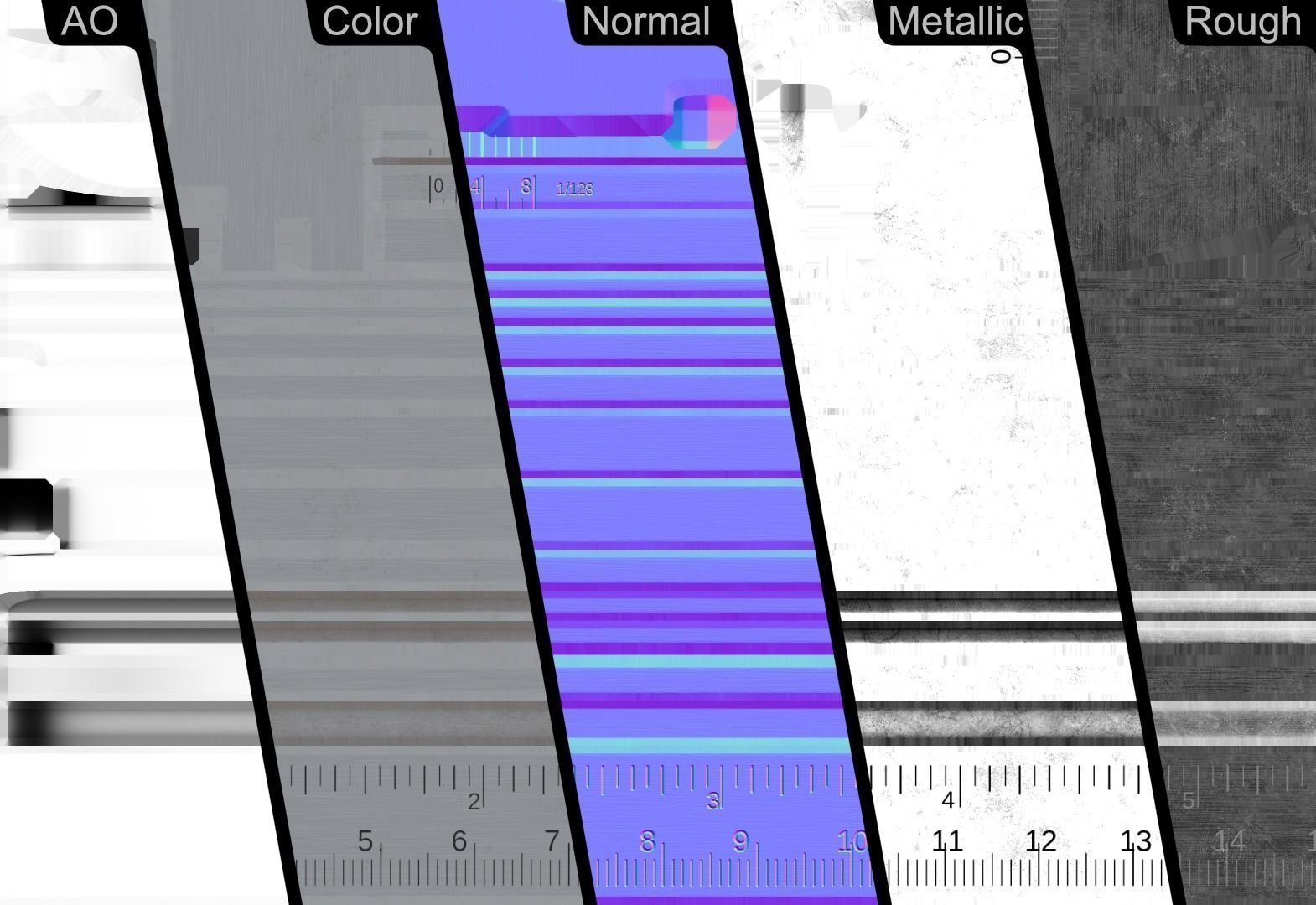

• Map types - Base colour, Roughness, Normal (OpenGL, +Y), Metallic, AO
• Bit depth - 8 bits
• Resolution - 2048 x 2048 px PNG and 1024 x 1024 px JPG.
• Textures are collected into one archive and are delivered in separate file.

SCENE

• Model is scaled to accurate real world dimensions.
• Objects, materials and textures have meaningful and matching names.
• Transformations has been reset and the model is placed at scene origin [0, 0, 0 XYZ].
• All texture paths are set to relative.

FILE FORMATS

• 3ds Max - Corona
• 3ds Max - Default (Physical)
• FBX
• OBJ
• GLB

GENERAL

• Modeled in 3ds Max 2024 and saved to 3ds Max 2021 version for greater compatibility.
• Preview images are rendered with Corona renderer. Turntable video is rendered with Marmoset Toolbag.
• Images are straight from rendering app. No post processing was applied.
• Render scenes are not included.

***

Feel free to contact me if you have questions or need assistance with the models.
