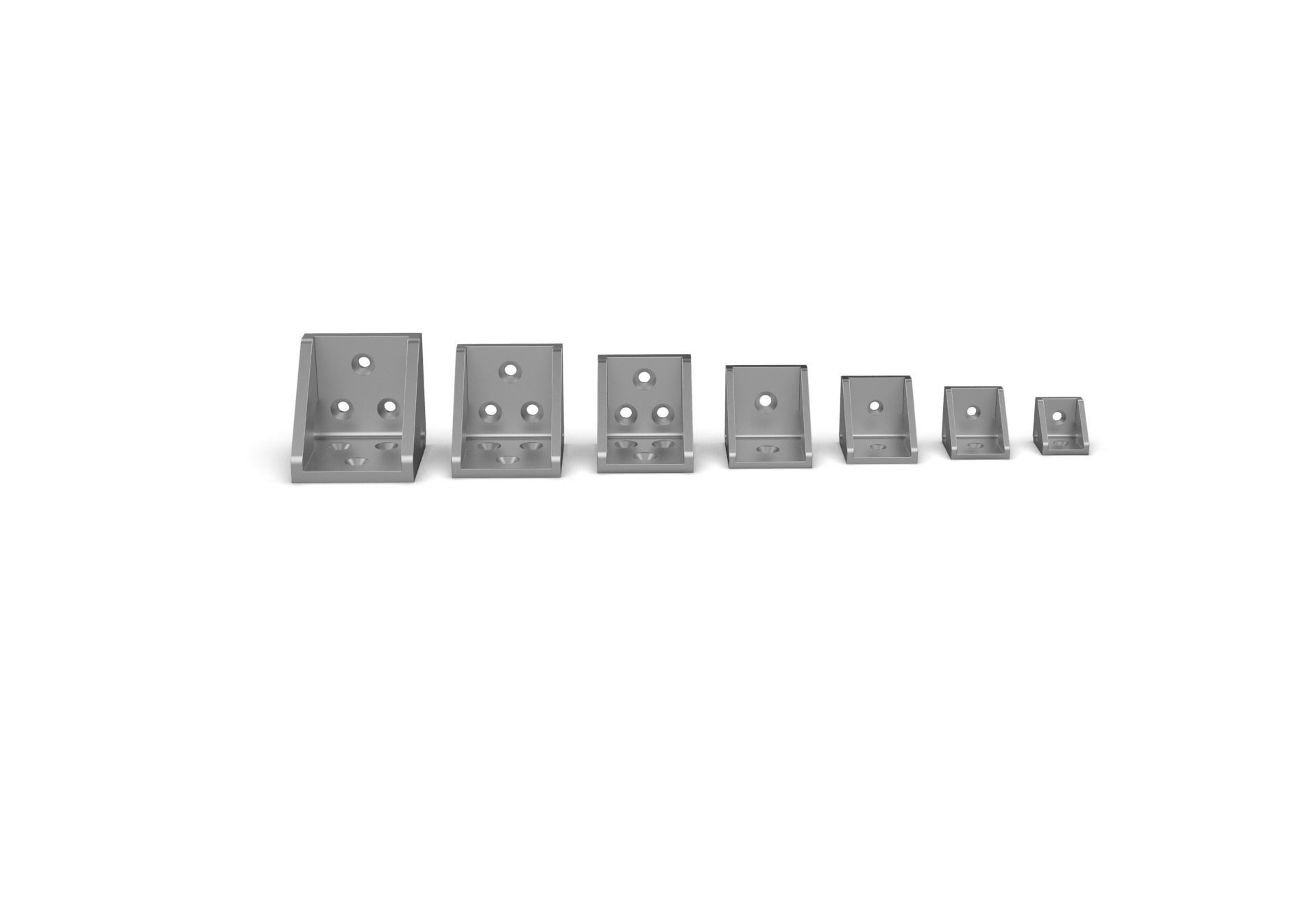

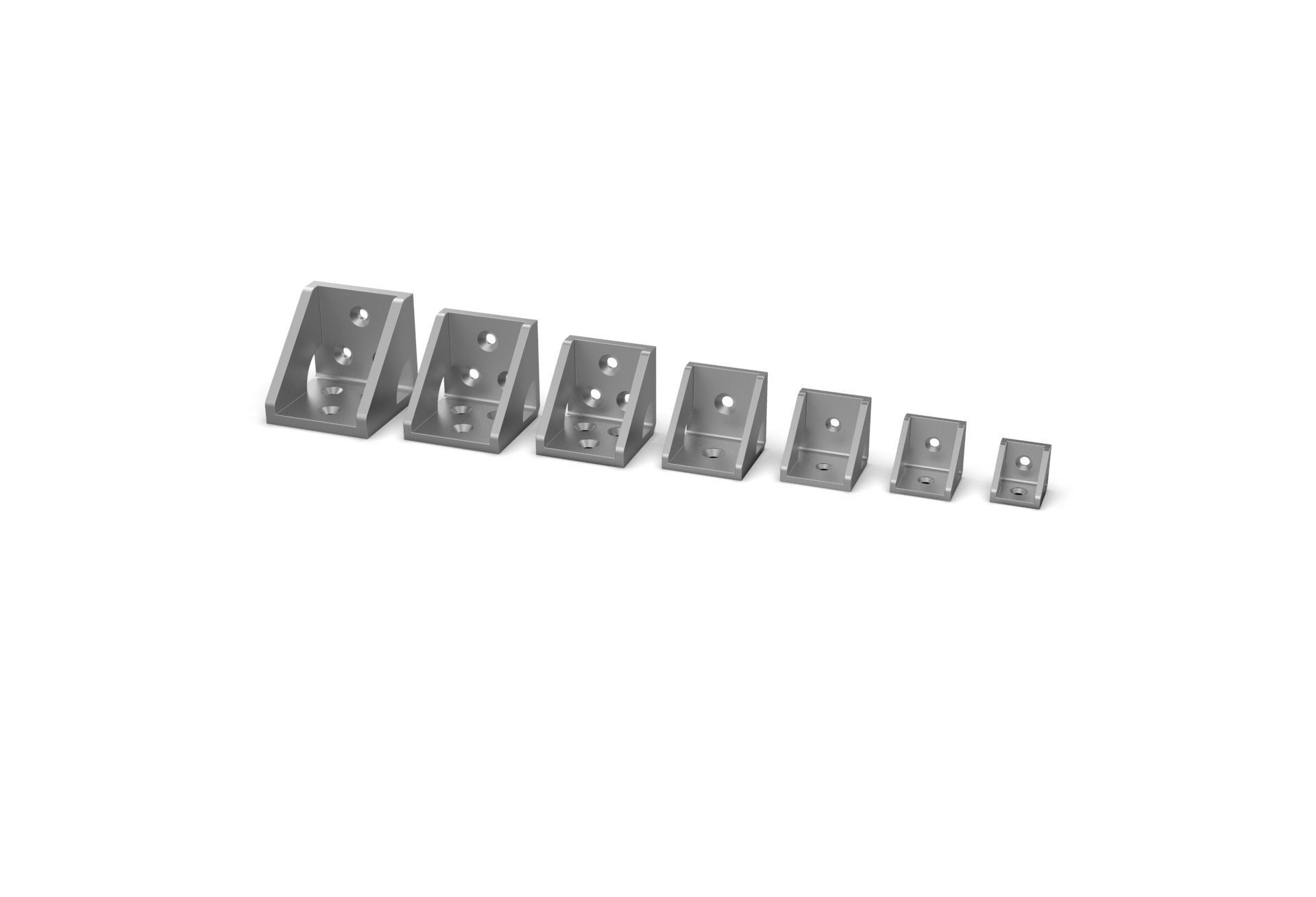

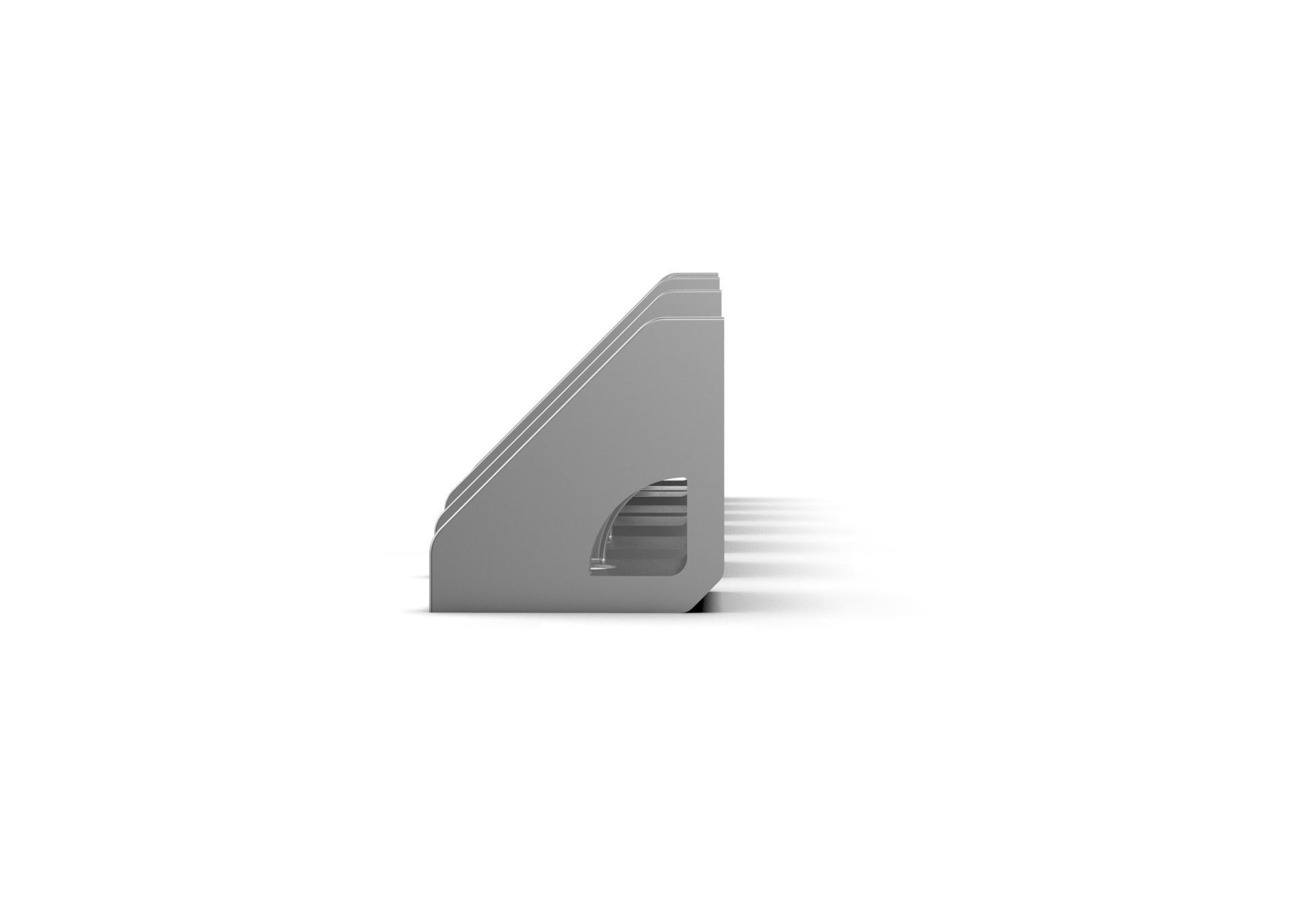

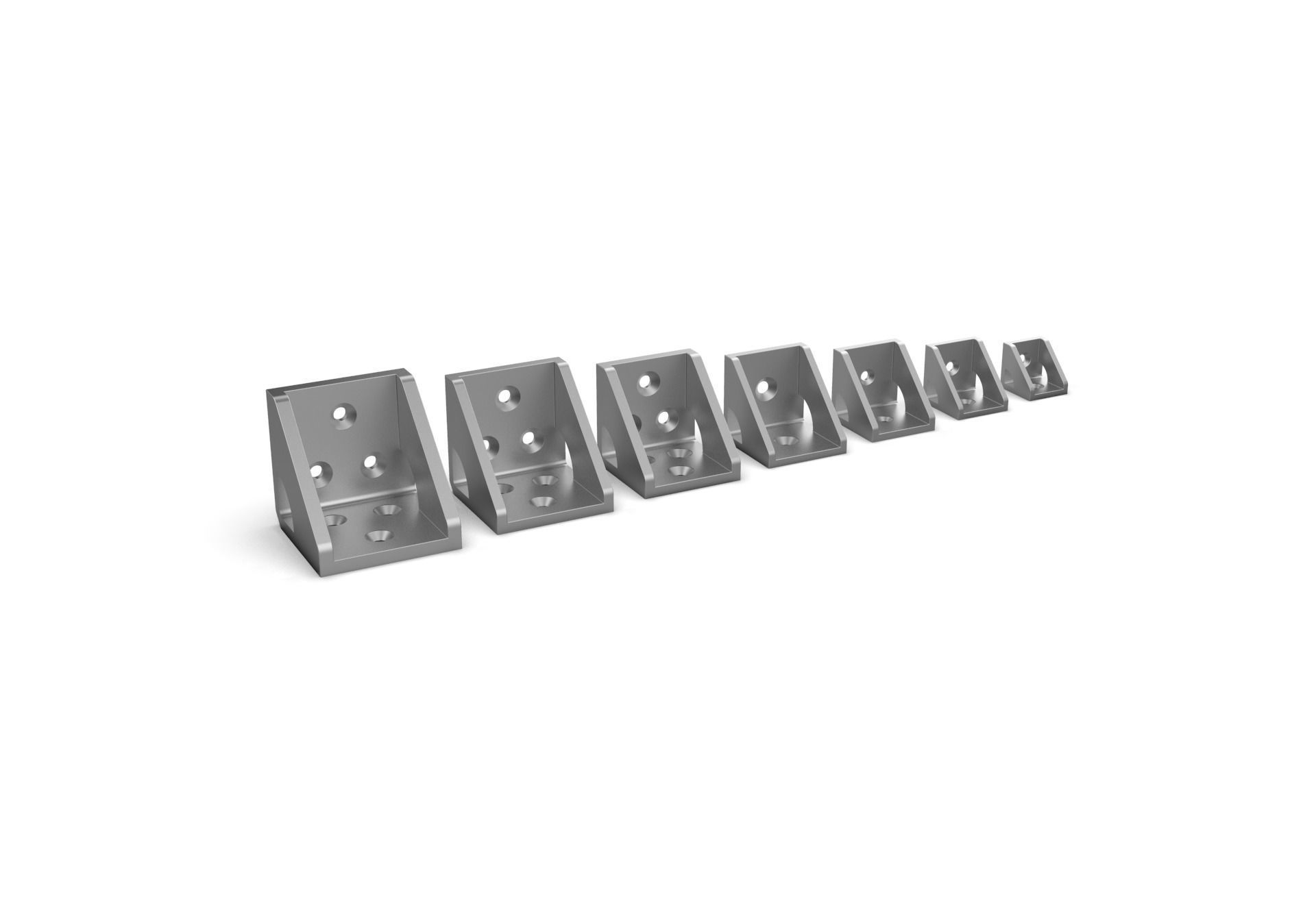

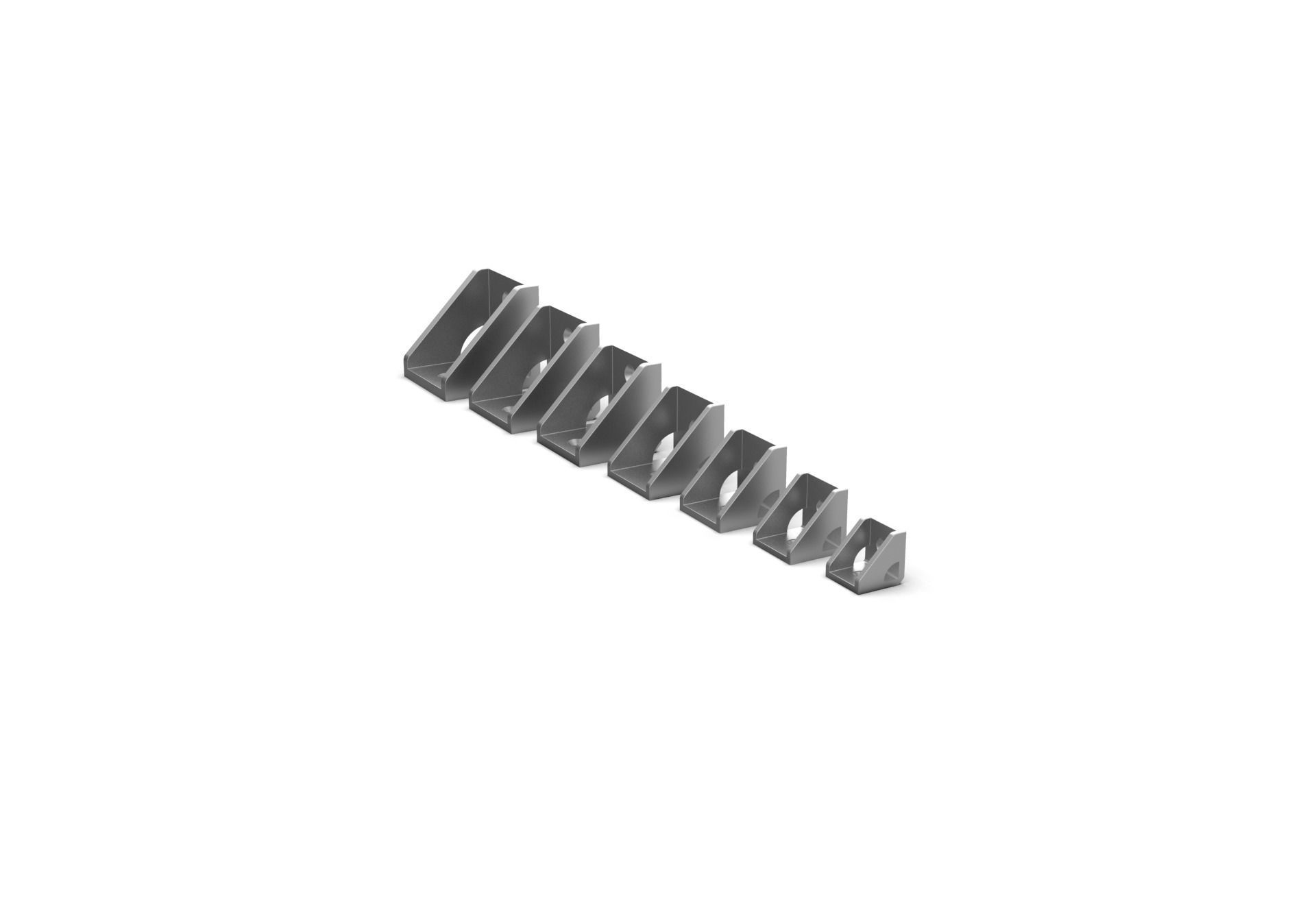

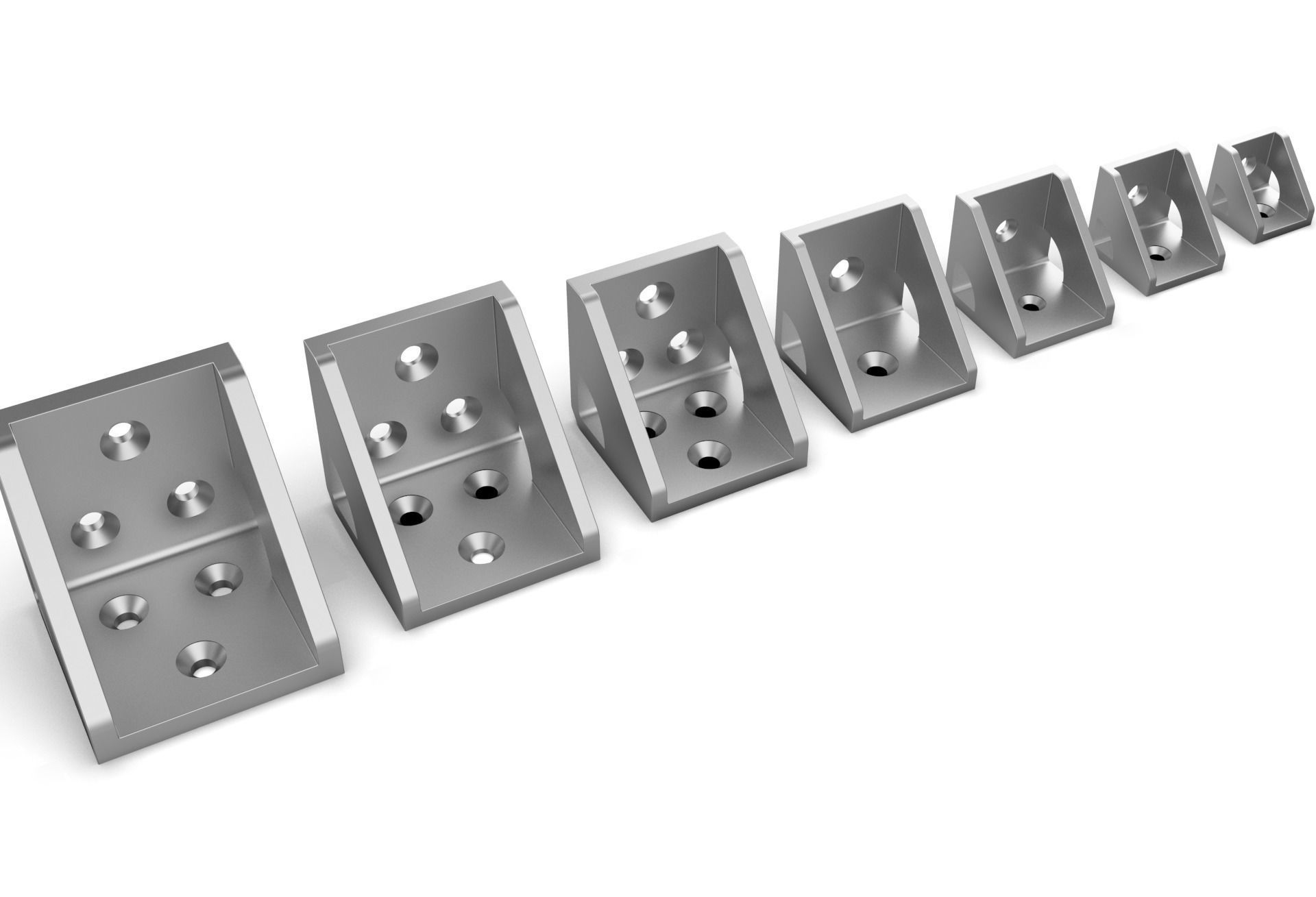

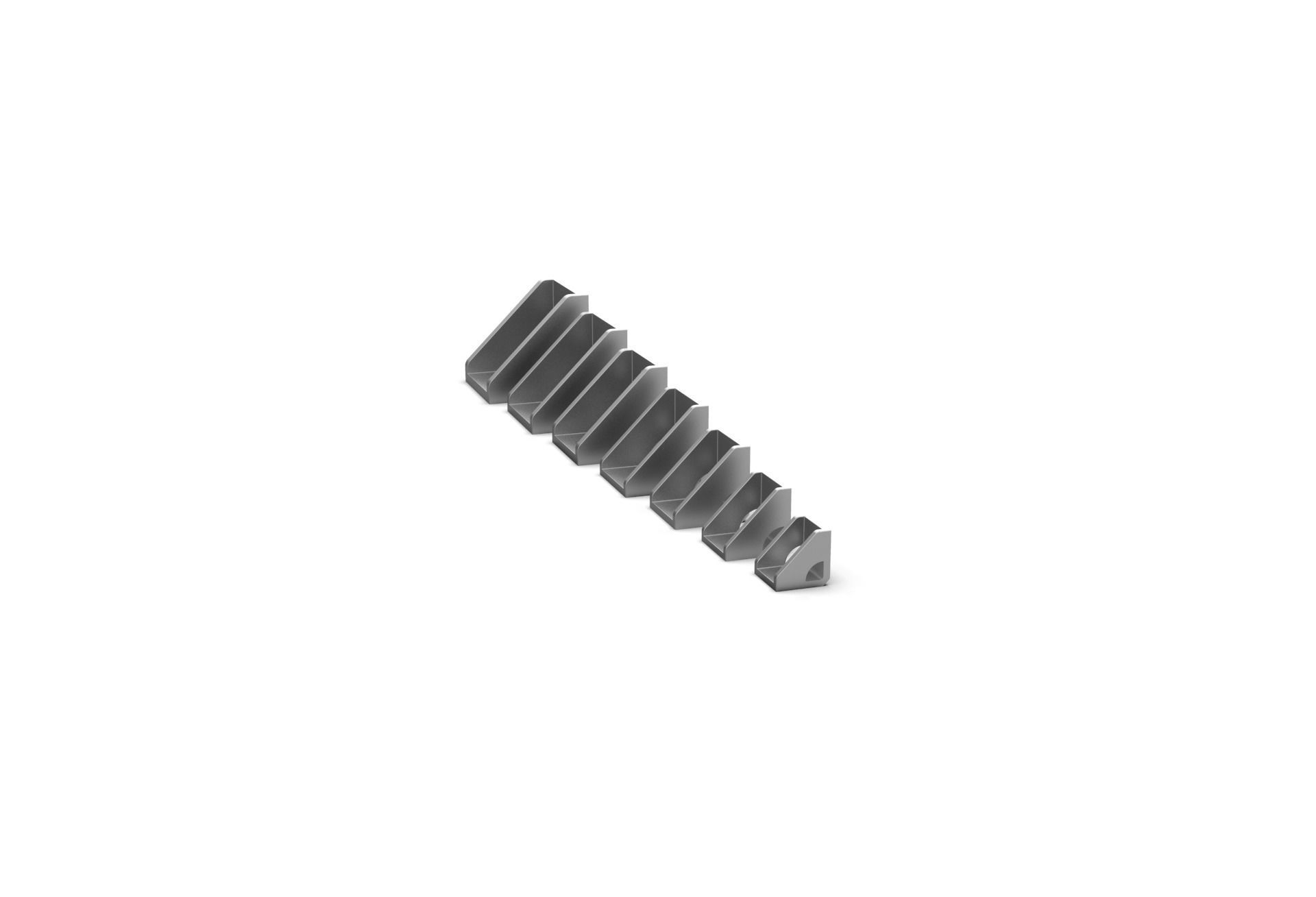

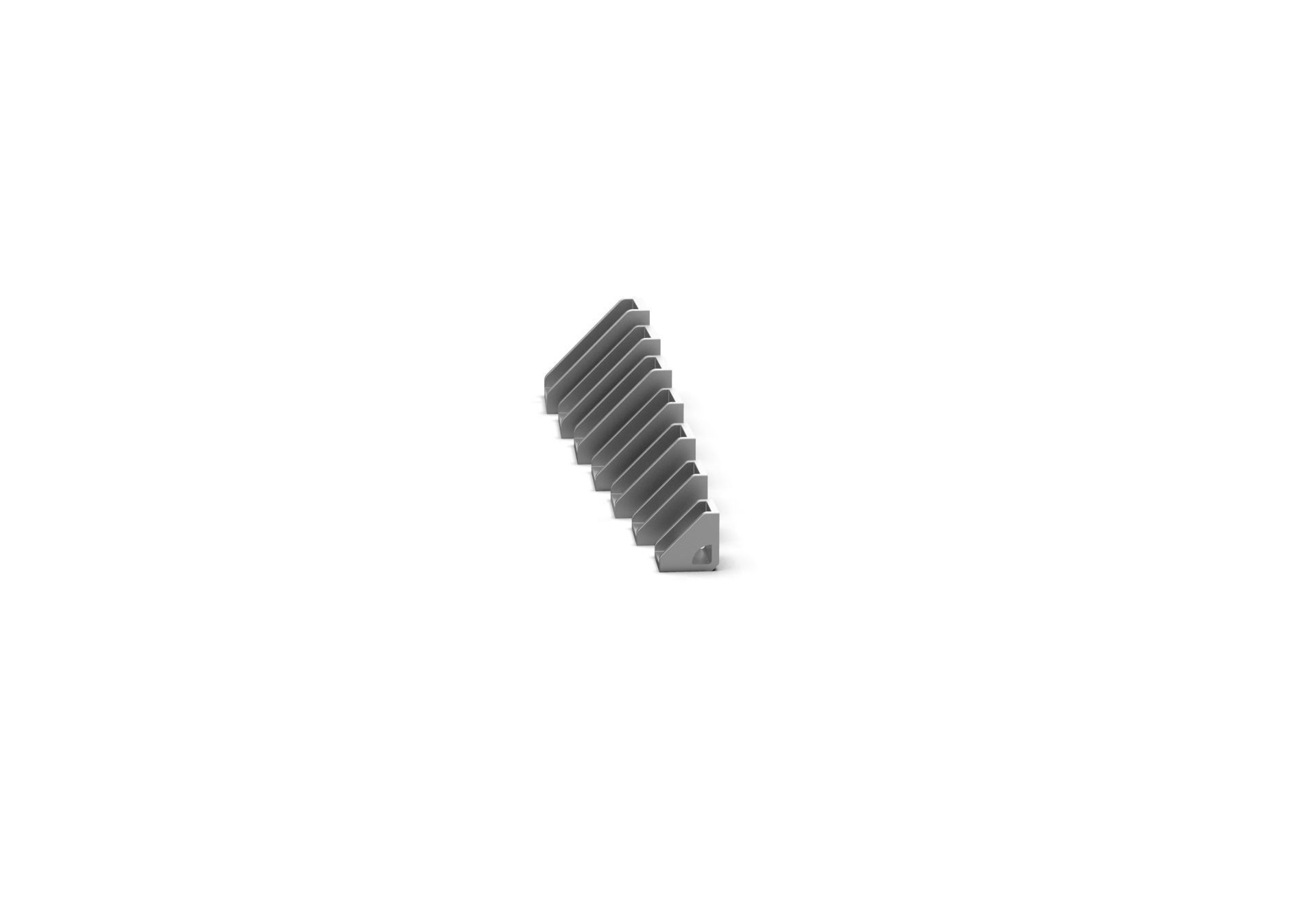

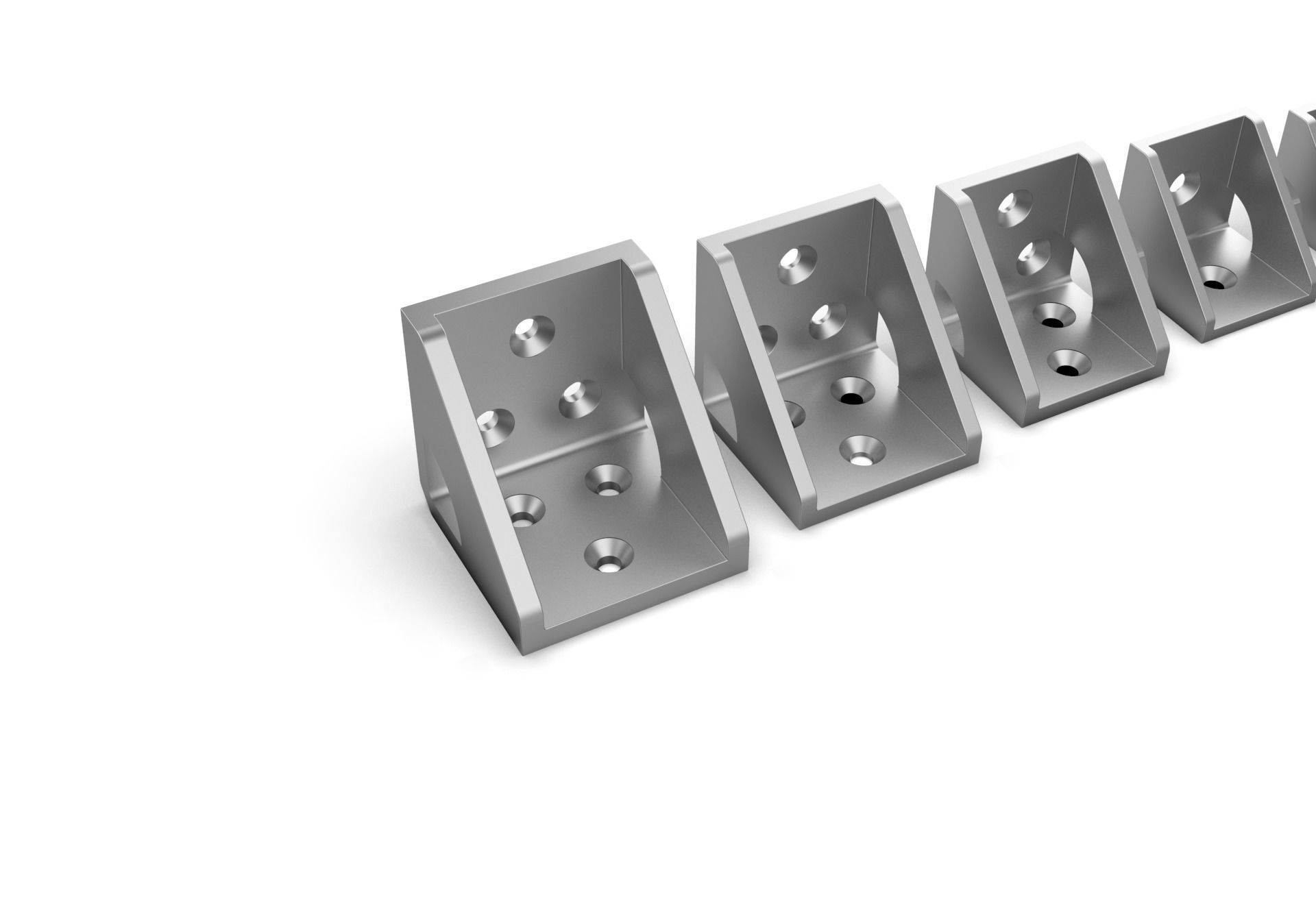

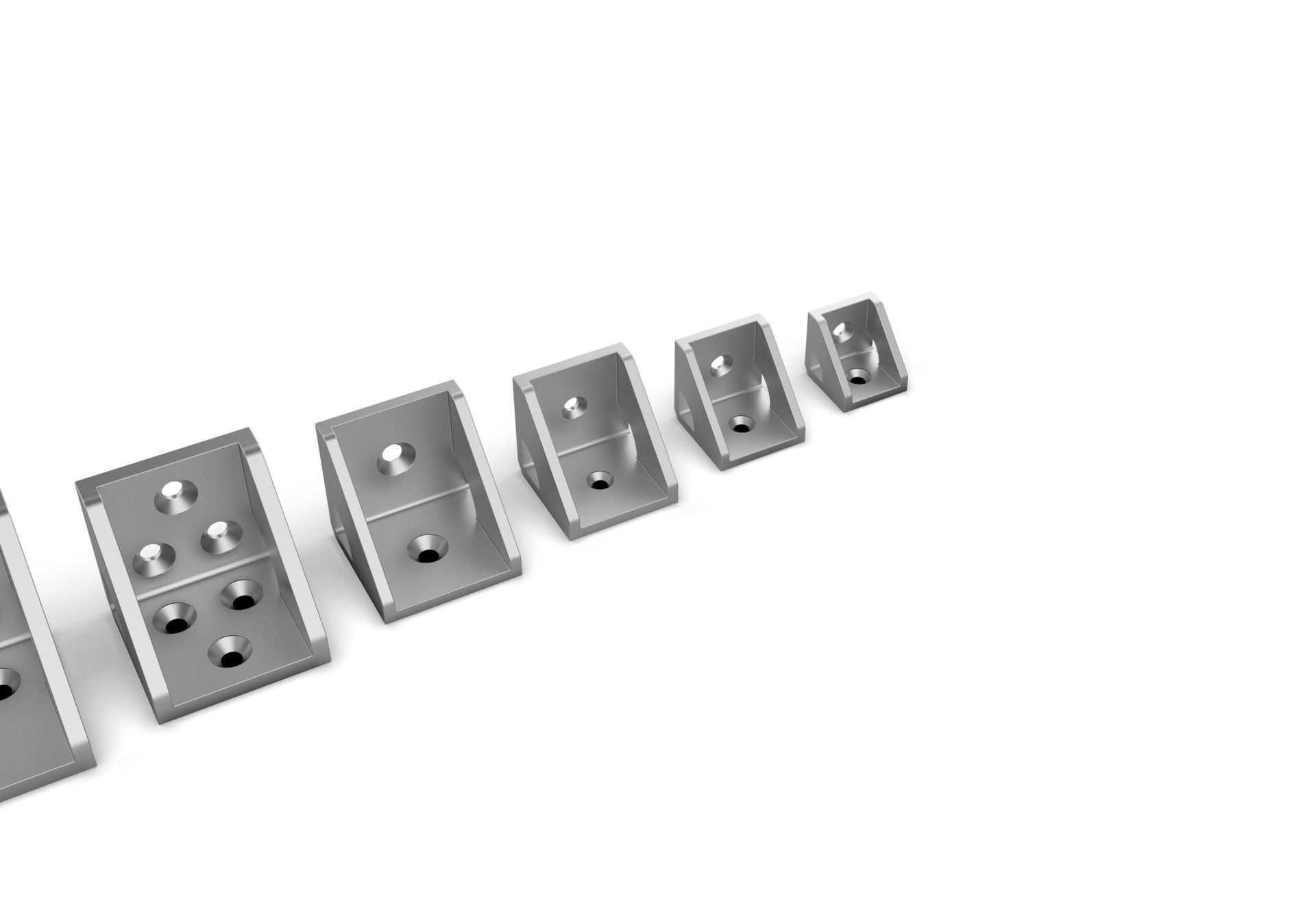

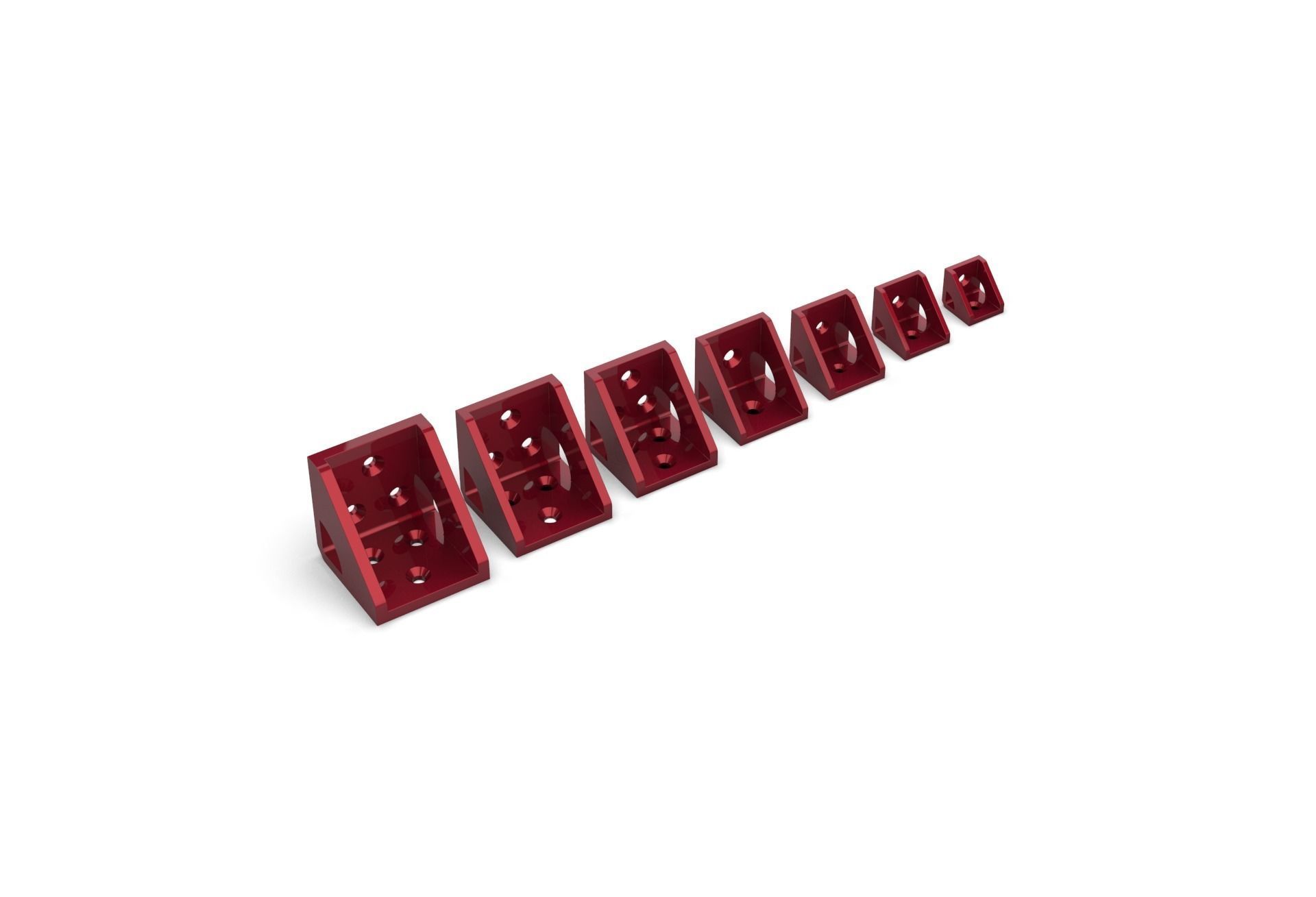

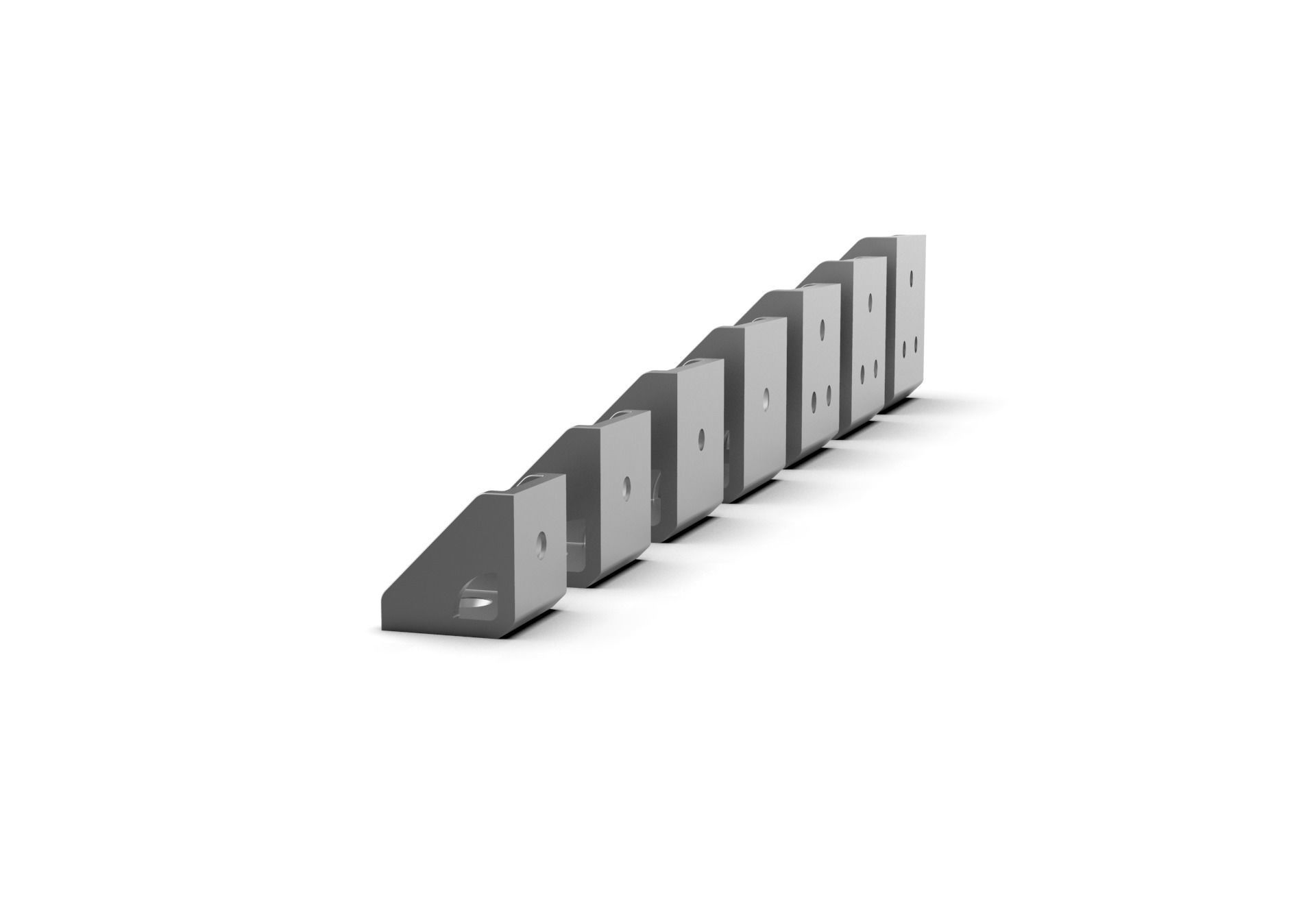

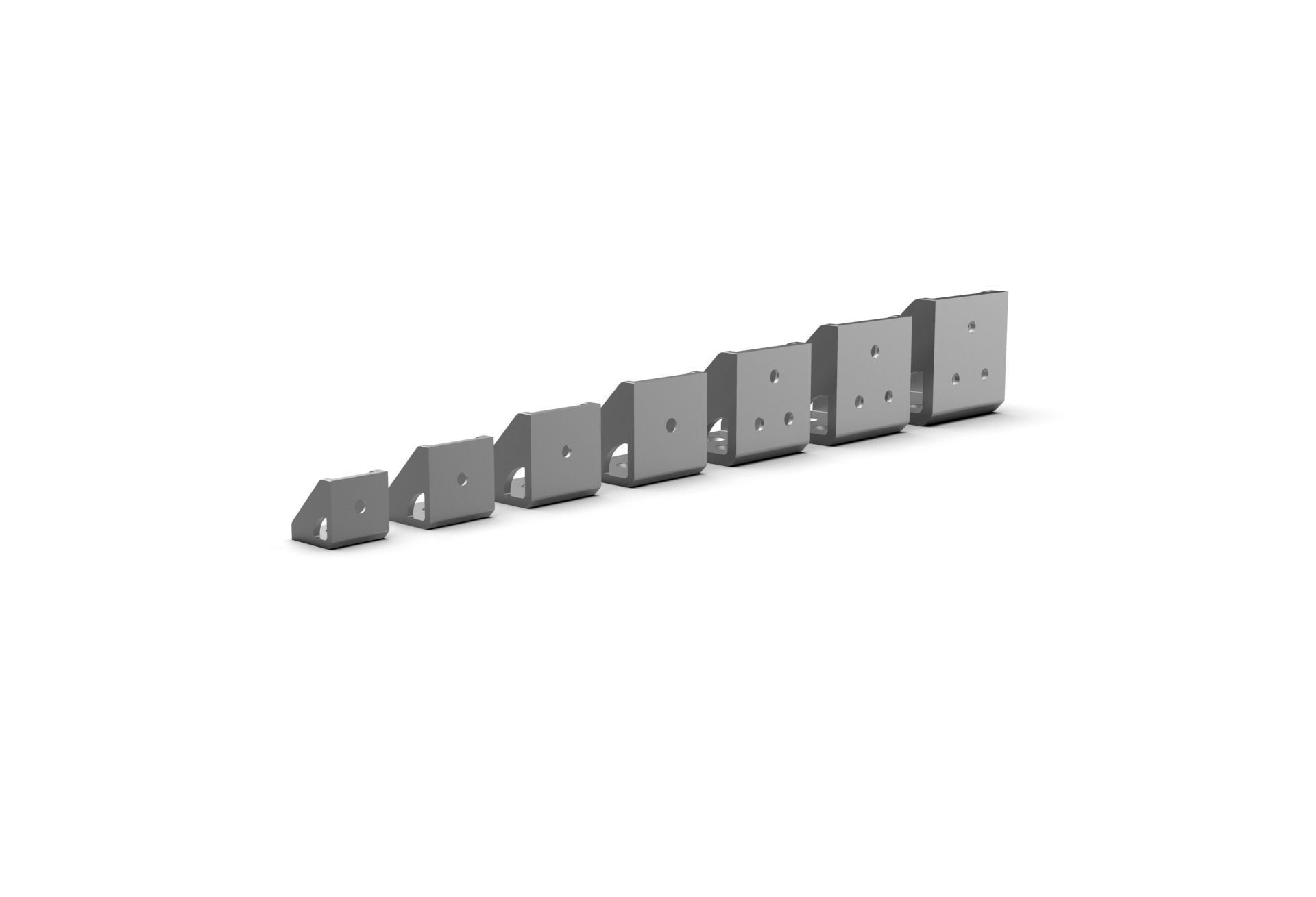

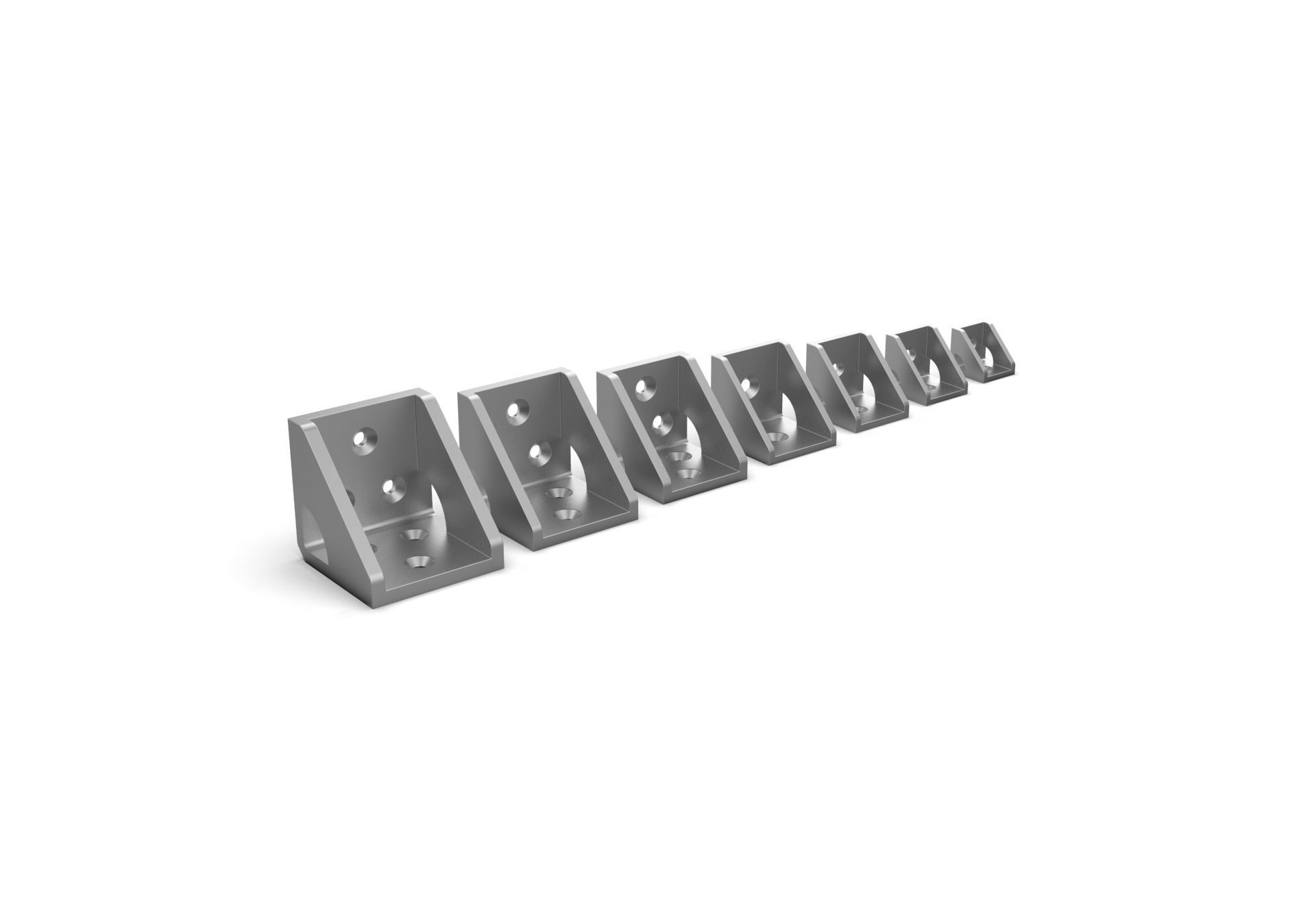

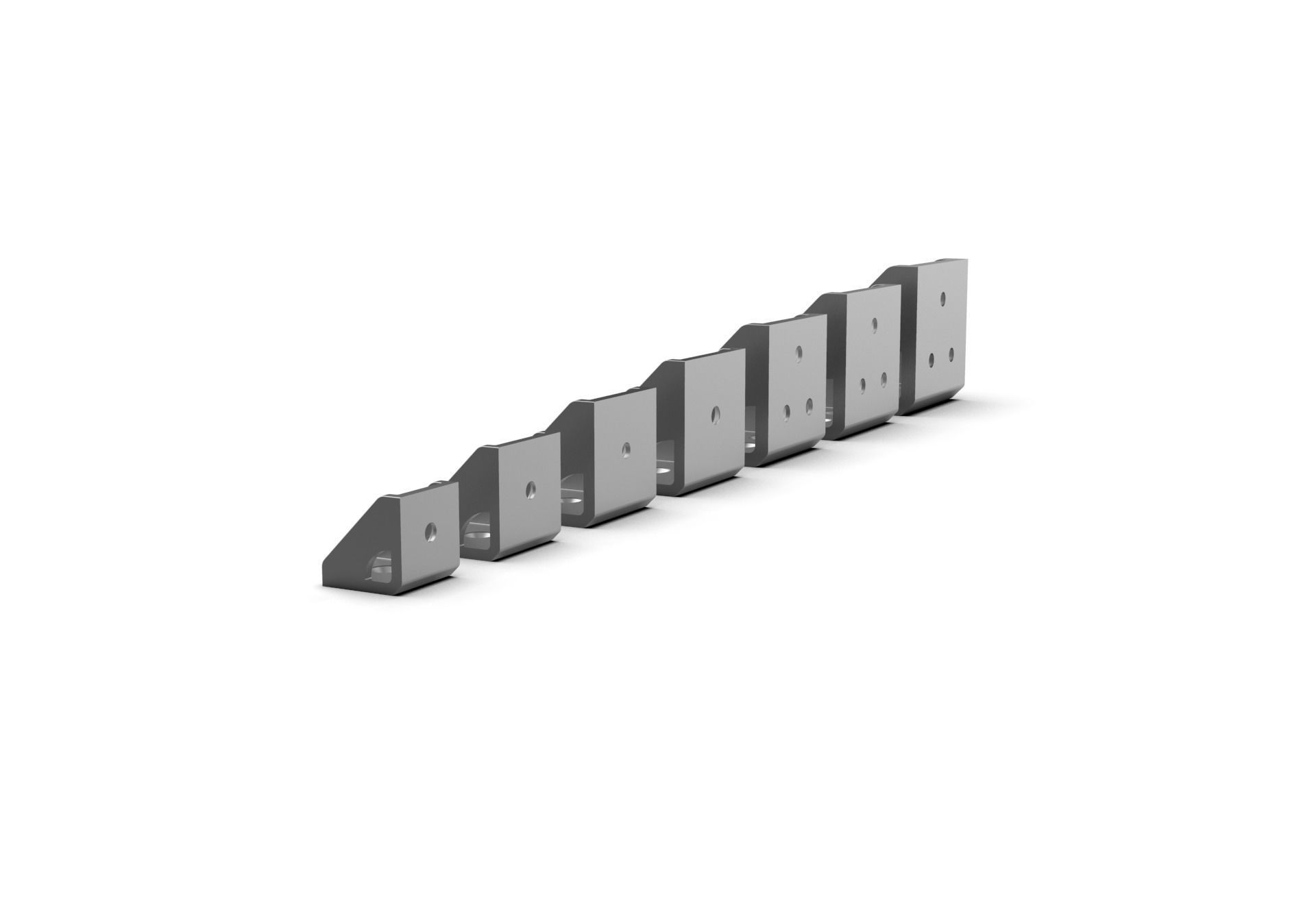

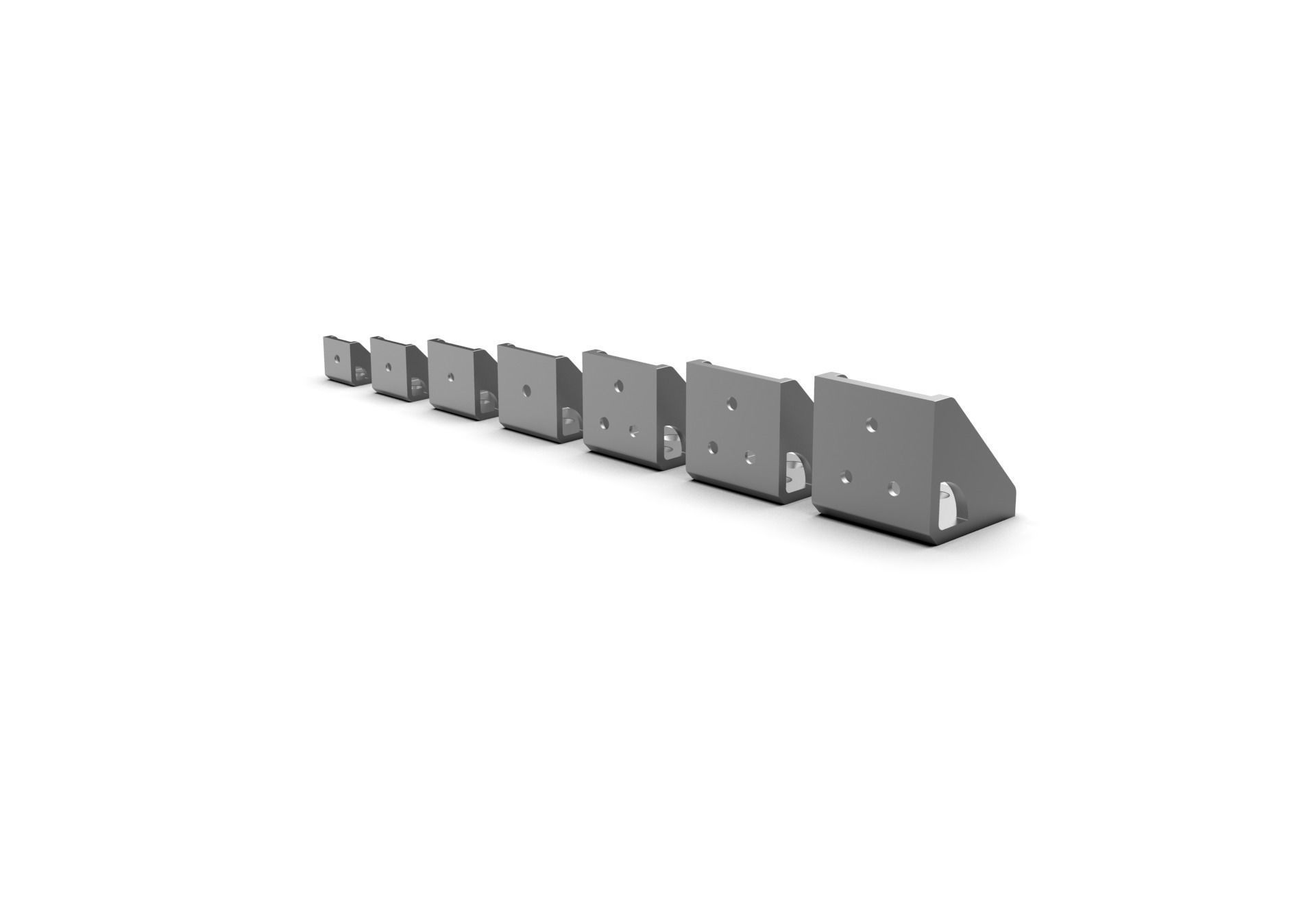

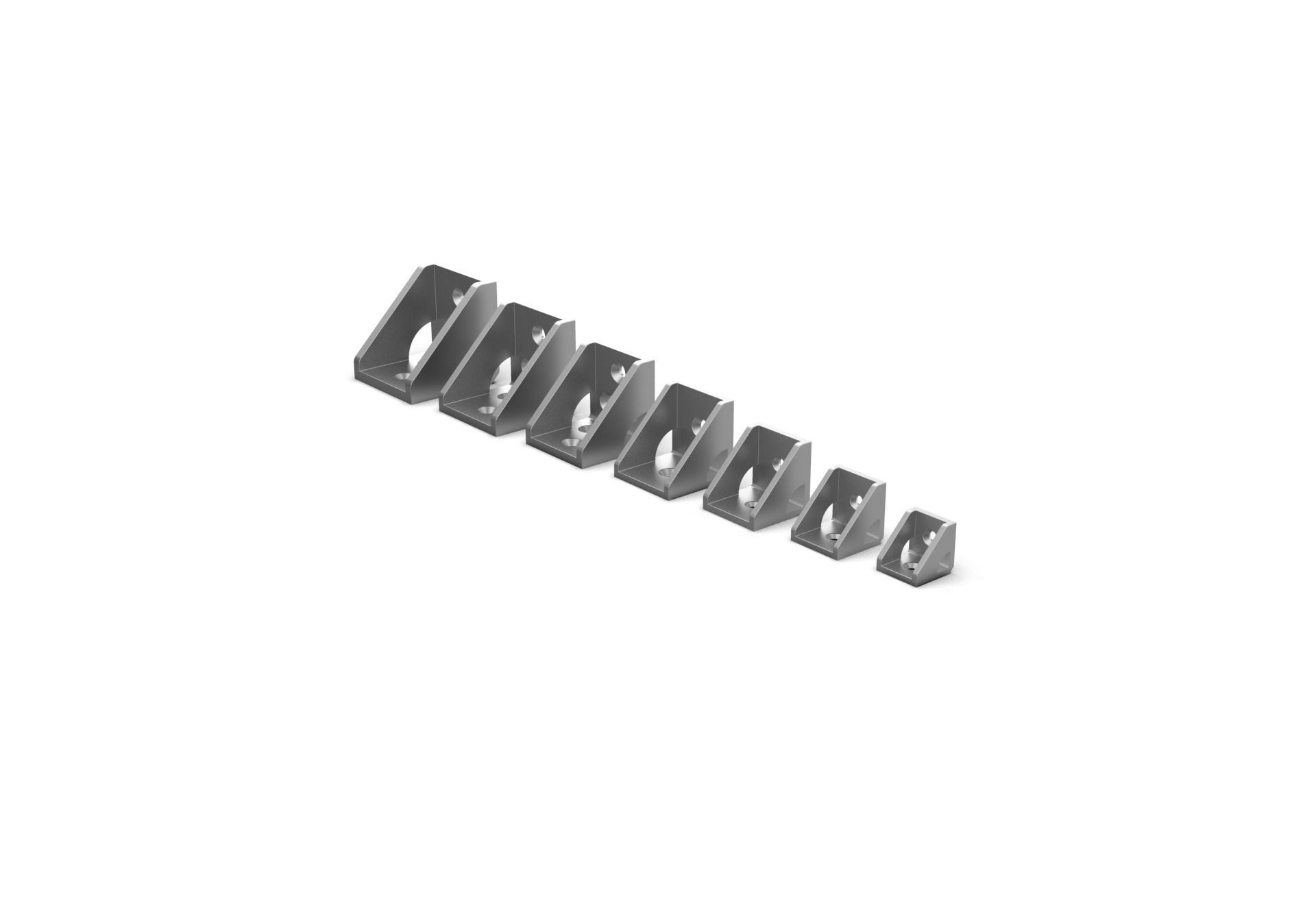

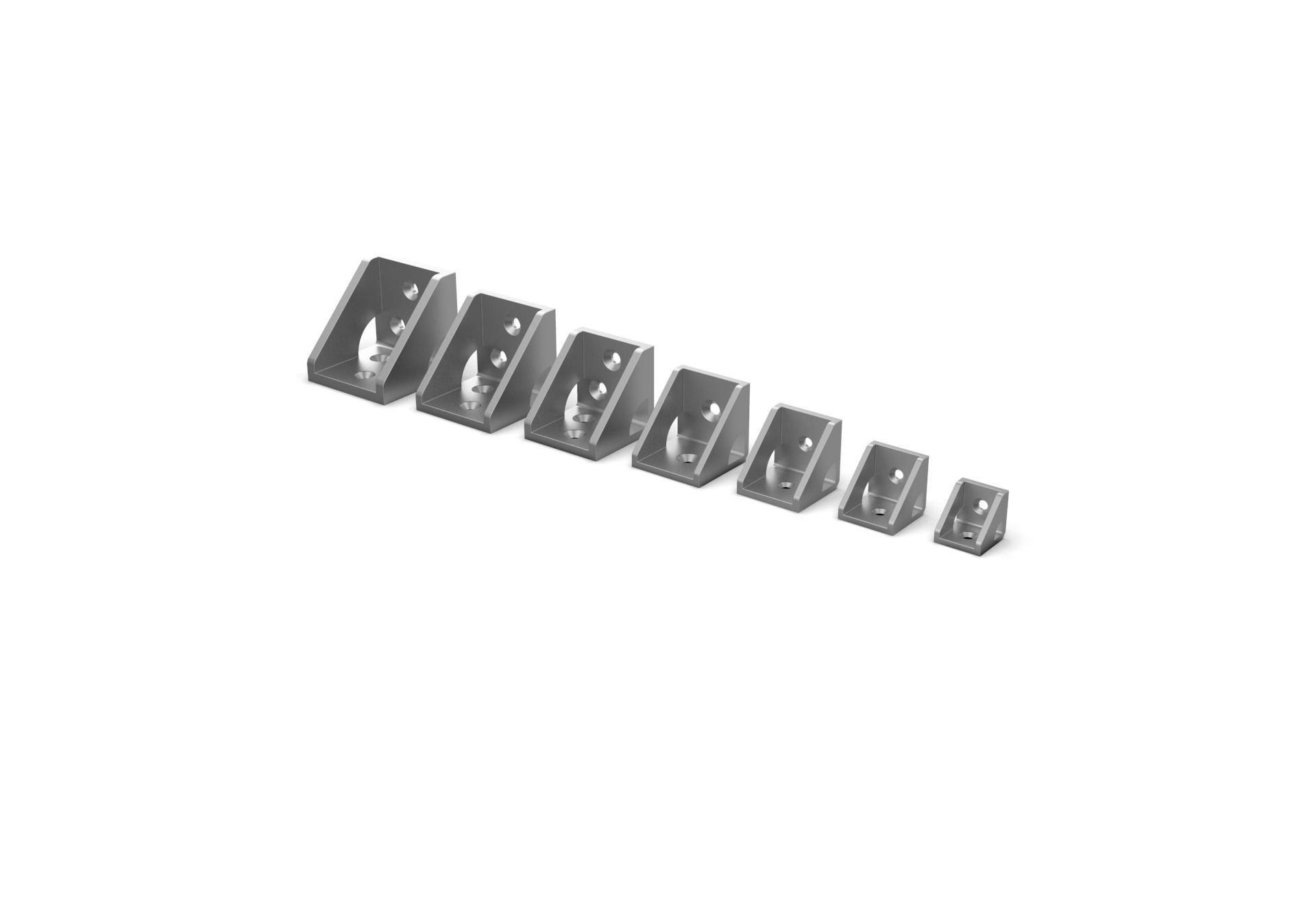

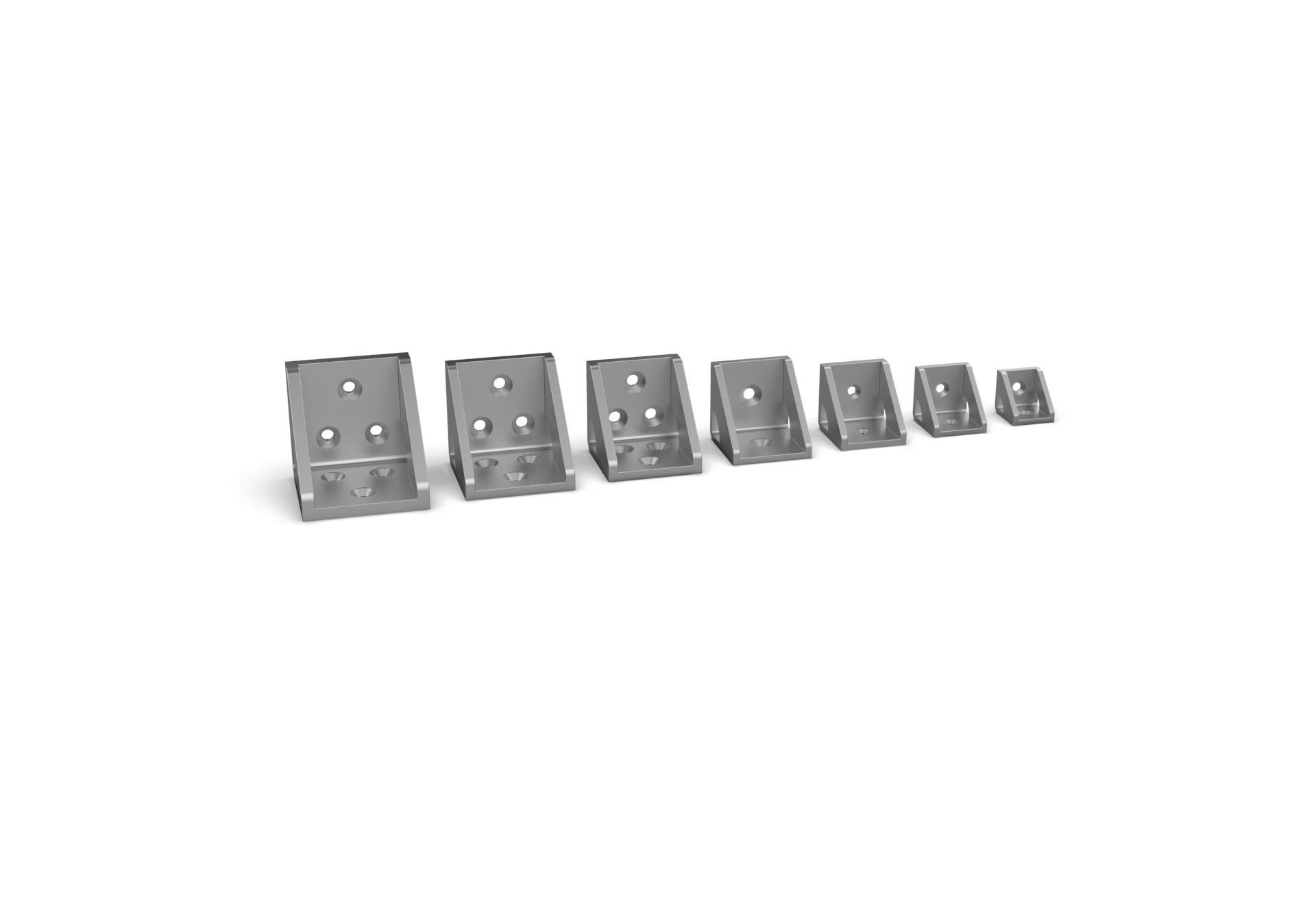

This is a wall mount support bracket base set!

The kit includes custom designed support bracket bases with dimensions that vary between 20, 25, 30, 35, 40, 45 and 50mm in size.The above size configurations refer to the base width, depth and height which are all equal. The bracket design intend is a cube.The part has optimized wall thicknesses so that it can be 3D printed and be strong enough to support any load depending on the infill ratio that you will apply!All sizes have different screw configurations so that bigger ones, are fixed with more screws for optimum weight support.

*Please feel free to contact me if you need an further support on 3D models or if you need any customization on this model. *

Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached.
