Strong and Printable Storage Carry Case 3D print model

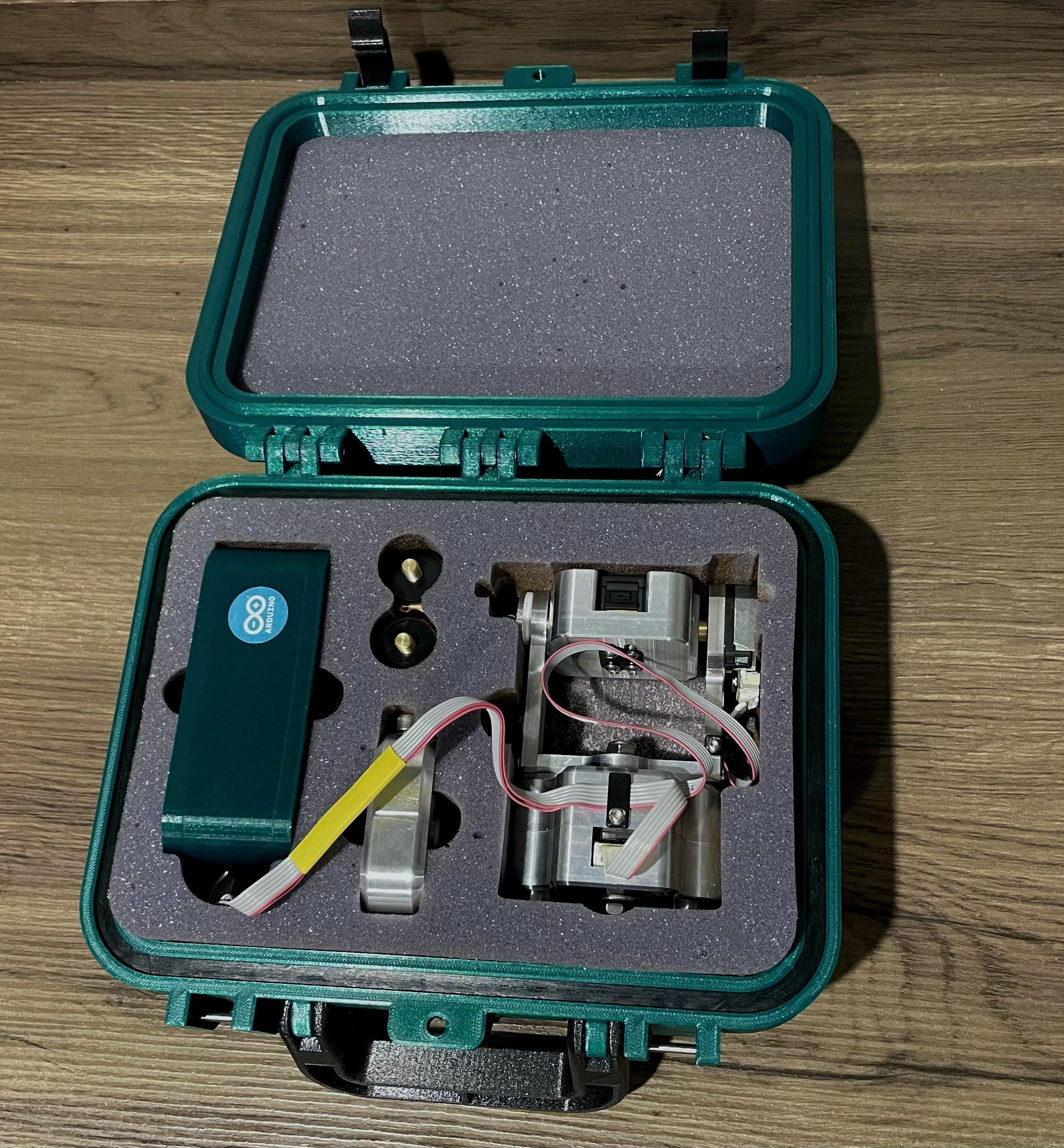

This water-resistant carry case is designed to be printed within the bed space of a Prusa i3 MK3S printer.You can make your own custom foam inserts for added protection as shown in example images or leave it as is.Additional files are included if you don't want the locking tab or label mounting holes.

External dimensions:H 115mmL 240mmW 205mm

Internal dimensions:H 100mmL 210mmW 150mm

Hardware Required:

• 3 pcs M4 x 30 socket screws
• 3 pcs M4 nyloc nuts
• 2 pcs M3 x 25 socket screws
• 2 pcs M3 nyloc nuts
• 4pcs 3mm dia x 20mm dowel pins

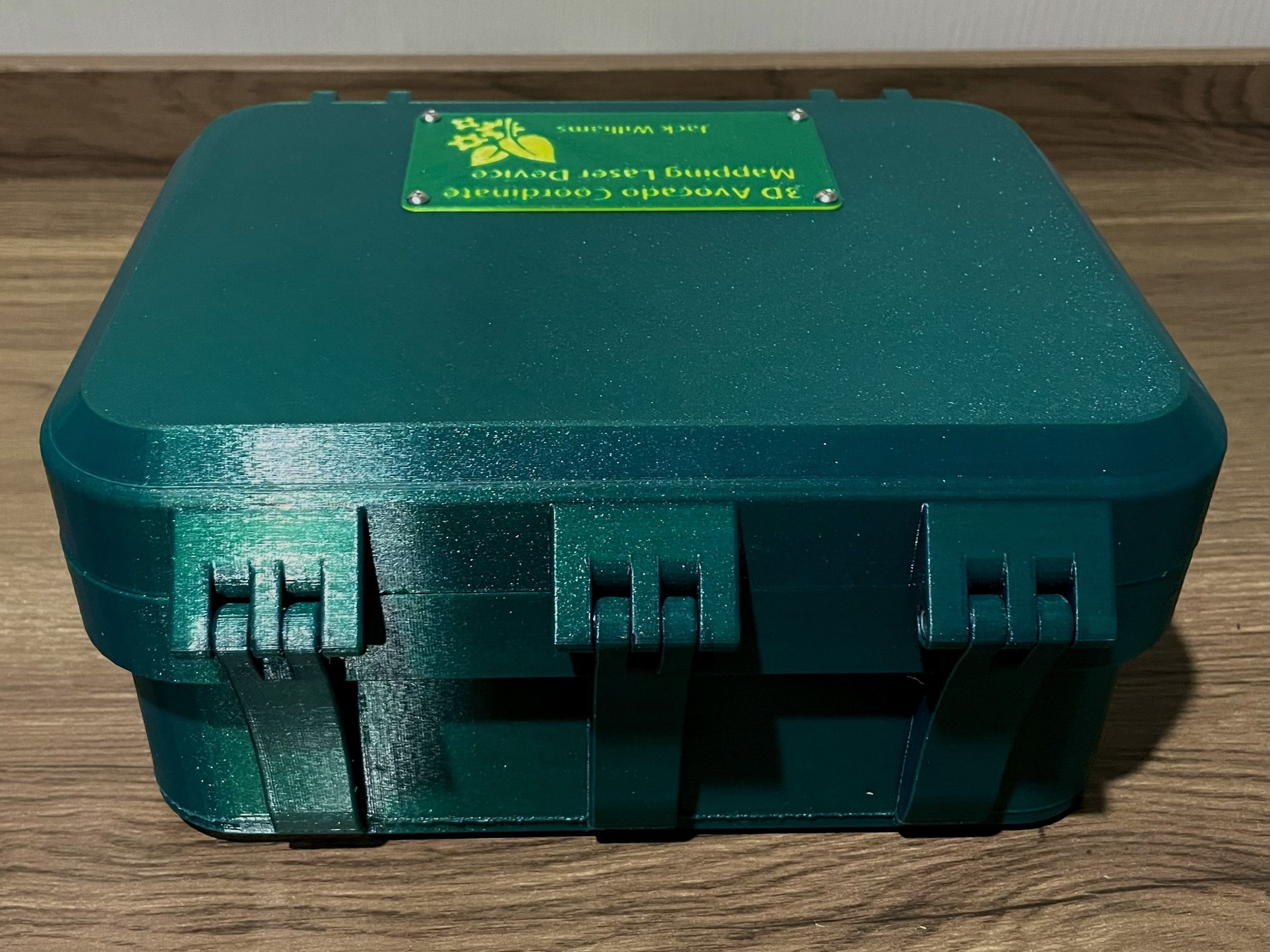

• 4pcs M3 x 6 socket screws (optional for box label)

Printing:

• Print the seal with TPU/flexible filament with two perimeters and 0% infill.

• The lid and case itself can be printed from your material of choice and I would recommend a textured bed with glue stick to prevent the base from peeling up.

• The clips should be printed from PETG or equivalent strength material at 100% infill

• No supports are required other than for the optional locking tab.
