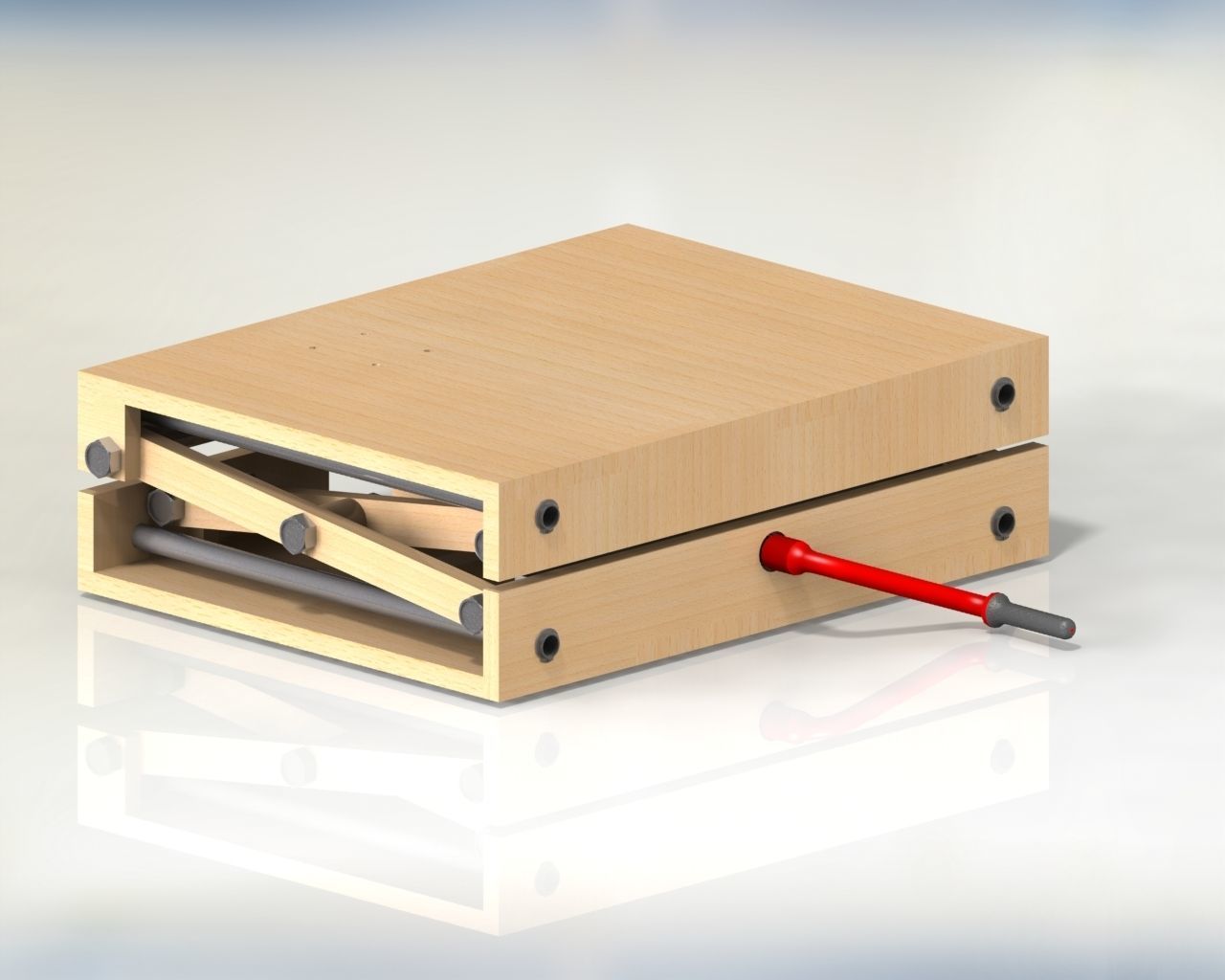

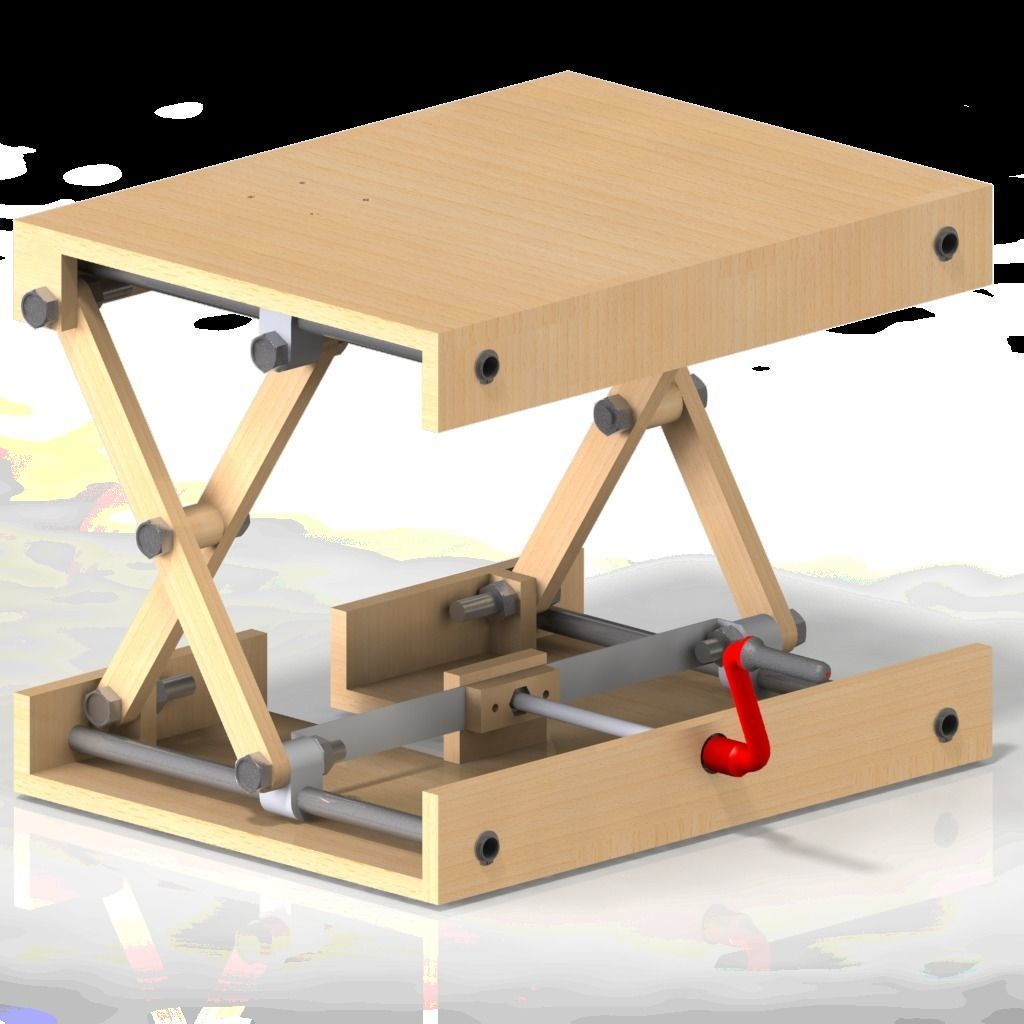

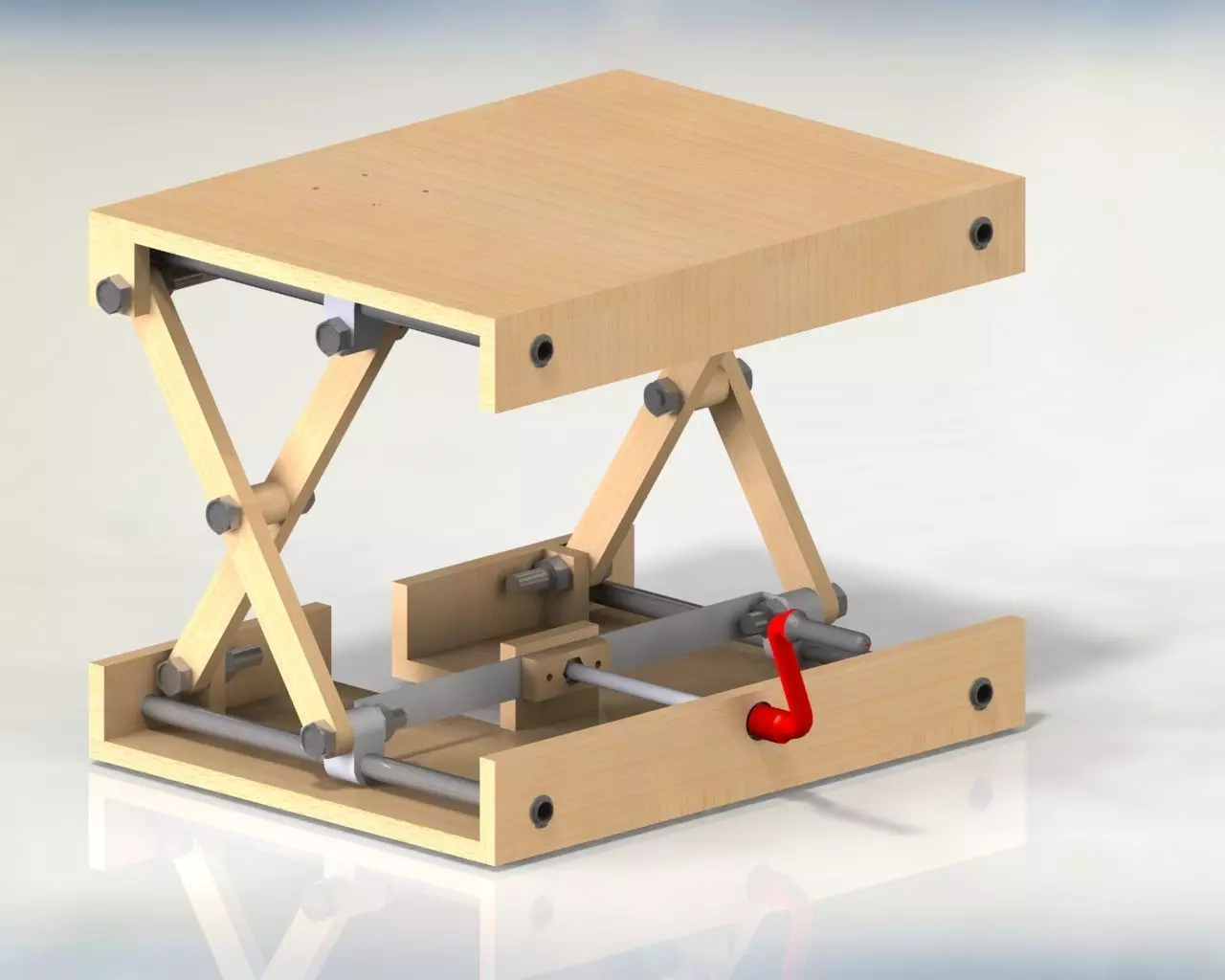

Wooden Scissor Lifting Table 3D model
Description

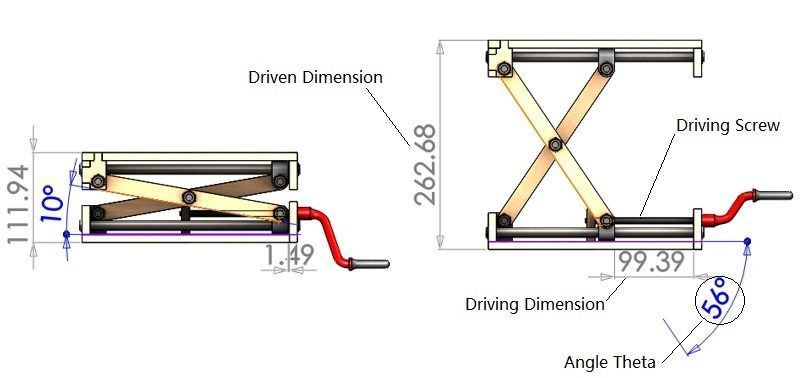

Scissor Lifting Table Mechanism, just by rotating the screw you can lift the mechanism. Easy to operate by hand and screw mechanism provide self lock at any level you reach.
All detailed design files and all dimensions to fabricate the mechanism are included.

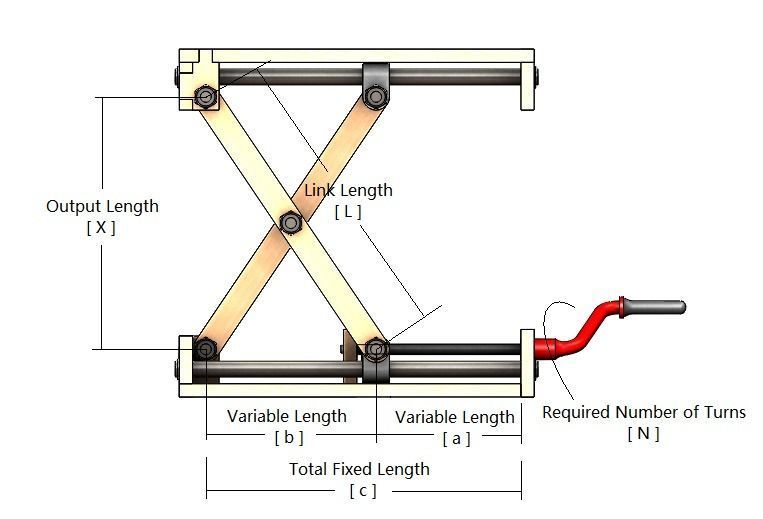

for more details about the mechanism equations and analysis https://erobtic.wixsite.com/erobtic/post/scissor-lifting-elevator-mechanism
Wooden Scissor Lifting Table
Royalty Free License
Wooden Scissor Lifting Table
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw) (20 files)11.2 MBVersion: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 201Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019Version: 2019
Exchange
- IGES (.ige, .igs, .iges)3.87 MB
- STEP (.stp)1.36 MB
- Ply (.ply)1.96 MB
- OBJ (.obj, .mtl) (2 files)7.95 MB
- Stereolithography (.stl)1.03 MB
3D Model details
- Publish date2023-04-30
- Model ID#4470962
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 43,902
- Vertices 41,882
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
