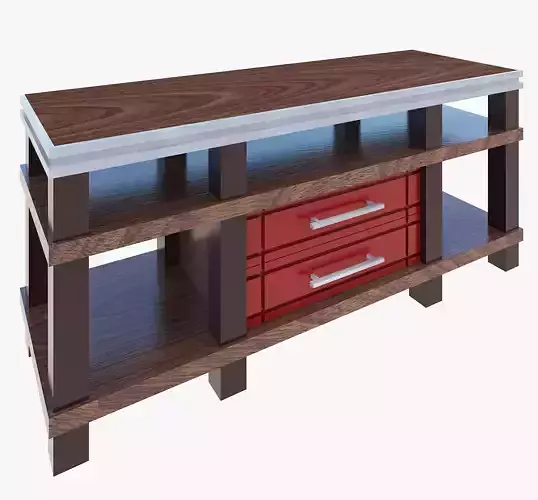

Coffee Table 3D Model 3D model

Model Dimensions : Width : 1200 mm x Height : 480 mm x Depth : 610 mm

This coffee table is designed with the SWOOD plugin in SOLIDWORKS 2022 version. The design is completely parametric in nature. With the plugin installed, the design dimensions (width, height, and depth) and material thicknesses used in the design can be changed parametrically.

The 3D models of the rails used for the drawers are included in the model folder. Additionally, there are 3D data files for different handles available in the model folder, which can be used for the drawers.

No connection elements are provided between the panels in the model. Since different furniture connection elements and standards can be used during the production stage, furniture connection elements have not been added to the model.

The SOLIDWORKS scene and textures used in the 3D model are organized systematically in the files. The downloadable files include the model in parasolid, step, stl and sldasm file formats.
