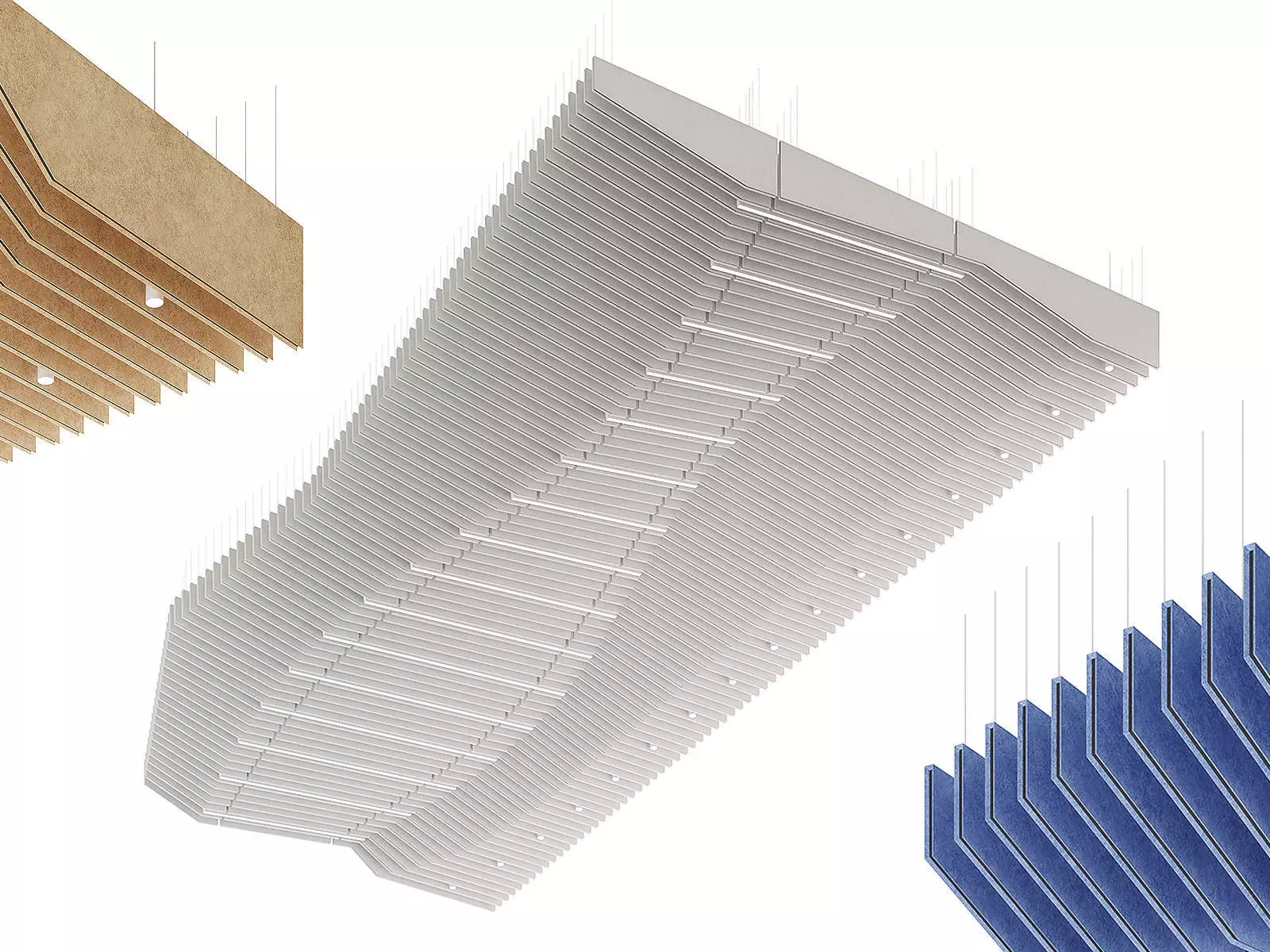

REVEAL CEILING BAFFLE 3D model

Enhance the drama with Reveal, the ceiling baffle system that transforms everyday spaces into stunning showcases. The shape of each multi-layered baffle is completely customizable and available in a variety of colors and wood textures, so you can fluidly integrate into your space or make a scene with bold juxtaposition.

PRODUCTReveal Baffle

CONTENTPolyester (PET) felt60% pre-consumer recycled.

SIZINGCustom is TURF’s standard.Everything is made to order, and can be adapted to fit unique spaces.

LENGTHSMALL RANGE12”L to 35.5”L

MEDIUM RANGE36”L to 71.5”L

LARGE RANGE72”L to 119”L

BAFFLE THICKNESS27mm

EDGE DETAILReveal folds a sheet of 9mm felt around a 9mm felt core. Beveled edges on the exterior create a unique design detail on the sides of the baffles.

This model has three panel colors:

• 05 WHITE
• 83 HOLLAND OATS
• 31 AZURE

A wider range of colors is available on the website

For one system

• Polys: 26603
• Verts: 30236
• Units: Millimeters
• Dimension: 9933.0 x 4987.27 x 926.33

For all

• Polys: 79809
• Verts: 90708
• Units: Millimeters
• Dimension: 32763.5 x 4987.27 x 926.33

Attention: there are no wires in the 3ds file, be careful

More information about colors and possible sizes can be found herehttps://turf.design/products/reveal

The scene and material libraries are saved in Corona and V-Ray, the materials are named correctly, in Latin. There are no lights in the scene, but there are Corona Light mtl and V-Ray Light mtl

Happy using!
