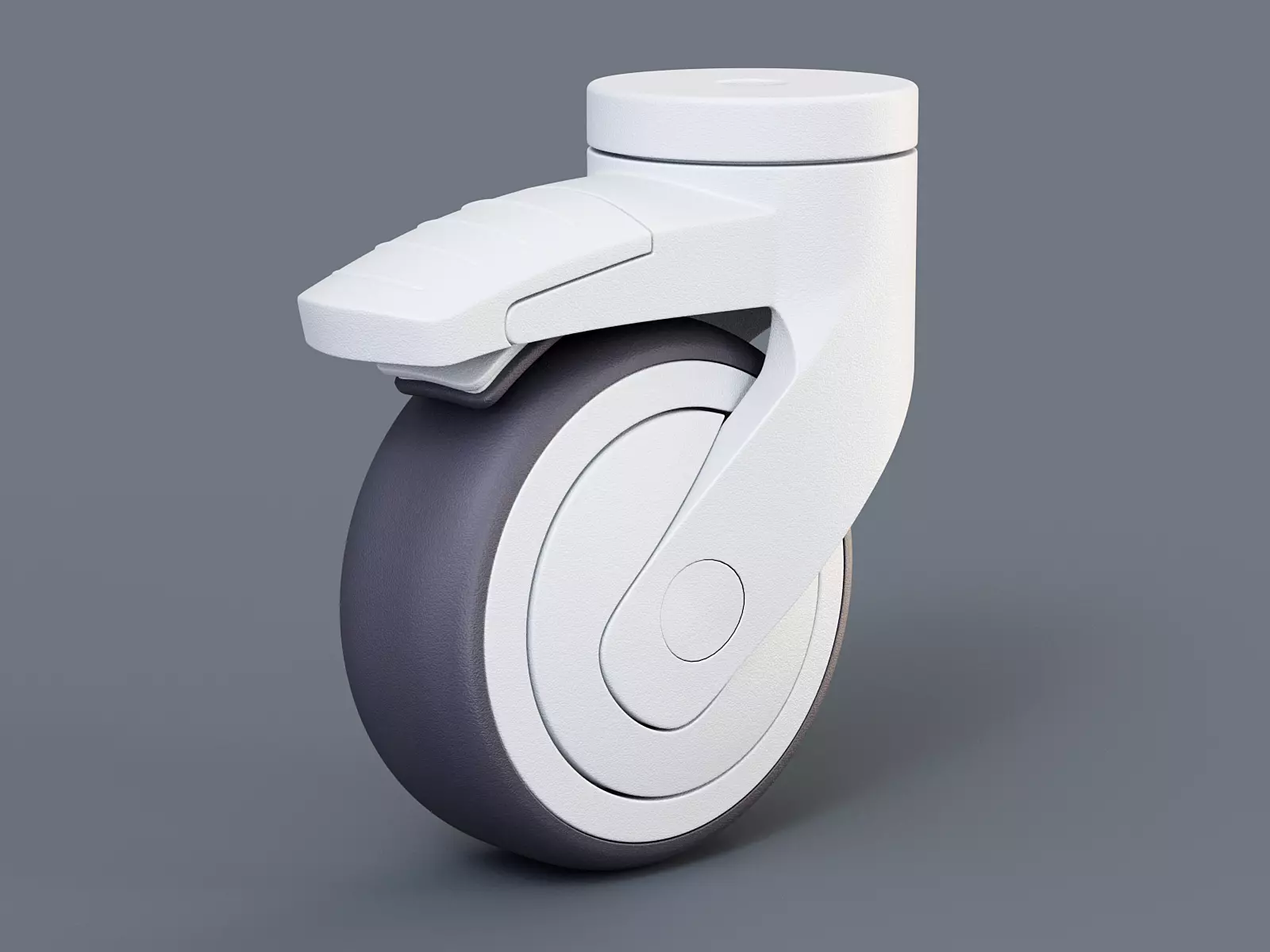

Caster Wheel 2 3D model

3D model of plastic caster wheel.

NOTE

This model is available in several variations. Please look at my shop page for other variations, or for bundle at lower price.

MODEL

• Model dimensions: LWH 6,1 x 12,6 x 13,7 cm (2.4 x 5.0 x 5.4 in).
• Objects count - 4 polygonal objects, 1 group.
• Model is subdivision ready.
• Model is made mostly of quads and few triangles.
• Polycount without subdivision:
• Polys - 4 671
• Verts - 4 953
• Polycount with subdivision:
• Polys - 149 120
• Verts - 75 749

MATERIALS

• Materials are prepared for Corona and V-Ray renderers.
• Scanline and FBX has only very basic materials and will NOT render the same as in preview images.
• OBJ file has no materials, but has UVW coordinates intact.
• Even though the model has uniquely unwrapped UV coordinates, textures in Corona and V-Ray scenes are mapped with triplanar techniques to avoid seams. In case you will use the model in app that has no support for triplanar mapping, use conventional mapping instead. Please notice, that in such case, you should tile normal map approx 10 times to achieve correct scale.

TEXTURES

• Format - PNG
• Count - 5
• Resolution - 1024 x 1024 px
• Textures are collected into one archive and are delivered in separate file.

SCENE

• Model is scaled to accurate real world dimensions.
• Objects, materials and textures has meaningful and matching names.
• Transformations has been reset and model is placed at scene origin [0, 0, 0 XYZ].
• All texture paths are set to relative.

FILE FORMATS

• 3ds Max - Corona
• 3ds Max - Vray
• 3ds Max - Scanline
• FBX (subdivided)
• FBX (not subdivided)
• OBJ (subdivided)
• OBJ (not subdivided)

GENERAL

• Modeled in 3ds max.
• Preview images are rendered with Corona renderer.
• Images are straight from rendering app. No post processing were applied.
• Render scenes are not included.

***

Please contact me if you have questions or need assistance with the models.
