Half Overlay Hinge on the middle wall

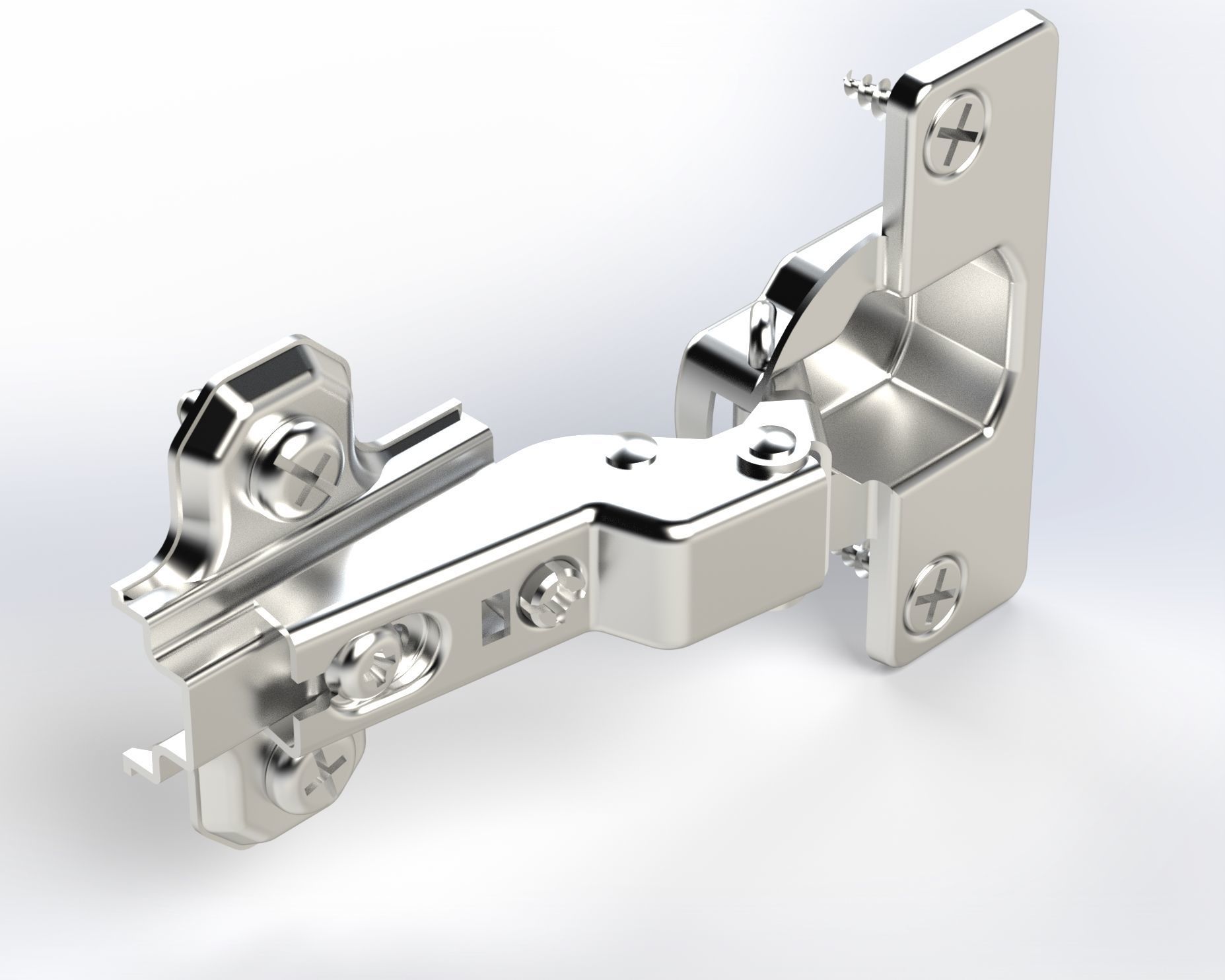

Photorealistic 3D model of a door hinge by Hettich for European Cabinet.European Cabinet Hinge created in SolidWorks 2018.The Solidworks part comes in 3 configurations: full open, fully closed, and free open. Plate drilling distance is 32mm.

Hidden Loop Slide-on 2333Opening angle 95°Hettich Art. 2333-T42 (1 078 661)(on the middle wall)

  • Concealed hinge for sliding mounting• For door thickness from 14 mm
  • Cup diameter 35 mm• With self-closing function
  • Built-in overlay adjustment + 0.5mm/ - 2.5mm
  • Built-in depth adjustment ± 2 mm
  • Height adjustment on the mounting plate ± 2 mm
  • Cup/console hinges nickel-plated steel
