Full overlay hinge with monting plate 3D model

Description

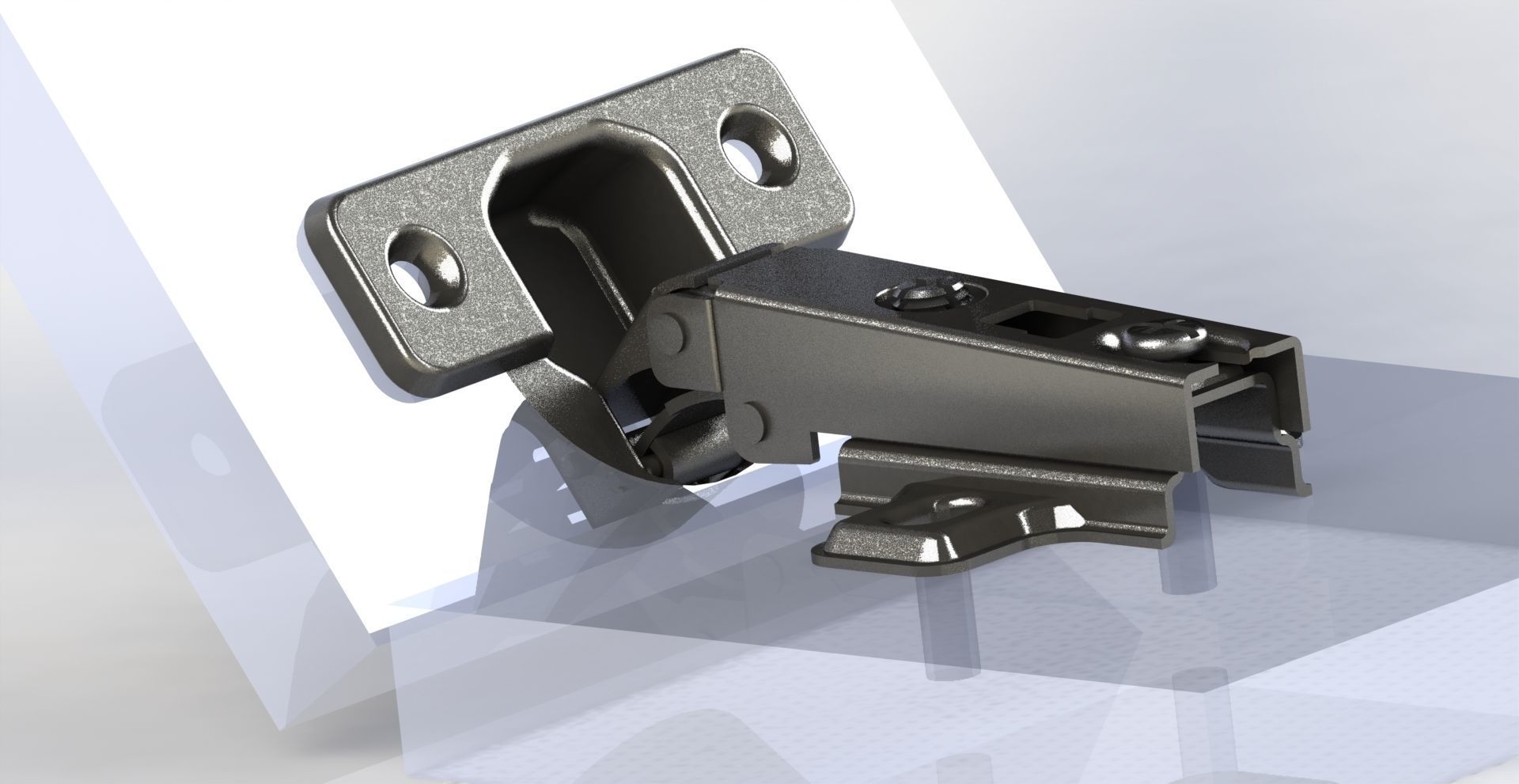

Created in SW 2015.Animated Full overlay hinge + monting plate smart component with adjustable offsets. As default holes 5x12 - 37mm , 35x12 - 21mm. If you will change offset - holes will move.Please write request for another format (if it can be converted from SW but all the features will be lost).Don't just download, press like as well.
