STREET BOLLARD WITH CHAIN LINK 3D model

Highly realistic RailClone preset of STREET BOLLARD WITH CHAIN LINK

The STREET BOLLARD WITH CHAIN LINK model is created for RailClone parametric modeling. For those who don't have the RailClone plugin, I exported the model, which is shown in the photo, to Editable Poly, so you can use normally use it.

One column has 17000 vert./faces.One element of the chain-link has 300 vert./faces.

The model is textured for the CoronaRenderer.

included :

Model. Texture 3ds MAX, Corona ( Textured ) FBX ( Mesh Only ), OBJ + MTL, 3DS, RailClone preset (RailClone Pro 3.3.1, 3dsmax 2020 file)

How to use:

Merge the STREET BOLLARD WITH CHAIN.max’ file to Your scene

1. Create/edit your spline for the BOLLARD;
2. Create/edit your spline for the CHAIN LINKS (it is important to adjust them to the bollard's holes) (notice, that the splines for the CHAIN LINKS shoud be CURVED and have no vertex, so ONE CHAIN LINK = ONE LINE WITH JUST TWO VERTEX ON ONE AND OTHER END);

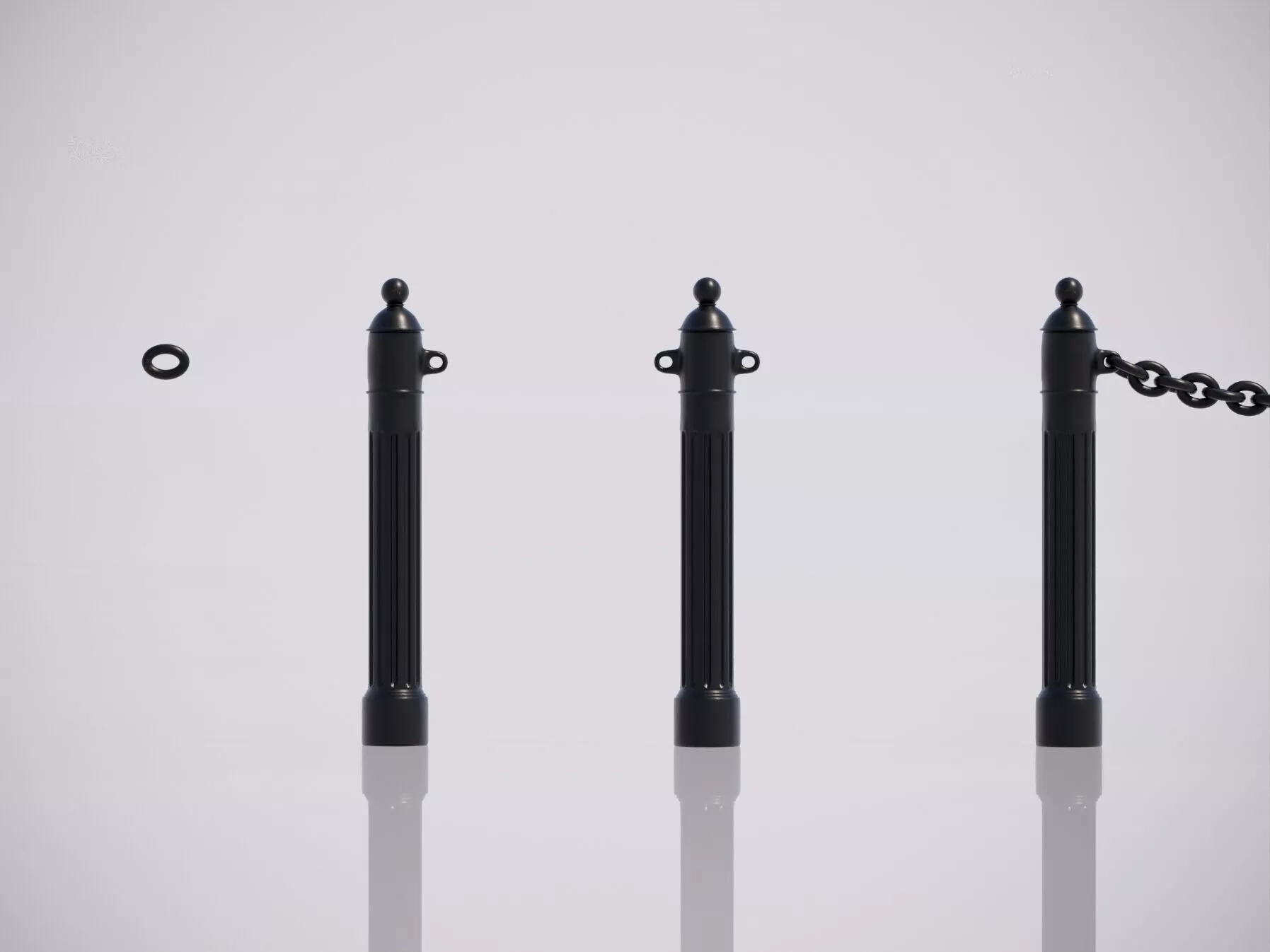

3. If you have problems, try to reload the models in the 'segment' nodes. The right object for every node you can find on the photo.
4. Reaload/add splines in the RailClone (where exactly to do that is shown in the photos)
5. Enjoy the parametric modeling!

I will be thankful for your comments and reviews.
