Wavy Pergola Waffle Structure 3D model

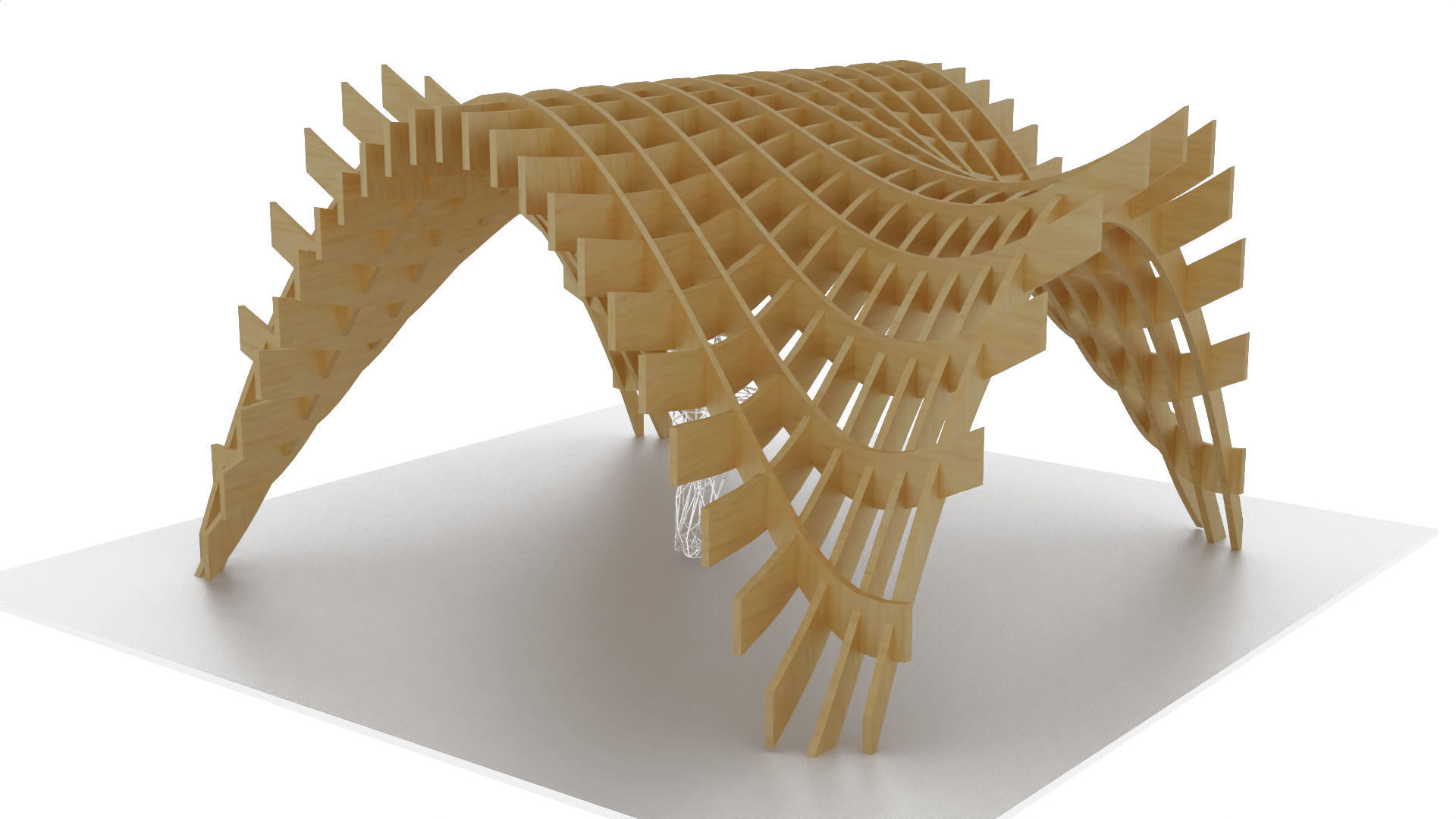

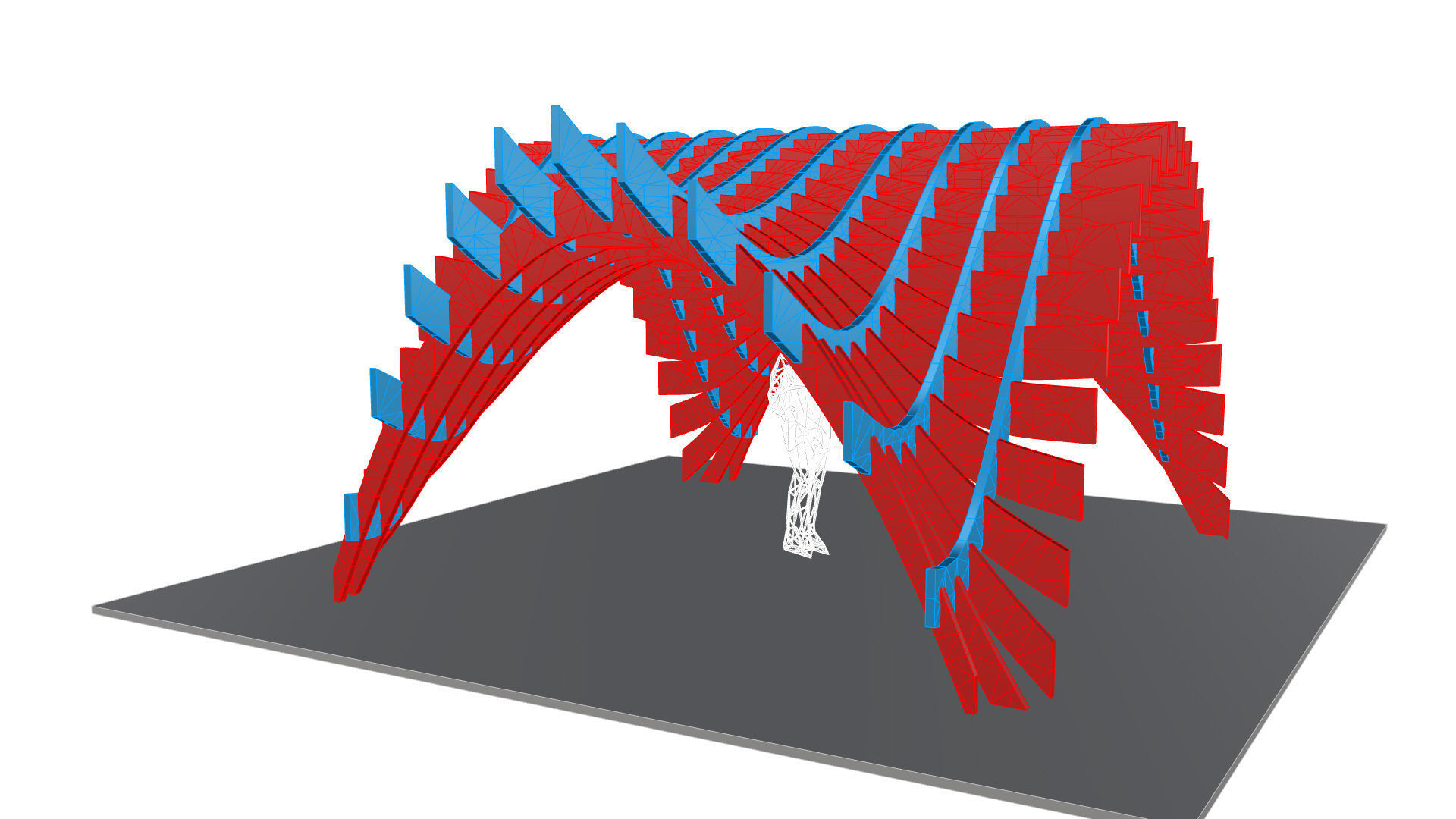

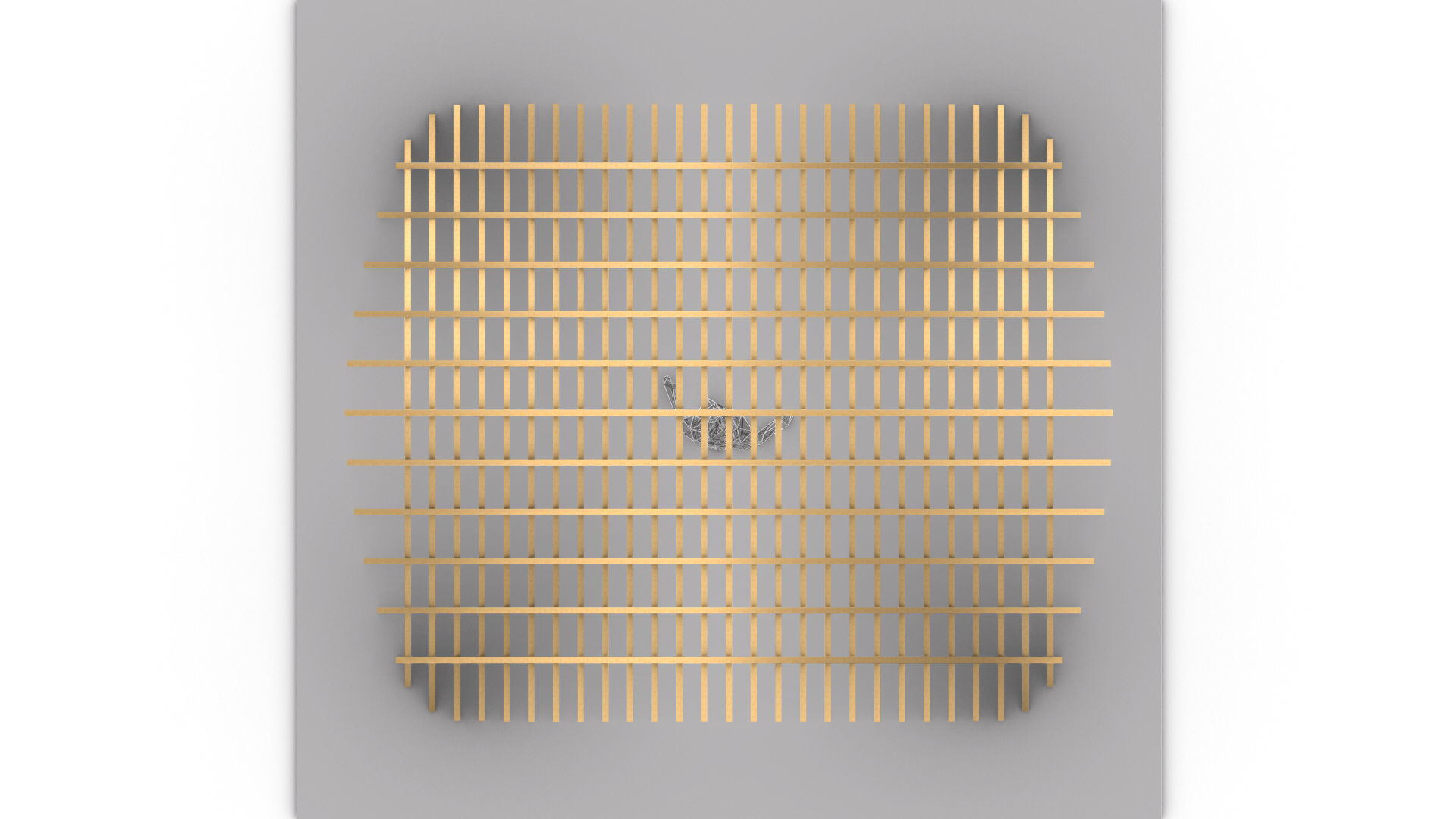

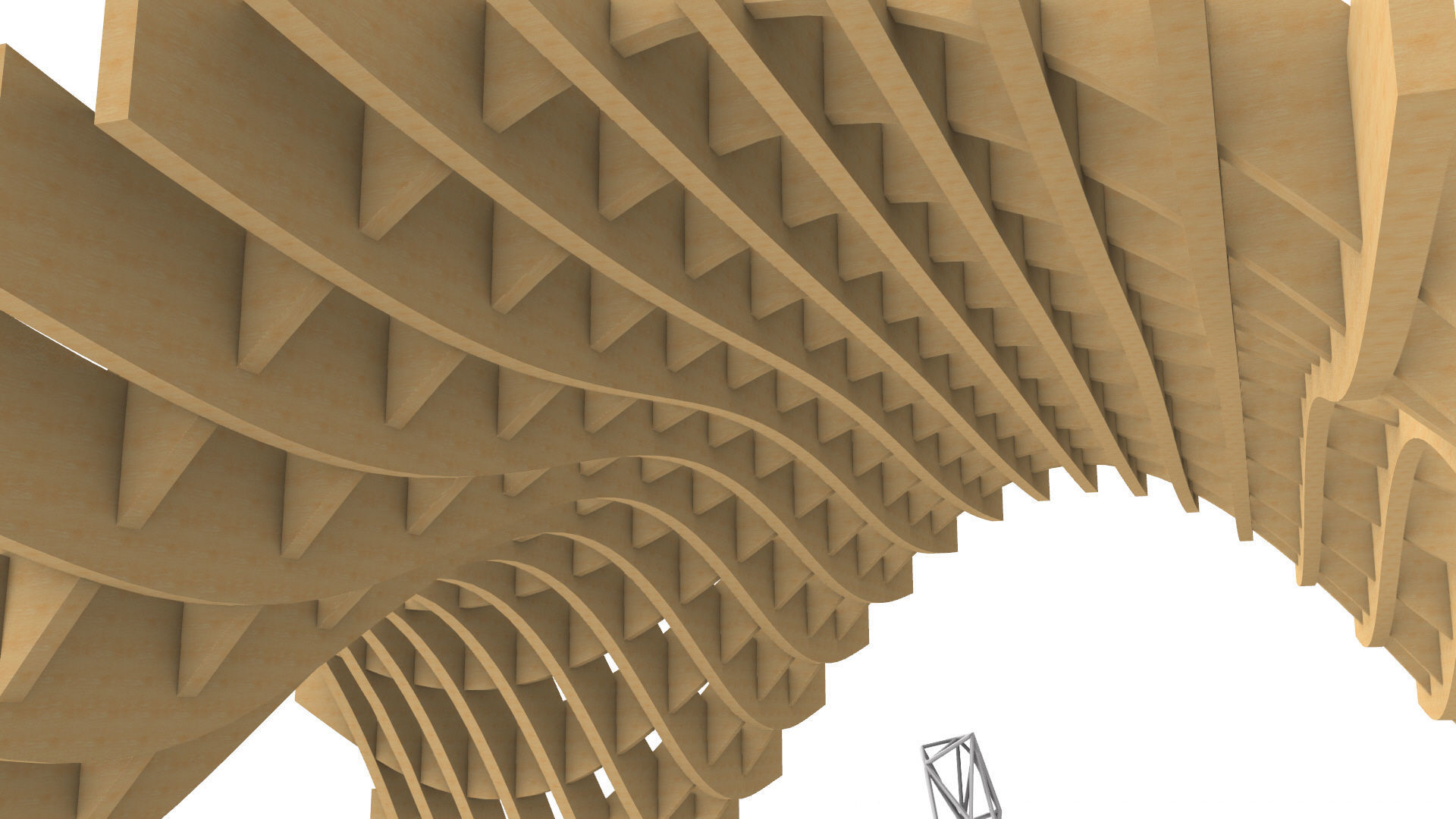

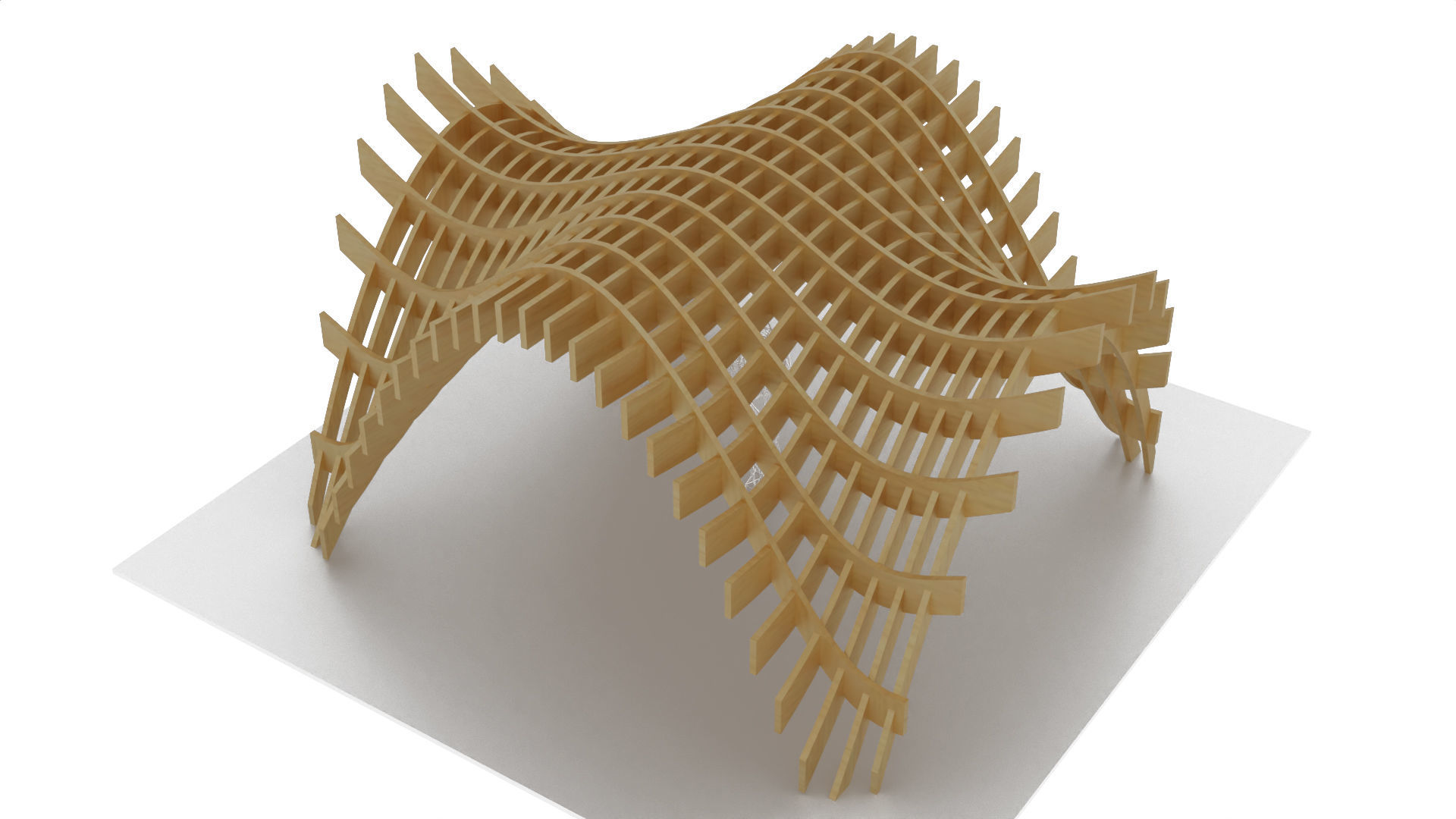

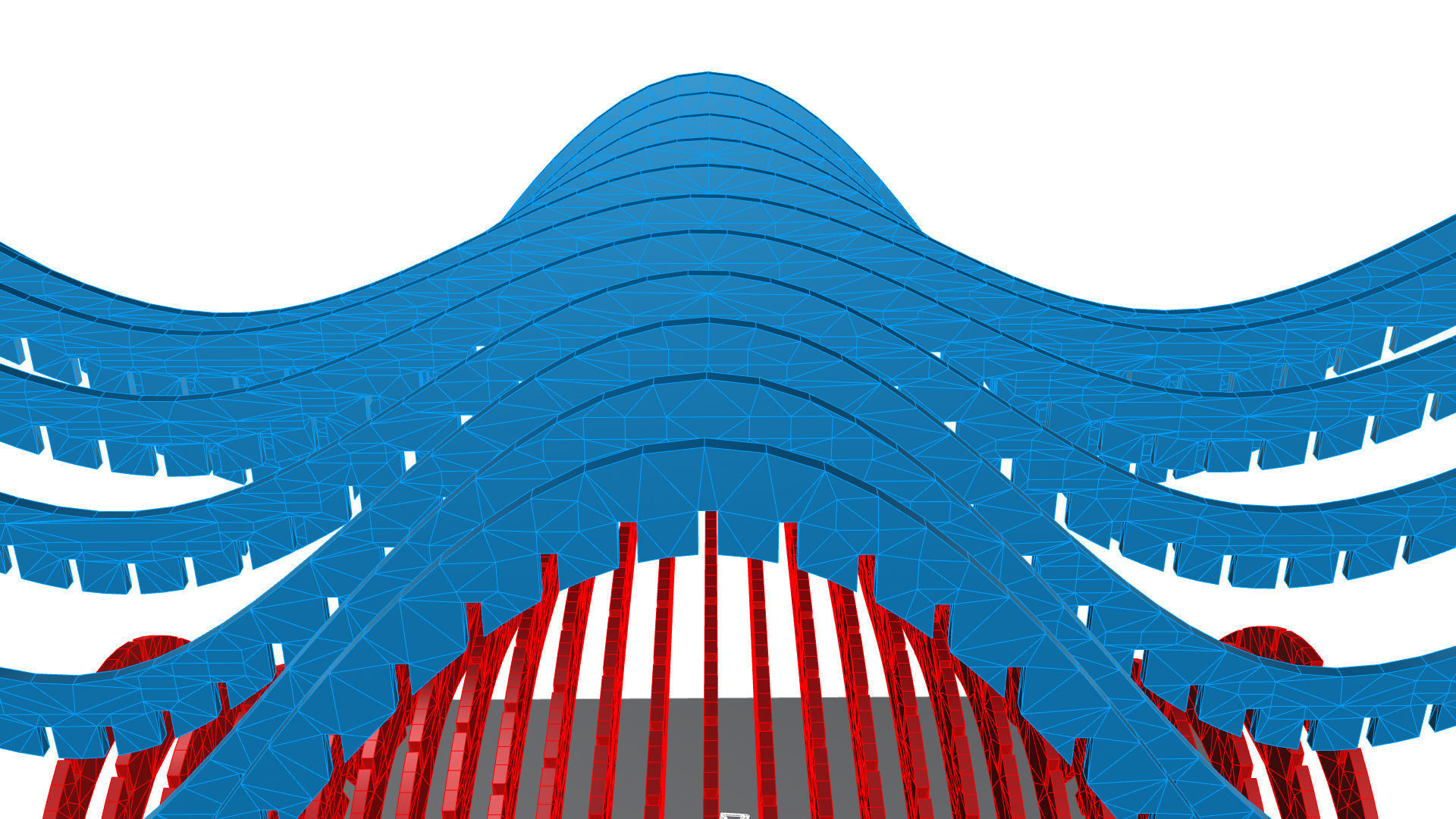

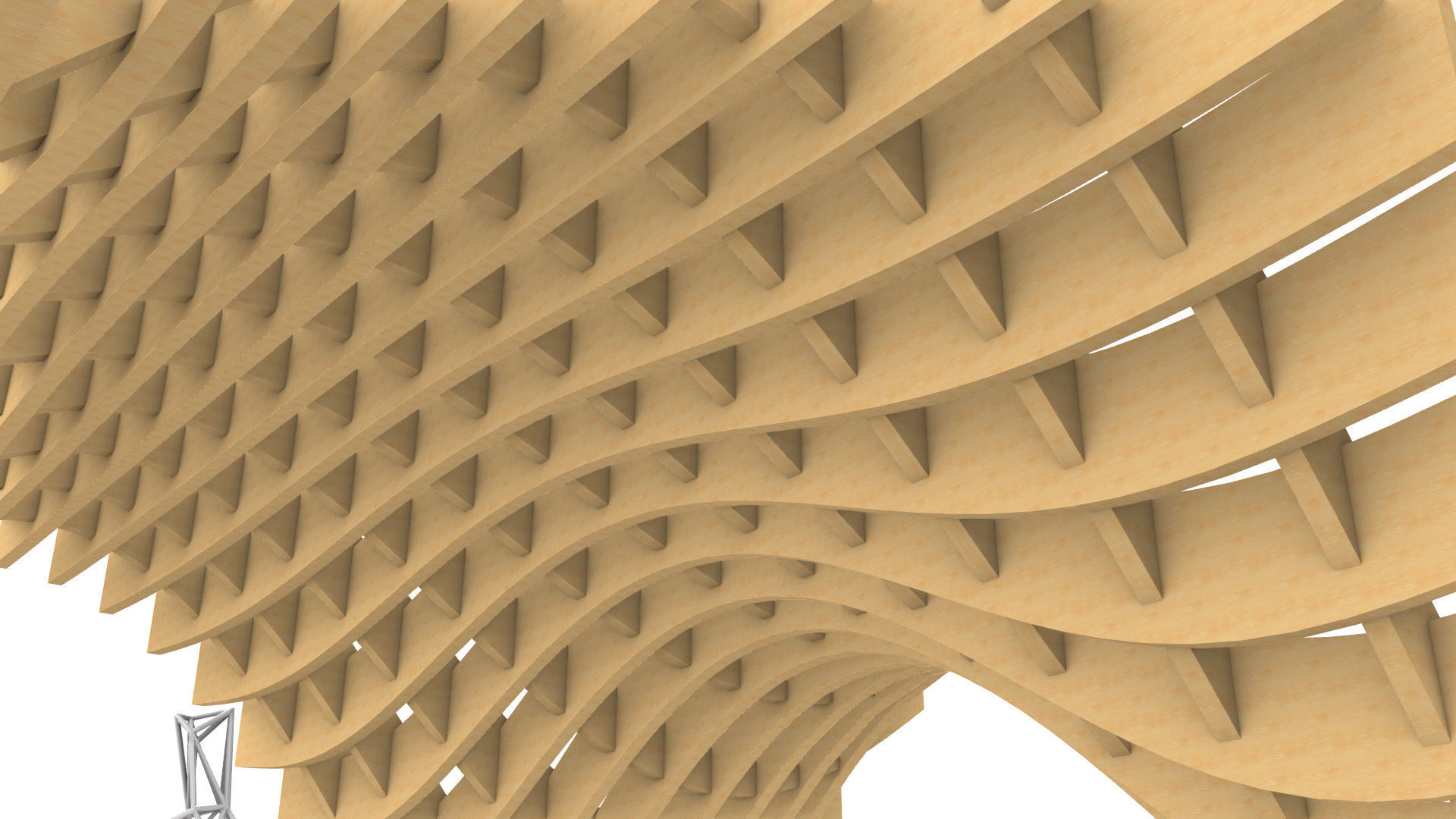

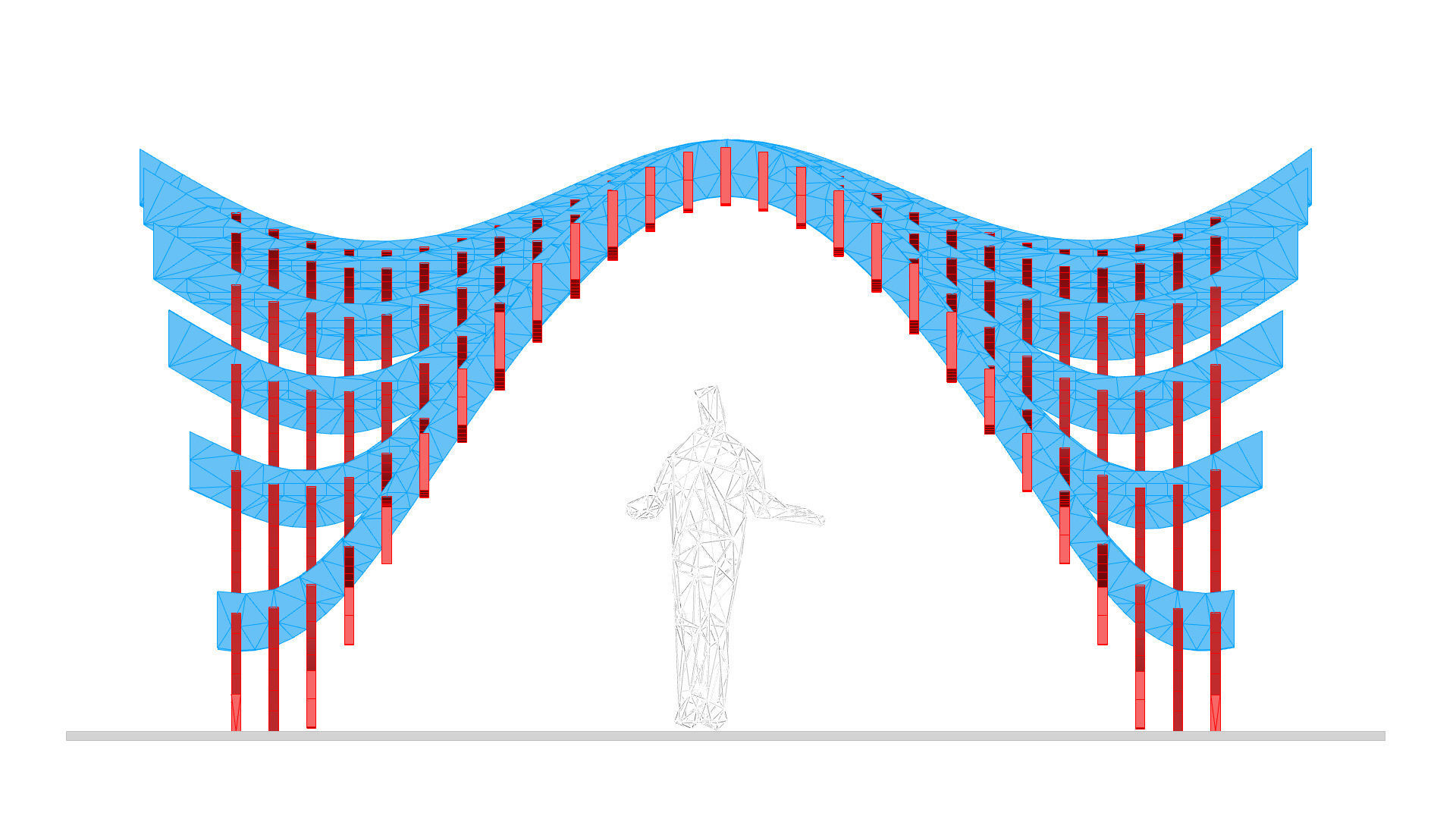

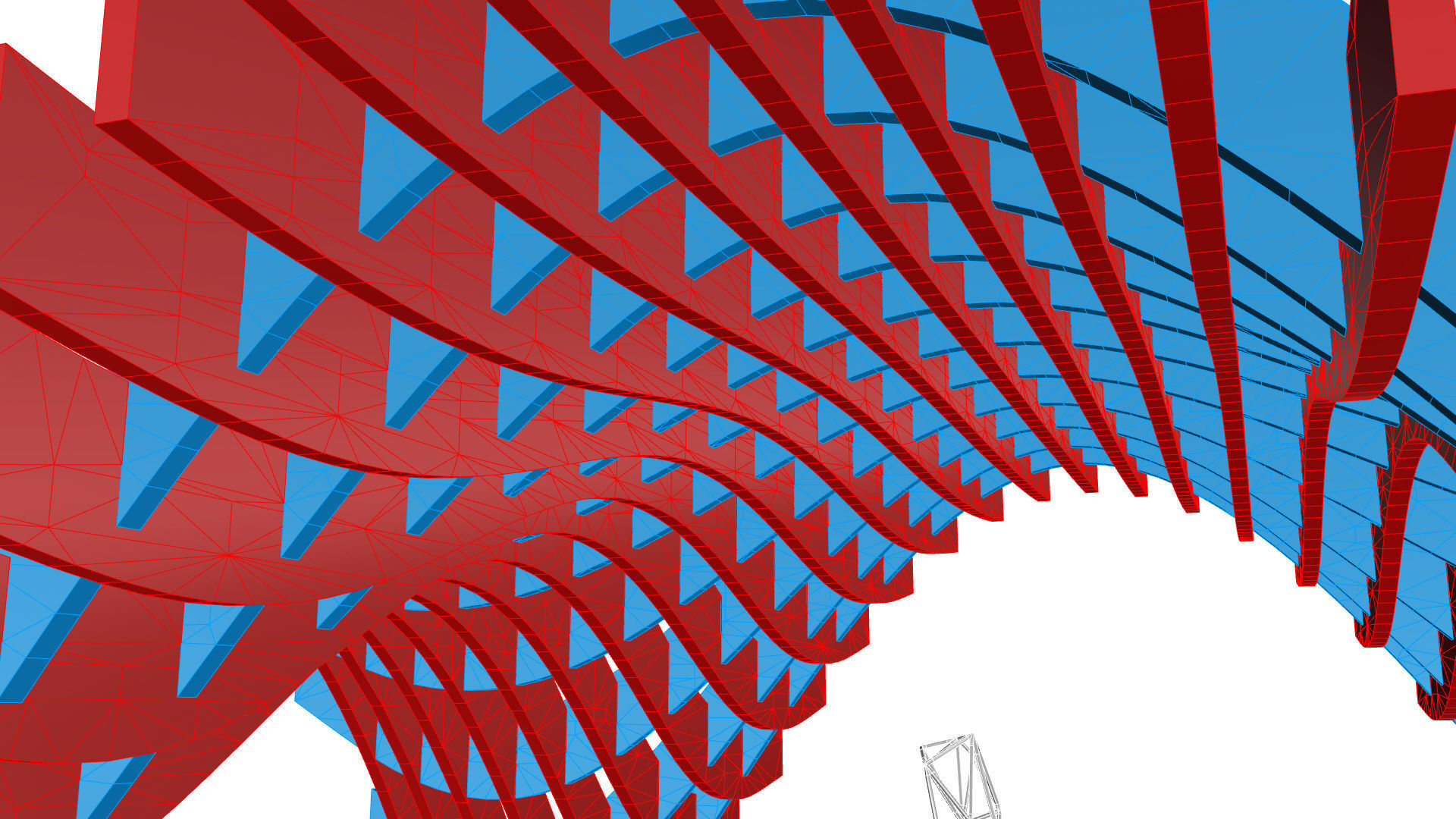

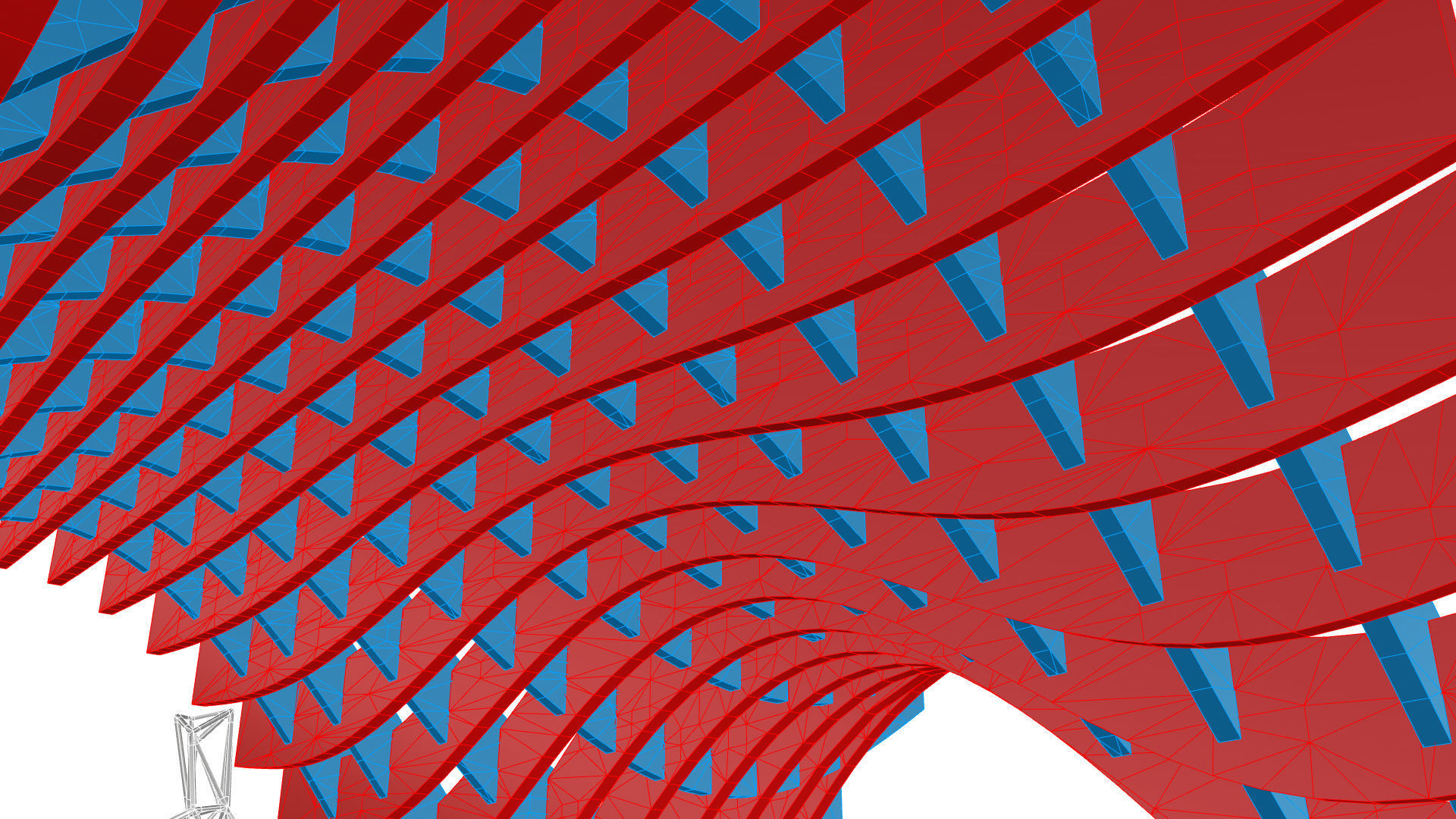

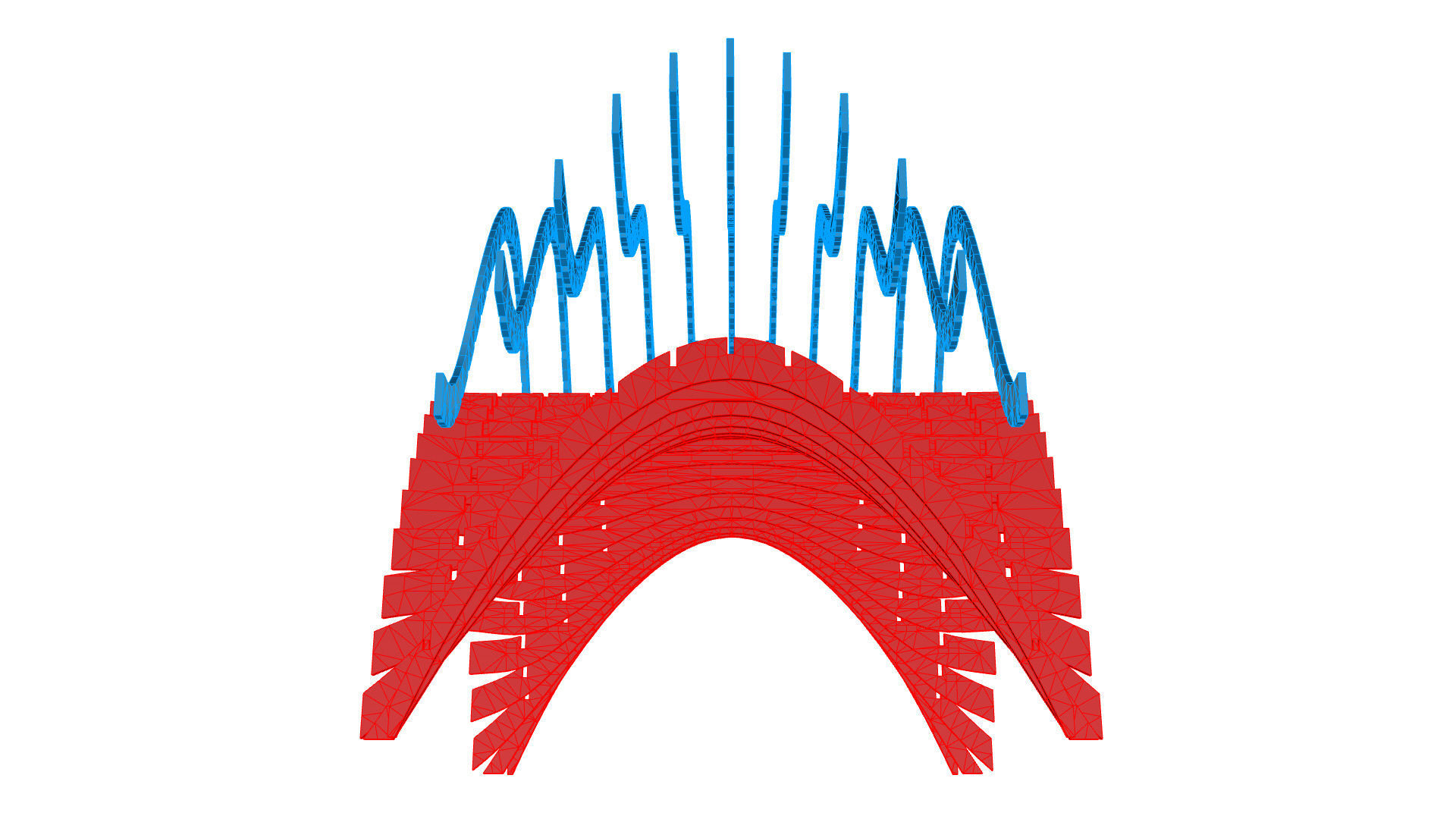

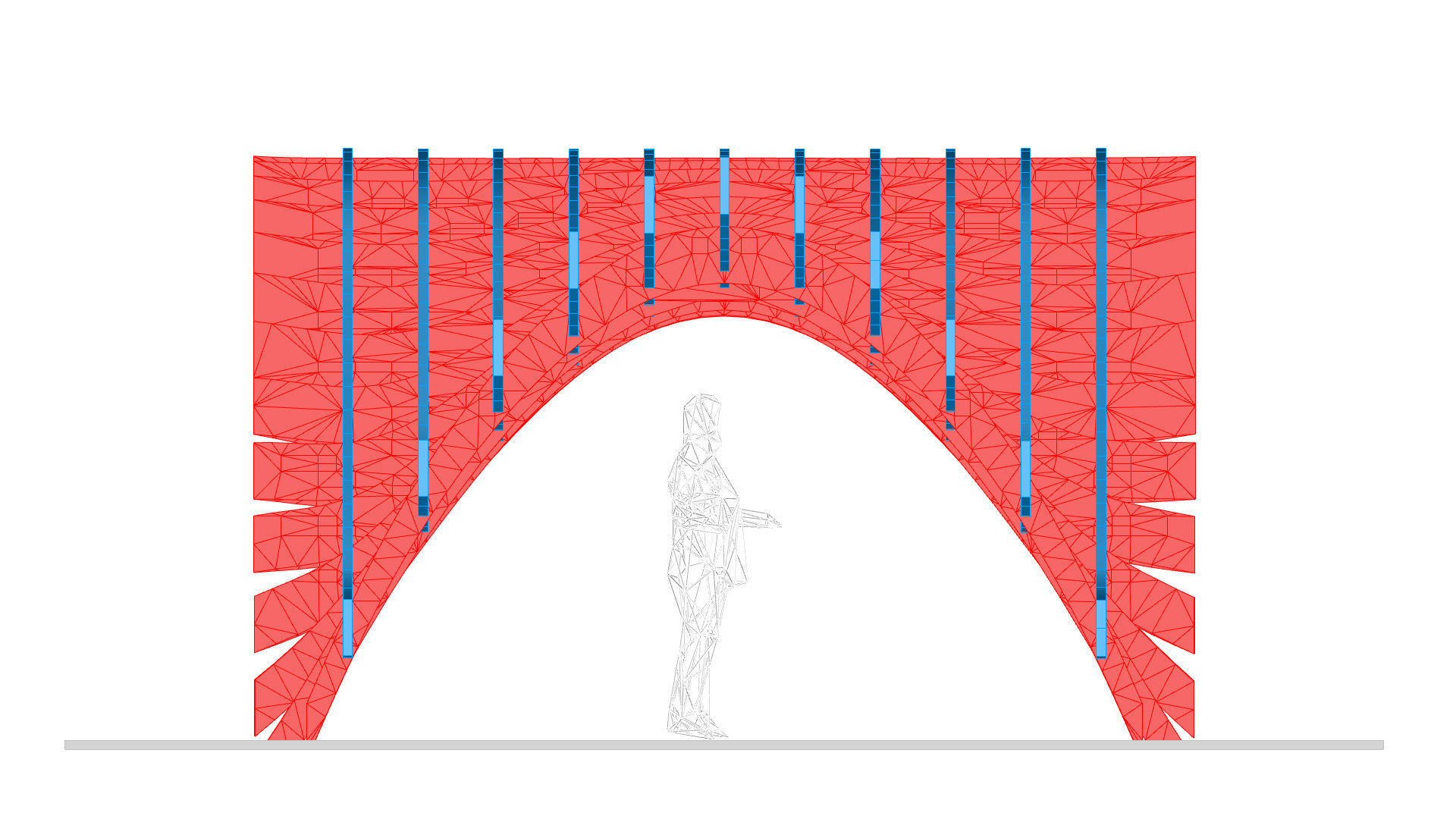

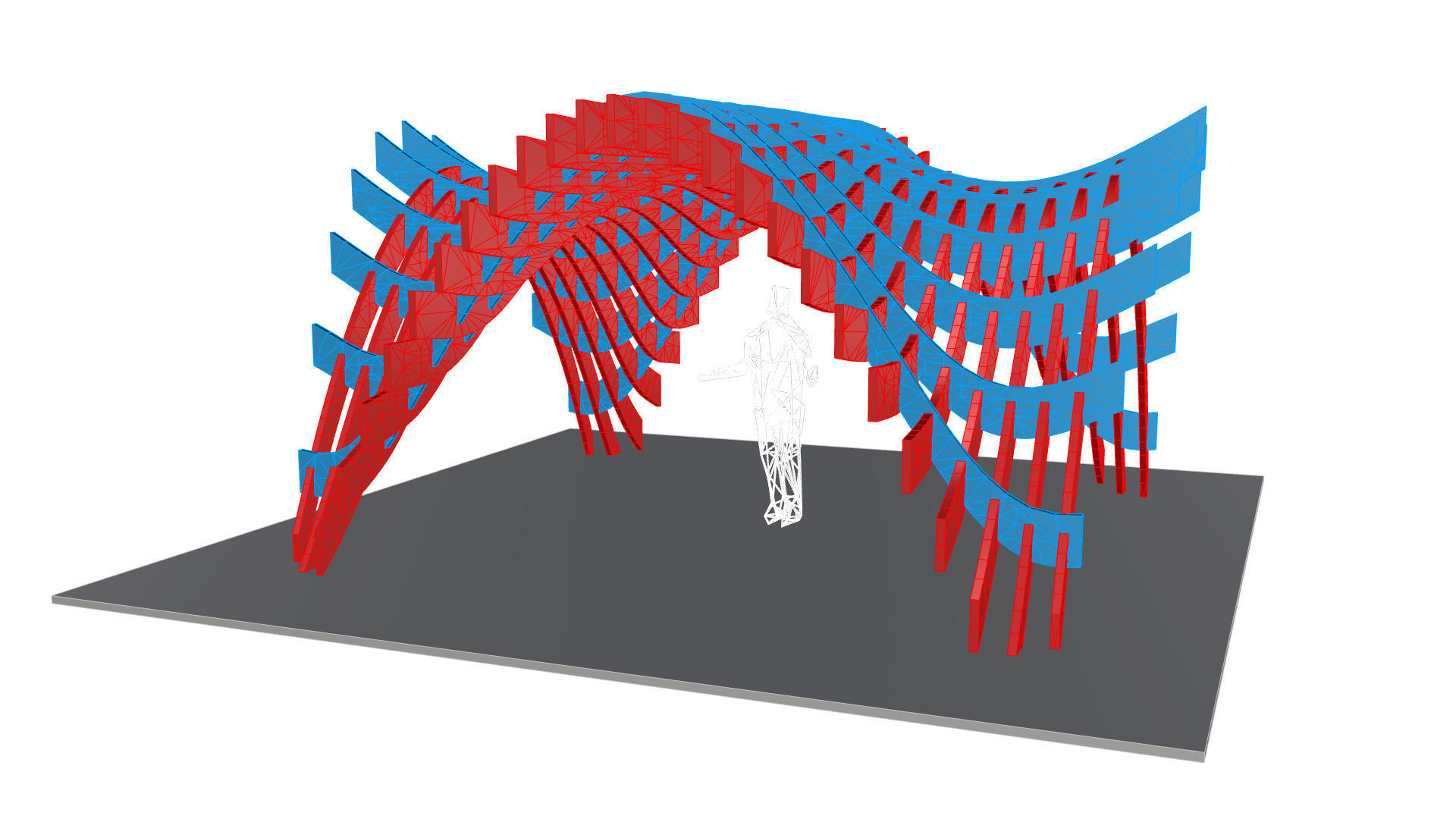

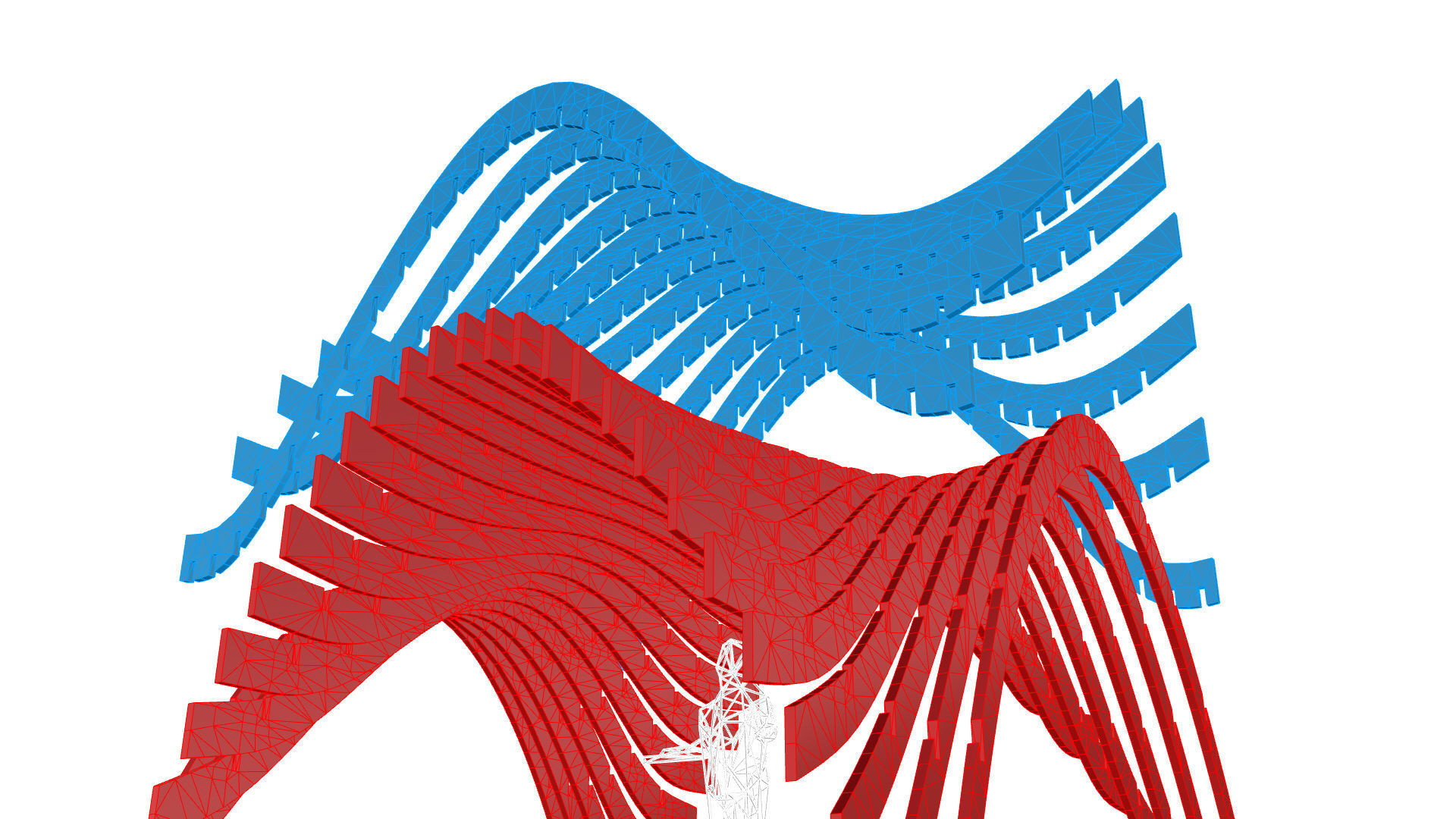

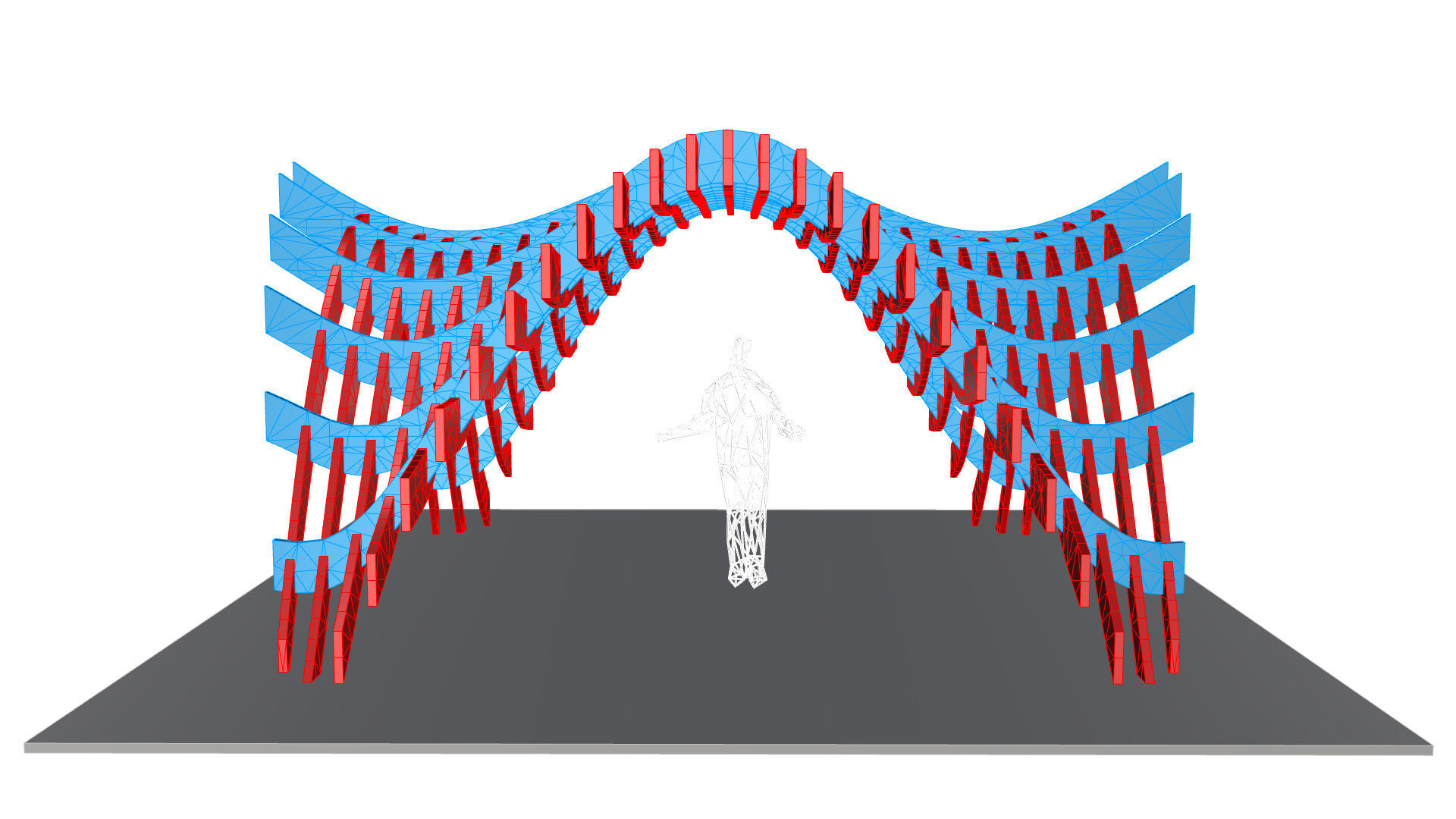

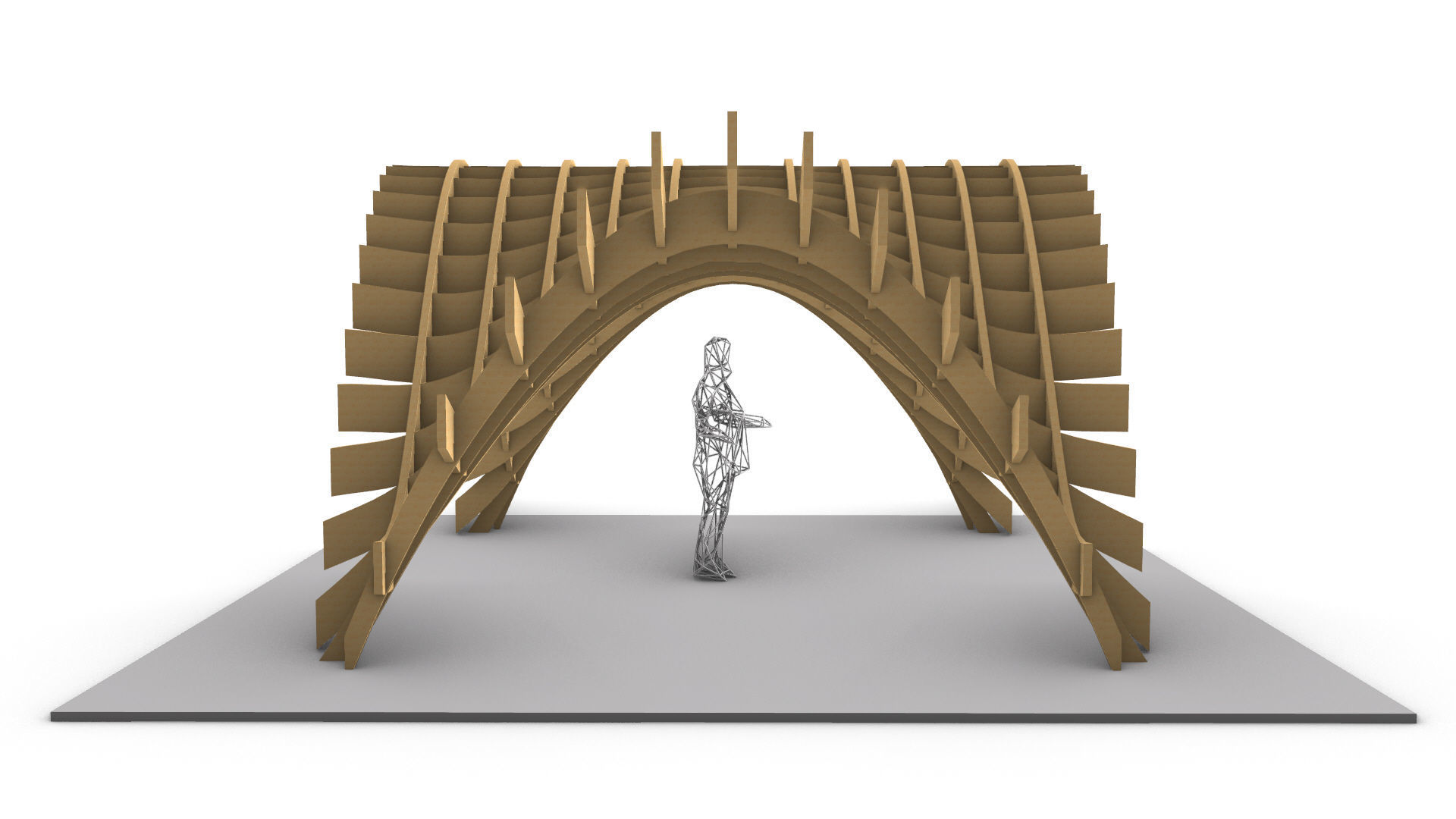

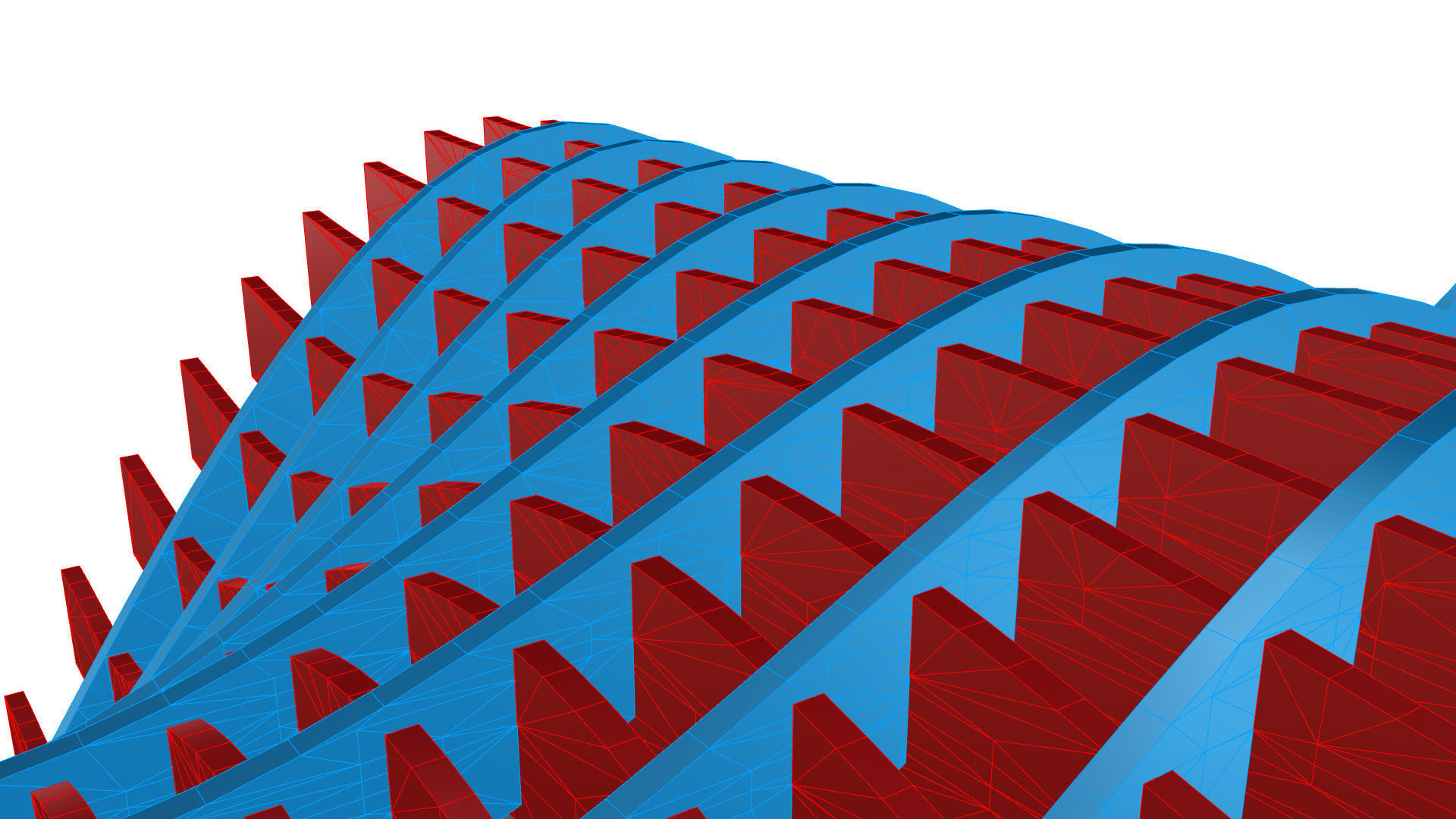

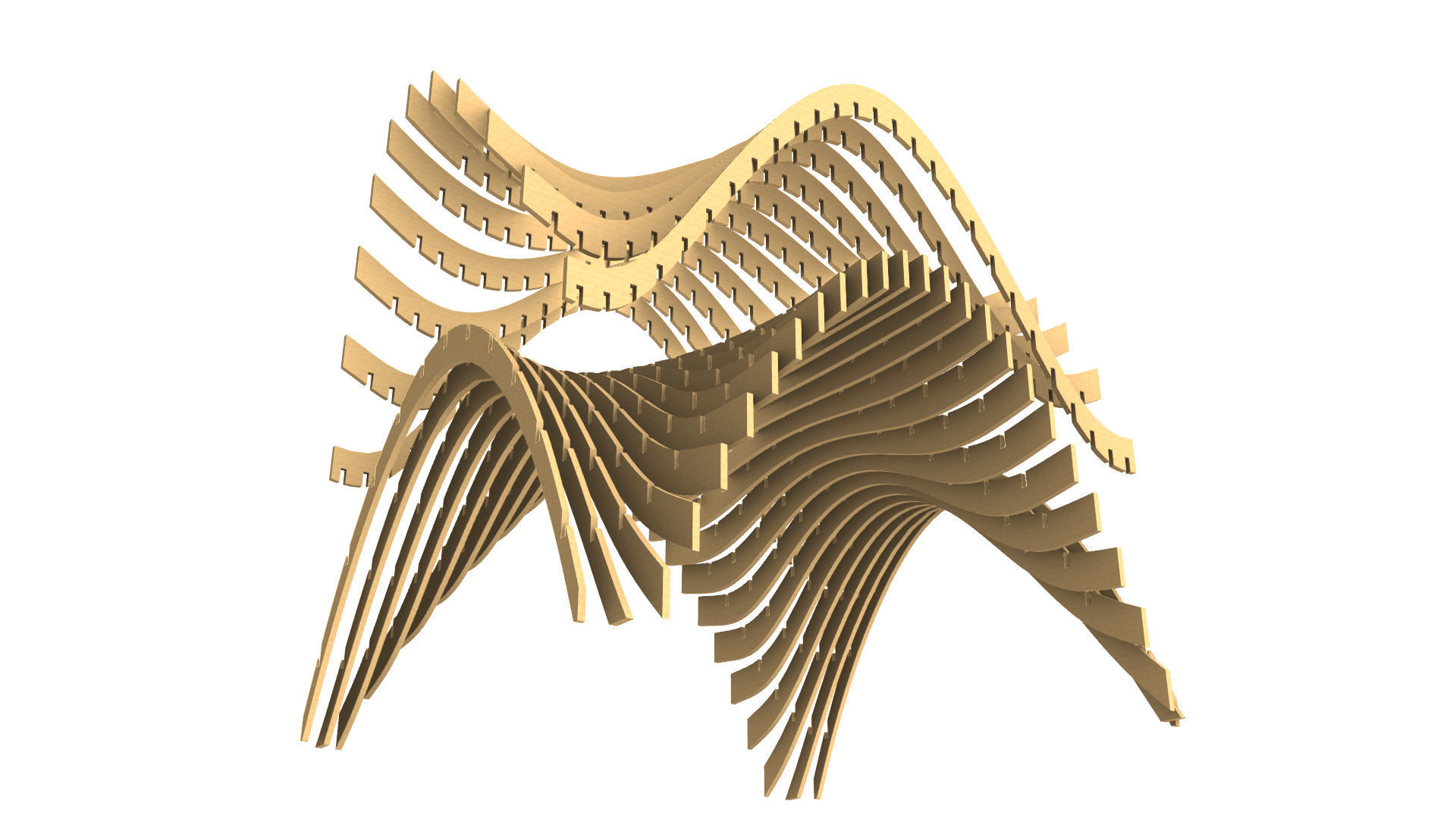

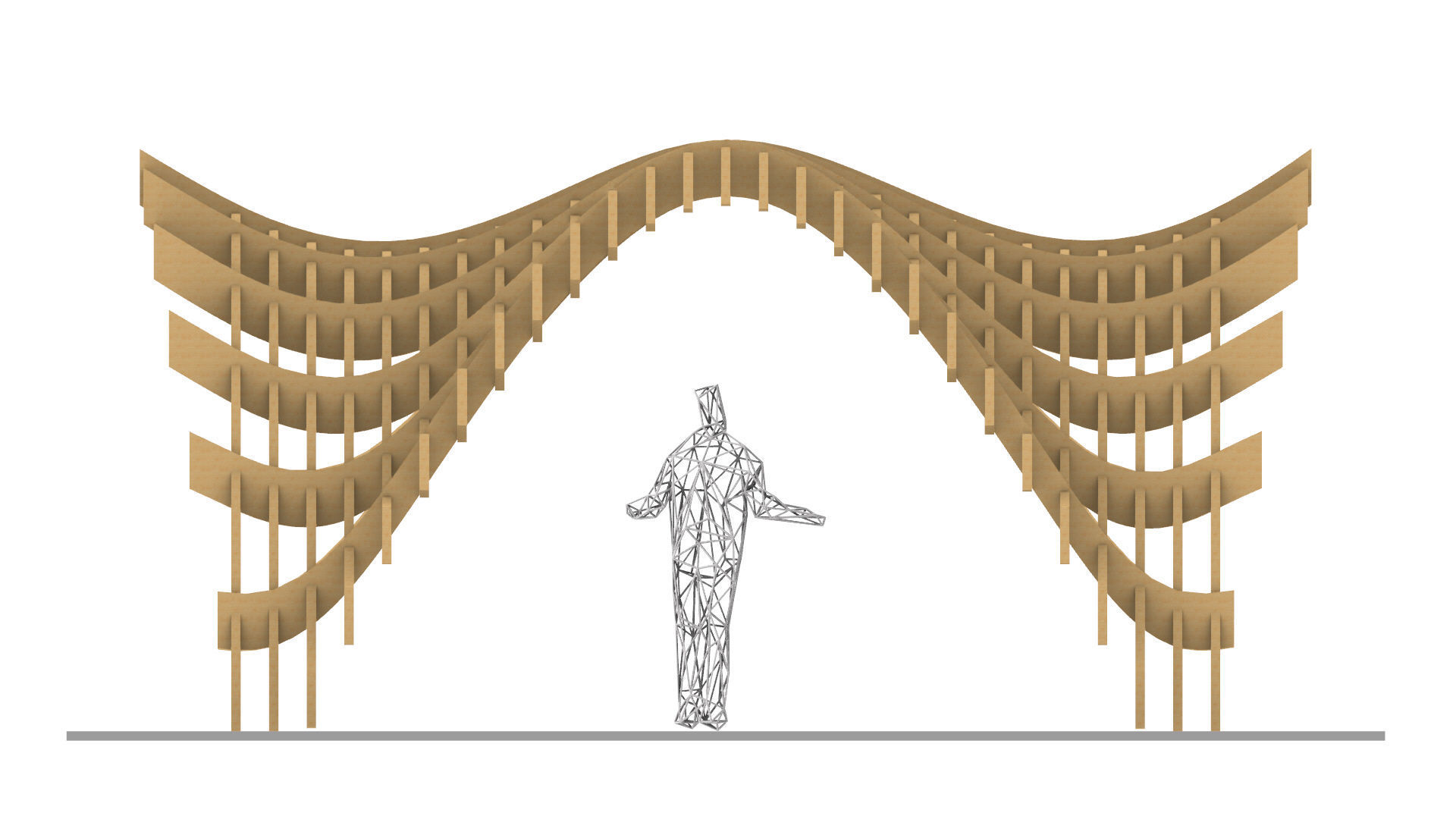

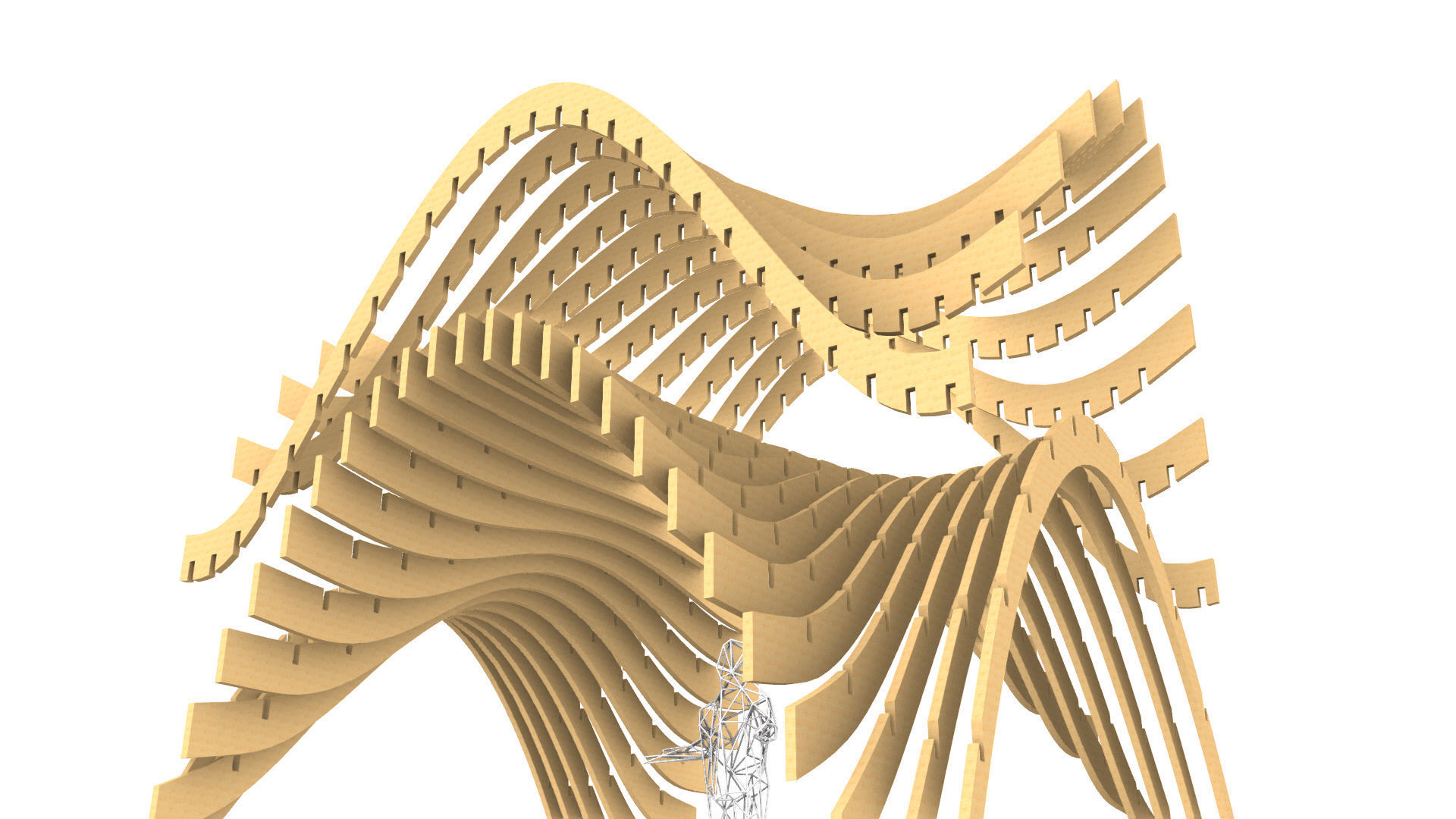

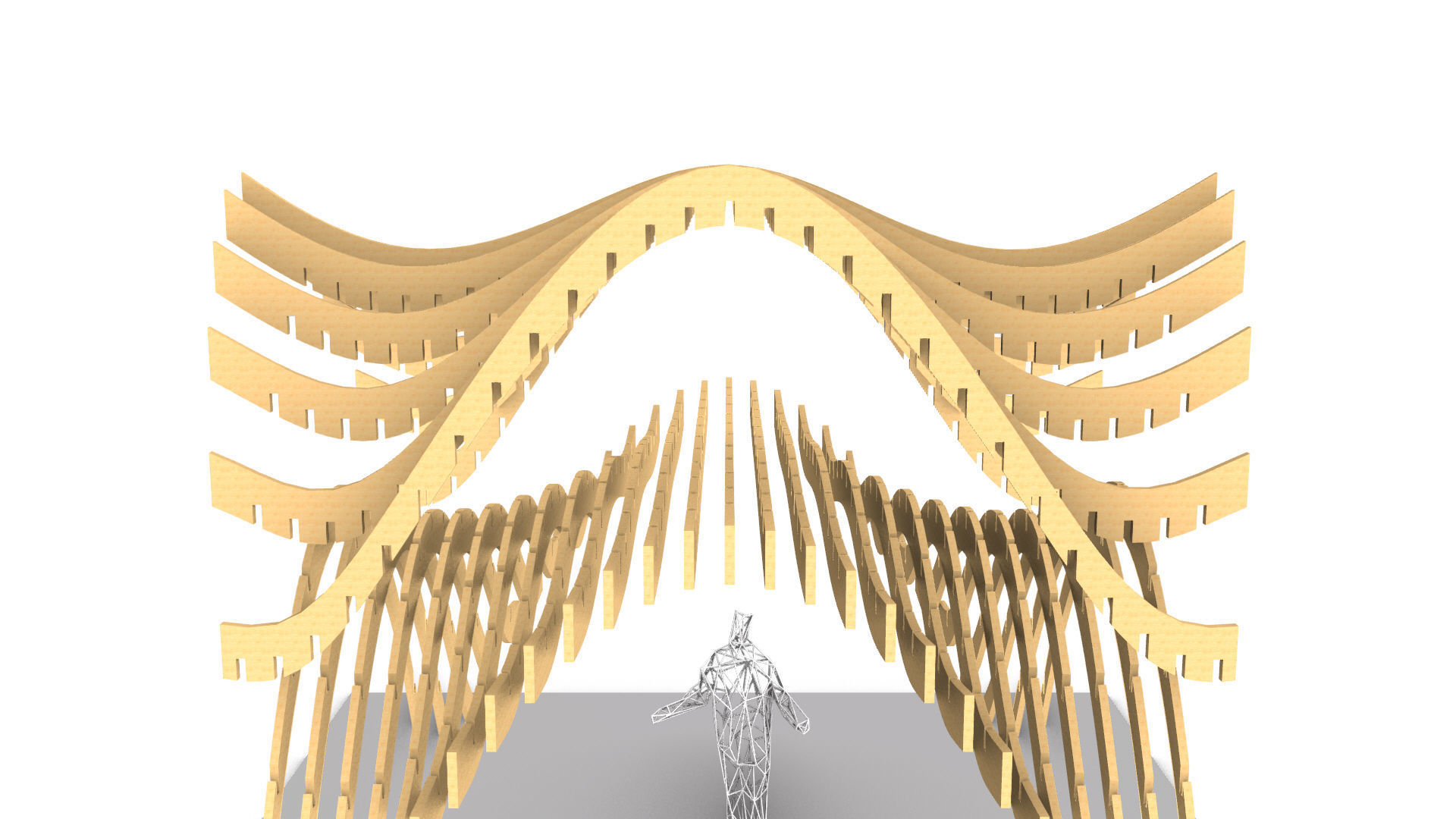

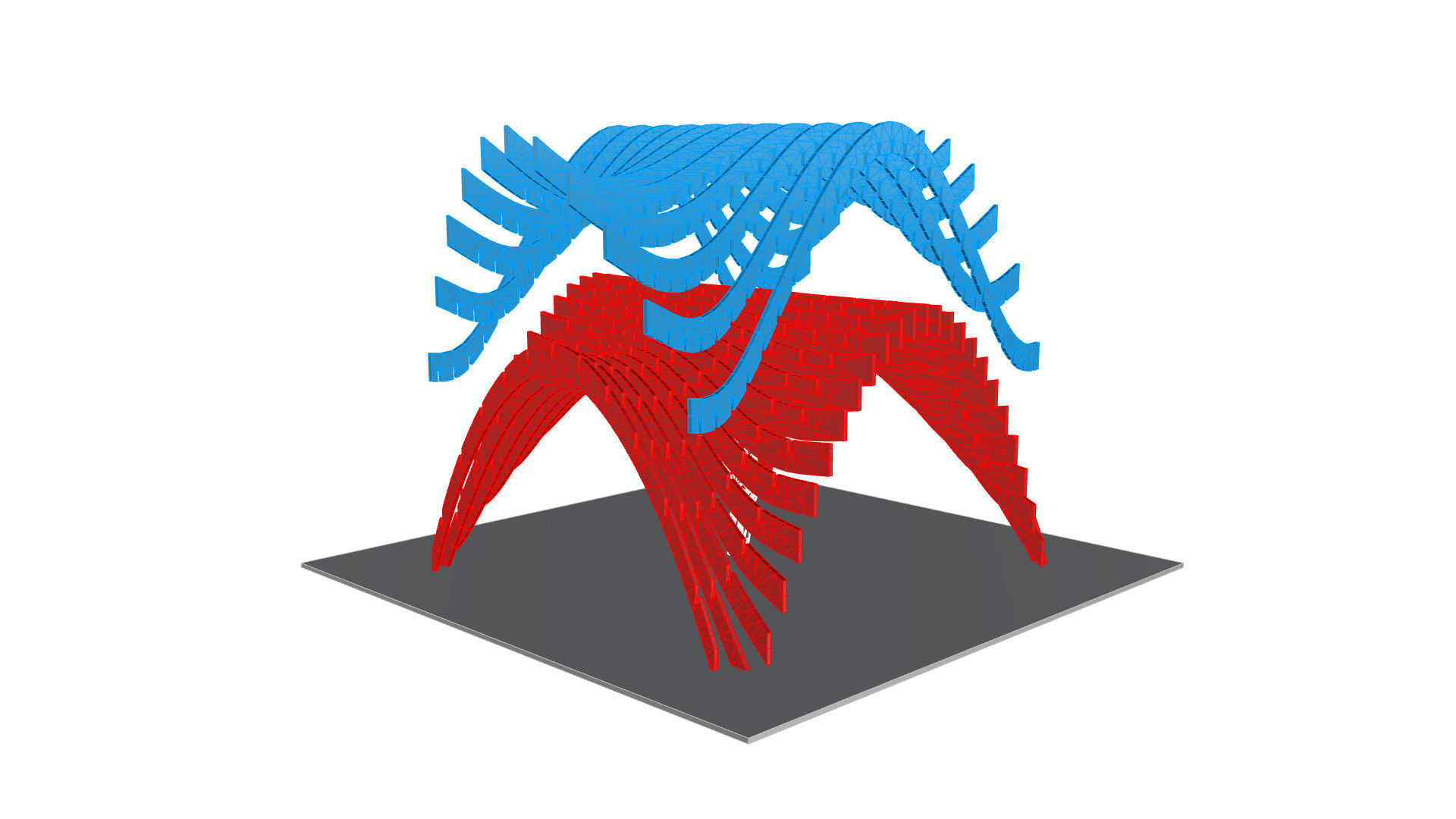

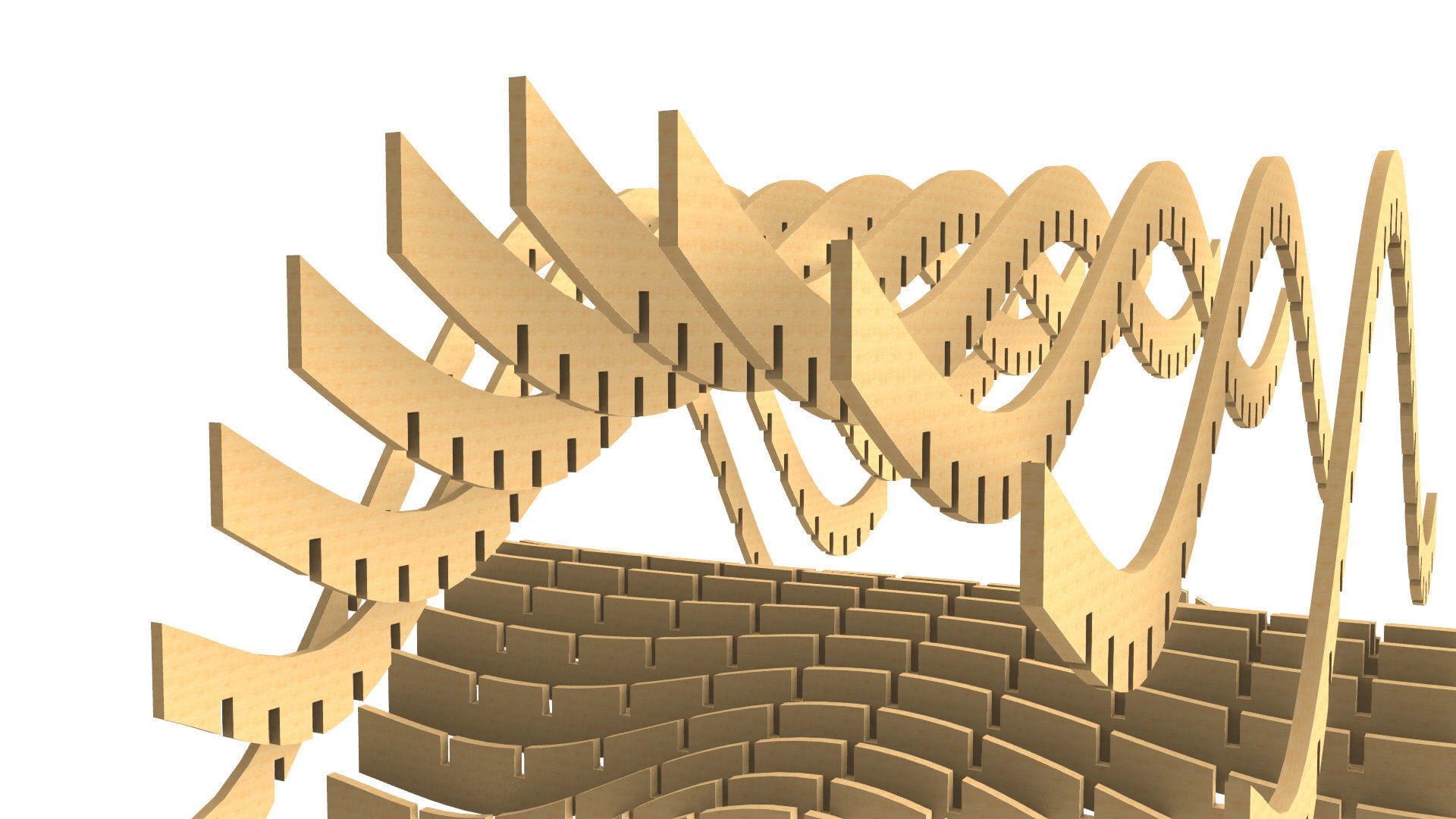

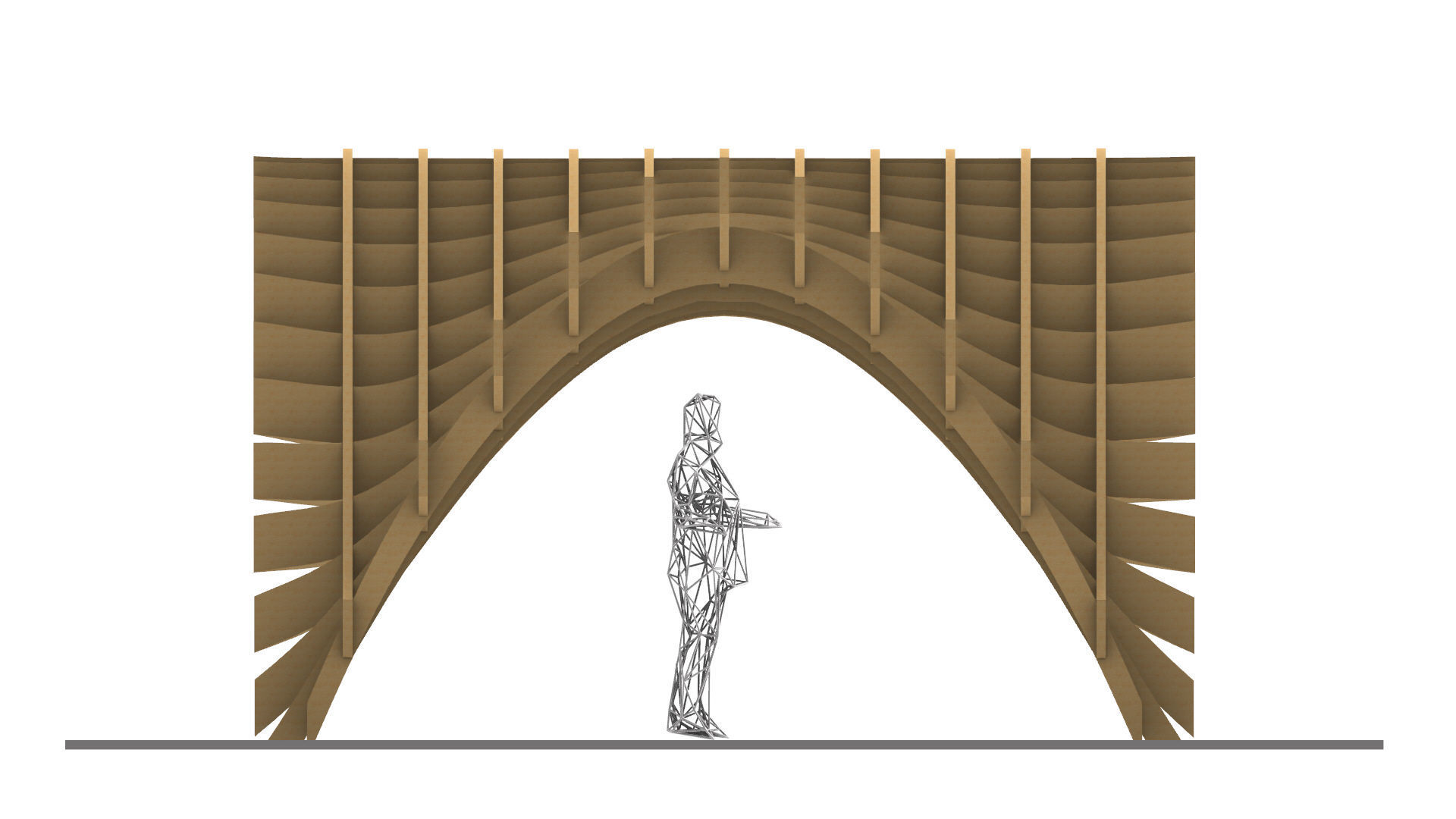

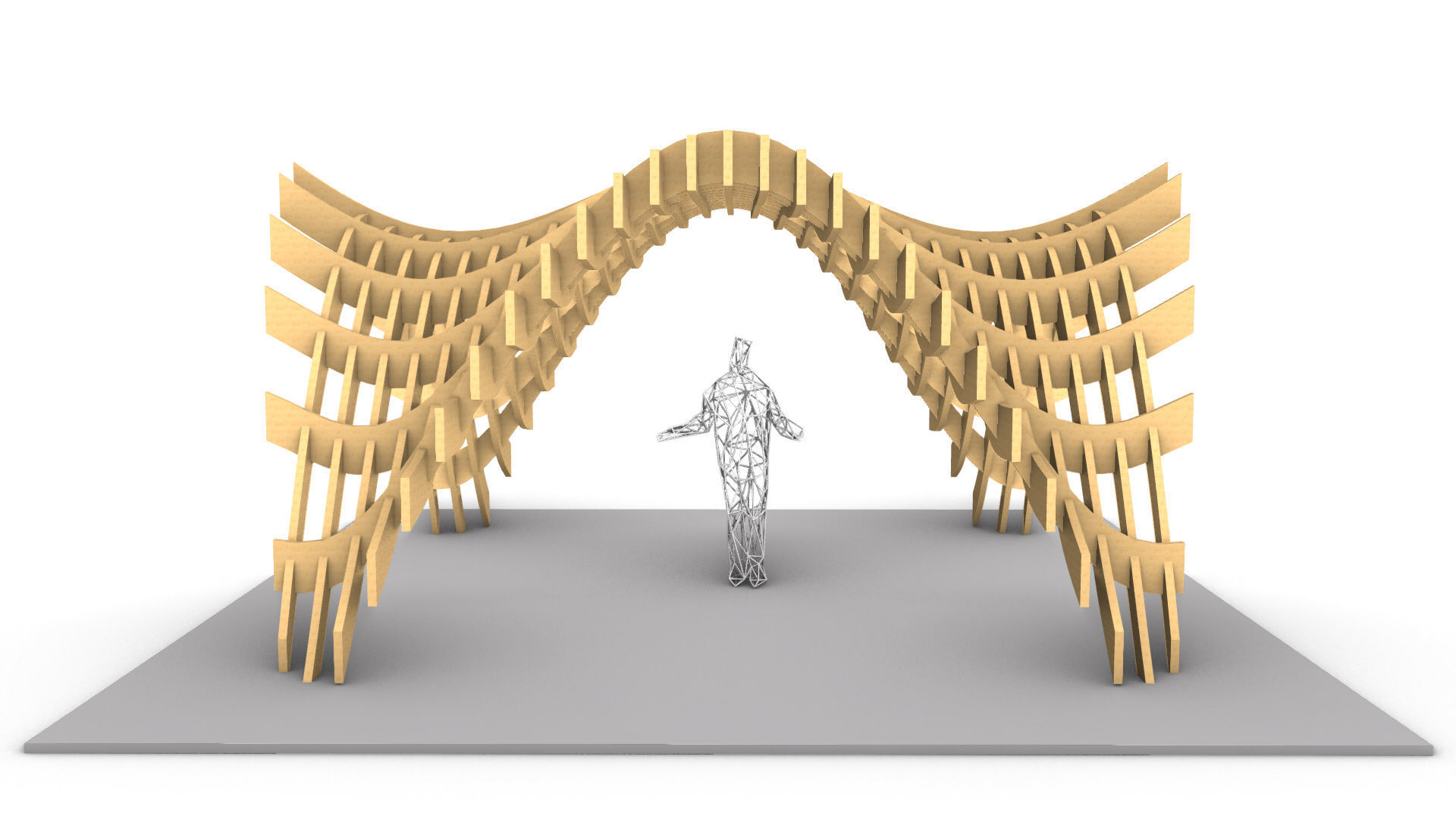

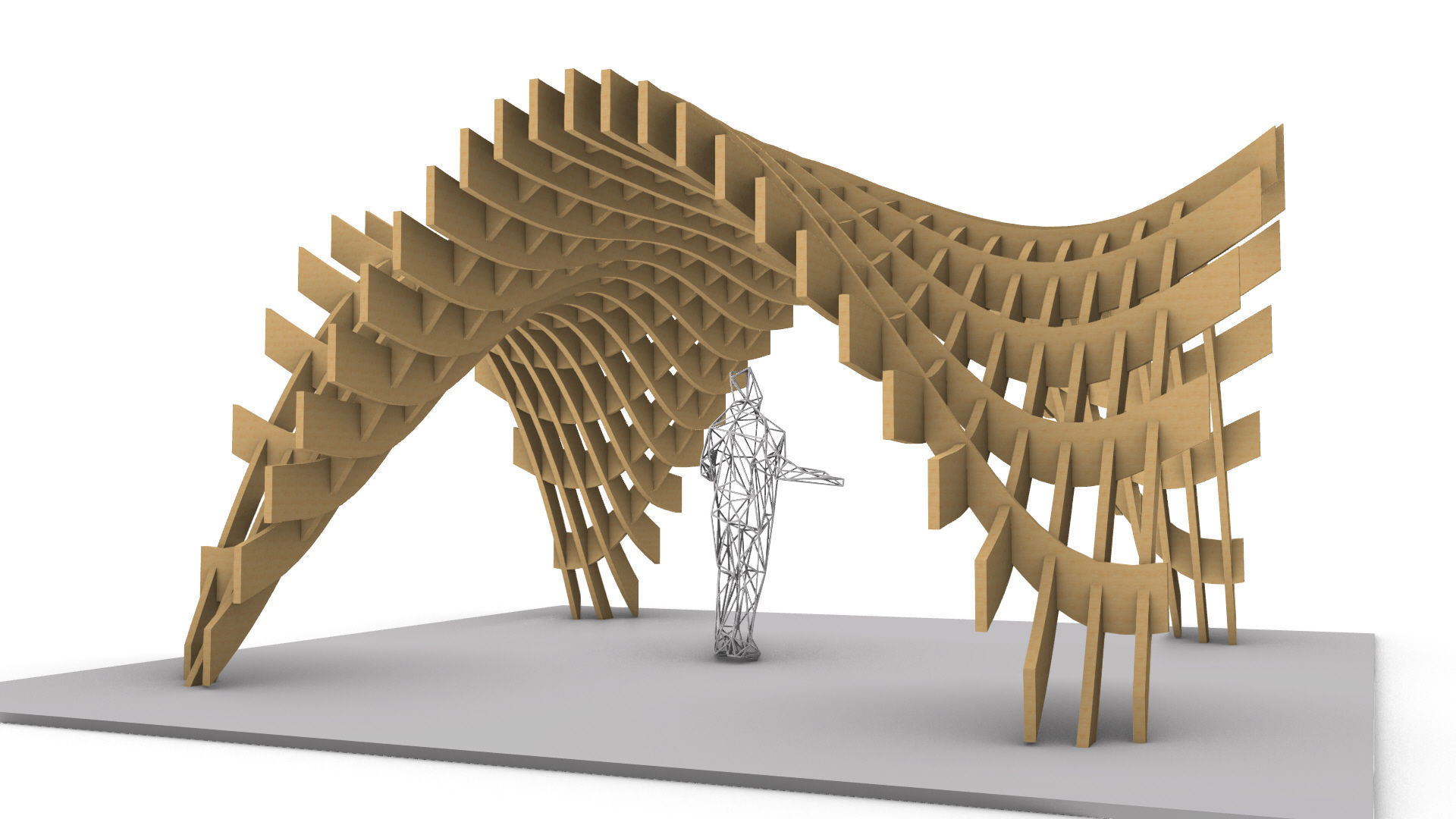

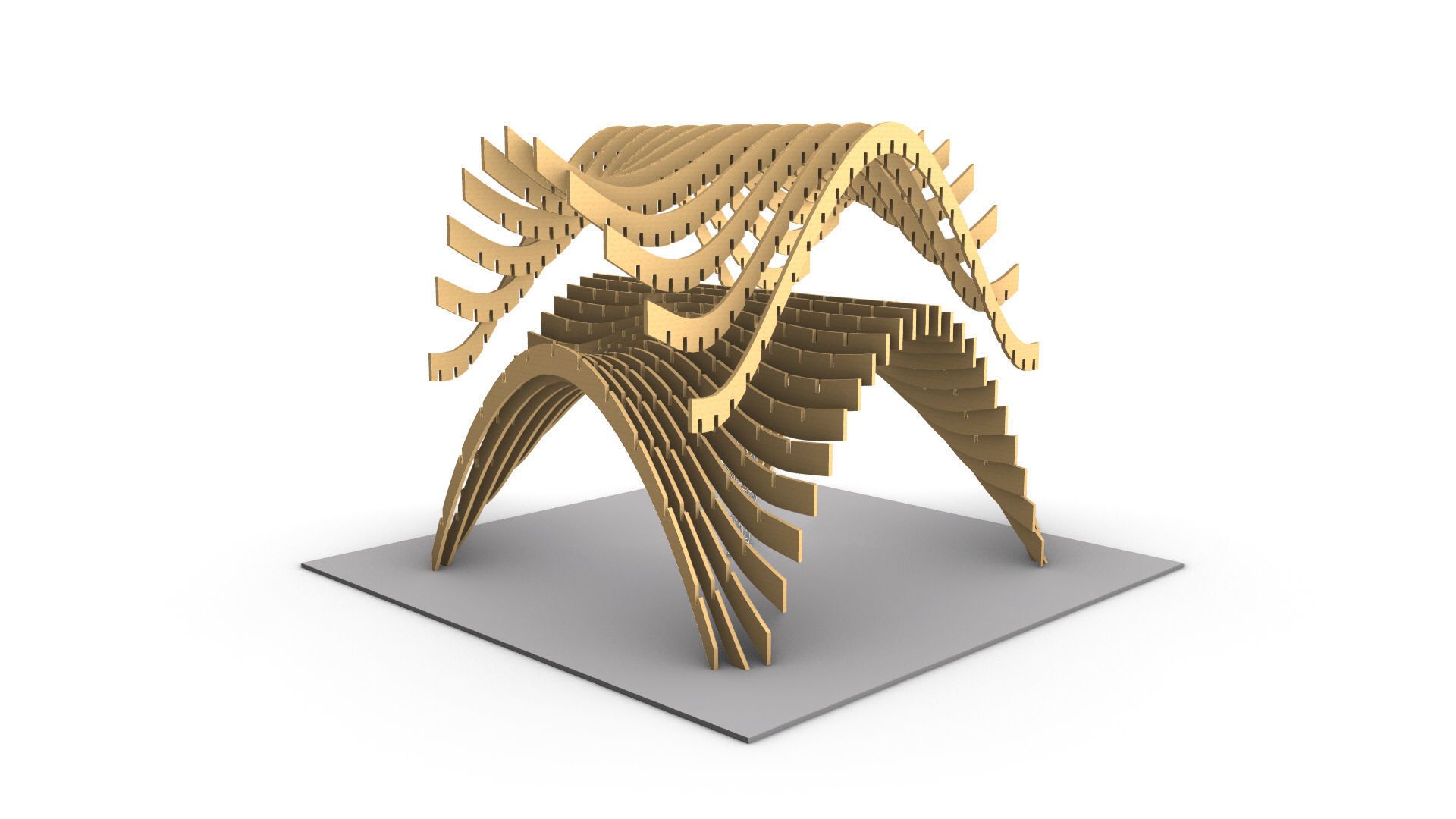

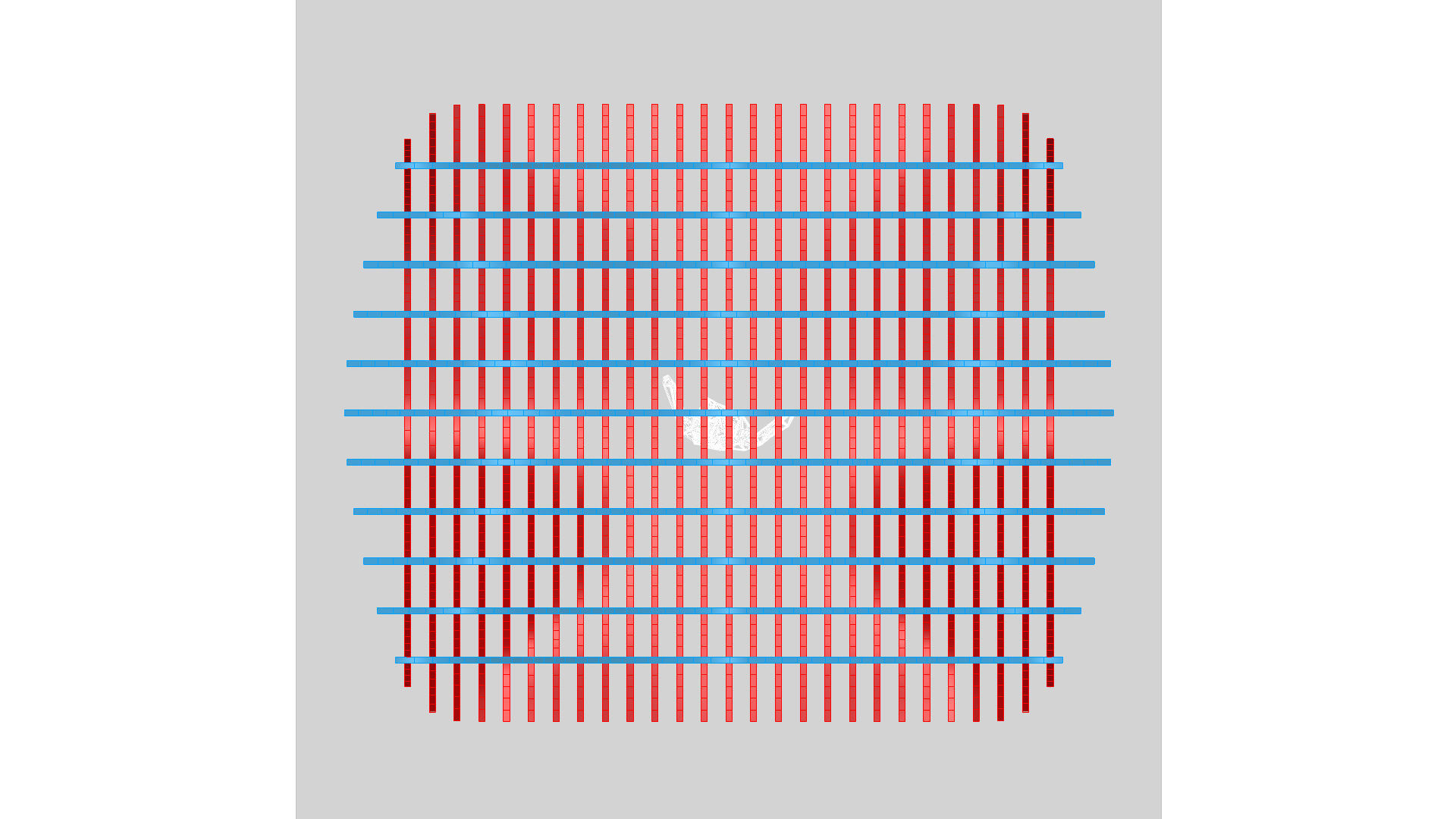

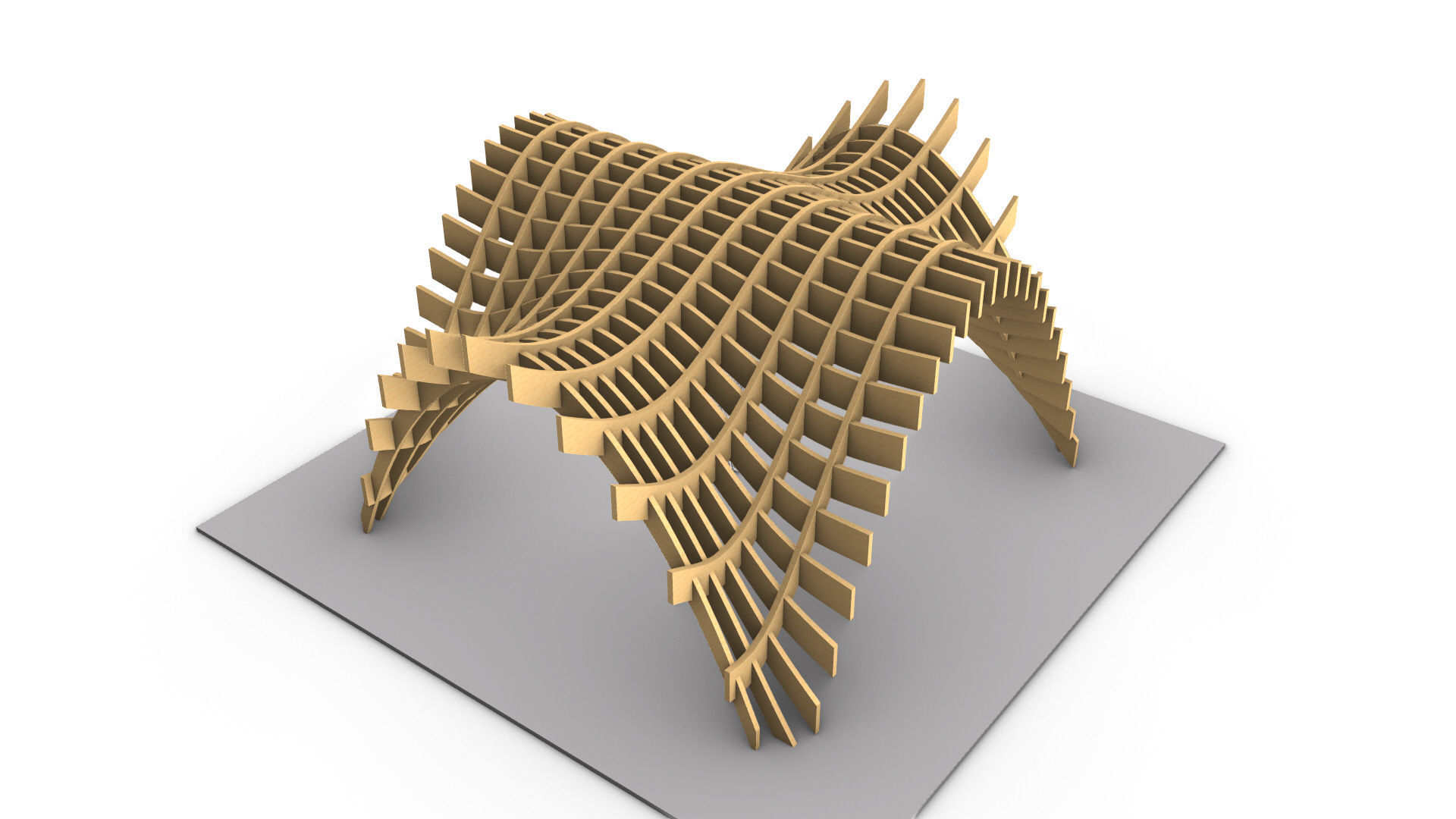

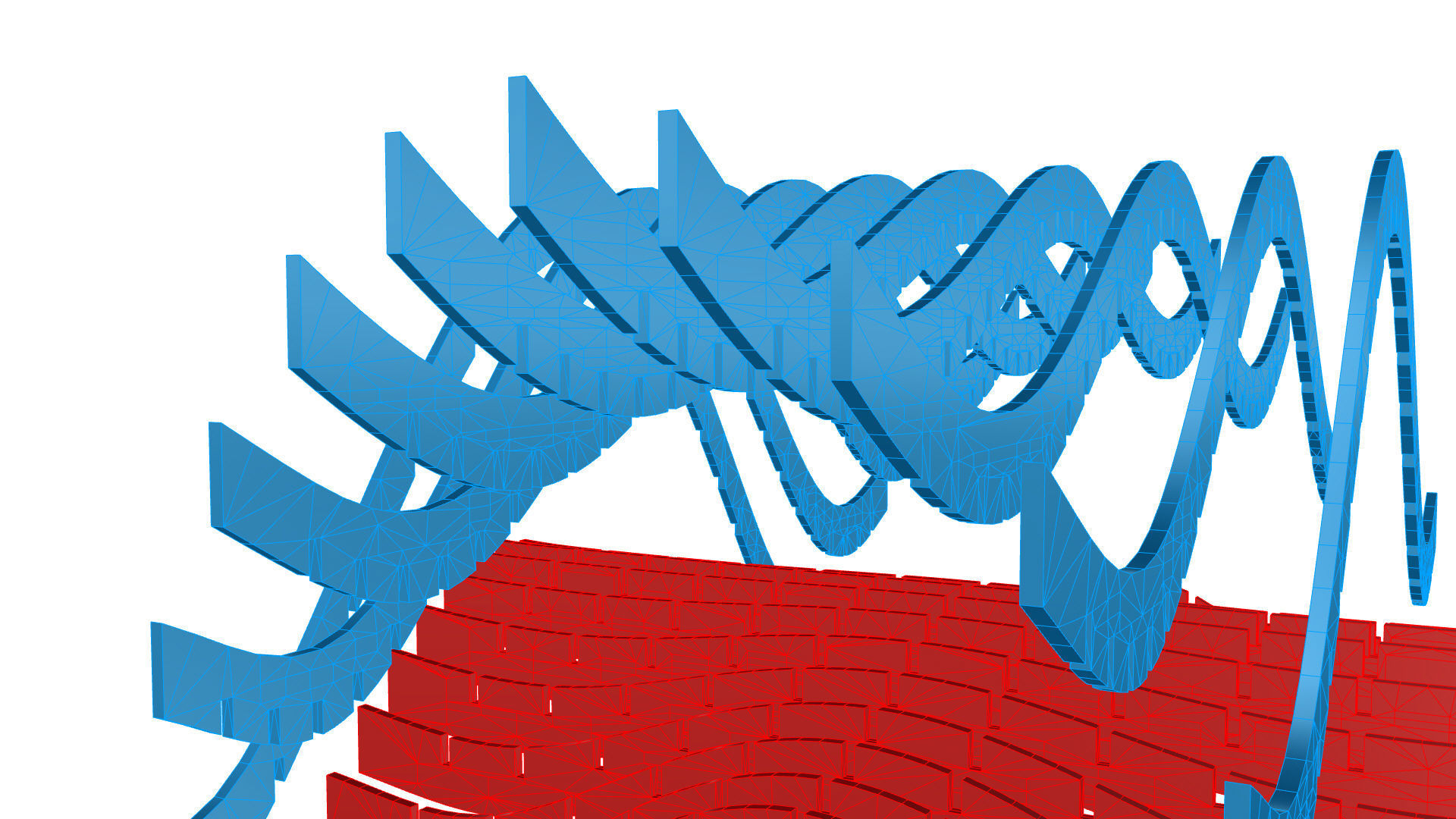

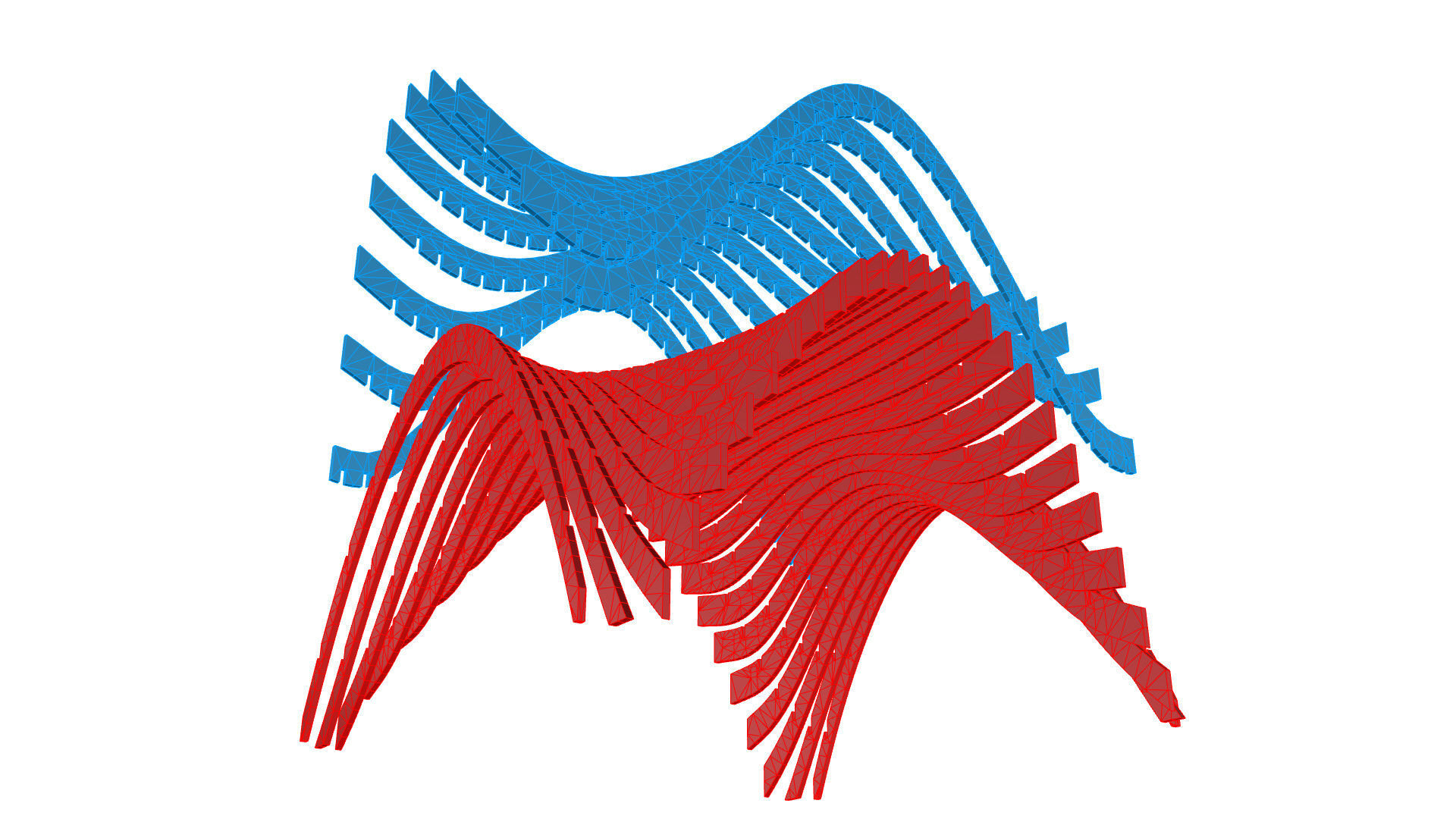

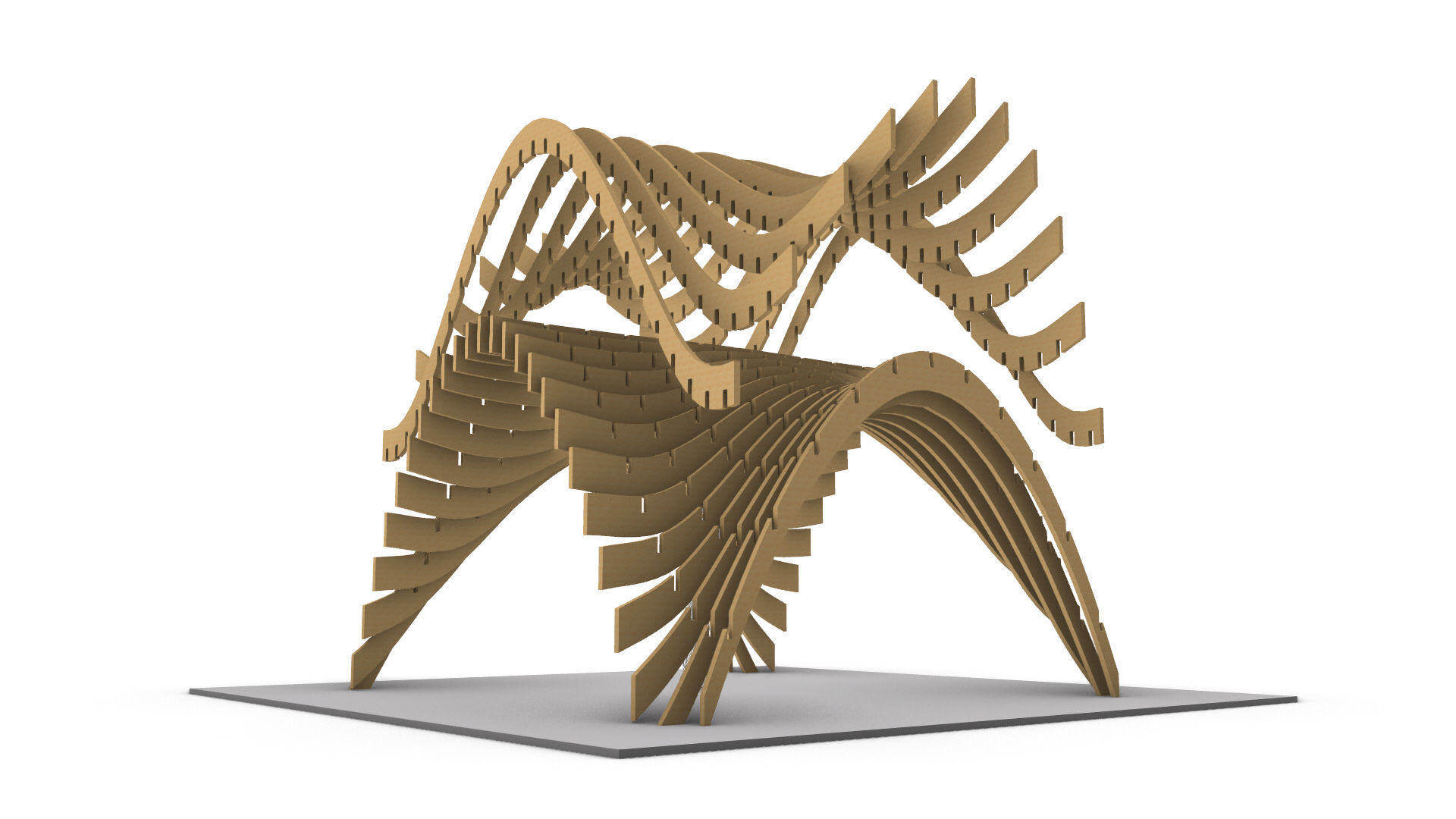

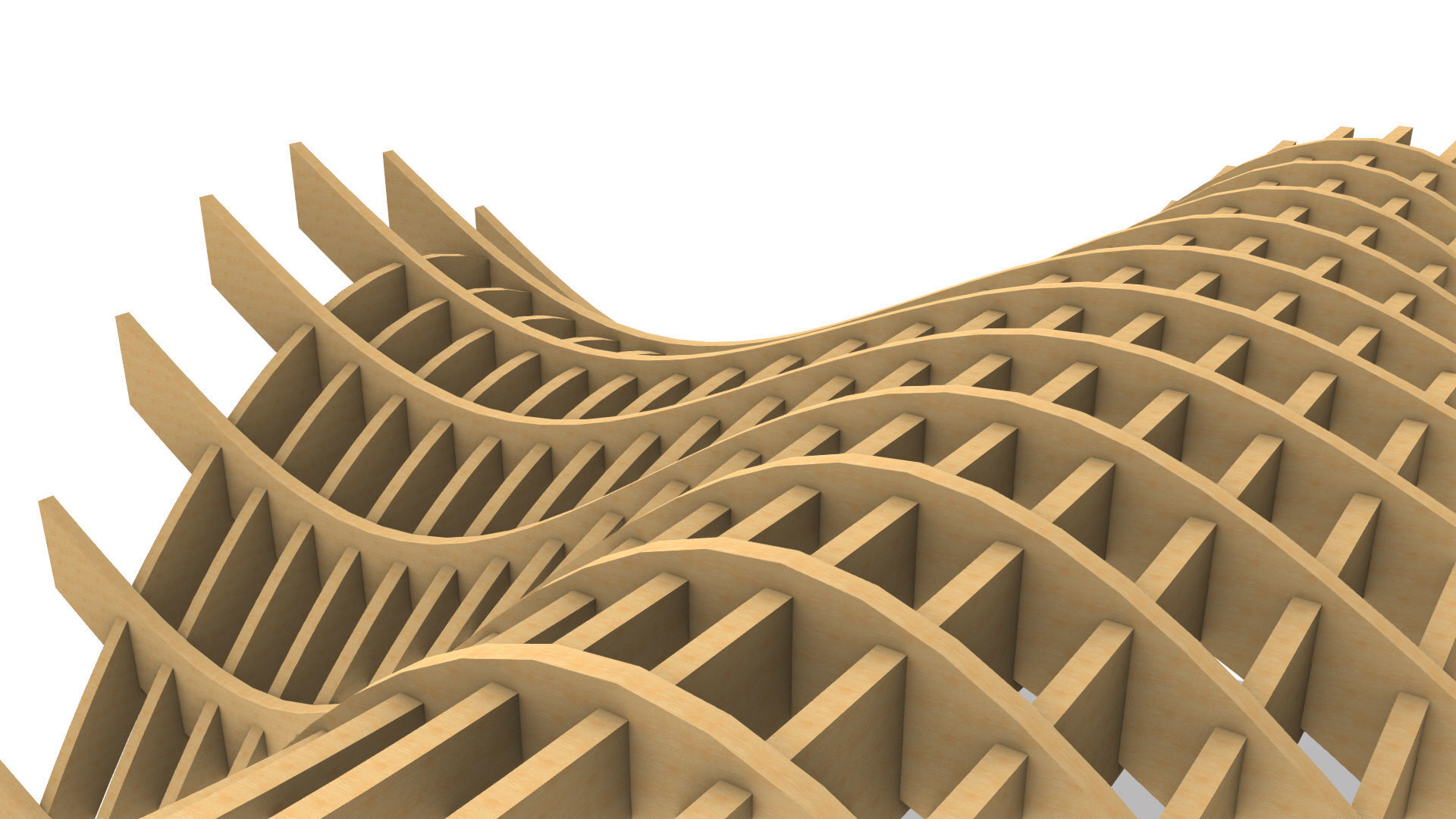

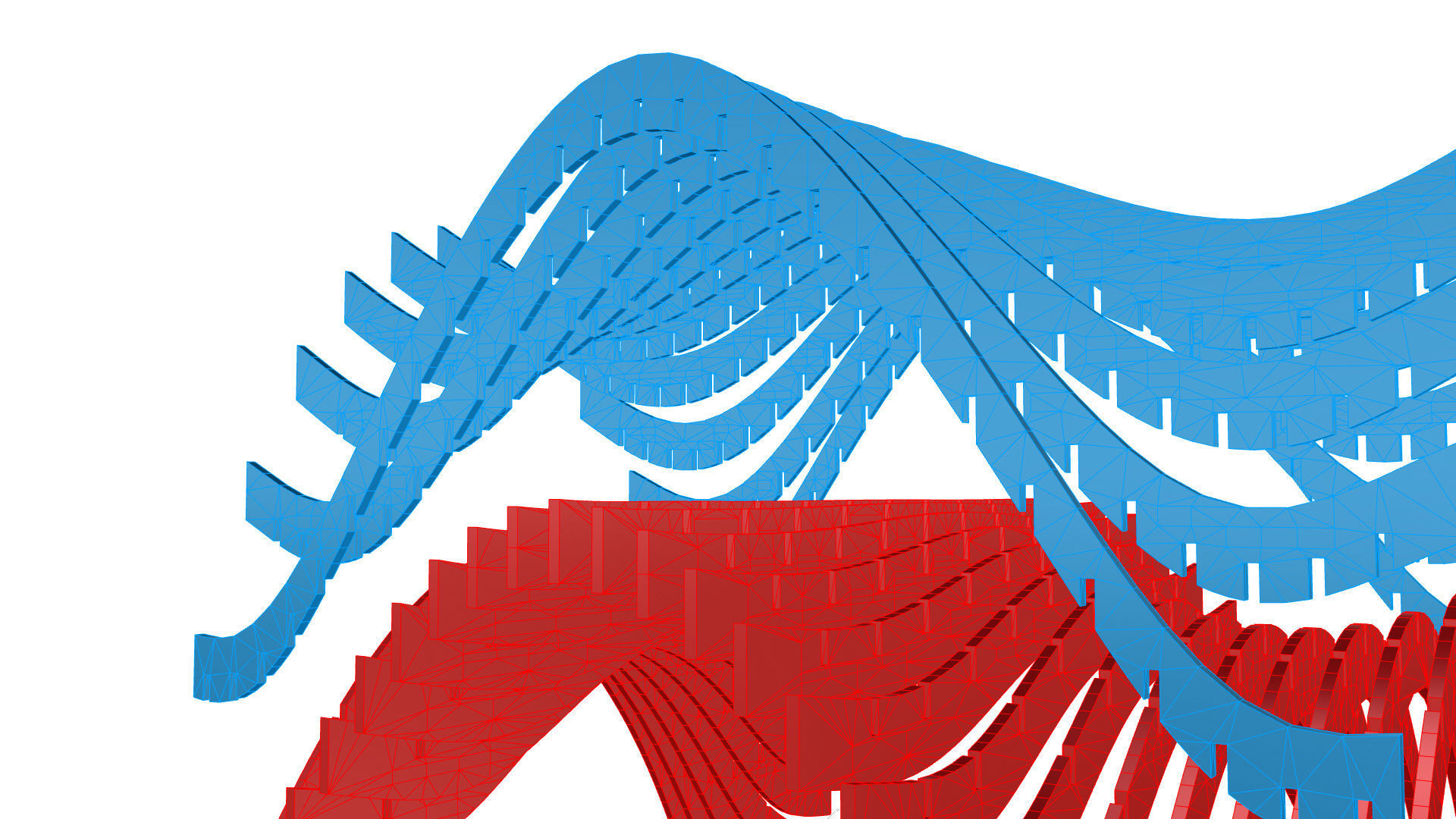

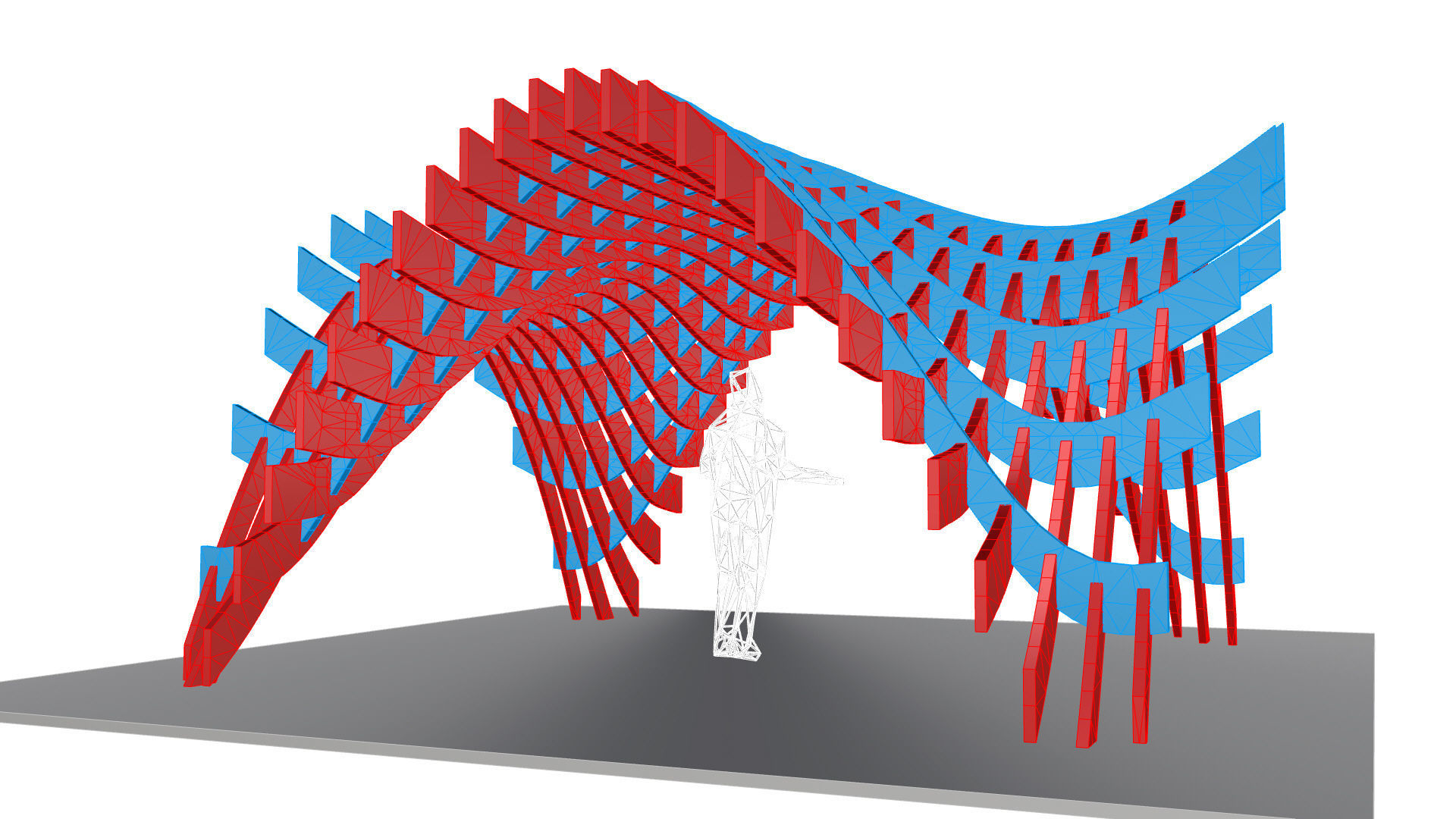

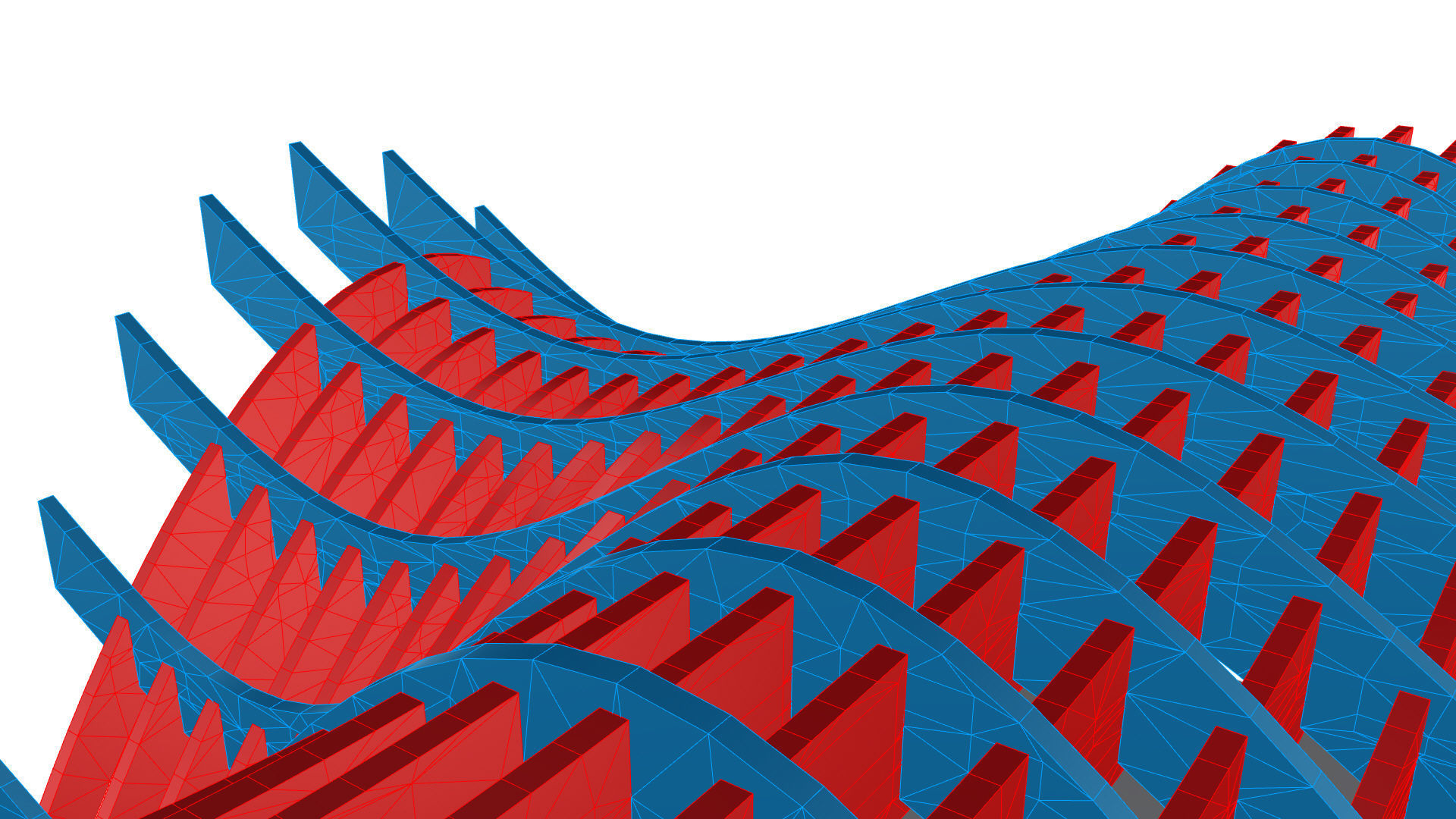

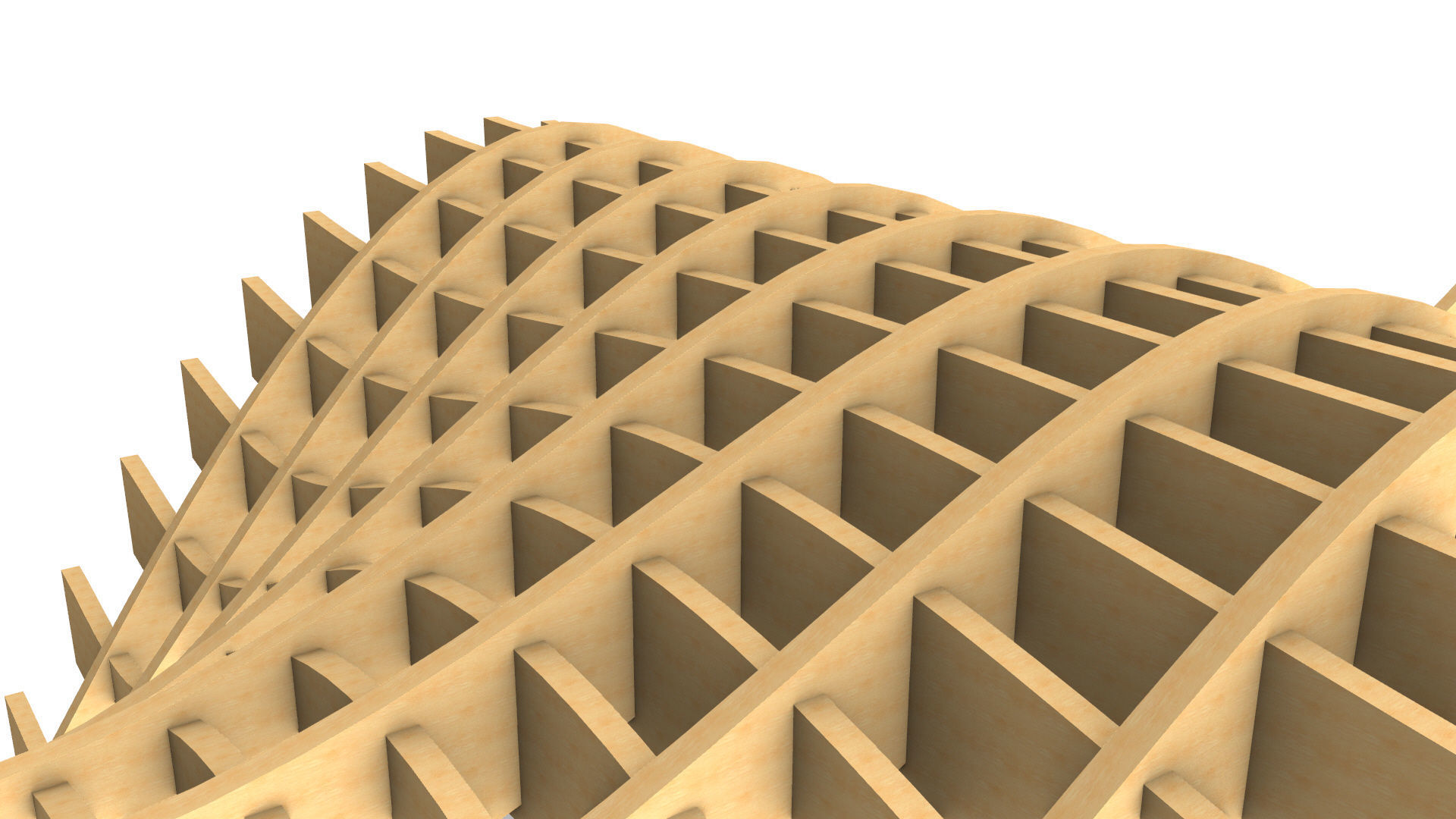

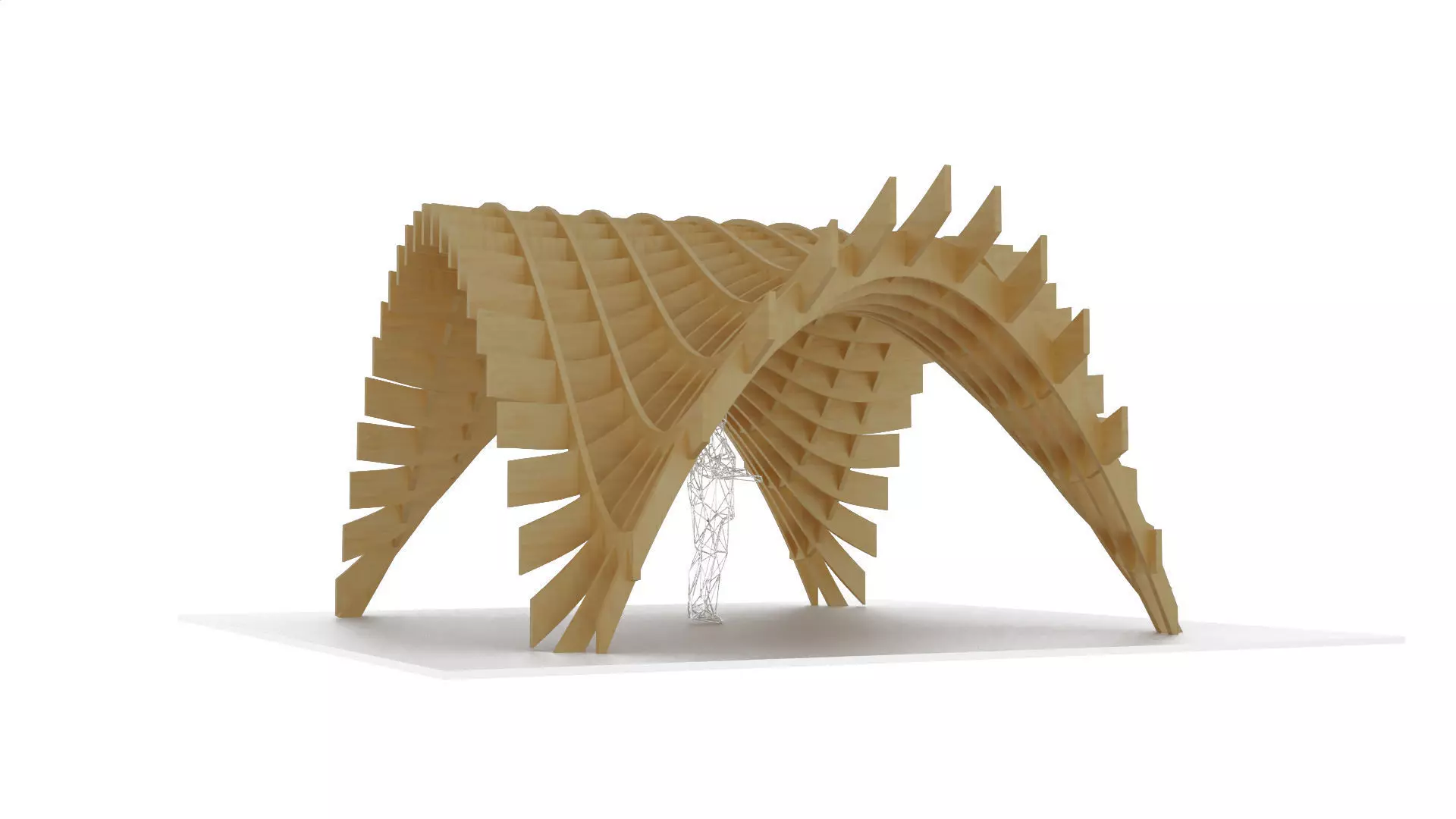

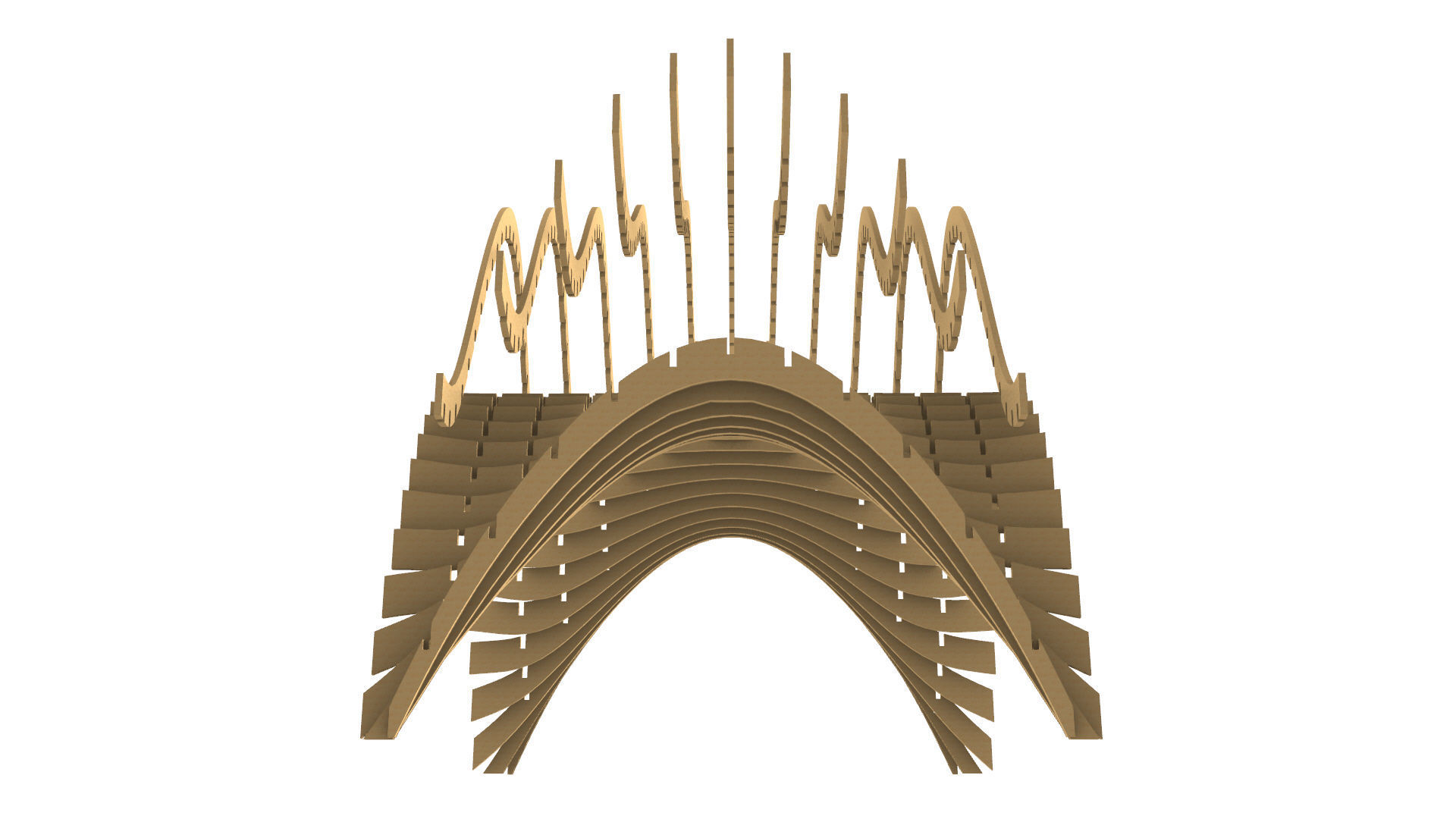

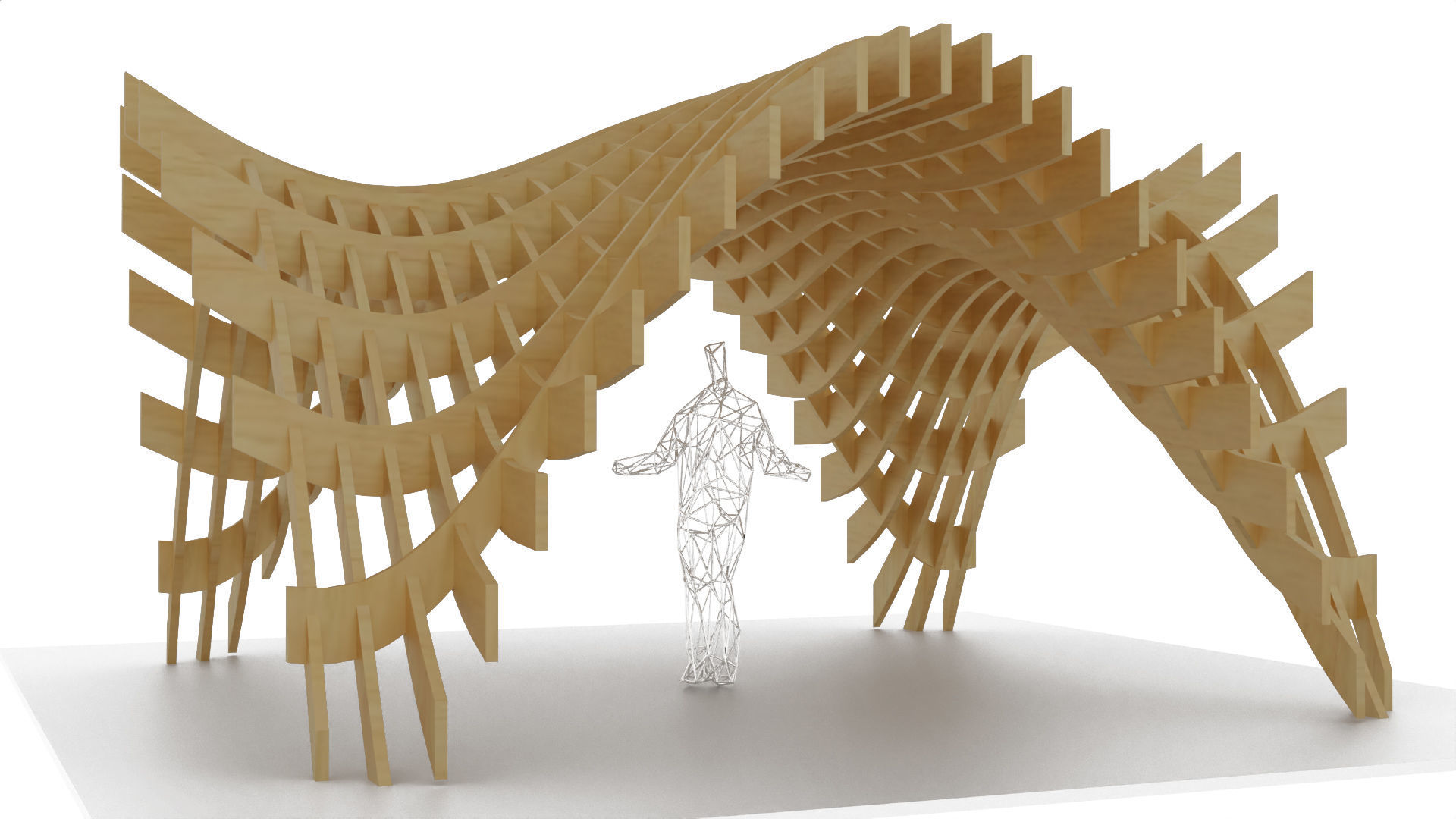

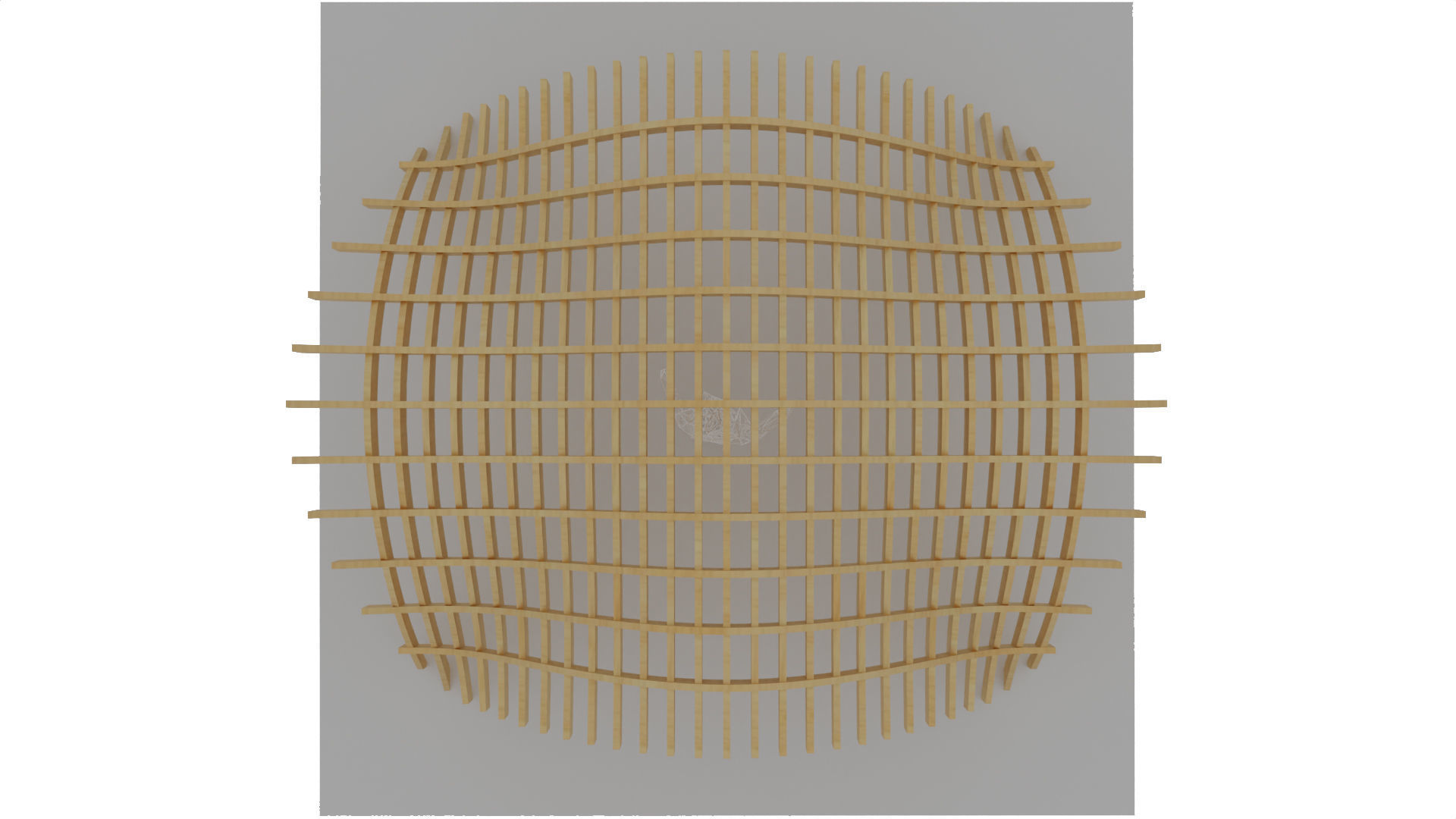

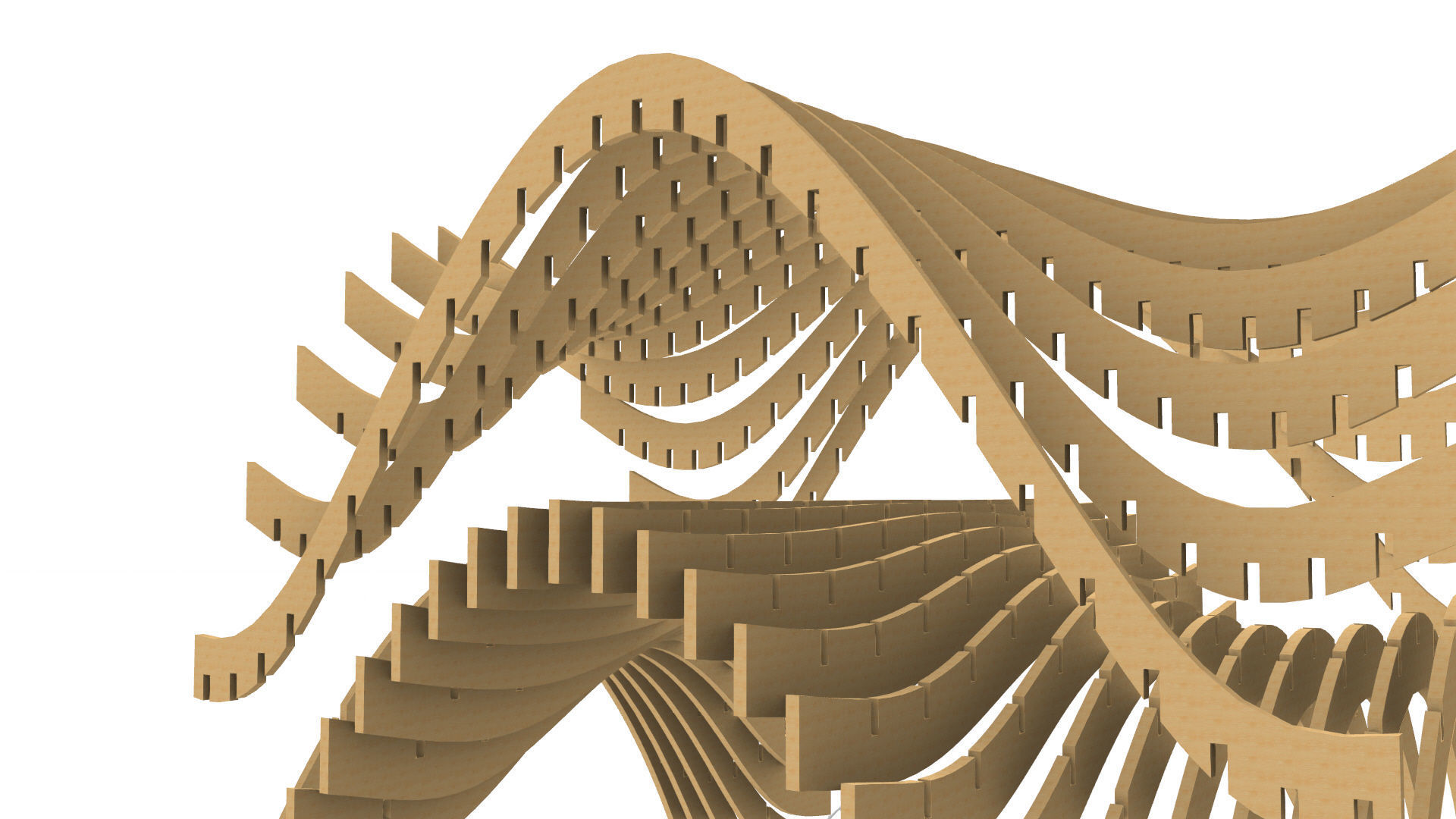

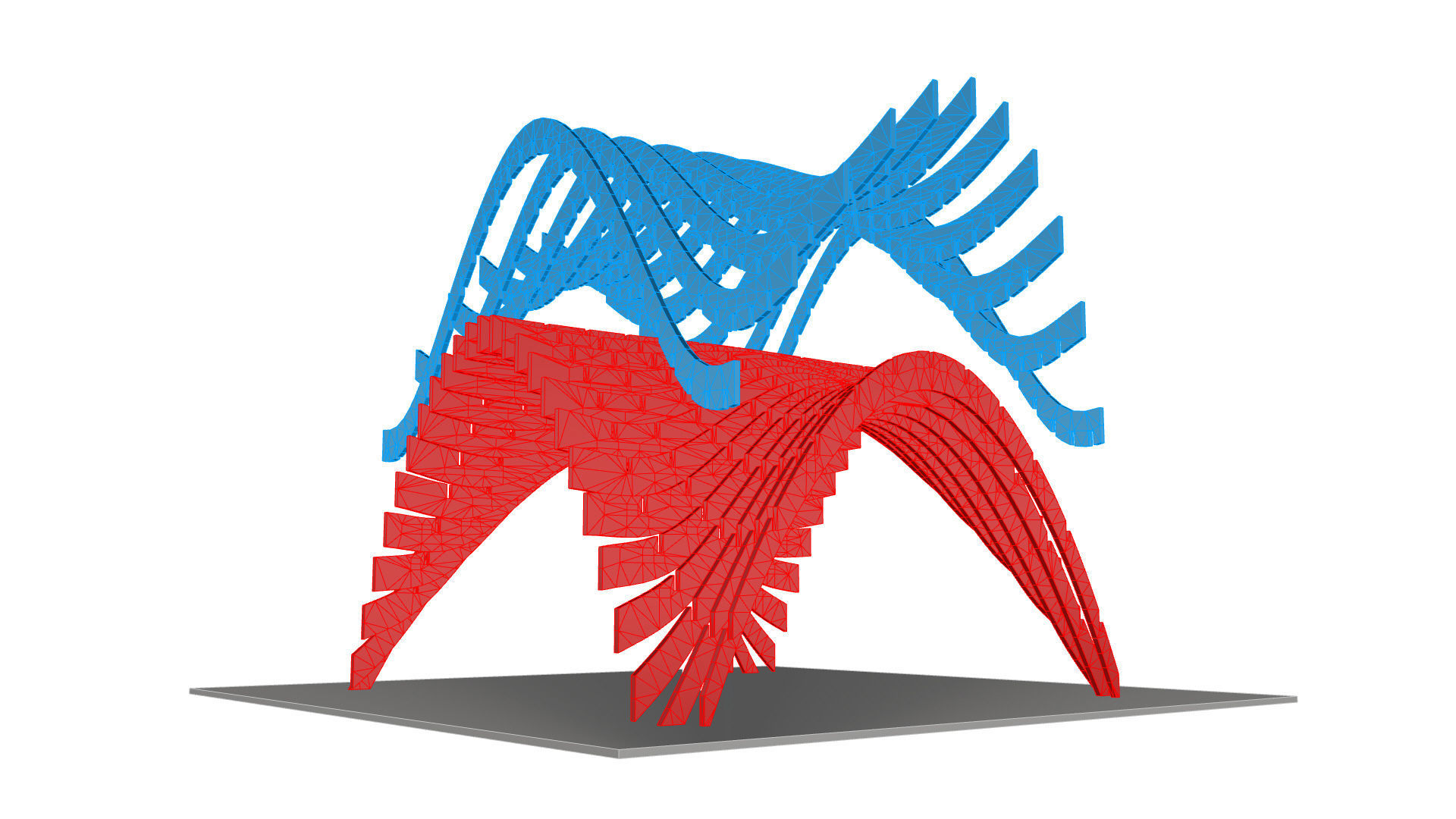

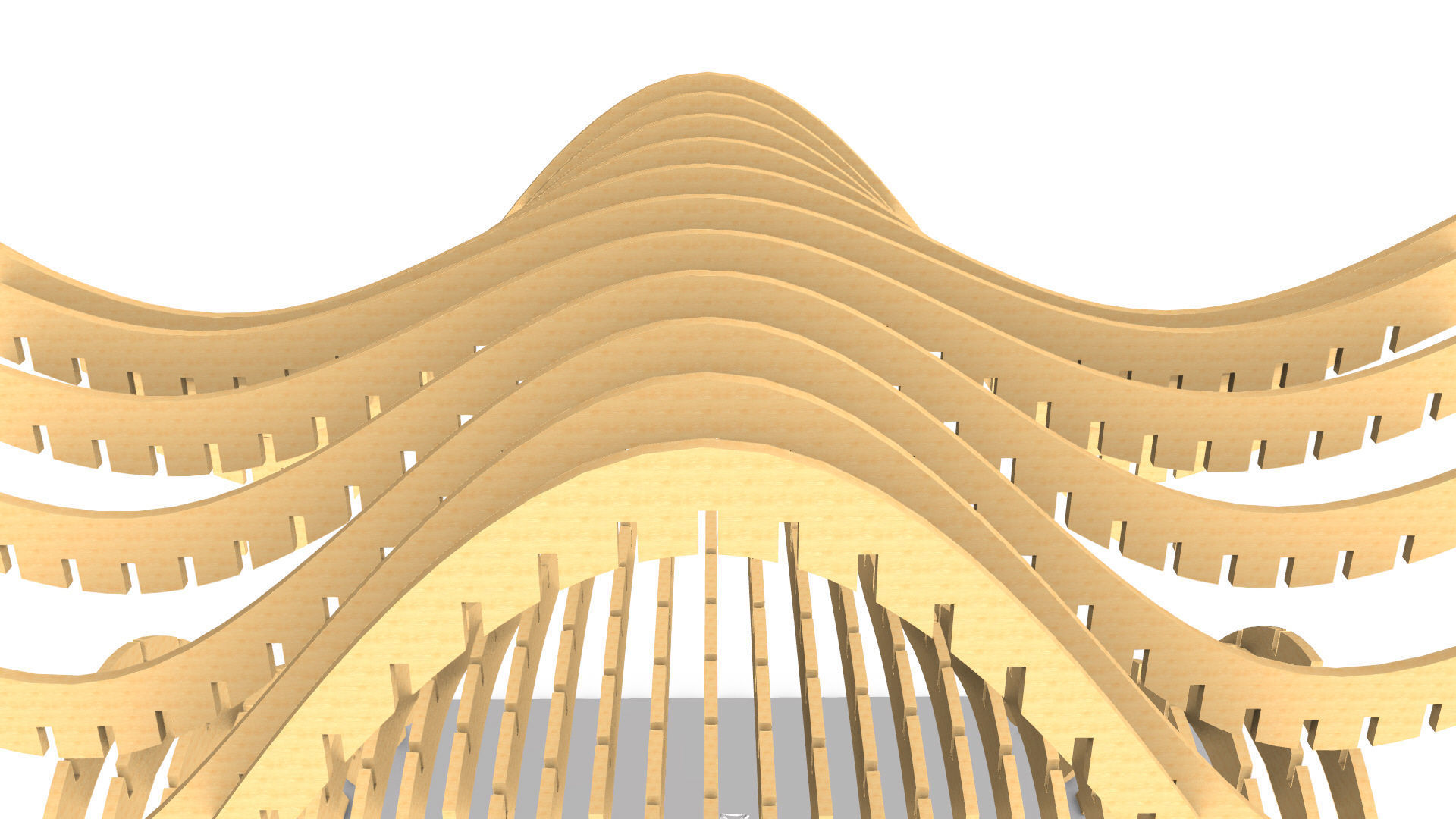

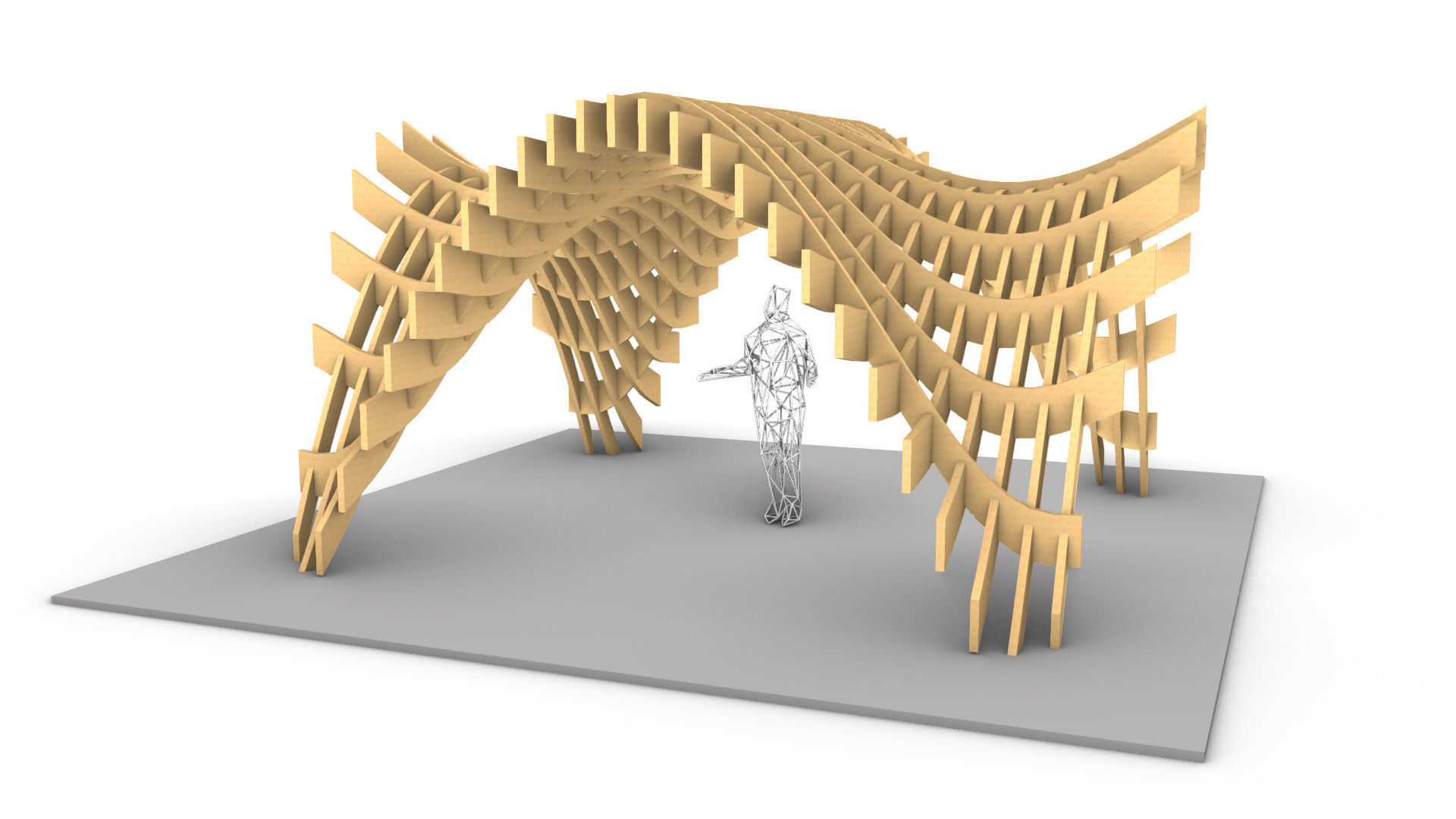

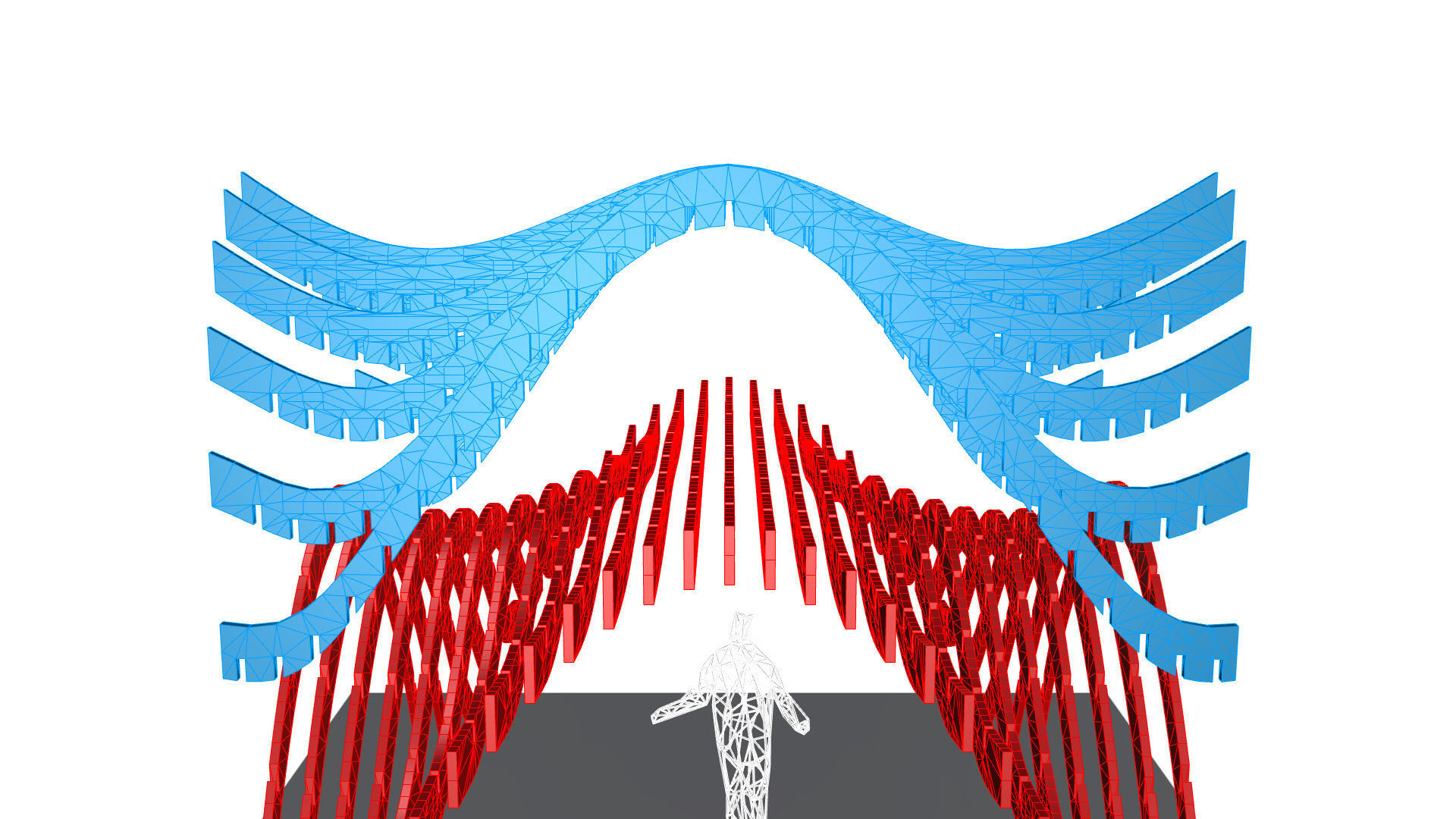

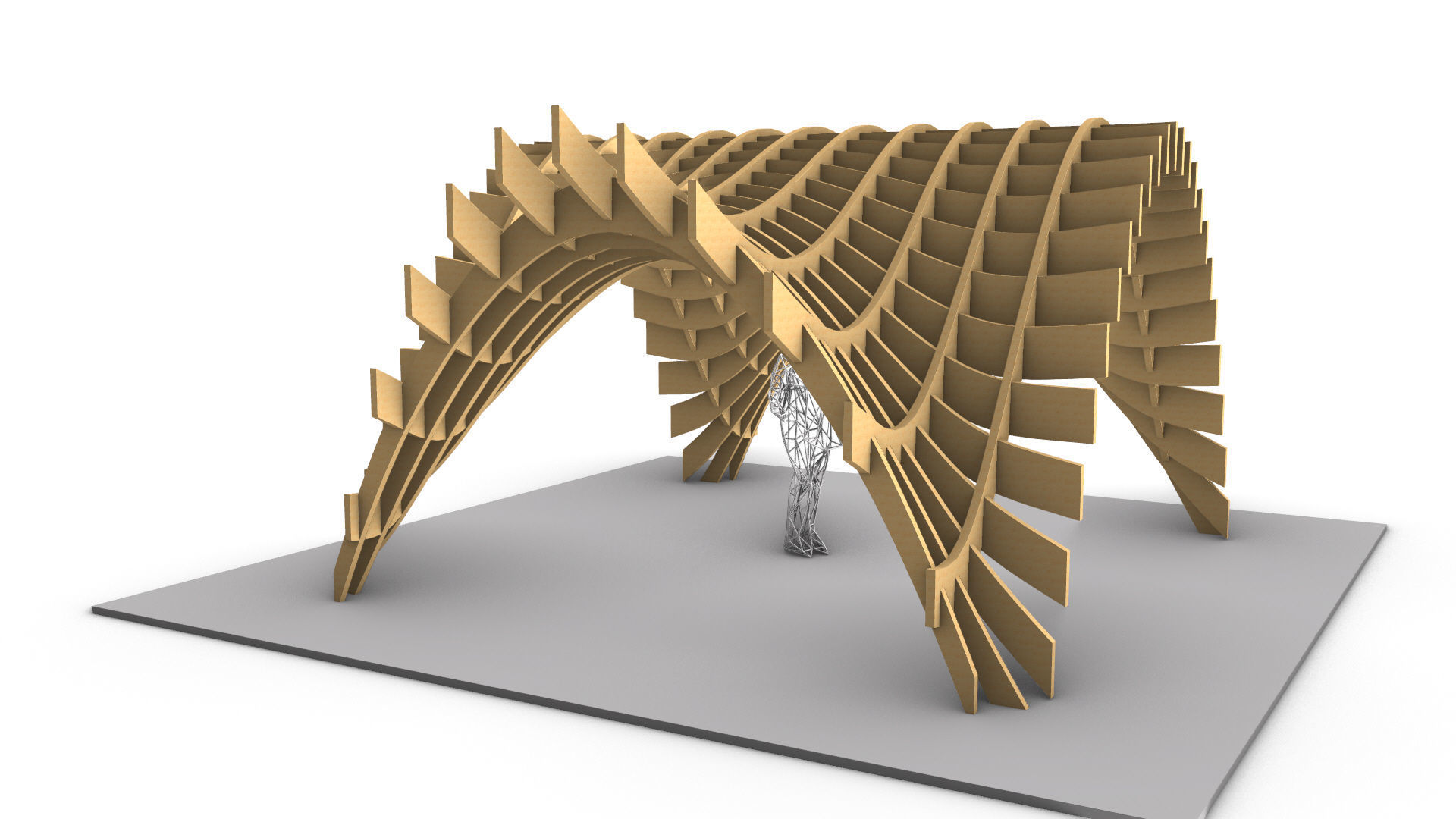

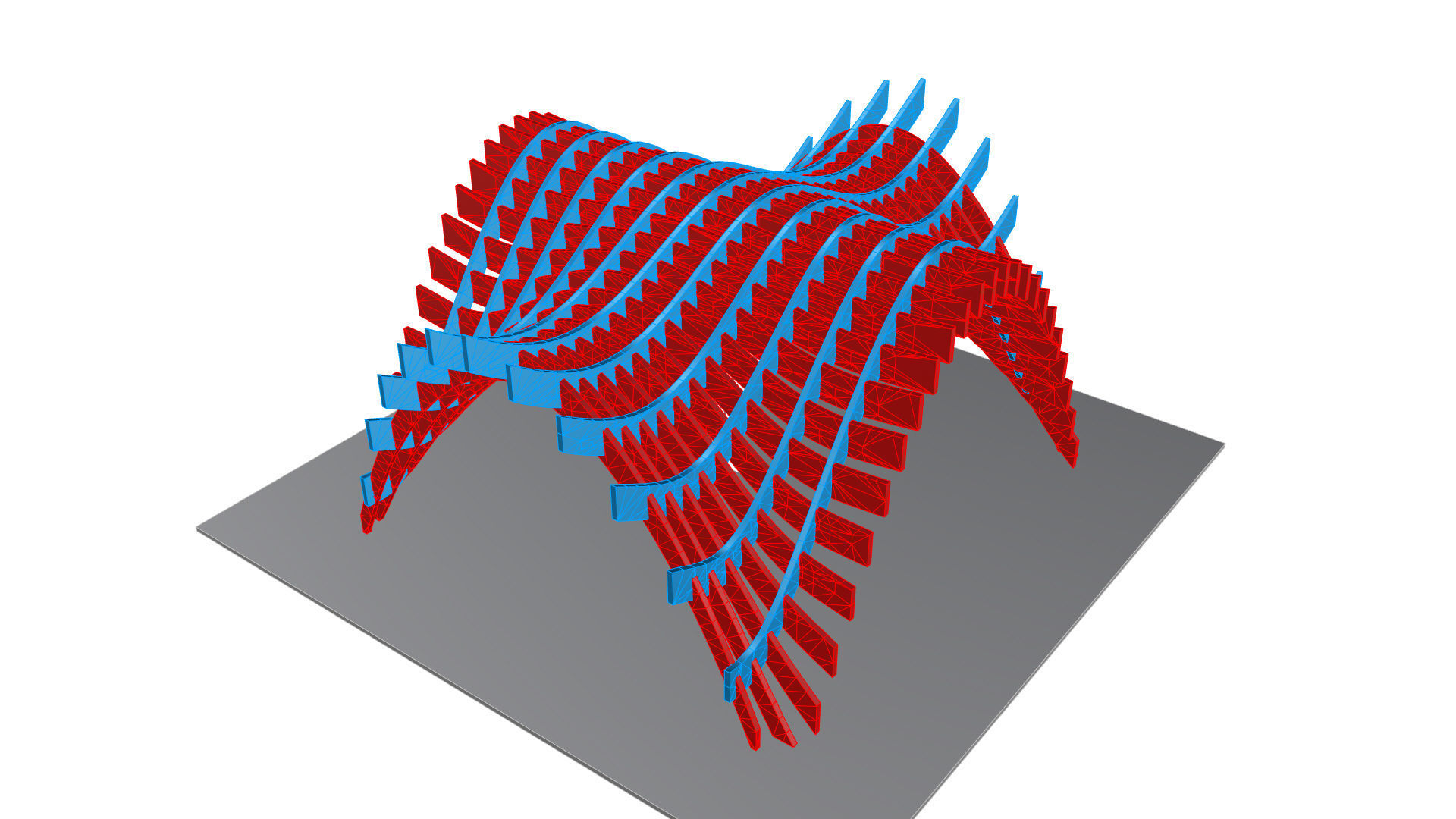

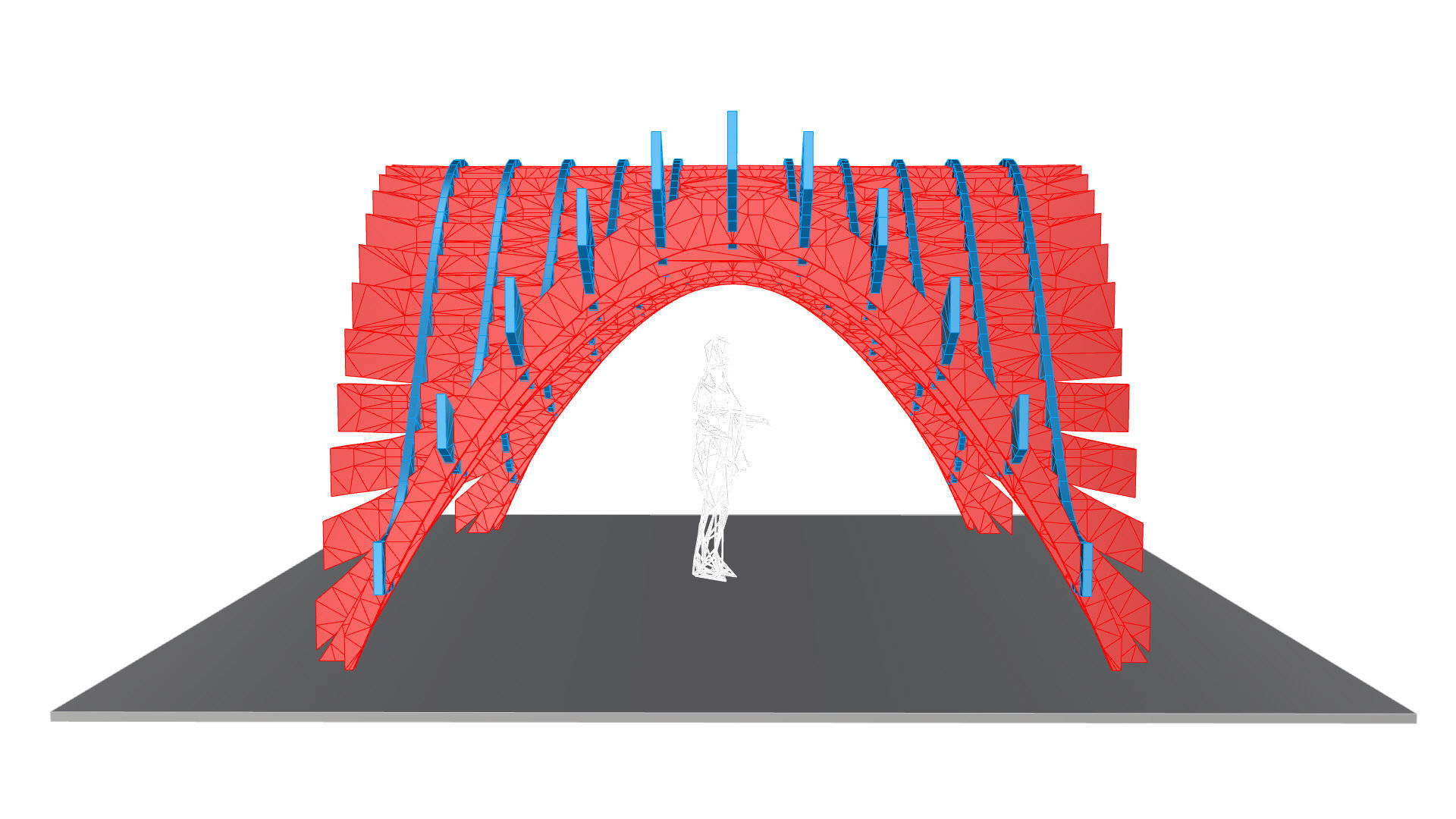

A Wavy Wooden Waffle Structure Pergola, with two sets of perpendicular wooden beams, the wooden beams are interlocked with each other with slits and grooves in each beam section, the beams network form a wavy smooth surface with four openings and the structure is fixed to the ground in four locations, the model was created using computational parametric tools to achieve the most accurate geometry with clean details, it could be used for architectural render purposes outdoors, and also for Landscaping and urban landmarks.

Files Units Format are Metric:

• boundary dimensions (Length X Width X Height) = (6.2m X 5.0m X 3.1m).

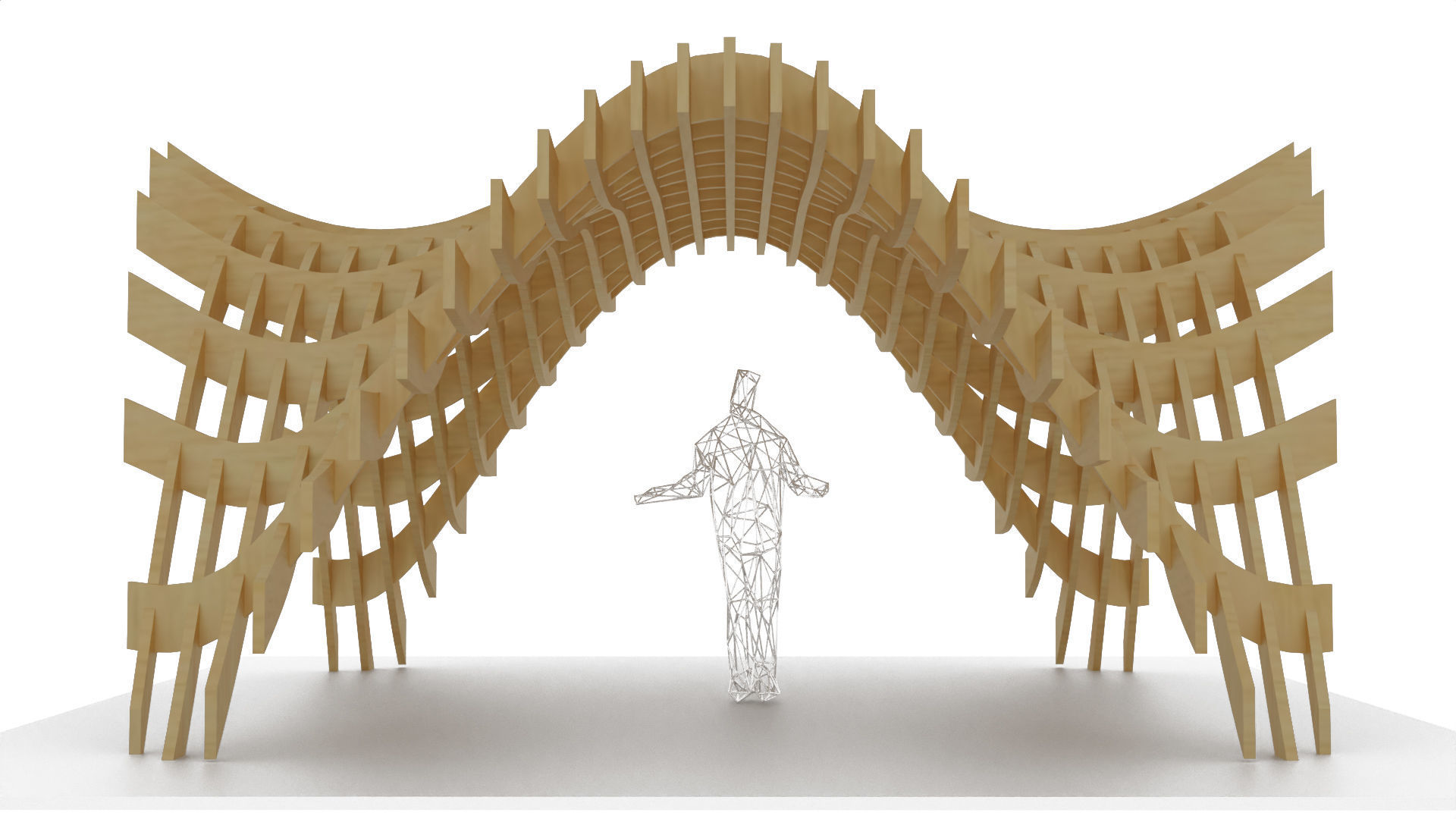

• Clear Height underneath the Pergola (2.25m to 2.80m)

Geometry Total Count >> Polygons: (33875) & Vertices: (40503).

Supported files includes both Rhino-3dm and Blender-blend in addition to Format-FBX, all units are in meter and are changeable to any desired other format whether metric or Imperial.
