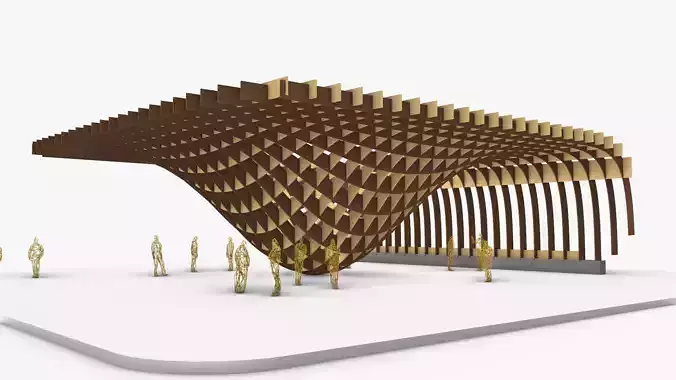

Parabolic Pergola Wooden Structure 3D model

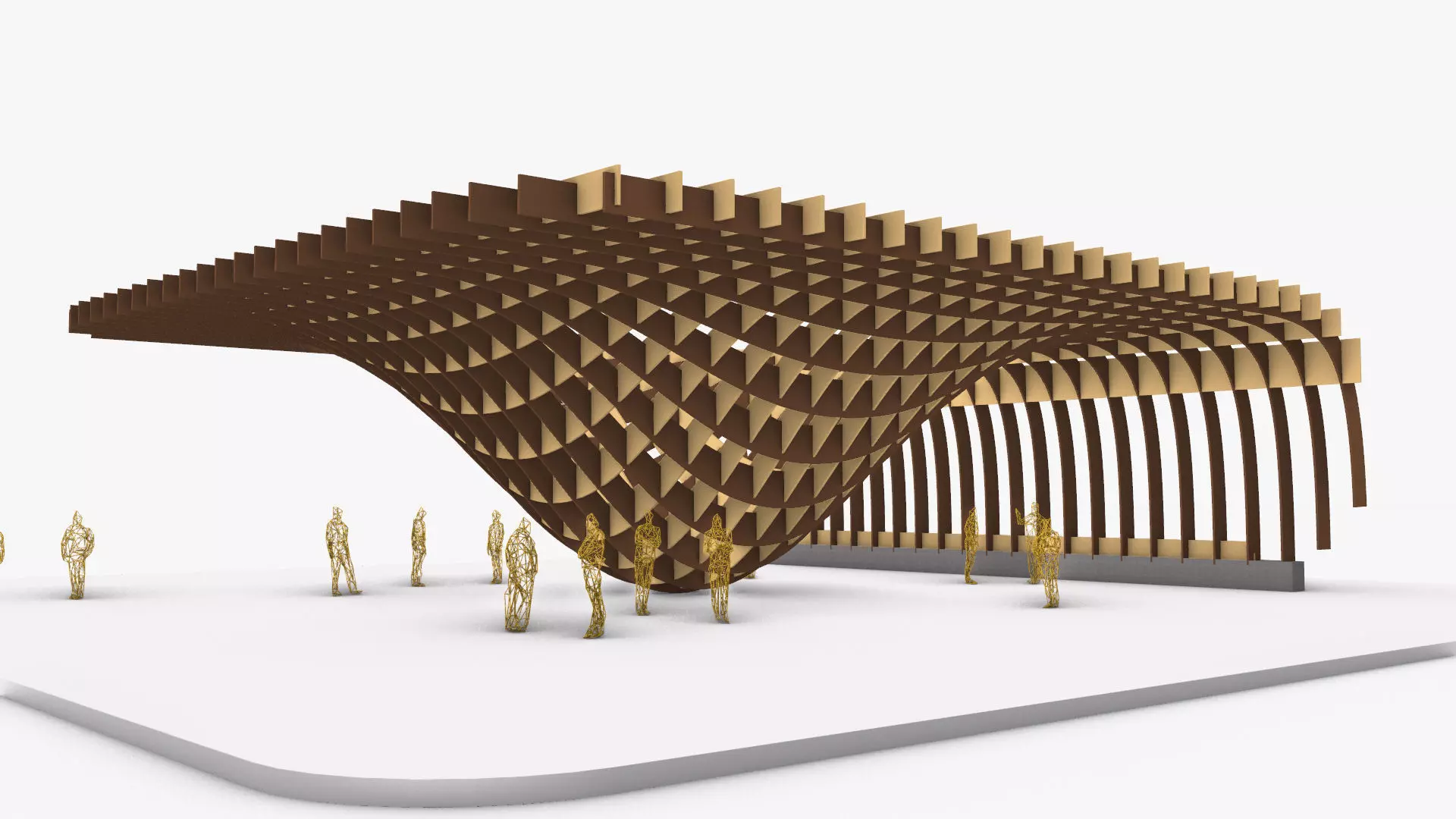

A Wavy Wooden Waffle Structure Pergola with a Parabolic wavy form, with two sets of perpendicular wooden beams, the wooden beams are interlocked with each other with slits and grooves in each beam section, the beams network form a wavy smooth surface with a central mass touched the ground in the middle and the whole structure is rested on one wide side resting on a set of wooden beams locked to a linear concrete base foundation, the model was created using computational parametric tools to achieve the most accurate geometry with clean details, it could be used for architectural render purposes outdoors, and also for Landscaping and urban landmarks.

Files Units Format are Metric:

• boundary dimensions (Length X Width X Height) = (20.5m X 20.0m X 6.1m).

Geometry Total Count >> Polygons: (339132) & Vertices: (307147).

Supported files includes both Rhino-3dm and Blender-blend in addition to Format-FBX, all units are in meter and are changeable to any desired other format whether metric or Imperial.
