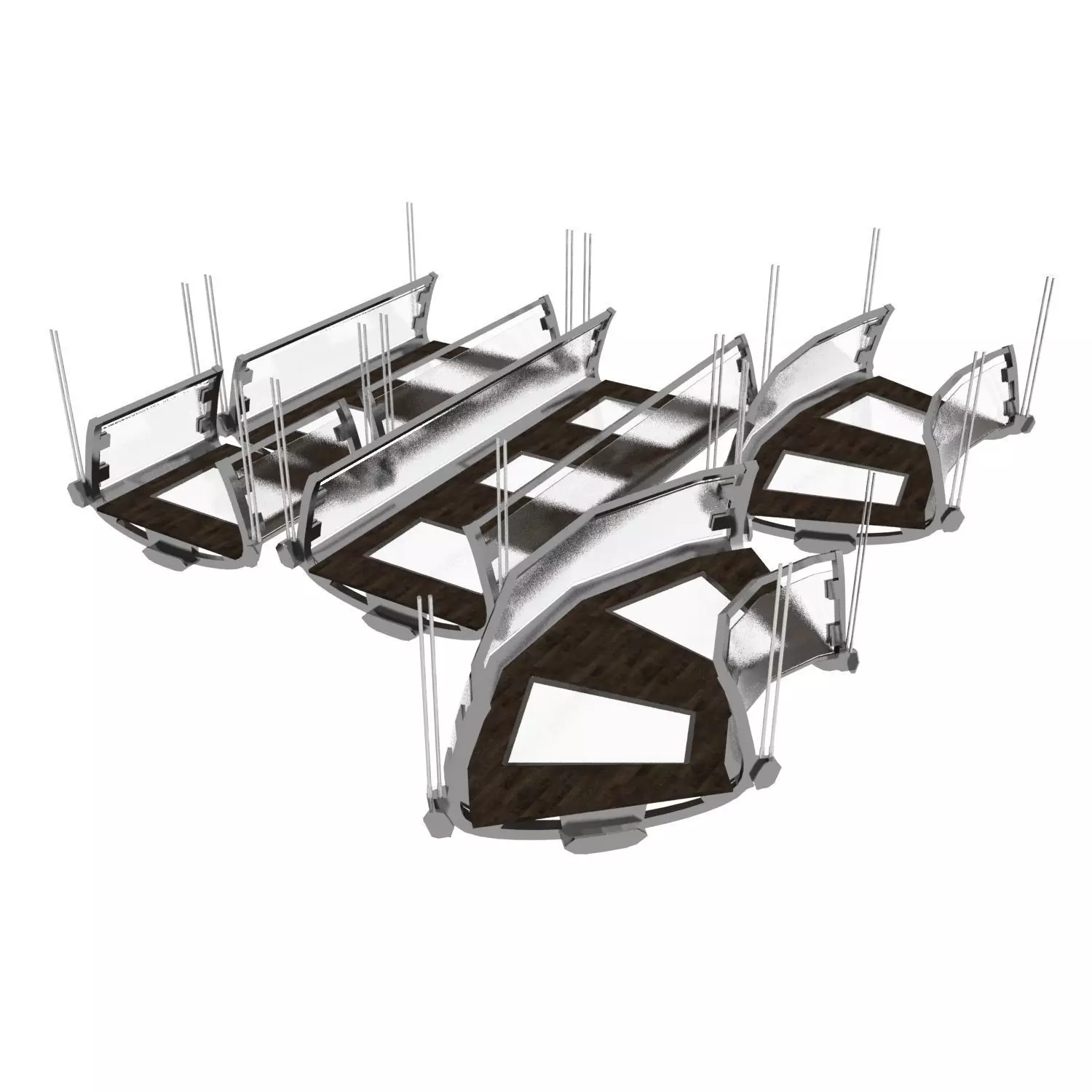

Suspended Glass Walkway Segments Low-poly 3D model
Suspended indoor walkway, with glass side panels and glass isnerts in floorboards, real world dimensions.4 different materials included. (See Material ID information)Choice 1: Rippled Glass with dark woodChoice 2: Rippled glass with light woodChoice 3: Dark tinted glass with dark woodChoice 4: dark tinted glass with light wood
All Segments: W:2mSegment Short: L:2m poly:1512 Verts:1745Segment Medium: L:4m Poly:1566 Verts:1793Segment Long: L:6m Poly:1656 Verts:1951Segment 45degr: L:4m Poly:1758 Verts:1997Segment 90degr: L:4m Poly:1758 Verts:1997
Total poly:8250 Verts:9483
Hand rail at appropriate height according to International Building Code (IBC) 106cm (42")Frame includes flanges at the ends where segments meet / bolted into concrete.Flanges add additional 10cm total to length
Glass in the floorboard modeled for structural glass 25mm thickness.Side panels in glass.
material ID's have been assigned:
ID1: Side Glass, ID2: Support Rods, ID3: Frame, ID4: Wood Floor, ID5: Safety board, ID6: Floor Glass
3D Model formats
Format limitations
- Autodesk 3ds Max 2014 (.max)2.23 MBVersion: 2014Renderer: Mental Ray
- OBJ (.obj, .mtl) (2 files)1.59 MB
- AutoCAD (.dwg)617 KB
- Autodesk FBX (.fbx)482 KB
- DXF (.dxf)4.62 MB
- 3D Studio (.3ds)883 KB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 8,250
- Vertices 9,483
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2019-01-22
- Model ID#1878760
