White house - kitchen bedroom furniture - 2D drawing A1 size 3D model

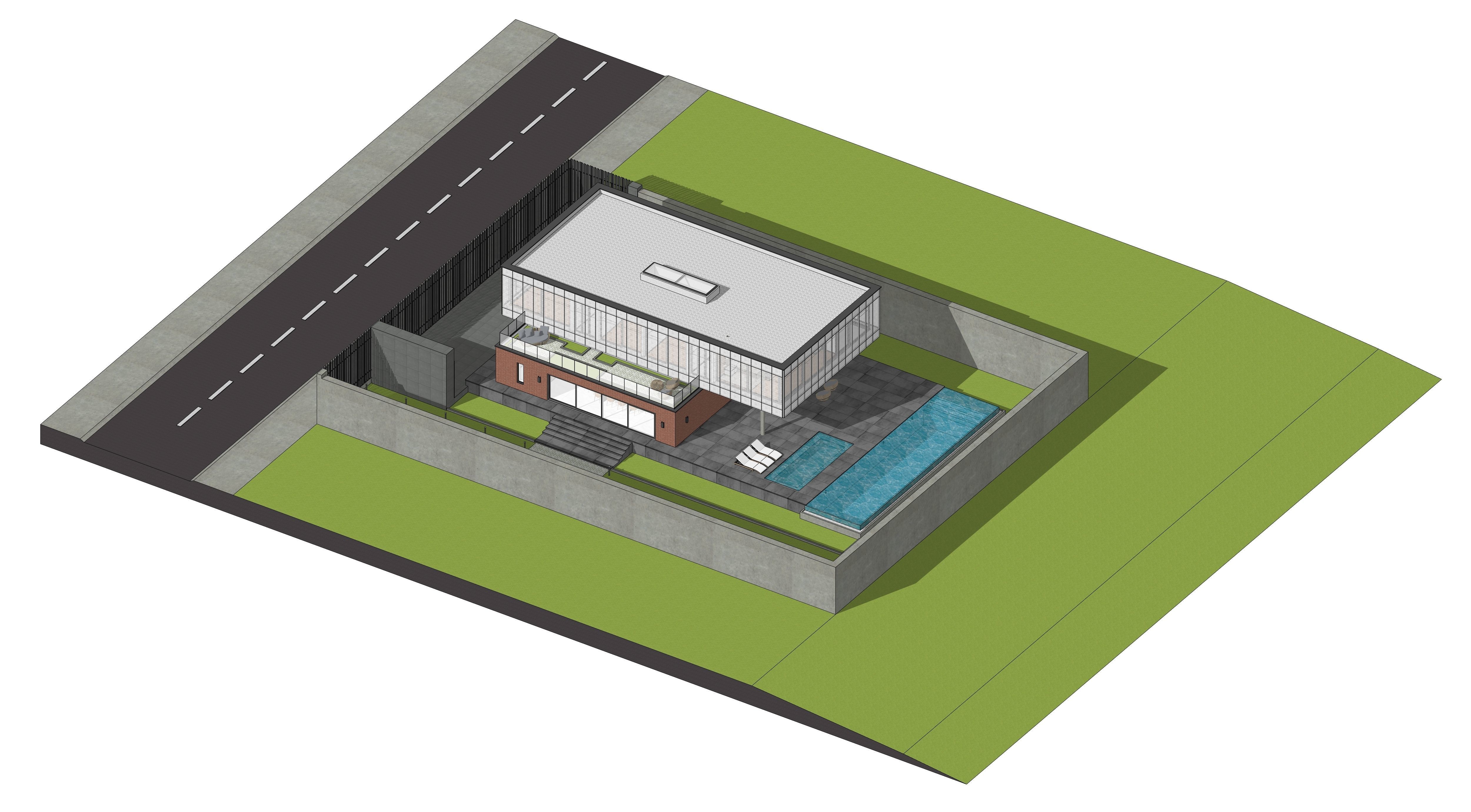

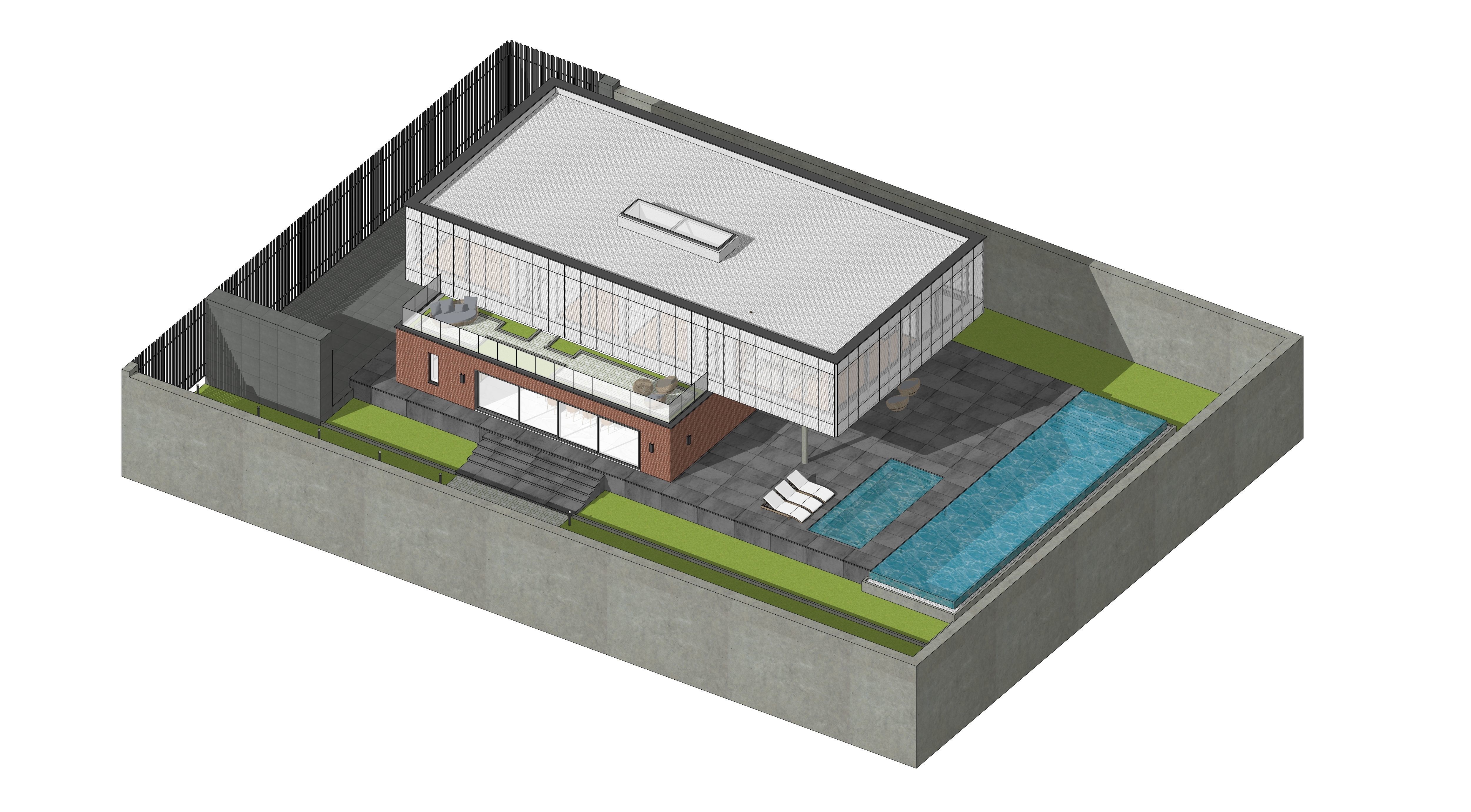

The building is a faithful replica of White Casa designed by MK27. This is a fully package for basic architectural design stage with full the full 3D model textured and illuminated outdoor scene, Architecture 2D drawing coordinated with 3D file, Render - exterior / Interior scenes with two different lighting settings (day and night) ready to render with Lumion 10 or higher, and Post-production (6 PSD files).

The package is built and designed for you to reuse, but above all, study and learn about the development of basic architectural design stages with good 3D models and with materials, textures, camera settings, and light management that make a good balance of lighting possible. This package will help you FASTER YOUR PRELIMINARY DESIGN PROCESS and win most of you project approach.

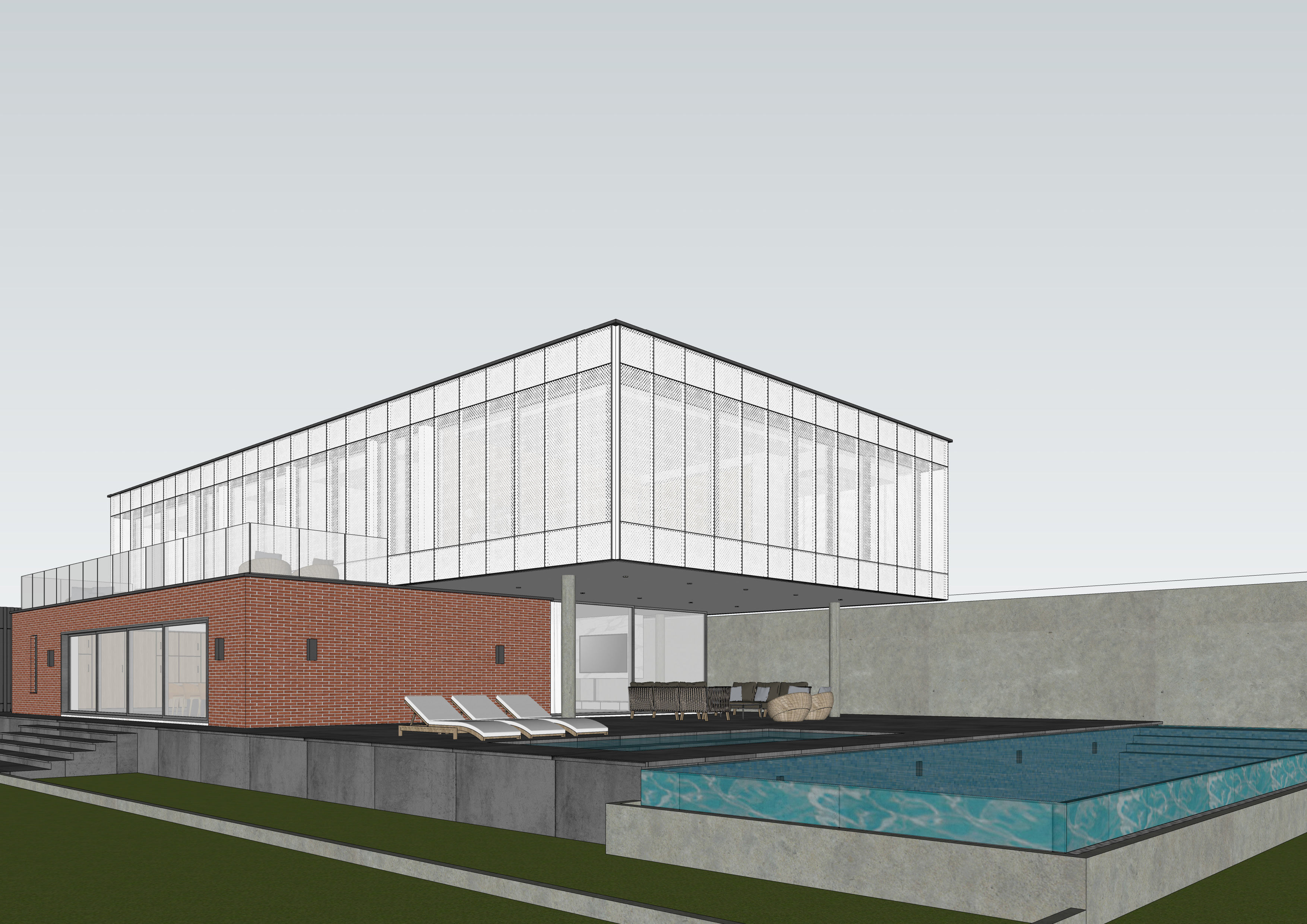

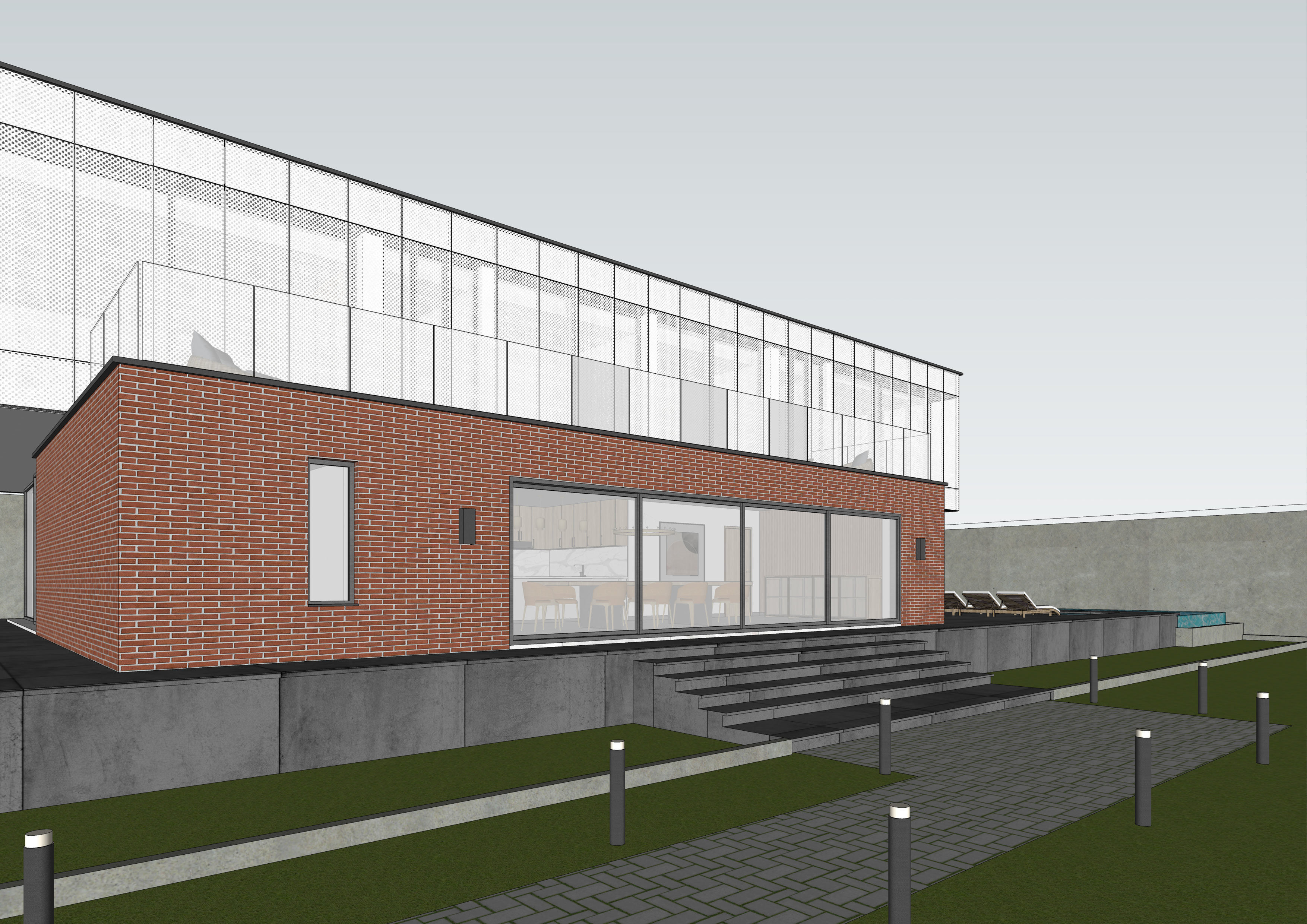

3D model Native file

• Sketchup (native) (.skp) from 2013 version and higher.
• Exports: All file exports are exported using Sketchup default settings. (grass, car, canvas arts and pool water not exported): OBJ/3DS/DAE/MTL/FBX export files and is ready to render with Lumion 10 or higher.
• The model is provided in both the default Sketchup file, in separate Lumion files.

SketchUp Entities processed:

• 2835 Groups
• 1160 Instances
• 1453770 Faces
• 70 Materials
• 51 Textures

FBX Entities exported:

• 1491595 Faces
• 70 Materials
• 51 Textures

OBJ Entities exported:

• 1491595 Faces
• 70 Materials
• 51 Textures

3ds Entities exported:

• 1836788 Triangles
• 710 Edges
• 28 Cameras
• 71 Materials
• 51 Textures

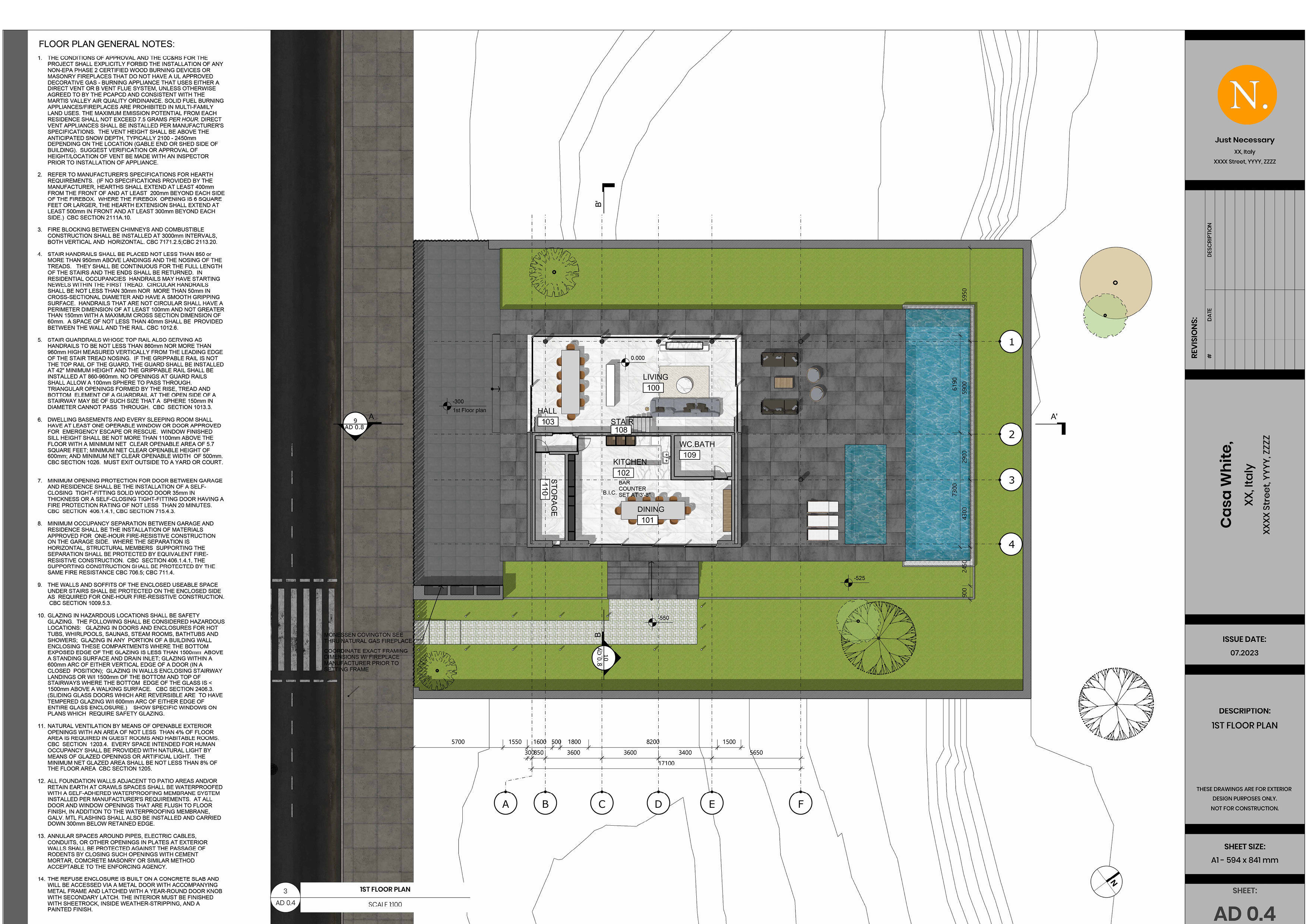

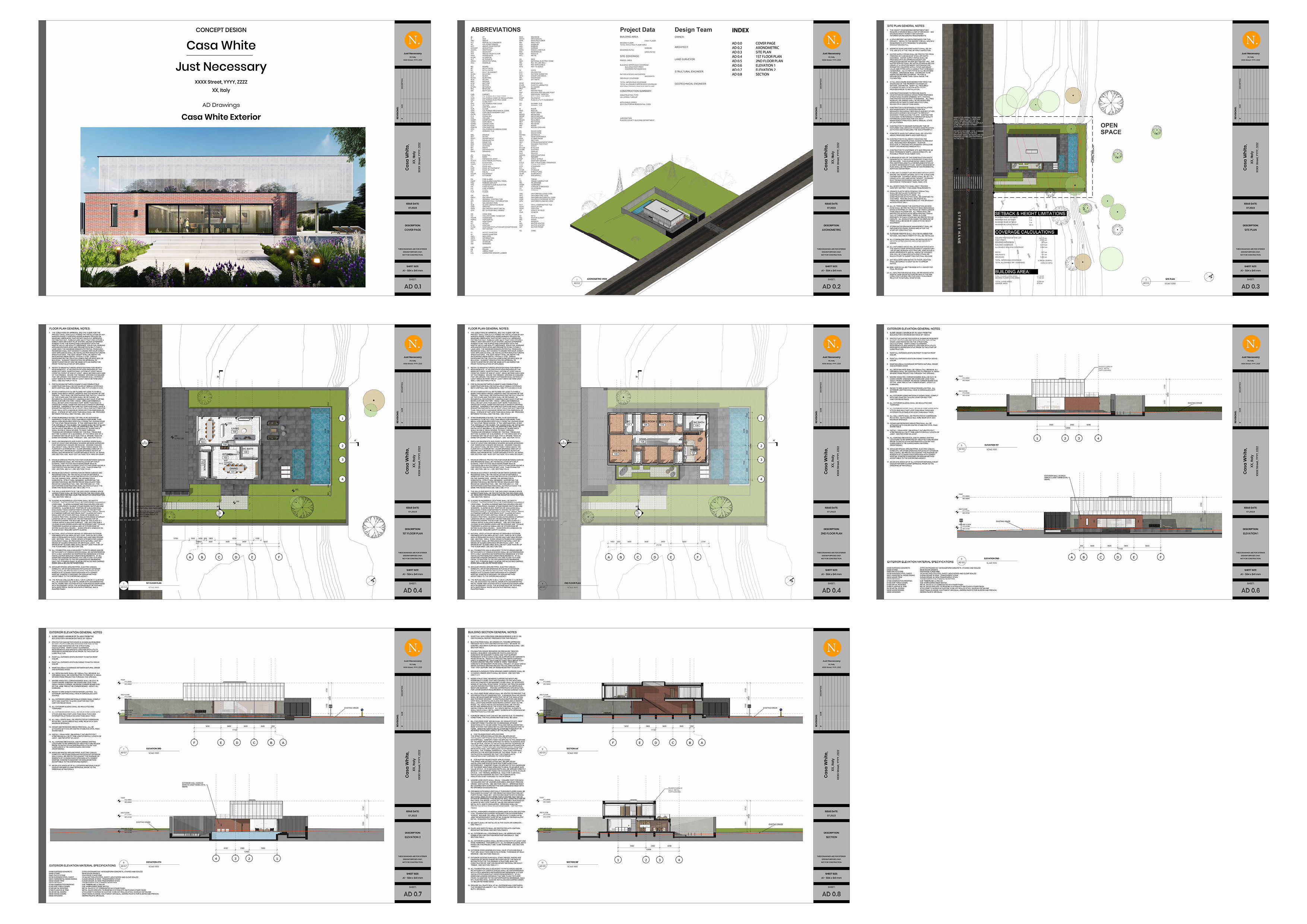

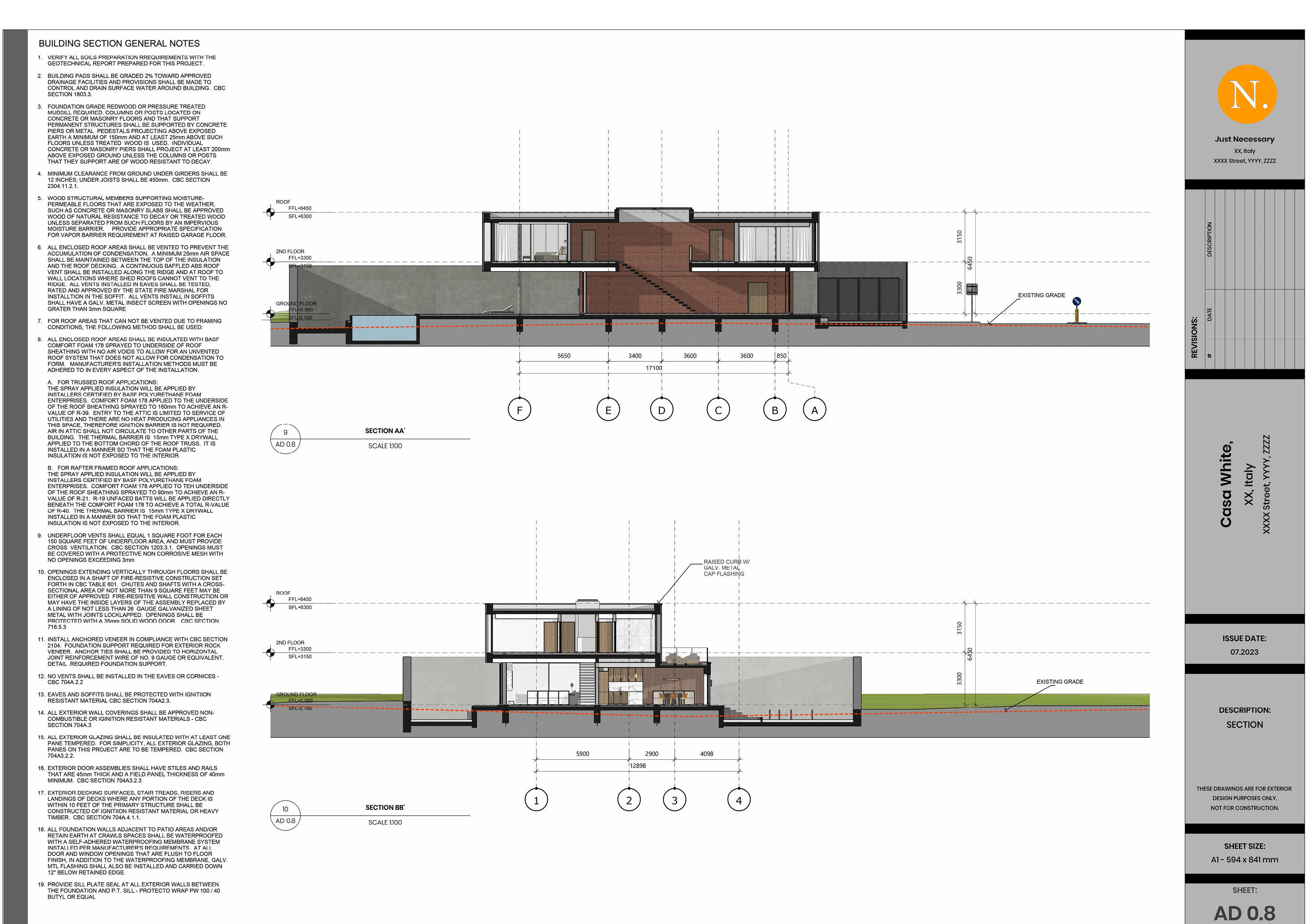

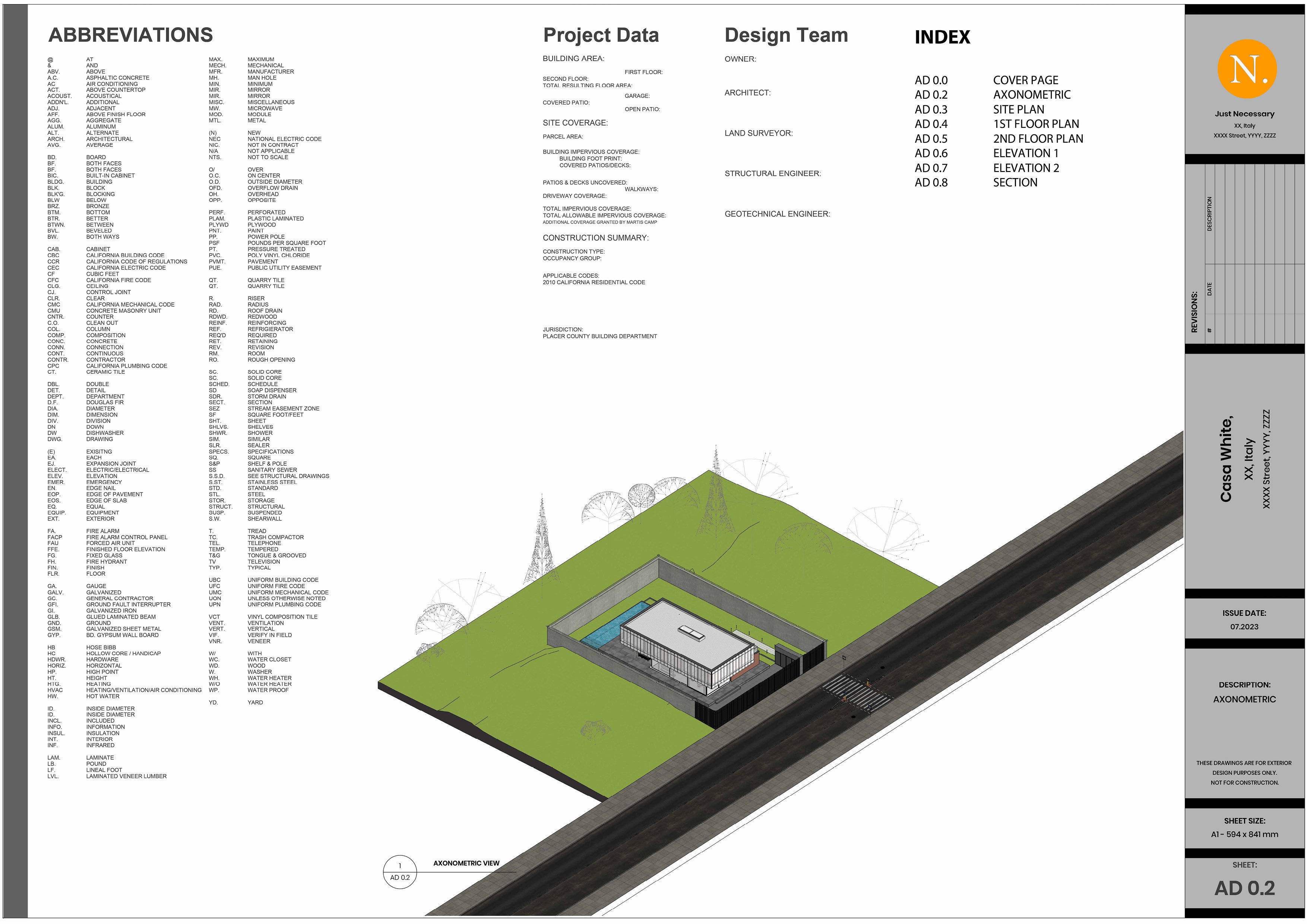

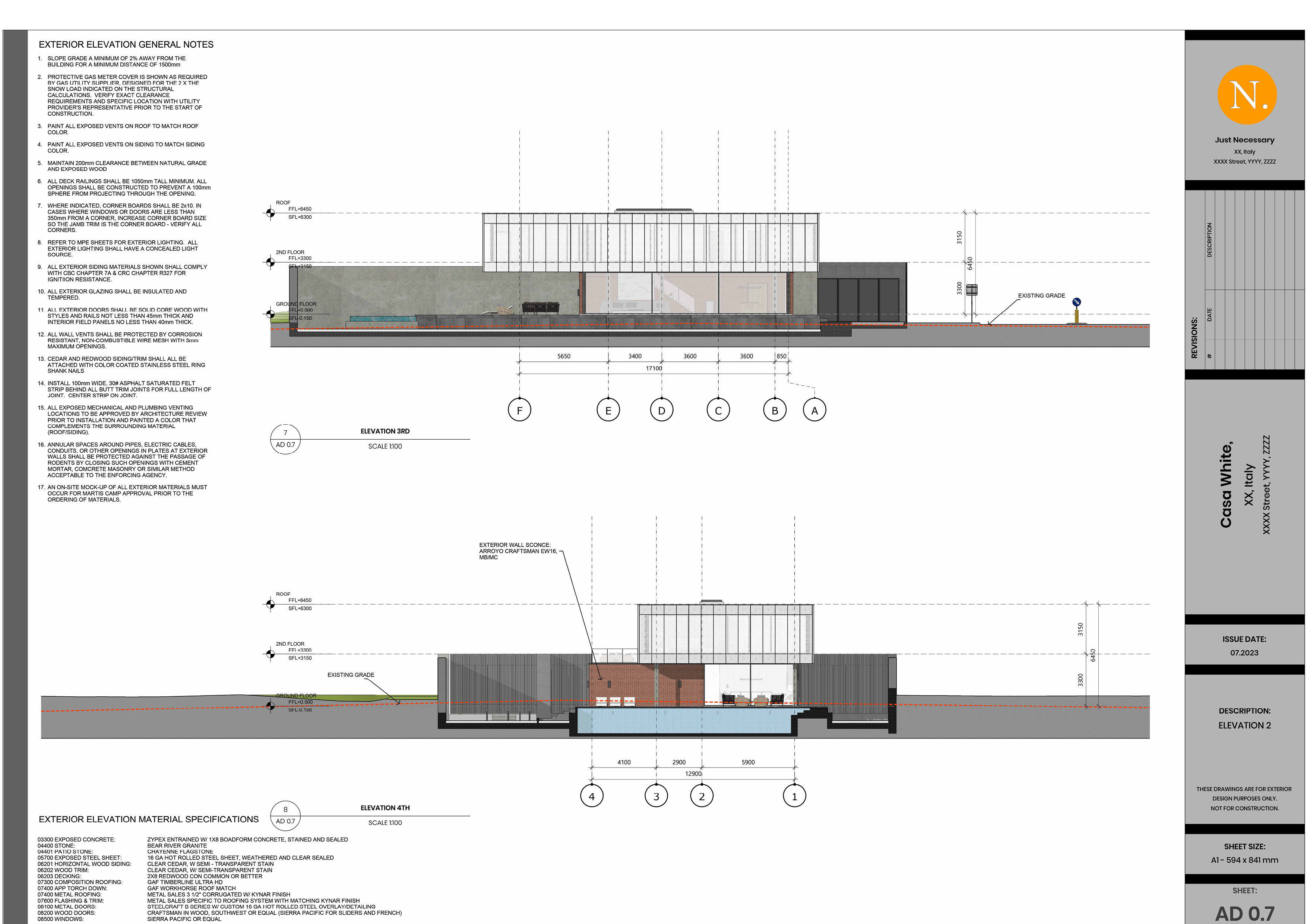

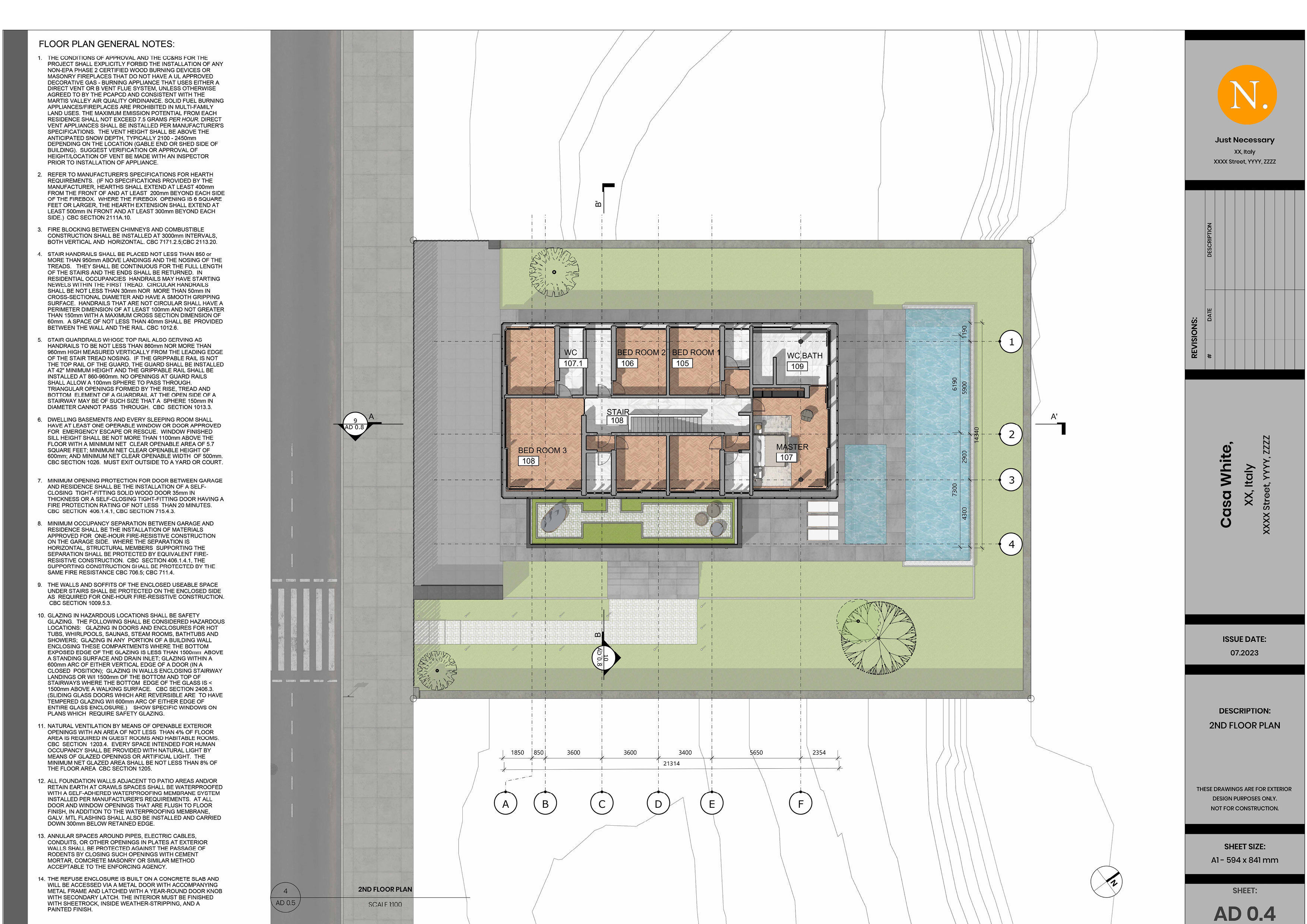

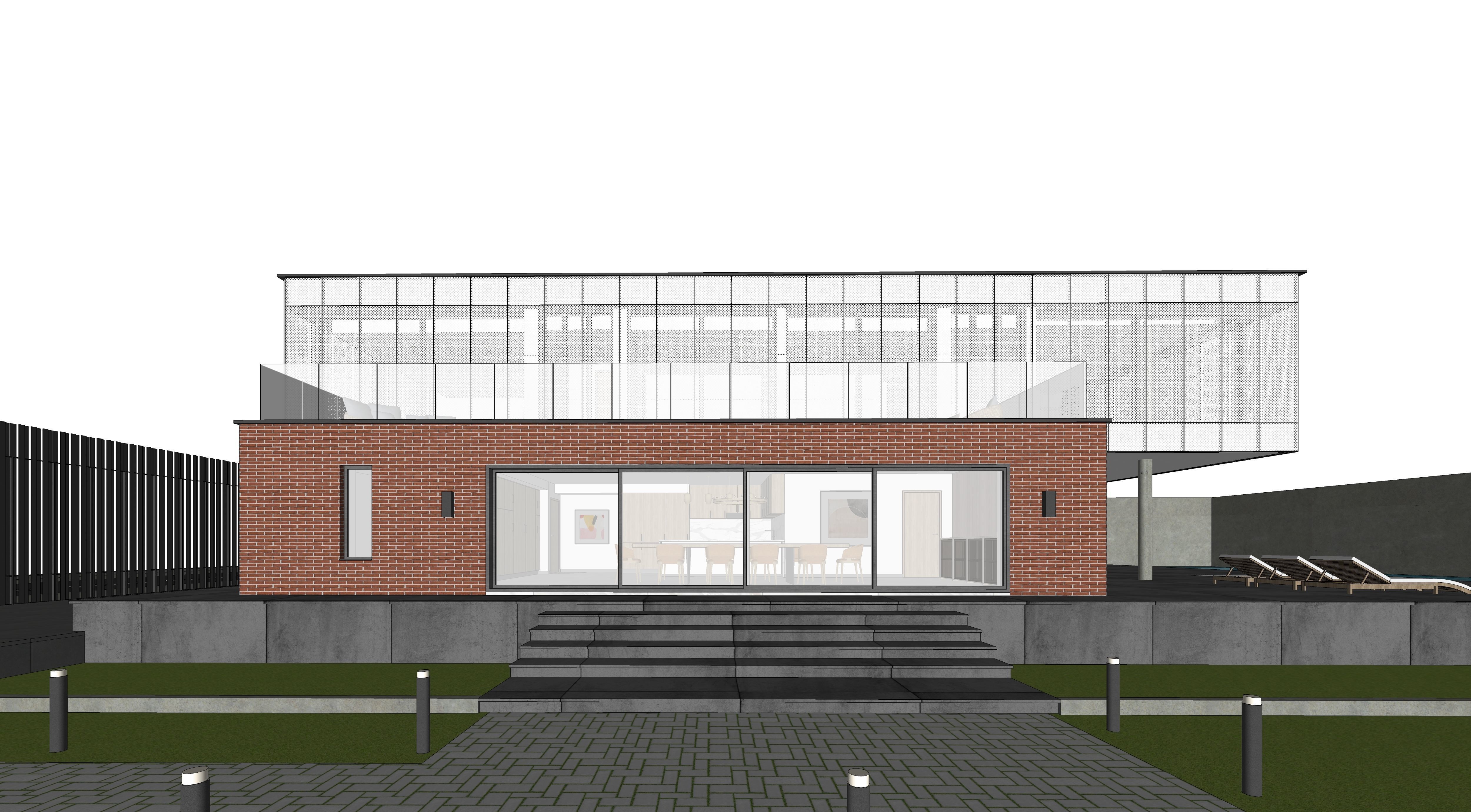

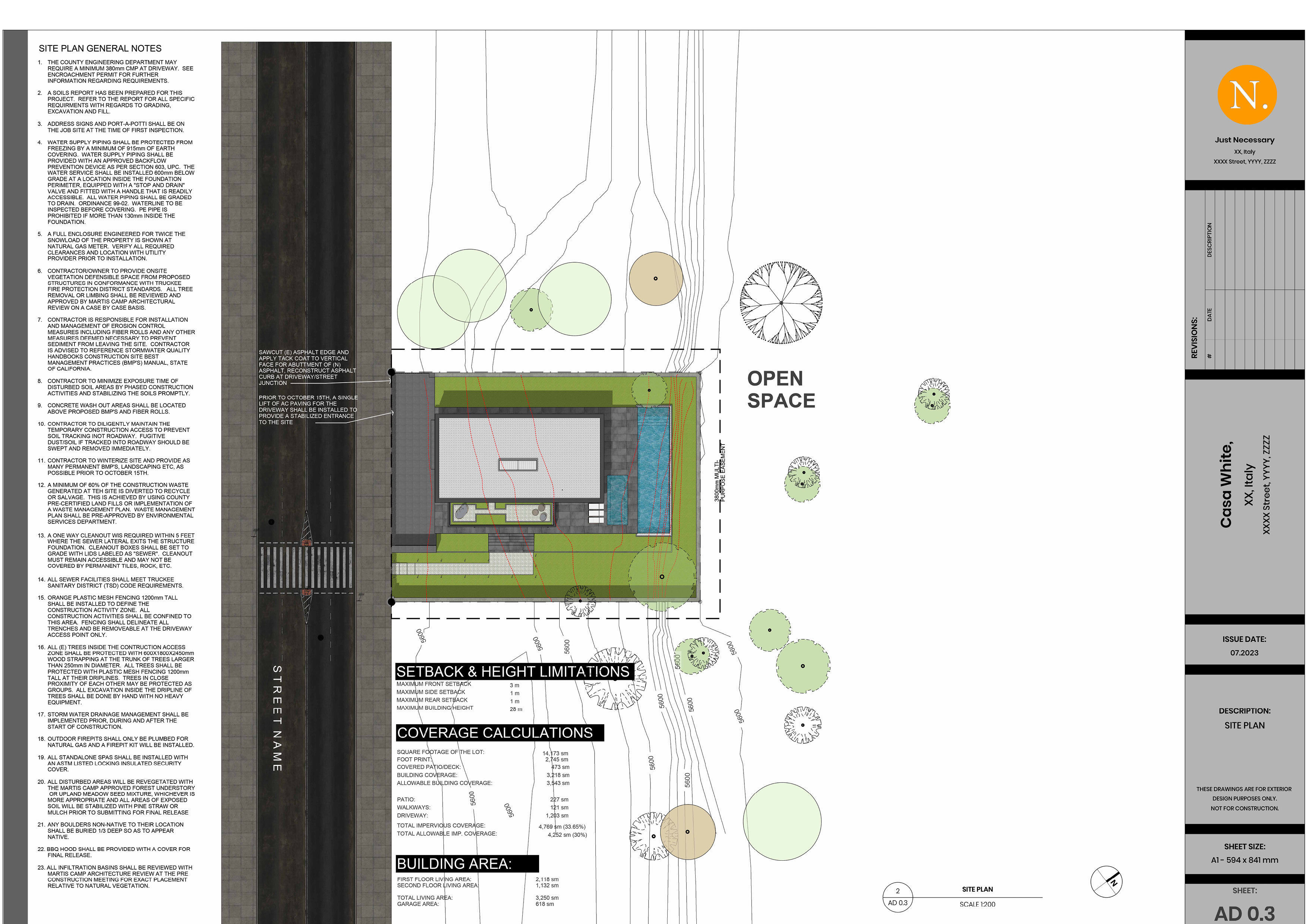

Architecture 2D drawing provided:

Metric title blocks (landscape format):

• A1 (841mm x 594 mm)

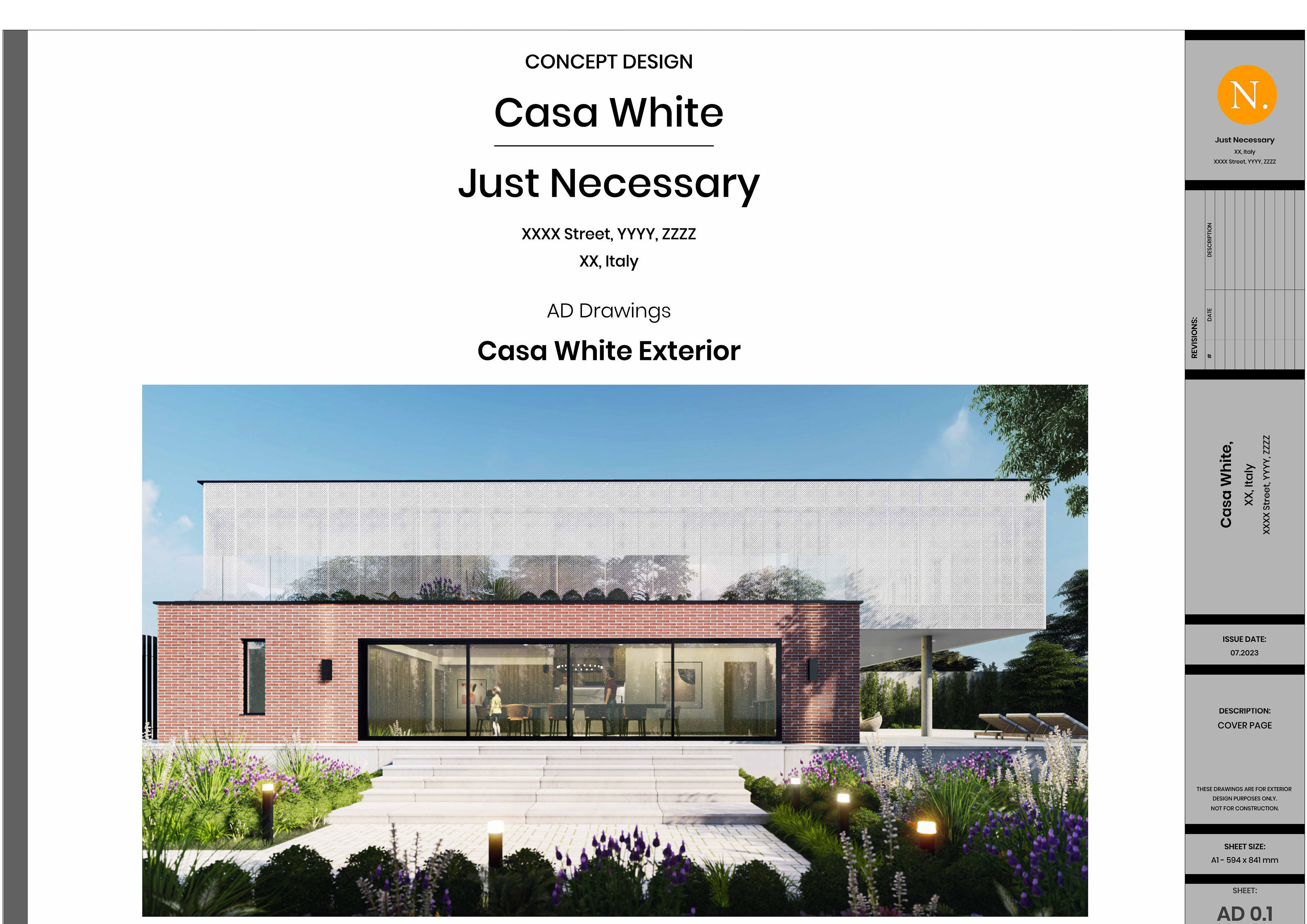

• A1 Cover Sheet

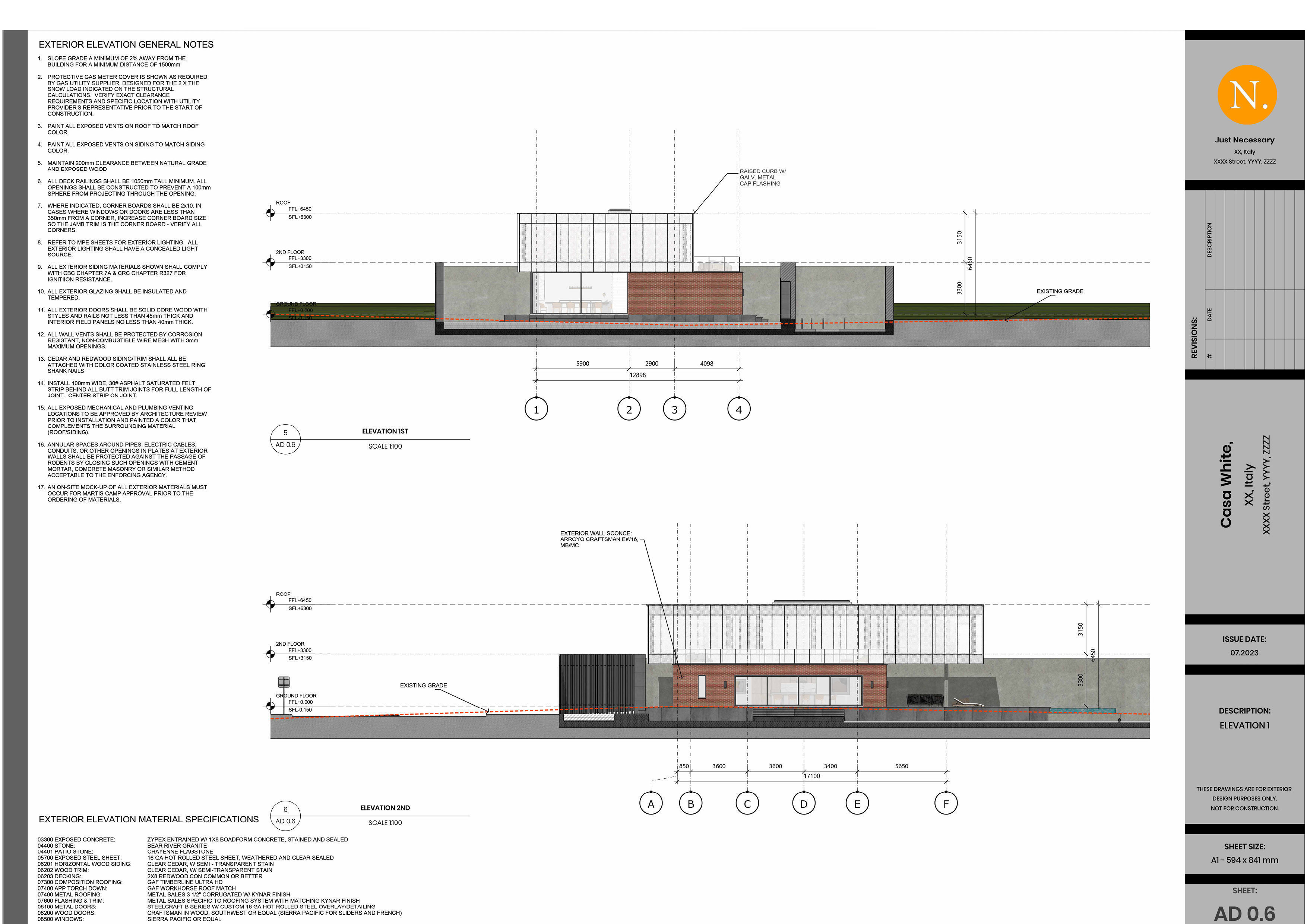

• Sketchup layout (.layout) ( Plans, Elevations)
• PDF

Render - exterior scene includes

• Rendered scene in Lumion format (.ls10)
• Includes 51 textures
• Light setup.
• 6 camera settings
• Render settings for both daytime and nighttime scenes

Post production

• 6 final PSD files showcase the post-production process with adjustment layers.

This file does not have any type of protection. You can reuse the scene, the render settings, the lights, the materials, but above all you can learn from the file, moving inside the project, observing how the light was created and handled, how materials are developed, what is the role that all textures play within them, and the values that fill every single option. This fully textured exterior scene includes trees, grass, furnitures, 2 different natural light setup (daylight, evening), and it's ready to render with Lumion 10 or higher.

• The actual files have been created with Sketchup 2013 and Lumion 10.

ENJOY IT!
