Auger flight forming machine 3D model
Description
Metal forming machine for the manufacturing of screw feeders and conveyors, auger flights – screw presses , helical tools drilling ground auger cleaning device debris removal.
A complete set of design documentation (drawings of assemblies, parts and specifications) for the manufacture of the product.
Technical specifications:
- Outer diameters of finished screw - 100 ... 900 mm;
- Internal diameters of finished screw - 40 ... 200 mm;
- The thickness of the workpiece screw - 2 ... 16 mm;
- The force generated by the hydraulic cylinder - 5 ... 20 tons;
- Rated pressure of hydraulic cylinder - 20 MPa;
- Piston diameter - 125 mm;
- Rod diameter - 70 mm;
- Piston stroke - 240 mm;
- Machine dimensions: Length - 1857 mm; Width - 750 mm; Height - 1247 mm.

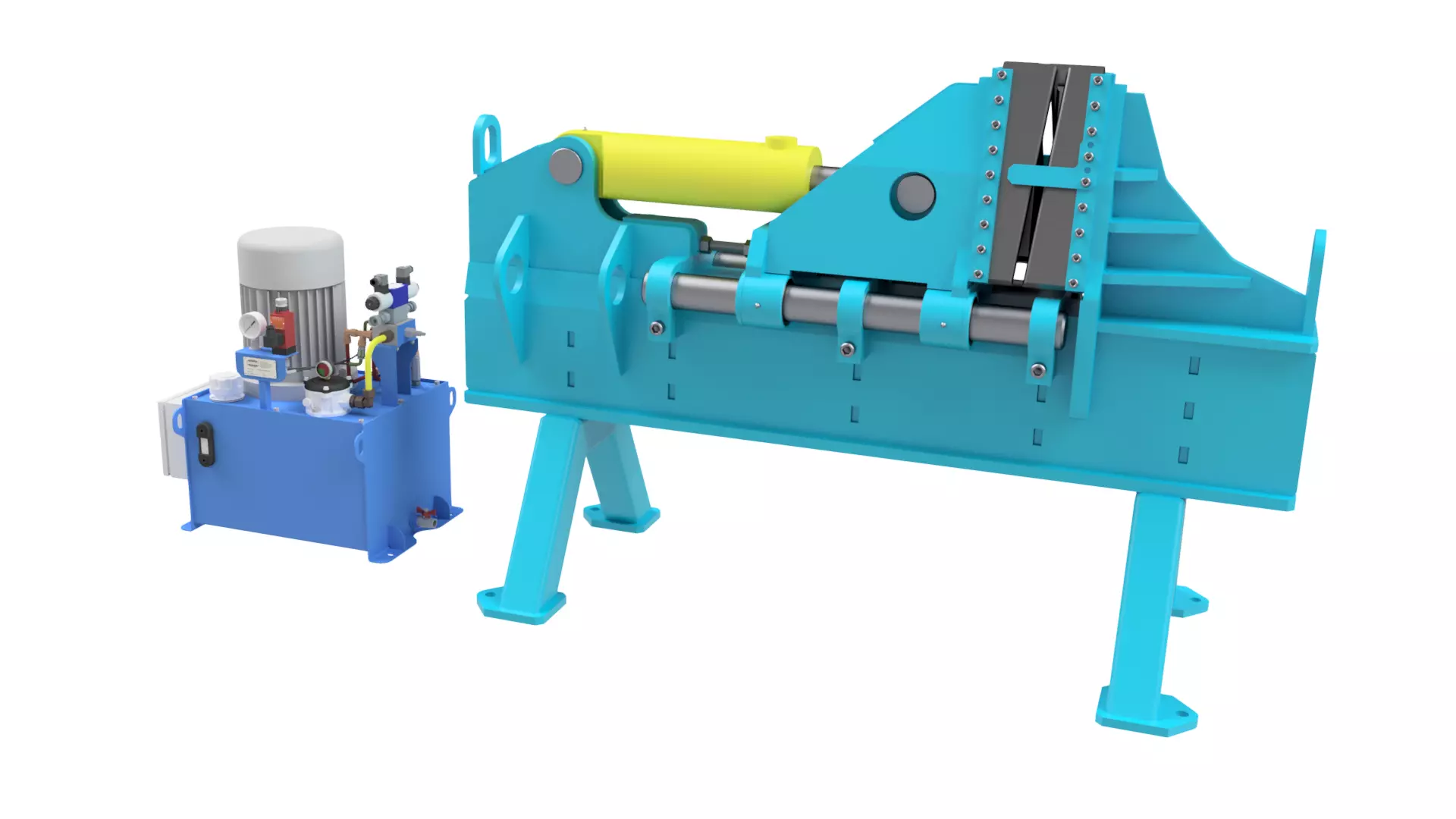

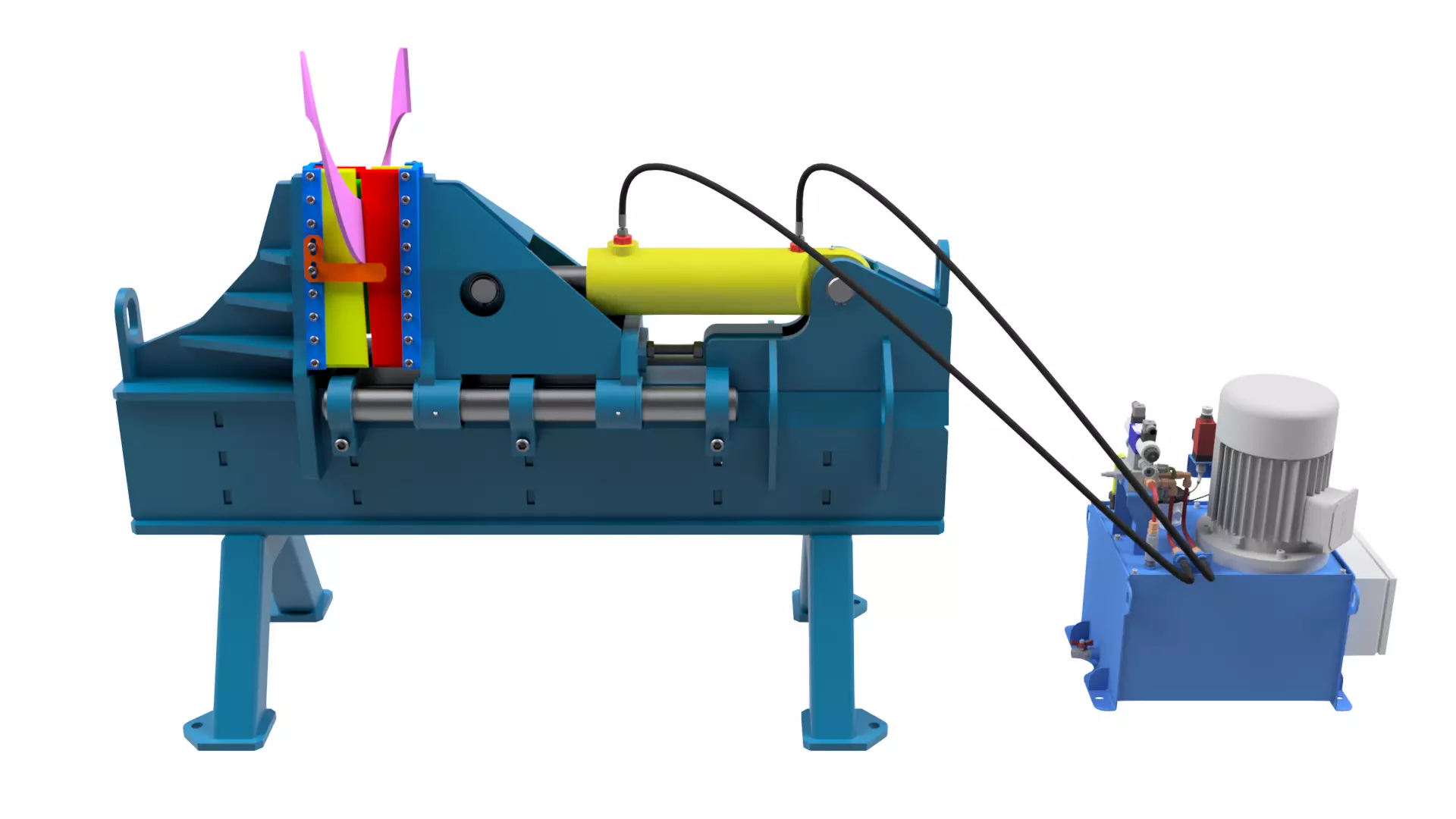

Auger flight forming machine
Royalty Free License
Auger flight forming machine
Royalty Free License
3D Model formats
Format limitations
- 3D ACIS (.sat)51.3 MB
- IGES (.ige, .igs, .iges)44.5 MB
- STEP (.stp) (2 files)49.3 MB
- JPG (.jpg) (5 files)88.5 MB
- PDF (.pdf) (60 files)1.04 GB
- AutoCAD (.dwg) (60 files)1.04 GBVersion: 2010Version: 2010
- Autodesk 3ds Max 2018 (.max)364 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2023-11-23
- Model ID#4922775
