ASME B16-5 WELDING NECK FLANGES COLLECTION ALL PRESSURE CLASSES 3D model

Description

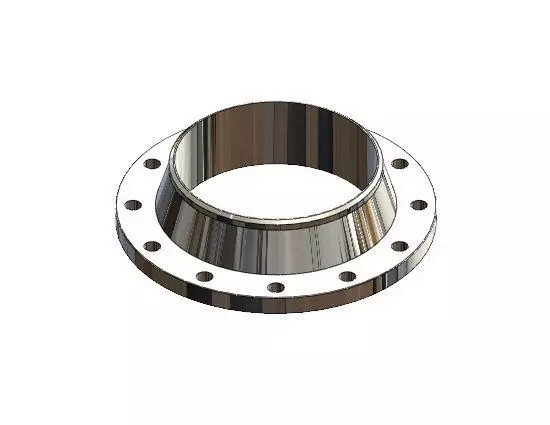

ASME B16-5 WELDING NECK FLANGES COLLECTION (ALL PRESSURE CLASSES)

  • Modeled in SolidWorks 2023
  • From 1/2to 24
  • Near 300 configuration for each part (pressure class) to cover all pipe schedules

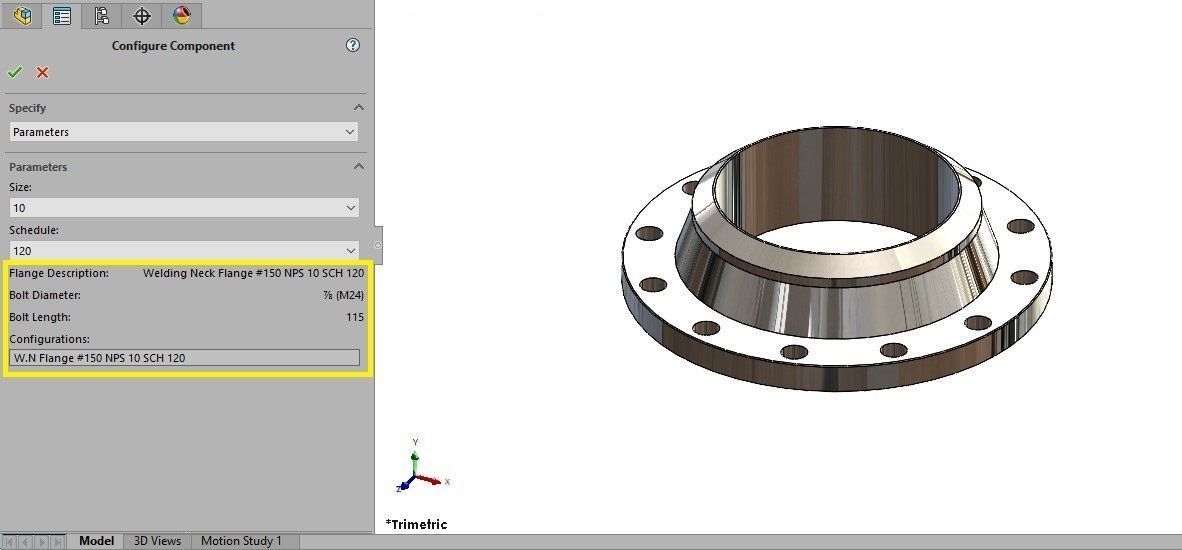

  • Easily select and filter your desired size in assembly with built in SolidWorks Configuration Publisher
  • Include bolting information for each flange configuration

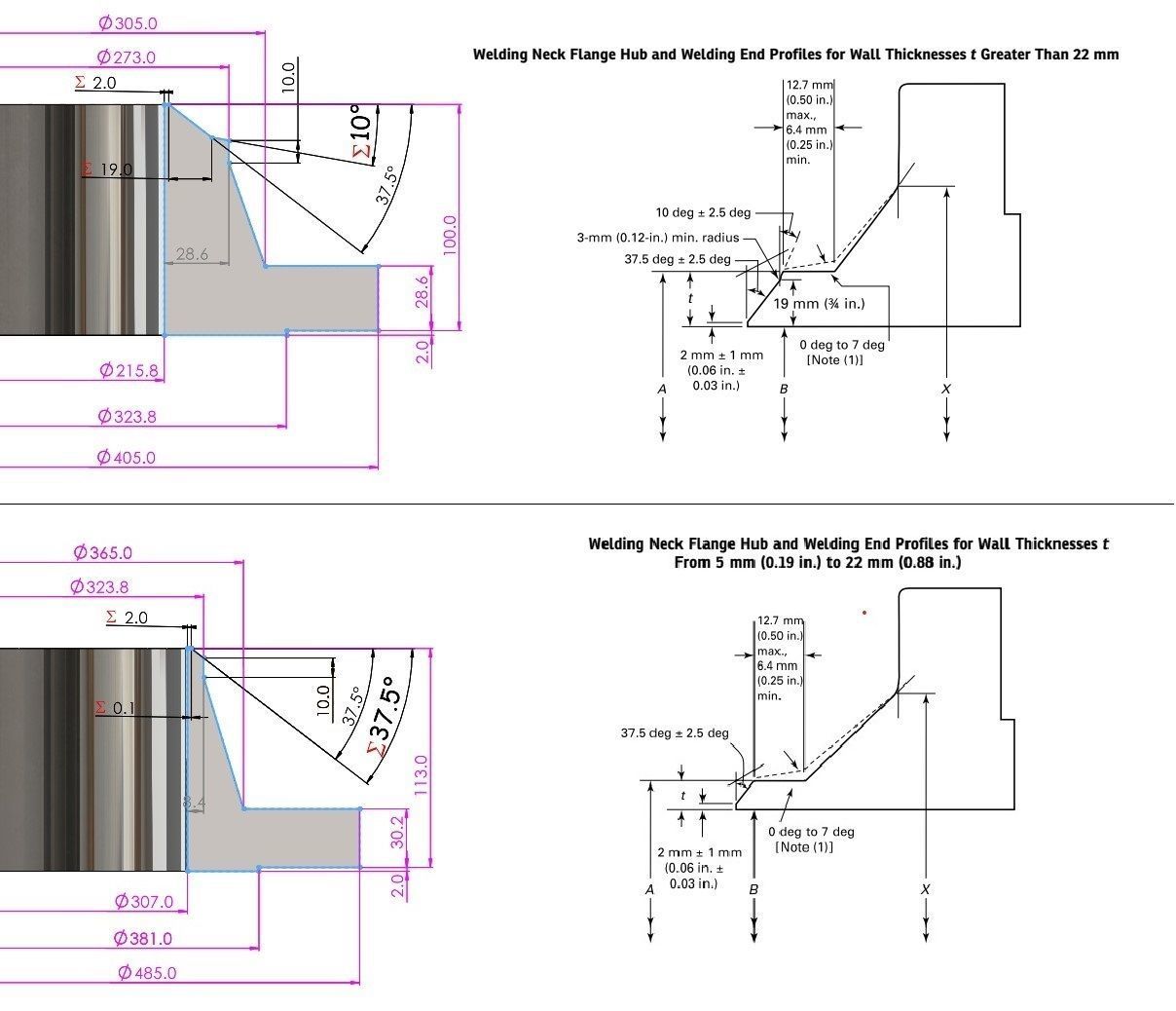

  • Designed with proper welding profile for various pipe thicknesses in accordance with ASME B16.5
