ASME B16-5 WELDING NECK FLANGE CLASS 300
ASME B16-5 WELDING NECK FLANGE CLASS 300 3D model
  • ASME B16-5 WELDING NECK FLANGE CLASS 300 3D model_0
  • ASME B16-5 WELDING NECK FLANGE CLASS 300 3D model_1
  • ASME B16-5 WELDING NECK FLANGE CLASS 300 3D model_2
1 / 3
Useto navigate. Pressescto quit

ASME B16-5 WELDING NECK FLANGE CLASS 300 3D model

Description

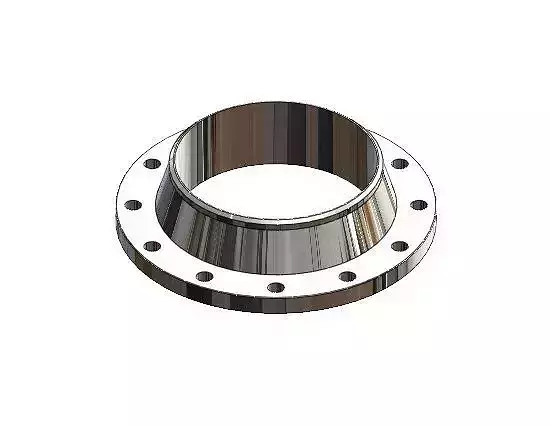

ASME B16-5 WELDING NECK FLANGE CLASS 300

  • Modeled in SolidWorks 2023
  • From 1/2to 24
  • Near 300 configuration to cover all pipe schedules
  • Easily select and filter your desired size in assembly with built in SolidWorks Configuration Publisher
  • Include bolting information for each flange configuration
  • Designed with proper welding profile for various pipe thicknesses in accordance with ASME B16.5
