Tesla Coil Levitation Toy - Concept.

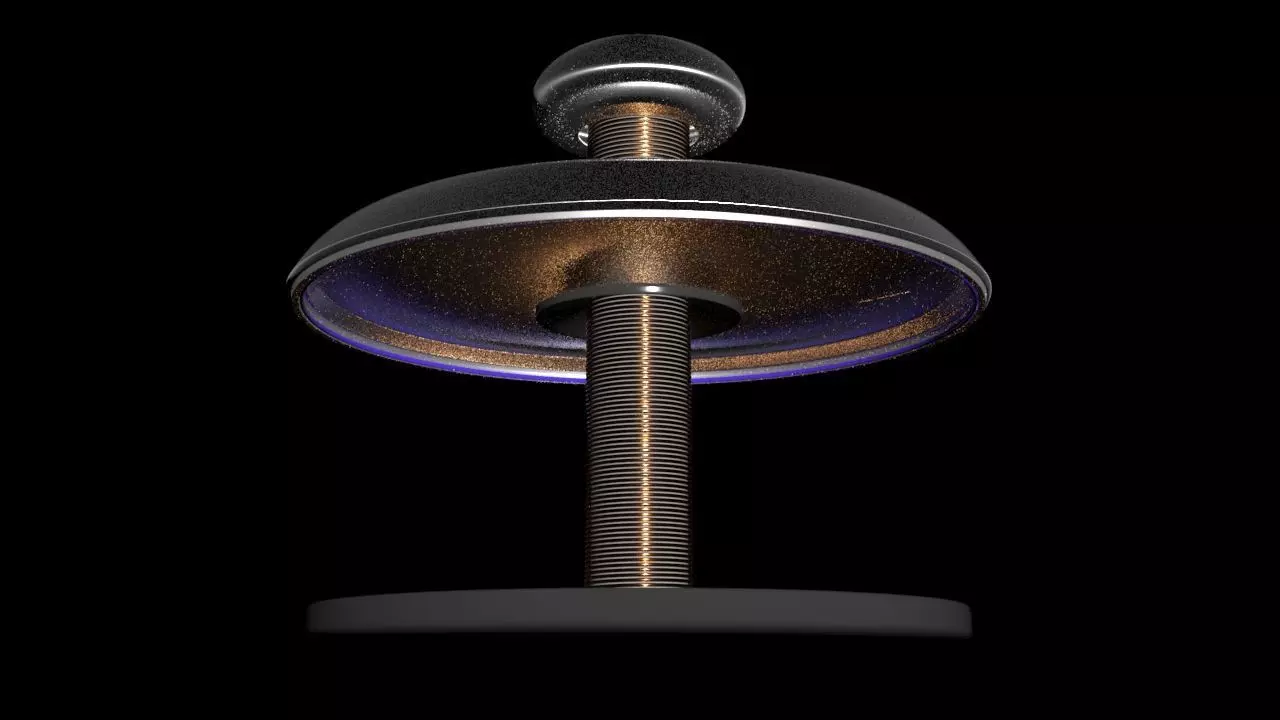

here we have a tesla coil, with primary and secondary coils, and a shape to hold them. a top piece made of metal, able to serve as a large surface able to hold and store positive electrical charges, until we hold a cathode close enough to close the gap and have a spark.

the cathode in the first example for the levitation toy, is a aluminum ring, build into the circular wing, or toys fuselage, then connected to the negative pole of a battery or other electrical cathode in the circuit. the fuselage or body of the toy has a electricity insulating core part, able to move up and down along the coil smoothly without charge transfers occurring.

the fuselage is covered with tinfoil or another thin lightweight way of passing or conducting ions or electricity over its surface. the built up high voltage ion wind is discharged onto the tinfoil, and will follow the wings shape downward, creating our own down wind, until it hits the aluminum cathode ring after the wind served its purpose.

in the second example we only rearranged the parts of the toy, to make it mobile, and double the ionic wind, by having two metal spheres able to hold positive charge, the bottom metal sphere also gives off ion wind, along the bottom part of the wing, which ahs a sharp down turn, to push the wind down again, before entering the aluminum cathode, the negative part of the circuit.

the wind is pulled along the craft, from top in to central but lower height out, and thus downwards. creating a self sustainable ion wind, pulling it along the hull in a cycle, holding up the crafts body in air. here we have the central tesla coil and pancake secondary, a well as the negative cathode and batteries, spread out according to their mass, all built into the fuselage, making the apparatus mobile.

Thank you for reading, have a nice day, thank you for your support.

please leave me a like :)
