Laser Diode

Laser Diode 3D model

Description

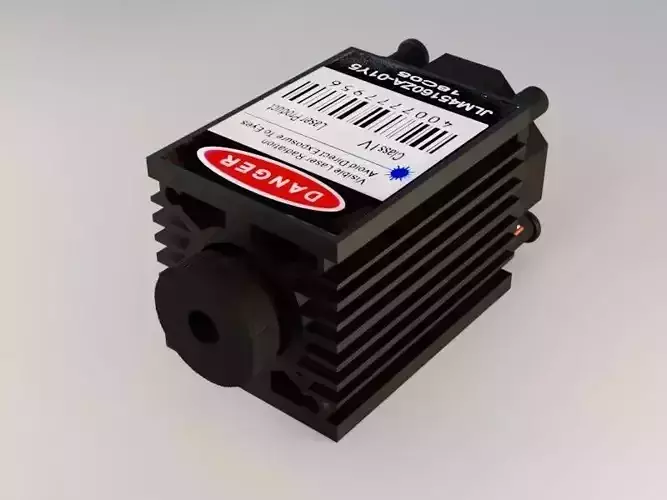

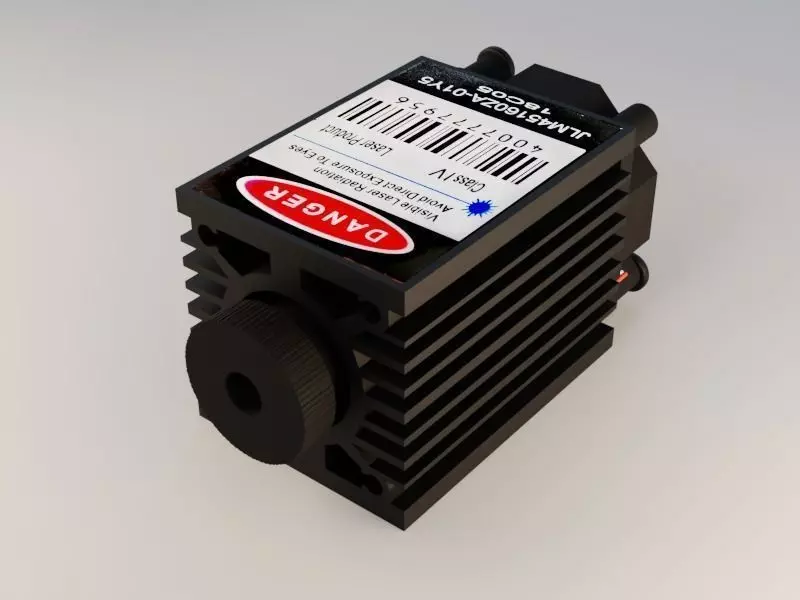

A 12V, 2.5W laser diode drawn to scale in Solidworks 2017 and converted to Blender 2.79, STL and OBJ.

The textures are available on the Soldiworks assembly and the Blender model. Collada, 3DS, FBX, STL and OBJ files are only good for geometry. The image for the label is included.

Item rating
0 0
Laser Diode
$2.00

Royalty Free License
Laser Diode
$2.00

Royalty Free License
Response 80% in 0.4h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • SolidWorks (.sldprt, .sldasm, .slddrw)16.2 MB
  • Stereolithography (.stl)2 MB
  • Blender 2.79 (.blend)2.62 MBVersion: 2.79Renderer: Cycles
  • OBJ (.obj, .mtl) (2 files)2.48 MB
  • Collada (.dae)2.9 MB
  • 3D Studio (.3ds)657 KB
  • Autodesk FBX (.fbx)1.34 MB

3D Model details

  • Publish date2018-12-14
  • Model ID#1848581
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 26,506
  • Vertices 20,964
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
