Bifacial solar panels - Static 3D model

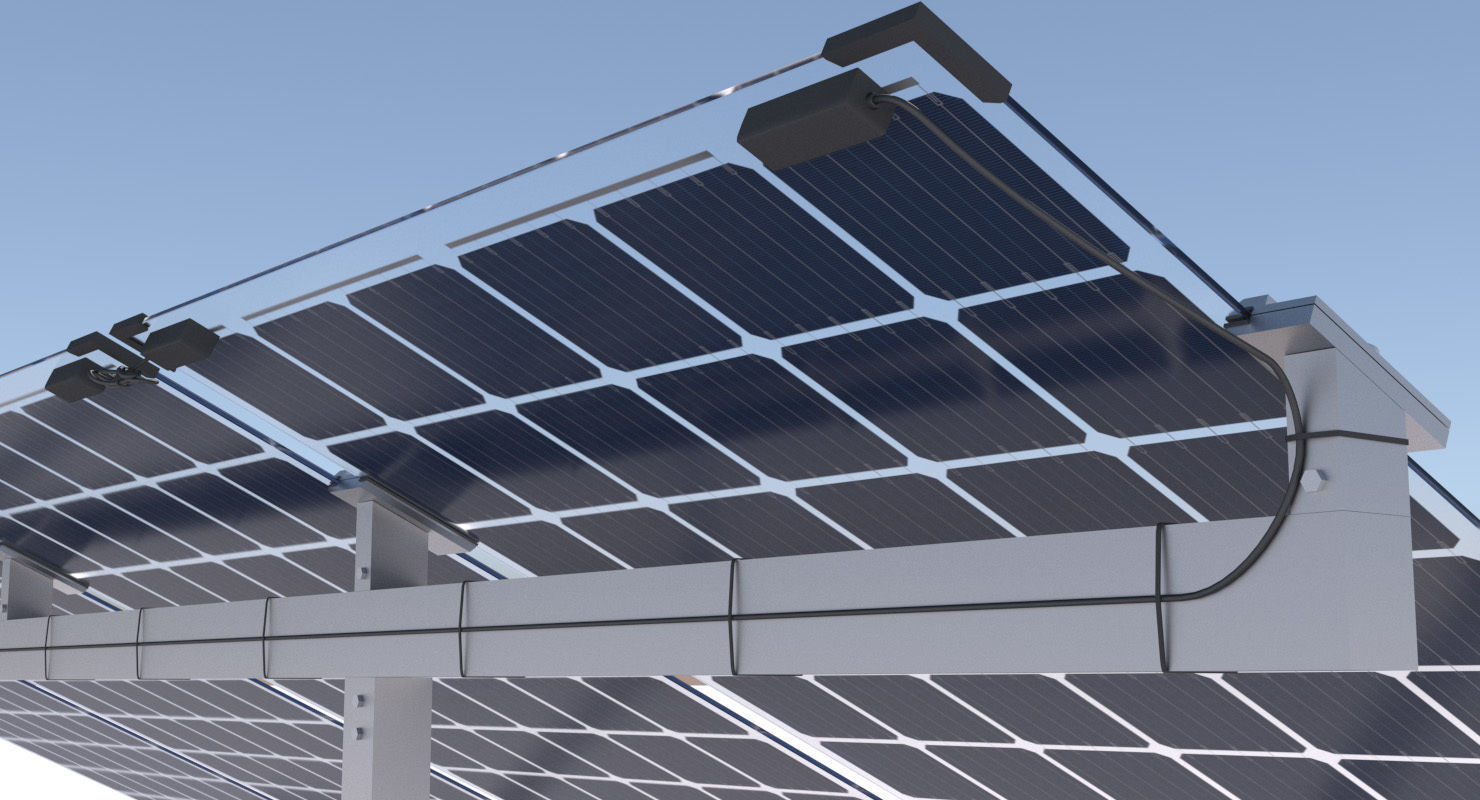

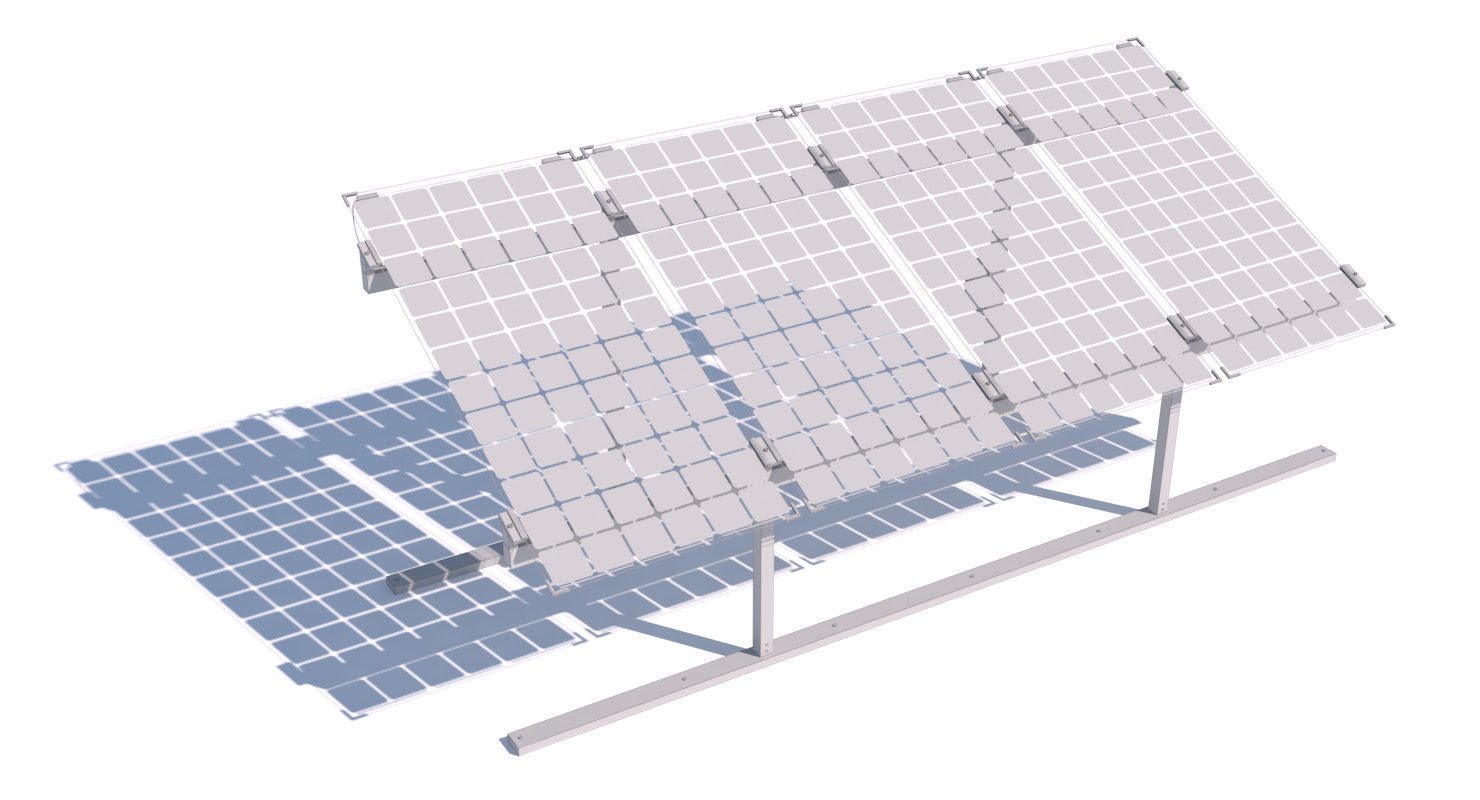

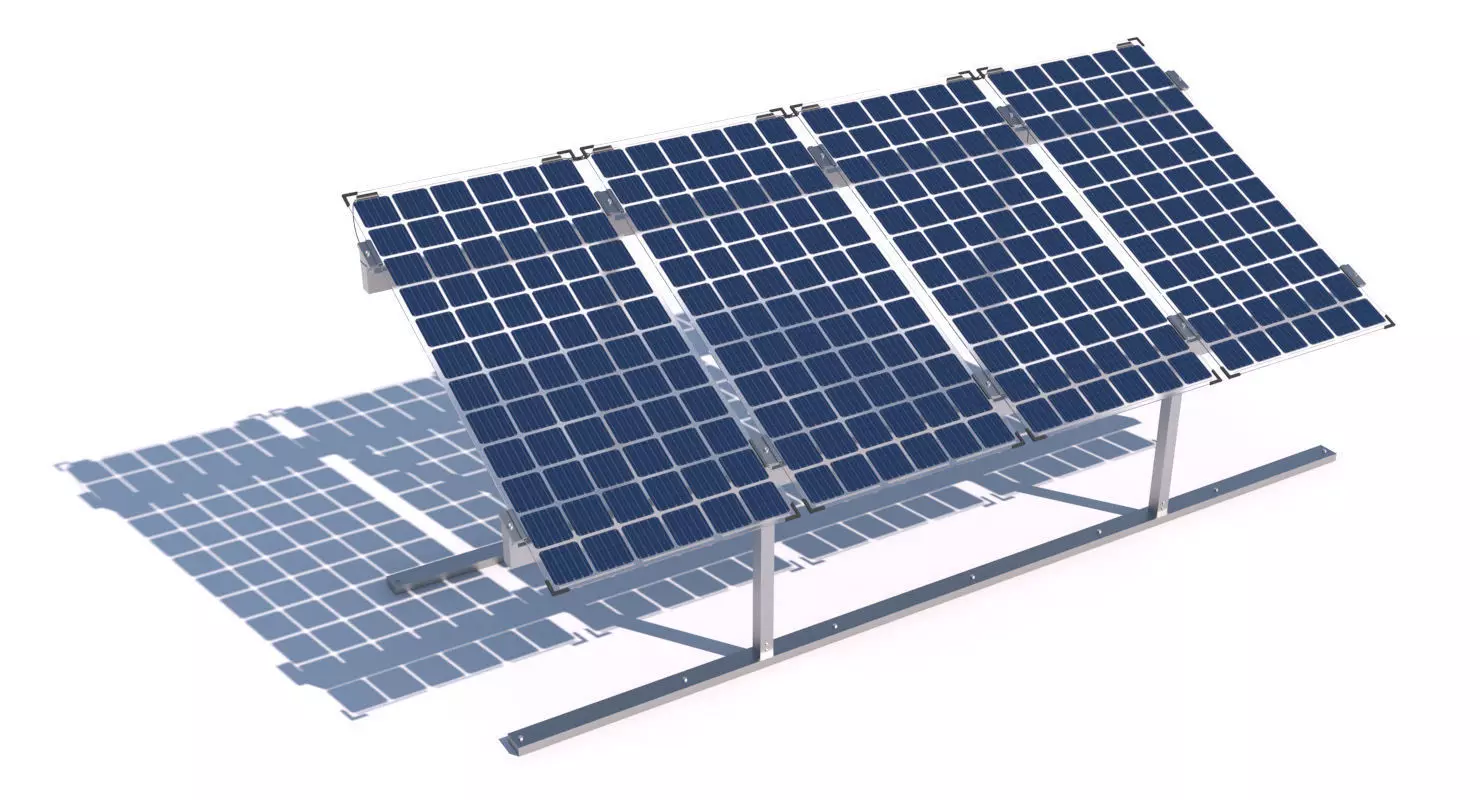

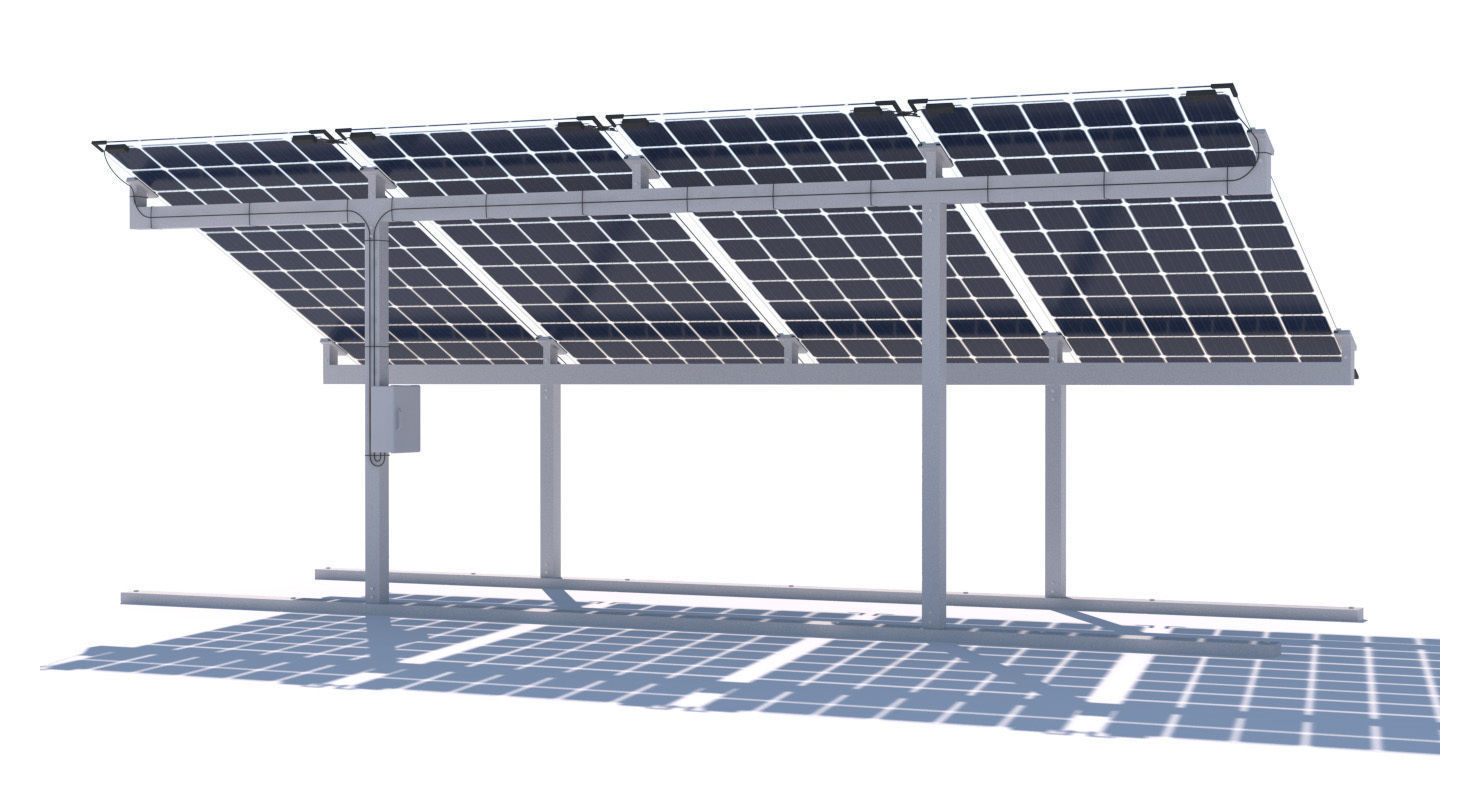

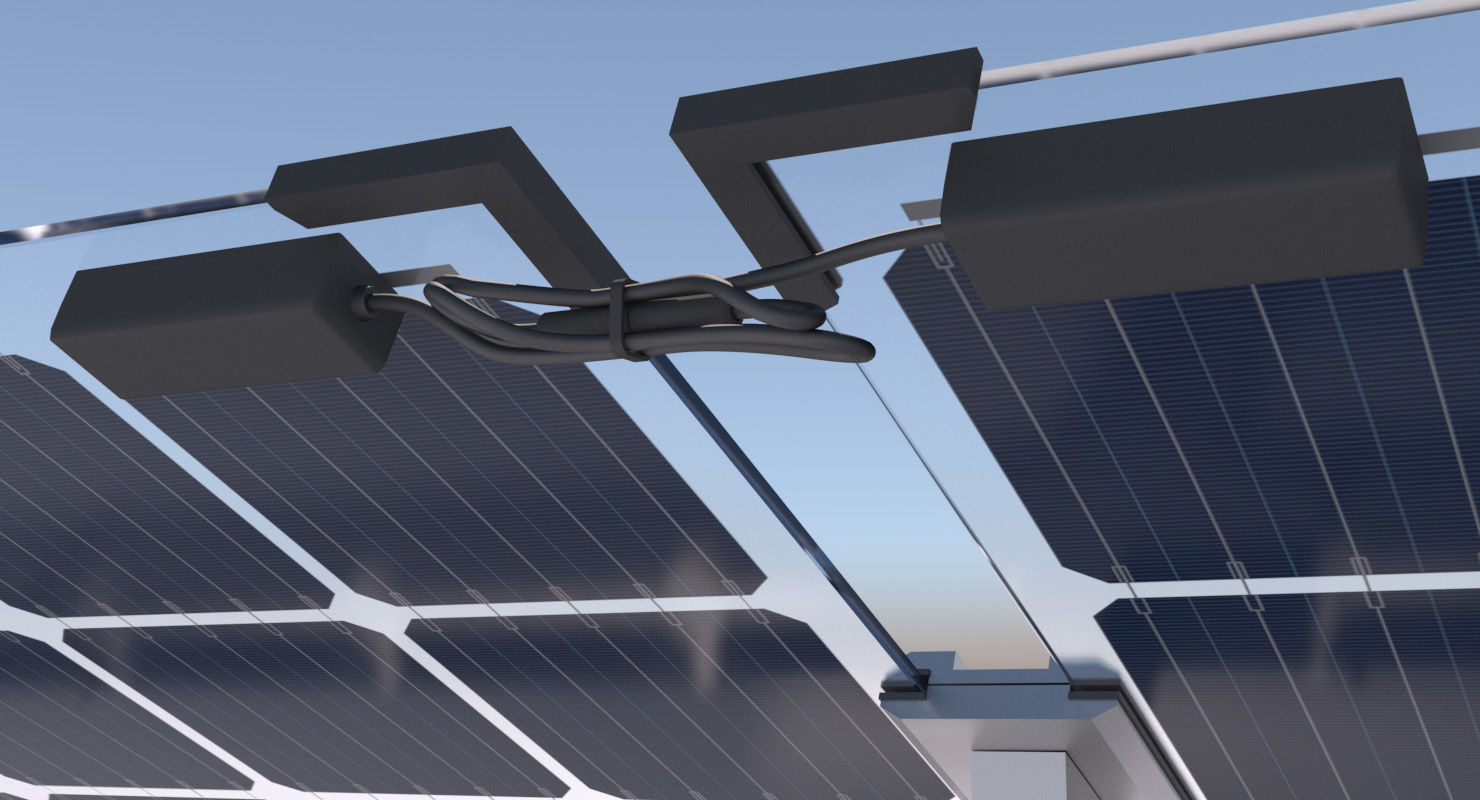

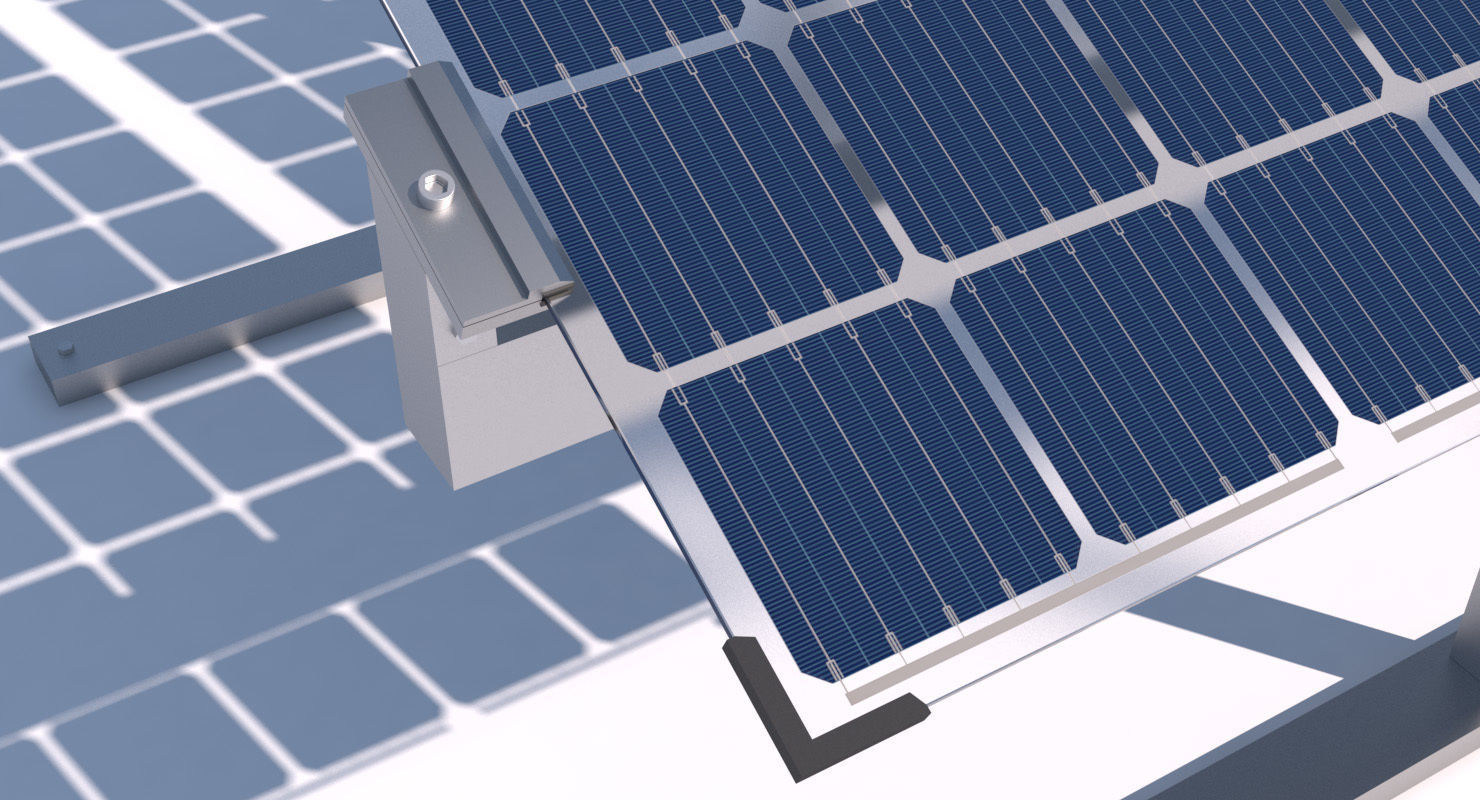

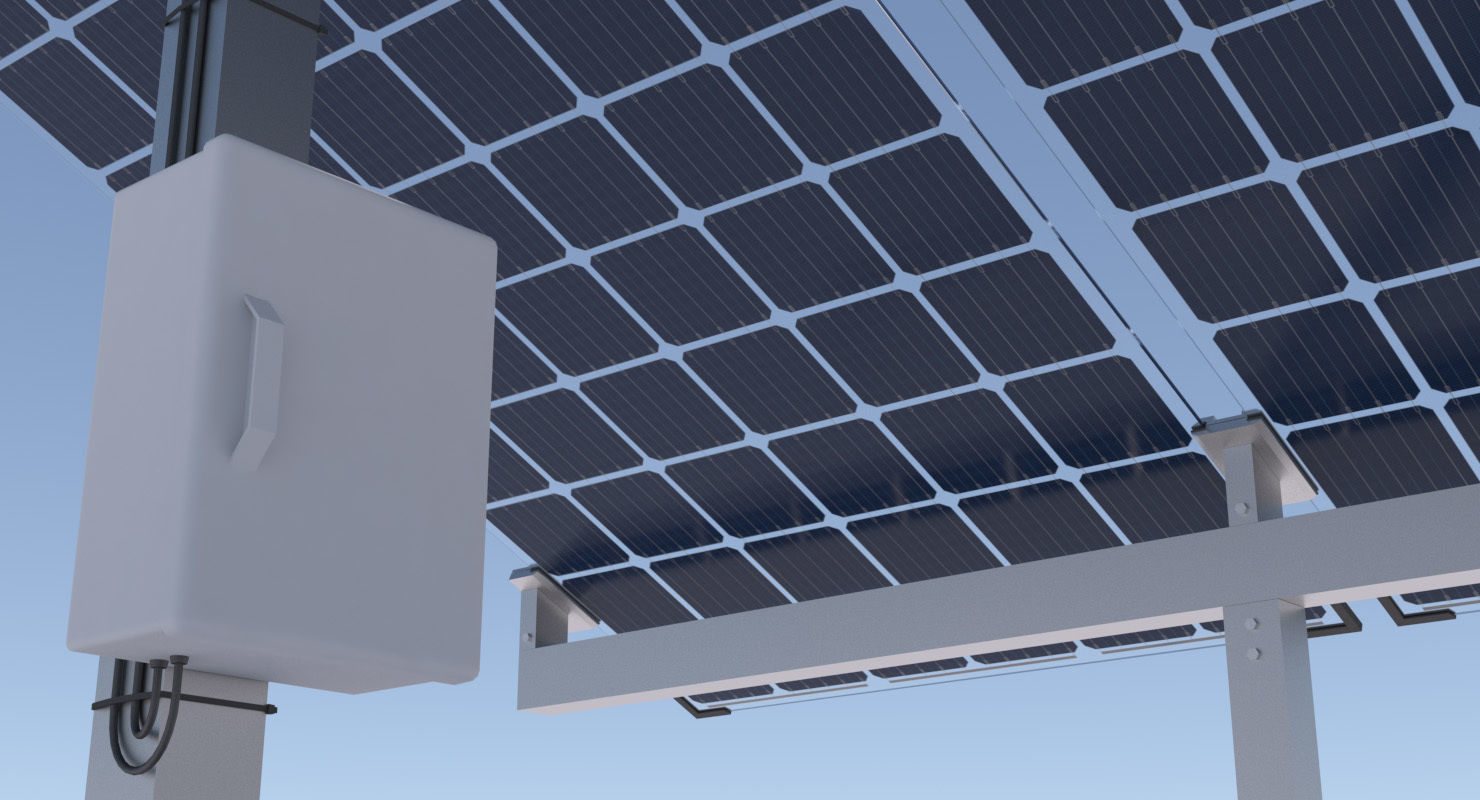

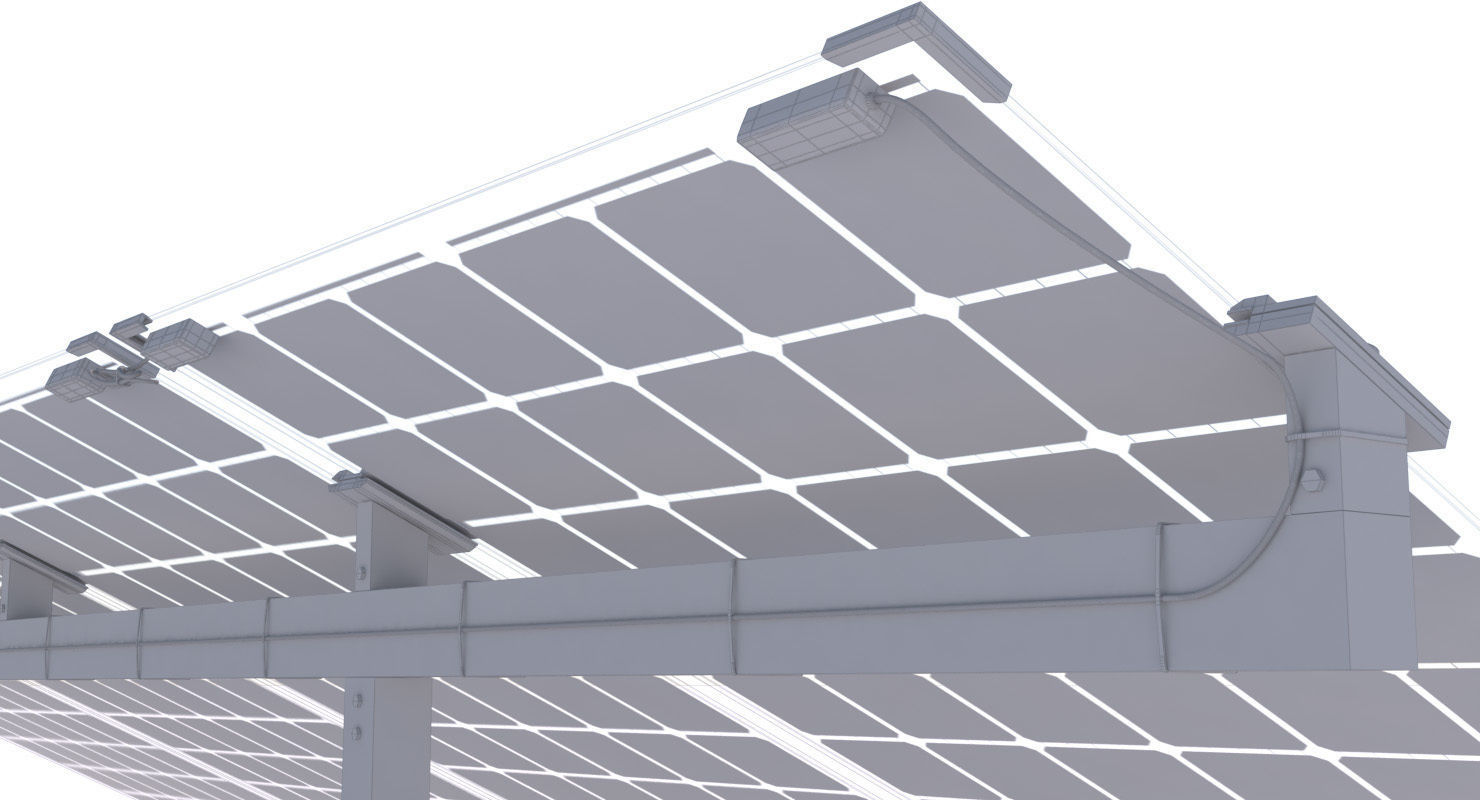

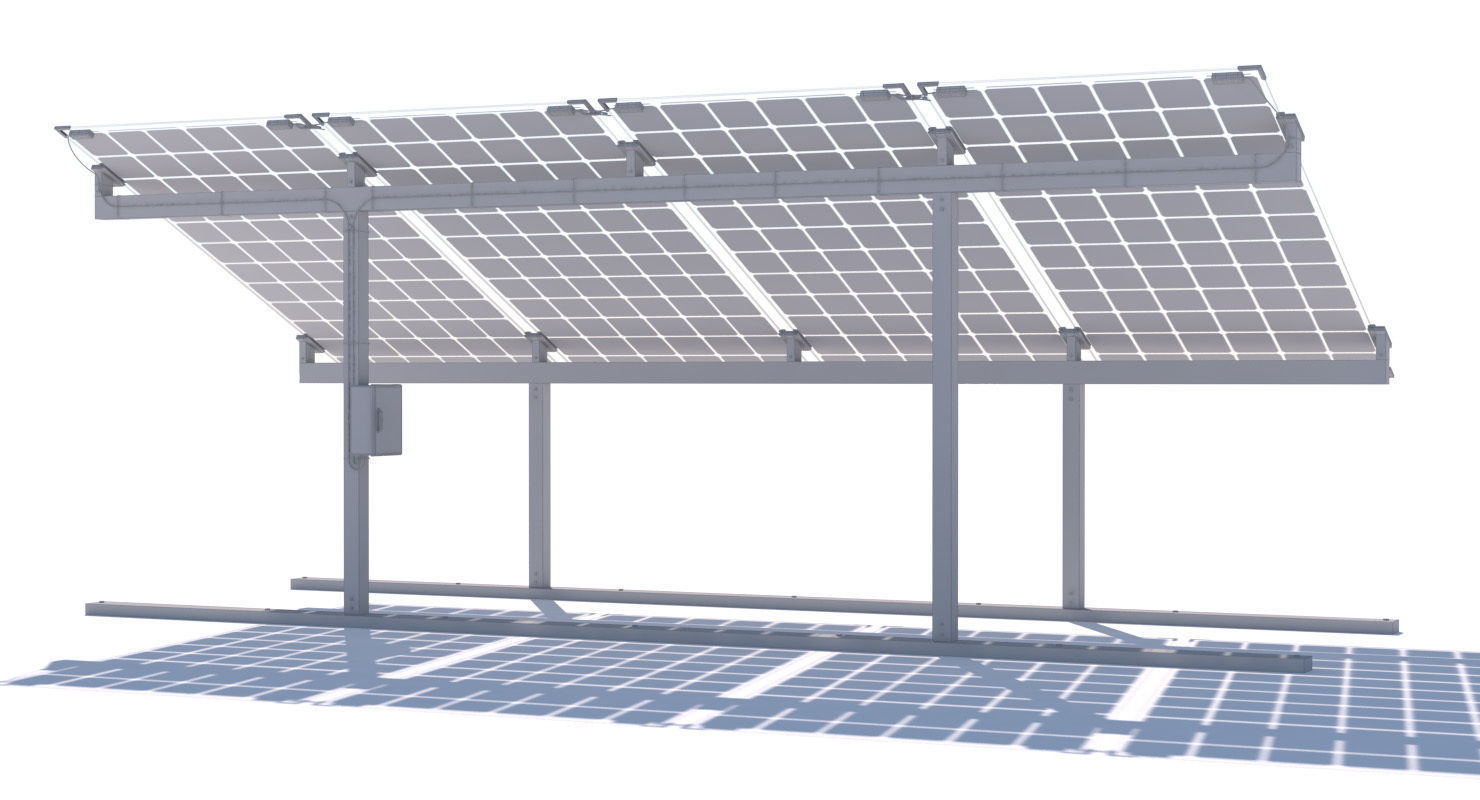

This 3D model represent a group of four monocrystalline bifacial solar panels with 72 cells each one. The group of four panels produce about 1,400W with a voltage of 45V.

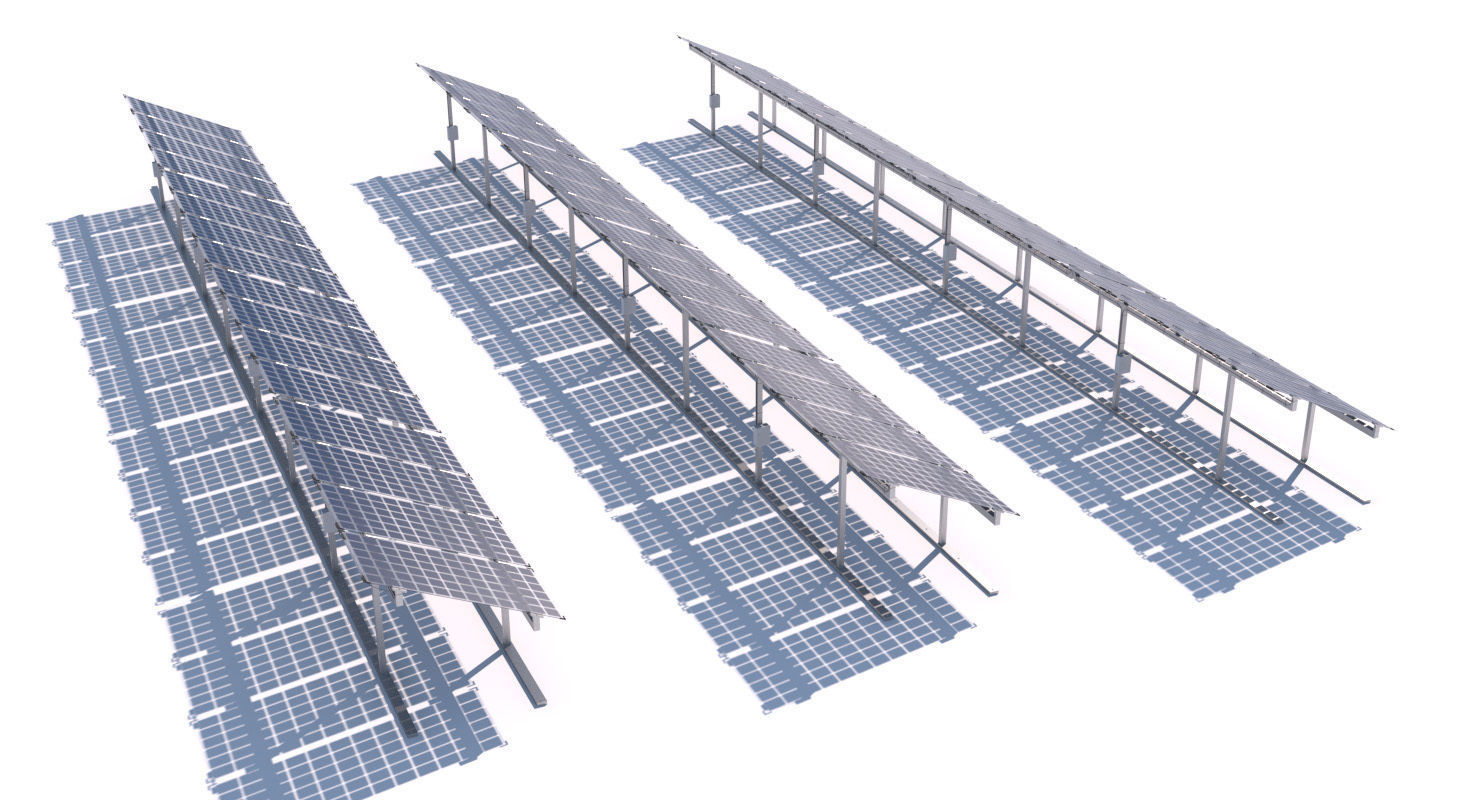

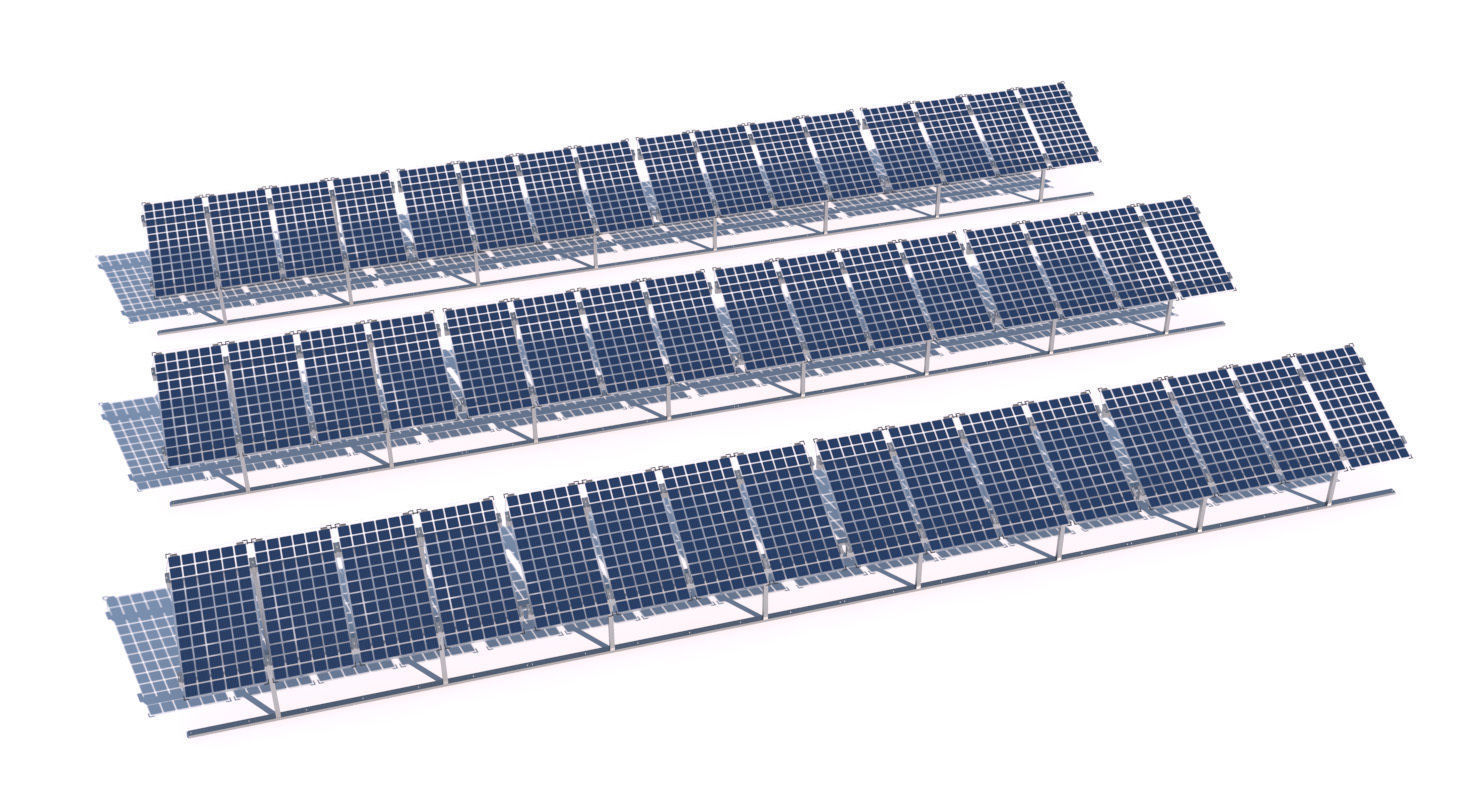

The length is 429 centimeters and can be replicated in rows composing larger instalations.

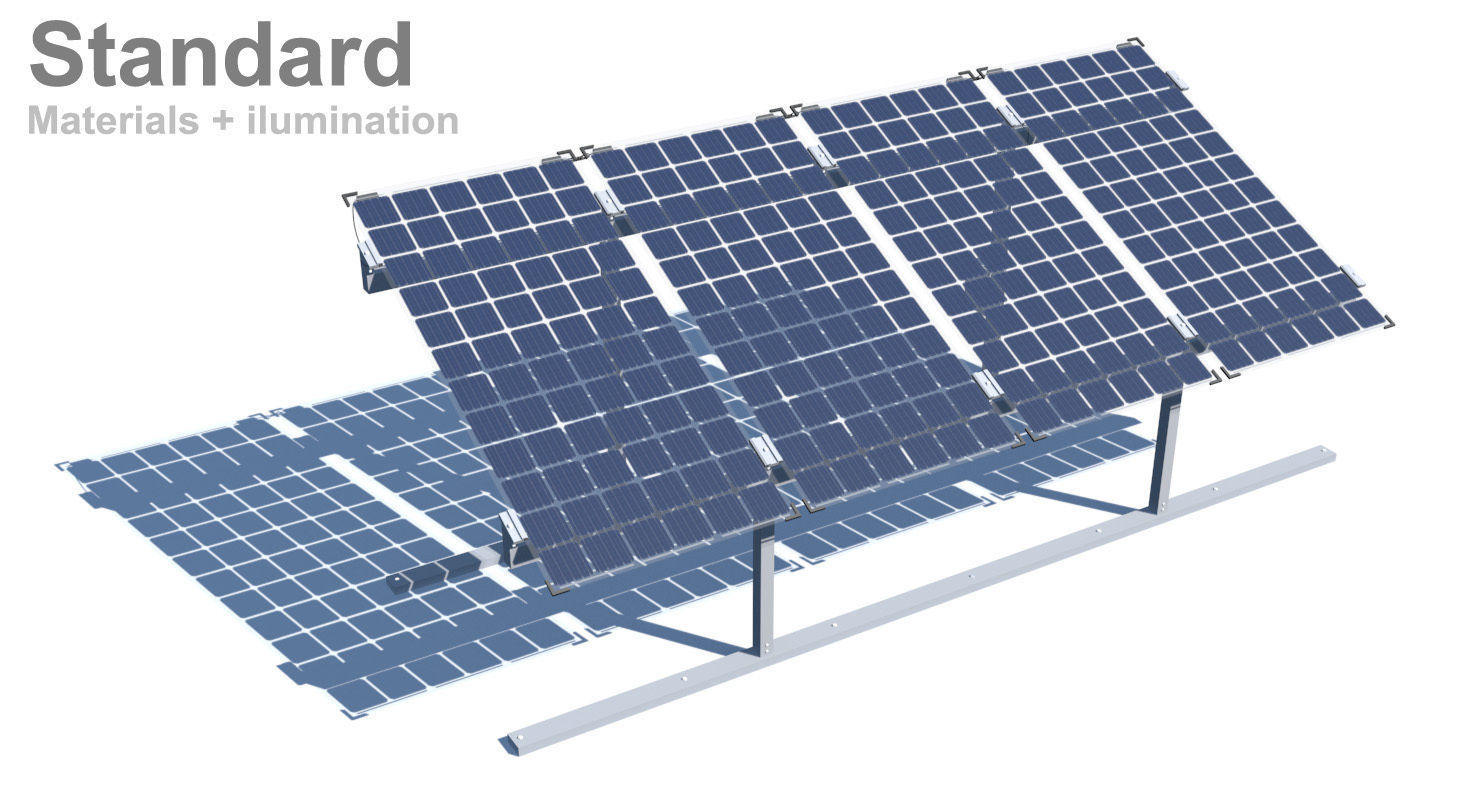

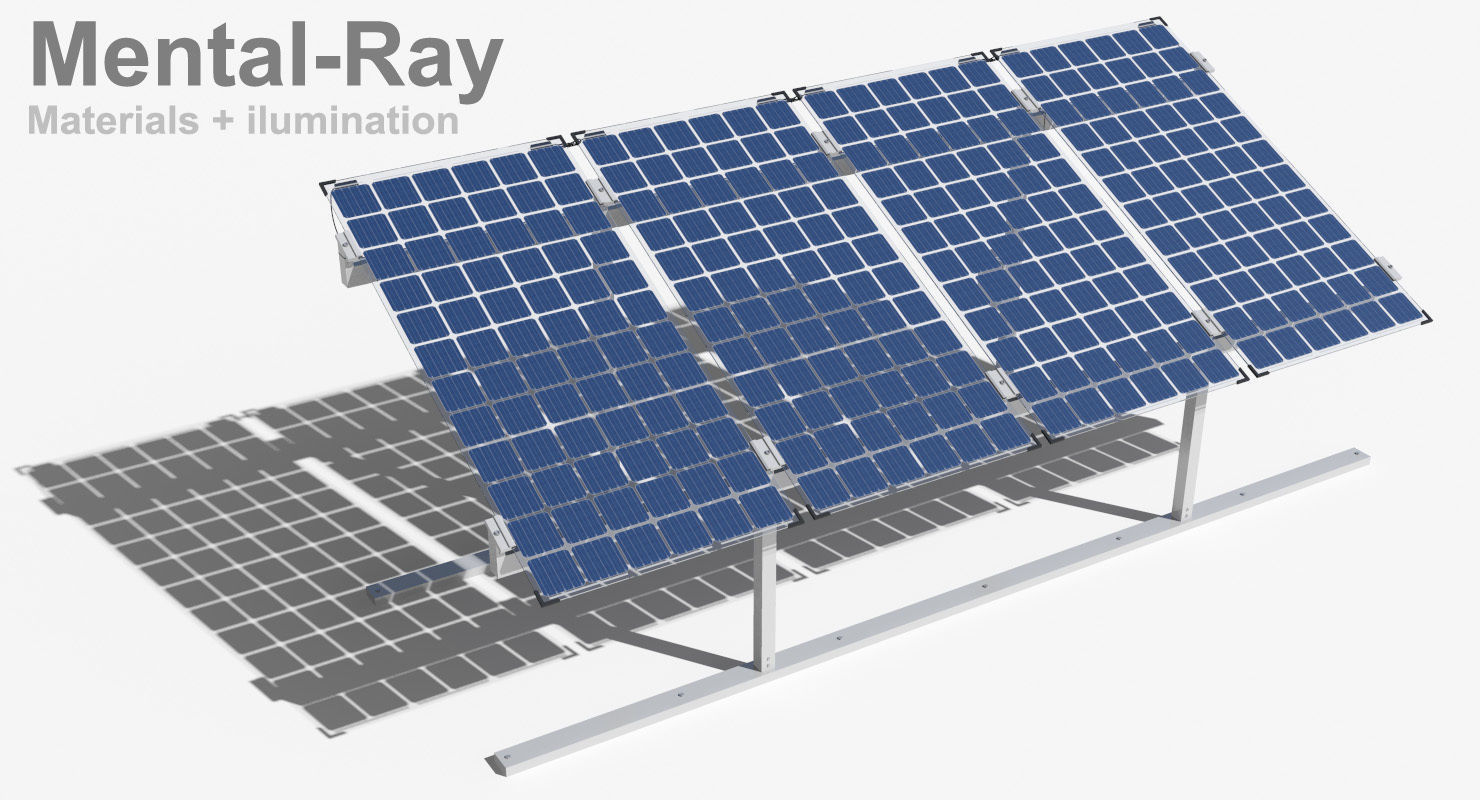

Three versions included in MAX format: 2016 with Mental Ray 3.8, 2016 with V-Ray 3.40 and standard materials and ilumination.
Also 3DS, OBJ and FBX formats are included.
Cell texture resolution is 2000 x 3960 pixels. Includes diffuse, opacity and reflection PNG files.
NOTES: - Images rendered (except mentioned) with VRay light setup. Settings included in max format. - 3DS, FBX and OBJ files need some work on materials and reflections and meshes vertex weld and mesh smooth. - Instructions included in PDF help file. - This is a polygonal model and is not prepared to be imported into parametric CAD software. - This model is not optimized for 3D printing.
3D Model formats
Format limitations
- Autodesk 3ds Max (.max) (3 files)13.6 MBVersion: 2016Renderer: V-Ray 3.40Version: 2016Renderer: Mental Ray 3.8Version: 2016Renderer: Default (Scanline)
- trueSpace (.cob, .scn, .rsobj, .rsscn)1.54 MB
- PDF (.pdf) (4 files)9.86 MB
- OBJ (.obj, .mtl)1.54 MB
- 3D Studio (.3ds)1.48 MB
- Autodesk FBX 2010 (.fbx)2.32 MB
3D Model details
- Publish date2020-09-08
- Model ID#2597954
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 34,800
- Vertices 35,800
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Non-overlapping
- Plugins used
- Ready for 3D Printing
