Home Network Setup

Home Network Setup 3D model

Description

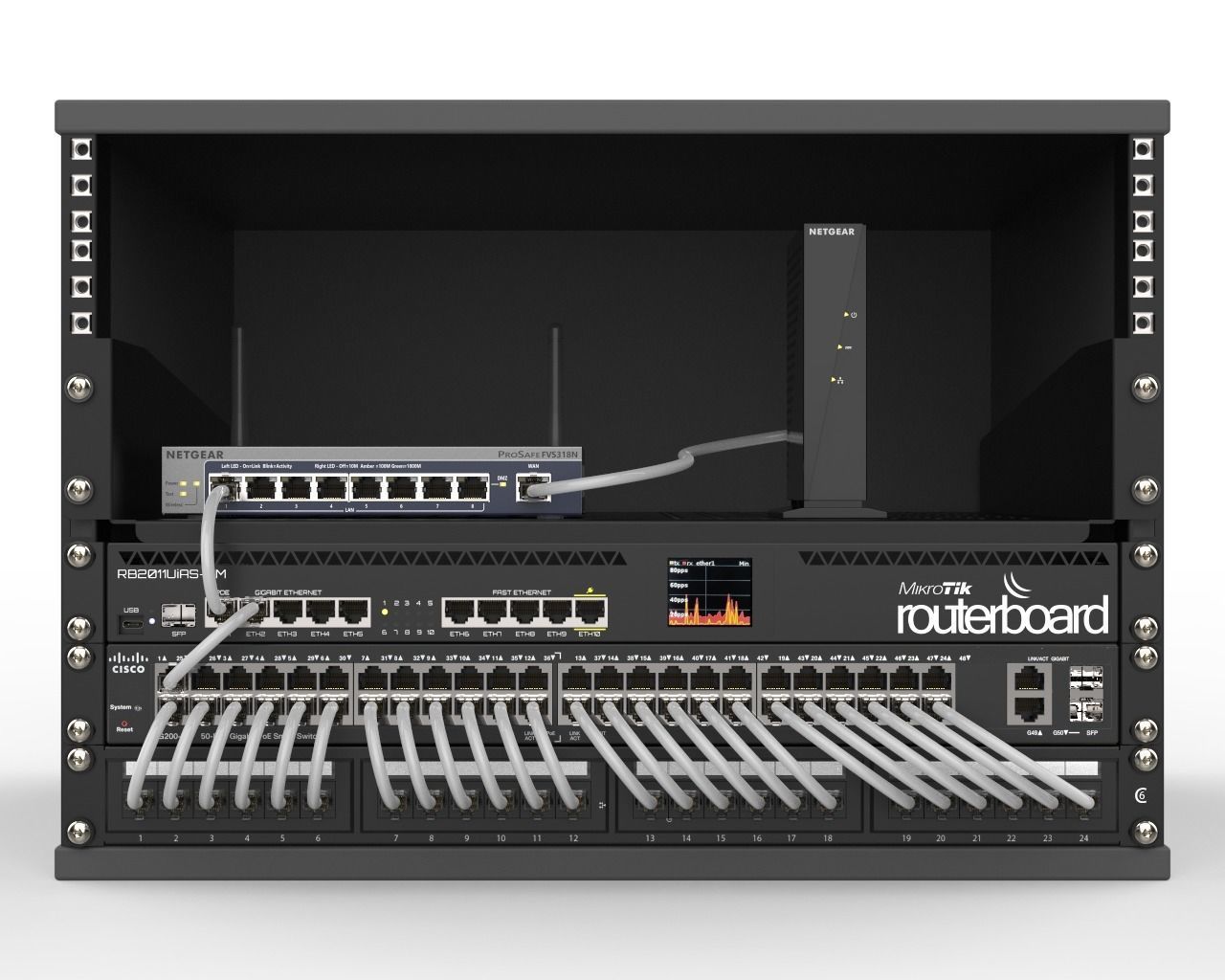

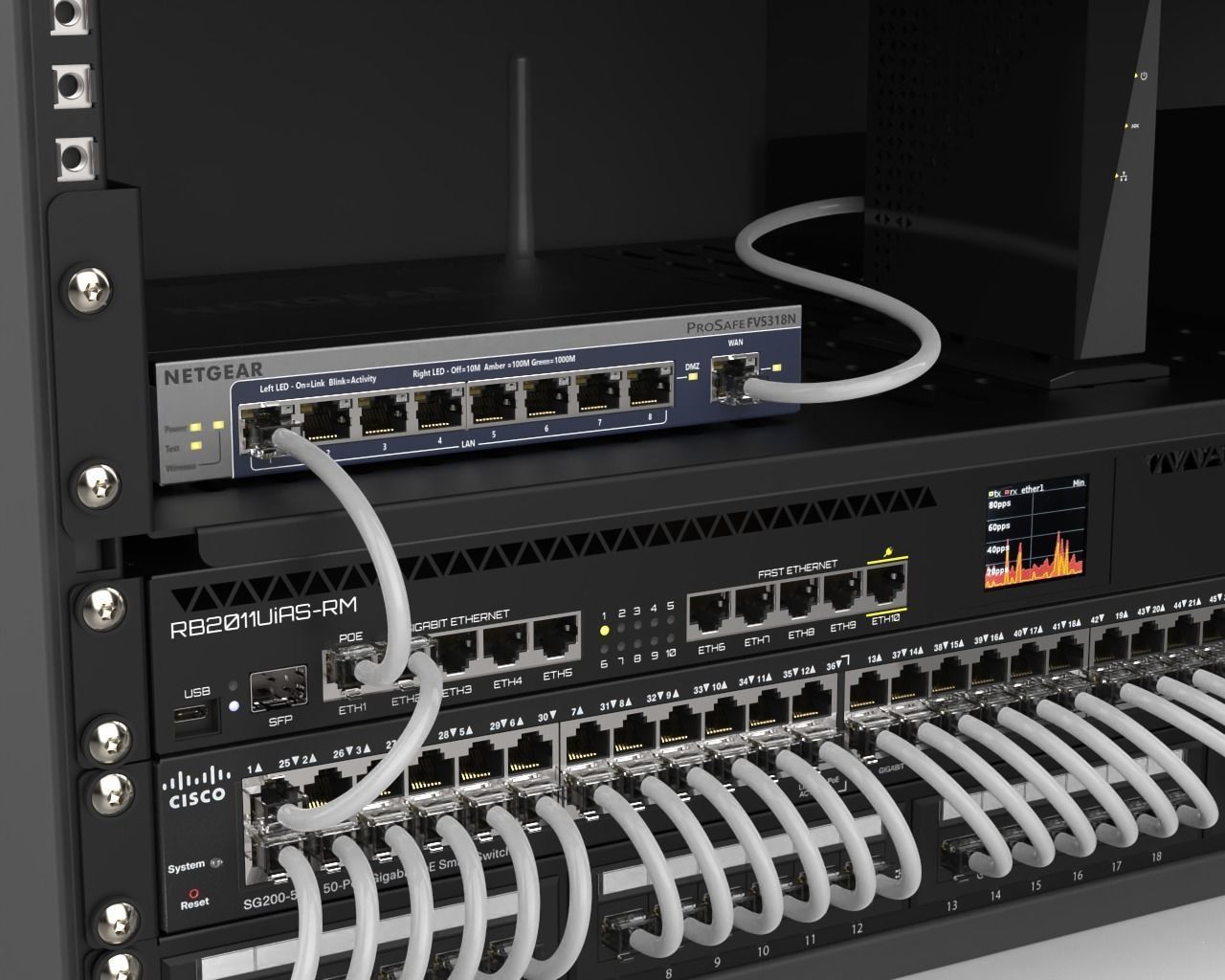

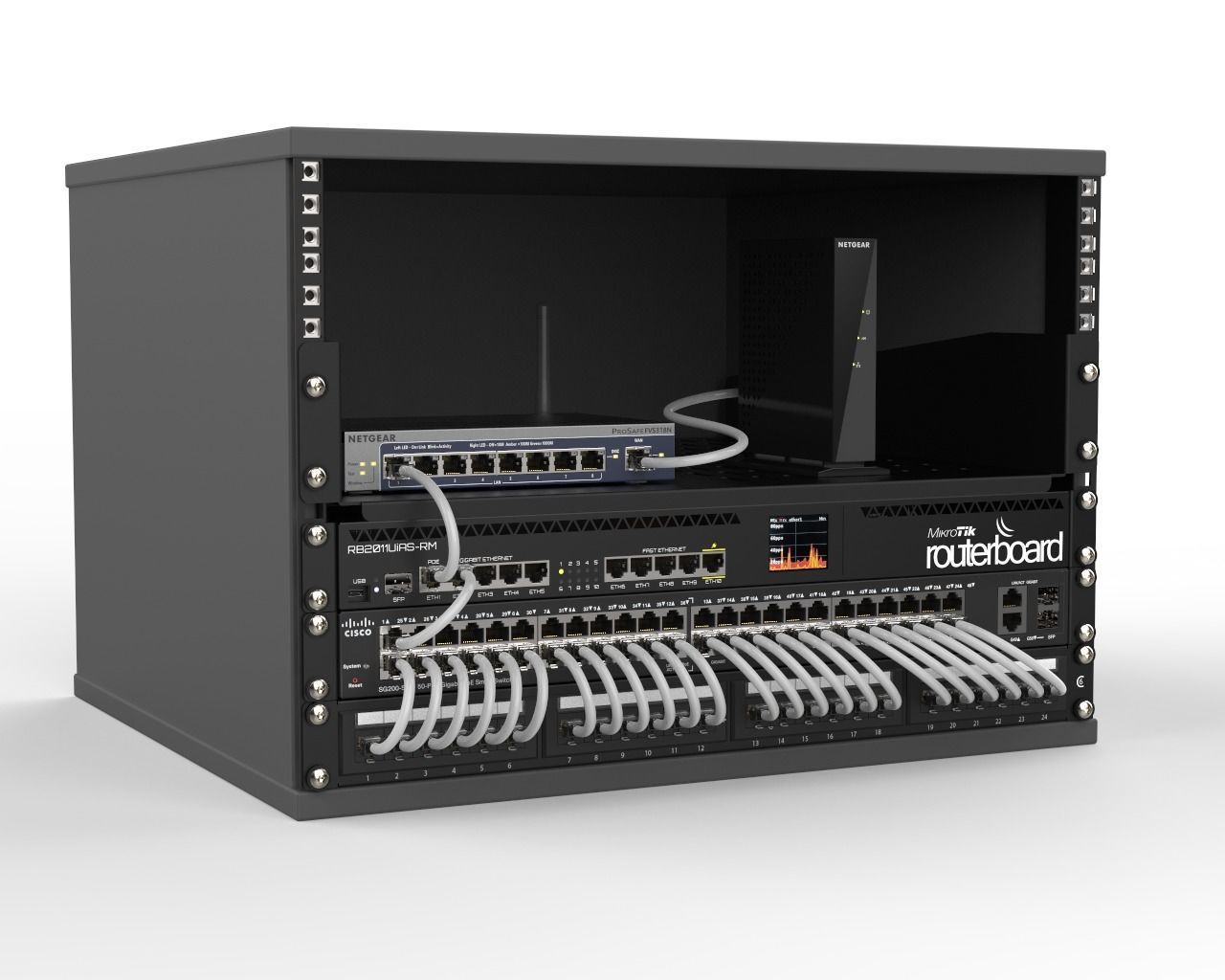

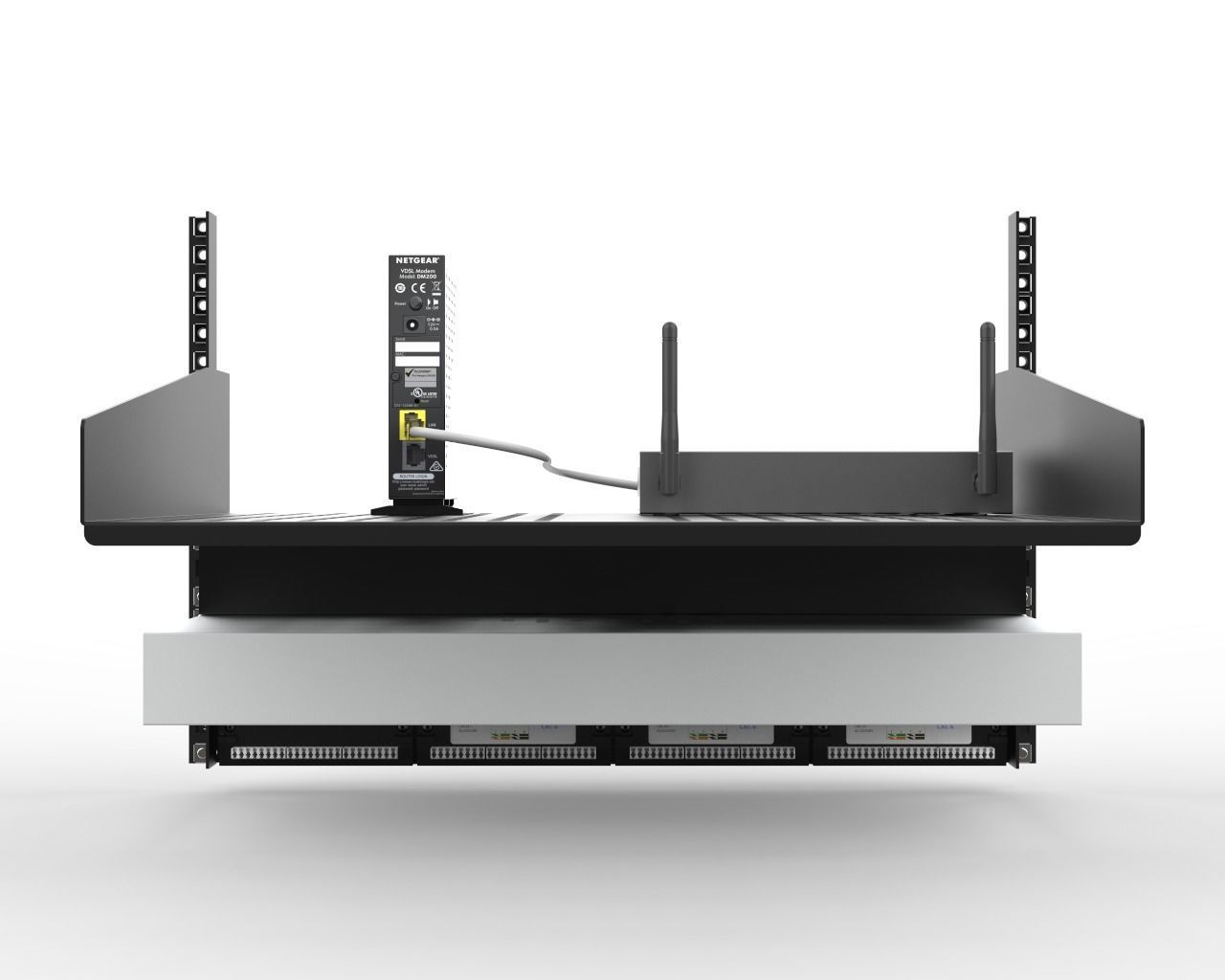

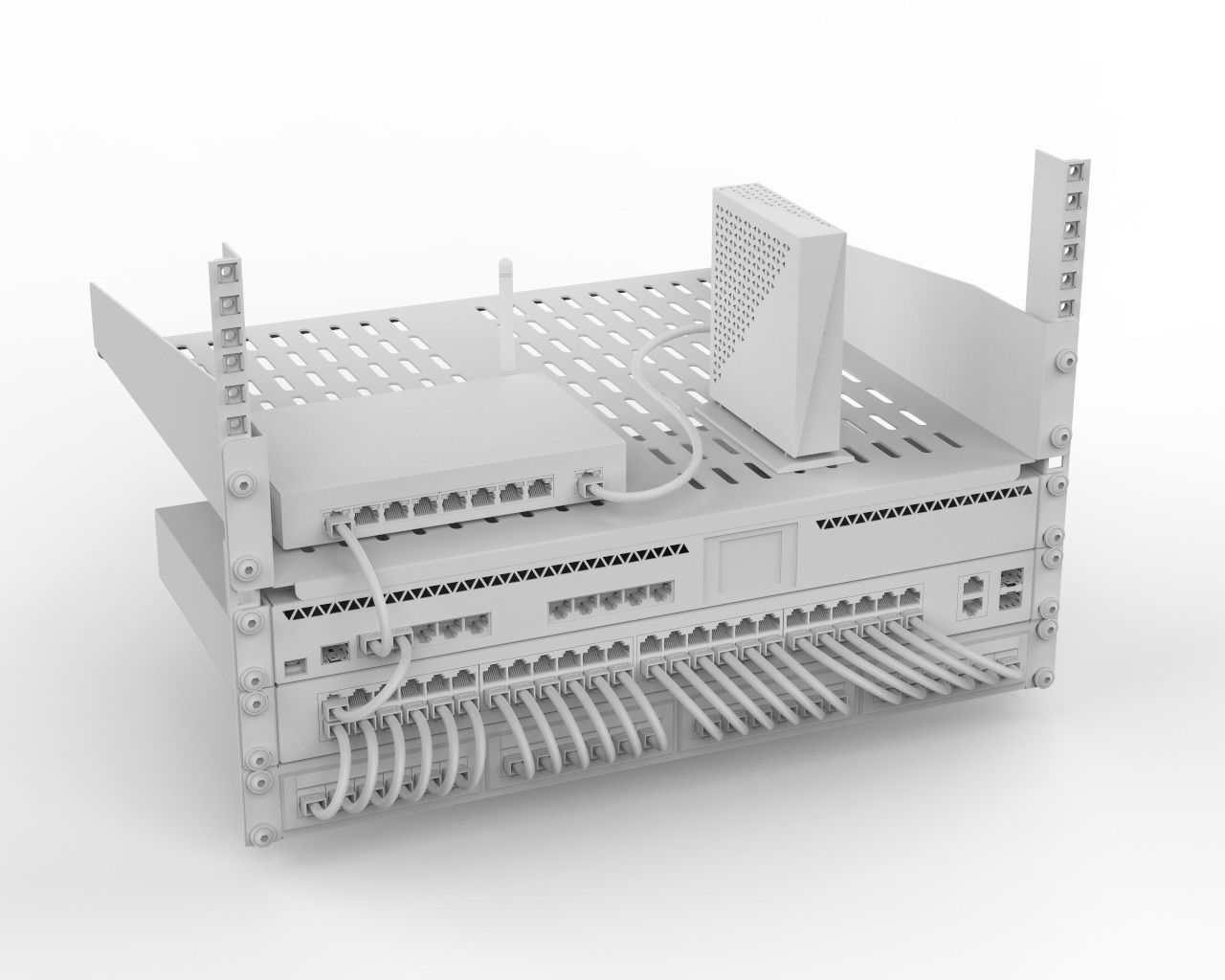

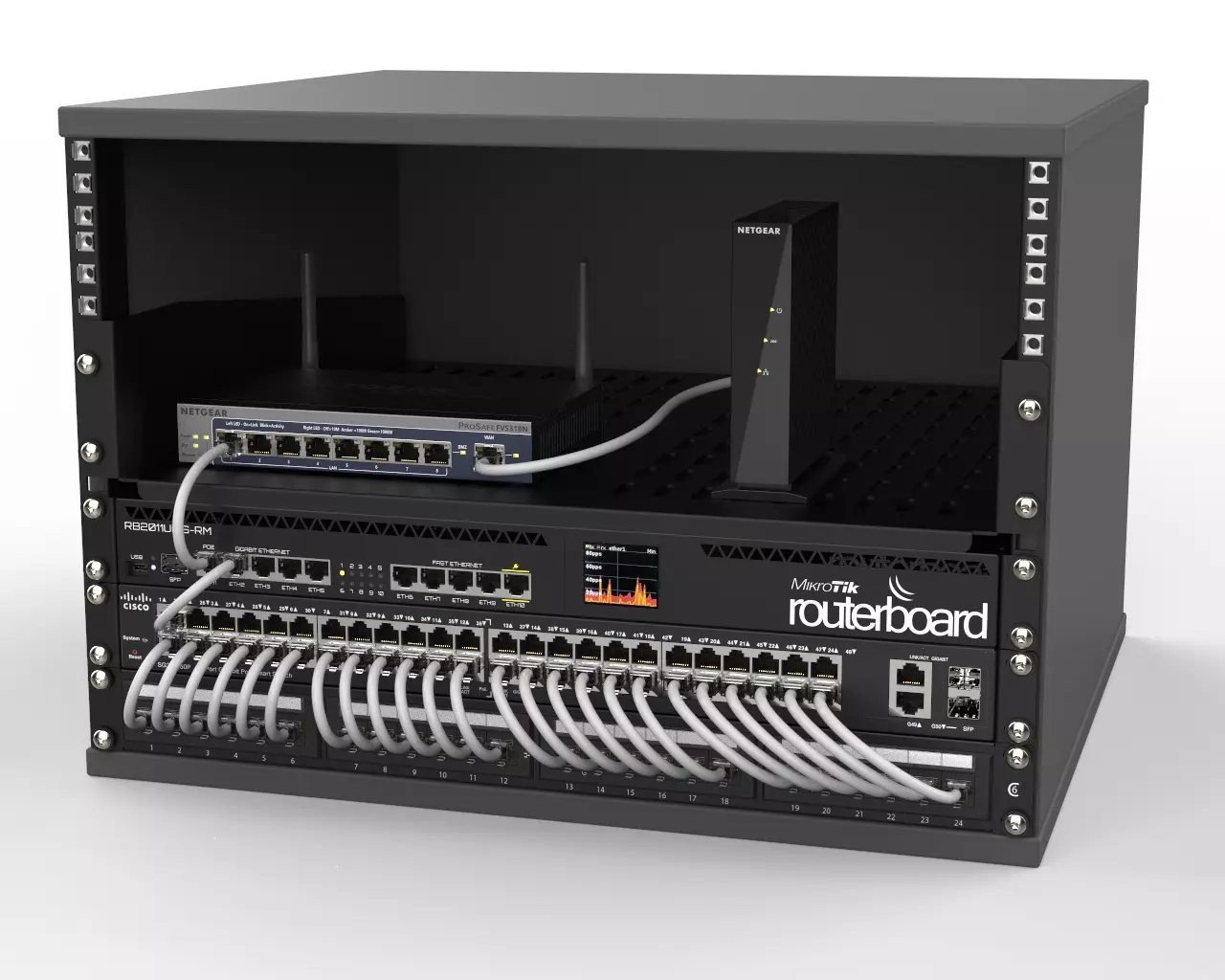

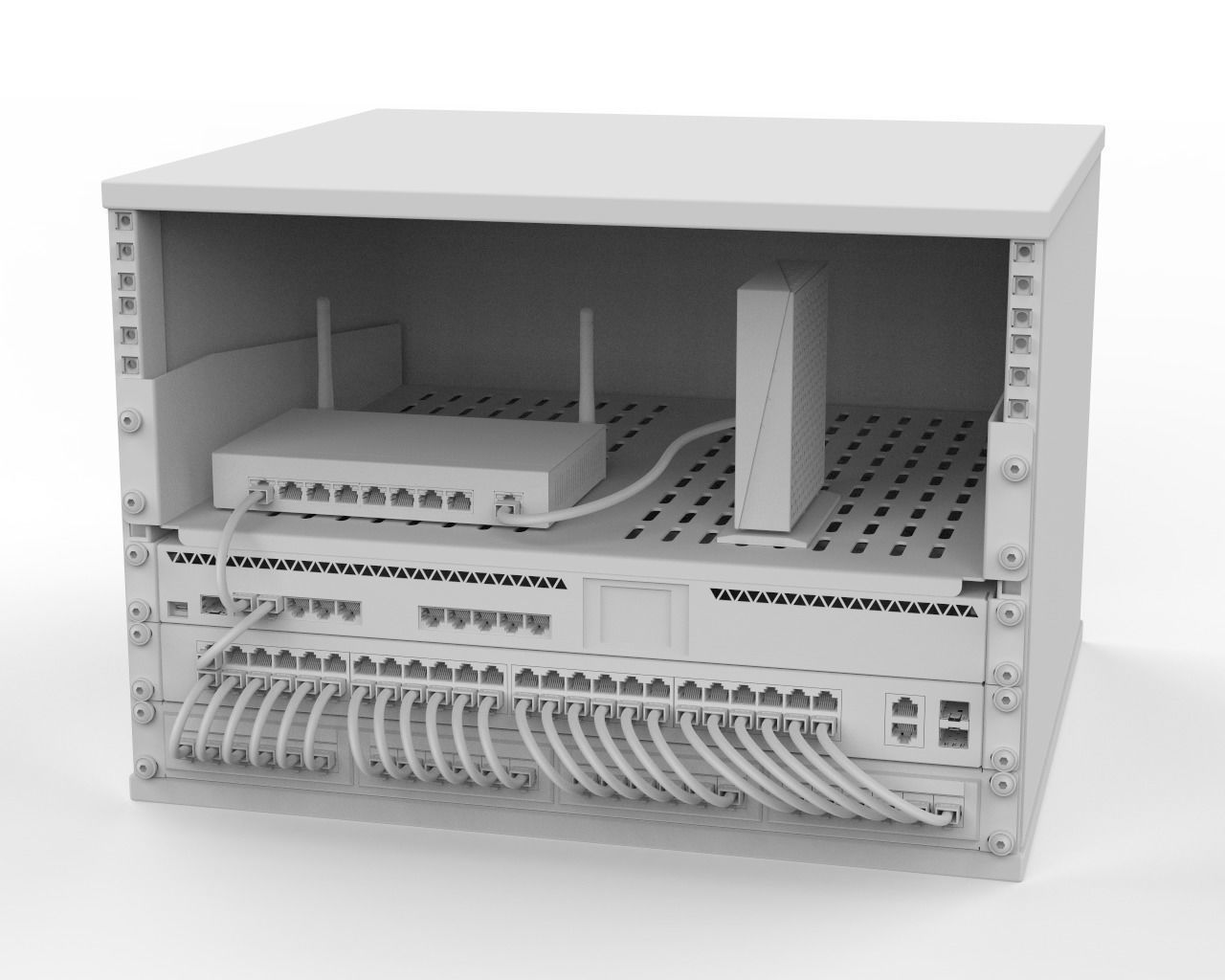

This is an assembled detailed model of a rackmount home network and internet setup, mounted inside a custom 19-inch rack cabinet. All modelled in SolidWorks and rendered in KeyShot. The textures are included in the Textures zip file, and the KeyShot scene is setup with materials and lighting. All models are available seperately on my CGTrader page.

The assembly includes:

  • Netgear DM200 modem
  • Netgear FVS318N wireless router
  • Mikrotik RB2011UIAS-RM router
  • Cisco SG200-50 48-port switch
  • Cat6 24-port patch panel
  • RJ45 connectors and custom patch cables
  • 19-inch rack rails with M6 cage nuts
  • 2U rackmount shelf
Item rating
0 0
Home Network Setup
$25.00

Editorial No Ai License
Home Network Setup
$25.00

Editorial No Ai License
Response 58% in 23.1h
3D Modeling
Rendering

3D Model formats

Format limitations
Native
  • SolidWorks 2020 (.sldprt, .sldasm, .slddrw)77.5 MB
Exchange
  • IGES (.ige, .igs, .iges)88.5 MB
  • STEP (.stp)46.3 MB
  • KeyShot 9 (.bip, .ksp)156 MB
  • Stereolithography 2020 (.stl)220 MB
  • Textures 1.21 MB
  • Autodesk FBX (.fbx)72.3 MB
  • 3D Studio 202 (.3ds)11.7 MB
  • OBJ (.obj, .mtl)228 MB

3D Model details

  • Ready for 3D Printing
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Publish date2020-06-11
  • Model ID#2463802
