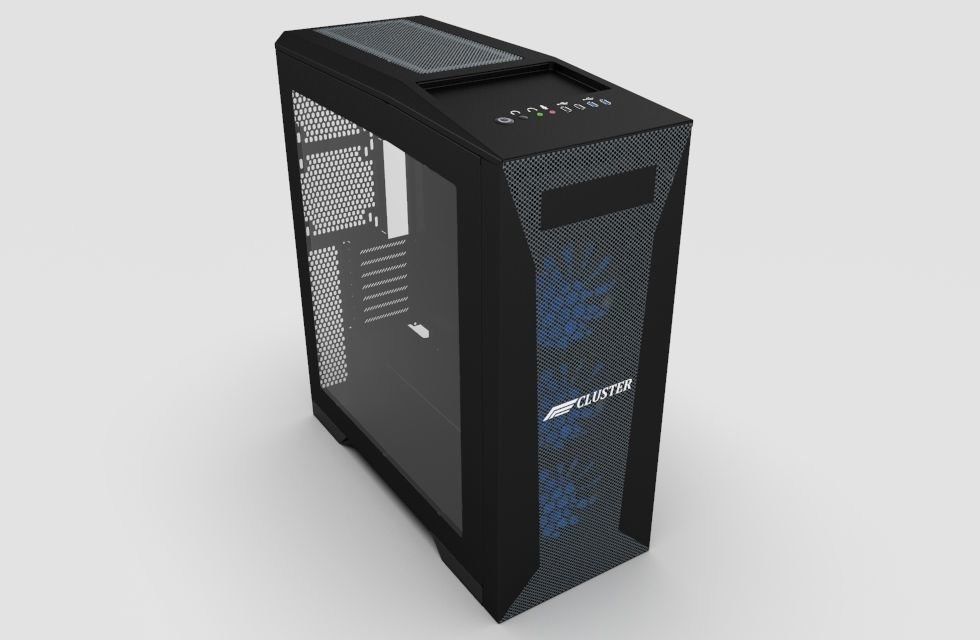

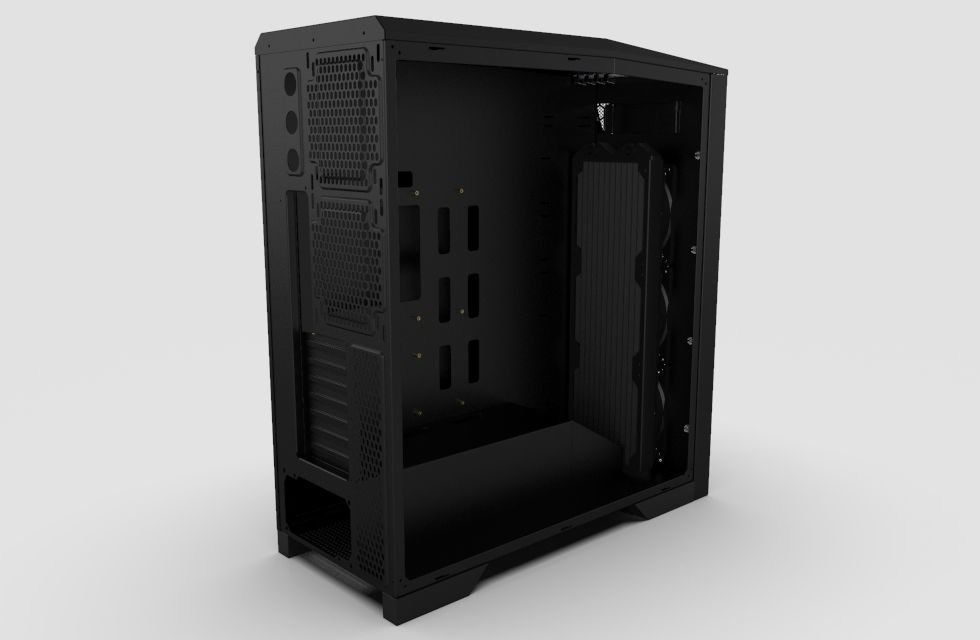

Cluster PC Case 3D model
Description

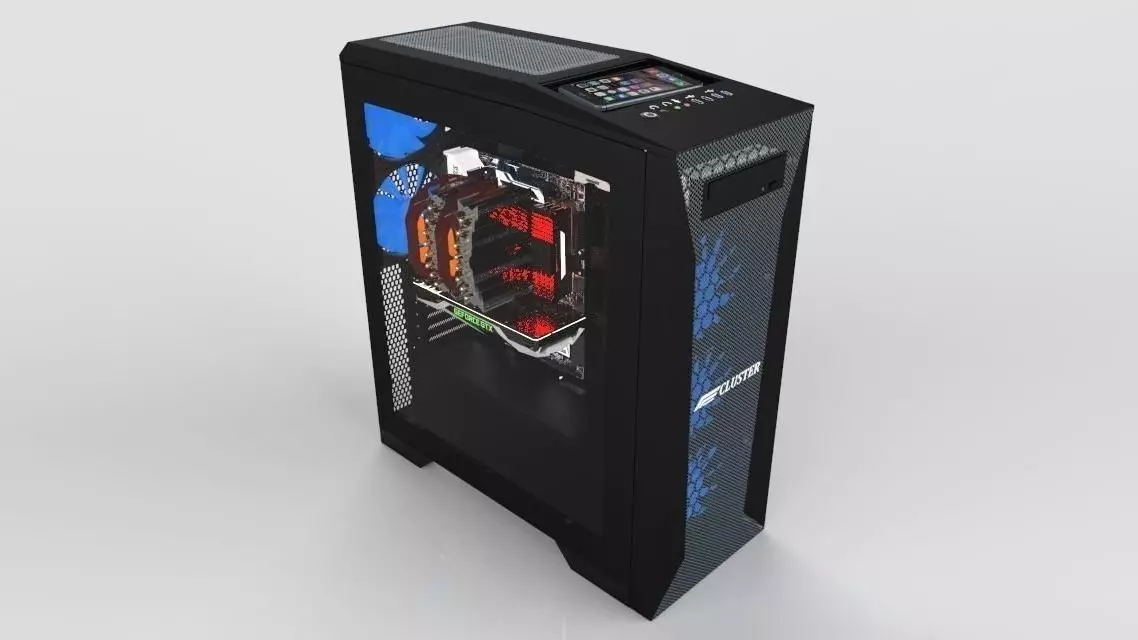

Cluster PC Case, modelled with In the SolidWorks 2017 sheet metal module and rendered KeyShot 11. All scene, lighting, textures and materials are available in Keyshot 11. Also materials and textures have been added as KeyShot KSP file. 1:1 Scale in real sizes. Unit is millimeters. It is suitable for production in the workshop. Many file formats are available.
Materials: 12
Tech Specs

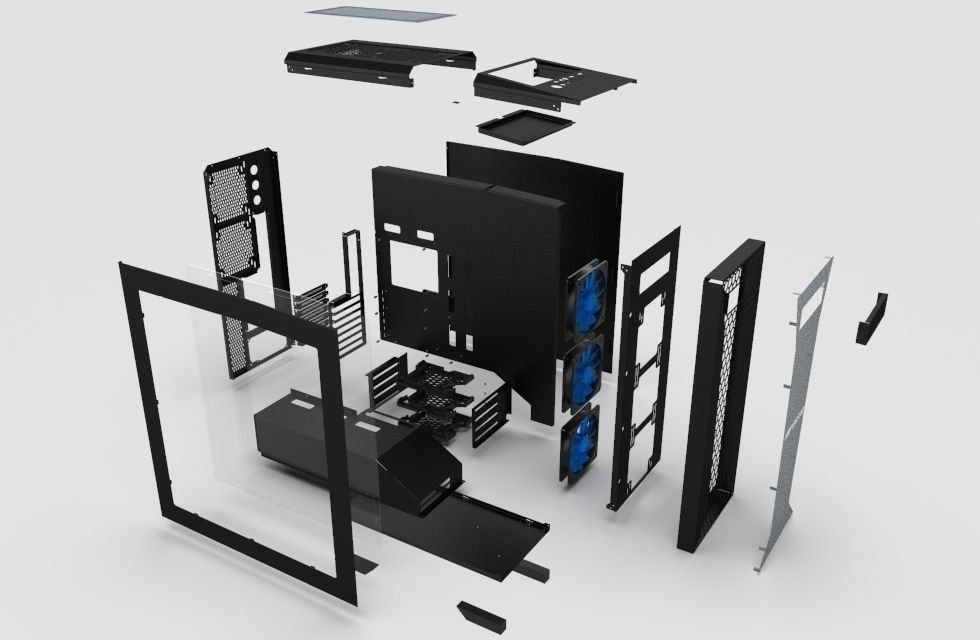

- This mid-tower pc case can be manufactured by laser cutting and bending from 1 mm sheet metal

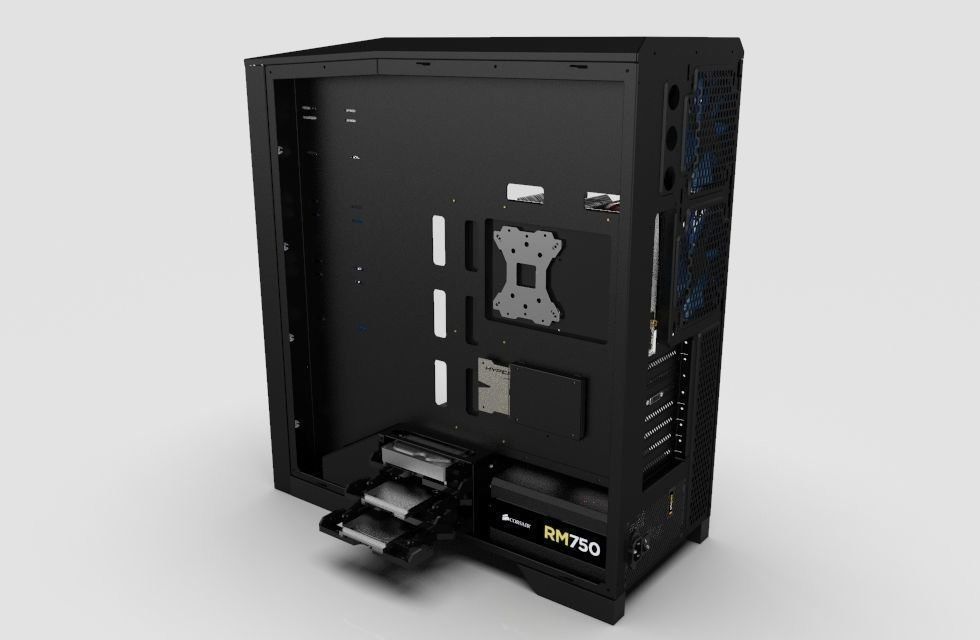

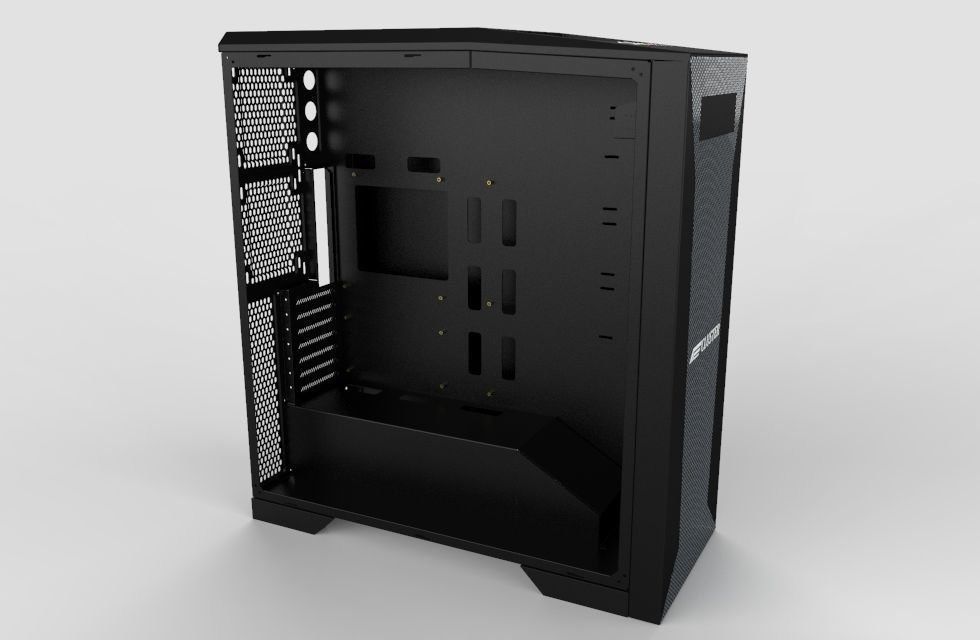

- Cable routing and CPU cooler backplate motherboard cutouts

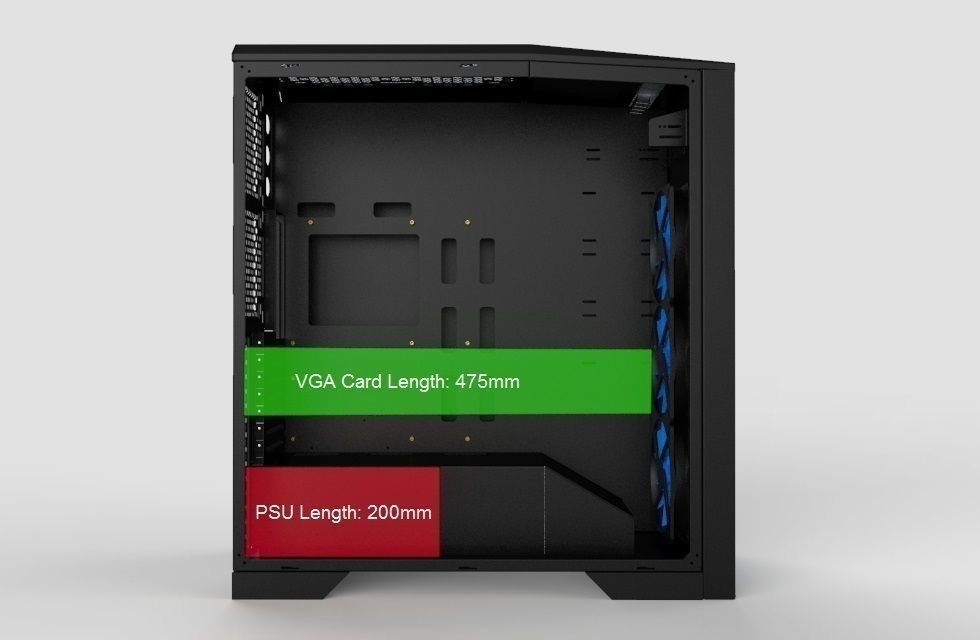

- Seven PCIe slots with room for long graphics cards up to 475mm long
- Install to three storage drives your choice of 3.5 2.5 or SSD each tray fits every three, also a extra SSD slot
- Dust filters for front, top and PSU intake.

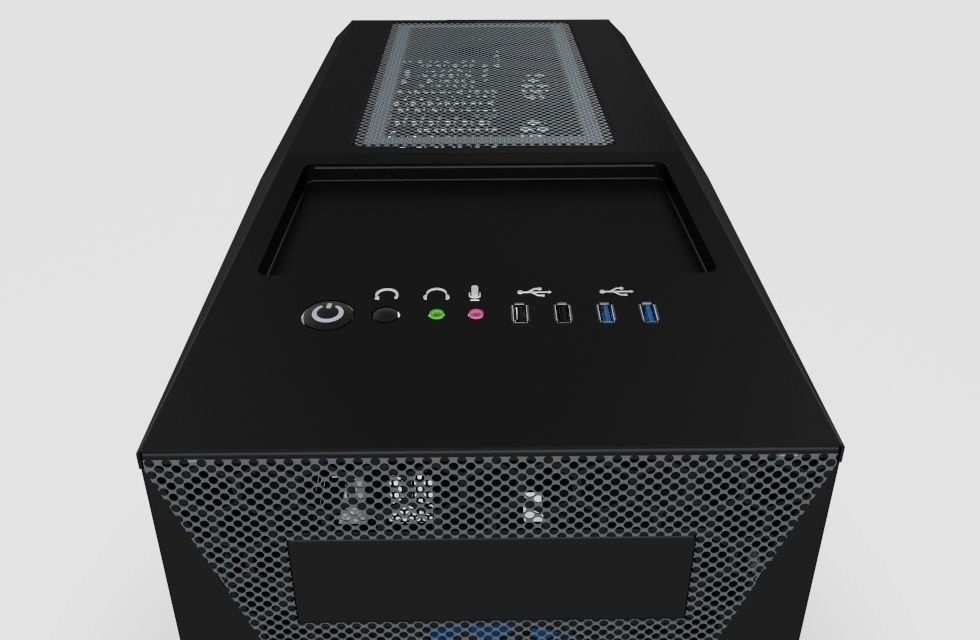

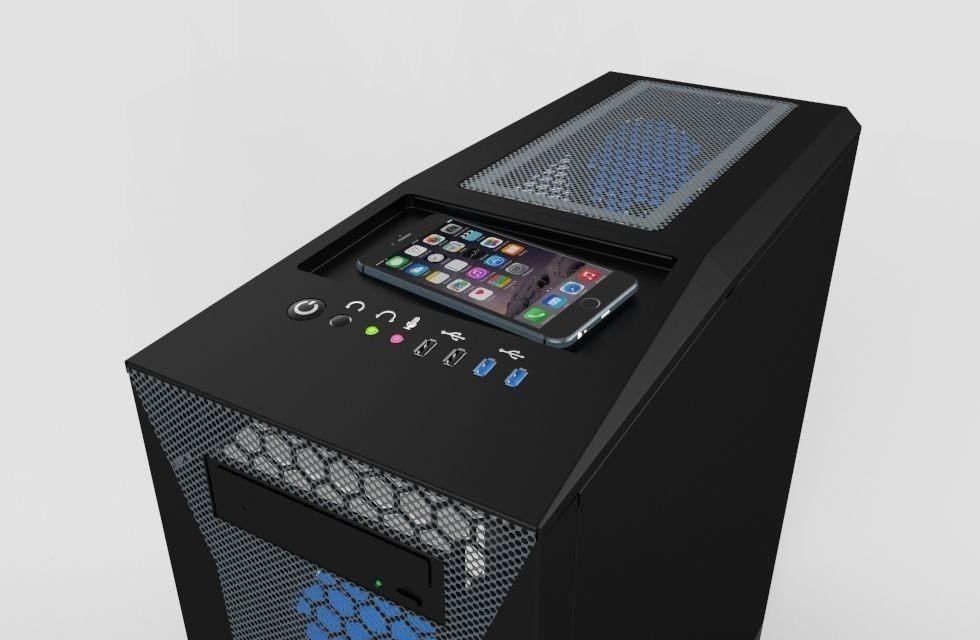

- USB 3.0 front port with internal connector

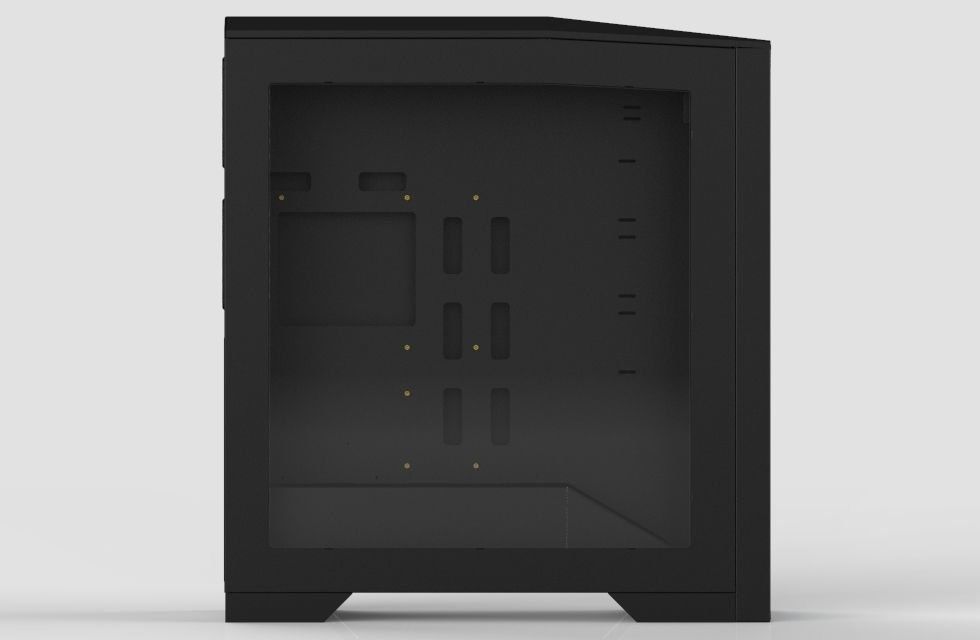

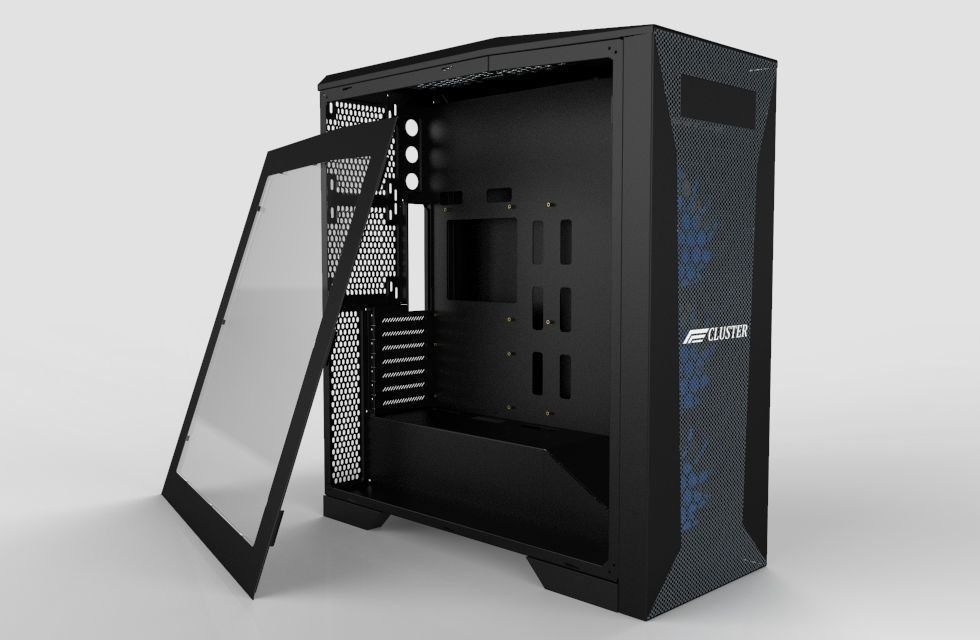

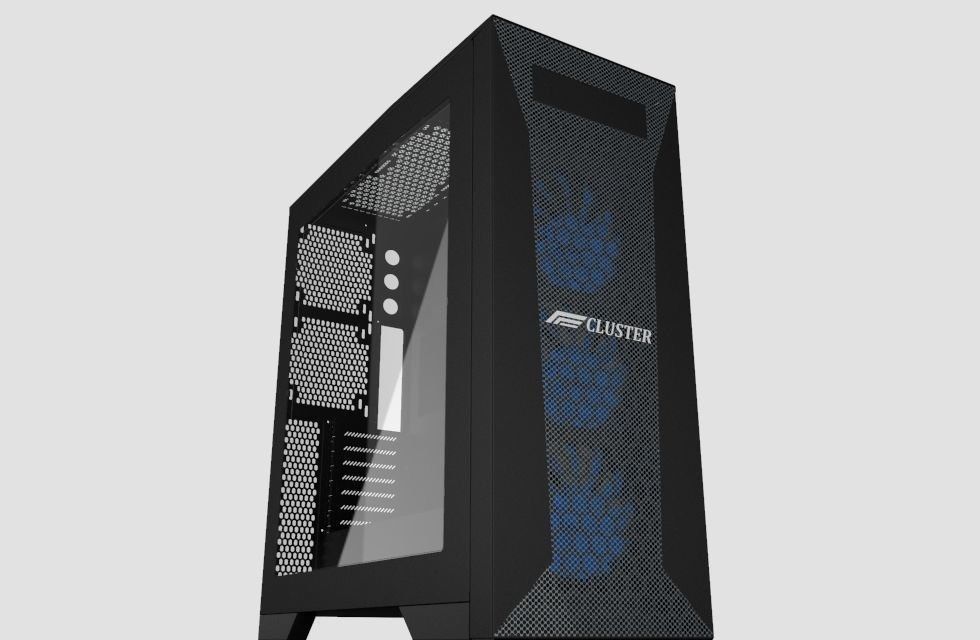

- Large side panel window
- Supported motherboards: E-ATX / ATX / M-ATX / M-ITX

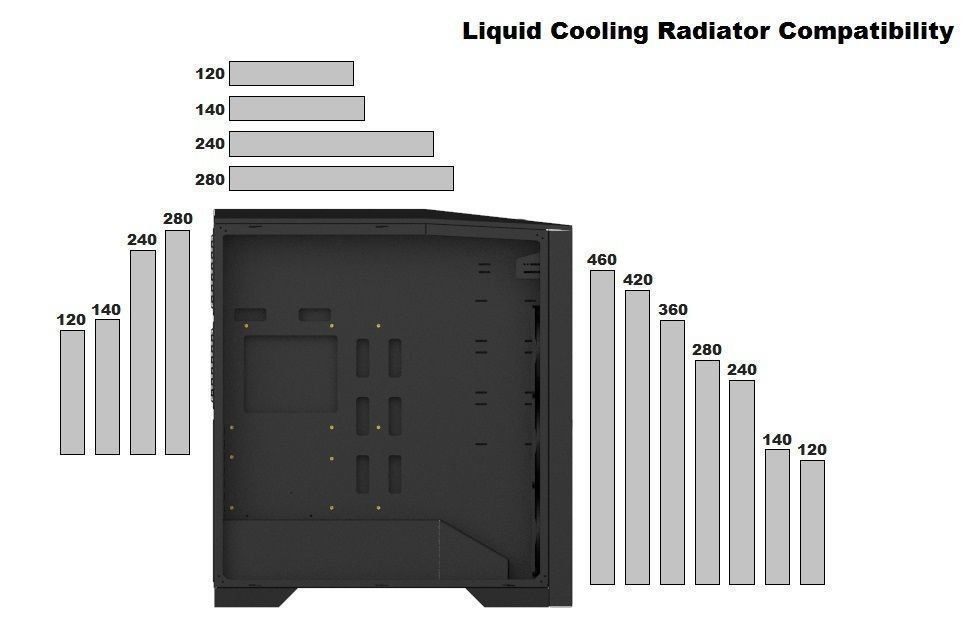

Fan mounts:

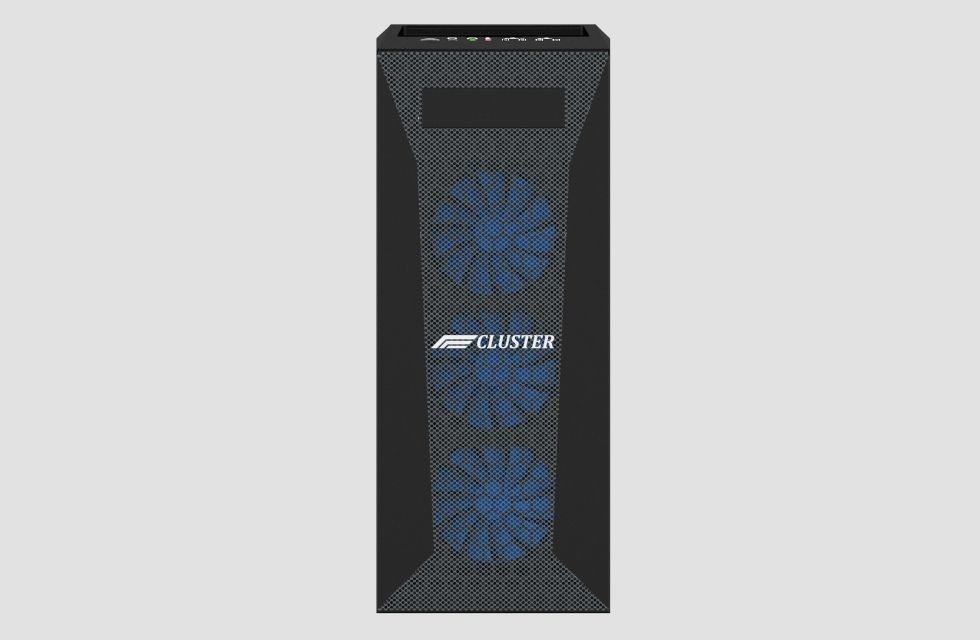

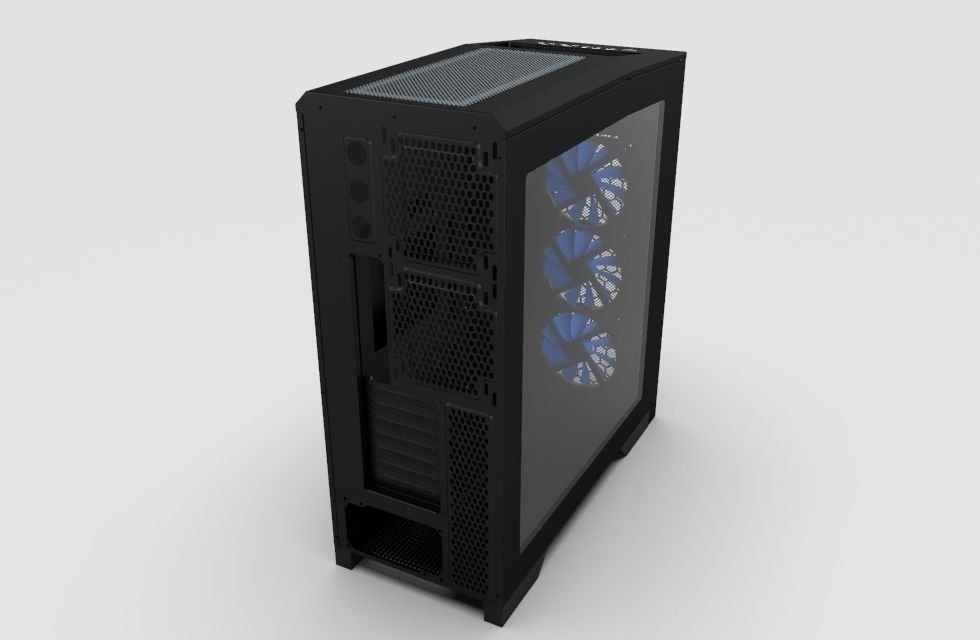

- Front 3 x 140/120mm
- Top 2 x 140/120mm
- Rear 2 x 140/120mm
Cluster PC Case
Royalty Free No Ai License
Cluster PC Case
Royalty Free No Ai License
3D Model formats
Format limitations
Native
- SolidWorks 2017 (.sldprt, .sldasm, .slddrw)54.1 MB
Exchange
- KeyShot (.bip, .ksp) (2 files)1.05 GBVersion: 11Version: 11
- Autodesk FBX (.fbx)67.5 MB
- IGES (.ige, .igs, .iges)20.1 MB
- STEP (.stp)15.3 MB
- VRML (.wrl)58.7 MB
- Parasolid (.x_t, .x_b)8.67 MB
- Stereolithography (.stl)17 MB
- Textures text692 Bytes
3D Model details
- Publish date2023-09-20
- Model ID#4788709
- Animated
- Rigged
- VR / AR / Low-poly
- PBR

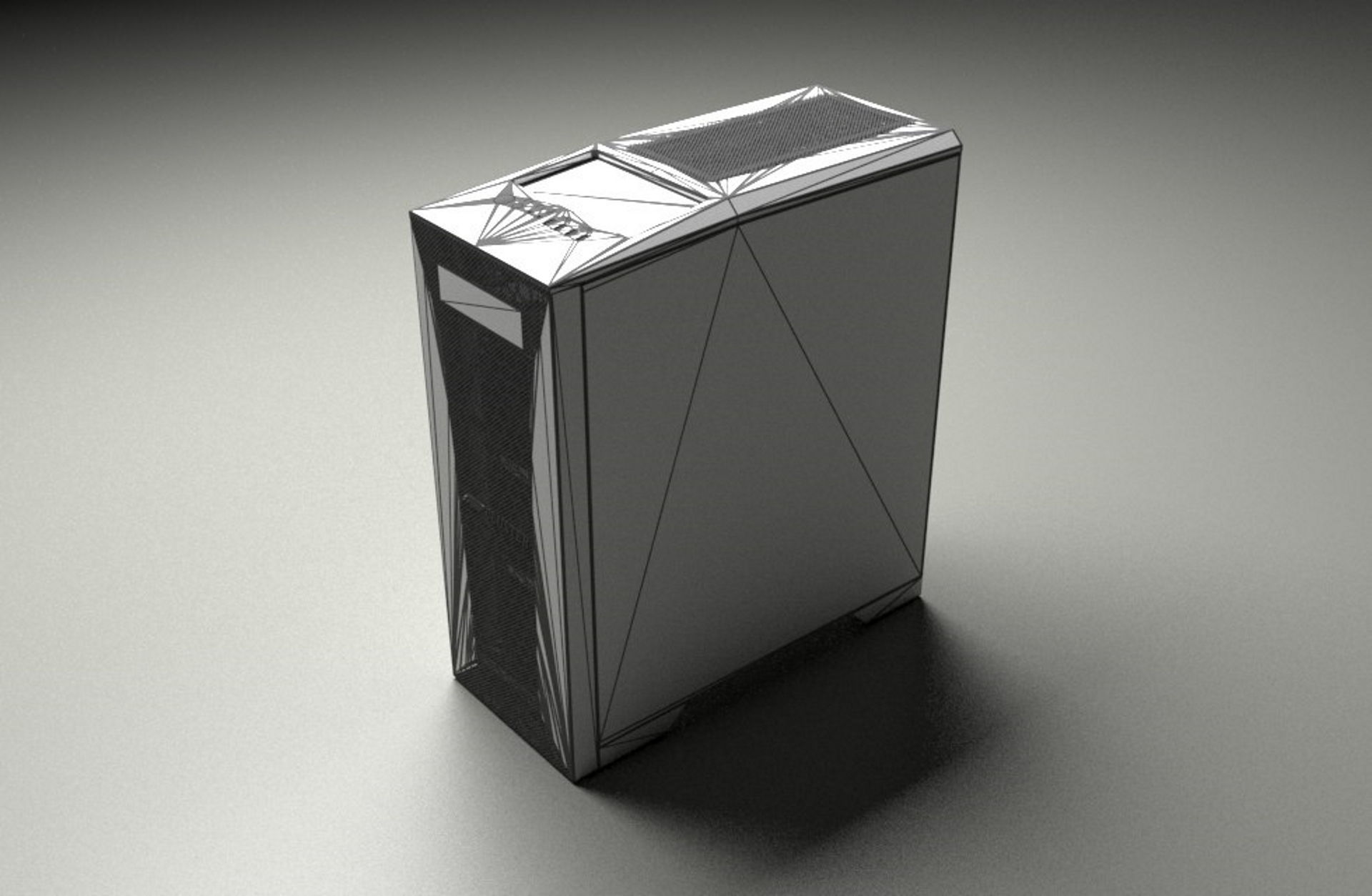

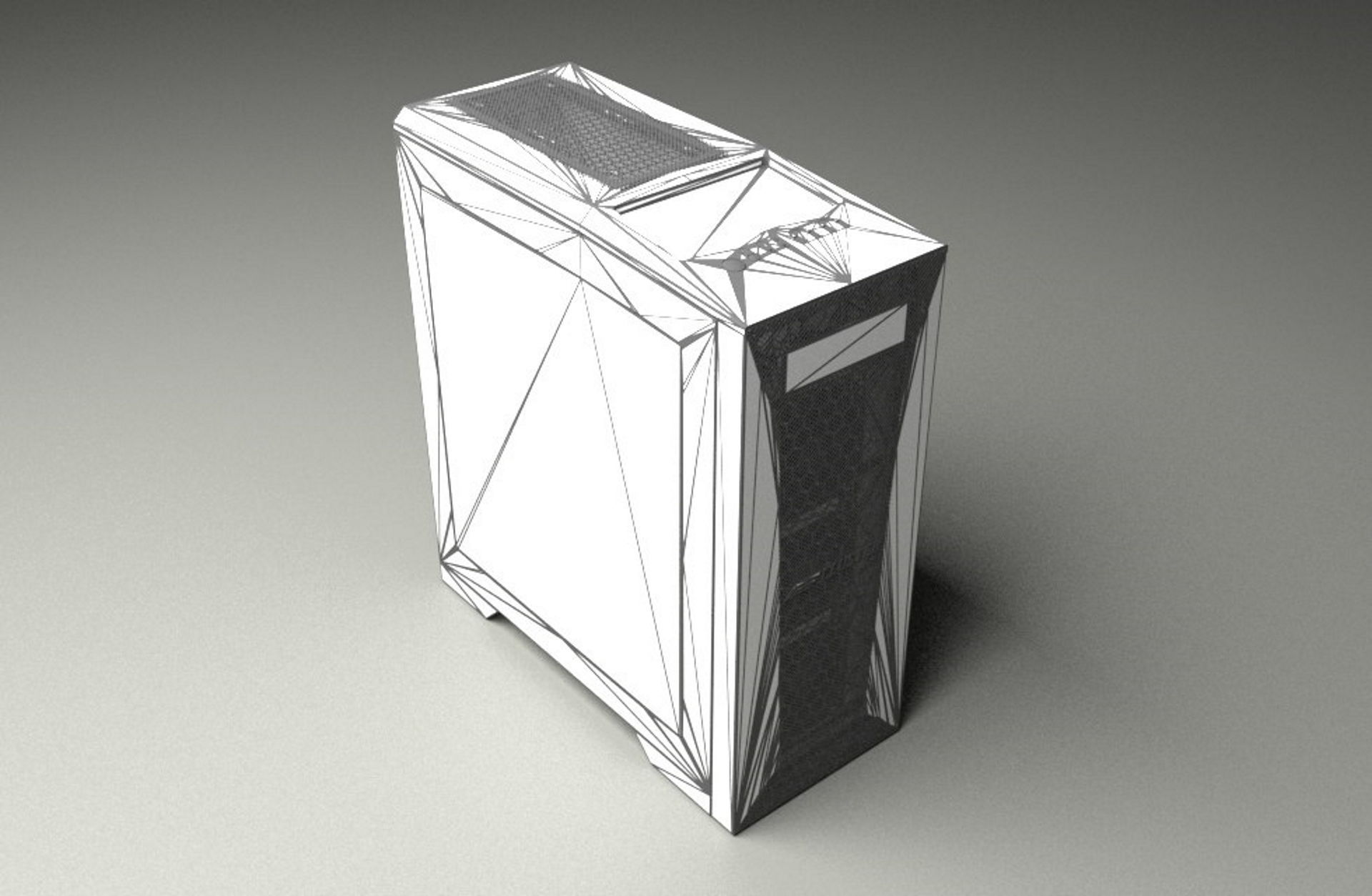

- Geometry Polygon mesh
- Polygons 11,892,878
- Vertices 5,925,474
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
