Speaker Cross Section

Speaker Cross Section 3D model

Description

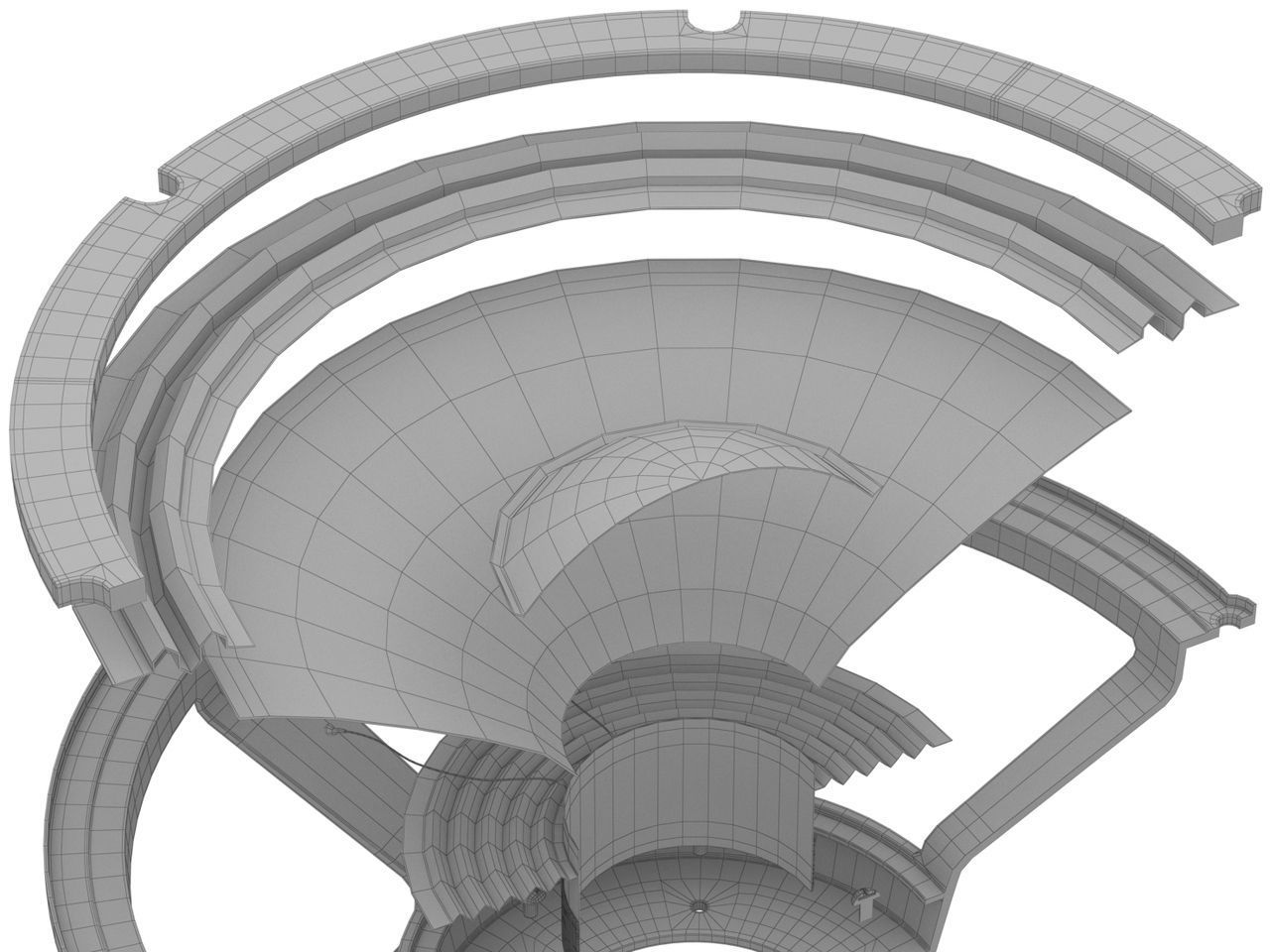

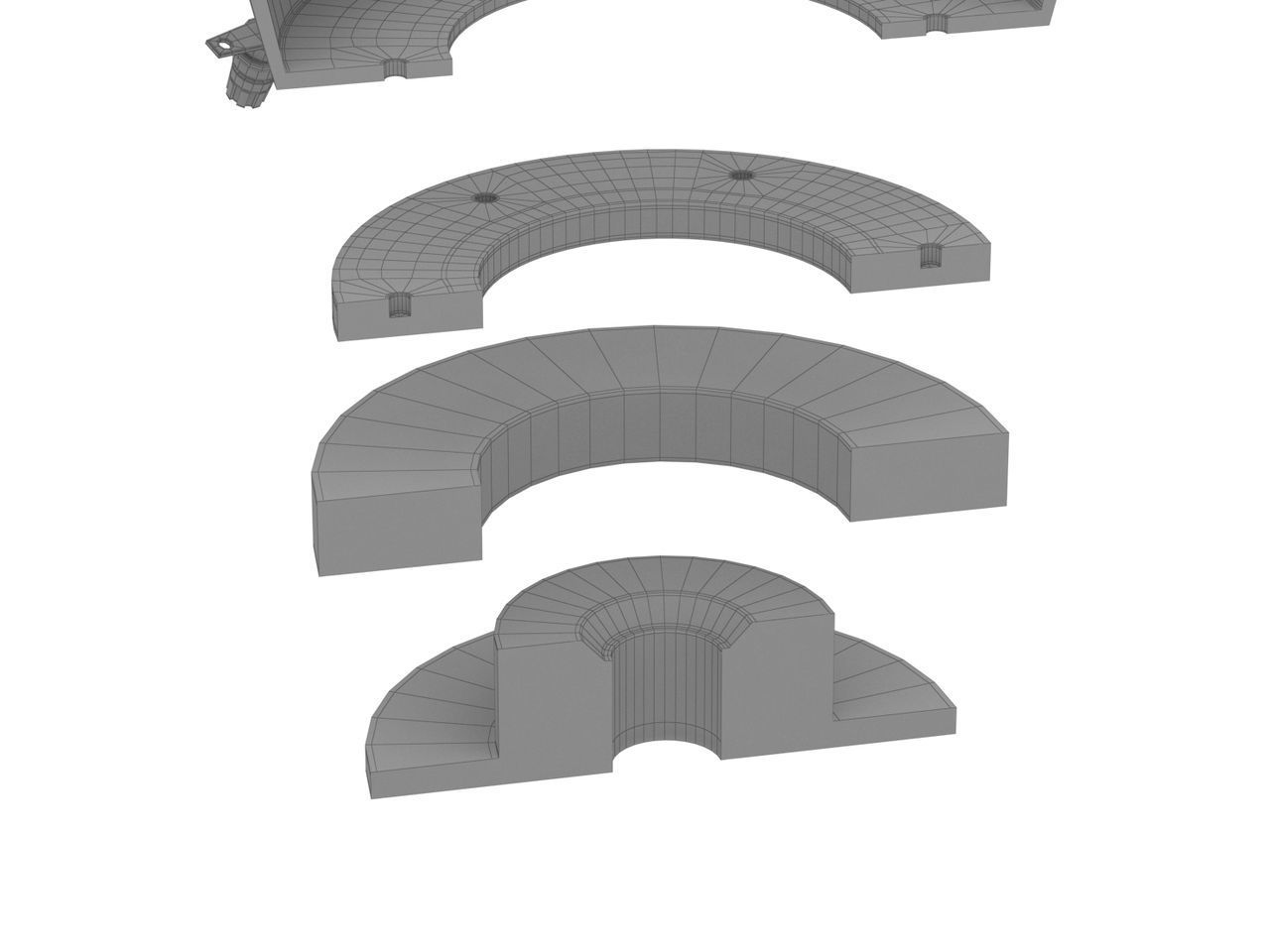

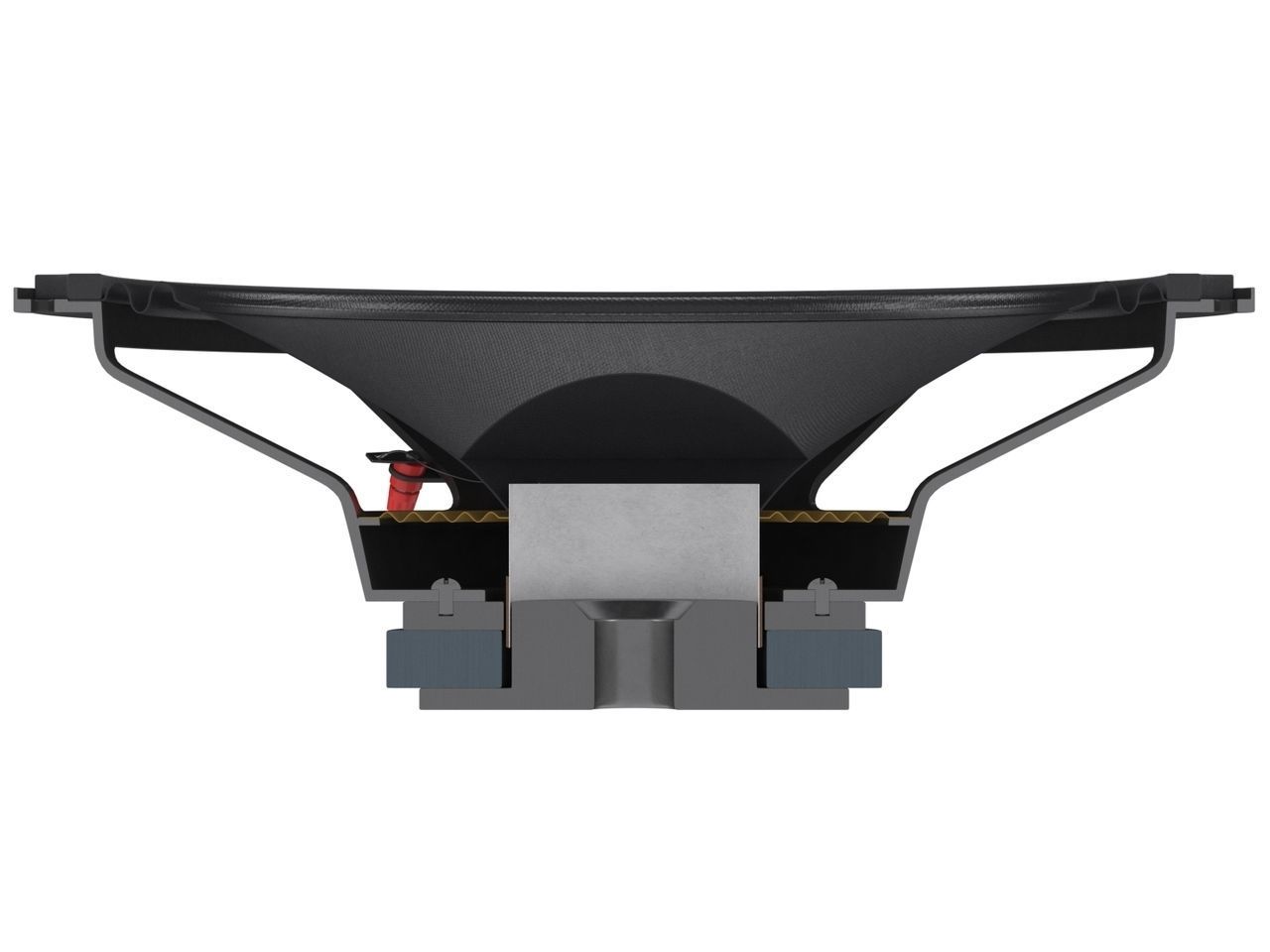

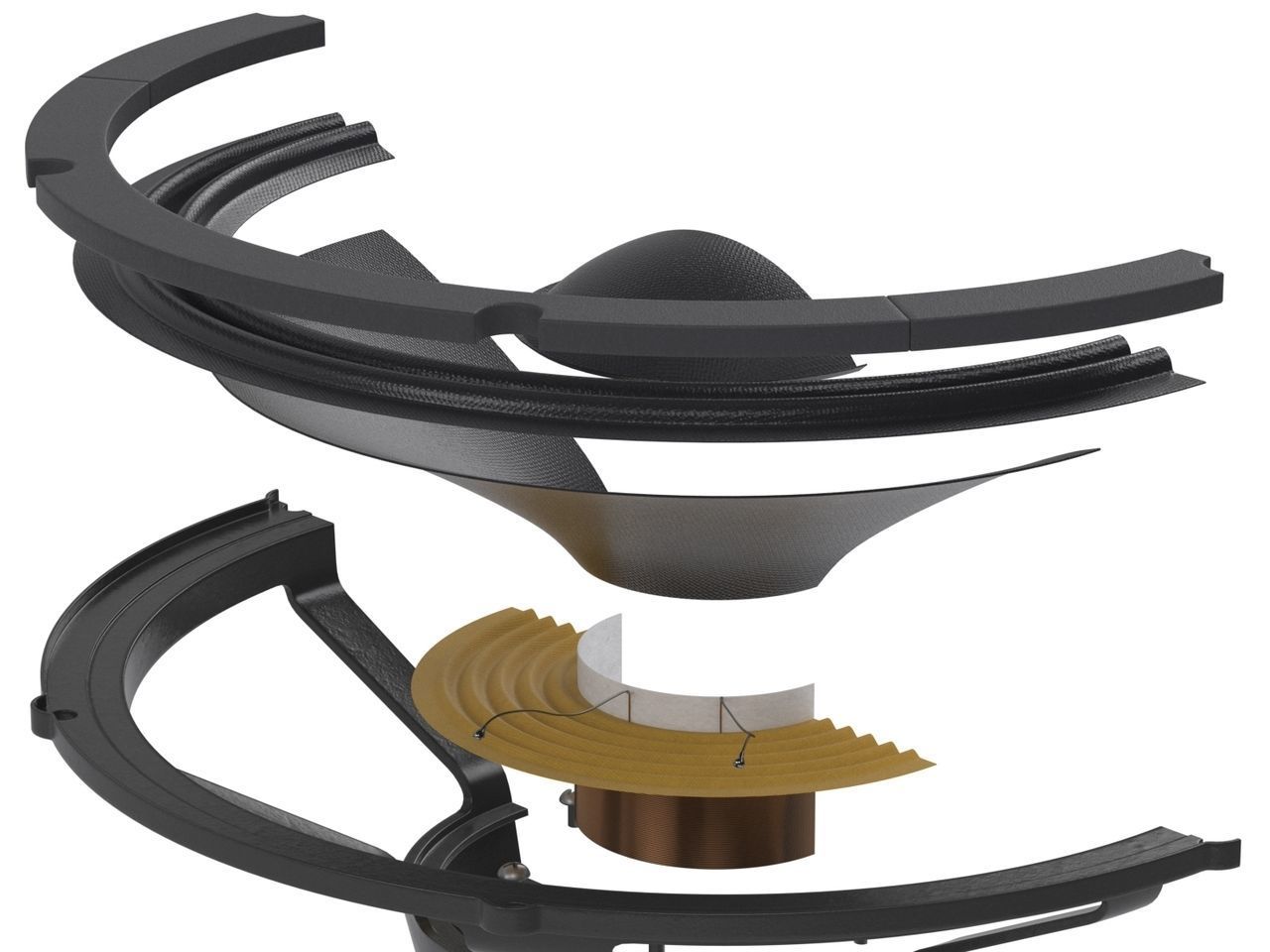

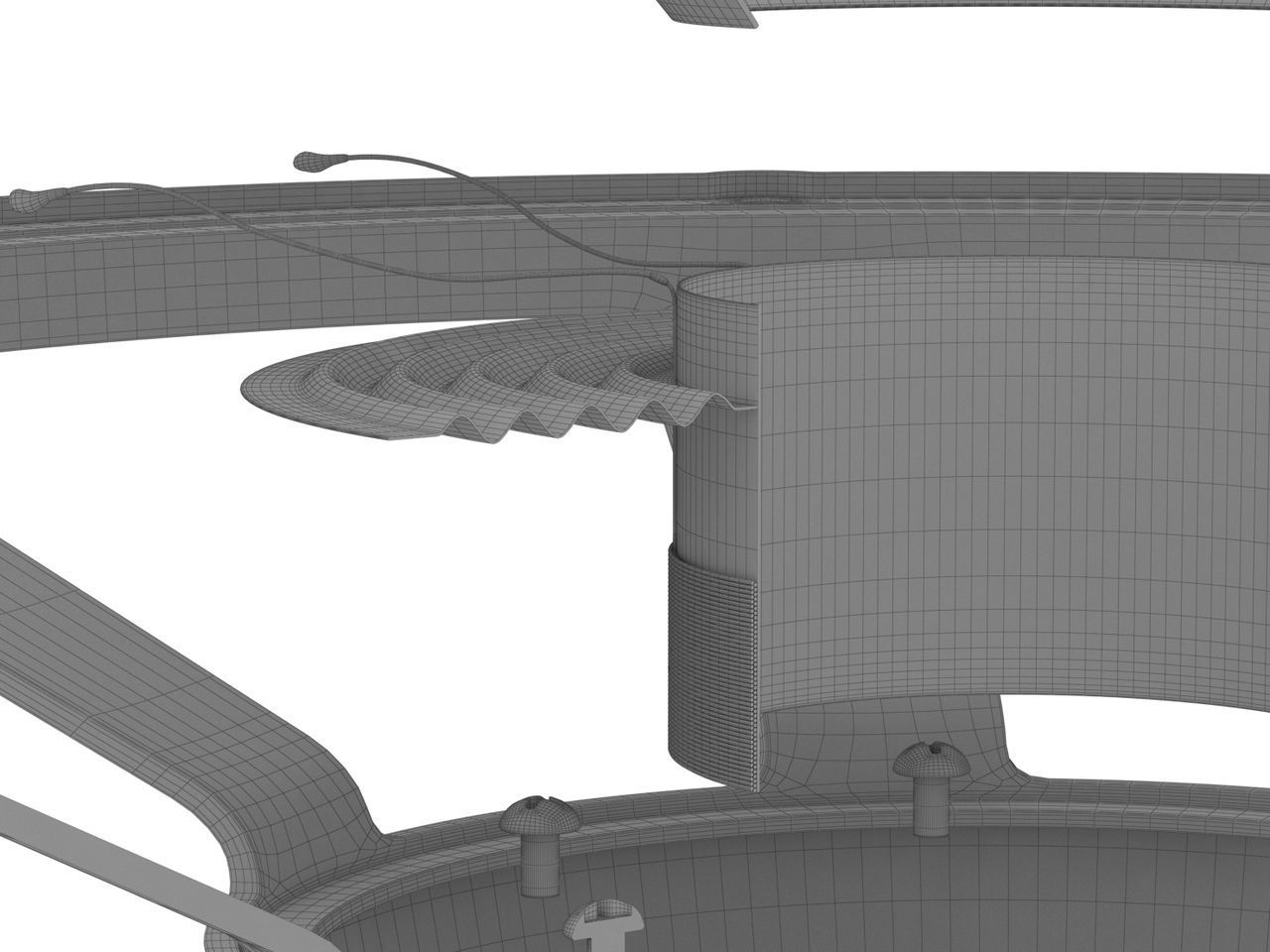

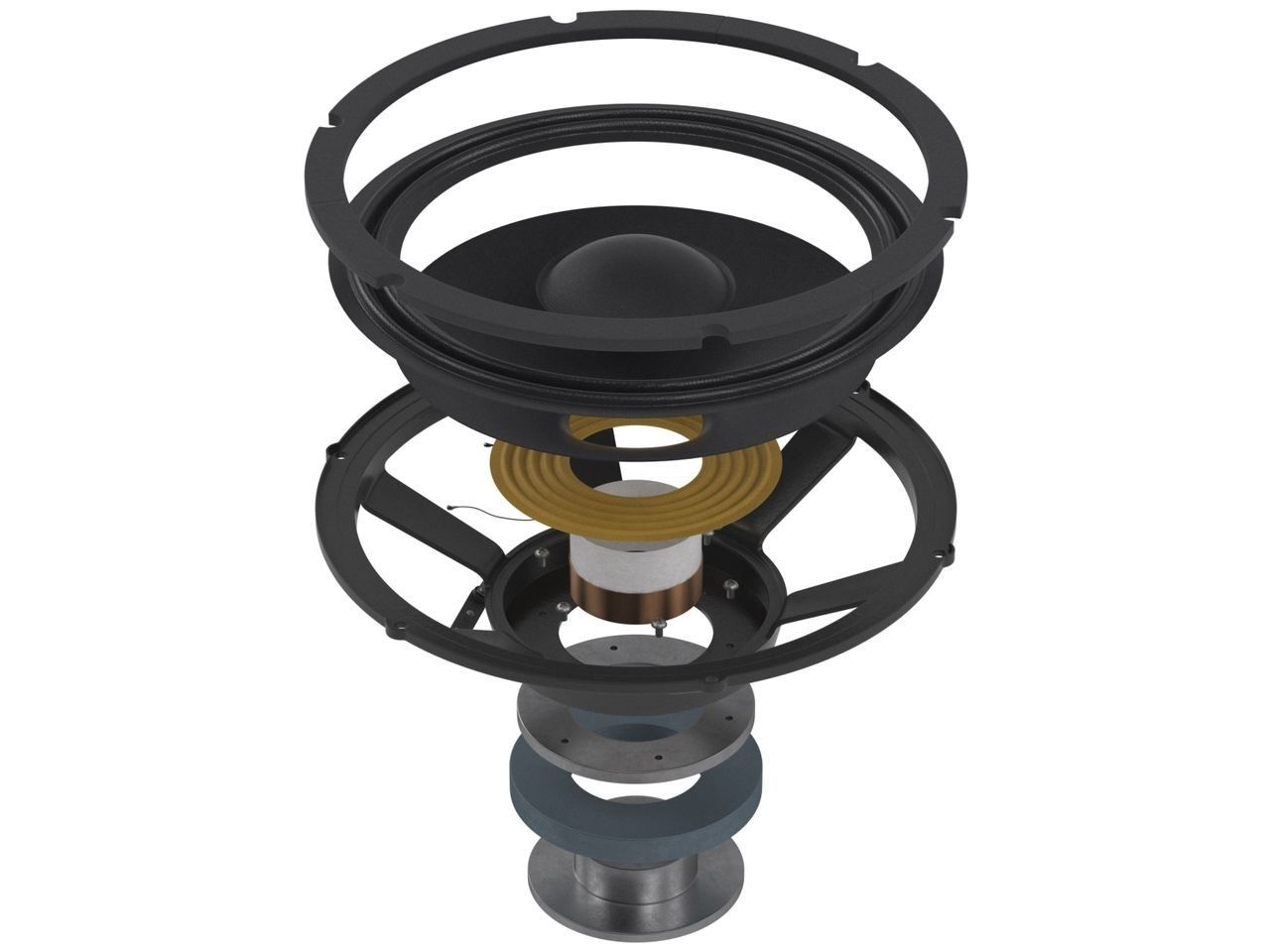

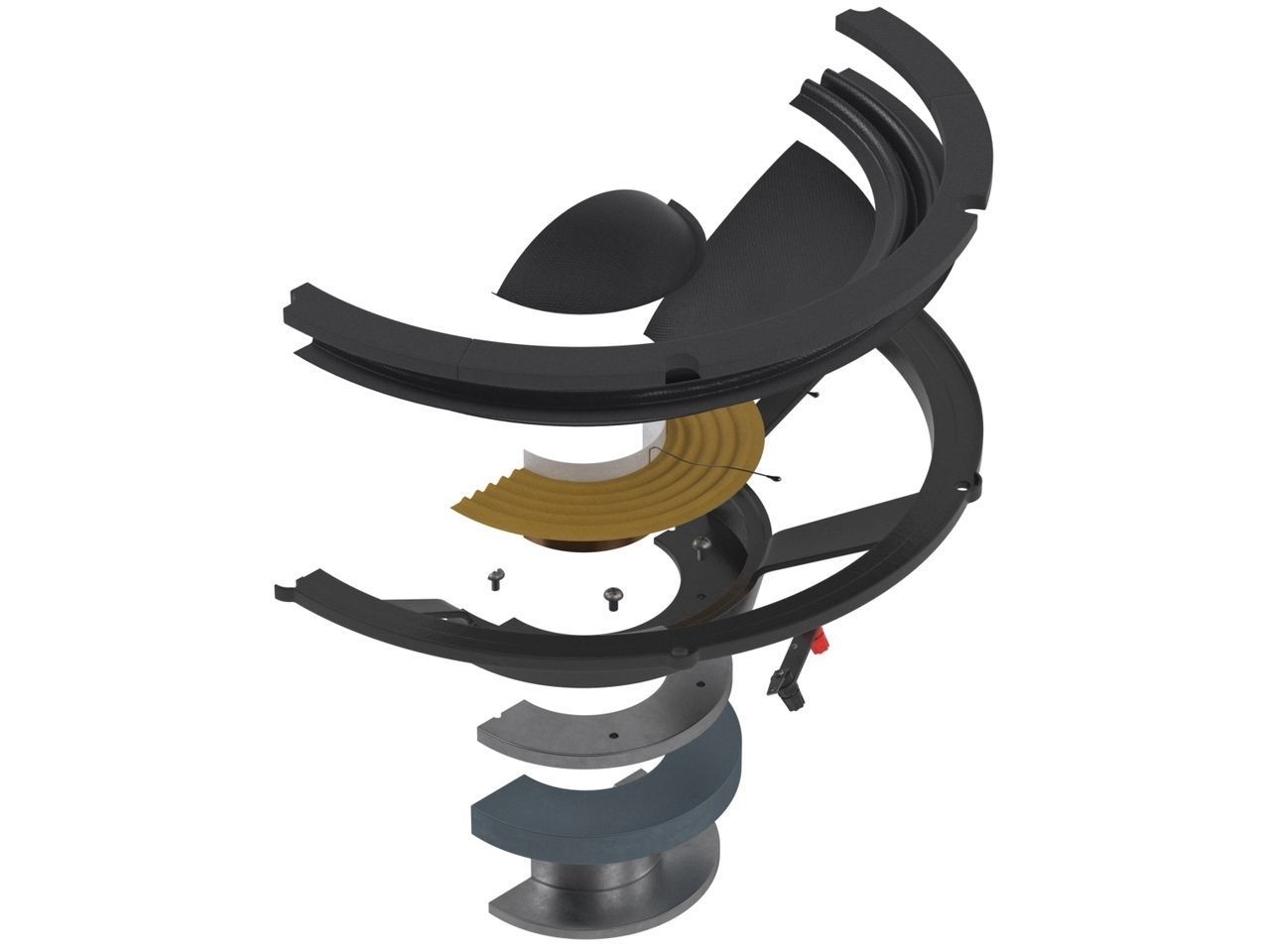

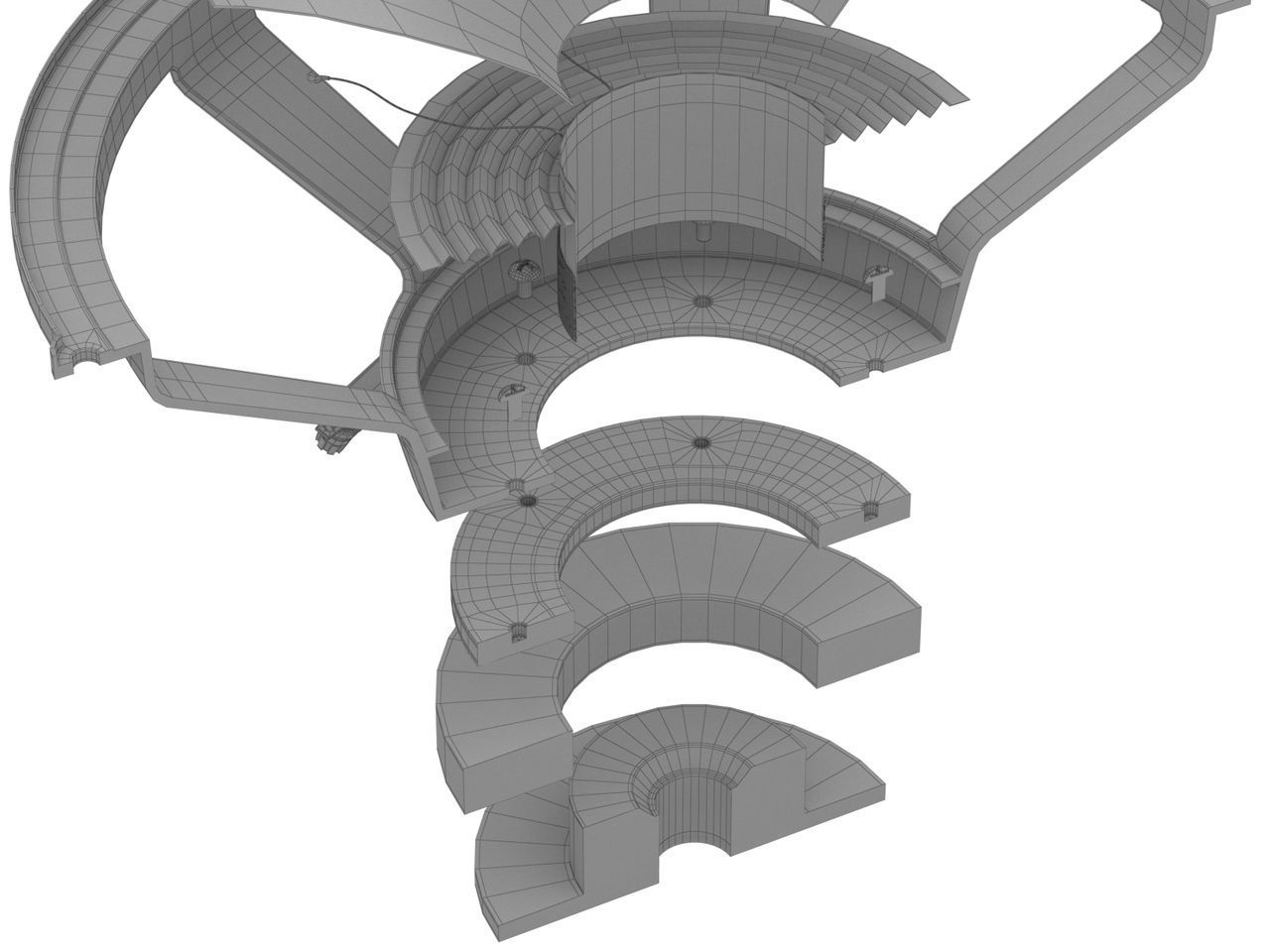

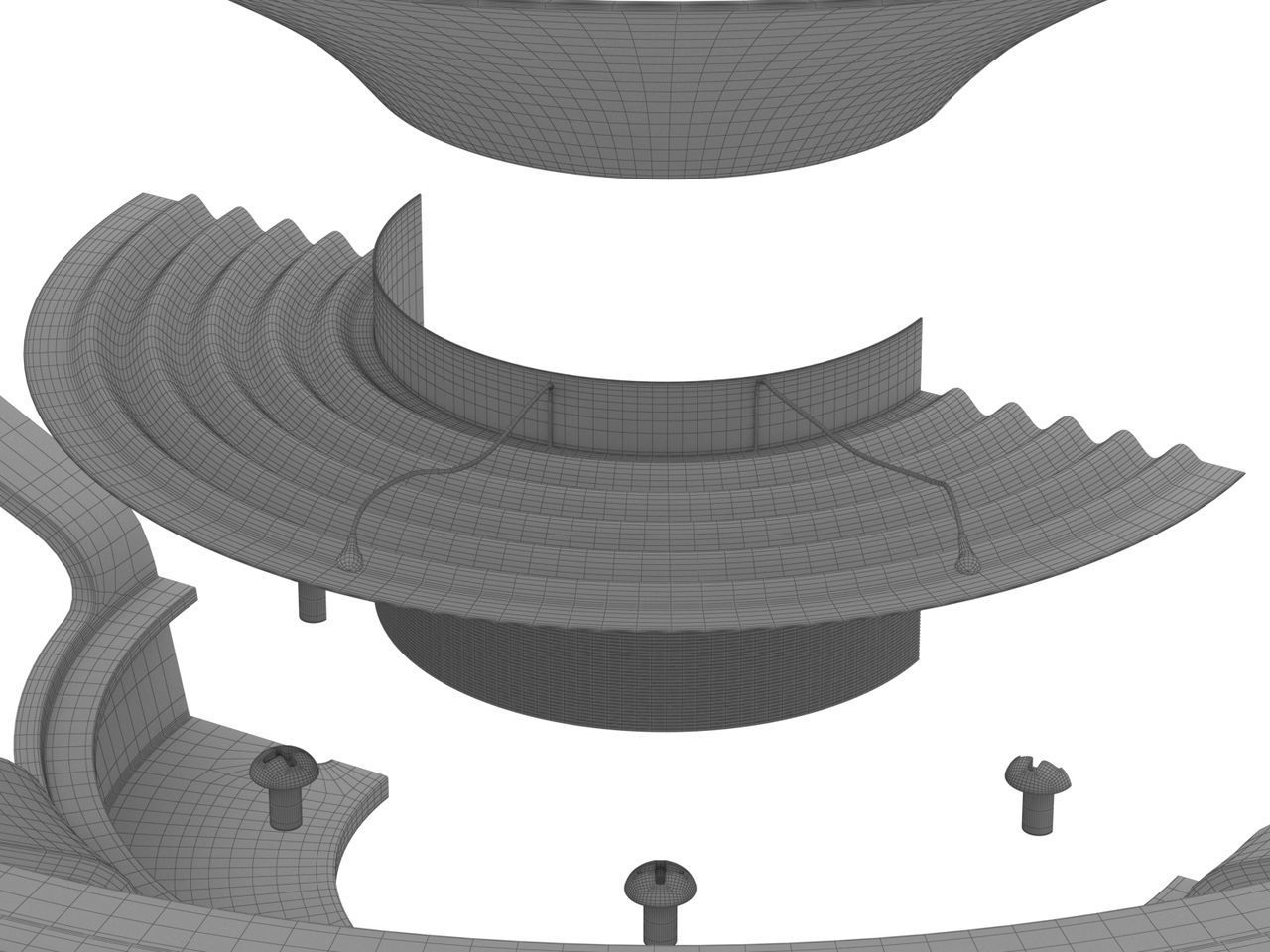

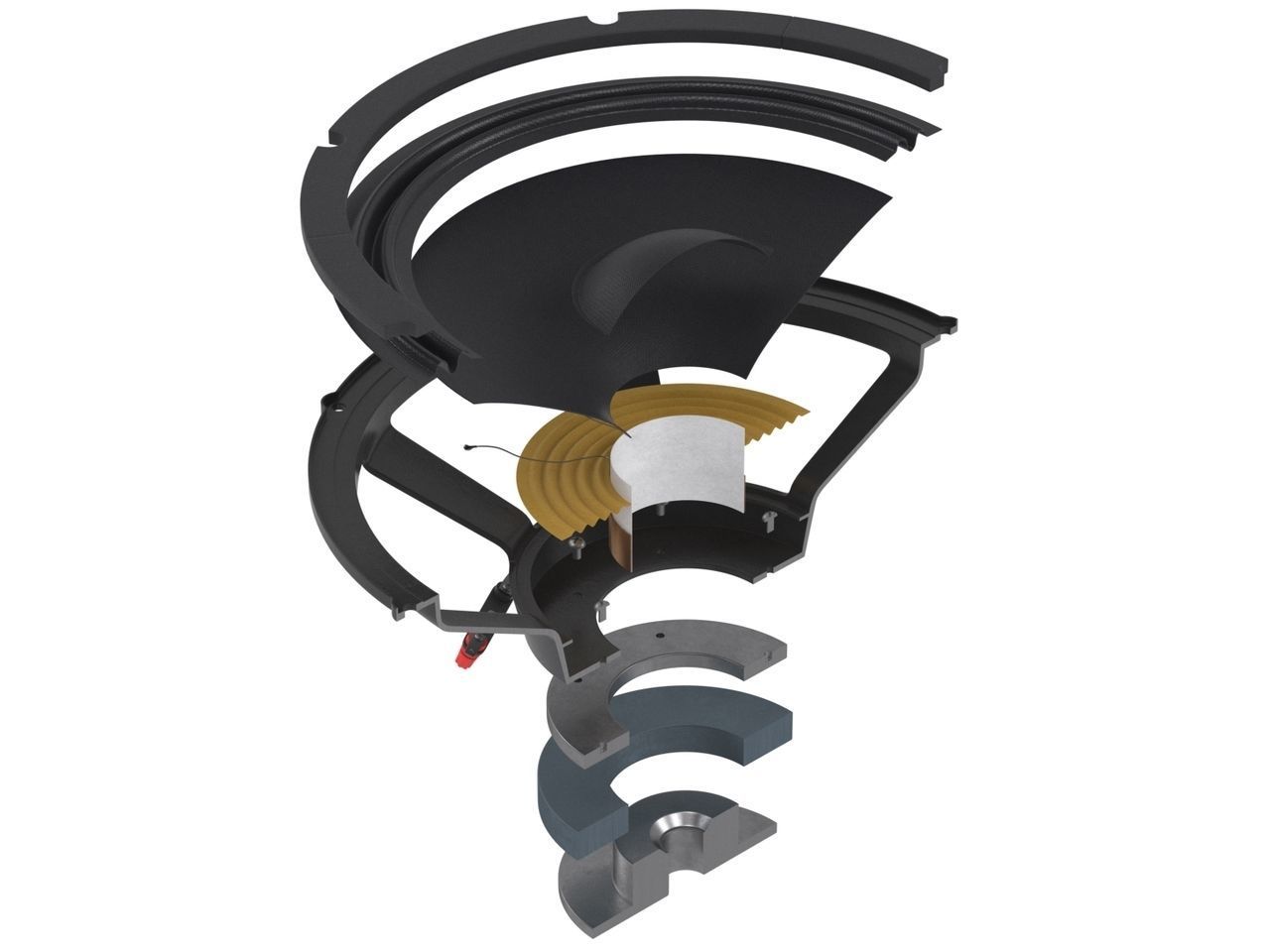

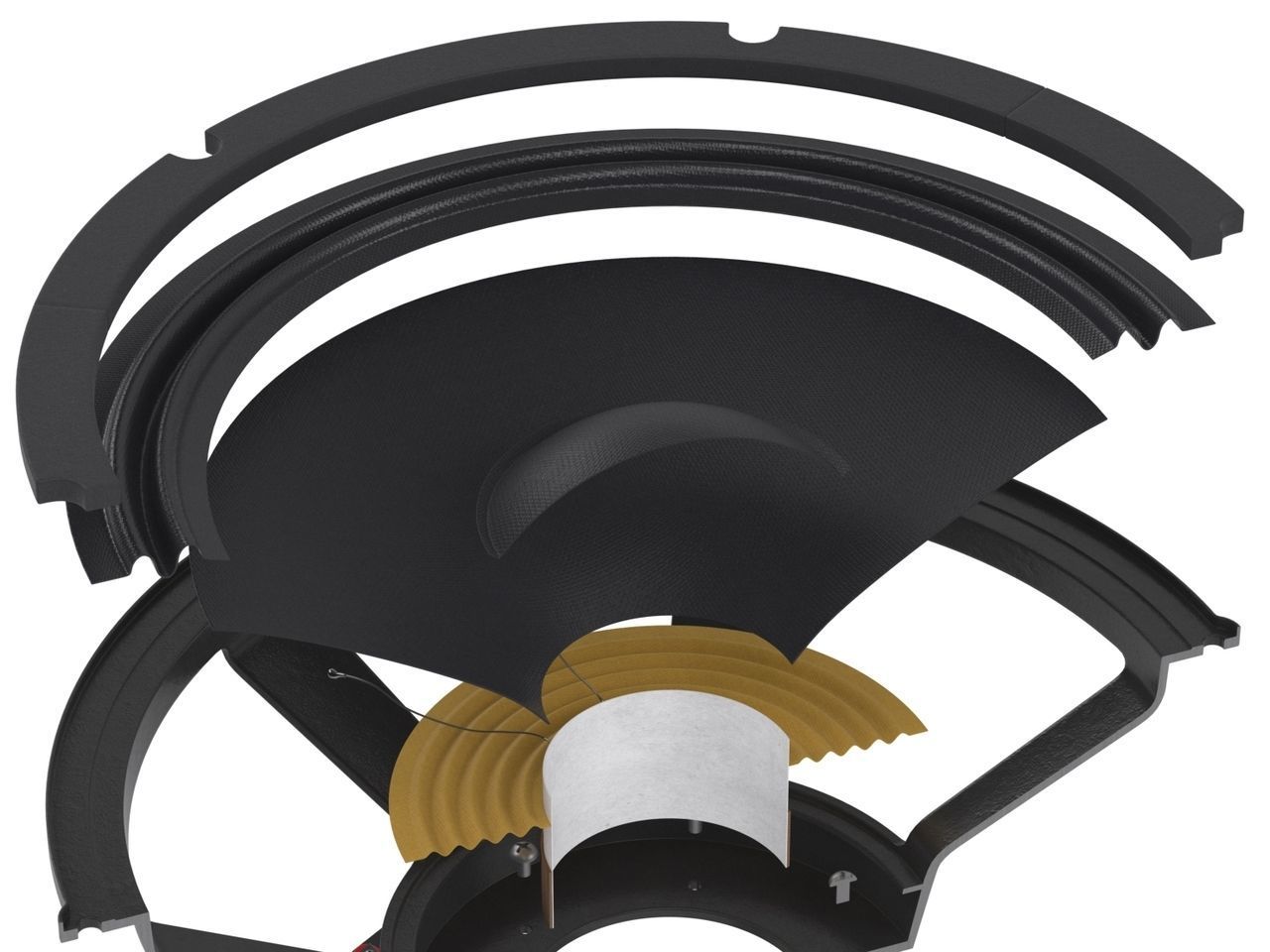

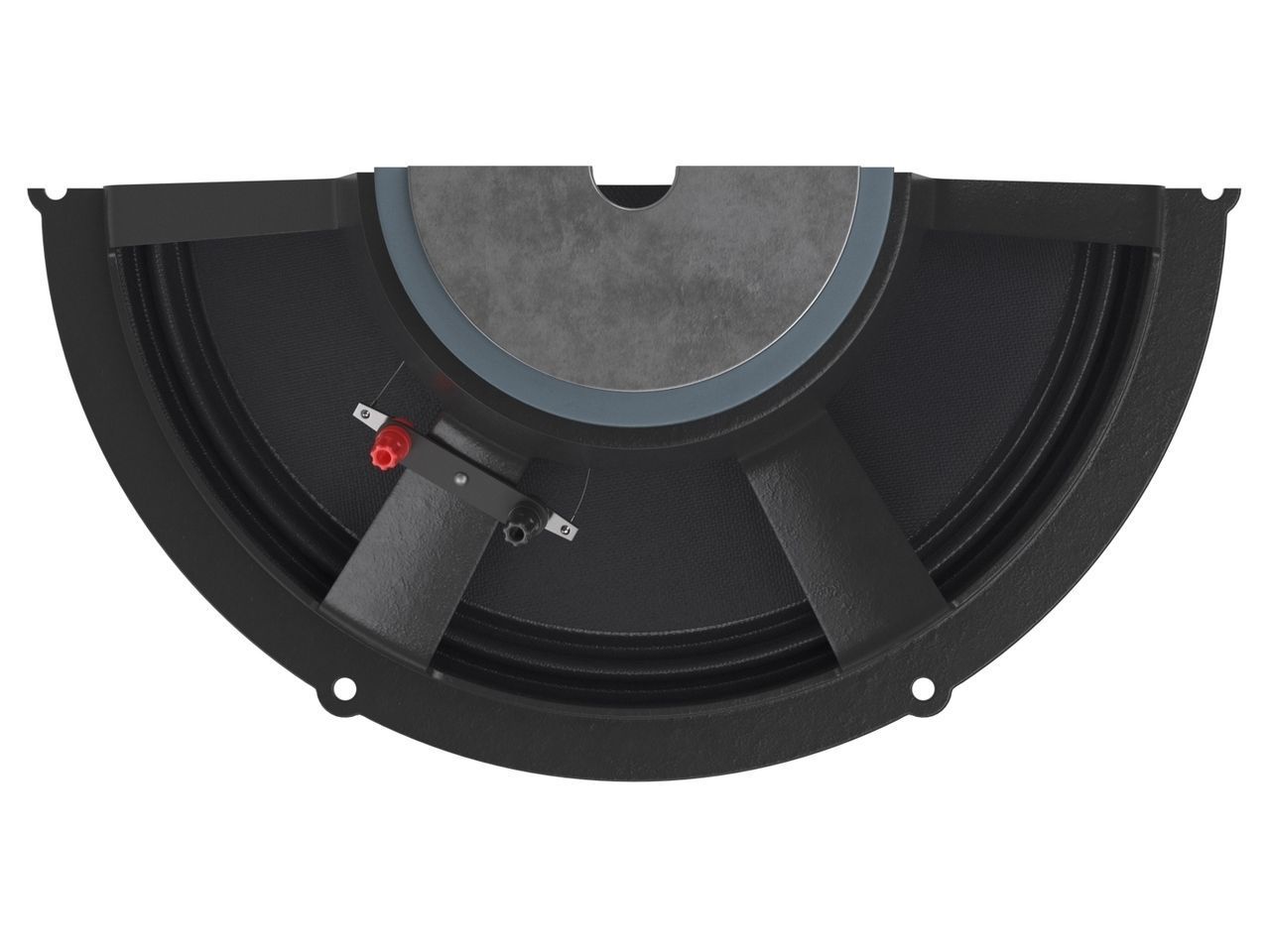

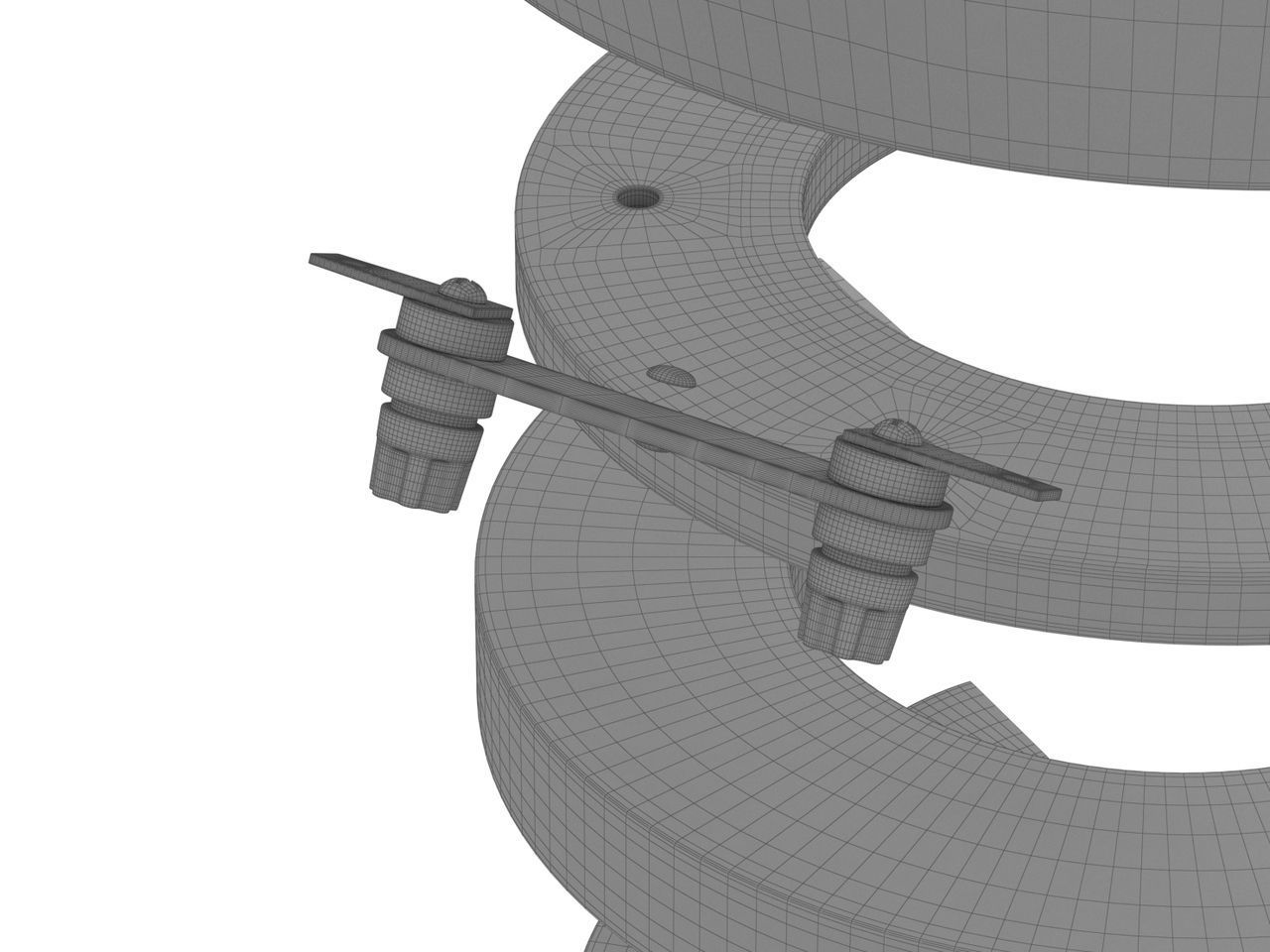

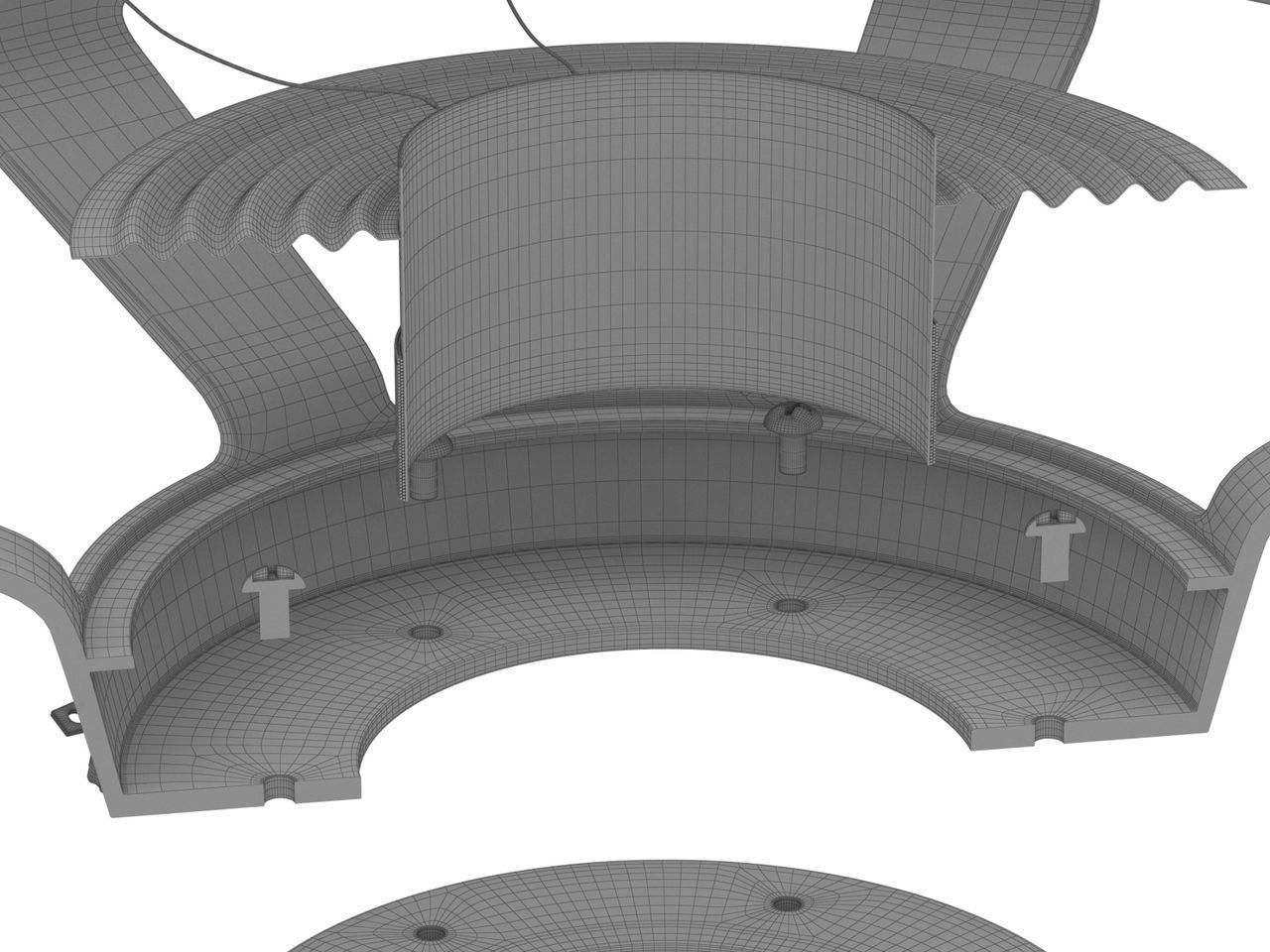

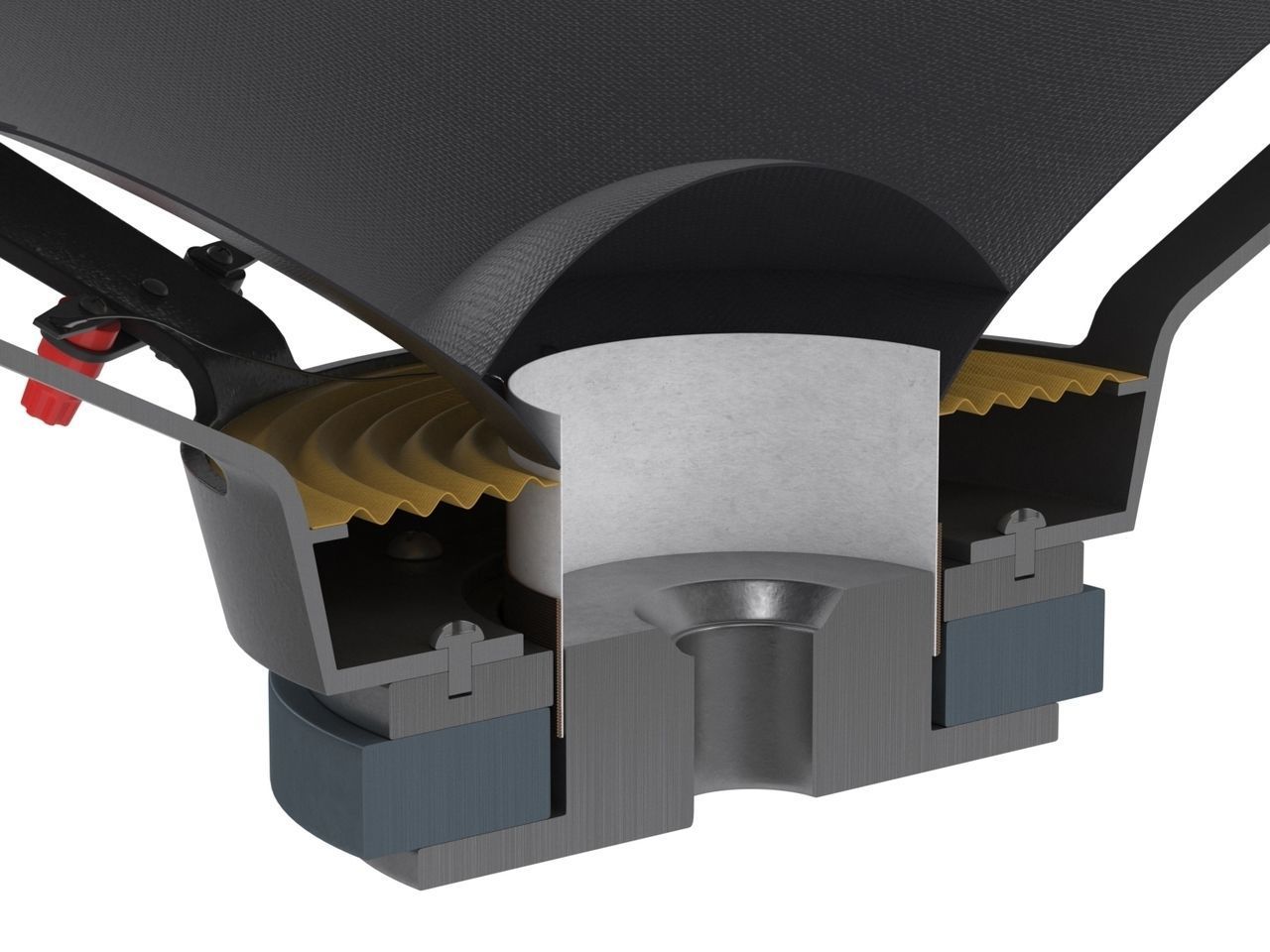

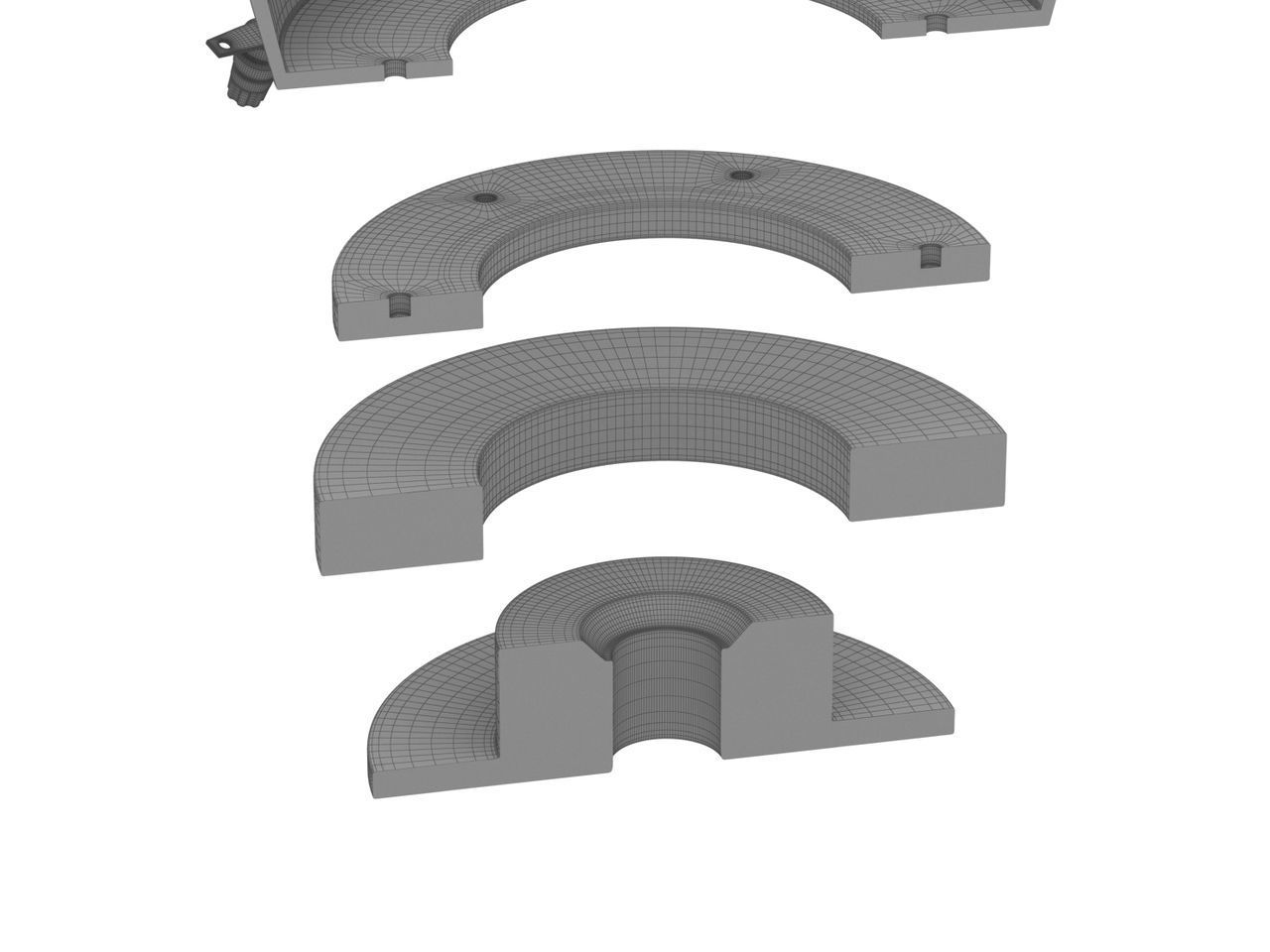

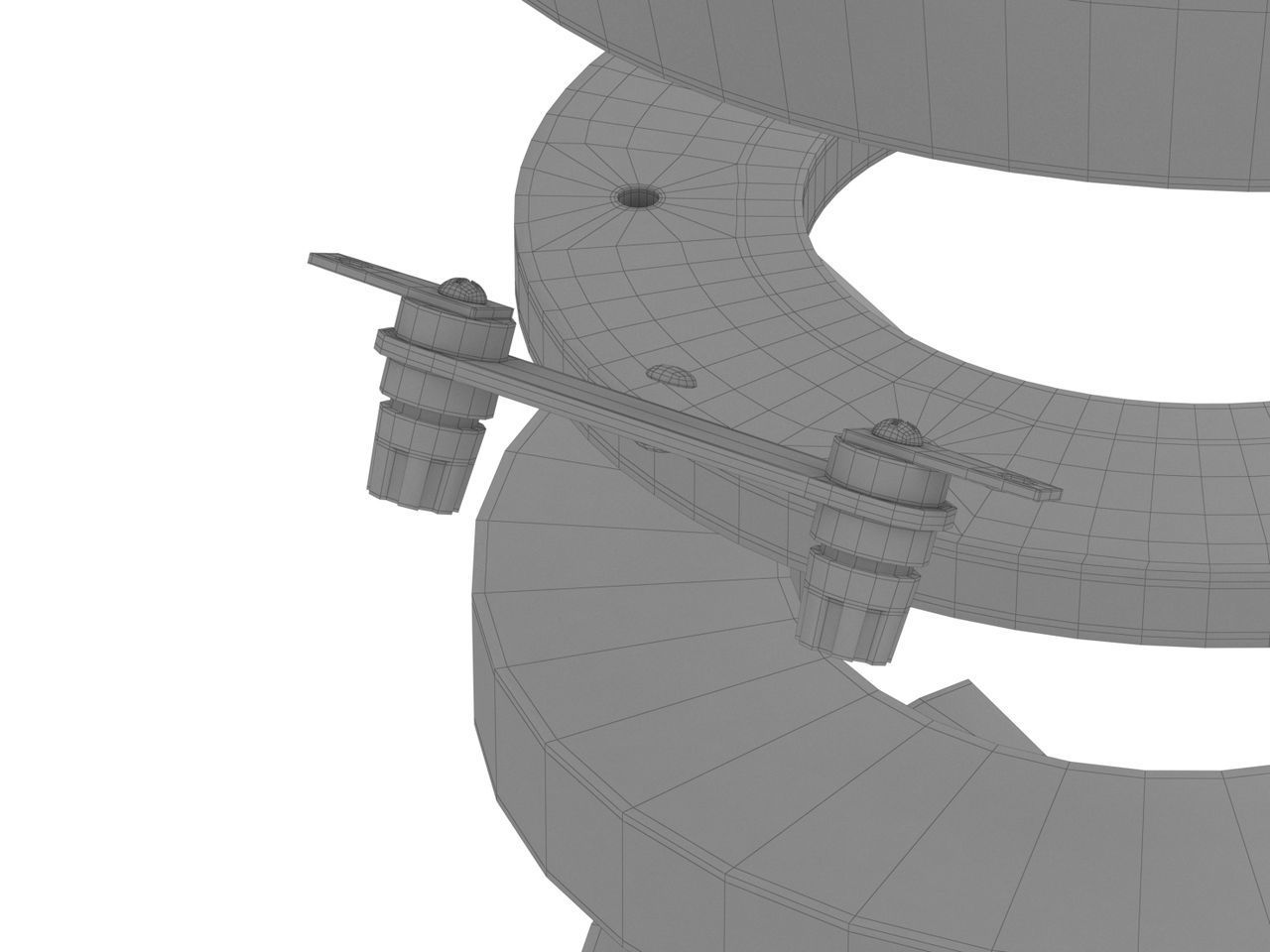

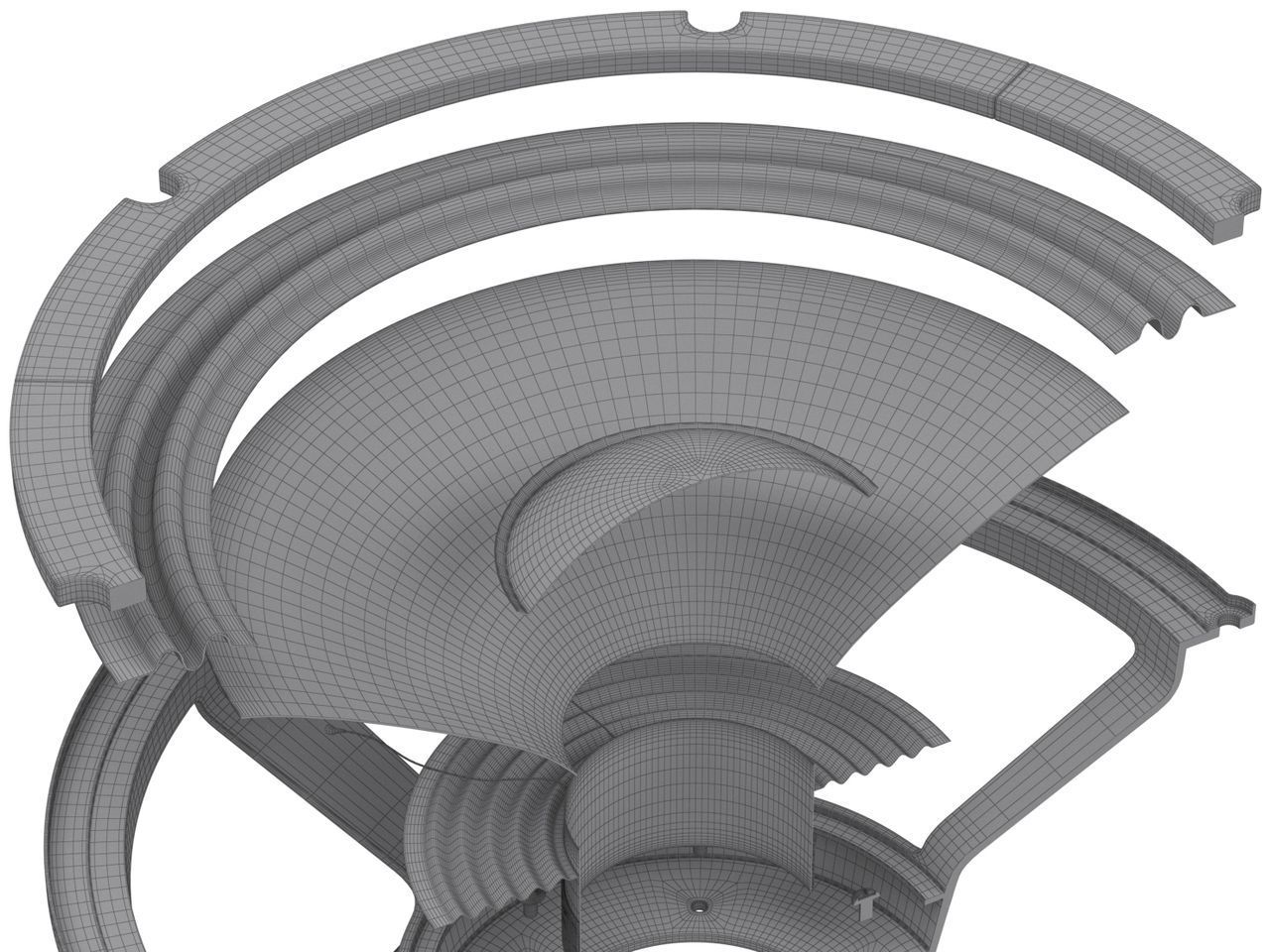

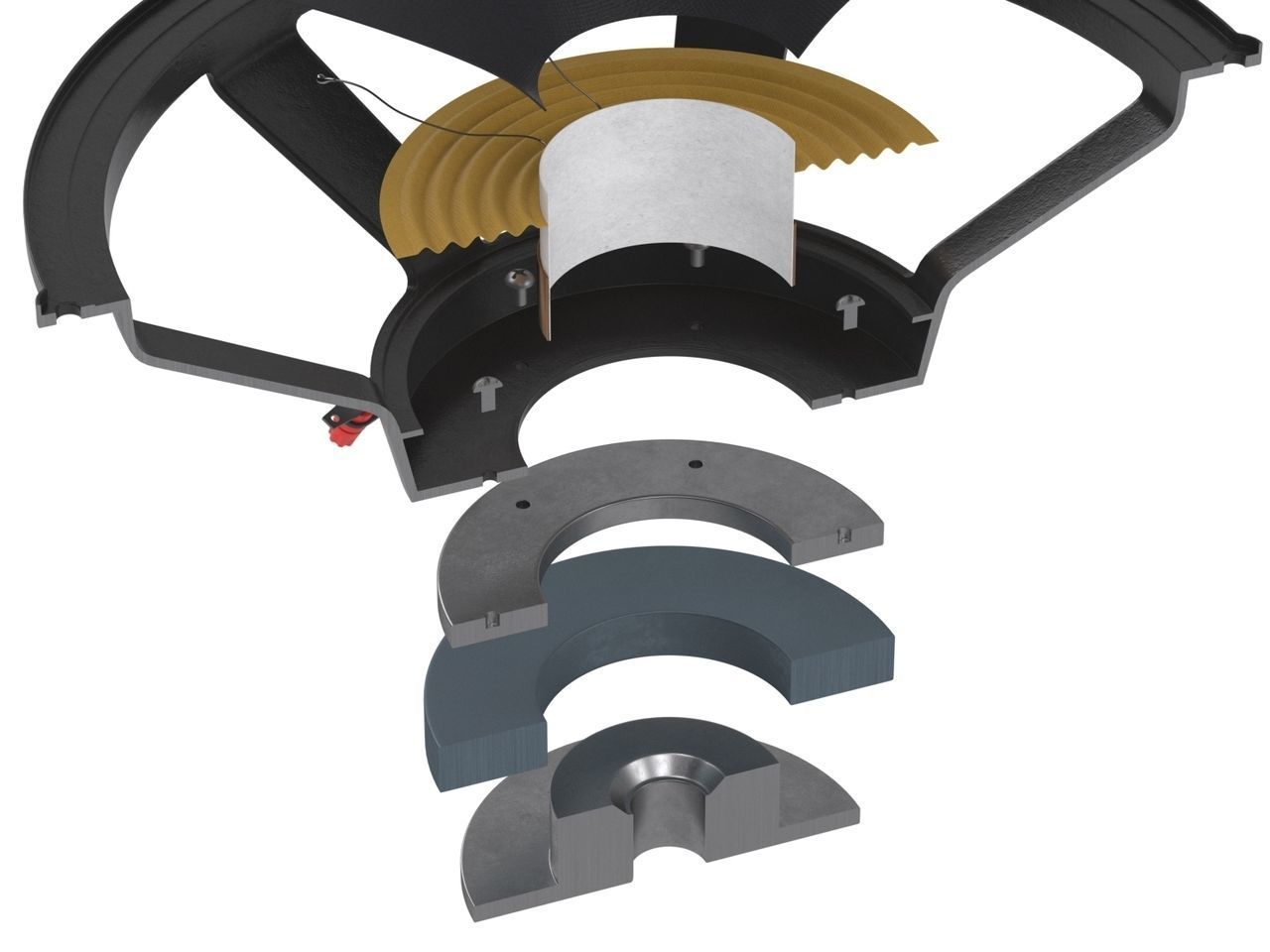

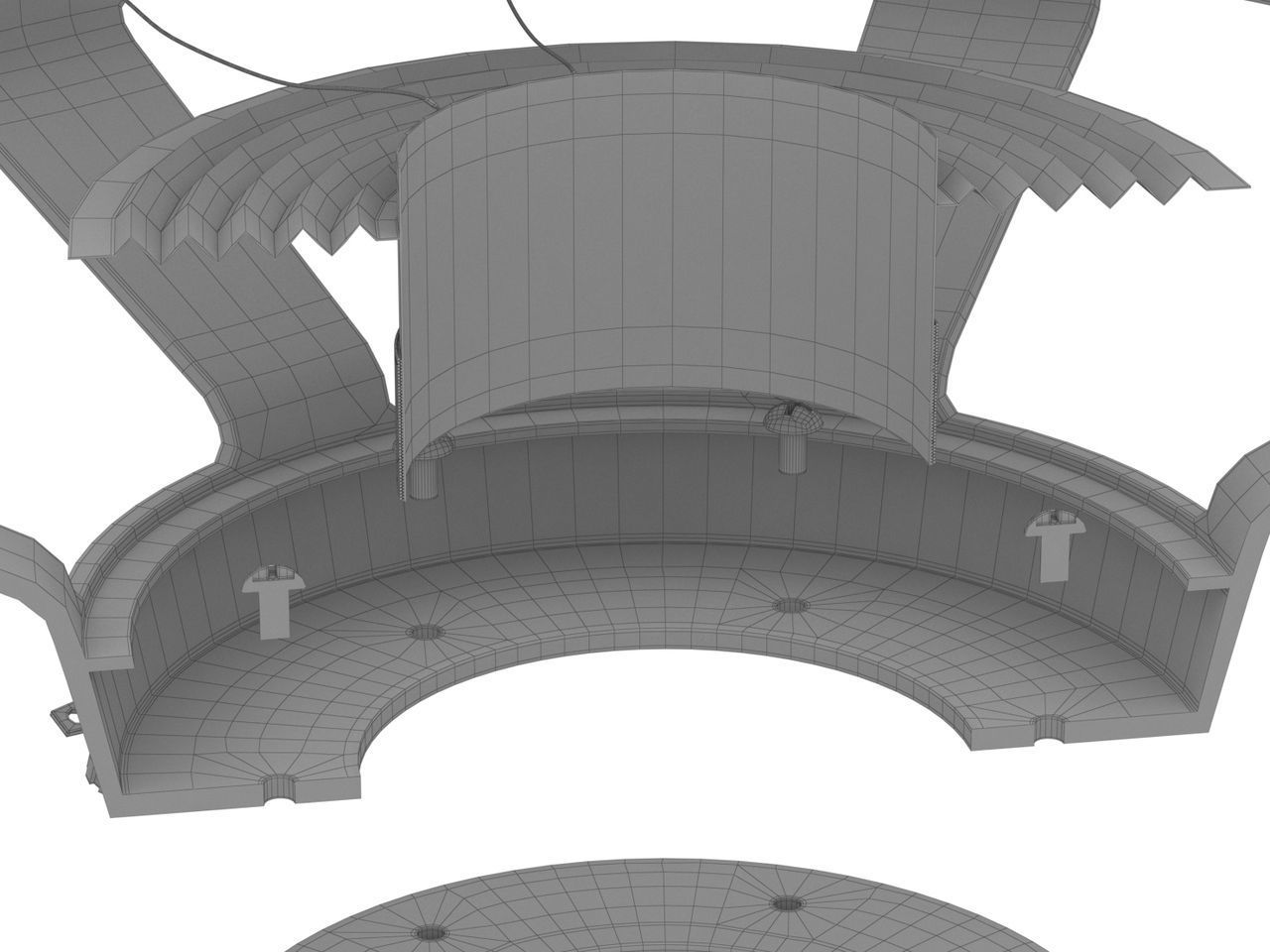

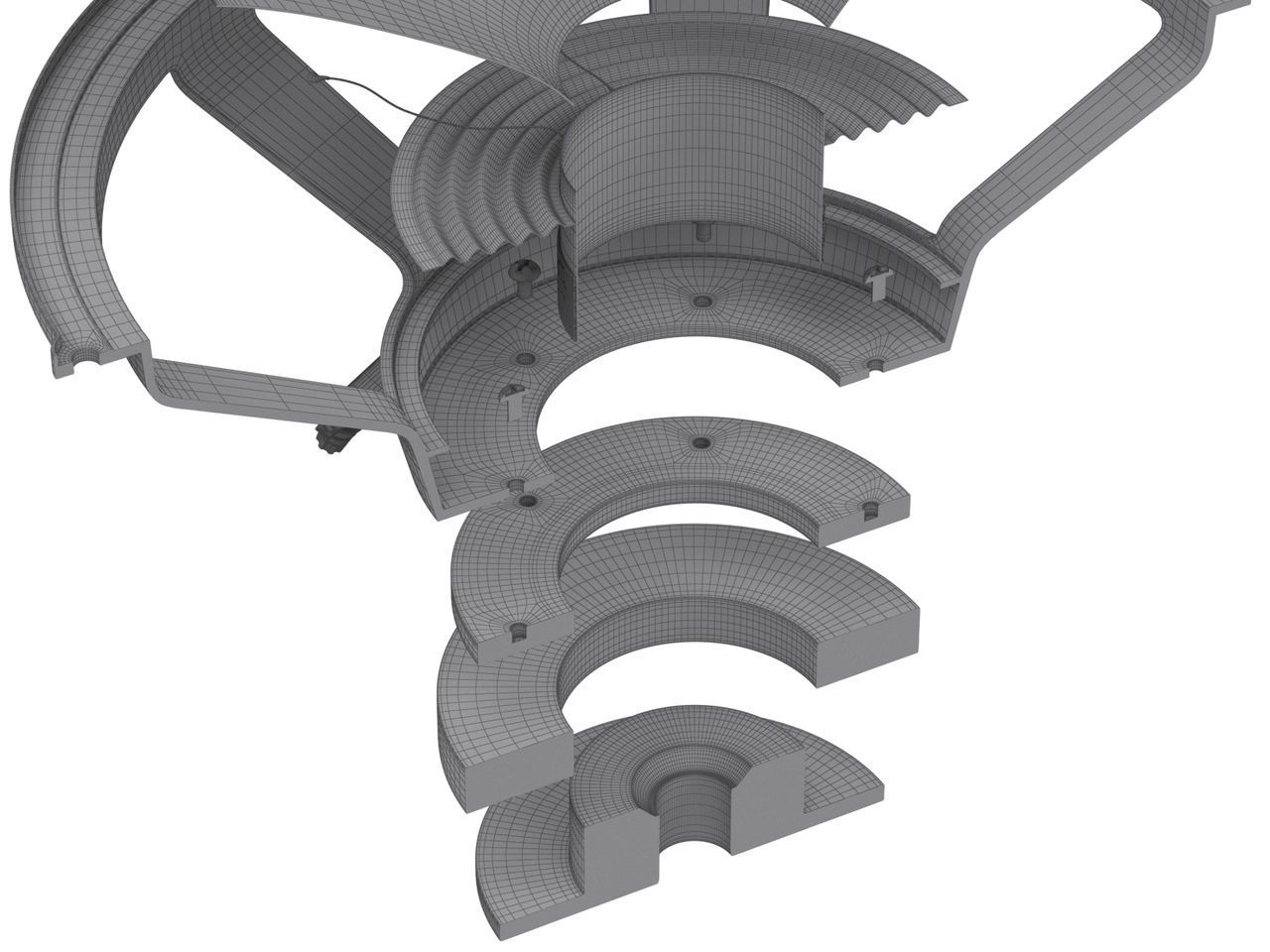

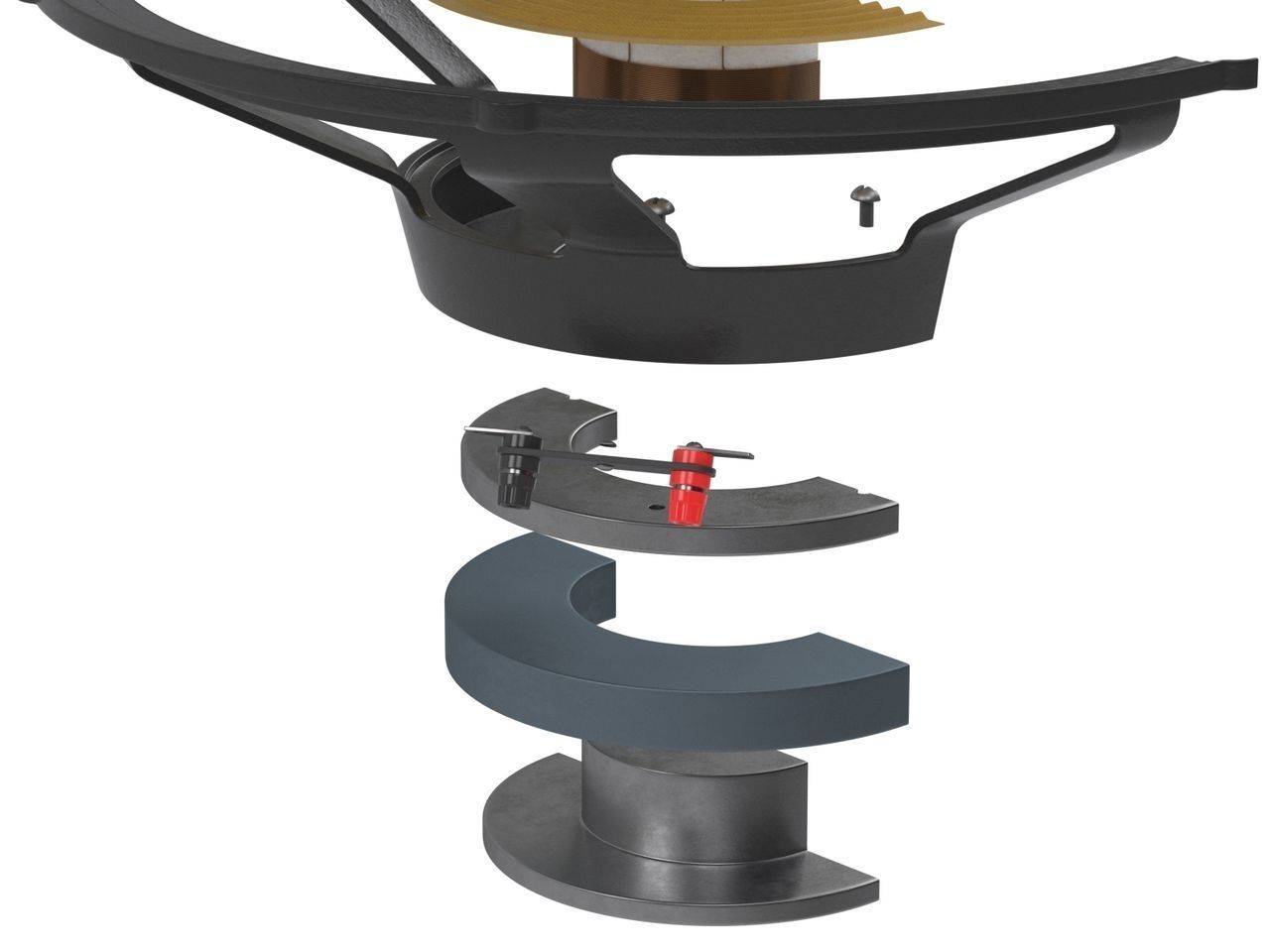

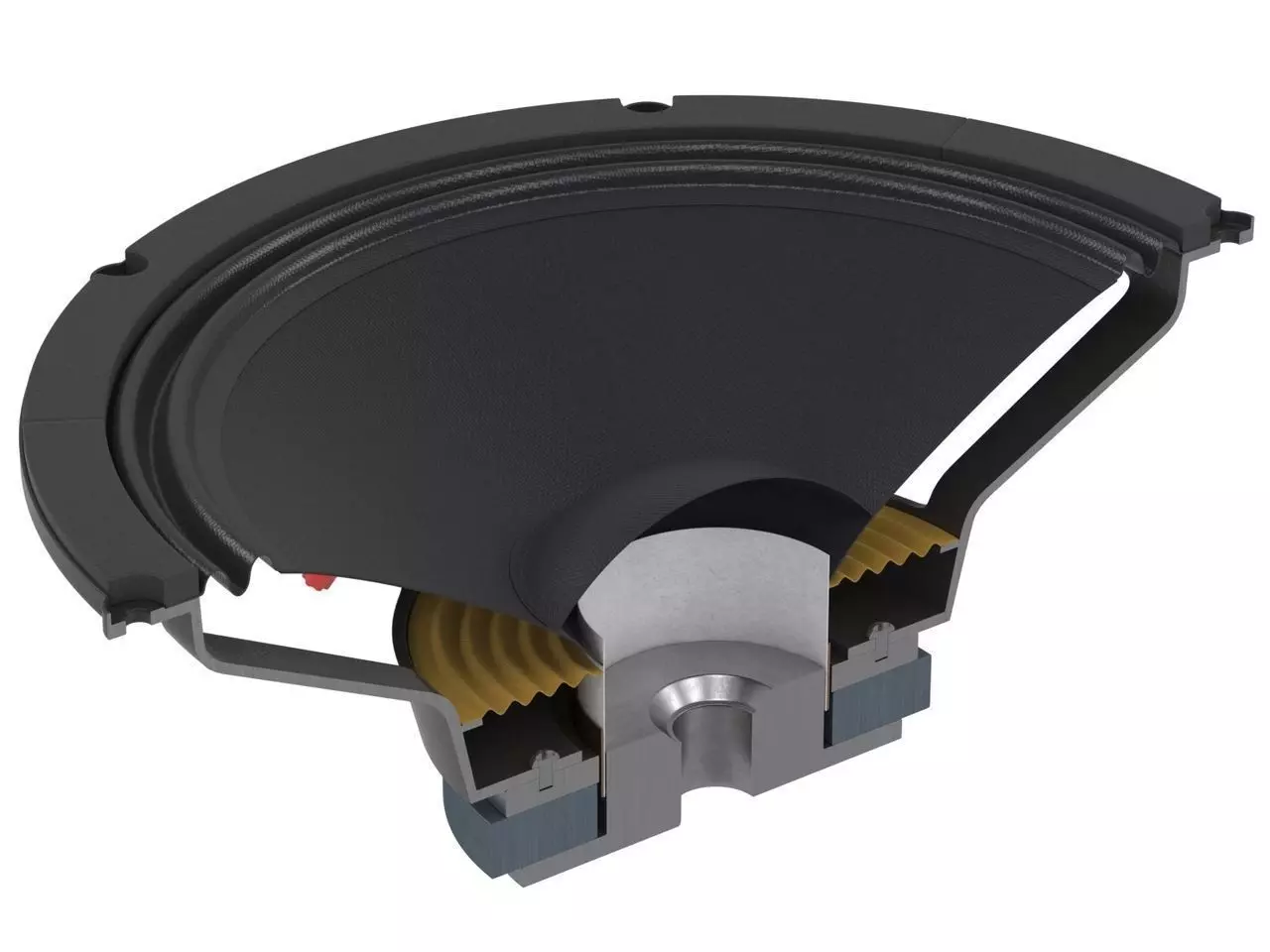

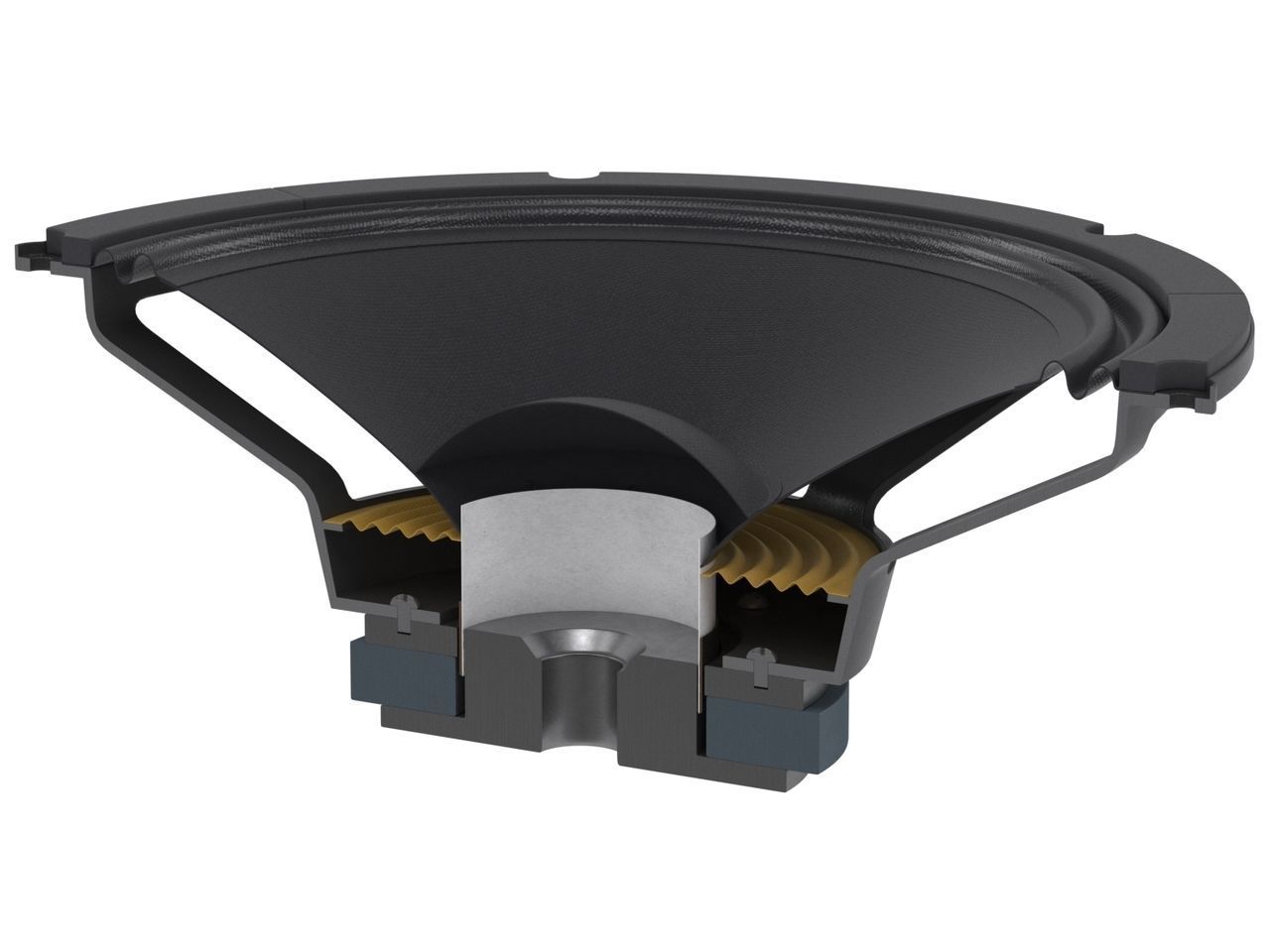

3d Model of a Speaker Driver Cross Section

Modeled in 3ds max 2015 and rendered in Vray 3.40.01

Render and lighting setup is not included

Model is subdivideable

Real world scale (centimeters) and positioned in coordinate start

Diameter/Height:31cm /11cm

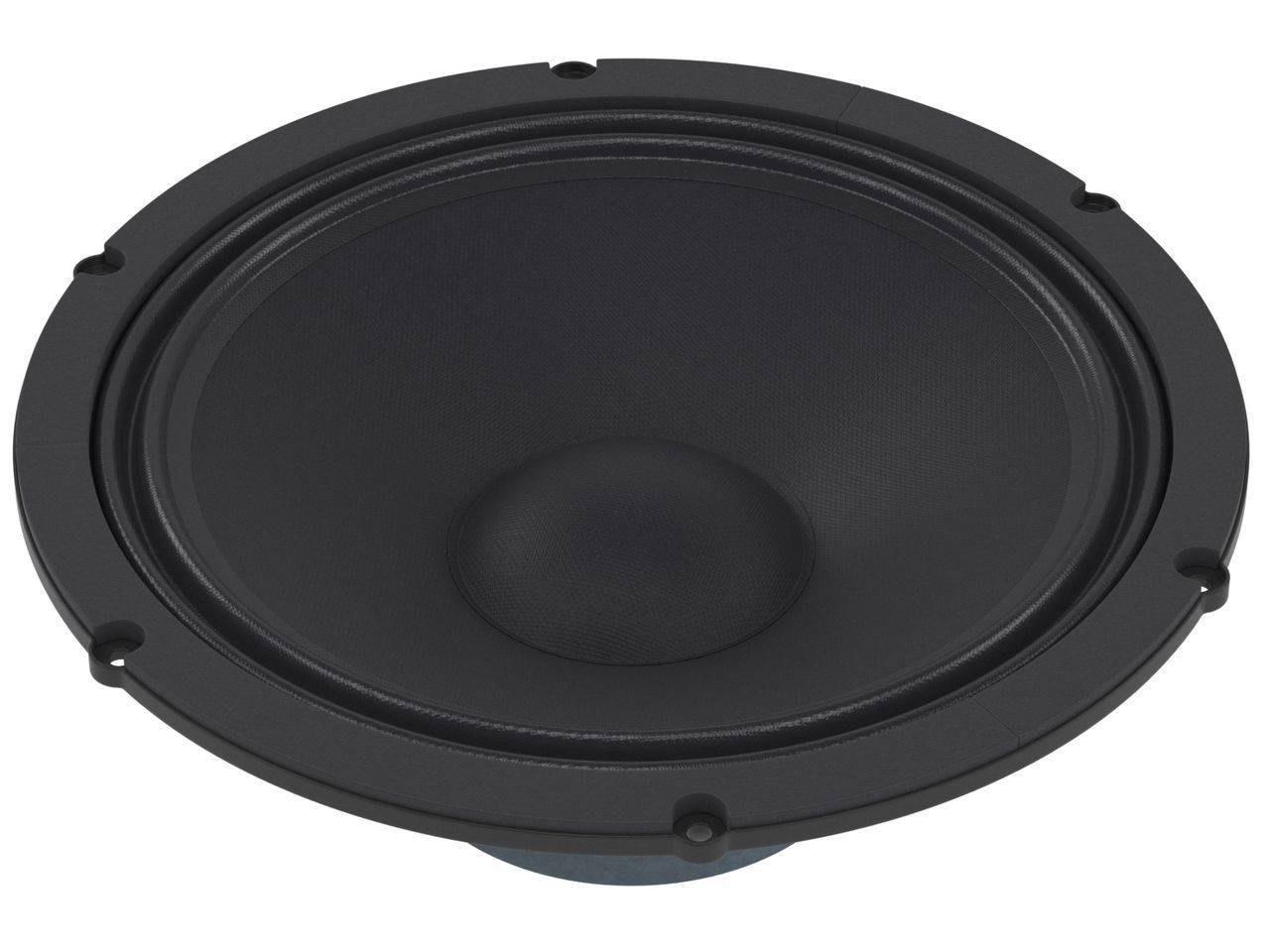

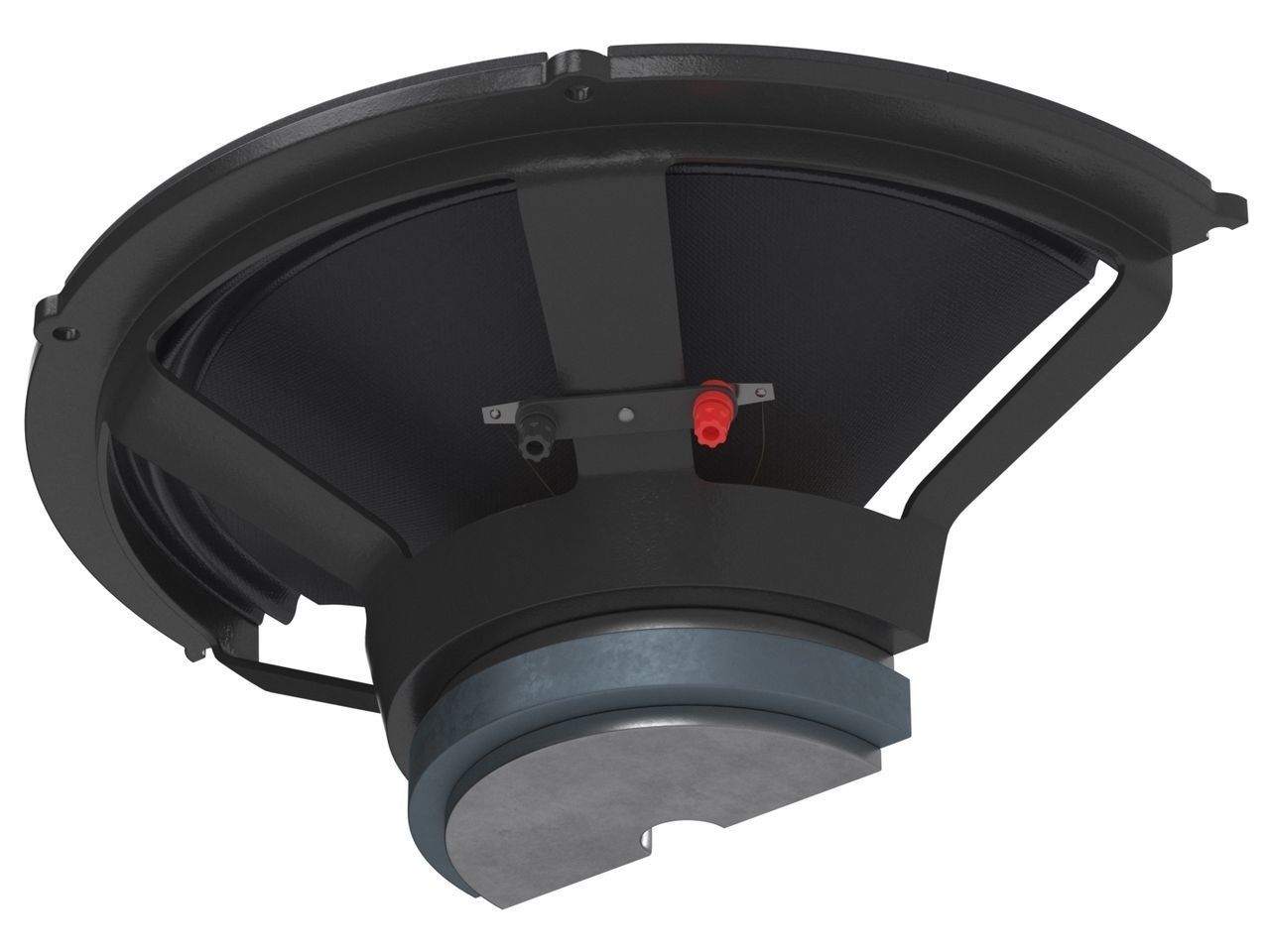

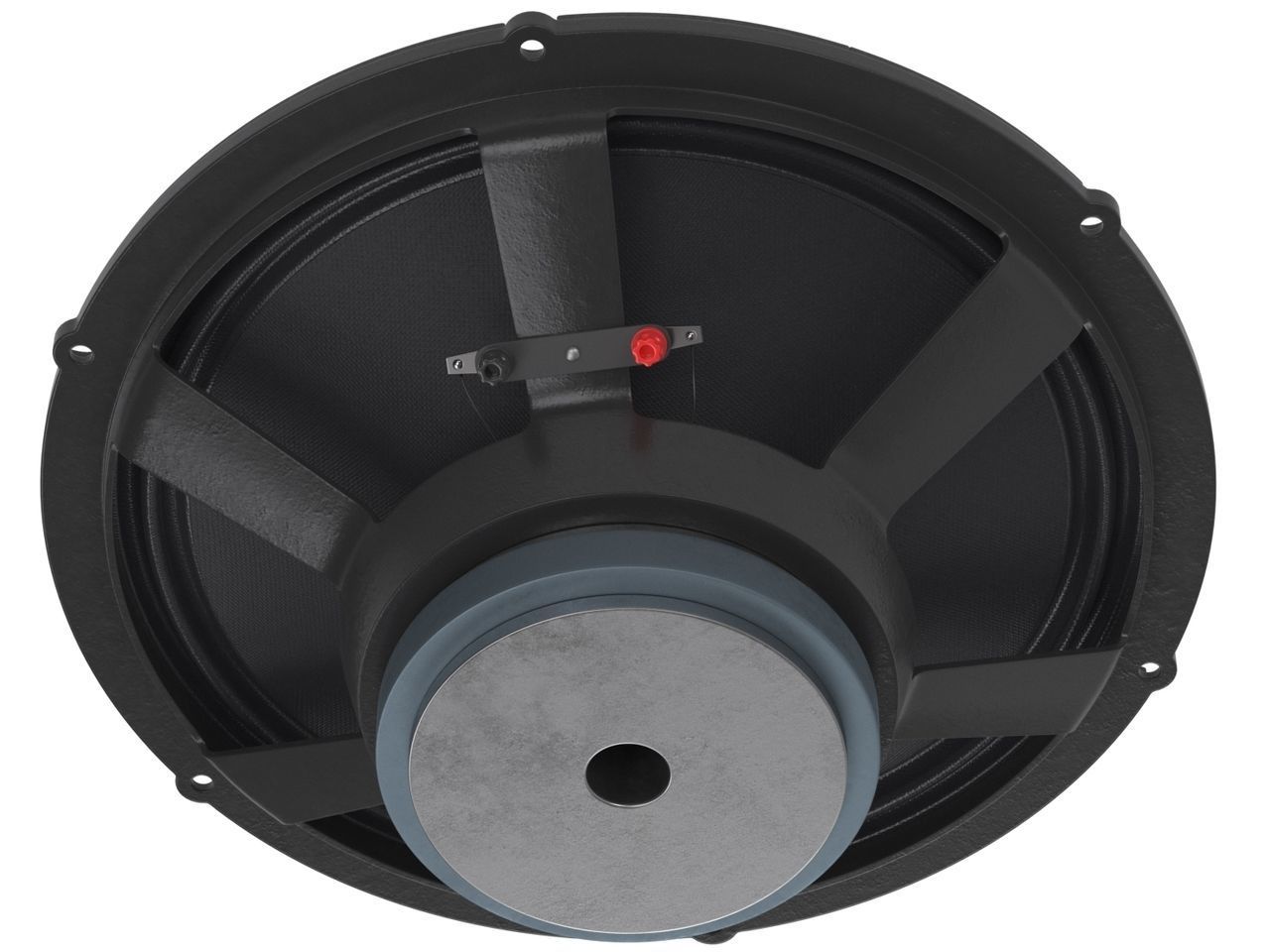

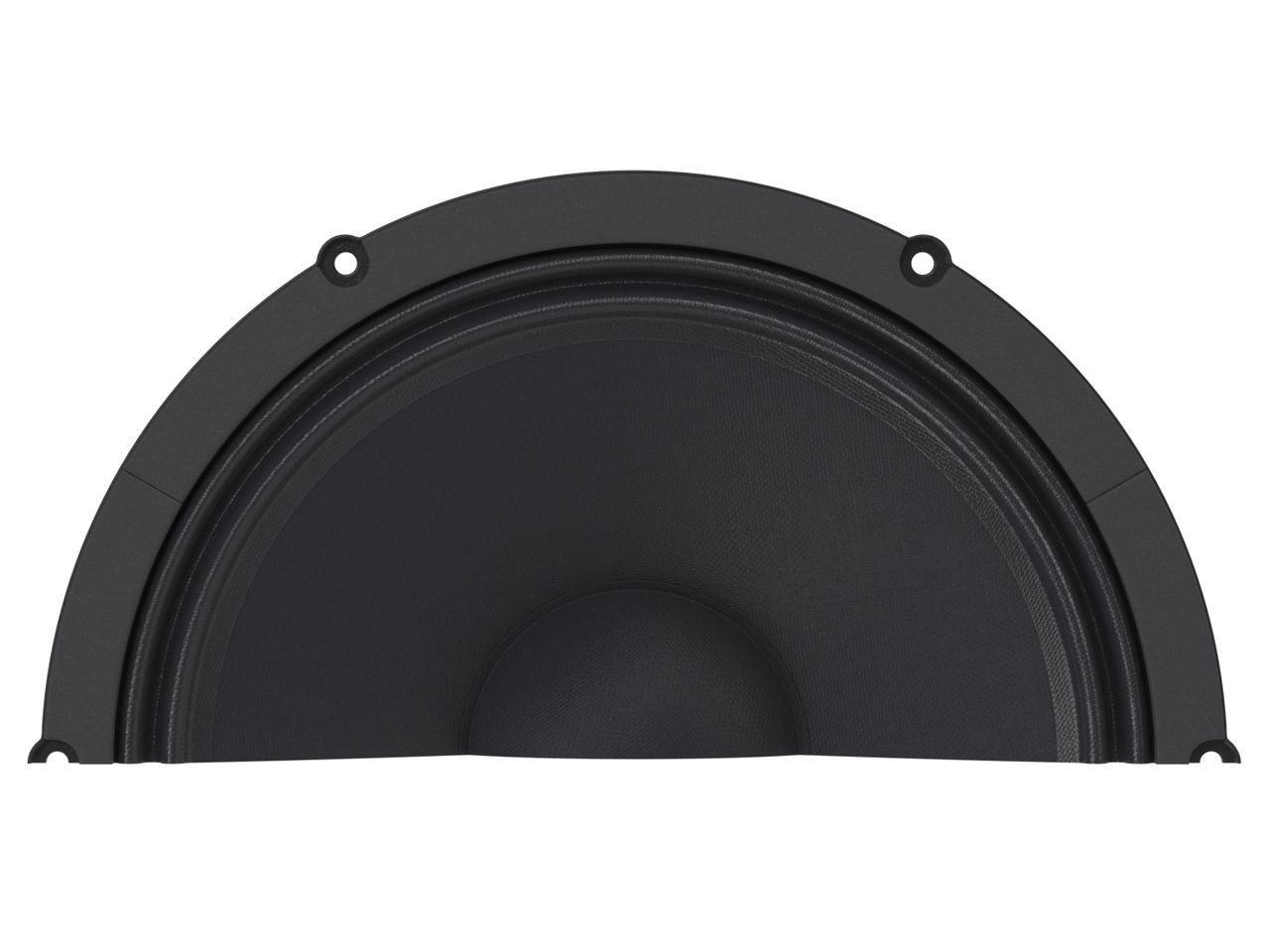

The non-cut version is also included

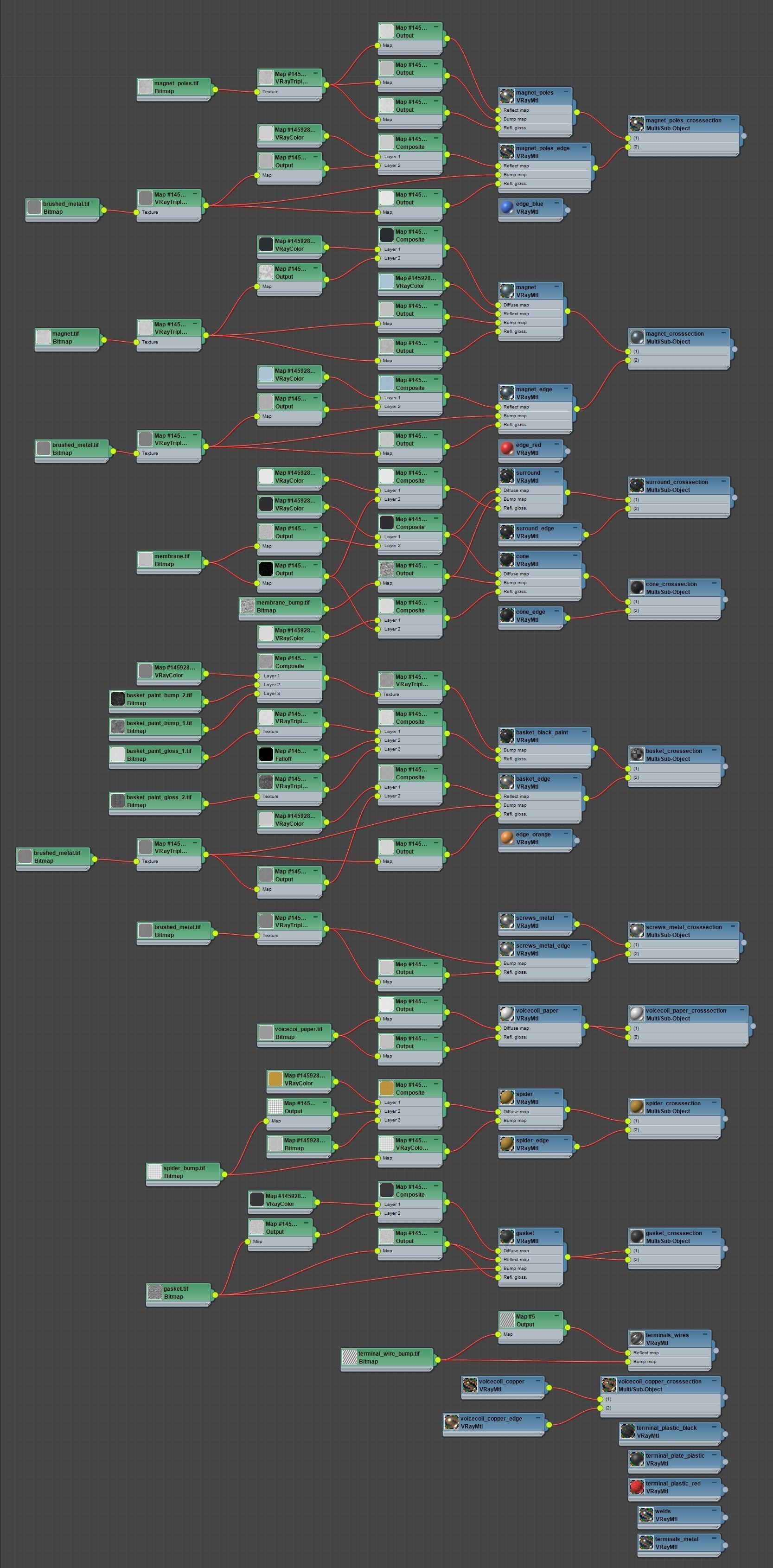

.max versions contain vray materials, .obj versions are geometry only

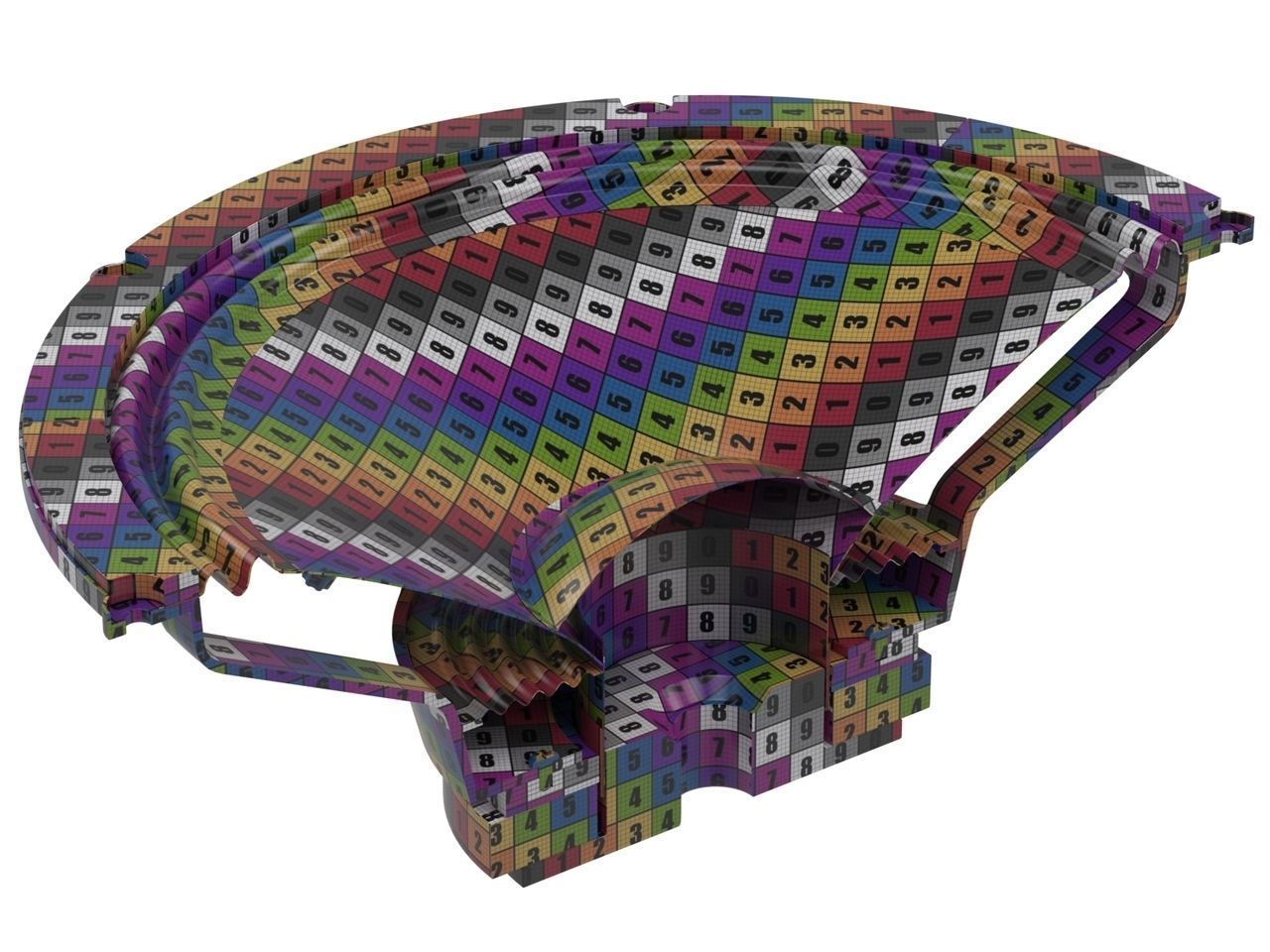

Unwrapped UVs (except for some small pars which have simpe box mapping), but they are not packed together in one UV layout (each object is unwrapped independently), all UVs are the same scale

Relative texture paths

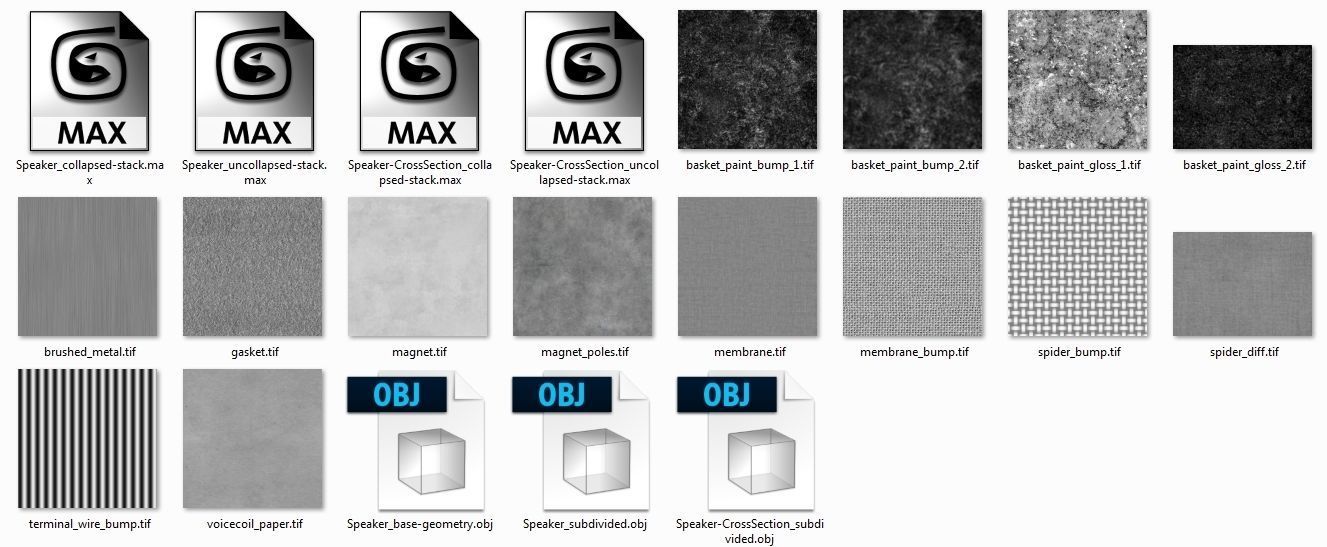

Texture maps:

  • basket_paint_bump_1.tif - 1024*1024

  • basket_paint_bump_2.tif - 1024*1024

  • basket_paint_gloss_1.tif - 1024*1024

  • basket_paint_gloss_2.tif - 1365*1024

  • brushed_metal.tif - 1024*1024

  • gasket.tif - 1024*1024

  • magnet.tif - 1024*1024

  • magnet_poles.tif - 1024*1024

  • membrane.tif - 2048*2048

  • membrane_bump.tif - 256*256

  • spider_bump.tif - 512*512

  • spider_diff.tif - 2240*1680

  • terminal_wire_bump.tif - 256*256

  • voicecoil_paper.tif - 1024*1024

Scene versions:

Speaker-CrossSection_collapsed-stack.max - Cross section version, collapsed stack with 2 TurboSmooth levels applied poly: 224,352 vert: 225,227

Speaker-CrossSection_uncollapsed-stack.max - Cross section version, uncollapsed stack poly: 293,740 vert: 225,407

Speaker_uncollapsed-stack.max - Whole driver version, uncolapsed stack poly: 533,576 vert: 274,978

Speaker_collapsed-stack.max - Whole driver version, collapsed stack with 2 TurboSmooth levels applied poly: 274,596 vert: 274,978

Speaker_base-geometry.obj - Whole driver version, base geometry only poly: 118,852 vert: 229,920

Speaker_subdivided.obj - Whole driver version, geometry only with 2 TurboSmooth levels applied poly: 274,612 vert: 274,978

Speaker-CrossSection_subdivided.obj - Cross section version, geometry only with 2 TurboSmooth levels applied poly: 151,452 vert: 151,940

jd94
jd94 2021-04-02 13:52:46 UTC
awesome work!
Item rating
0 0
Speaker Cross Section
$29.00

Royalty Free License
Speaker Cross Section
$29.00

Royalty Free License
Response 55% in 11.5h

3D Model formats

Format limitations
  • OBJ (.obj, .mtl)15.8 MB
  • Autodesk 3ds Max 2015 (.max)35.5 MBVersion: 2015Renderer: V-Ray 3.40.01
  • Textures 13.9 MB

3D Model details

  • Publish date2018-01-05
  • Model ID#828795
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 224,352
  • Vertices 225,227
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Overlapping
  • Plugins used
  • Ready for 3D Printing
