Hand fan lace multicolor rigged low poly Low-poly 3D model

• Model of a lace hand fan, embroidered hand painted. It includes support.
• You can change the color of the fabric and embroidery by changing the color of the material.
• Model suitable for close-up and animation.
• With instructions and animation included.

• Also available without rig.

• Units of file: centimeters.

• Size in centimeters (hand fan): 43.24 (X axis), 4.8 (Y axis), 34.81 (Z axis).

• Size in centimeters (support): 31.41 (X axis), 31.41 (Y axis), 23.19 (Z axis).

• Real world scale. (1,1,1).

• Focused on the origin.

TOPOLOGY

• Are two objects: the fan and support. The fan is 20 manifold meshes and support one.

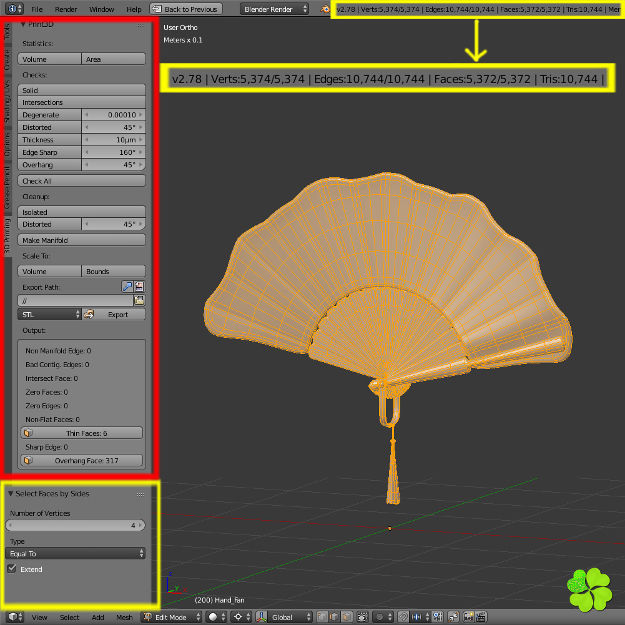

• 100% quads, with 6,093 in total (5,372 hand fan and 721 support).
• With 6,095 vertex in total (5,374 hand fan and 721 support).
• With 12,186 edges in total (10,744 hand fan and 1,442 support).
• Subdividable topology.
• Clean edge flow.
• No isolated vertices.
• No coincident vertices.
• No coincident/coplanar faces.
• No faces intersected.
• No faces distorted more than 45 degrees.
• No loss geometry.
• No poles with more than 5 edges.

RIG

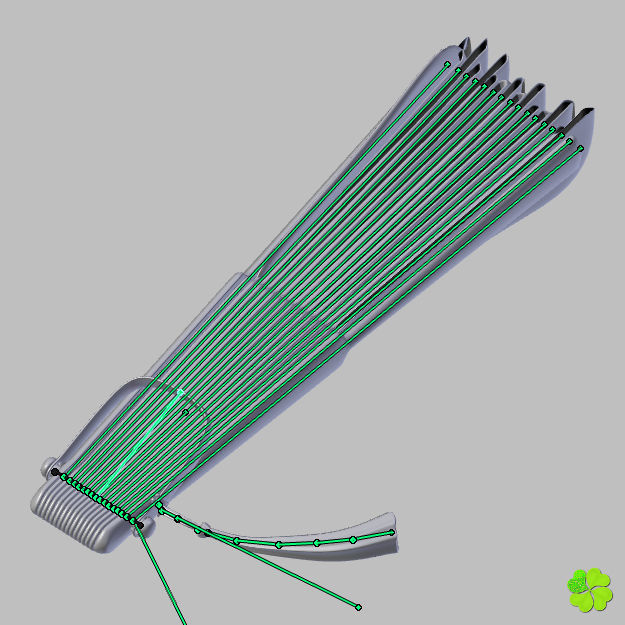

• Armature with 49 bones: 30 animated and 19 auxiliary.
• All moves are made locally.
• The bones are replaced by shapes, with forms and color guidance.
• The form indicates the action arrow to move, circle to rotate, and square to scale. They can be combined in the same bone.
• The color indicates the local axis on which the action is performed: red for the X axis, green for the Y axis, and blue for the Z axis. Can also be combined in the same bone.
• The actions and its range of allowable values are controlled by constraint on each bone.
• Auxiliary objects and bones are hidden and another layer.
• With animation included.

UVMAP AND TEXTURES

• Normal outward.

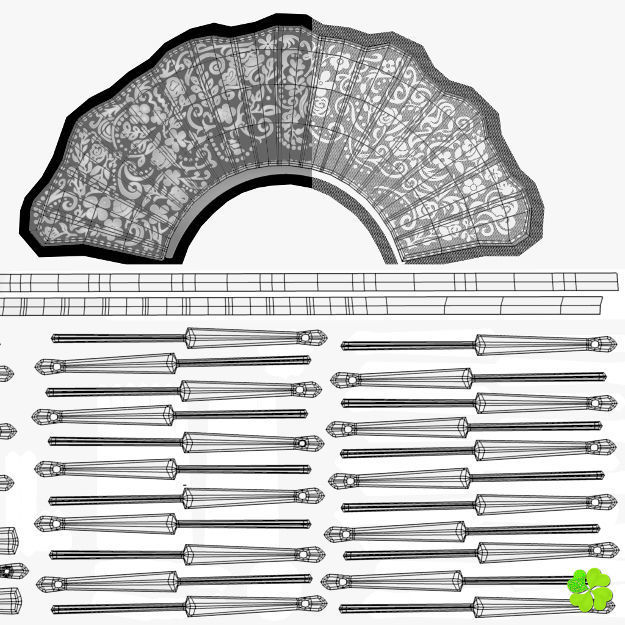

• UV without overlapping.
• The color of the fabric and the embroidery is controlled by the color of the material.
• The image of embroidery is hand painted and then converted to svg format.
• It includes an optional image for normal map which is the simplified version of the 3 used for the bump.
• All textures of 8192x4096 pixels.

Image textures included:

• hand_fan_embroidered_alpha_mirror.png
• hand_fan_embroidered_bump.png
• hand_fan_fabric_bump.png
• hand_fan_weft_embroidered.png
• hand_fan_normal.png (OPTIONAL)

PREVIEWS

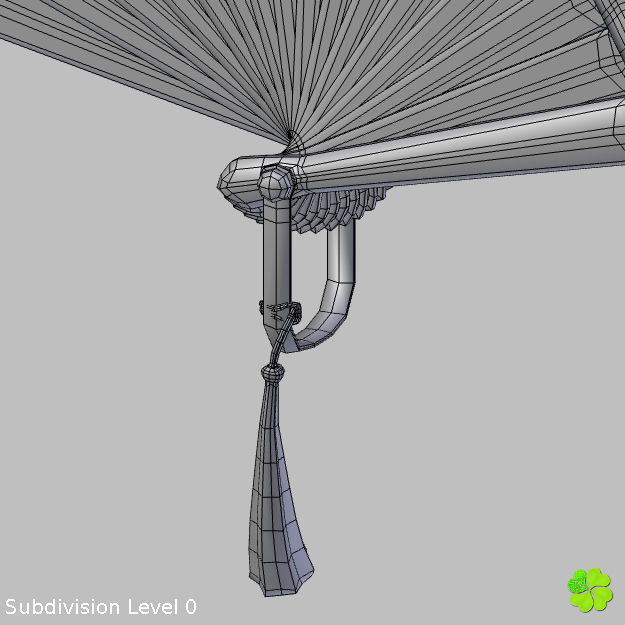

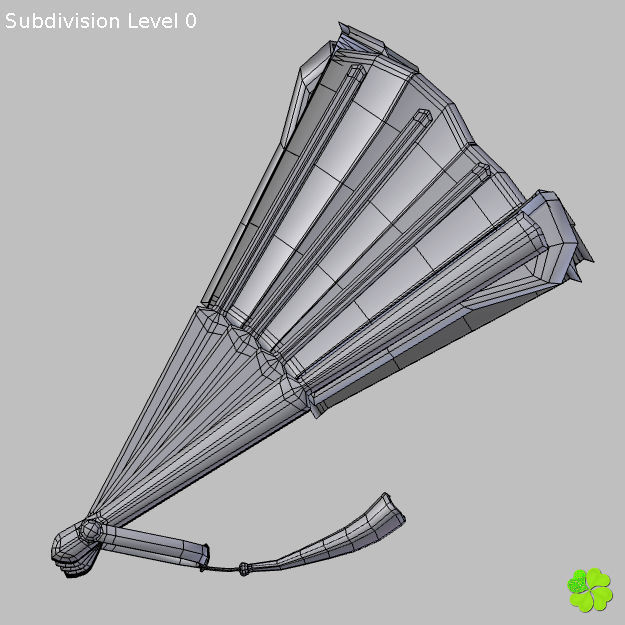

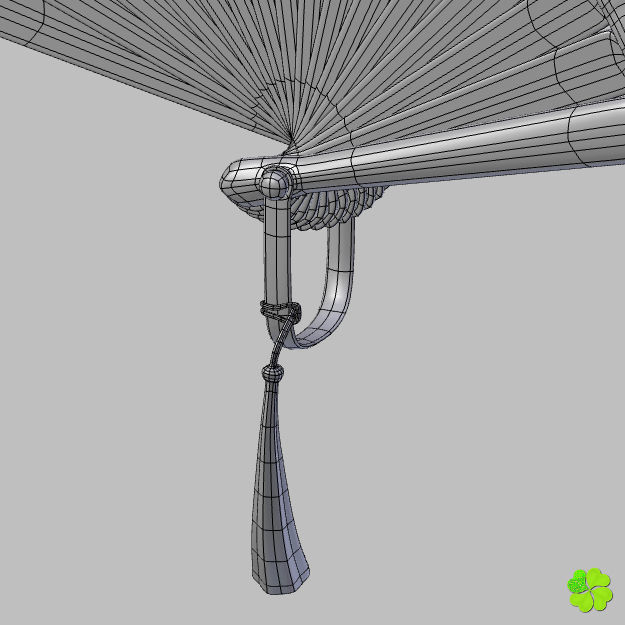

• The images of the mesh in orthographic view.
• Renders with the Blender internal engine. All without post production.


The FBX file is exported from Blender 2.78 (-Z Forward, Y Up) and may need some adjustment (textures and bones).
