Brembo 360x32 4 Piston Brake 3D Model

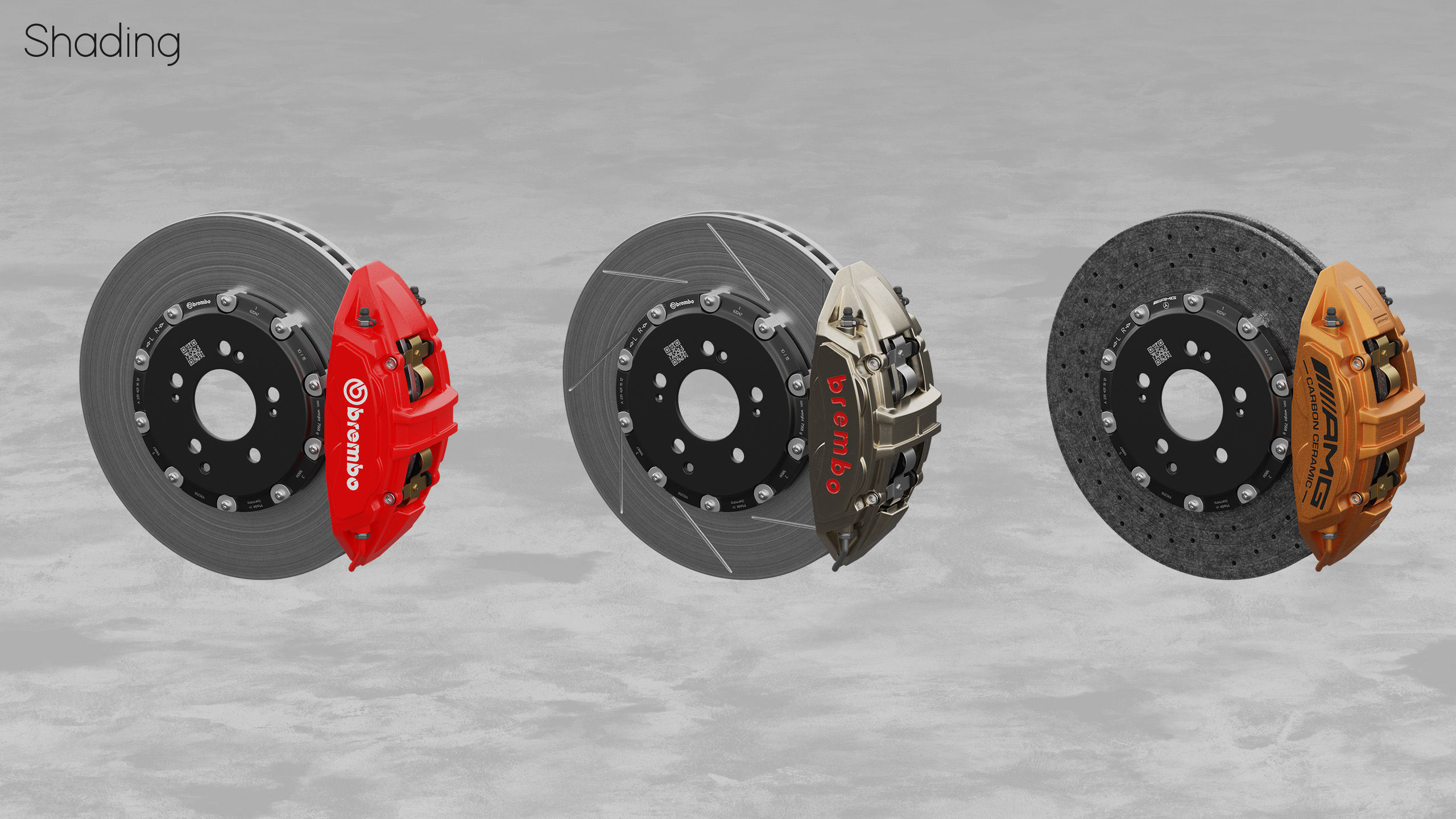

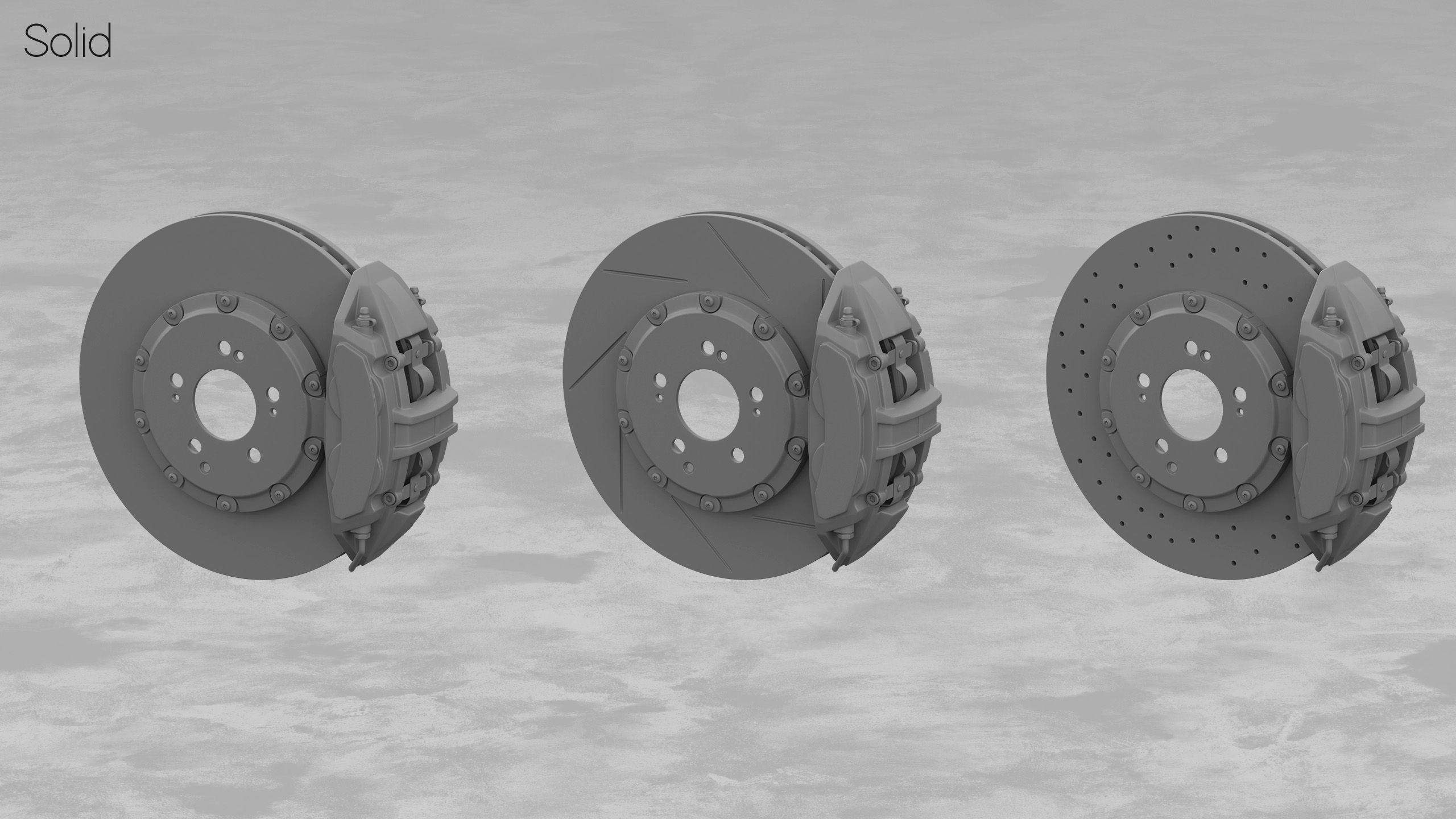

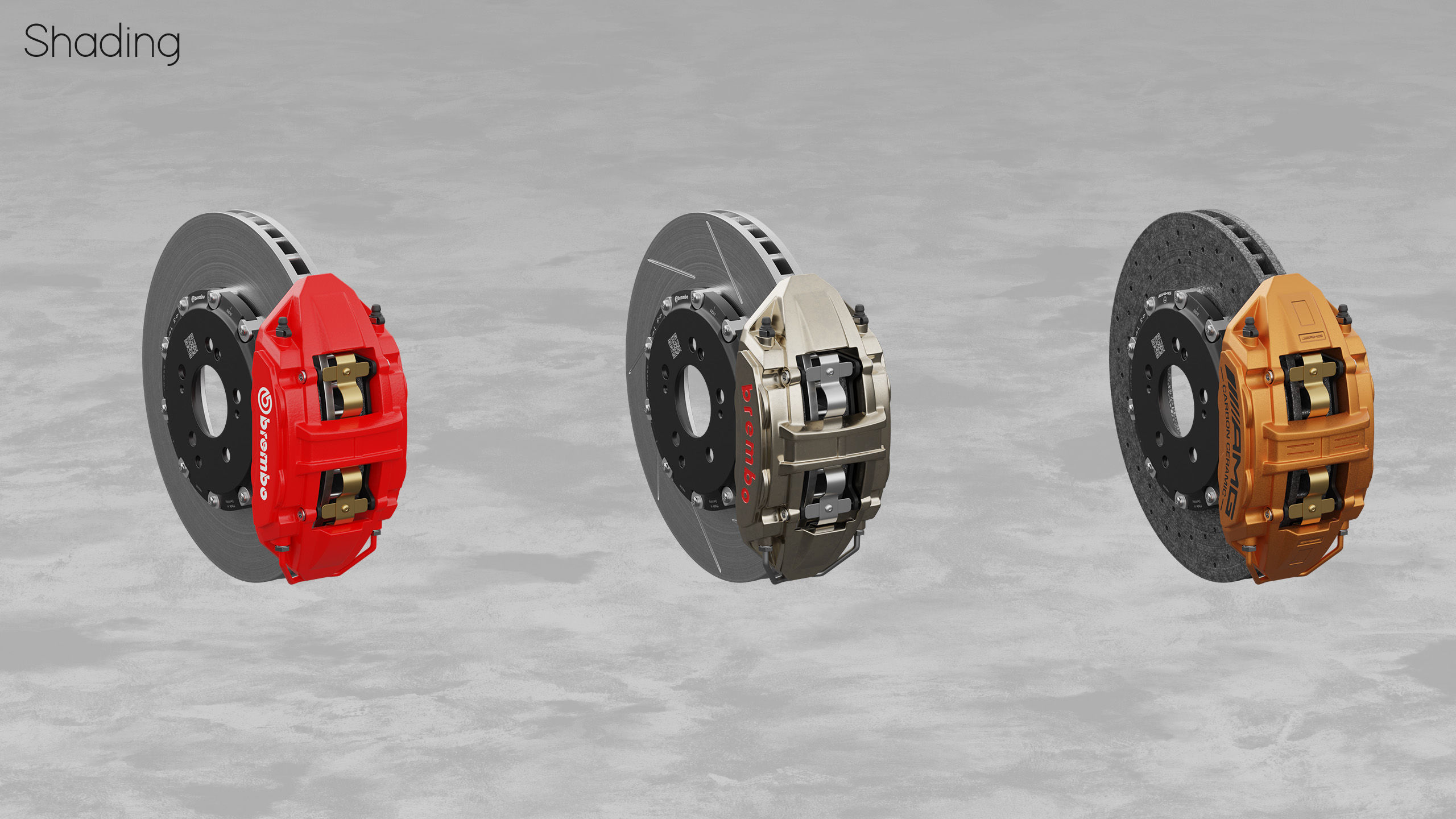

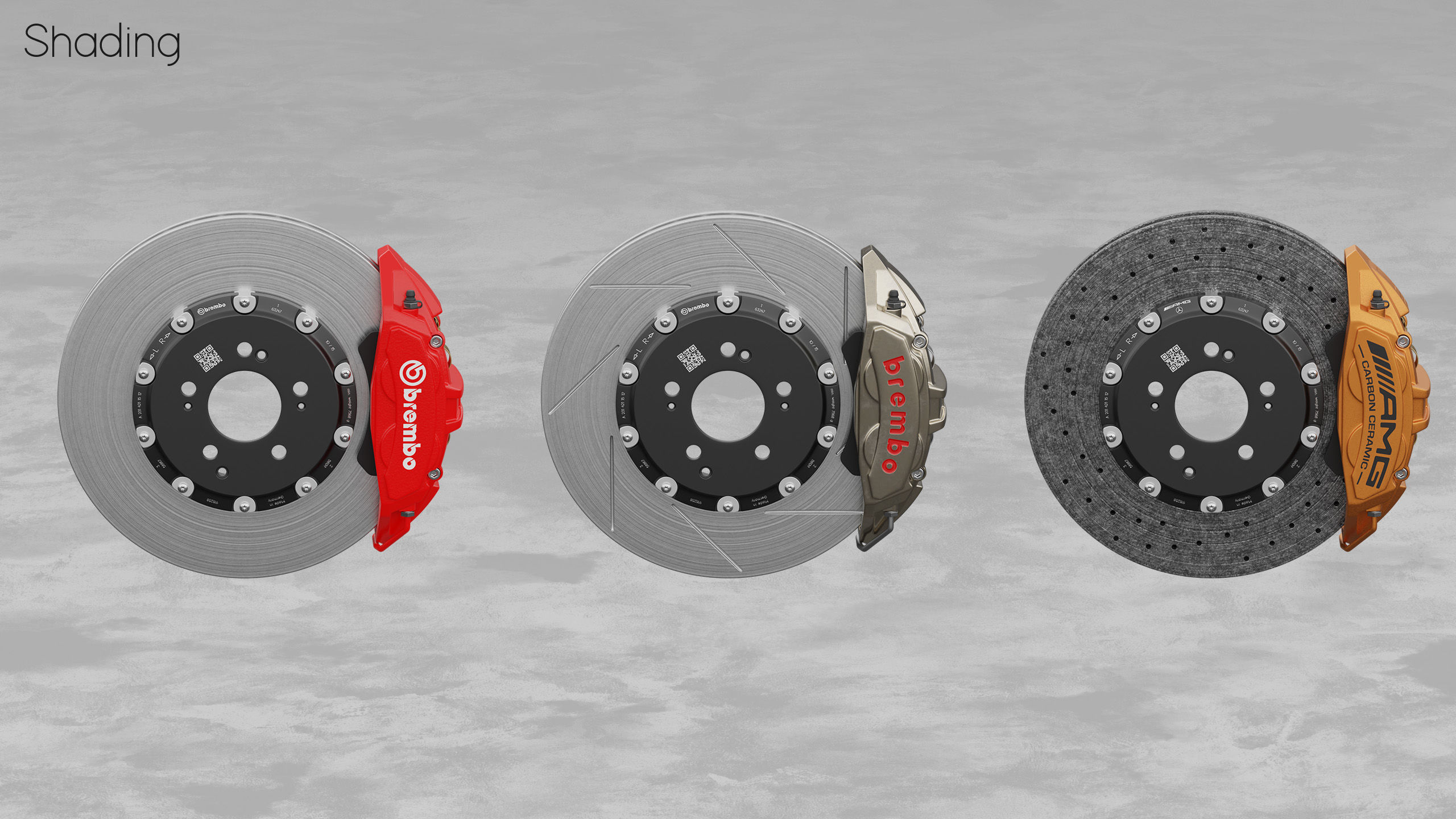

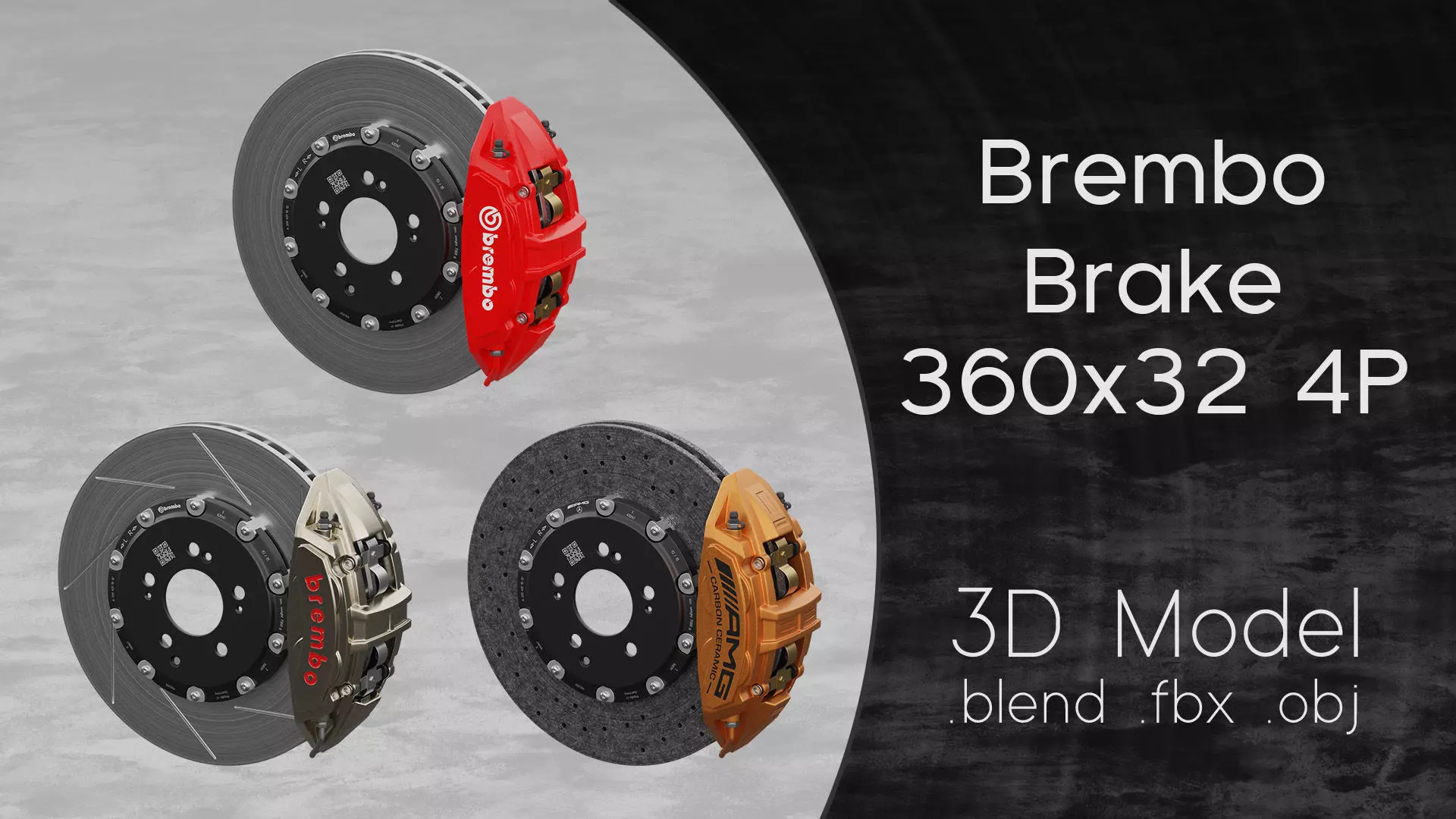

The product includes variants of a 360x32 mm brake disc and a 4 piston brake caliper.

Included variants:

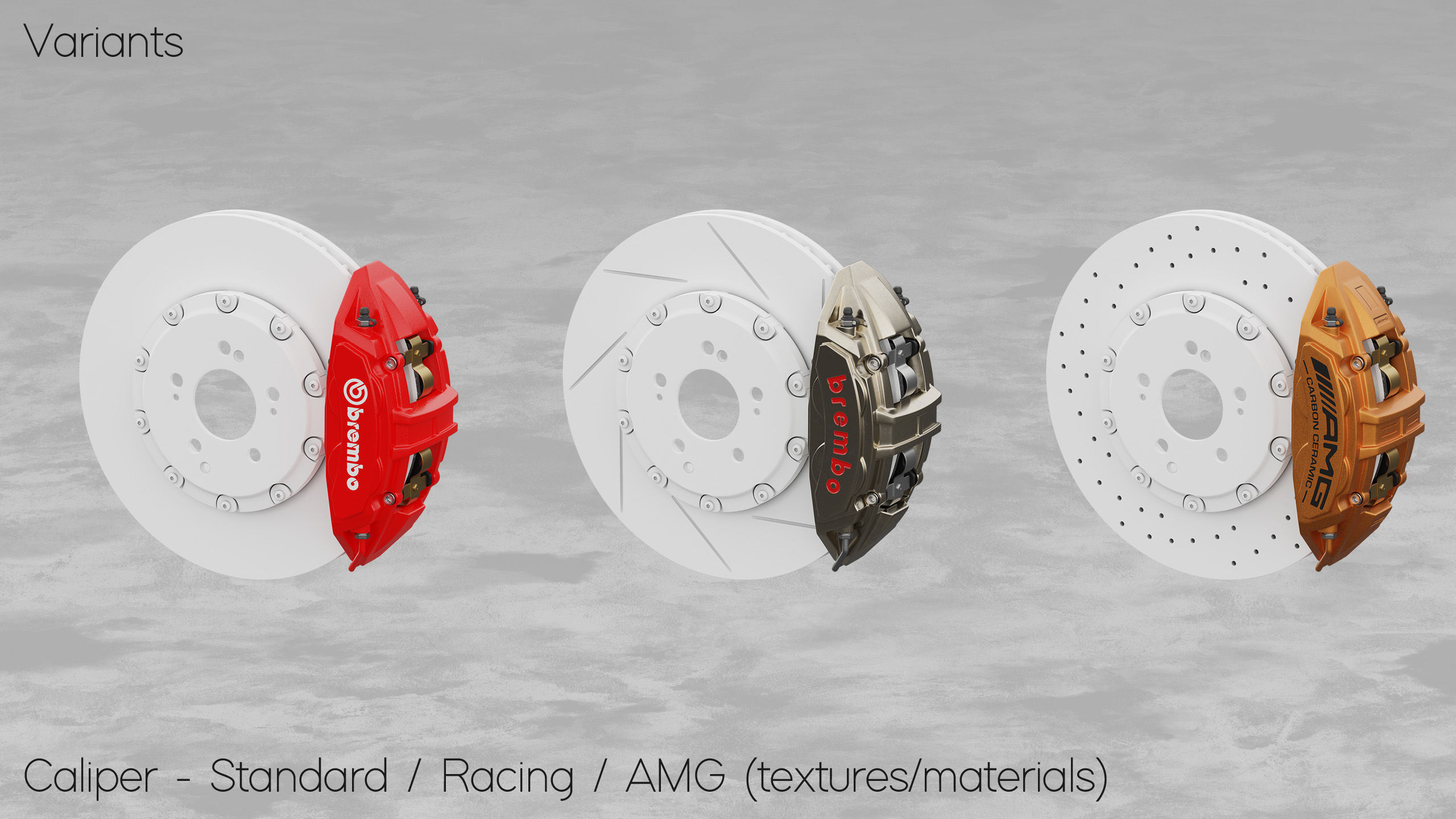

• Standard Brembo caliper
• Brembo Racing caliper
• AMG caliper

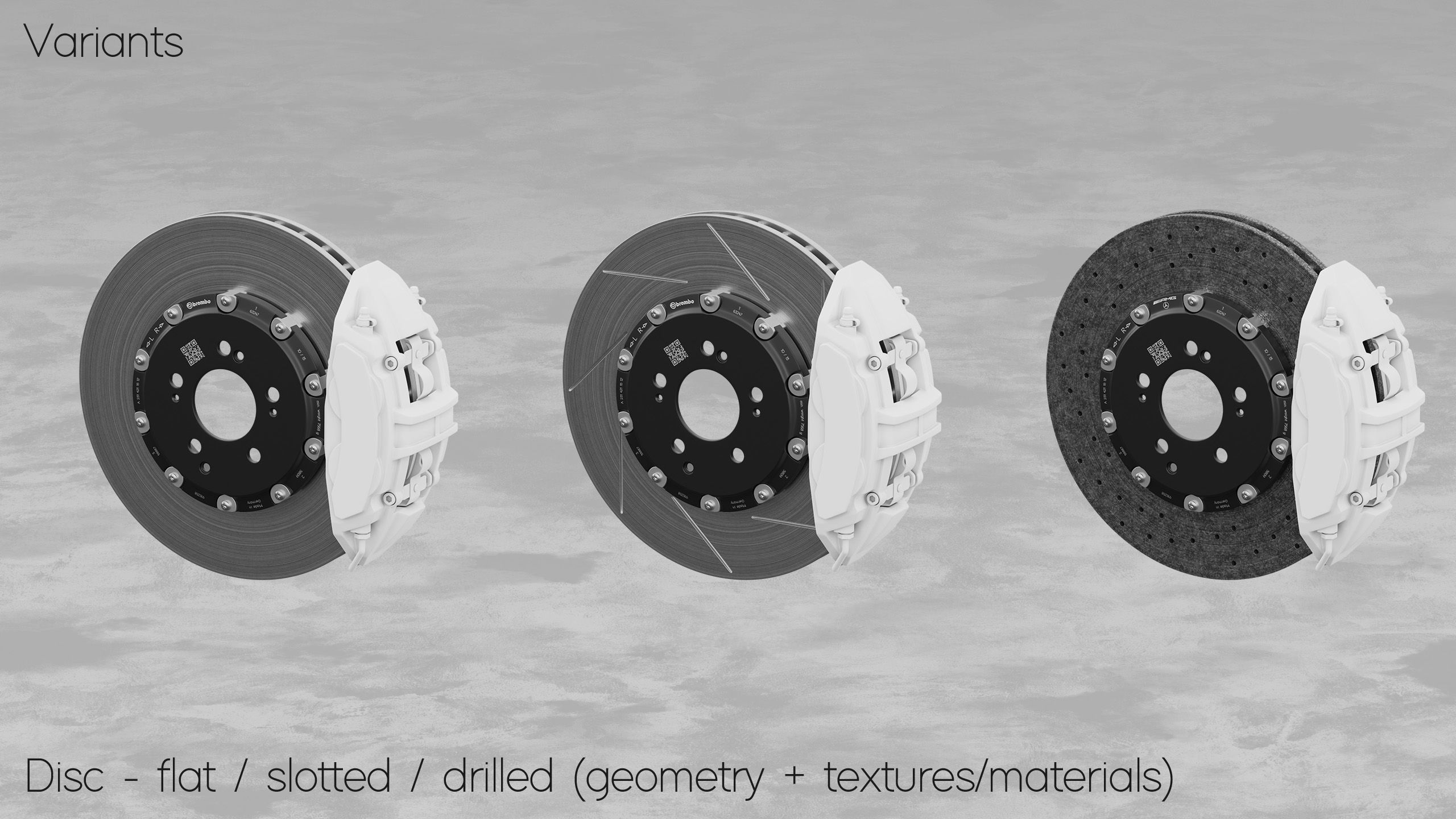

• Flat iron disc
• Slotted iron disc
• Drilled carbon ceramic disc

Modeled (unit: mm) and visualized with Blender 3.4.1

You get the base mesh with deactivated subdivision-modifiers as a .blend file, so you can choose by yourself how many subdivisions you want
+ the base mesh as .fbx and .obj
+ the subdivided mesh with a mix of subdivision level 1 and 2 as .fbx and .obj

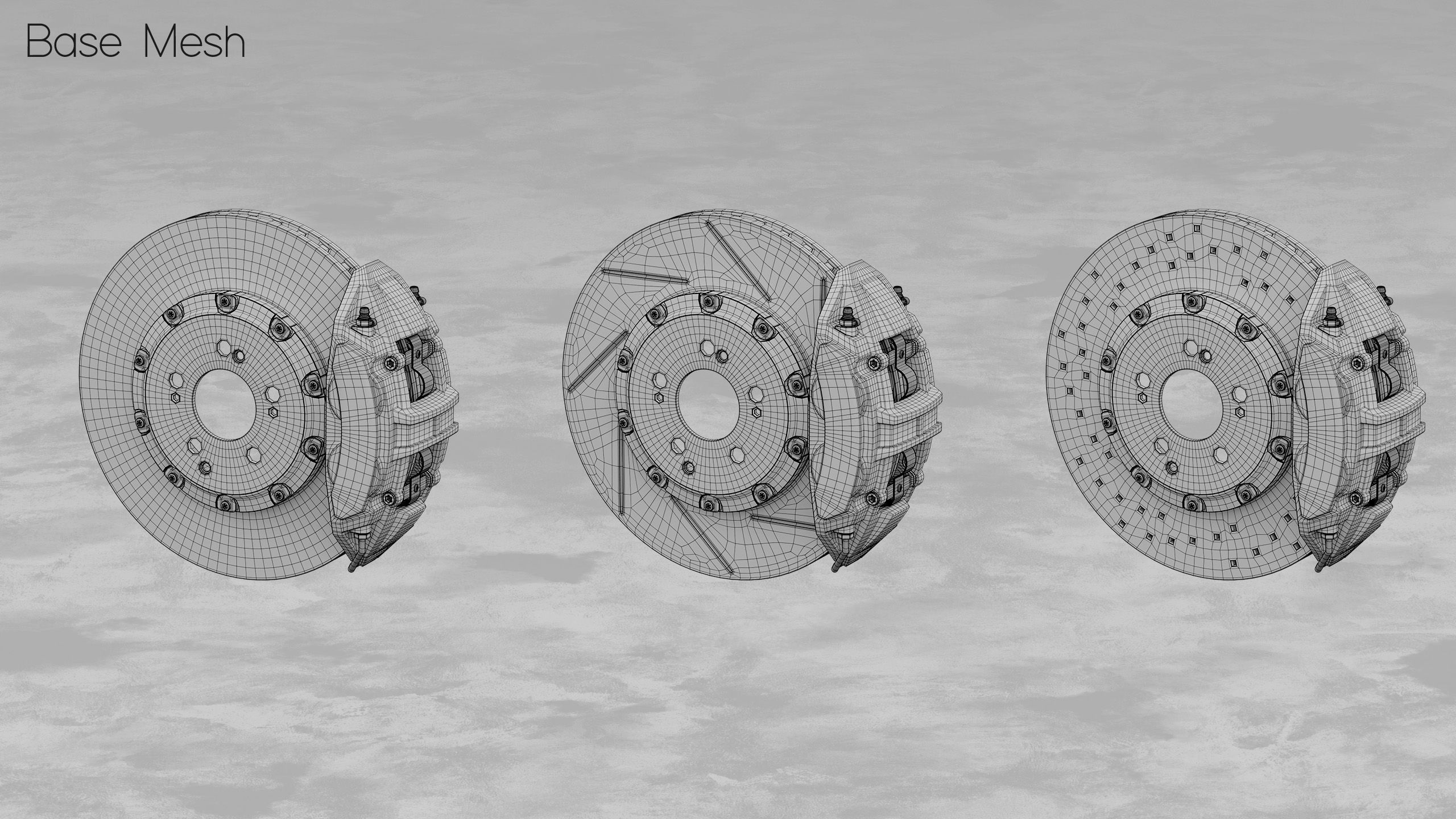

Base mesh (low poly):

Caliper:

• 24.228 vertices
• 24.314 faces

Flat Disc:

• 23.932 vertices
• 24.100 faces

Slotted Disc:

• 25.924 vertices
• 26.100 faces

Drilled Disc:

• 27.012 vertices
• 27.400 faces

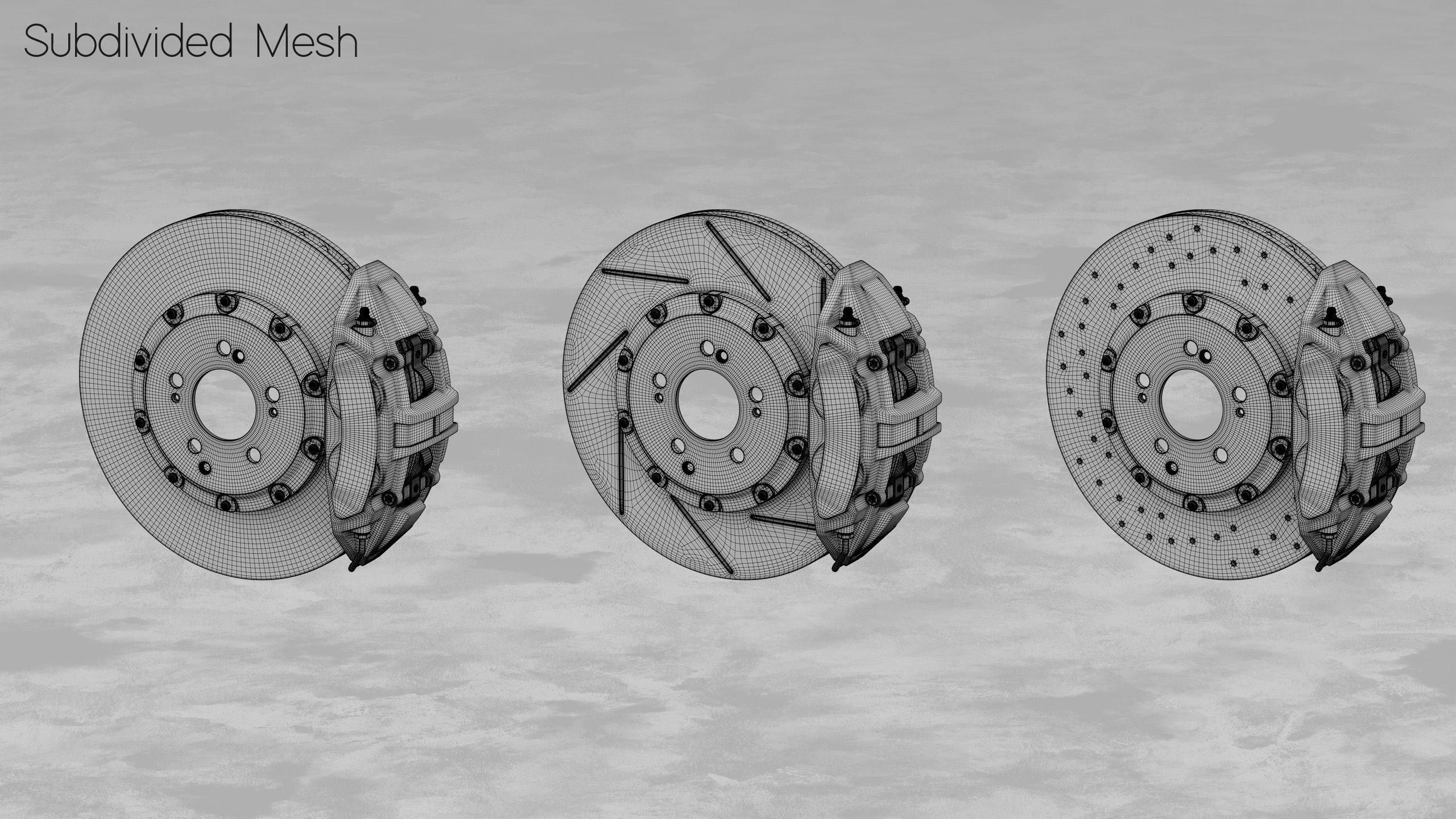

Subdivided mesh (high poly):

Caliper:

• 97.066 vertices
• 97.012 faces

Flat Disc:

• 96.122 vertices
• 96.180 faces

Slotted Disc:

• 104.106 vertices
• 104.164 faces

Drilled Disc:

• 109.102 vertices
• 109.380 faces

Real world dimensions:

• diameter of brake disc: 360 mm
• width of brake disc: 32 mm
• ptc: 5x112 mm

Included textures:

• Standard caliper: 1x 4K PNG (Decal)
• Racing caliper: 3x 4K PNG (Decal, Height, Normal)
• AMG caliper: 3x 4K PNG (Decal, Height, Normal)
• Brake pad: 4x 1K PNG (Color, Height, Normal, Roughness)
• Carbon ceramic brake disc (friction): 4x 4K PNG (Color, Height, Normal, Roughness)
• Carbon ceramic brake disc (no friction): 4x 4K PNG (Color, Height, Normal, Roughness)
• Iron brake disc (friction): 4x 4K PNG (Color, Height, Normal, Roughness)
• Iron brake disc (no friction): 2x 4K PNG (Color, Roughness)
• Standard brake disc bell: 3x 4K PNG (Decal, Height, Normal)
• AMG brake disc bell: 3x 4K PNG (Decal, Height, Normal)

Included fileformats:

• .blend (native file with base mesh and materials)
• .fbx (base mesh + subdivided mesh)
• .obj+.mtl (base mesh + subdivided mesh)

Additional informations:

• The UV maps are made in a way to work with the included textures/materials. If you have any special requirements for the UV maps (e.g. texture painting, multiple UV-maps, UDIMS) you might have to customize them for your individual workflow.
• If you have any questions before the purchase, feel free to contact me.
