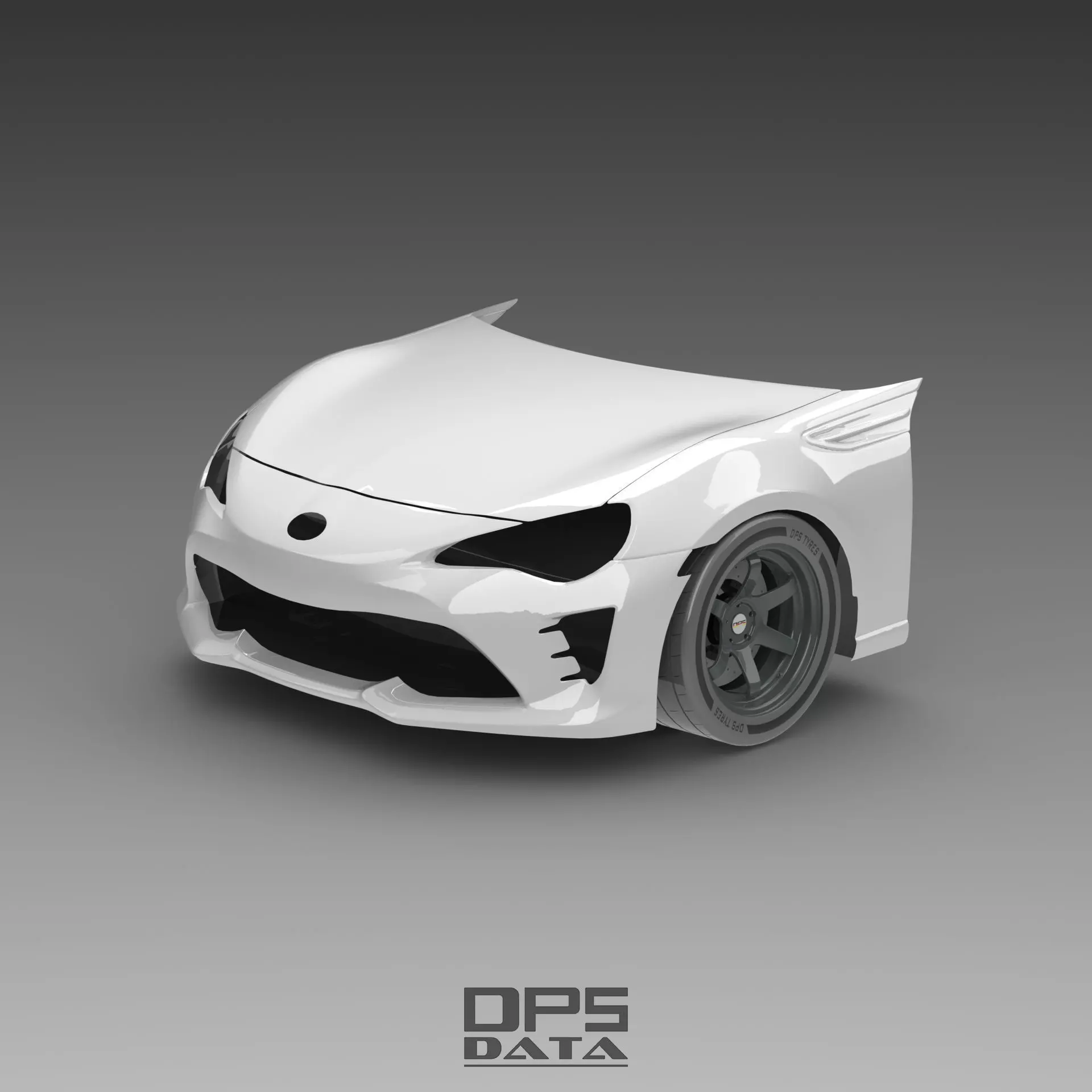

86 ZN6 Front Assembly Exterior Surfaces - 3D Laser-Scanned 3D model

86 ZN6 Front End Surface assembly model in both SolidWorks 2020 & Parasolid file formats ready for import into most CAD systems. This assembly model is intended to help empower designers/enthusiasts looking for accurate data to design modifications such as front splitters/canards/fender vents/hood vents/overfenders/etc. for their cars. This model shares a common coordinate system with the other 86_ZN6 & BRZ_ZC6 models by DPS Data, allowing assembly of front/rear or full exterior surface assemblies by combining the components together. Expected dimensional variance in the data vs the real-life car is typically between 150-250 microns (0.006”-0.01”) with the methods used to create this model. Included in this download: SolidWorks 2020 & Universal Parasolid File Formats for each. [86_ZN6 - Front Assembly] assembly file. [86_ZN6 - Front Bumper] component file. [86_ZN6 - Front Fenders] component file. [86_ZN6 - Hood] component file. [86_ZN6 - Front Floor + Wheel Mounts] component file. [86_ZN6 - DPS Data LHS Wheel Assembly] assembly file. [86_ZN6 - DPS Data RHS Wheel Assembly] assembly file. [DPS Data Wheel Variant 4 - 86_ZN6] component file. [DPS Brake Rotor - FL - 86_ZN6] component file. [DPS Brake Rotor - FR - 86_ZN6] component file.
