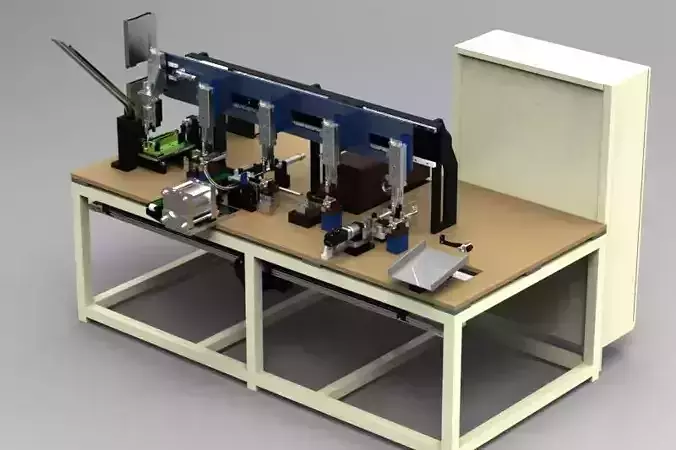

Car door check link assy machine 3D concept 3D model
Description
3D Machine concept and RenderMachine for productioncar door check link assembly(case/ cover/ arm /pin/ bracket)Car: Nissan/Mitsubishi/Honda/FiatThis machine for XFJ Model
Process-arm Assy-Grease insert-Bracket and Pin insert-Riveting-Torque Checking and Riveting check-Pokayoke G/NG Shooter
1 OperatorTekt time 9-12s3 Phase 380VacPnuematic 5BarHydraulic riveting
Car door check link assy machine 3D concept
Royalty Free License
Car door check link assy machine 3D concept
Royalty Free License
3D Model formats
Format limitations
- KeyShot (.bip, .ksp)104 MB
- STEP (.stp)81.9 MB
3D Model details
- Publish date2022-09-14
- Model ID#3989877
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
