Rectangular Swimming Pools 3D model

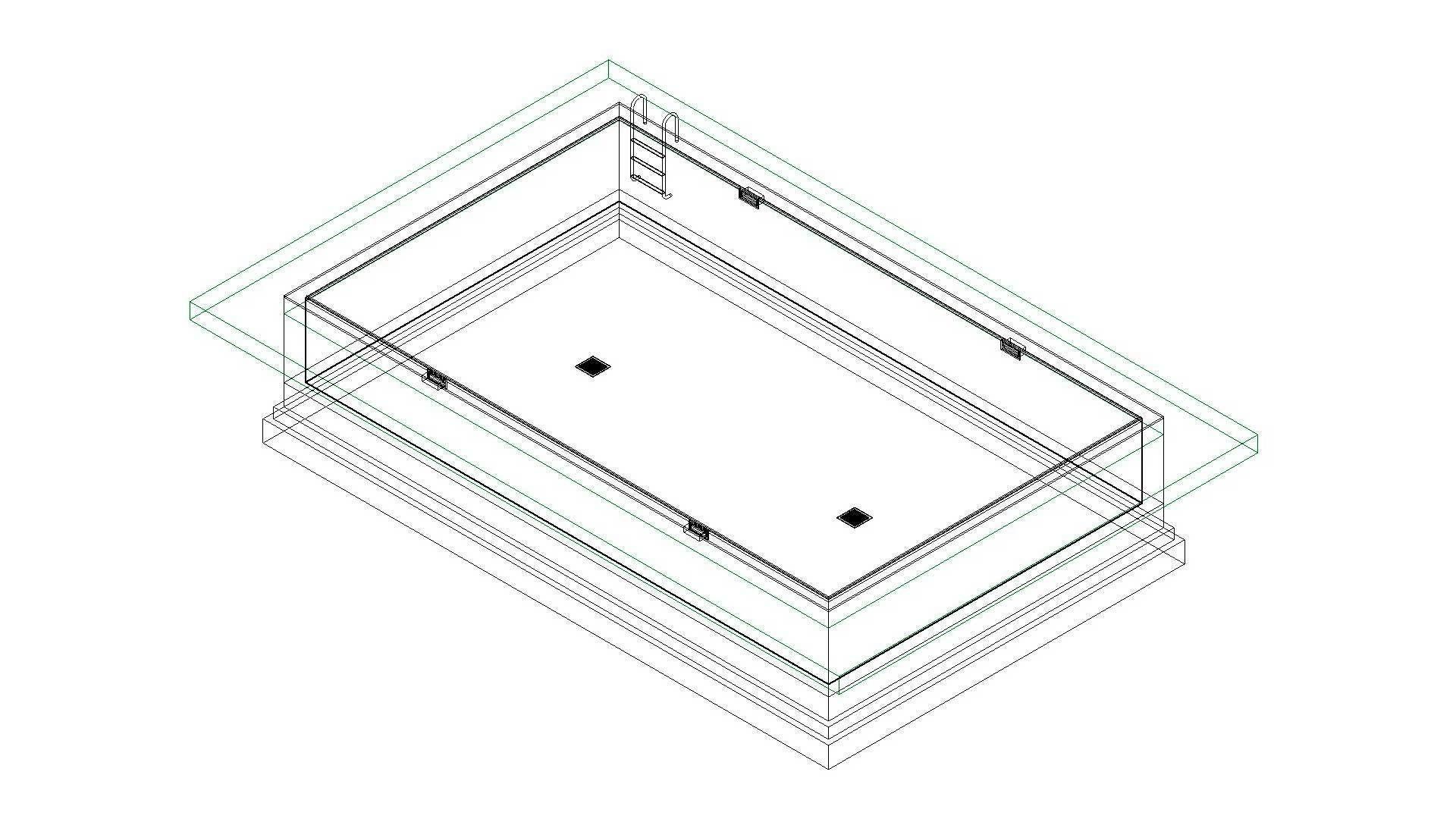

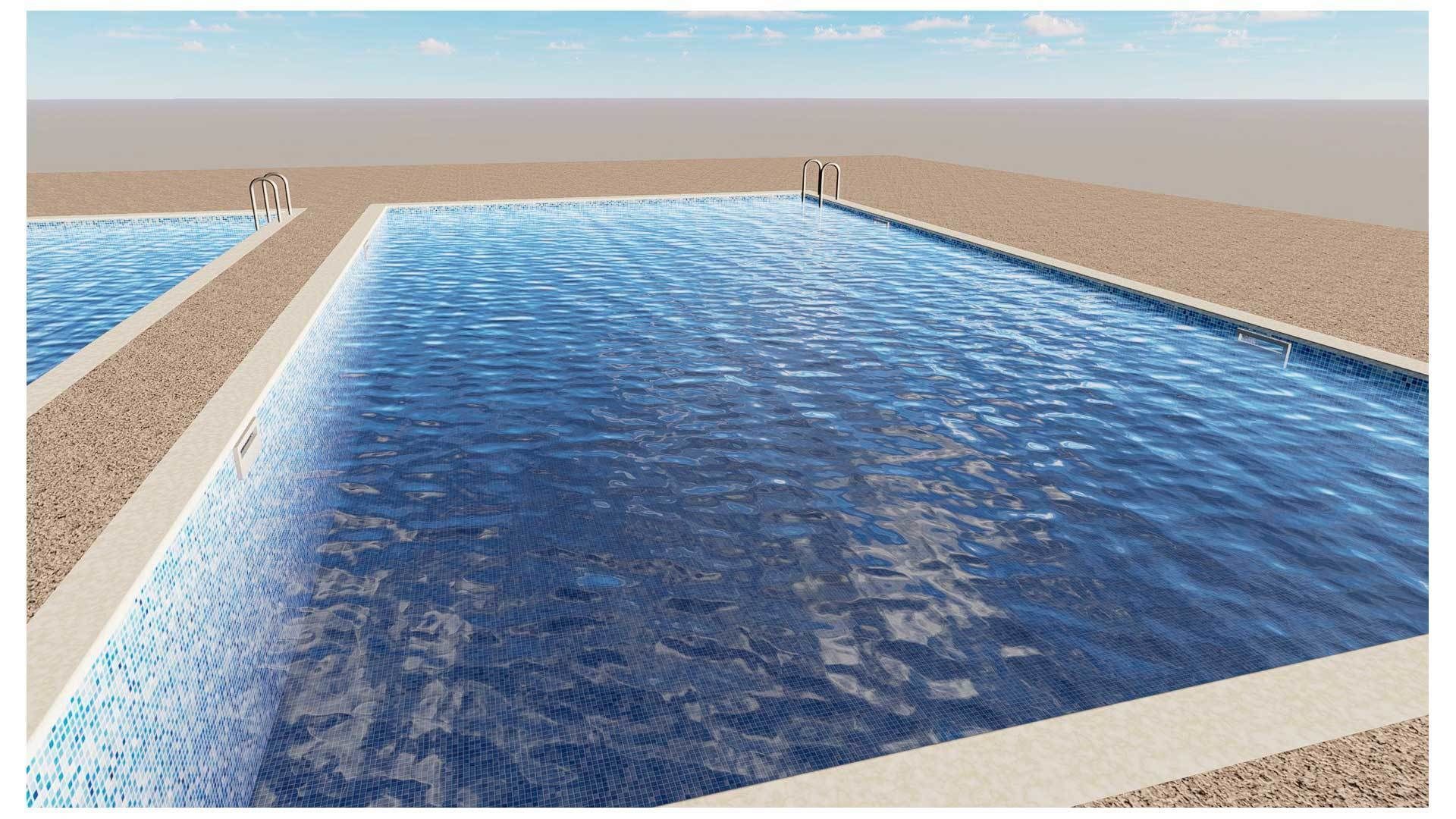

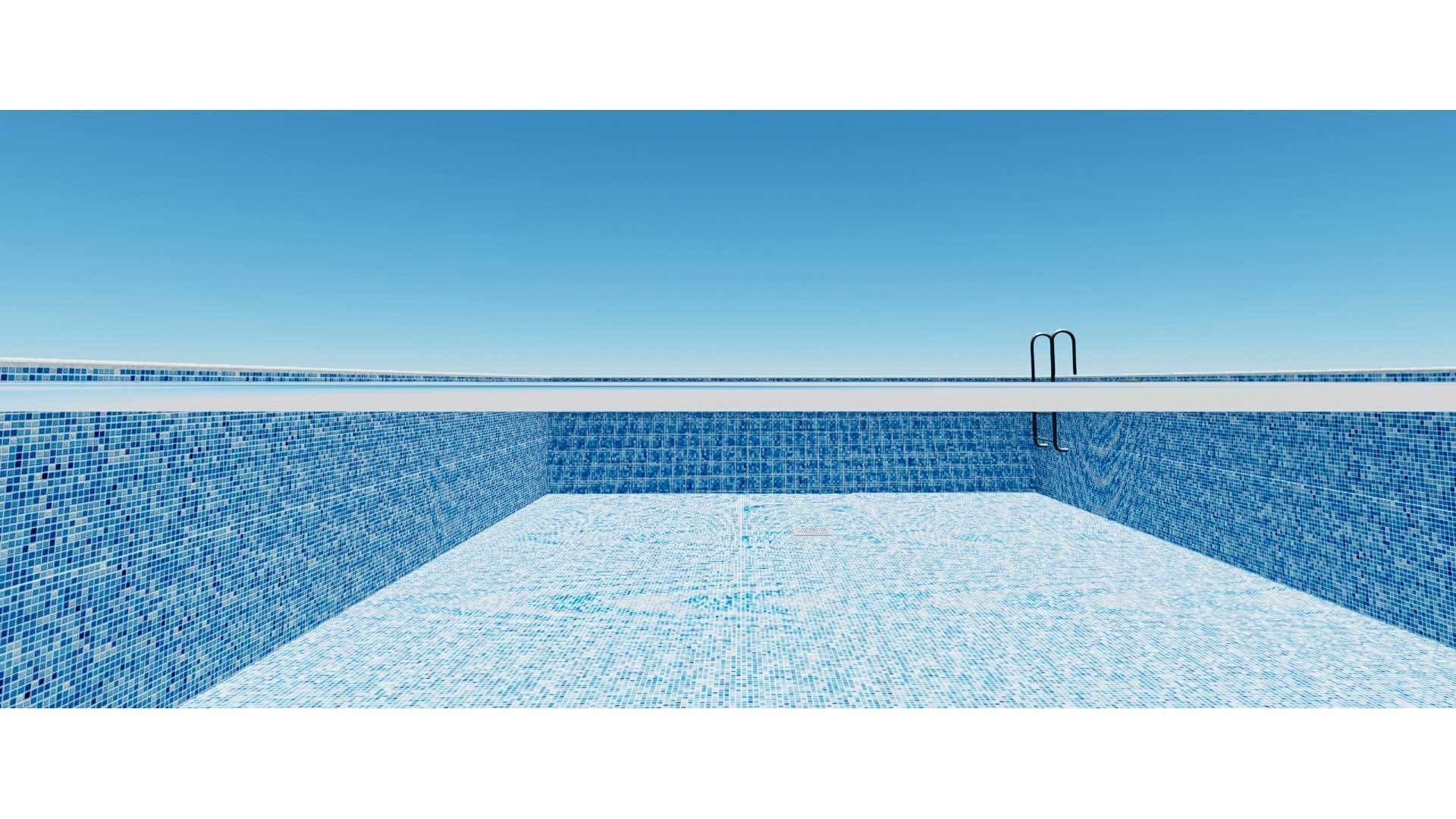

Fully Parametric Rectangular Swimming Pools Revit family model. This REVIT family is a floor based generic model, that can be placed onto any floor (indoor or outdoor), with full customizable parameters to shape any rectangular skimmer type swimming pool.Family can be flipped on both axes upon placement. User has the ability to change the size of the rectangular pool, the depth, options to turn on and off the ladder as well as the wall skimmers and floor drains.Full parametric material properies to customise according to any design. Model includes pool structure ( walls, foundation ), foundation substrates, pool coping, floor and wall finishes together with a ladder, wall skimmers and floor drains.Turn key solution to create any rectangular shape skimmer pool for any REVIT project.

ATTRIBUTES:

• Revist Version : 2022
• Family Type : Floor Based Generic Model
• File Extension: .rfa

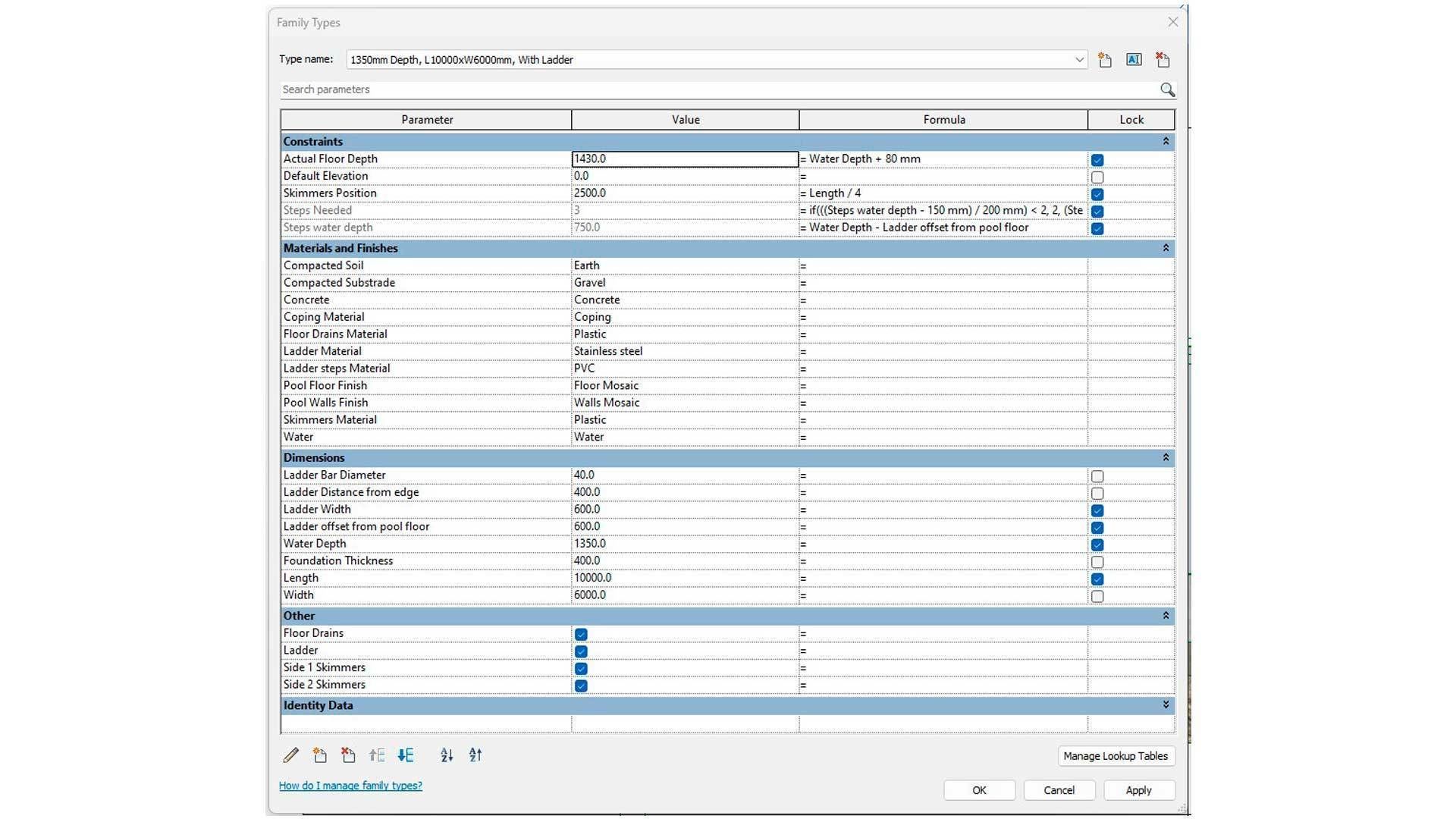

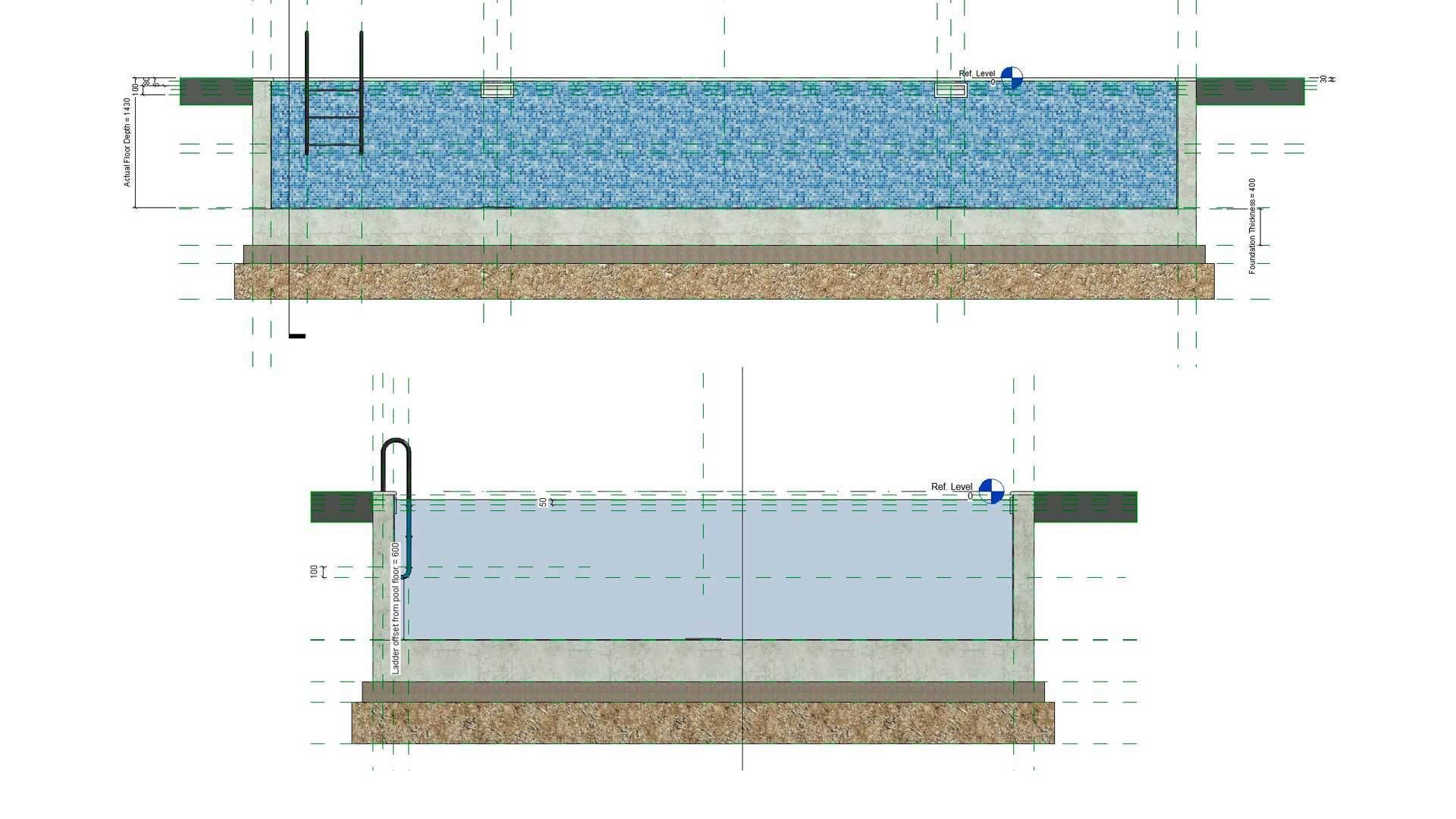

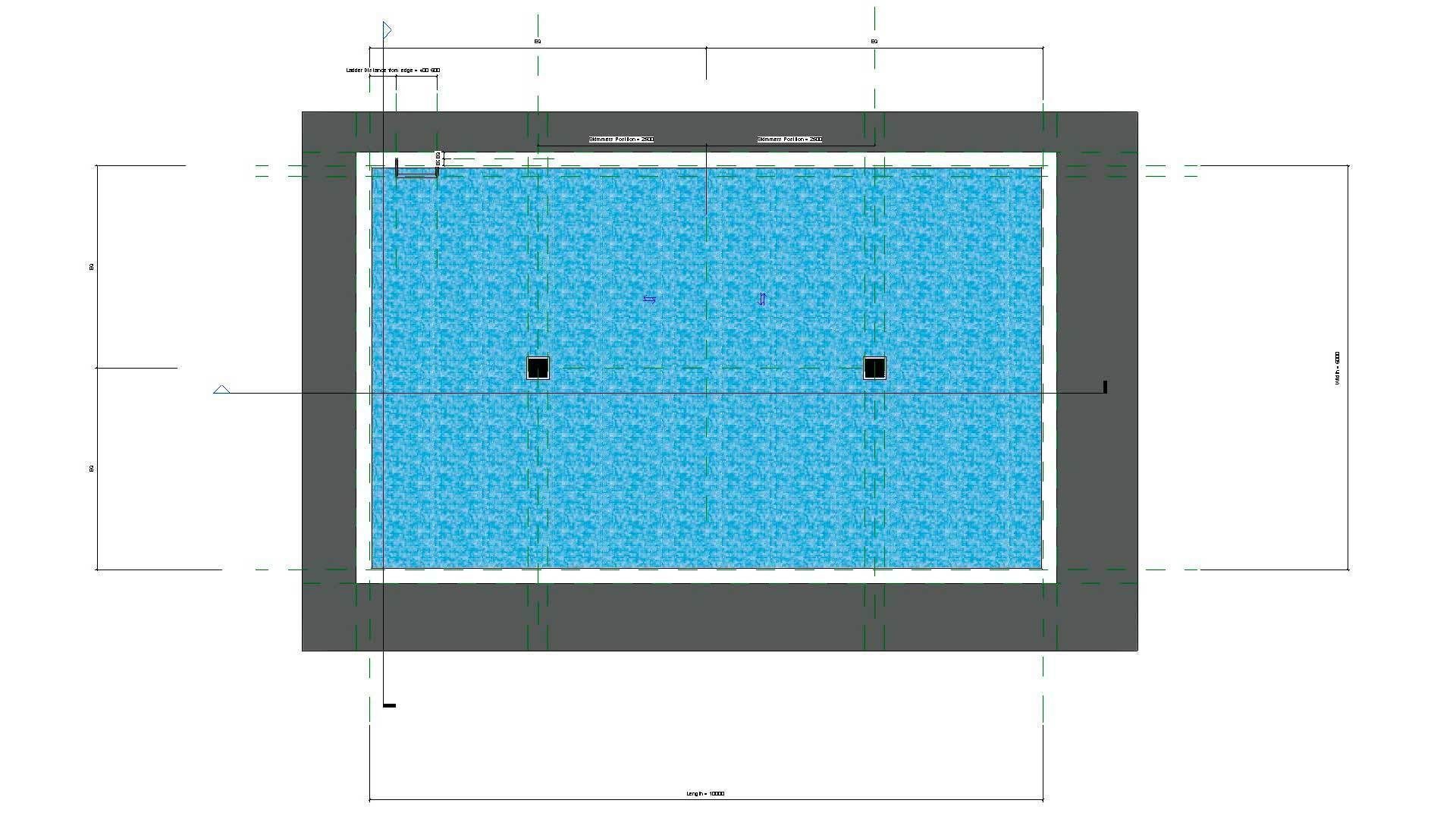

PARAMETERS:

• Pool length and width
• Water Depth
• Foundation Thickness

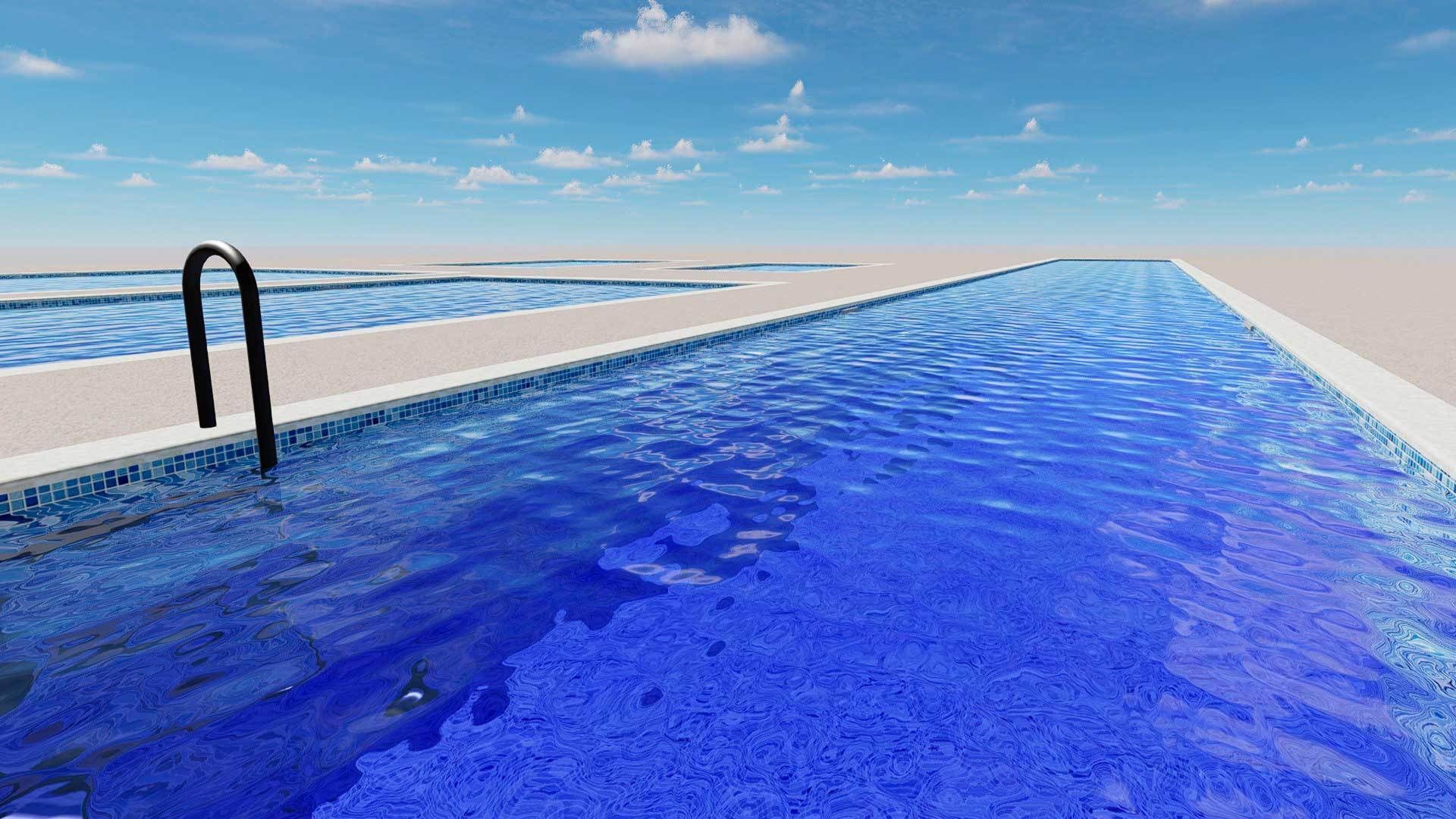

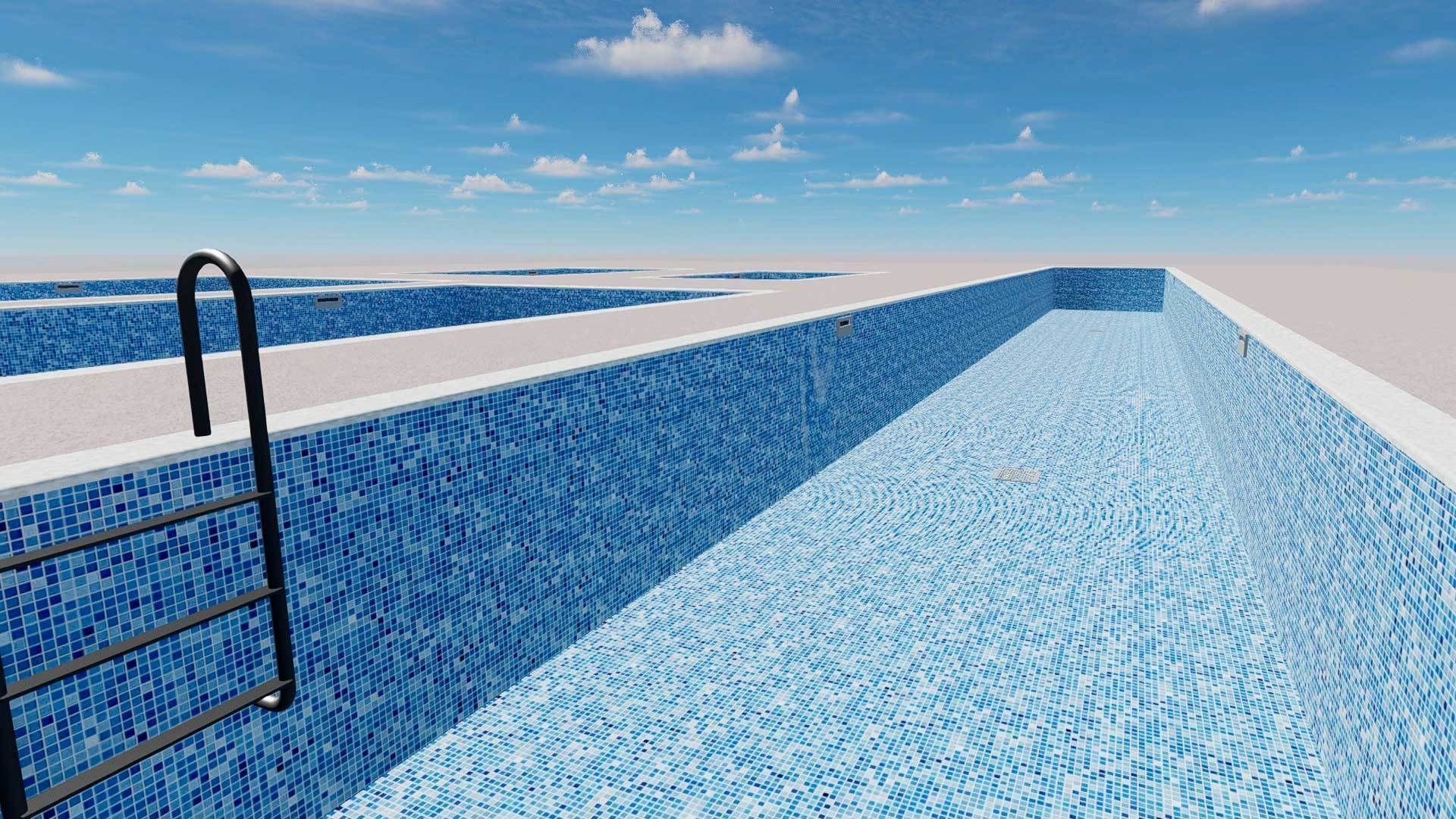

• Ladder ON/OFF Option
• Ladder offset from pool edge
• Ladder width and bar diameter
• Ladder offset from pool floor

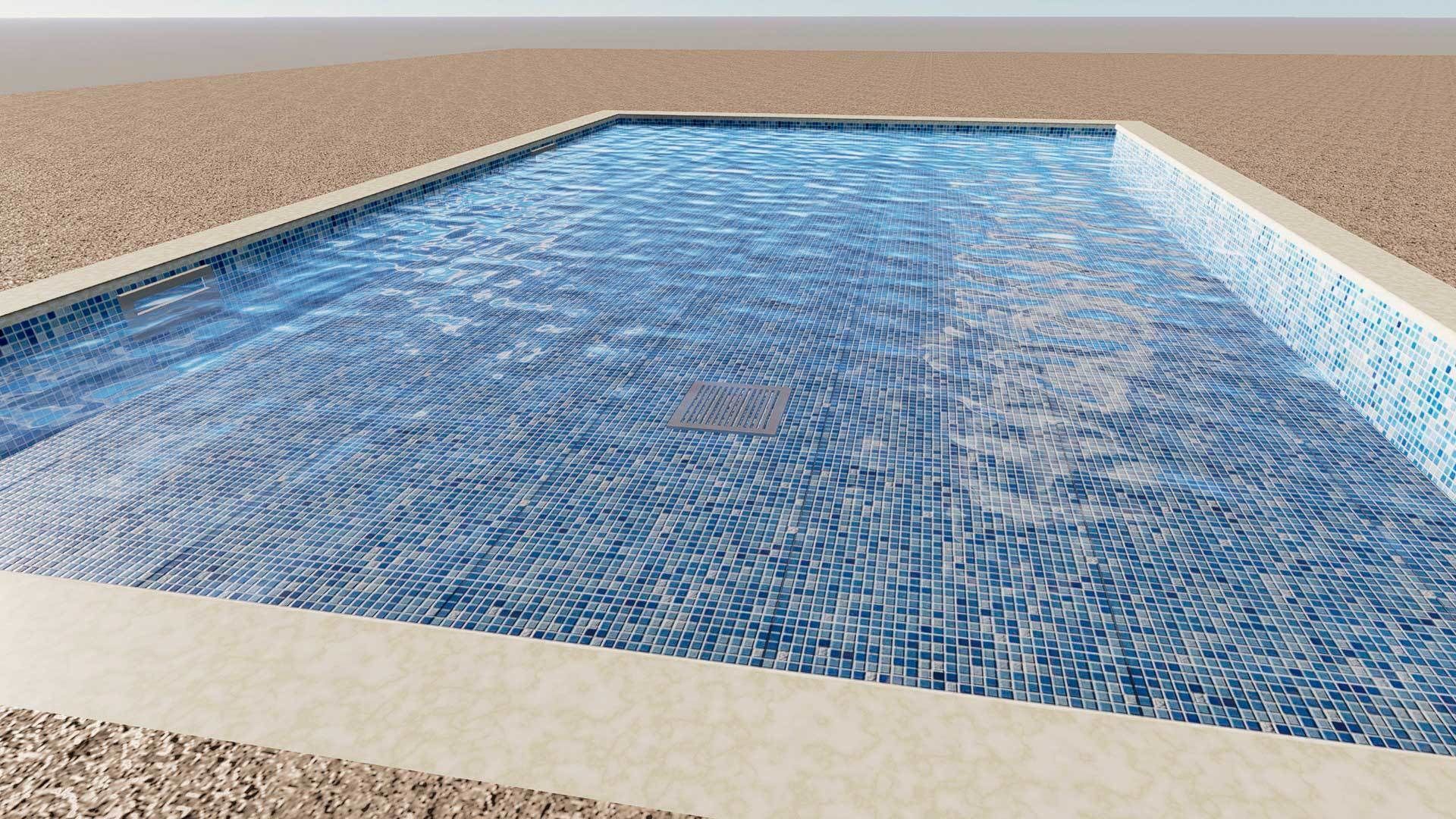

• Floor Drains ON/OFF option
• Skimmers side 1 and 2 ON/OFF option
• All materials are parametric

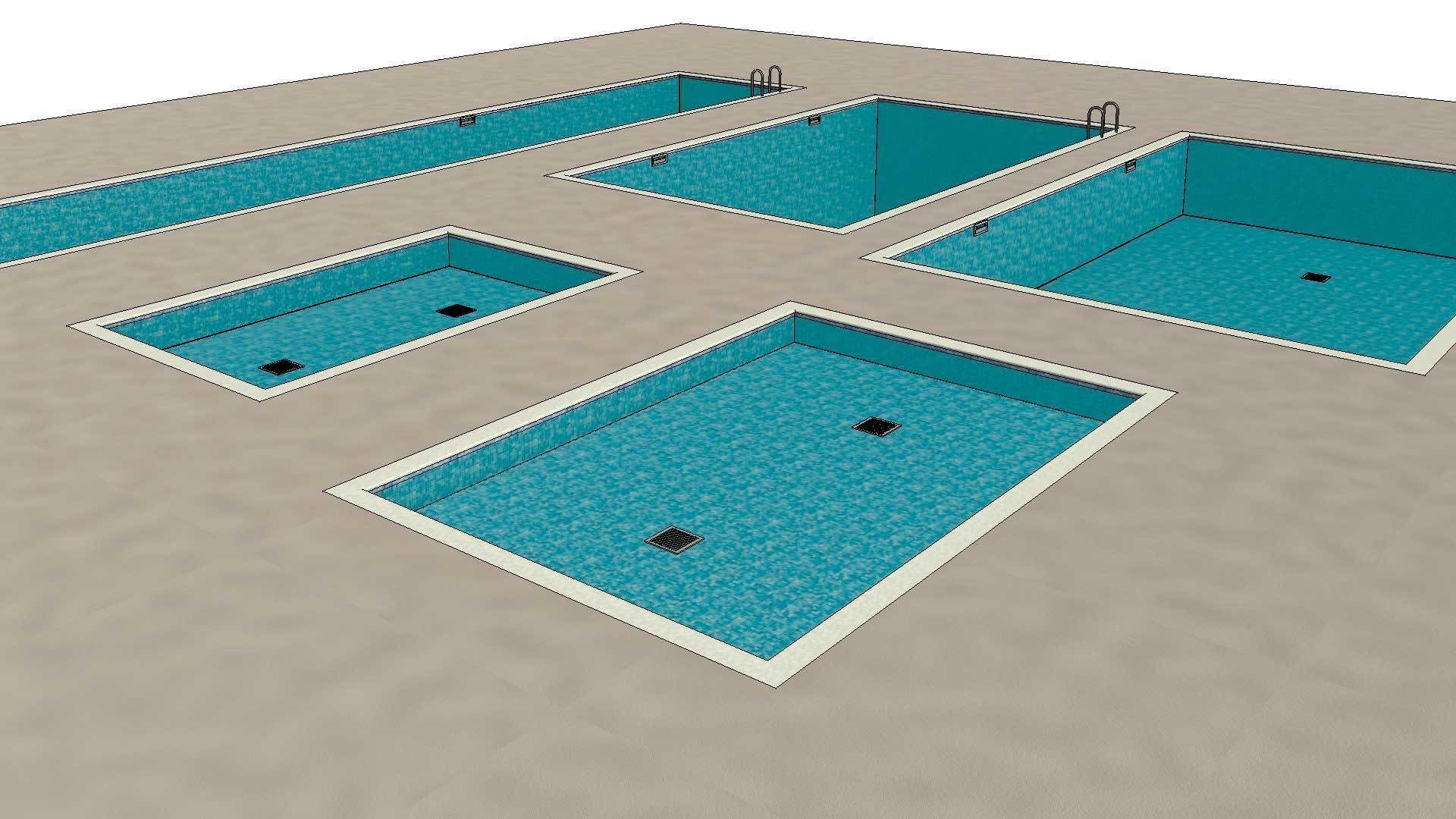

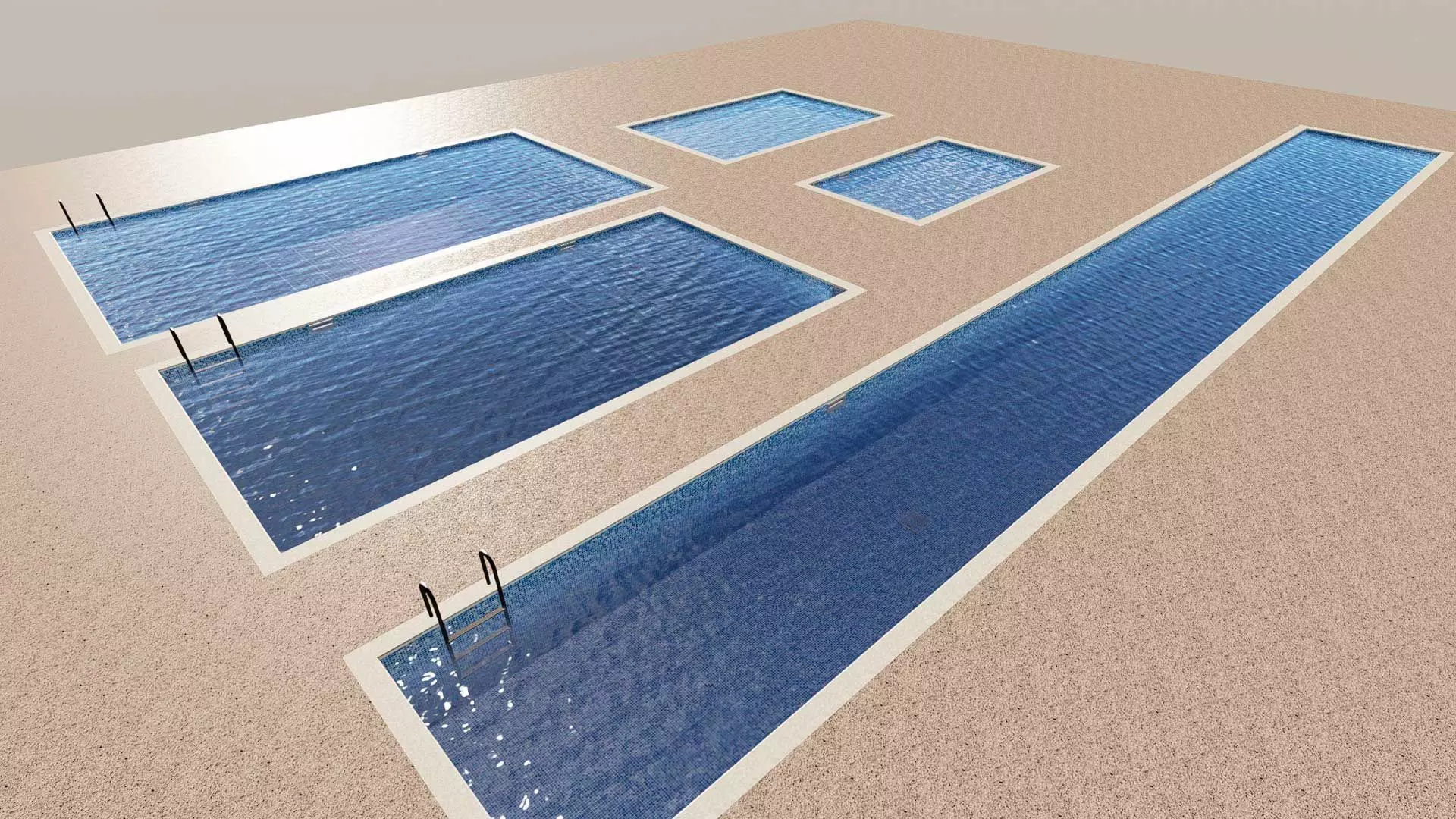

FAMILY TYPES:KIDS POOL, 400mm depth, L5000xW3000mmKIDS POOL, 300mm depth, L6000xW4000mm1350mm Depth, L10000xW6000mm, With LadderLap Pool, 1200mm Depth, L25000xW3000mm, With LadderDeep Pool 2400mm Depth, L9000xW5000mm, With Ladder

Many more family types with various parameters changed can be created by any user. More experienced REVIT users ( medium level knowledge ) can change the shape of the pool by editing the actual family and create any shape needed.
