Oval Shaped Column 3D model

This is a fully parametric revit structural column family for an Oval Shaped Column. Column dimensions are fully parametric and can be adjusted by the user to match any project design.

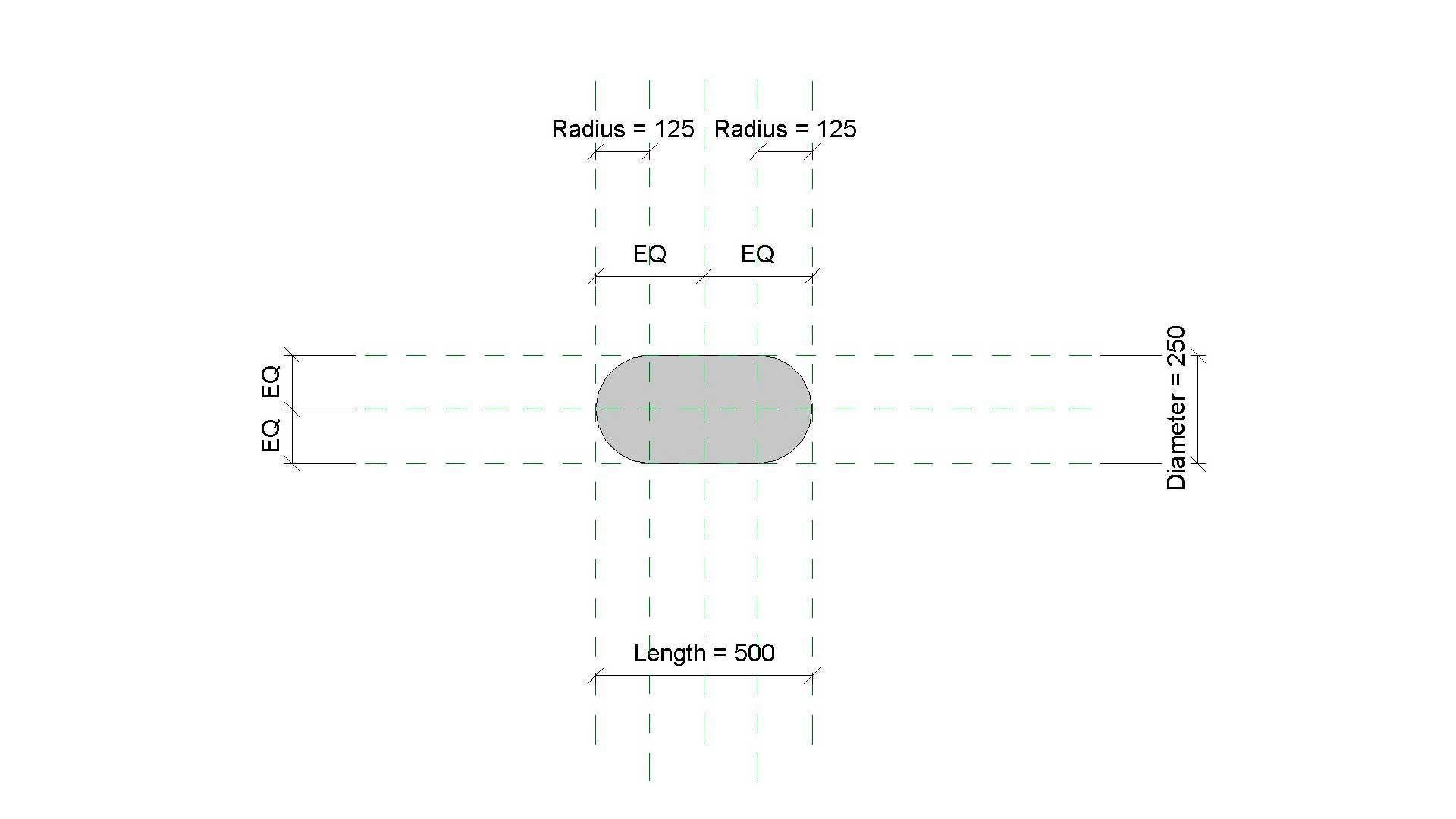

Overall length and width of the column as well as the semi circular shape diameter. Column can be inserted into any project and automatically take the height of the levels selected. Column offset from reference levels can also be adjusted.

ATTRIBUTES:

• Revit Version 2022
• Family Type : Structural Column
• File Extension : .rfa

PARAMETERS:

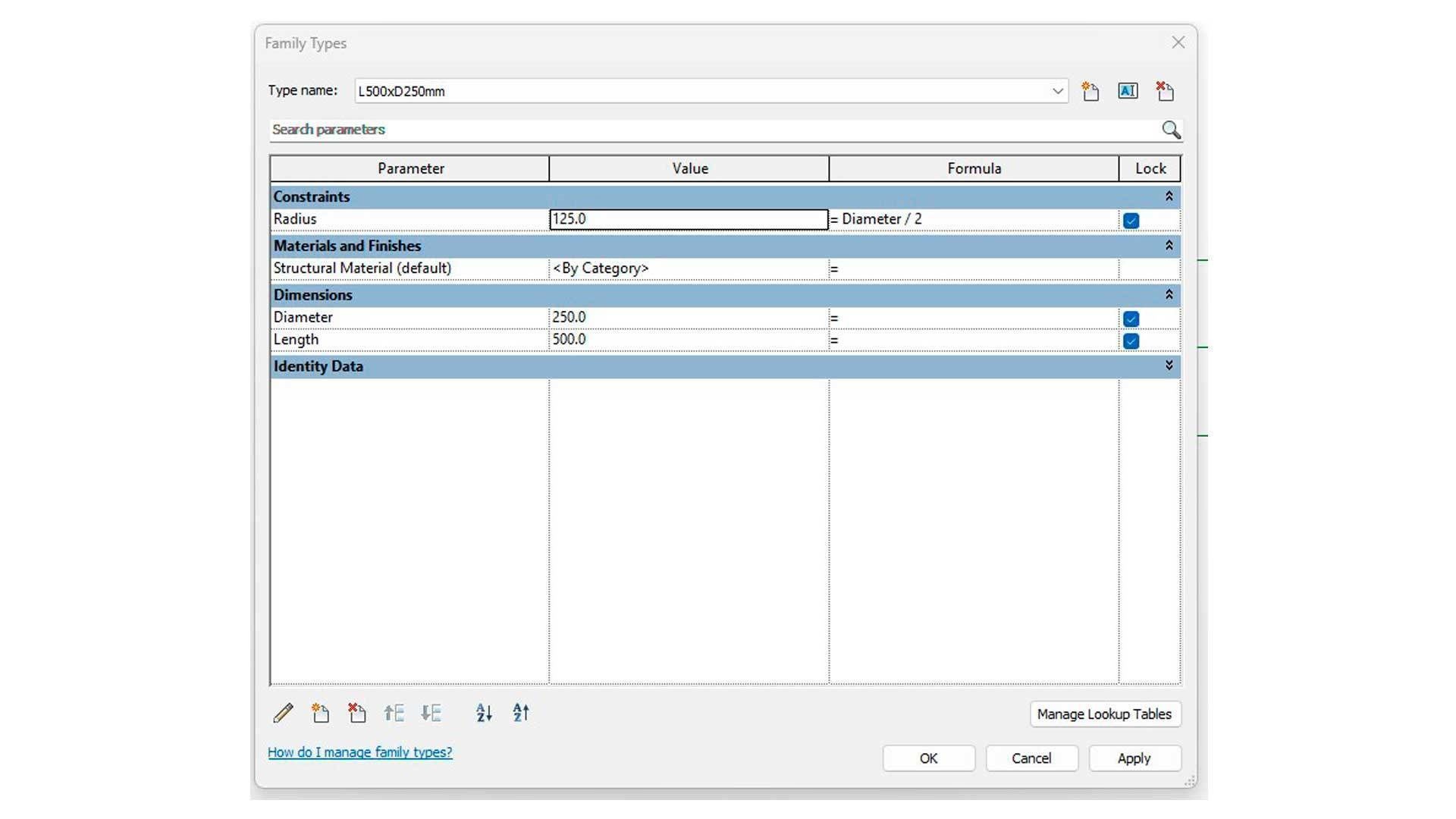

• Column Overall Length
• Diameter ( width of the column )
• Parametric Material

FAMILY TYPES:

• L500xD250mm
• L600xD250mm
• L600xD300mm
• L500xD300mm
• L750xD250mm
• L750xD300mm
• L800xD300mm
• L750xD400mm
• L800xD400mm

User can create unlimited number of column family types and variations for every project.
