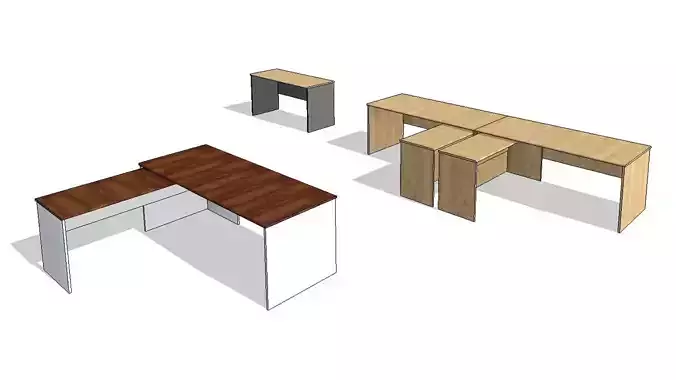

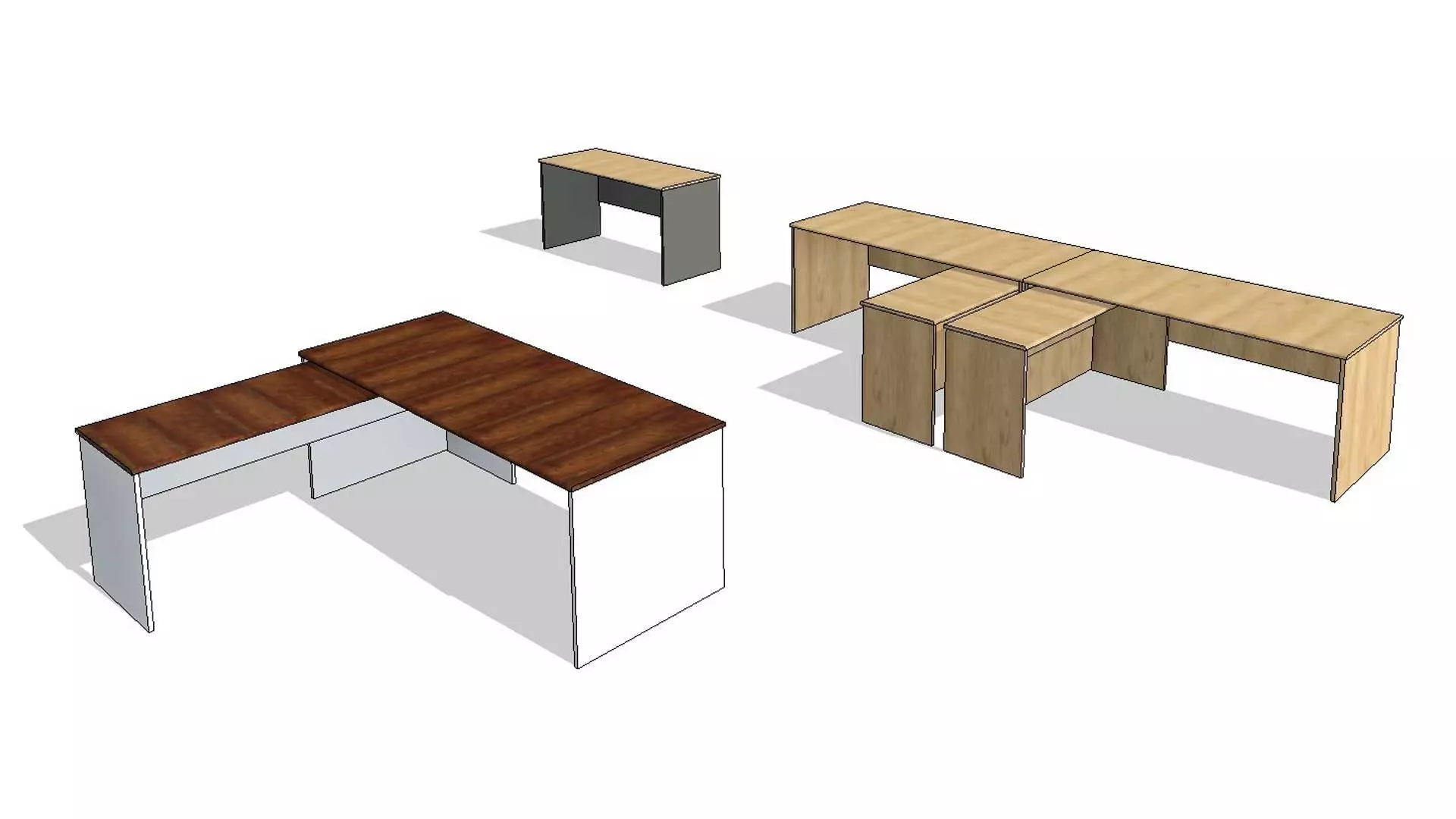

Office Desk with Side Extension 3D model

This is a fully parametric Revit family for an Office Desk with optional side desk extension. The family is fully parametric meaning the user can create any variation by changing various parameters ( dimensions ) to match any design necessary.

Apart from selecting any material to use for the desk worktop and the supports, the user can altere the width, depth and height of the desk creating unlimited number of family types. There is also an option to enable or disable the side extension desk. The side extension is lower than the main desk and also has parameters for the length and the depth as well as the materials.

ATTRIBUTES:

• Revit Version : 2022
• Family Type : Generic Model
• File Extension : .rfa

PARAMETERS:

• Desk Width
• Desk Depth
• Desk Height
• Option to turn ON and OFF the side extension
• Side Extension Length
• Side Extension Depth
• Material Parameters for the desk worktop and side supports

FAMILY TYPES:

• W1800xD800xH750mm, Side L800xD500mm
• W1500xD750xH750mm, No Side Extension
• W2100xD800xH750mm, Extension L1000xD600mm

User can create unlimited number of family types and variations to match any design.
