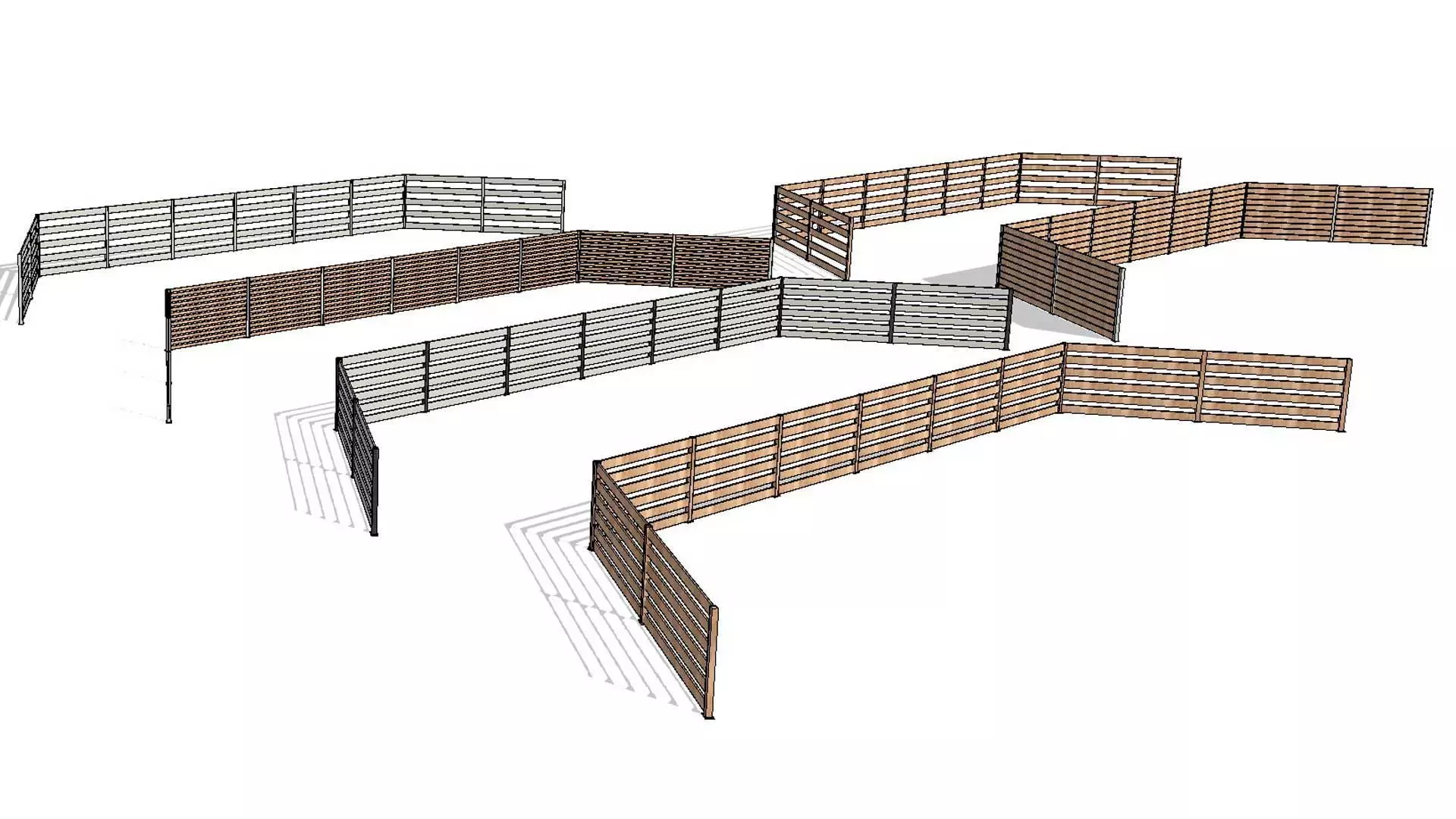

Line Based Parametric Slats Fence 3D model

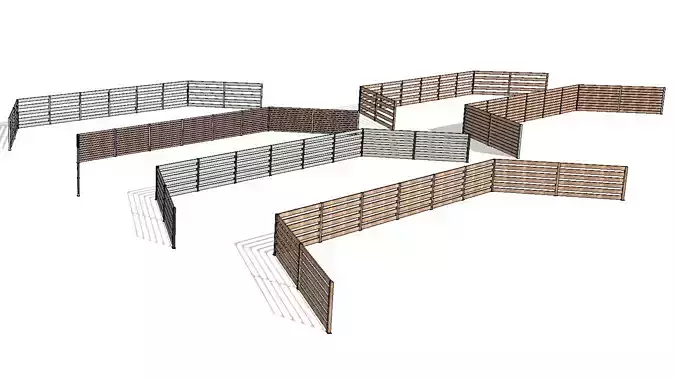

This is a line based fully parametric revit family of a slatted fence. Line based families can be loaded into any project and applied by simply drawing a simple line or selecting existing lines in the project. Lines can follow any direction ( horizontal, vertical and/or diagonal ). The selected family type of the fence will be introduced in the place of the selected line in the project.

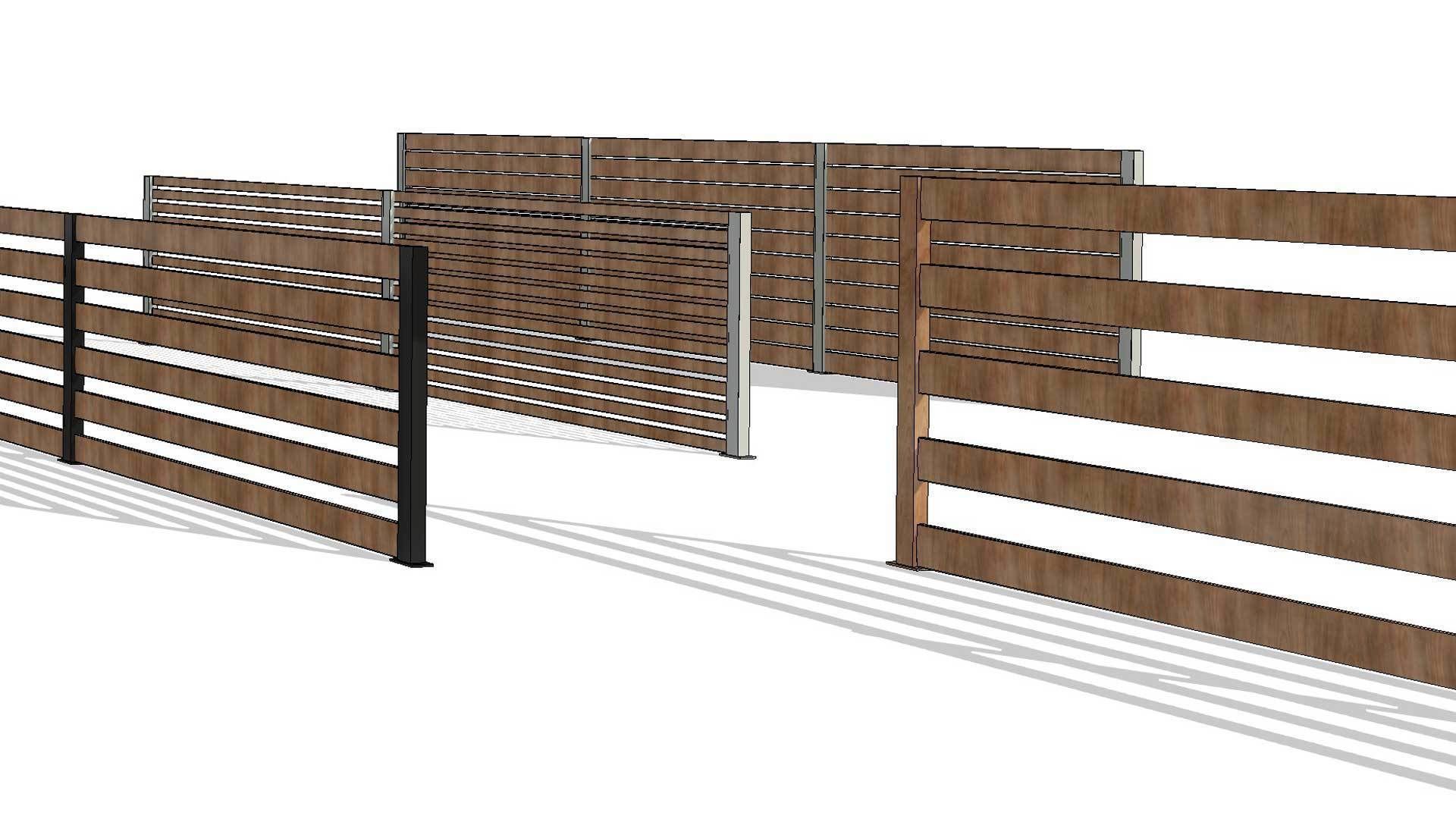

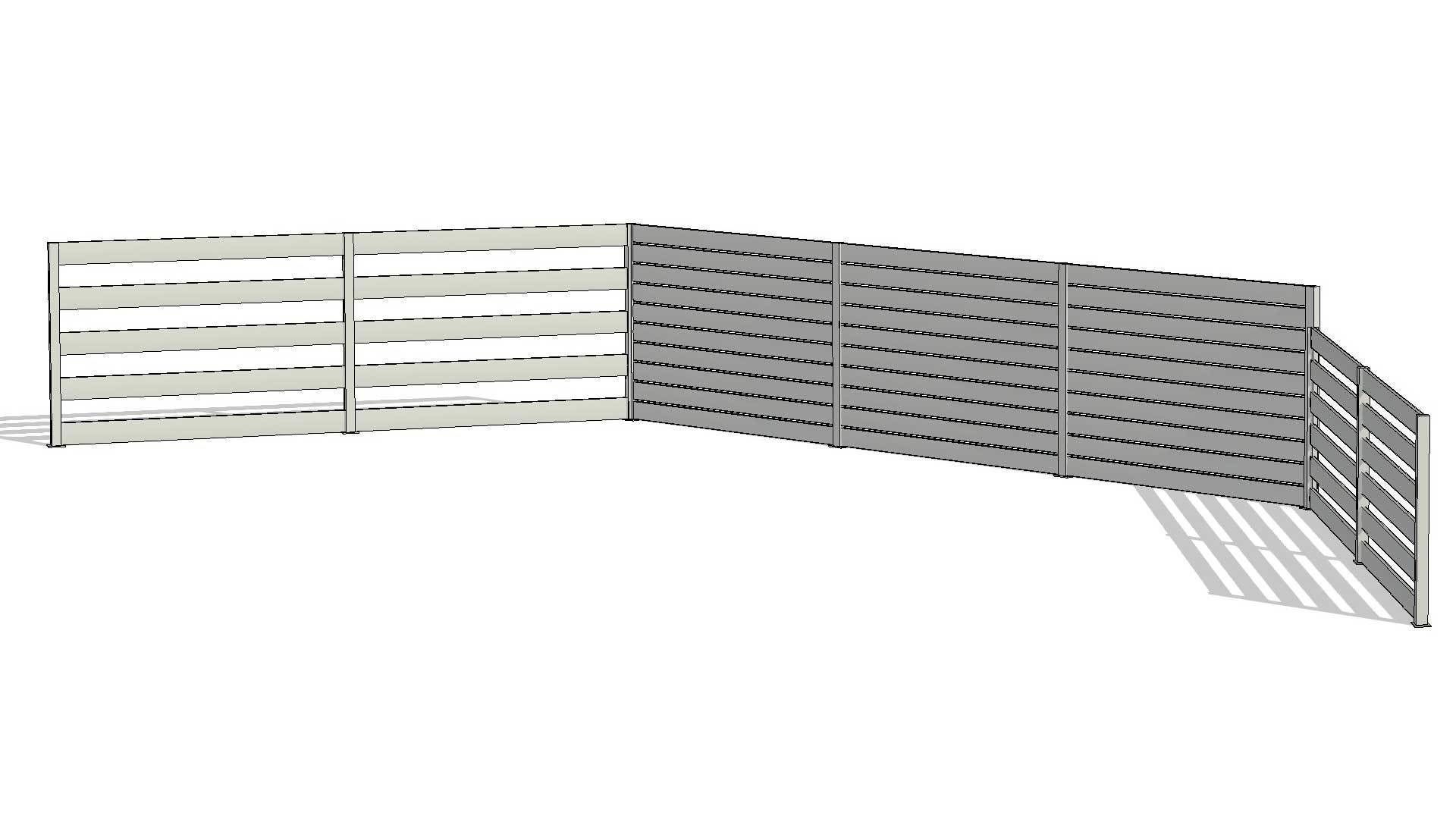

User can select from the pre-specified fence family types or can create unlimited different variations. With the available parameters in the line based family, one can adjust the overall height of the fence, the dimensions of the posts and the slats dimensions.

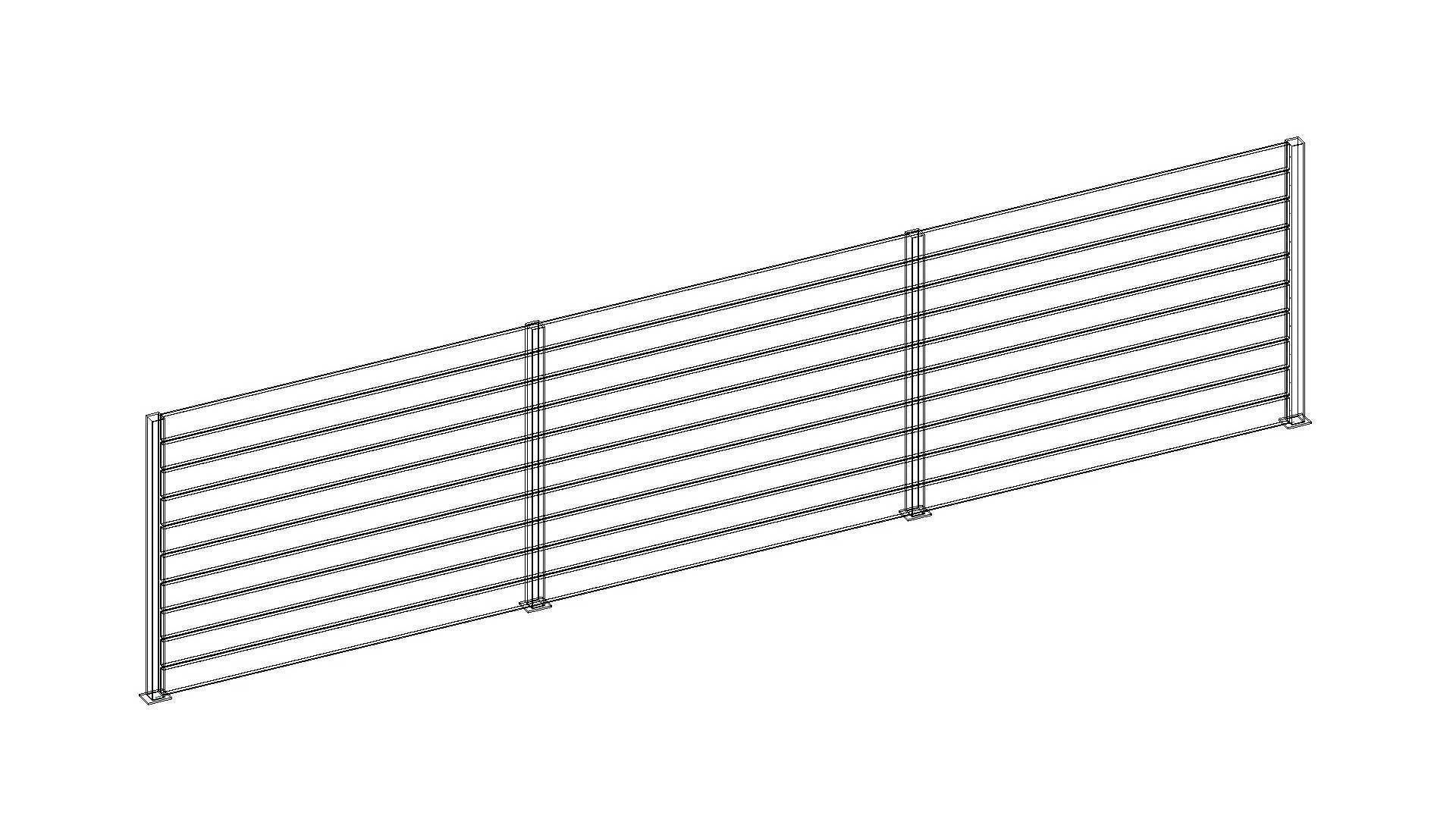

Fence posts are introduced every approximately 1,5m. According to the line length drawn in the project, the family will adjust the number of posts to be placed to closely match the distance between them to around 1,5m.

Users can select an approximate gap between the slats since the number of slats introduced depends on the fence height. The program calculated how many slats to place in order to have an integer number of slats in the given height and slats gap.

Materials for the fence posts and slats are also parametric.

ATTRIBUTES:

• Revit Version : 2022
• Family Type : Line Based
• File Extension : .rfa

PARAMETERS:

• Fence Height
• Posts width and depth
• Slats height and width
• Approximate slats gap
• Materials for posts and slats

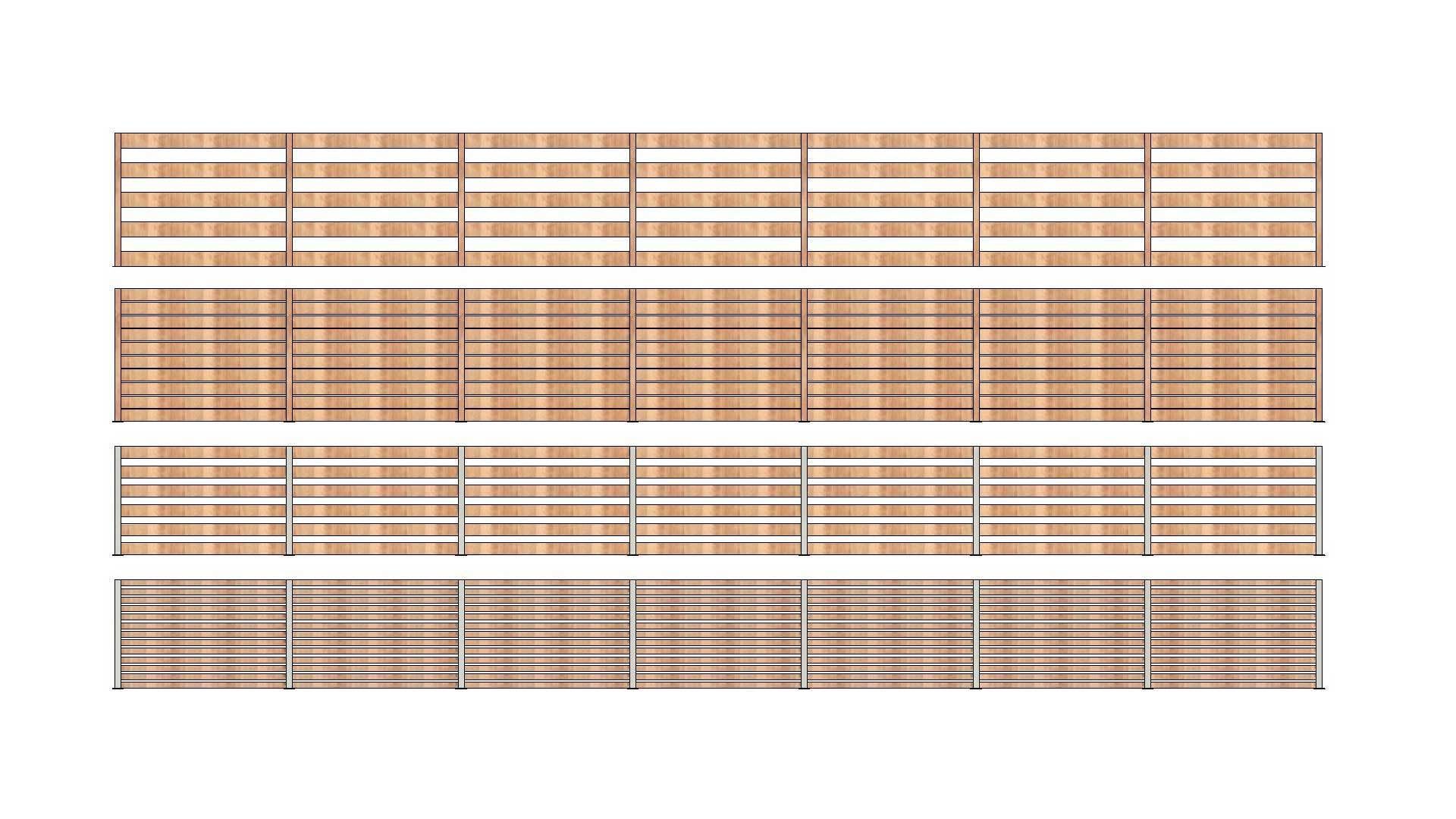

FAMILY TYPES:

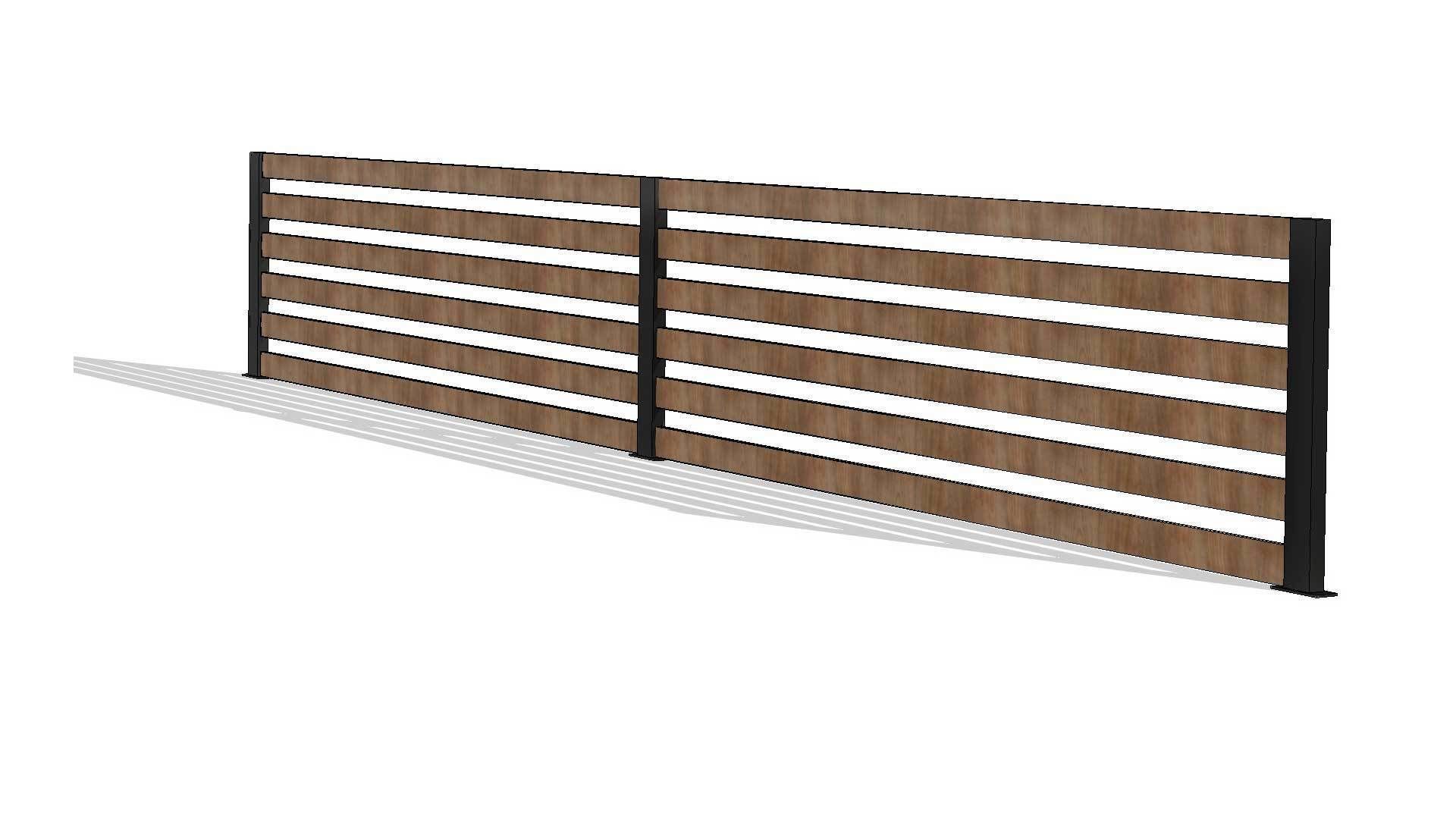

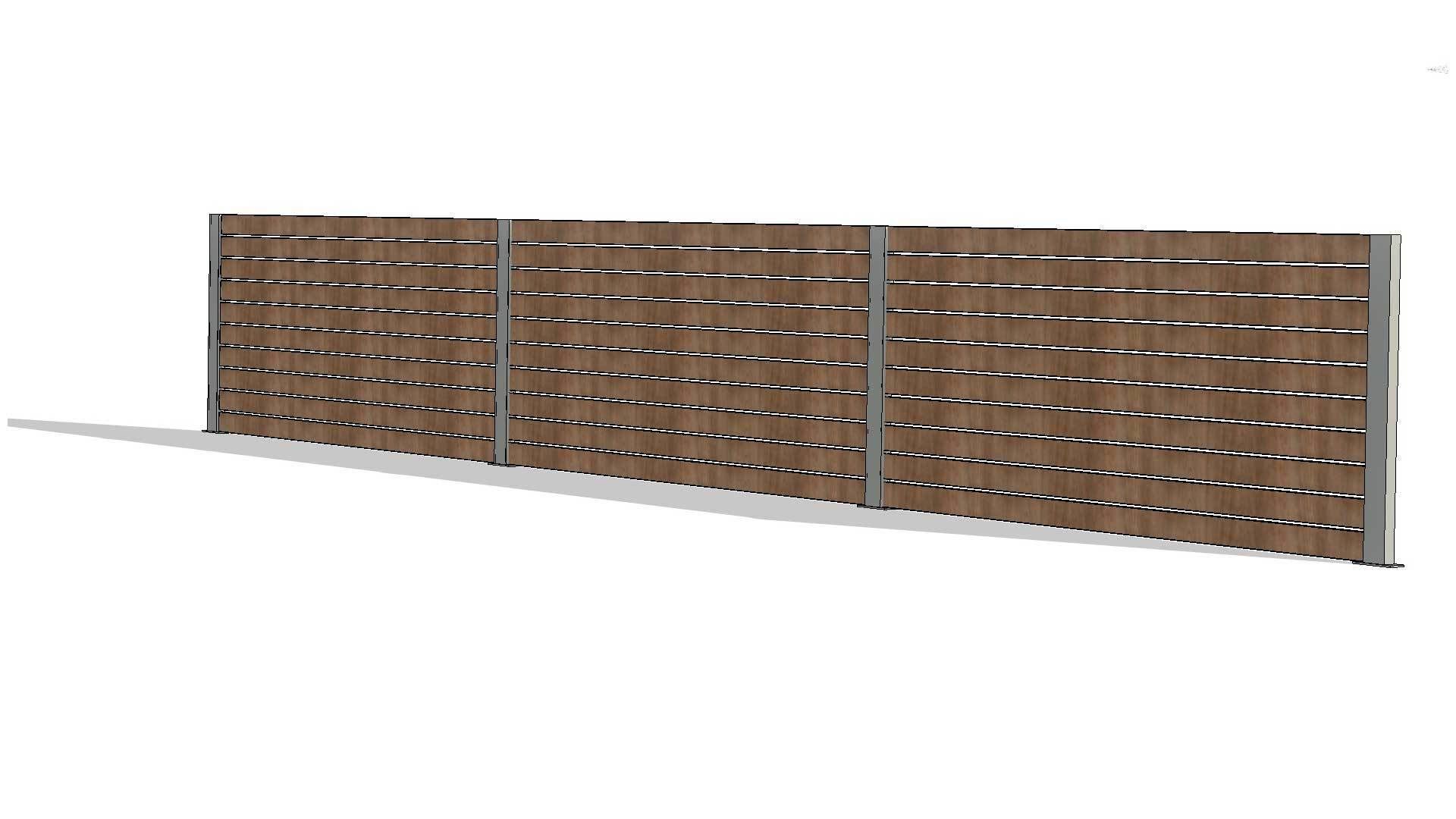

• Aluminium, 1100mm Height, Slats 120mm, 2mm Gap
• Aluminium+Wood, 1100mm Height, Slats100mm, 10mm Gap
• Aluminium+Wood, 900mm Height, Slats 50mm, 20mm Gap

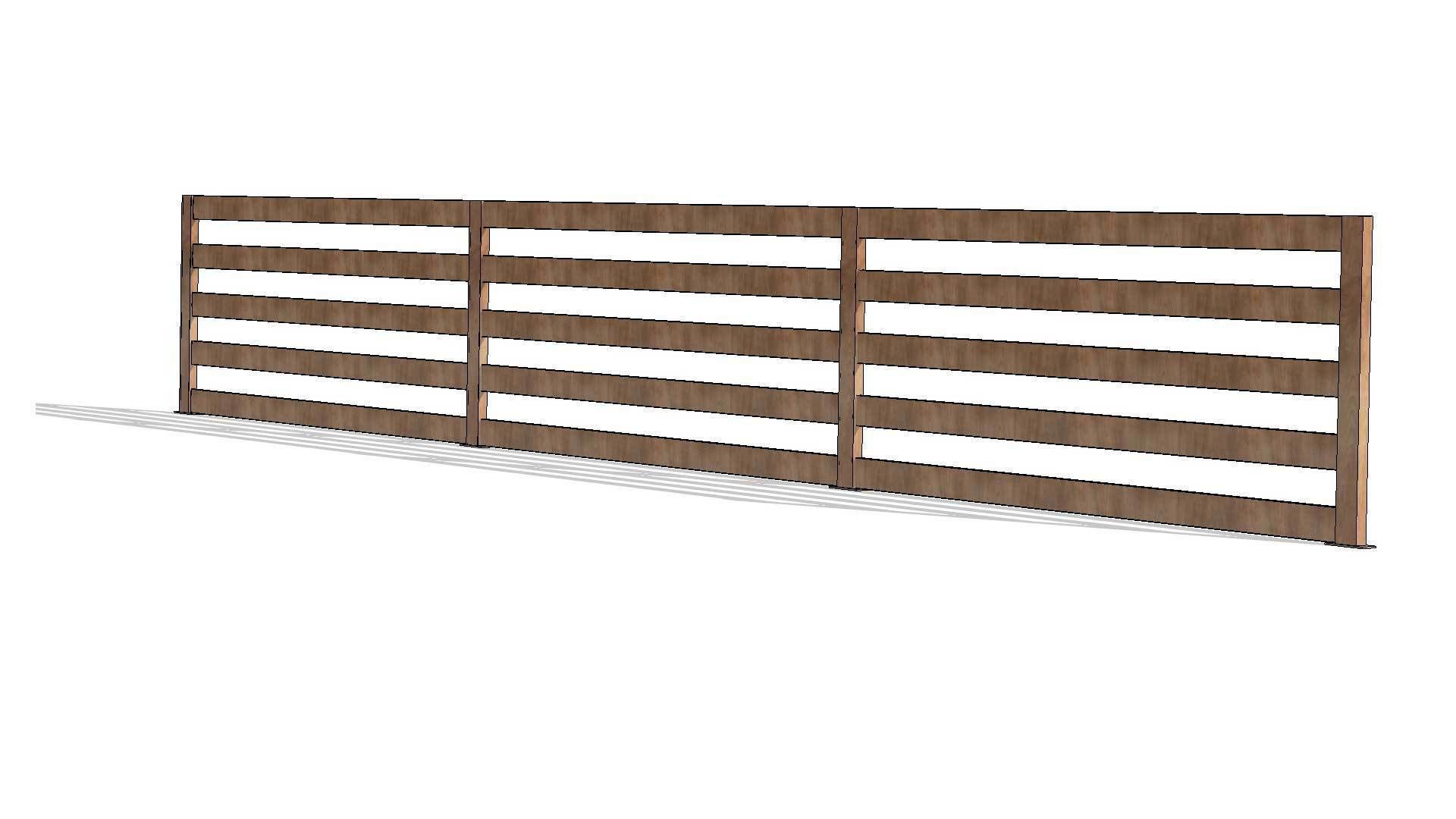

• Wood, 900mm Height, Slats 100mm, 60mm Gaps
• Wood, 1100mm Height, Slats 100mm, 120mm Gaps
• Aluminium+Wood, 1100mm Height, Slats 100mm, 120mm Gaps
• Aluminium, 1100mm Height, Slats 100mm, 120mm Gaps
• Aluminium+Wood, 1100mm Height, Slats 120mm, 2mm Gap
• Wood, 1100mm Height, Slats 120mm, 2mm Gap
• Aluminium+Wood, 900mm Height, Slats 100mm, 60mm Gaps
• Aluminium, 900mm Height, Slats 100mm, 60mm Gaps
• Aluminium, 1100mm Height, Slats100mm, 10mm Gap
• Wood, 1100mm Height, Slats100mm, 10mm Gap

Users can create unlimited number of different family type variations to match any desired design.
