Line Based Double Sided Slats Fence 3D model

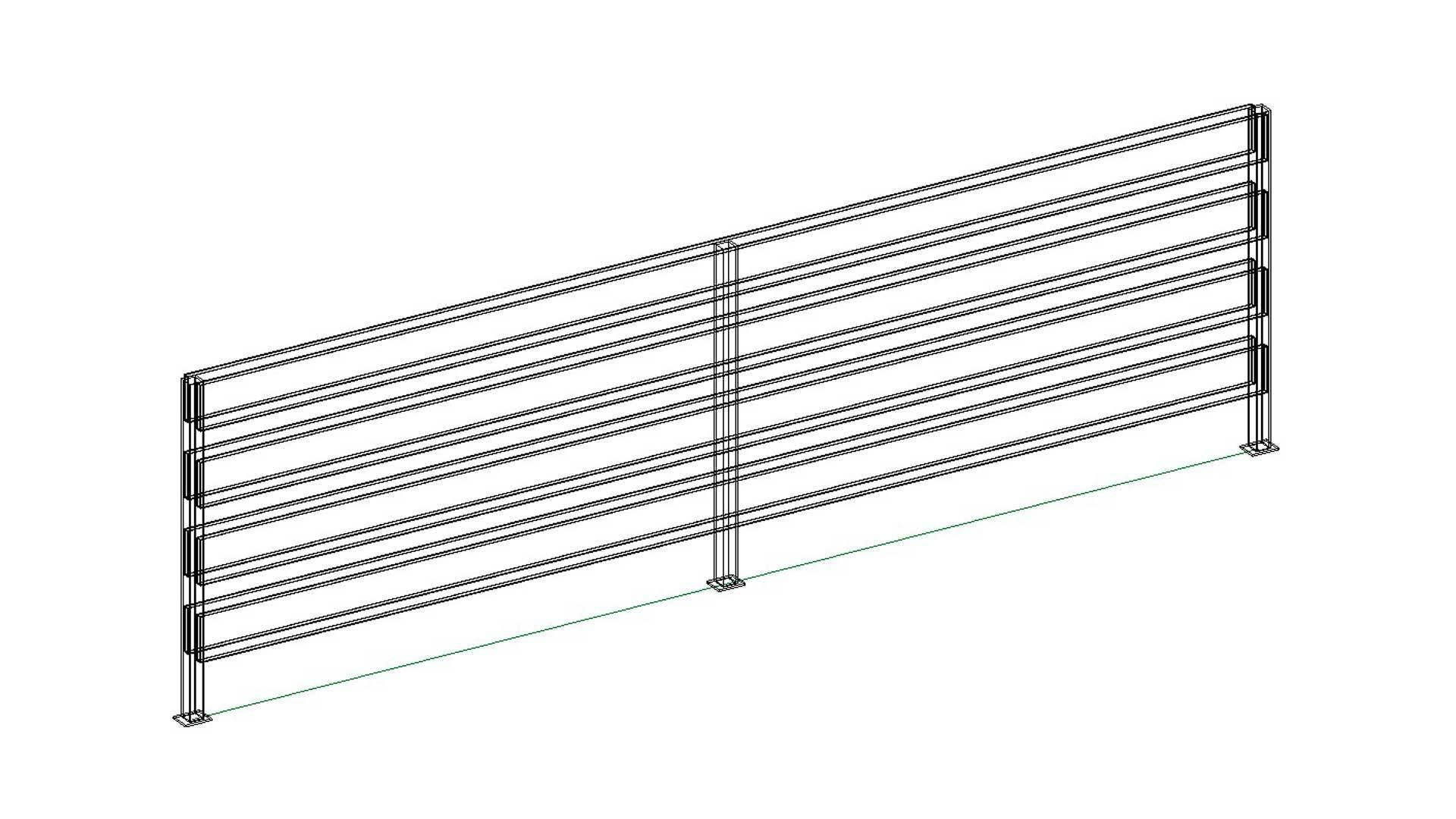

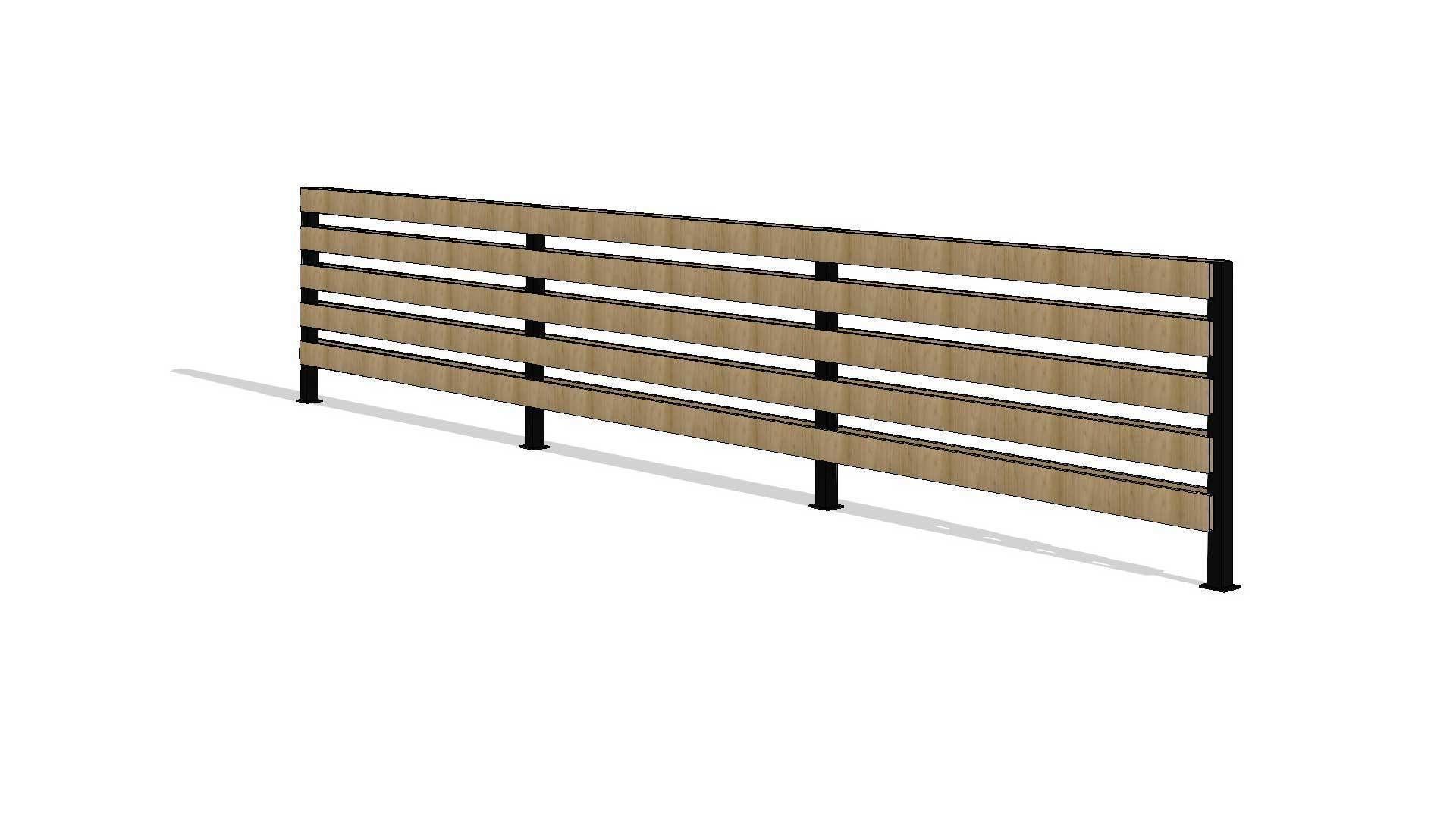

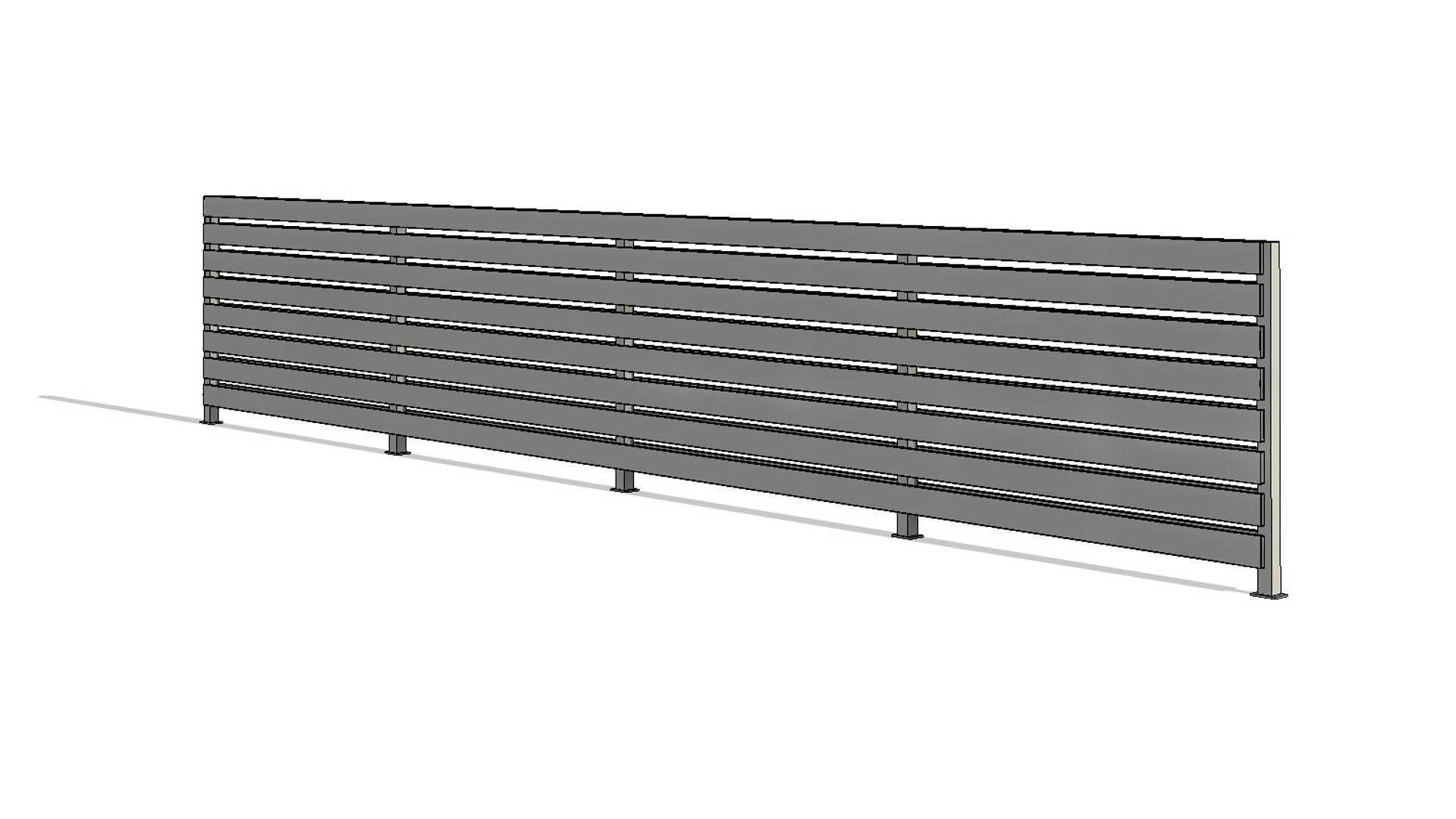

Fully Parametric Line Based Railing with Double Sided Slats Fence. Fence includes posts at pre-specified interval of about 1,5m with slats on both sides at the same position on each side. Height of the fence, size of the posts, the slats and the gap between them is adjustable.

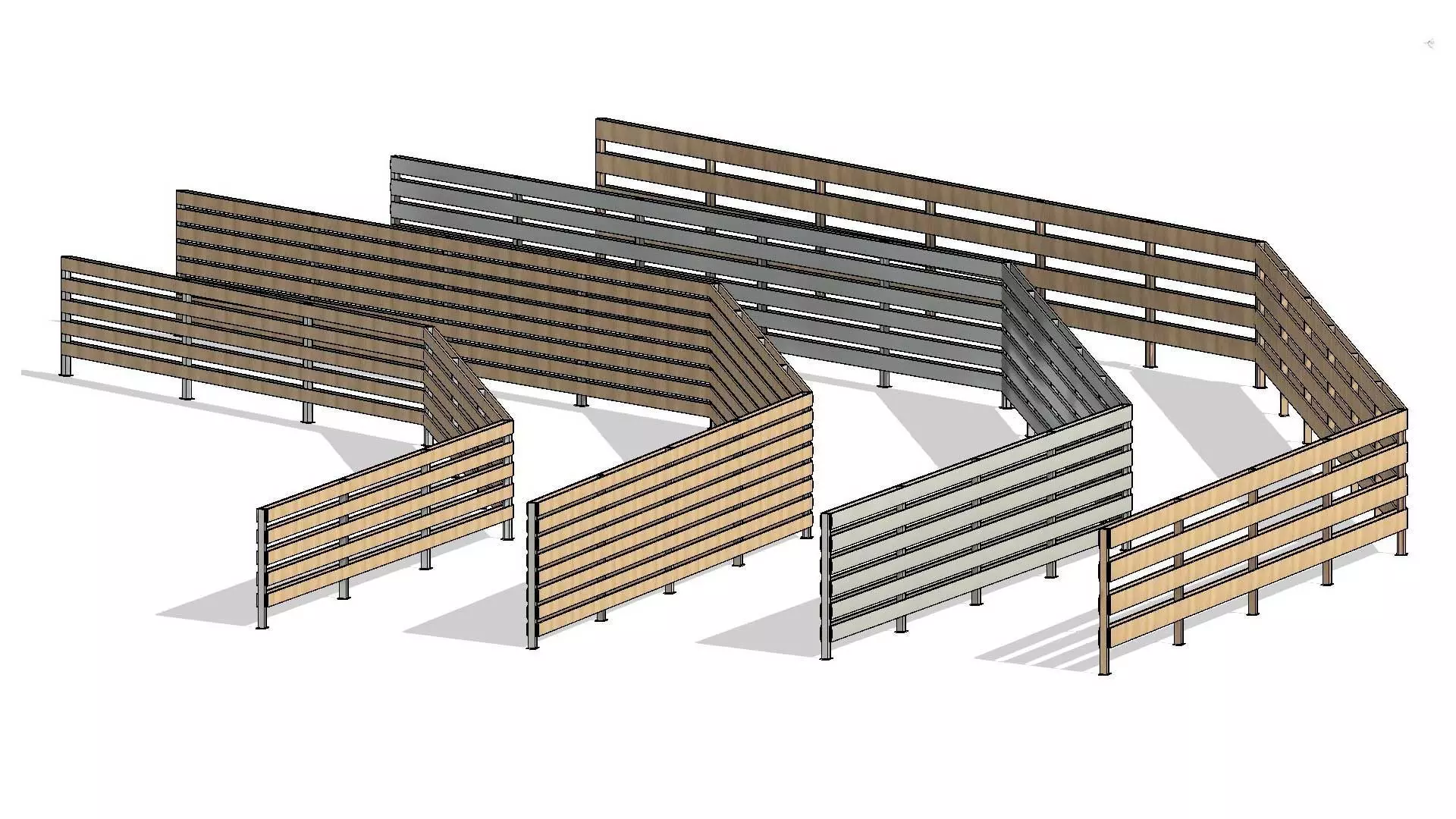

Line based families can be loaded into any project and by simply drawing any line or selecting from existing lines. The fence will be installed to follow any of those lines. This is a fully parametric fence where the user can adjust to match any design requirement.

Users can use any of the prepared family types or create any number of different variations to accomodate their design. Posts width and depth is adjustable together with the slats height, depth and the gap to be left between them.

The number of slats to be installed is automatically calculated based on the fence overall height given by the user, the height of the slats and the gap to be left between them so that there is an integer number of slats on each side.

ATTRIBUTES:

• Revit Version: 2022
• Family Type: Line Based
• File Extension: .rfa

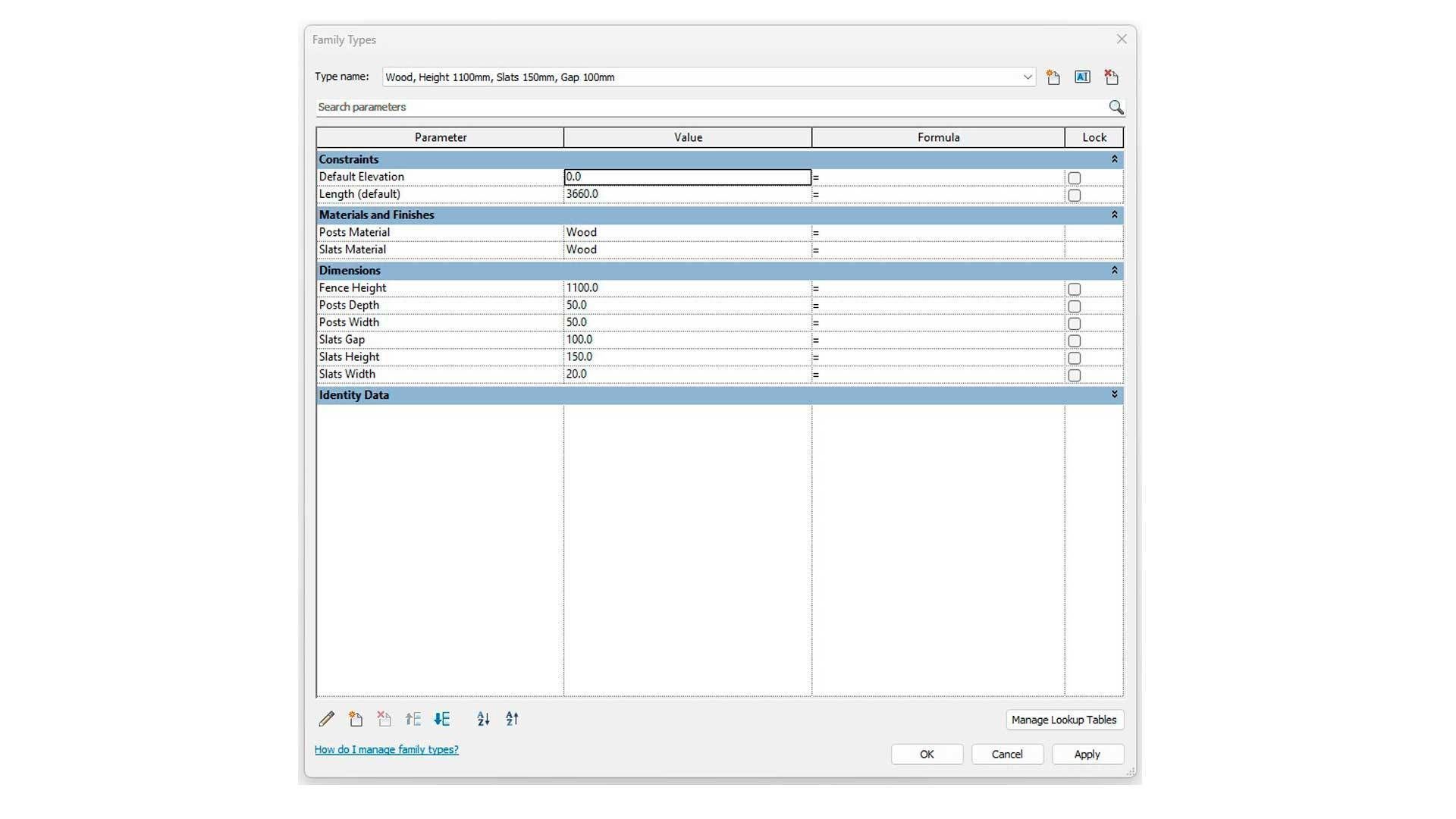

PARAMETERS:

• Fence Height
• Posts width and depth
• Slats Height and Depth
• Slats Gap
• All materials ( posts and slats )

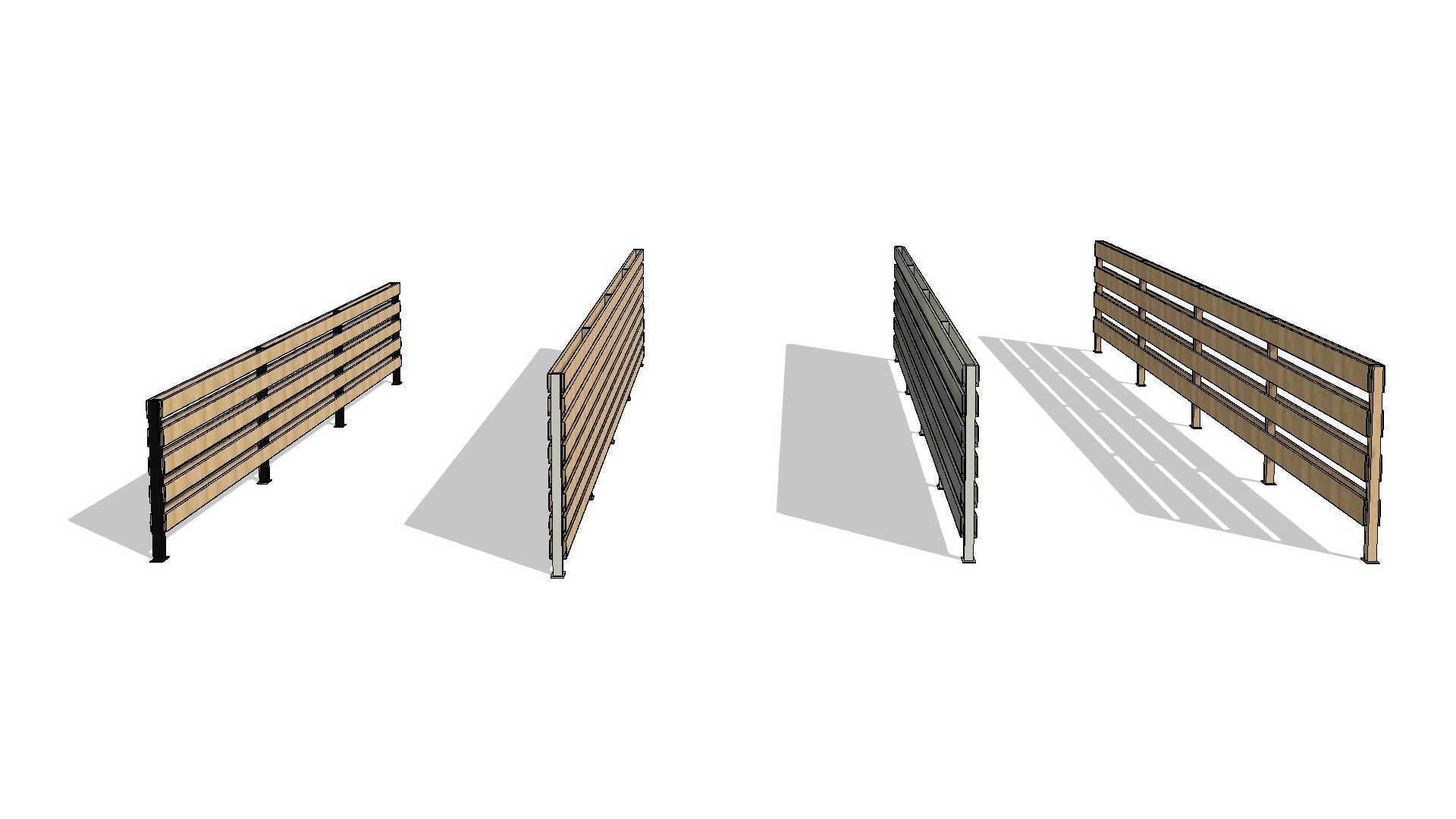

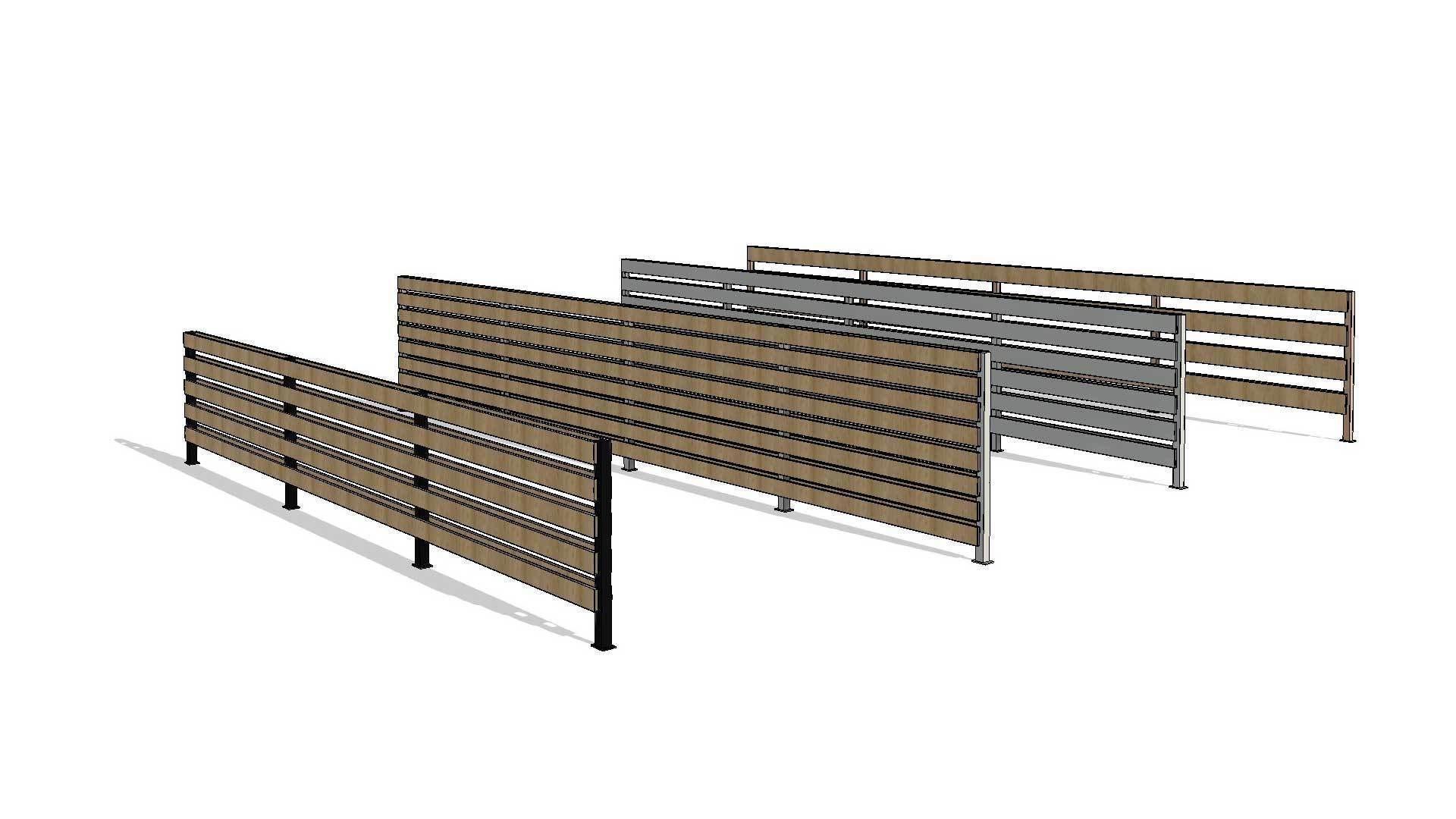

FAMILY TYPES:

• Aluminium+Wood, Height 1100mm, Slats 100mm, Gap 30mm
• Aluminium, Height 1100mm, Slats 100mm, Gap 30mm
• Wood, Height 1100mm, Slats 100mm, Gap 30mm
• Wood, Height 1100mm, Slats 120mm, Gap 50mm
• Aluminium+Wood, Height 1100mm, Slats 120mm, Gap 50mm
• Aluminium, Height 1100mm, Slats 120mm, Gap 50mm
• Aluminium, Height 1100mm, Slats 150mm, Gap 100mm
• Aluminium+Wood, Height 1100mm, Slats 150mm, Gap 100mm
• Wood, Height 1100mm, Slats 150mm, Gap 100mm
• Aluminium, Height 900mm, Slats 100mm, Gap 60mm
• Aluminium+Wood, Height 900mm, Slats 100mm, Gap 60mm
• Wood, Height 900mm, Slats 100mm, Gap 60mm

Users can create unlimited number of different family type variations according to their project’s needs.
