Fully Parametric Wooden Pergola 3D model

Fully Parametric Wooden Pergola Generic Model. The model can be placed into any surface and adjust all of its parameters to match any desired design. Dimensions, height, column and beams sizes and spacing, number of columns on both directions can be adjusted.

User can select width and length of the pergola together with selecting how many columns should be placed in each direction, giving the power to the designer to create any rectangular variation needed. Height of the pergola is also parametric and adjustable.

Columns width and depth can be adjusted as well as the support legs height. Columns are supported onto a steel circular leg with C shaped sleeves ensuring that the wooden columns don’t touch the floor and protect from water.

Pergola consists of main wooden timber beams connecting the columns. Main beams dimensions can all be adjusted using the available parameters. Secondary beams rest on top of the main beams whose size can also be adjusted. The height of these two sets of beams is automatically adjusted from the pergola overall height and the given beam heights.

User can select to have the beams overhang from the columns axis. Overhang length is also parametric and adjustable.

There is also an option to turn on and off the pergola cover which has a parameter for the cover thickness and the material

Columns, main beams and secondary beams together with the cover, all have material parameters meaning they can be changed by the user separately.

ATTRIBUTES:

• Revit Version : 2022
• Family Type : Generic Model
• File Extension : .rfa

PARAMETERS

• Pergola width, depth, height
• Number of Columns in x-direction
• Number of Column in y-direction
• Columns size width and depth
• Column legs support height
• Main Beams width and height
• Secondary Beams width and height
• Secondary Beams spacing
• Beams overhang length
• Pergola Cover Thickness
• Pergola Cover option ON/OFF
• All materials ( columns, main beams, secondary beams, support legs, cover material )

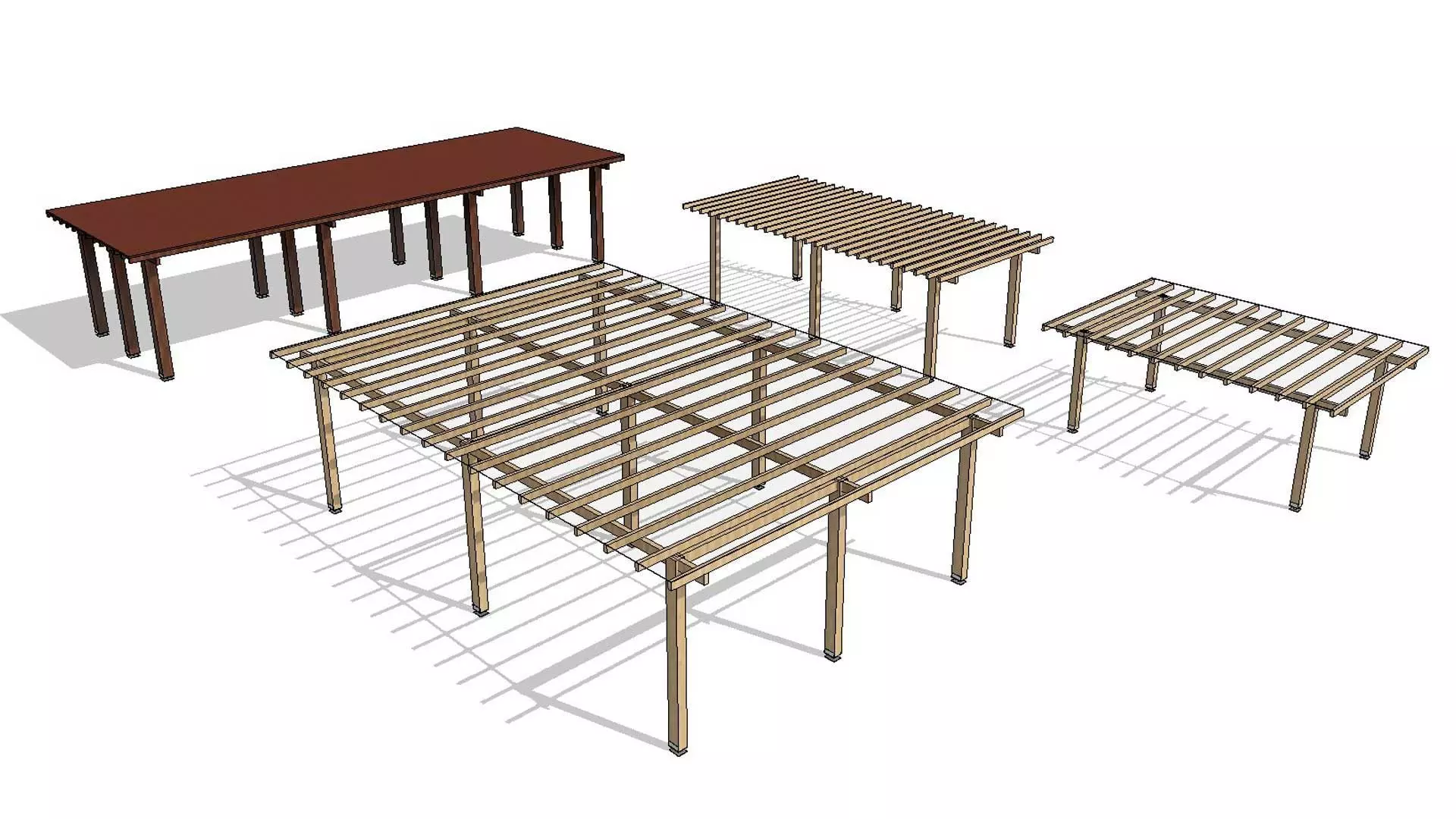

Users can create unlimited number of pergola variations to match any design
