Automatic Sliding Gate 3D model

This is a Revit floor based family for an automatic sliding gate. Fully Parametric model.

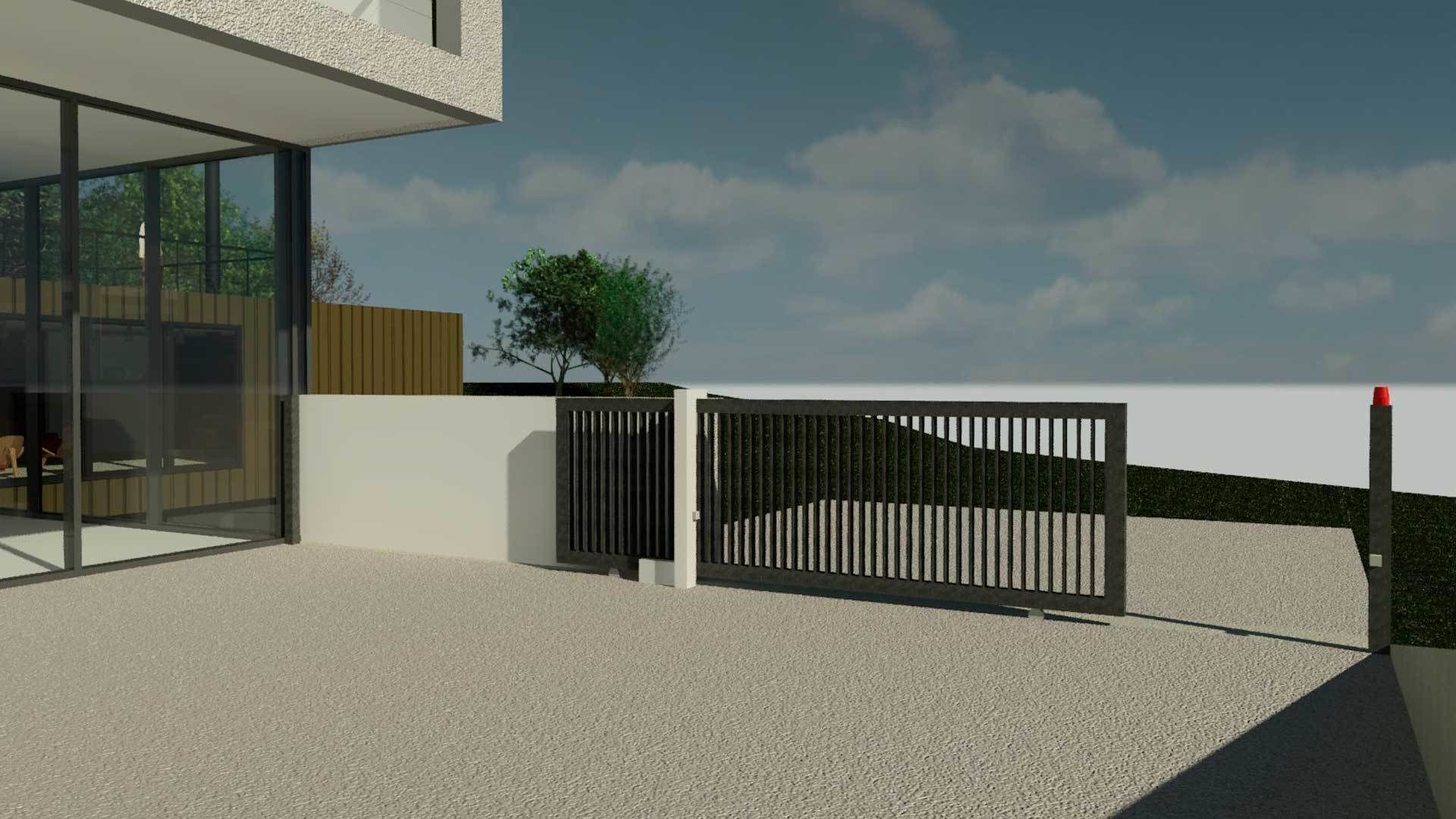

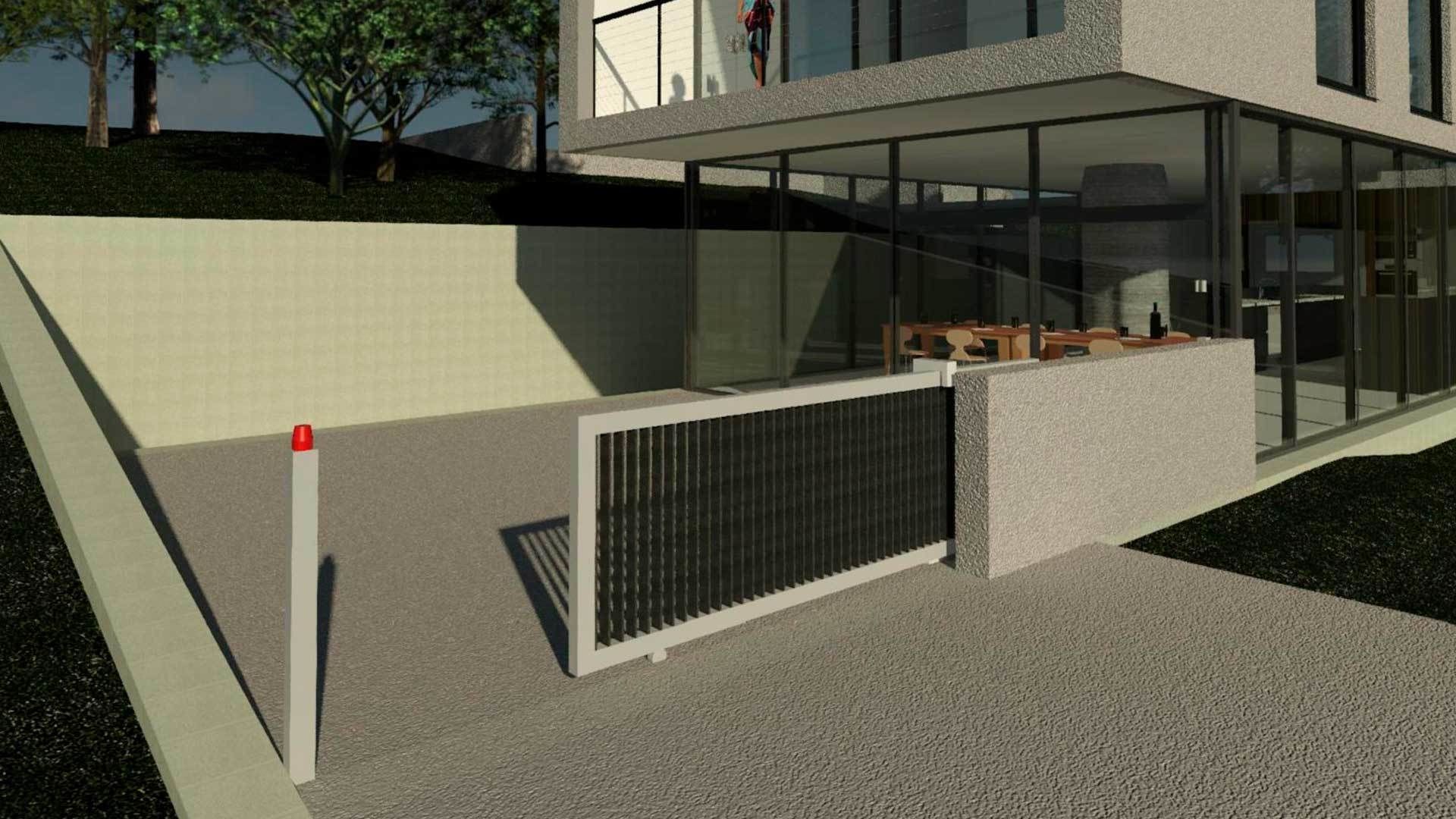

Model can be placed on any project onto an existing floor element, can be flipped both horizontally and vertically and adjust various model parameters to match the design needs for every project.

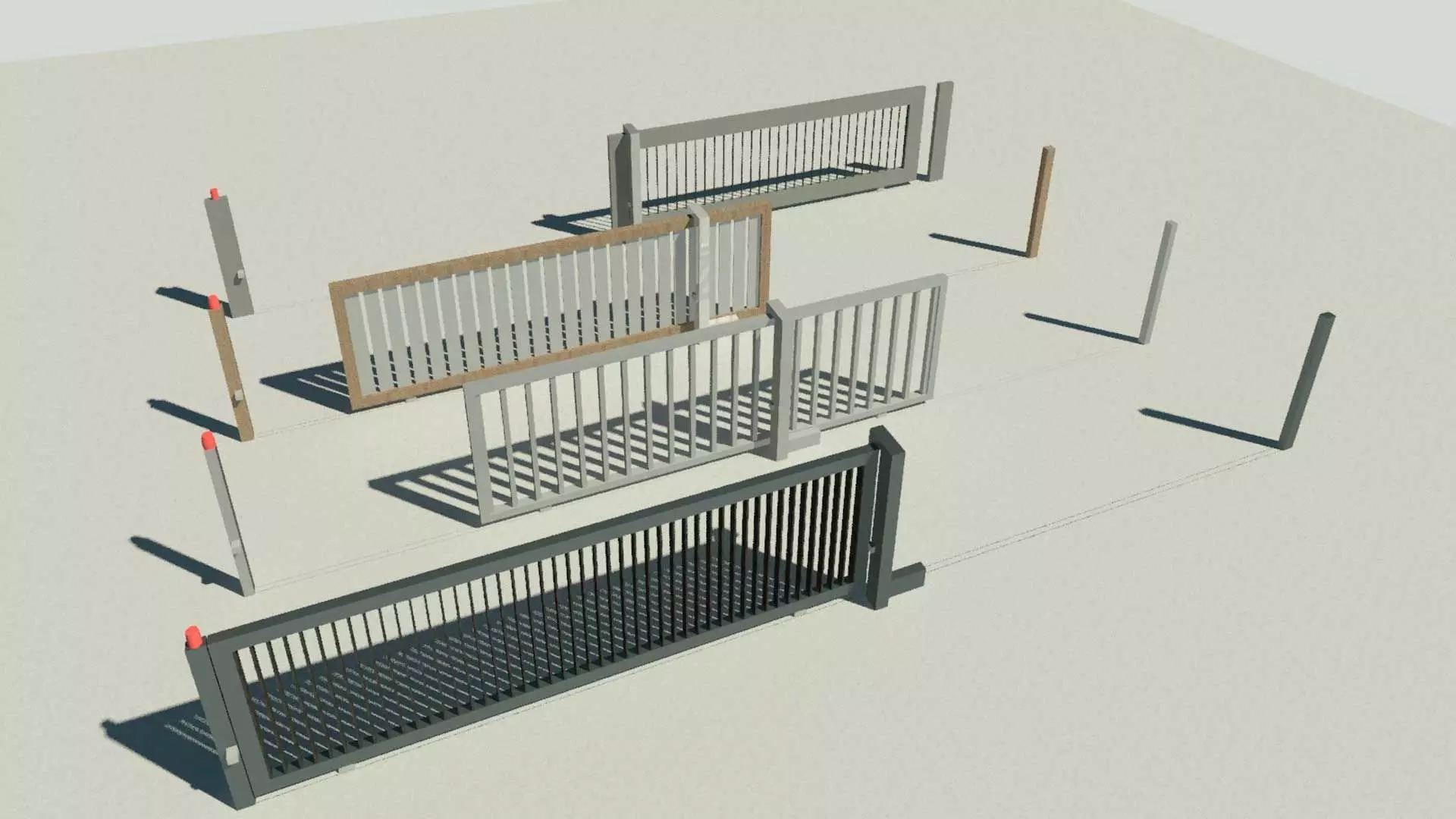

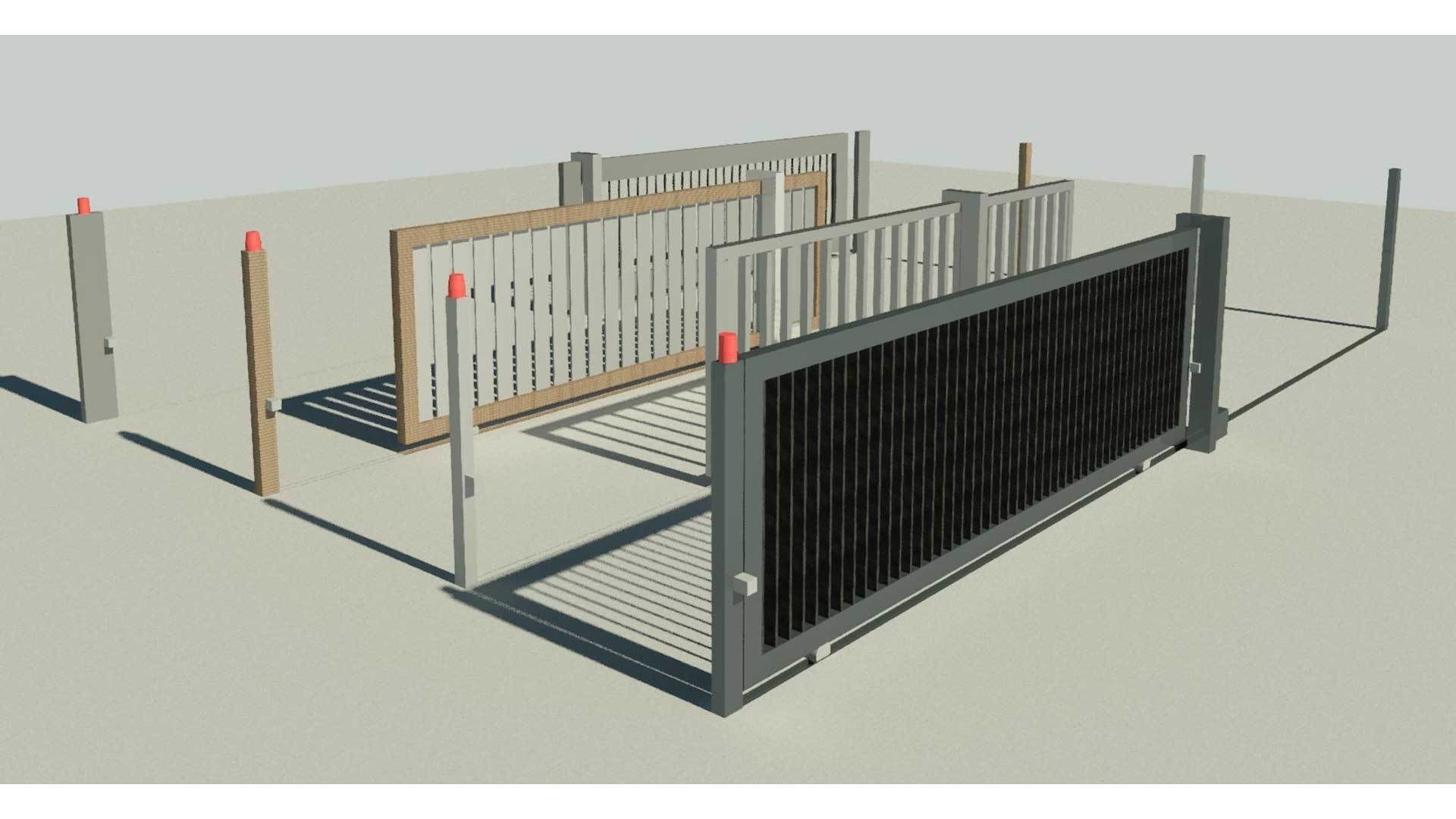

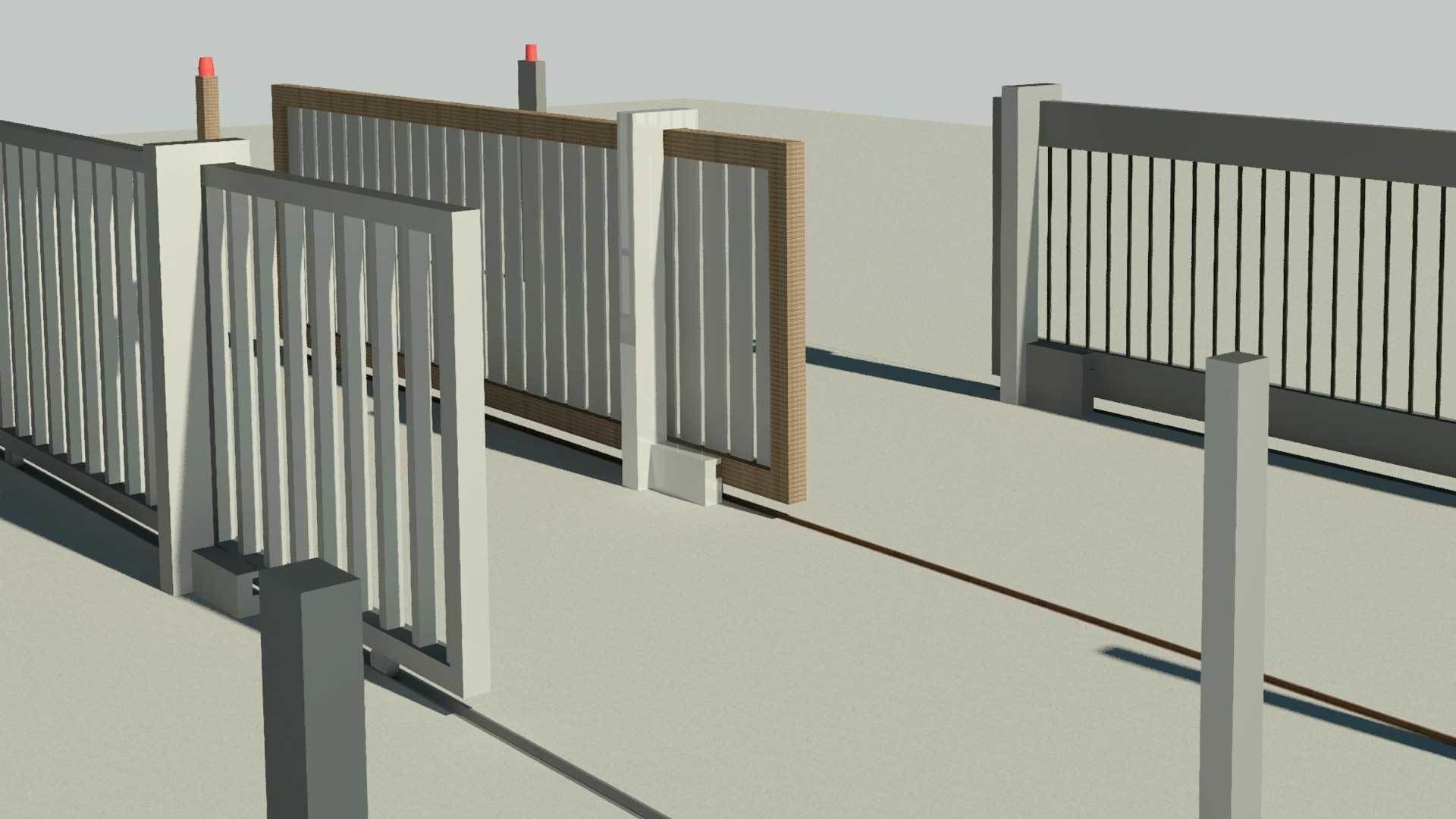

Gate profiles, dimensions and materials can be adjusted to match designs from steel, aluminium or even wooden automatic sliding gates. User can adjust the entrance opening length, gate height and bars gap and dimensions.

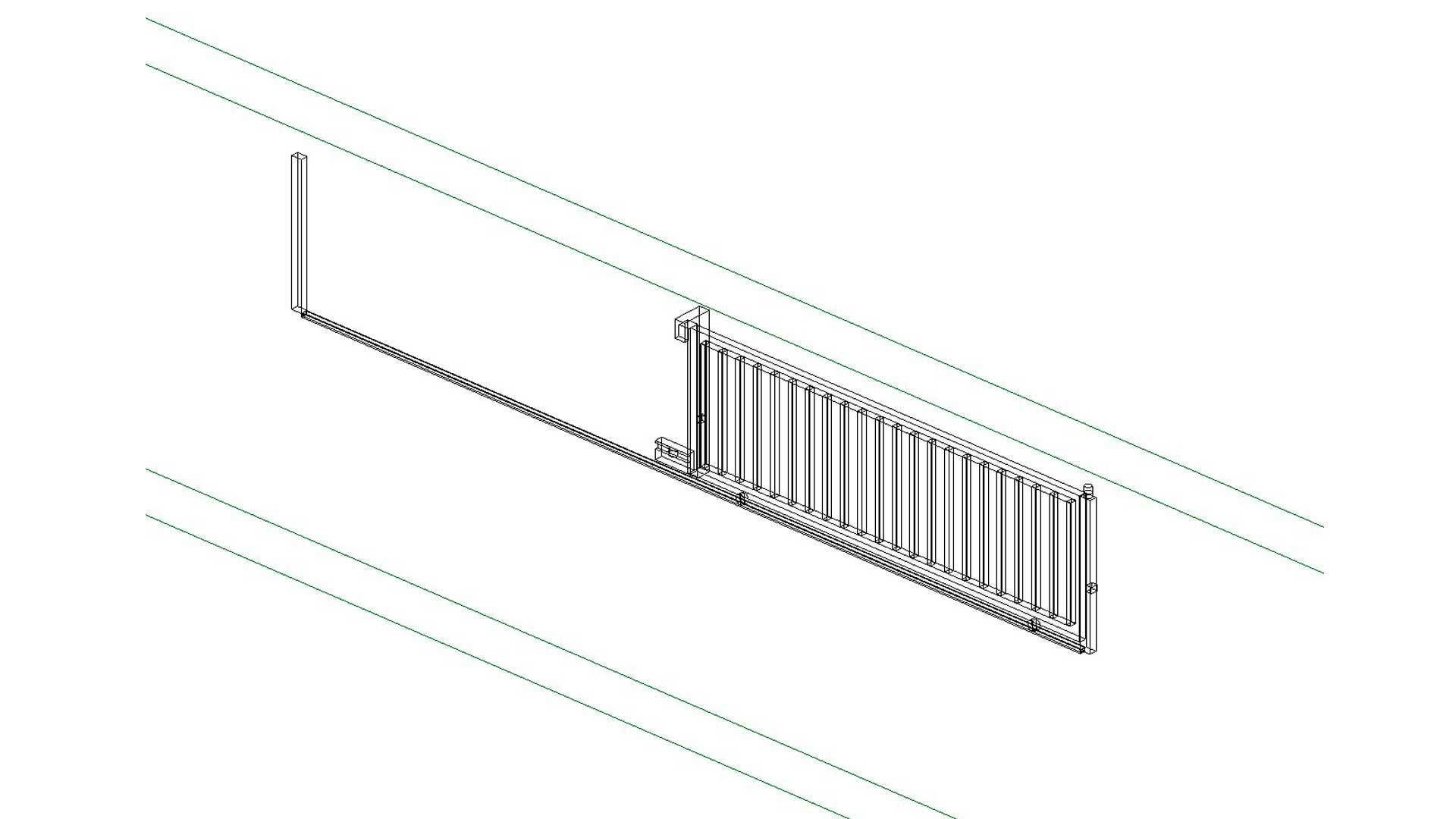

The model includes a gate main frame, vertical bars, floor rail cut into existing floor, start and end stopper posts, light beacon, support guide post and floor mechanism.

ATTRIBUTES:

• Revit Version 2022
• Family Type: Floor Based
• File Extension: .rfa

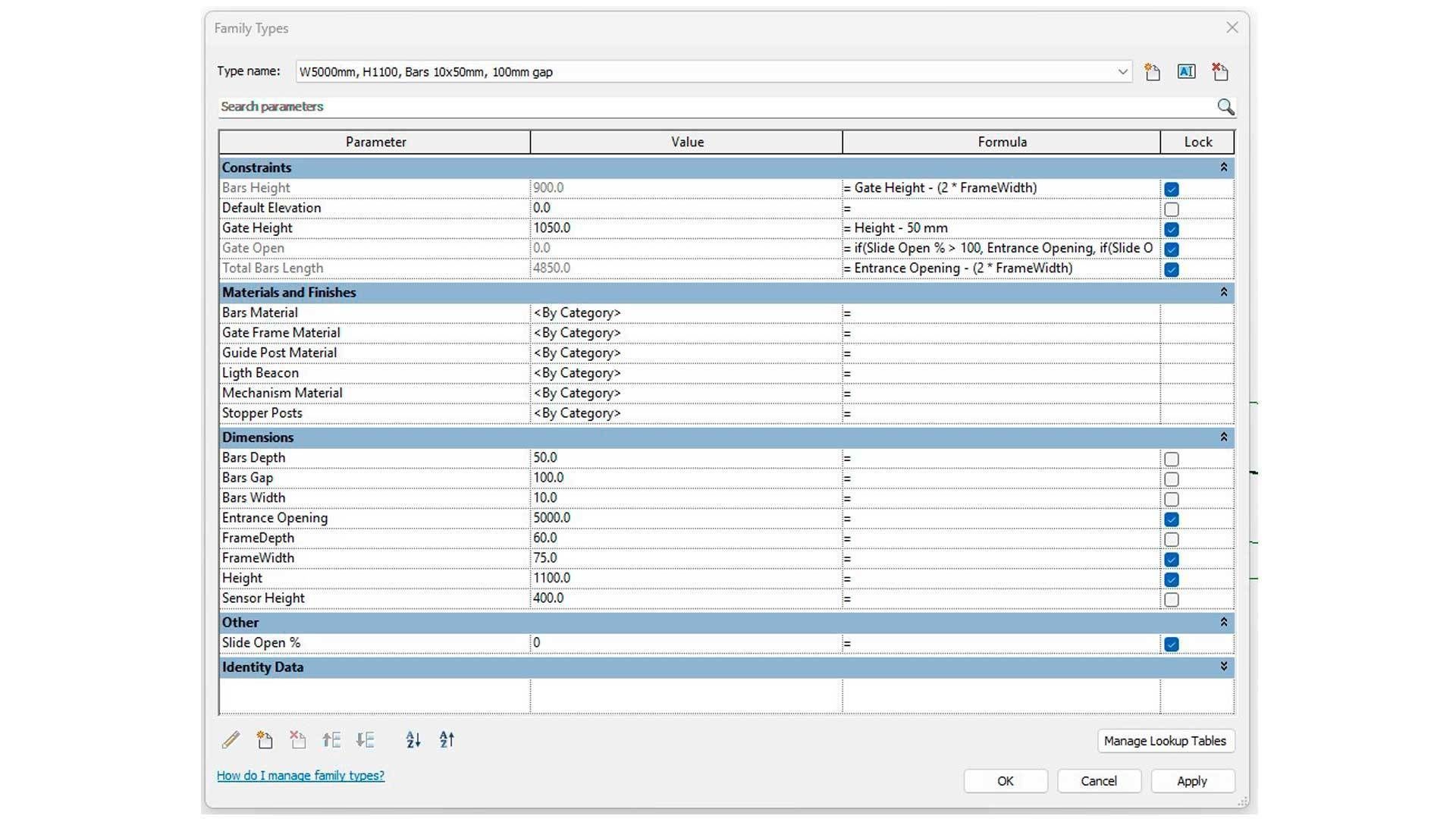

PARAMETERS:

• Entrance Opening Length
• Gate Height
• Gate Frame Width
• Gate Frame Depth
• Gate Bars width & depth
• Gate Bars gap spacing
• Sensor height
• Materials ( gate frame, bars, guide post, mechanism, stopper posts, light beacon )

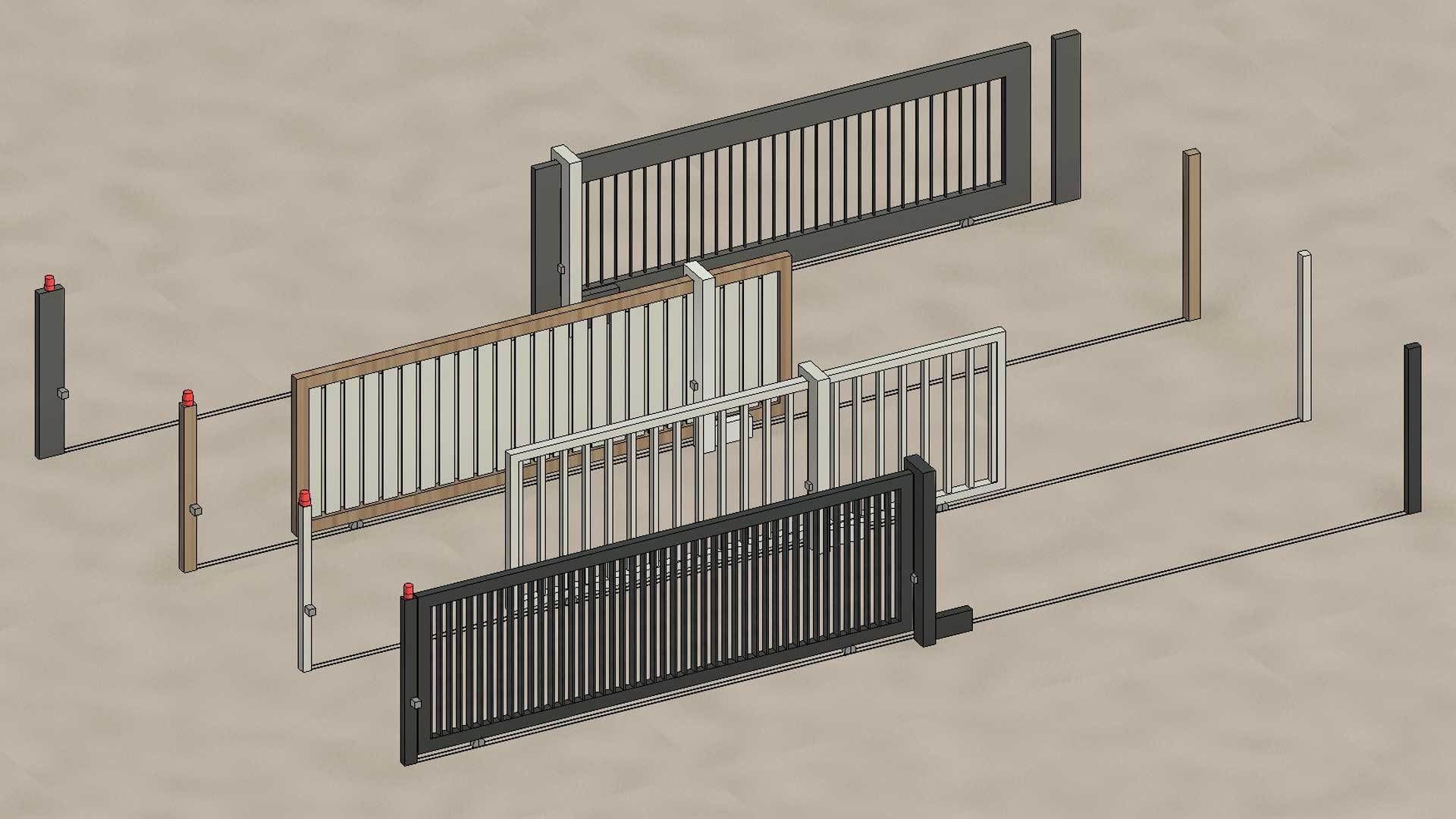

FAMILY TYPES:

• W3000mm, H1000mm, Bars 40x40mm with 100mm Gap
• W3000mm, H900mm, Bars 10x60mm with 50mm Gap
• W4000mm, H1000mm, Bars 100x6mm with 2mm Gap
• W5000mm, H1100mm, Bars 10x50mm with 100mm Gap


User can create unlimited number of family variations.
