Automatic Gate Barrier 3D model

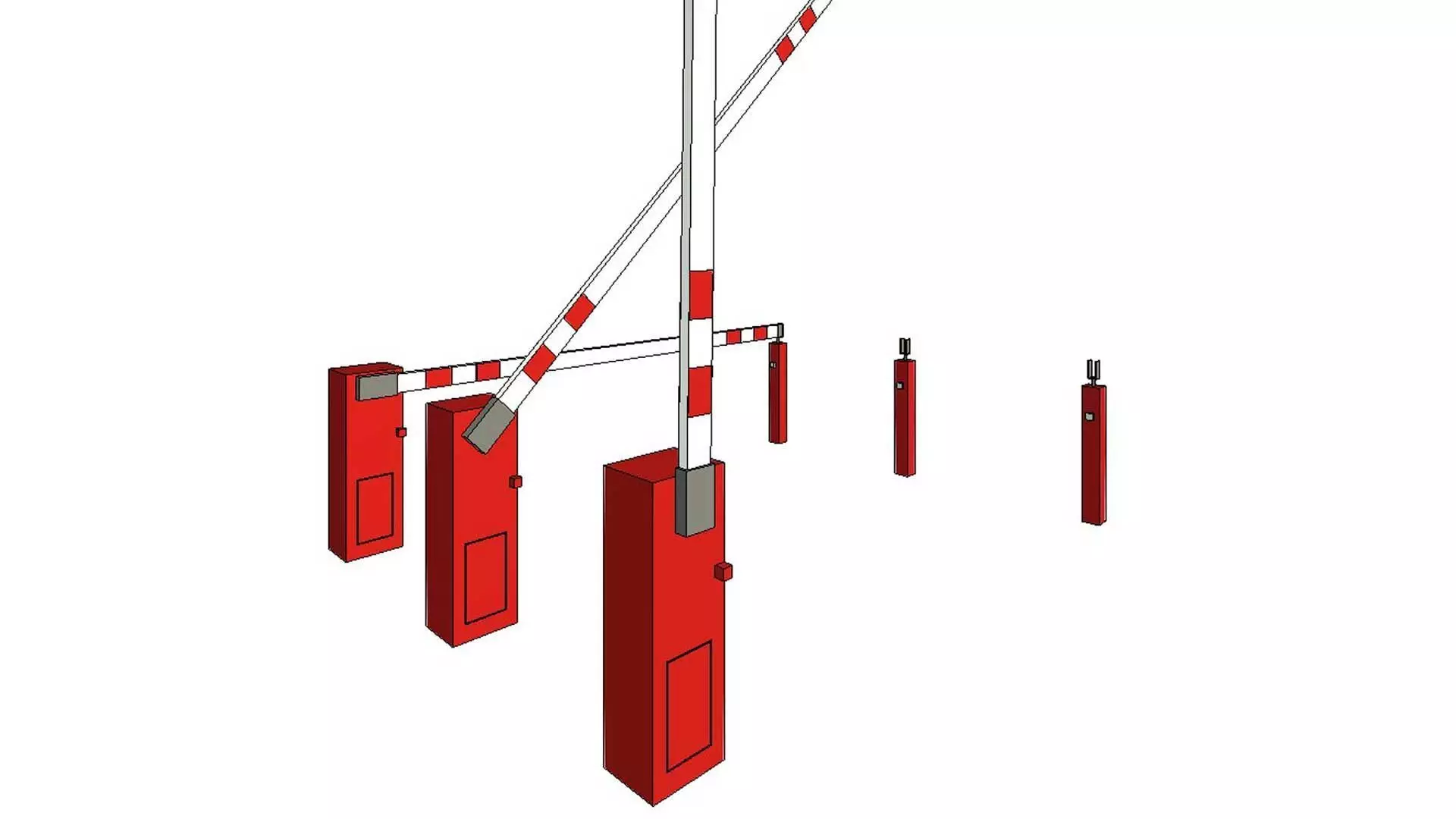

This is a revit family for an automatic car gate barrier. Family is fully parametric.As a generic model it can be placed almost anywhere in any project. Visulisation parameters control how the model is illustraded in the project, either with closed gate, half open, fully opened or any other rotation angle.

Almost all aspects of the model can be altered via the parameters available including materials. All family parameters are shown below.

Model can also be flipped on both vertical and horizontal axis for correct placement according to any project needs.

ATTRIBUTES:

• Revit version : 2022
• Family Type : Generic Model
• File Extension : .rfa

PARAMETERS:

• Opening Length ( clear passage )
• Height of the barrier
• Boom Height and Width
• Barrier raised angle ( 0 to 90 degrees )
• Sensor height
• Station Width and Depth

FAMILY TYPES:

• Opening length 3000mm, boom closed
• Opening length 3000mm, boom half opened
• Opening length 3000mm, boom fully raised
• Opening length 4000mm, boom closed
• Opening length 4000mm, boom half opened
• Opening length 4000mm, boom fully raised
• Opening length 5000mm, boom closed
• Opening length 5000mm, boom half opened
• Opening length 5000mm, boom fully raisedUser can create as many family types as needed within any project to match every project's needs.
