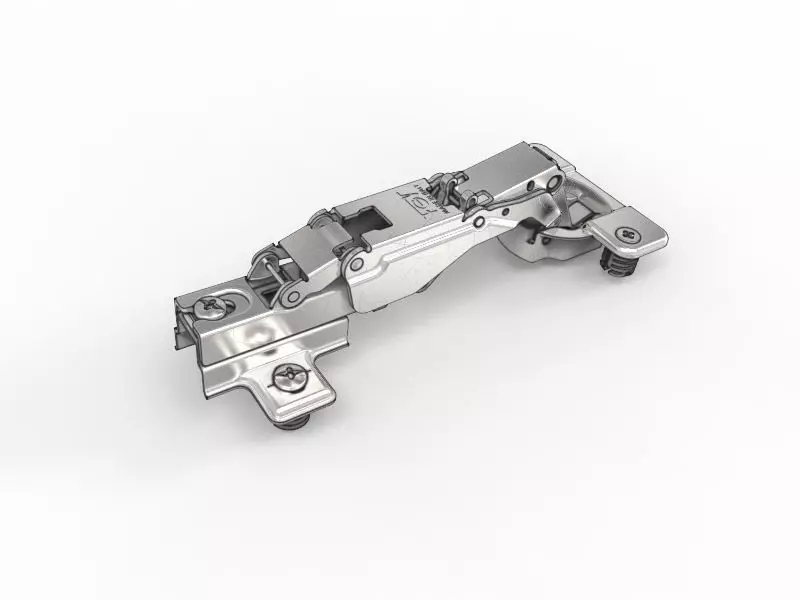

  • FGV Soft Close Hinge 3D model_0
  • FGV Soft Close Hinge 3D model_1

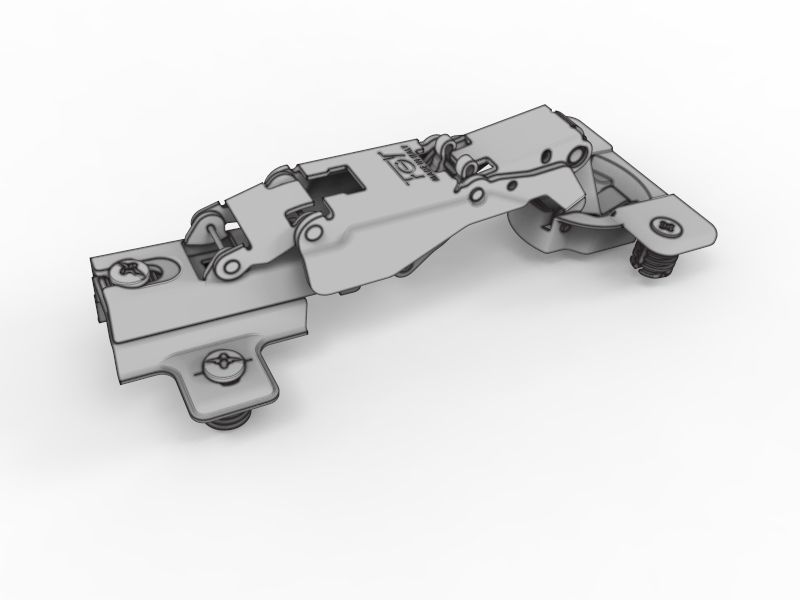

  • FGV Soft Close Hinge 3D model_2

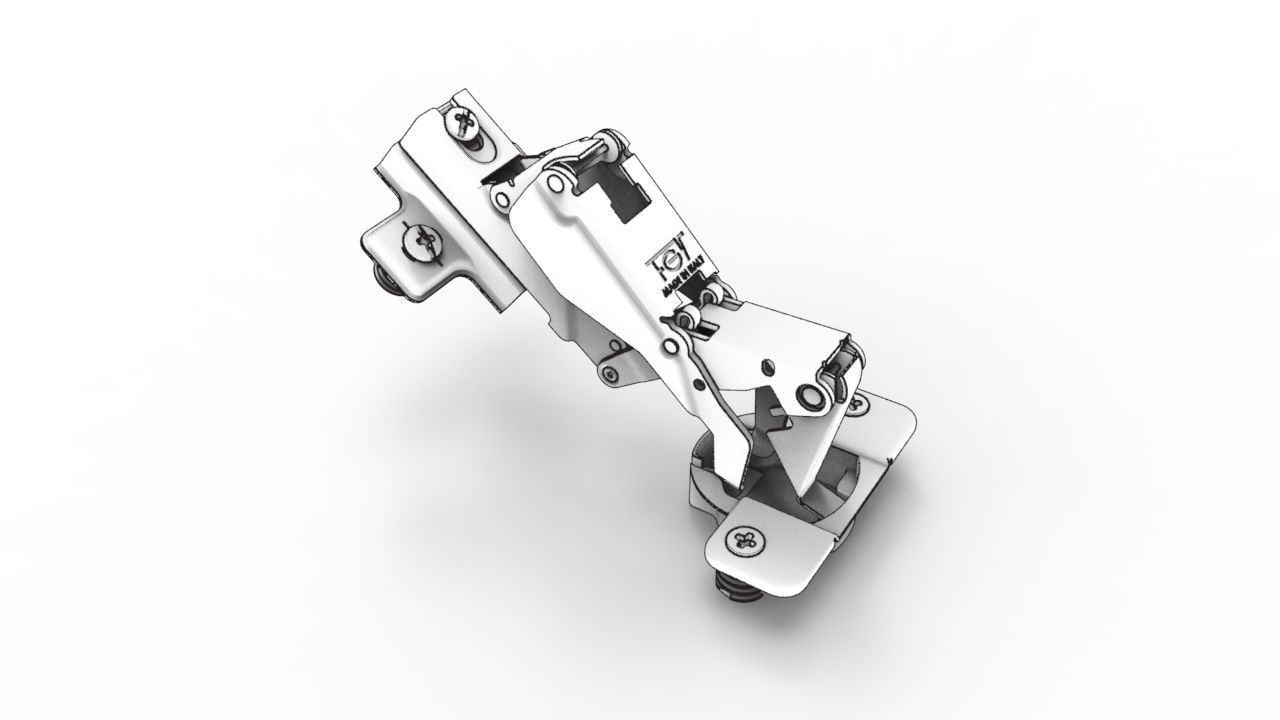

  • FGV Soft Close Hinge 3D model_3

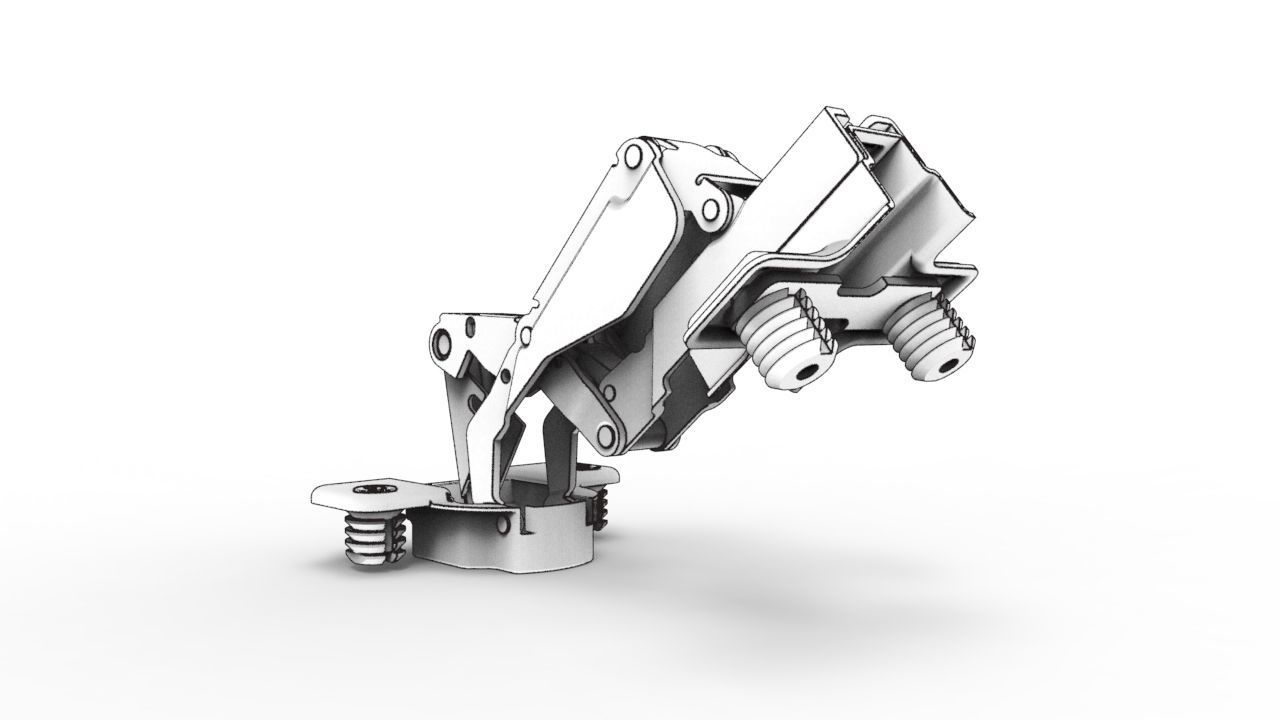

  • FGV Soft Close Hinge 3D model_4

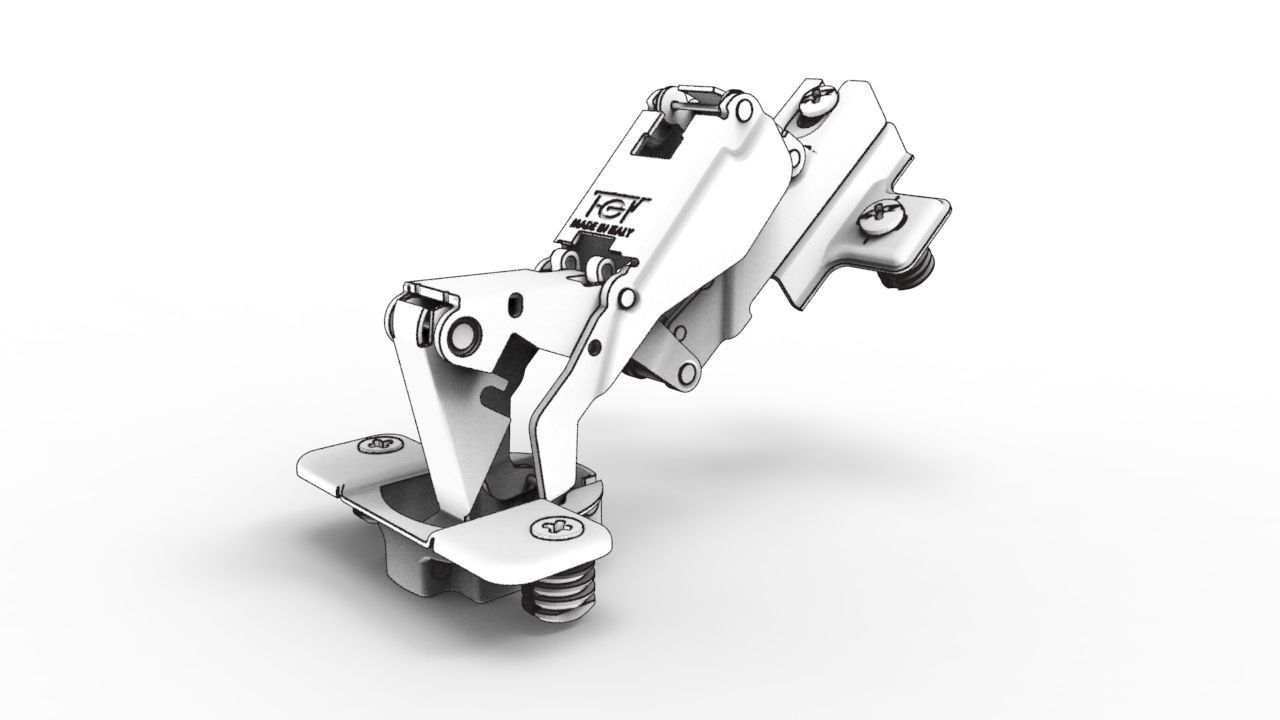

  • FGV Soft Close Hinge 3D model_5
1 / 6
Useto navigate. Pressescto quit

FGV Soft Close Hinge 3D model

Description

Model of an FGV 165-degree soft close / damped door hinge. Modelled in SolidWorks and rendered using KeyShot. The hinge mechanism is fully functional in SolidWorks.

Dimensions were measured from the real product - accurate for renderings but not for final production.

File formats: SLDASM, STEP, STL, MAX, OBJ, FBX

Write comment
Item rating
0 0
FGV Soft Close Hinge
$5.00

Royalty Free License
FGV Soft Close Hinge
$5.00

Royalty Free License
Eewashbrook05
ewashbrook05
(61 reviews)
Response 59% in 23.1h
3D Modeling
Rendering
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks 2019 (.sldprt, .sldasm, .slddrw)7.46 MB
Exchange
  • Autodesk FBX (.fbx)79.6 MB
  • Stereolithography (.stl)157 MB
  • OBJ (.obj, .mtl) (2 files)303 MB
  • Autodesk 3ds Max (.max)293 MB
  • STEP (.stp)6.1 MB

3D Model details

  • Publish date2018-12-03
  • Model ID#1839645
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
