Vertical Solar Panel Tower Type-1 3D model

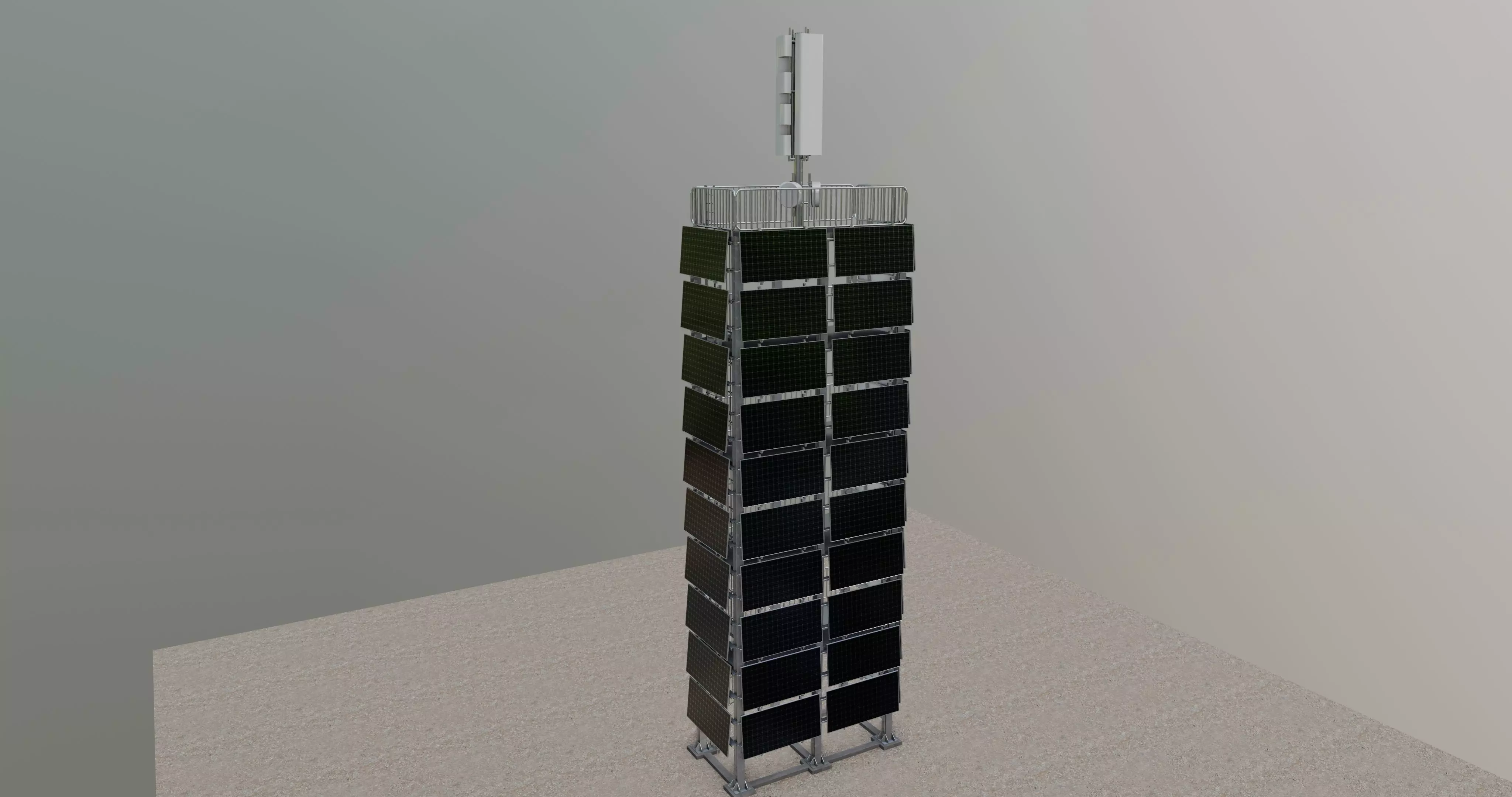

Vertical Solar Panel Tower Type-1

4x10 Vertical Tower Panel Layout

Ground Connection Type; With Anchor Plate

Foundation Dimensions : 7000mm x 3000mm x 1600mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 22 kWp power in 1 hour

The system consists of 3 axles and the distance between each axle is 2278 mm.

Distance between two columns 2088 mm.

Vertical angle of panel 5°

The closest distance of the panels to the floor 1000 mm.

Total tower height including antennas is 18.4 mt.

Each floor height is 2.6 mt.

5 floors in total.

Prepared With BLENDER Version 2.93.5

Values Excluding Bolts

Polygons : 199.099

Vertices : 322.434

Objects : 1086

Prepared With BLENDER Version 2.93.5

Bolts, Nuts and Washers Only

Polygons : 1.016.240

Vertices : 1.134.624

Objects : 1208

Prepared With BLENDER Version 2.93.5

All Structural Values İncluding Bolts

Polygons : 1.215.339

Vertices : 1.457.058

Objects : 2294
