Vaulting 5-3 Gothic 750cm spaced with thick curbs Low-poly 3D model

This Romanic Style vaulting is composed of few basic elements instance-cloned to form a simple scene: a vault structure, a round and a square column and a background wall set.

It is part of a Collection based on 5.0m and 7.5m modules (see Vaults Collection on this Site). We propose two different column spacings to avoid or reduce texture distorsion when an image showing squared elements (bricks or stones) is used; nevertheless every scaling operation is feasible to adapt vaults to every need.

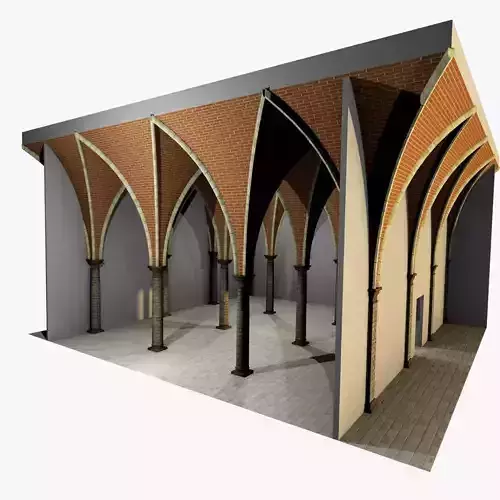

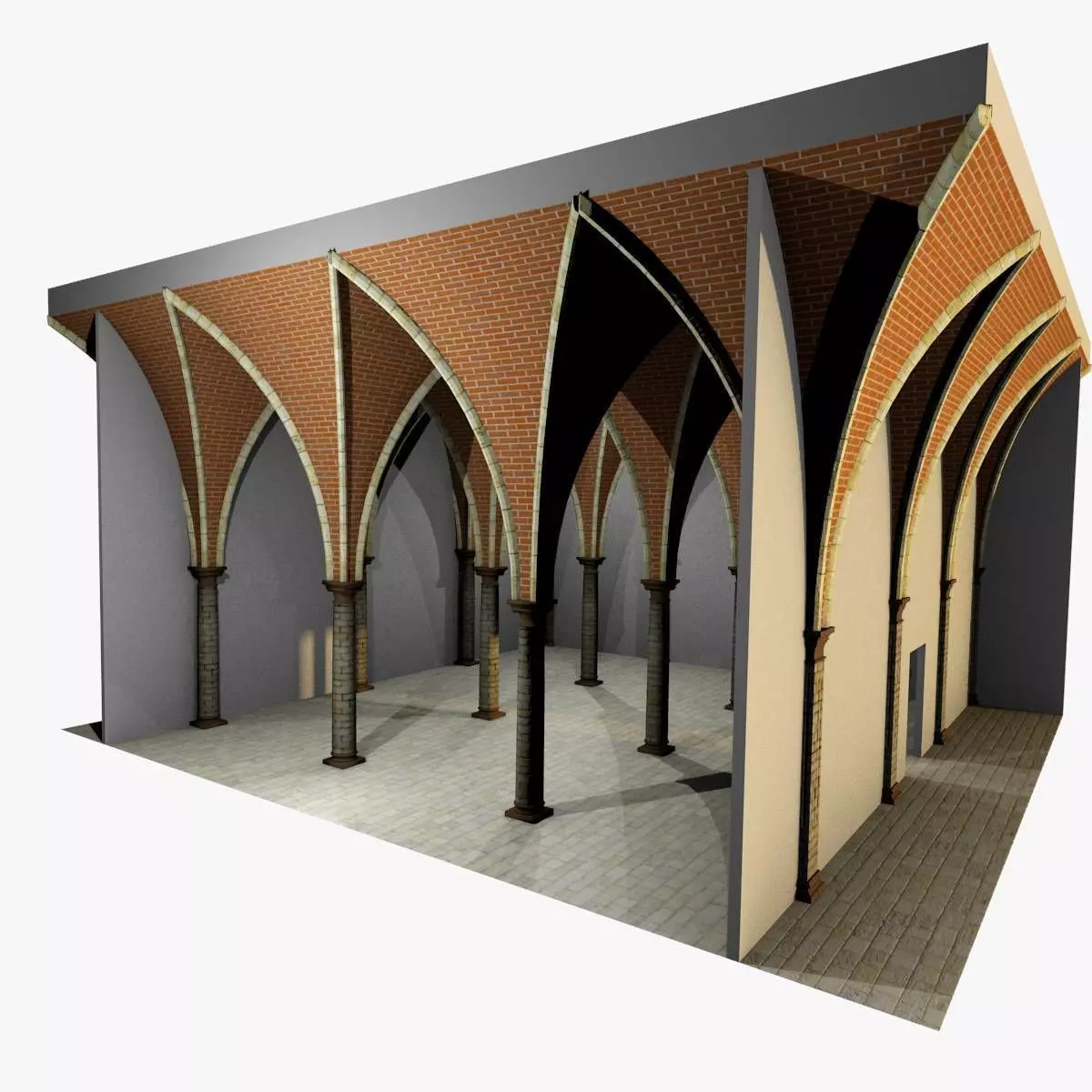

The scene shows 16 groups of single columns/vaults elements; a change in one group is immediately replicated on all others due to the instance-cloning method employed.

The scene uses 5 textures, but 3 more have been supplied to allow different texturing, as shown in Screen Dumps.

Main Textures are seamless and generally have a resolution of 1024 pixel, allowing really big and detailed renderings with a very limited use of memory.

NOTE: We supply, to allow a more immediate use, two versions for 3dsMax, Blender and OBJ: a base-one, showing only one element in front of the background, and a scene-one, replicating 16 times the base element. Both Max version files are less than 0.5mb wide, plus textures. In its base-version Faces and Verices are around 1000 only, while in scene-version (16 instances) they are roughly 10 times more.

In case you are interested in the full Vaulting Collection we remember that it includes Romanic, Renaissance and Gothic Style elemnts, they are:

-Vault 1.1: Romanic Style spaced 5m, only vaults -Vault 1.2: spaced 5m, with thin arches -Vault 1.3: spaced 7.5m, only vaults -vault 1.4: spaced 7.5m, with thin arches -vault 1.5: spaced 7.5m, with thick arches -Vault 2.1: Romanic Style spaced 5m, with thin curbs -Vault 2.2: spaced 5m, with thin arches and thin curbs -Vault 2.3: spaced 7.5m, with thin curbs -vault 2.4: spaced 7.5m, with thin arches and thin curbs -vault 2.5: spaced 7.5m, with thick arches and thin curbs -Vault 3.1: Romanic Style spaced 5m,with thick curbs -Vault 3.2: spaced 5m, with thin arches and thick curbs -Vault 3.3: spaced 7.5m, with thick curbs -vault 3.4: spaced 7.5m, with thin arches and thick curbs -vault 3.5: spaced 7.5m, with thick arches and thick curbs -Vault 4.1: Renaissance Style spaced 5m, with thick curbs -Vault 4.2: spaced 5m, with thin arches and thick curbs -Vault 4.3: spaced 7.5m, with thick curbs -vault 4.4: spaced 7.5m, with thin arches and thick curbs -vault 4.5: spaced 7.5m, with thick arches and thick curbs -Vault 5.1: Gothic Style spaced 5m, with thick curbs -Vault 5.2: spaced 5m, with thin arches and thick curbs -Vault 5.3: spaced 7.5m, with thick curbs -vault 5.4: spaced 7.5m, with thin arches and thick curbs -vault 5.5: spaced 7.5m, with thick arches and thick curbs
