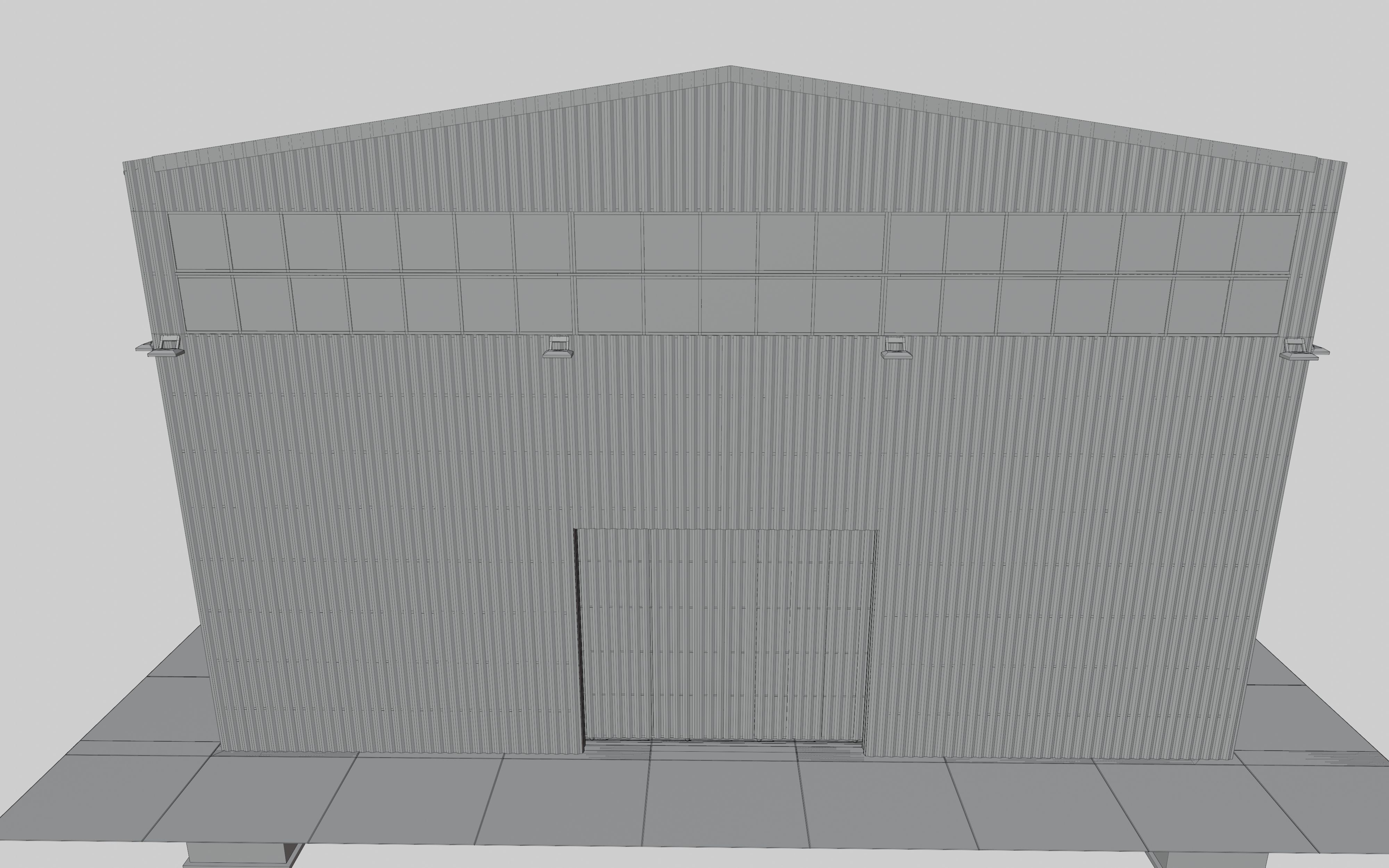

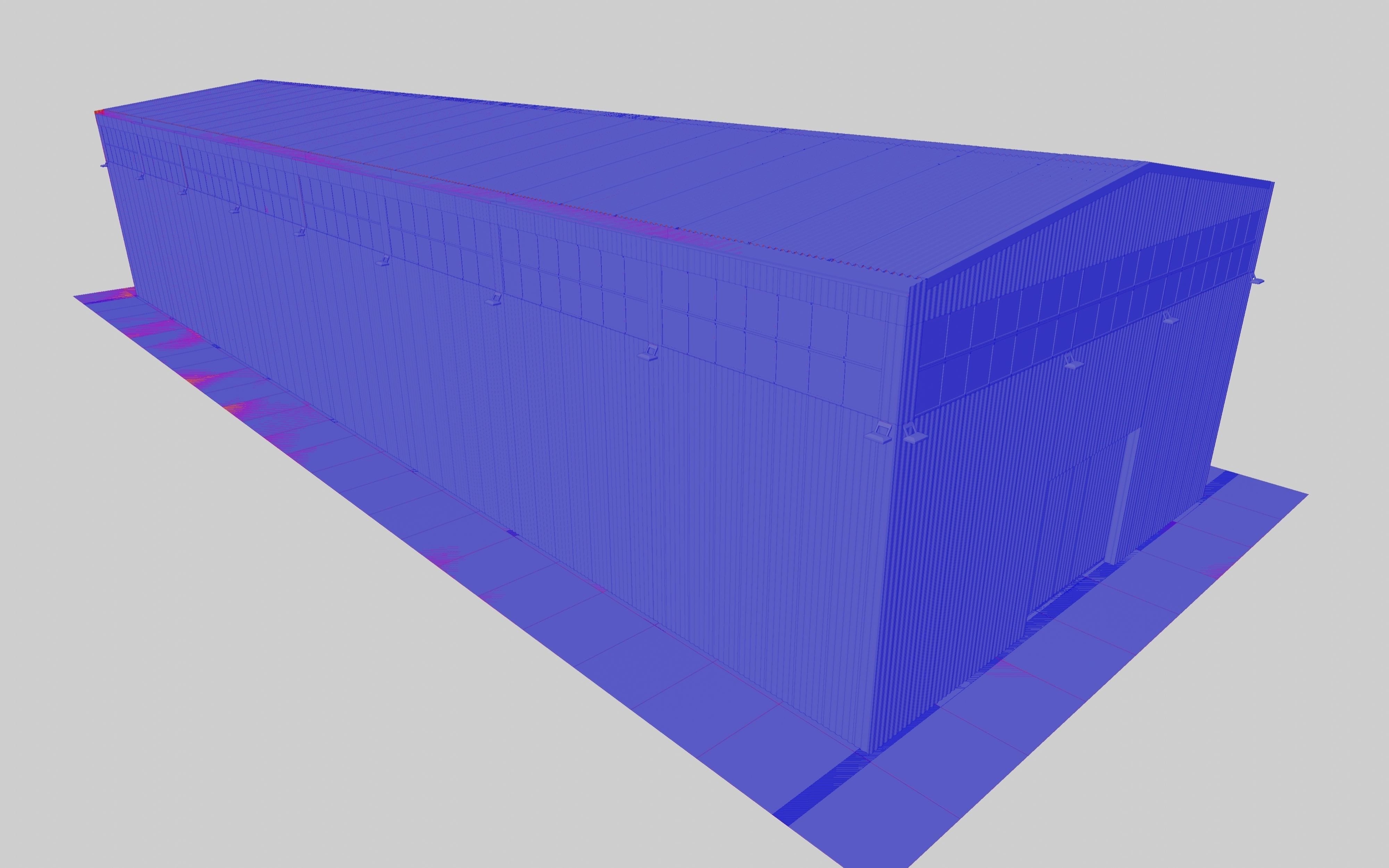

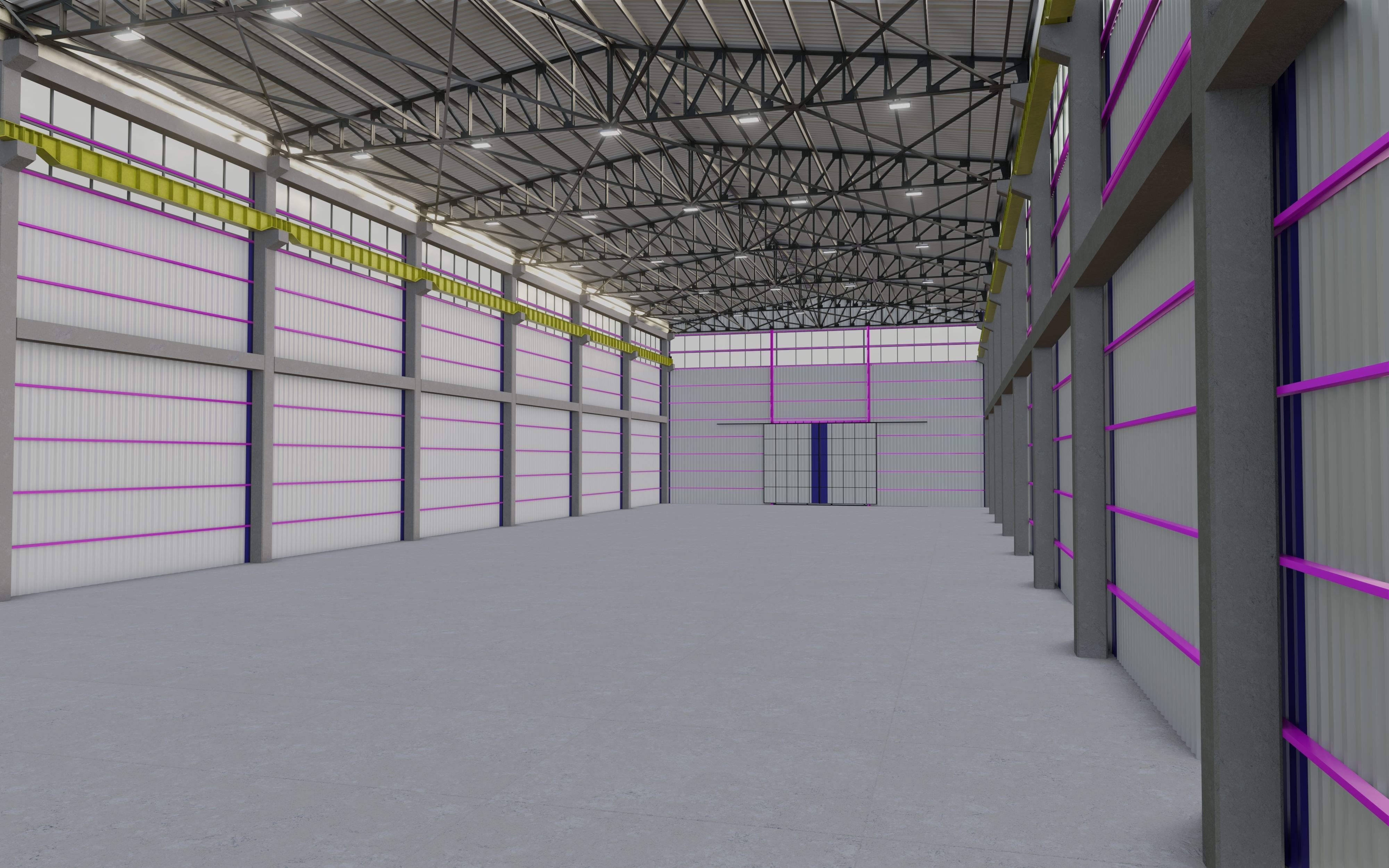

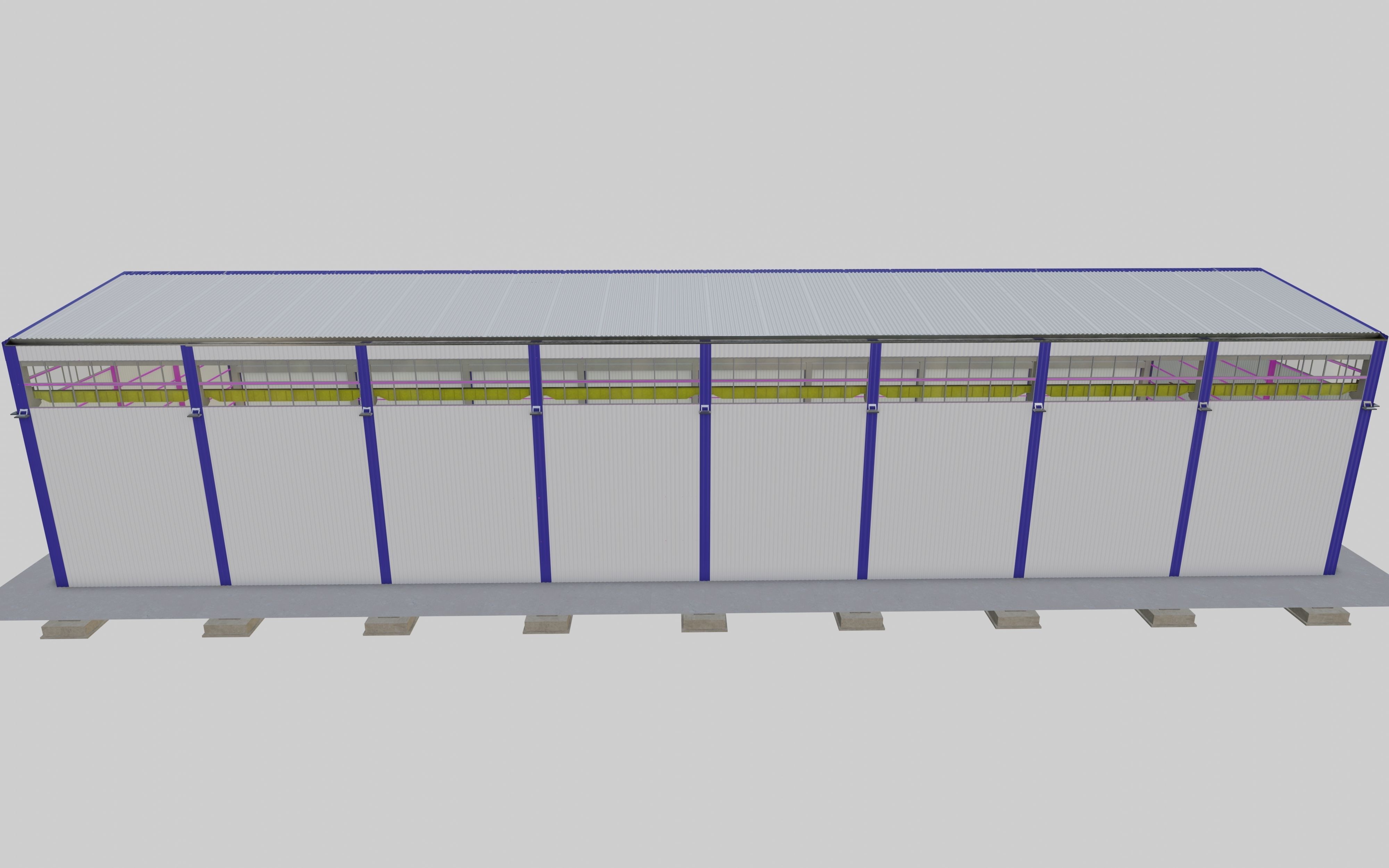

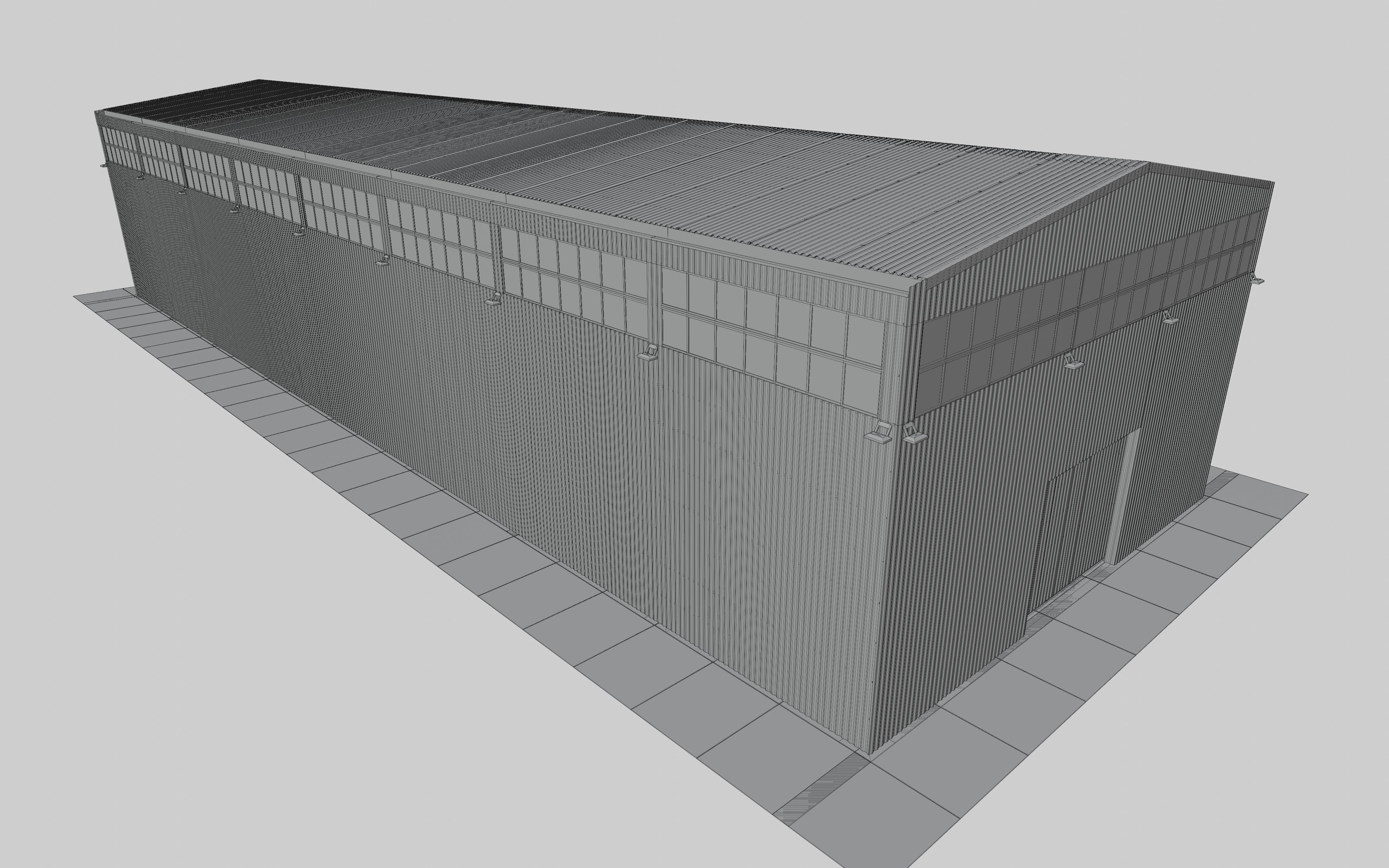

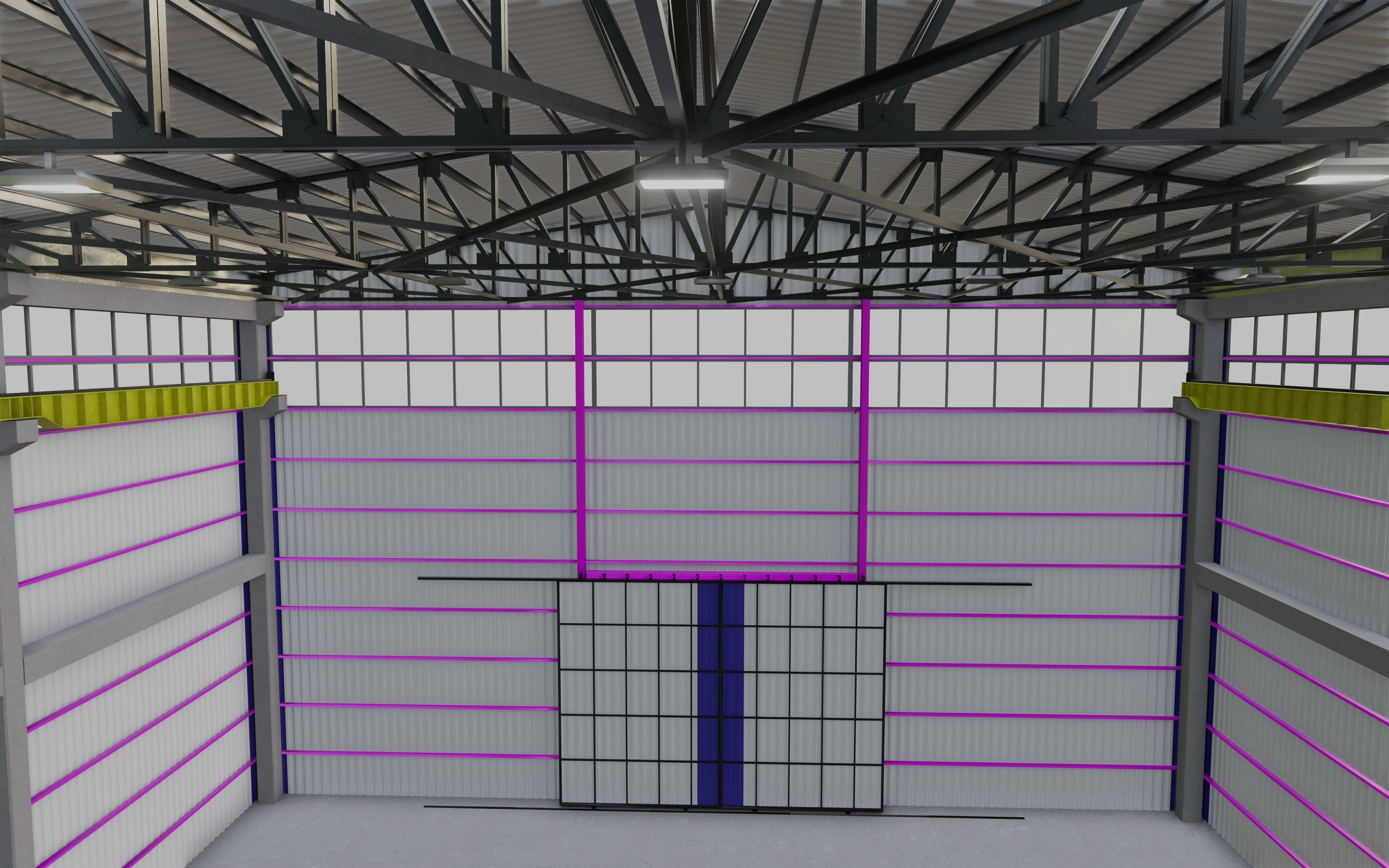

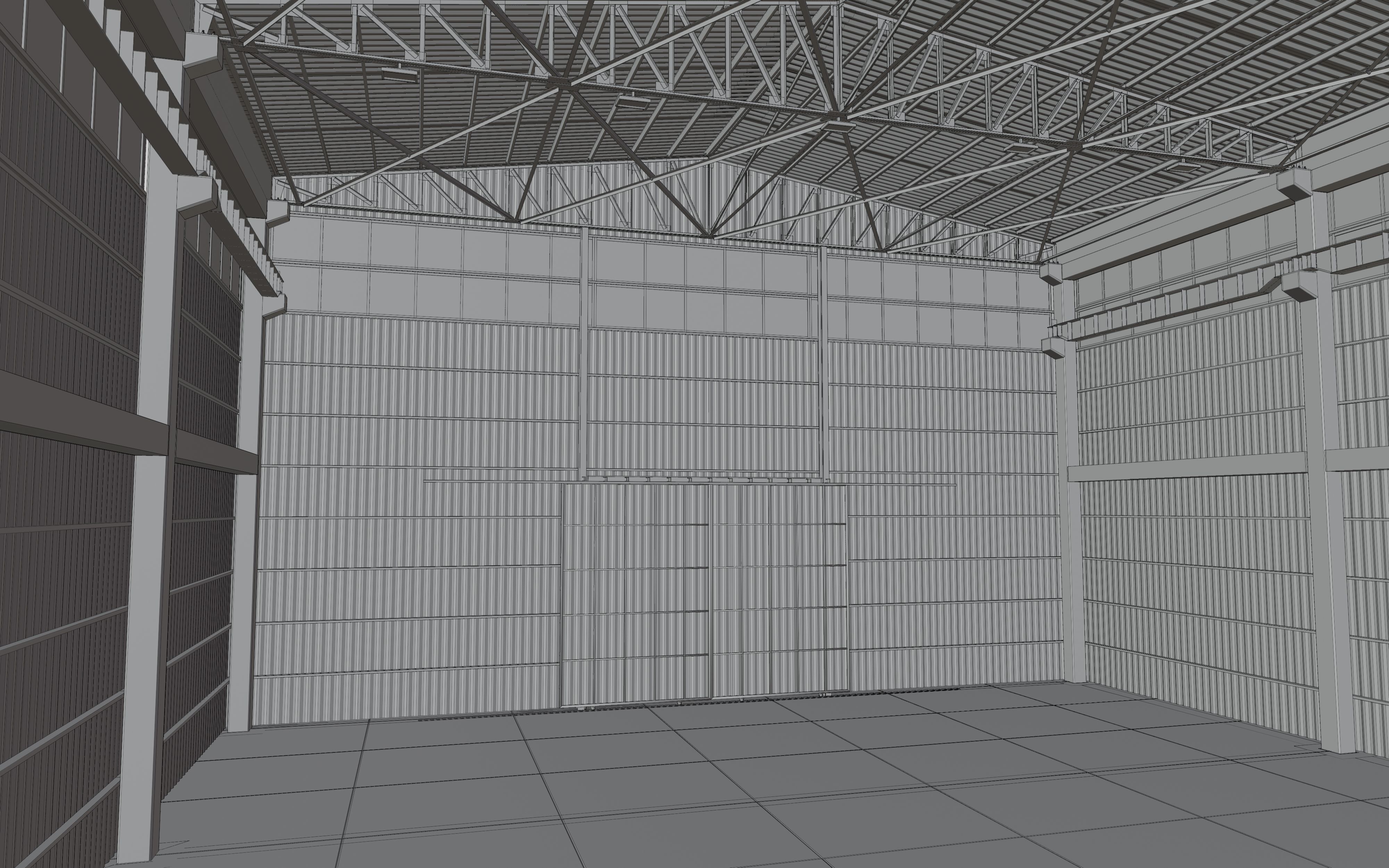

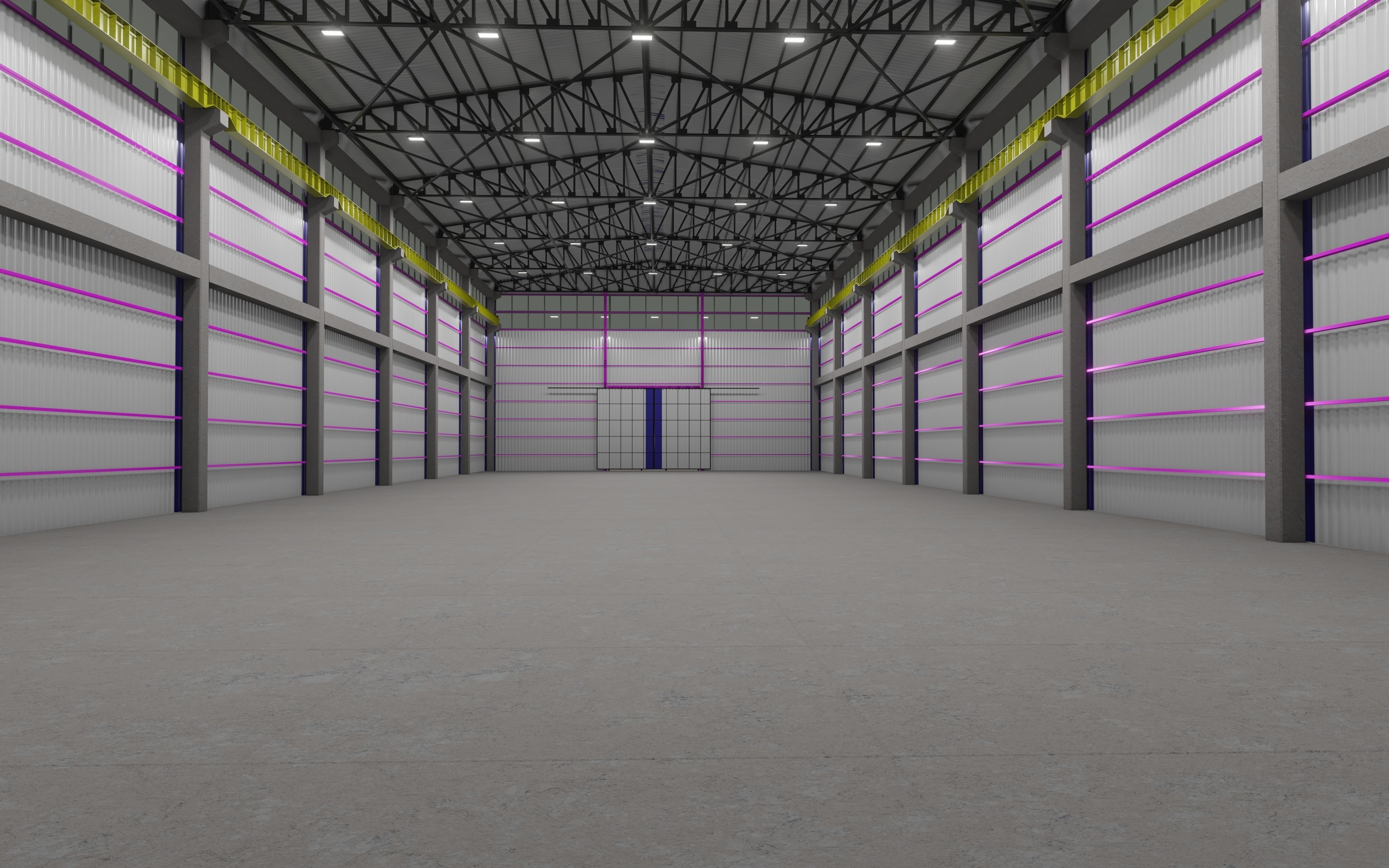

Steel Structure - Warehouse
Precast Concrete Column
Precast Concrete Beam
Box Type Column
Named Objects
Warehouse Column Span : 20,0 mt.
Warehouse Axle Span : 7,5 mt.
(9 Columns) (8 Axles)
Total Warehouse Lenght : 60,0 mt.
Roof-Floor Height : 11,0 mt.
Crane Way-Floor Height : 9,0 mt.

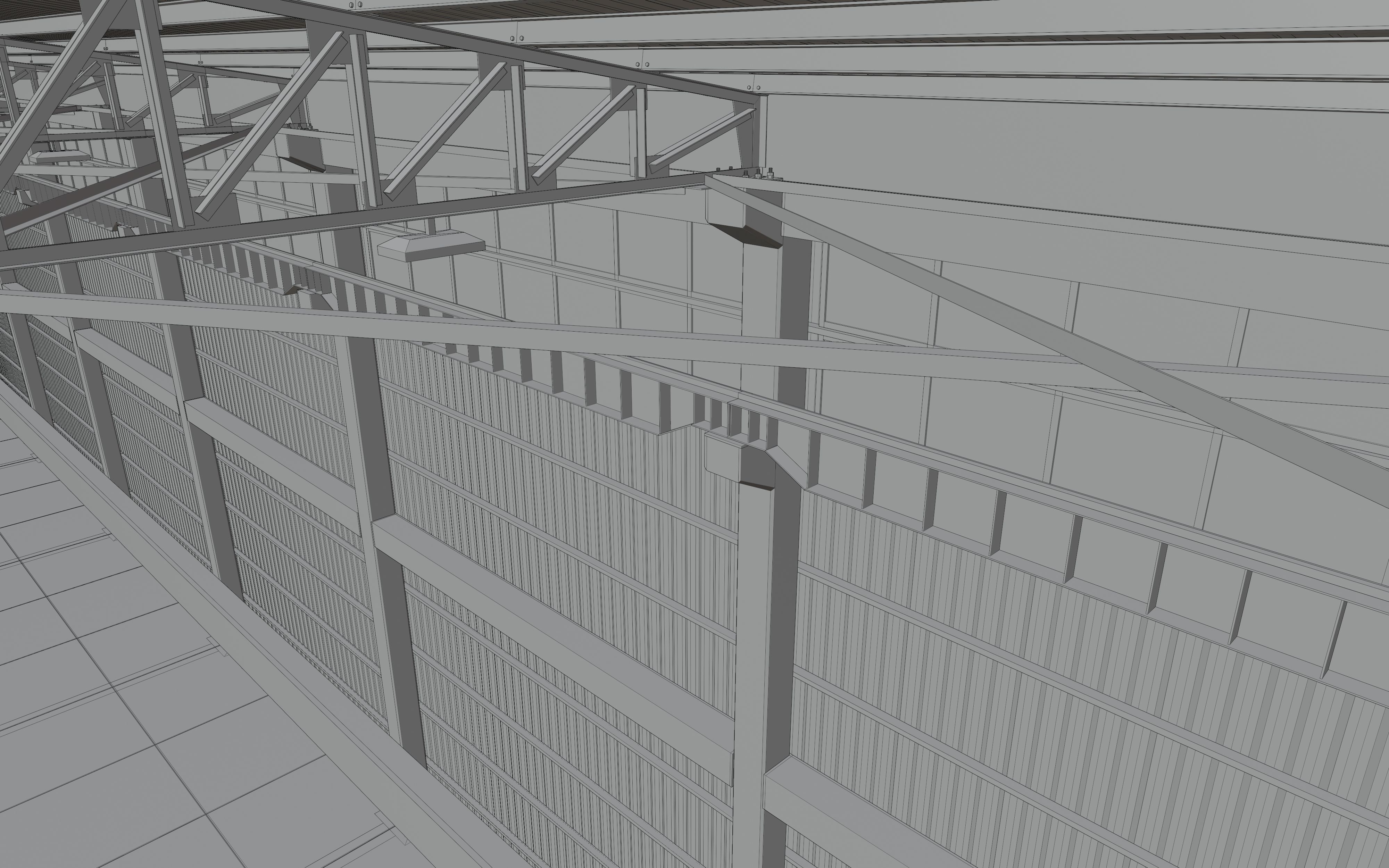

Roof Truss Lenght : 19,5 mt - Height : 2,0 mt.
Raft Foundation : width 2,0 mt * length 2,0 mt. * height 2,2 mt.

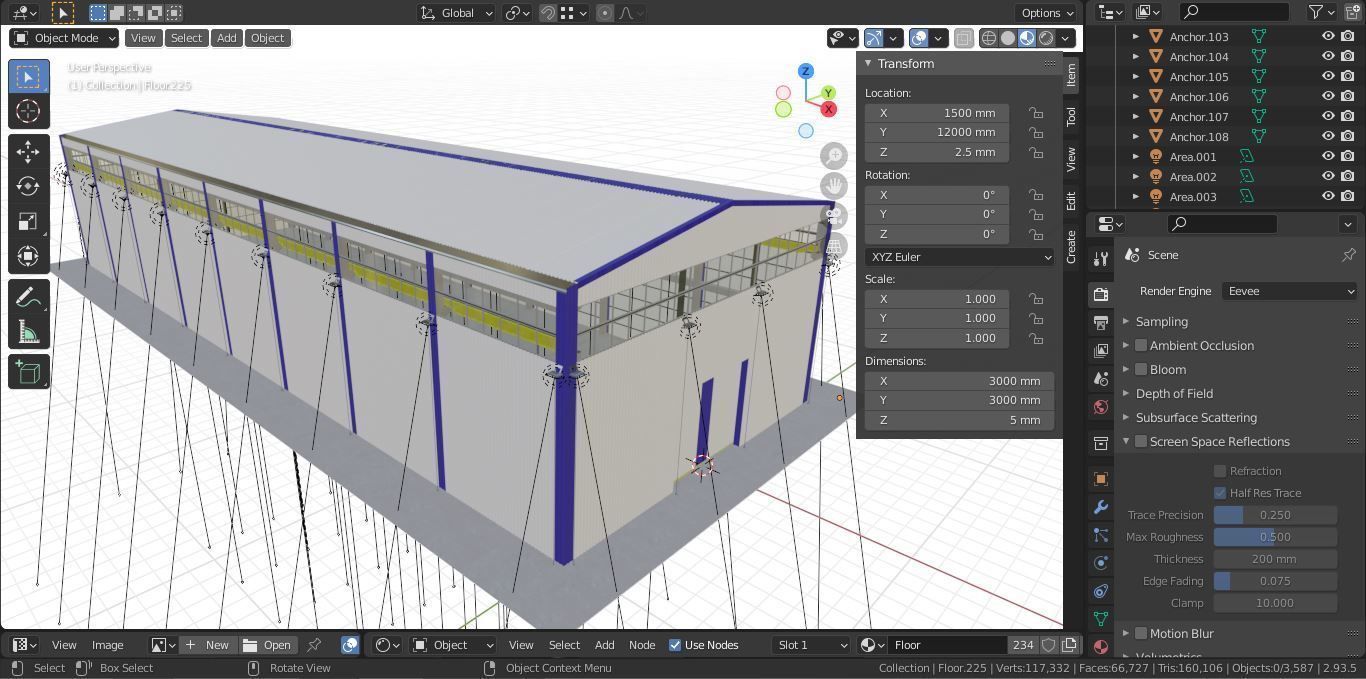

Prepared With BLENDER Version 2.93.5
Polygons : 66727
Vertices : 117332
Objects : 3587
