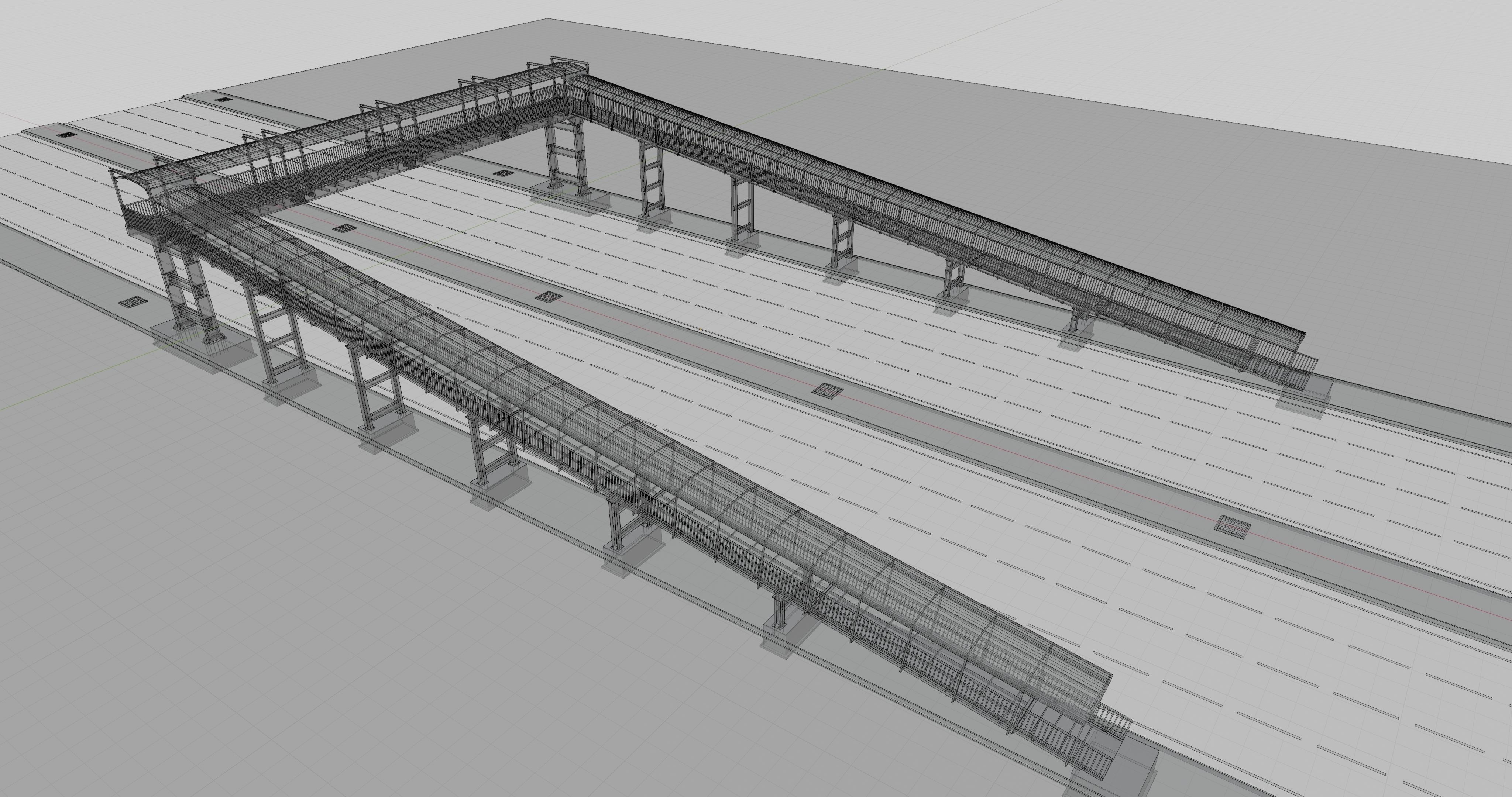

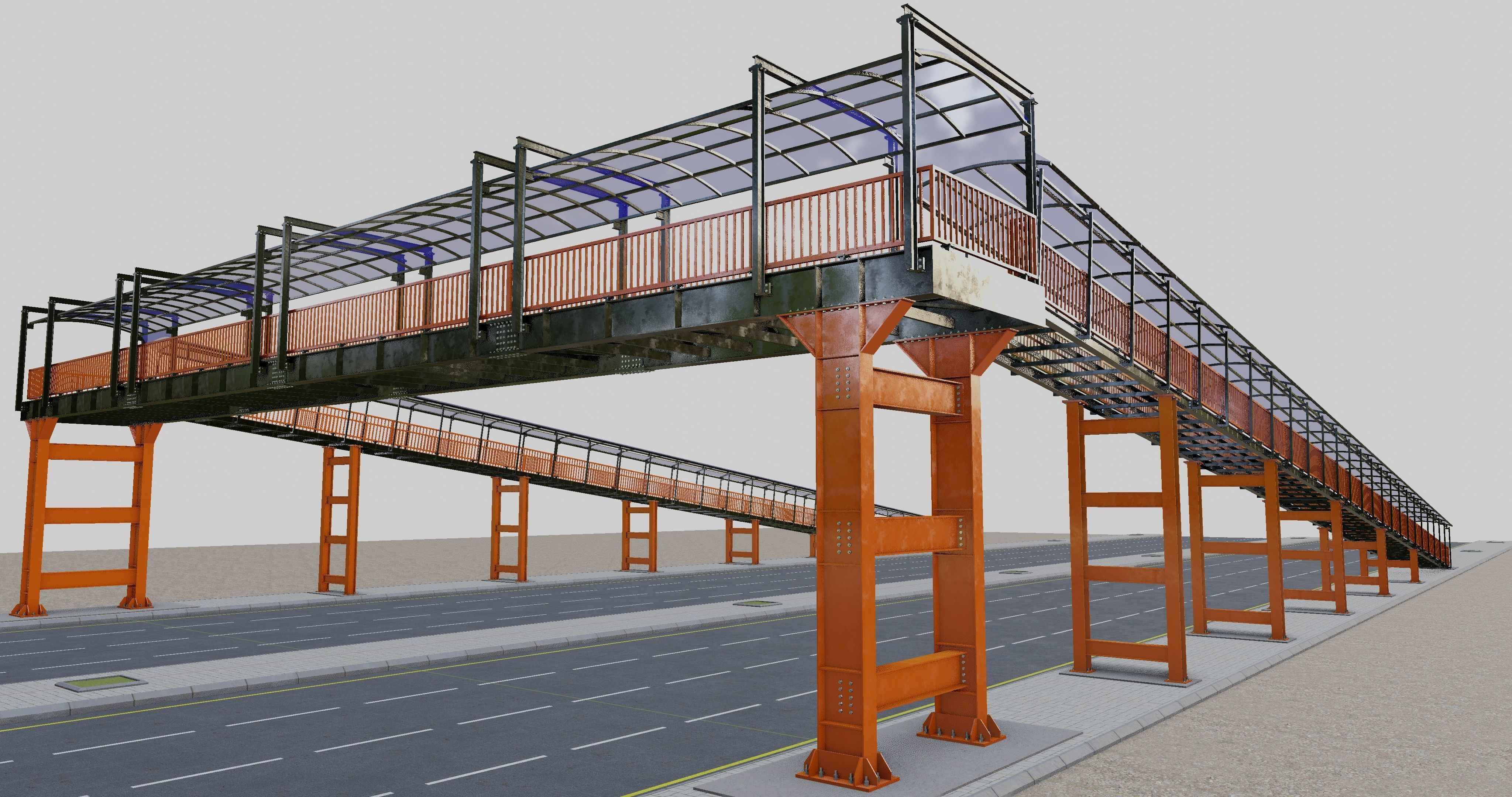

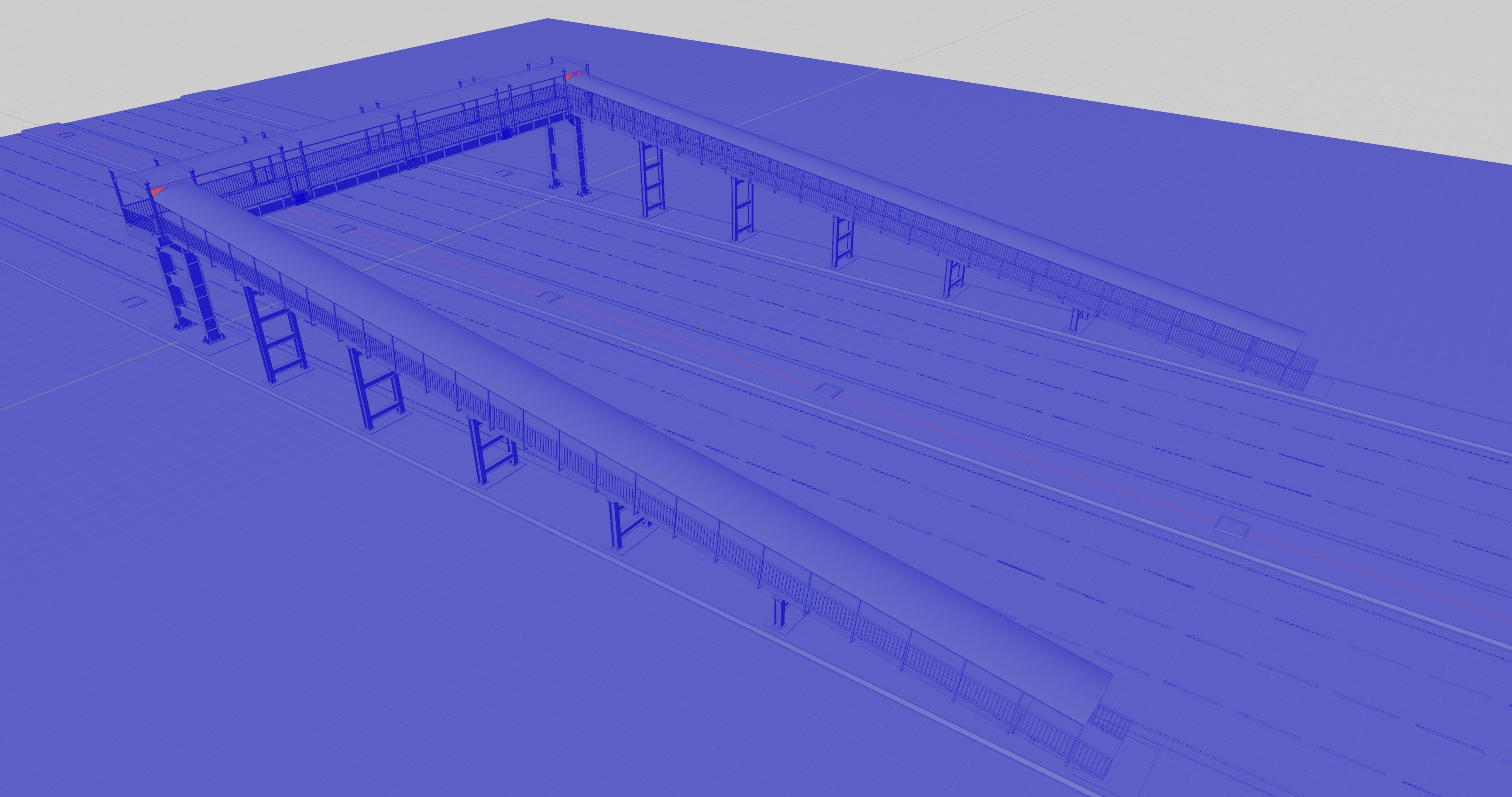

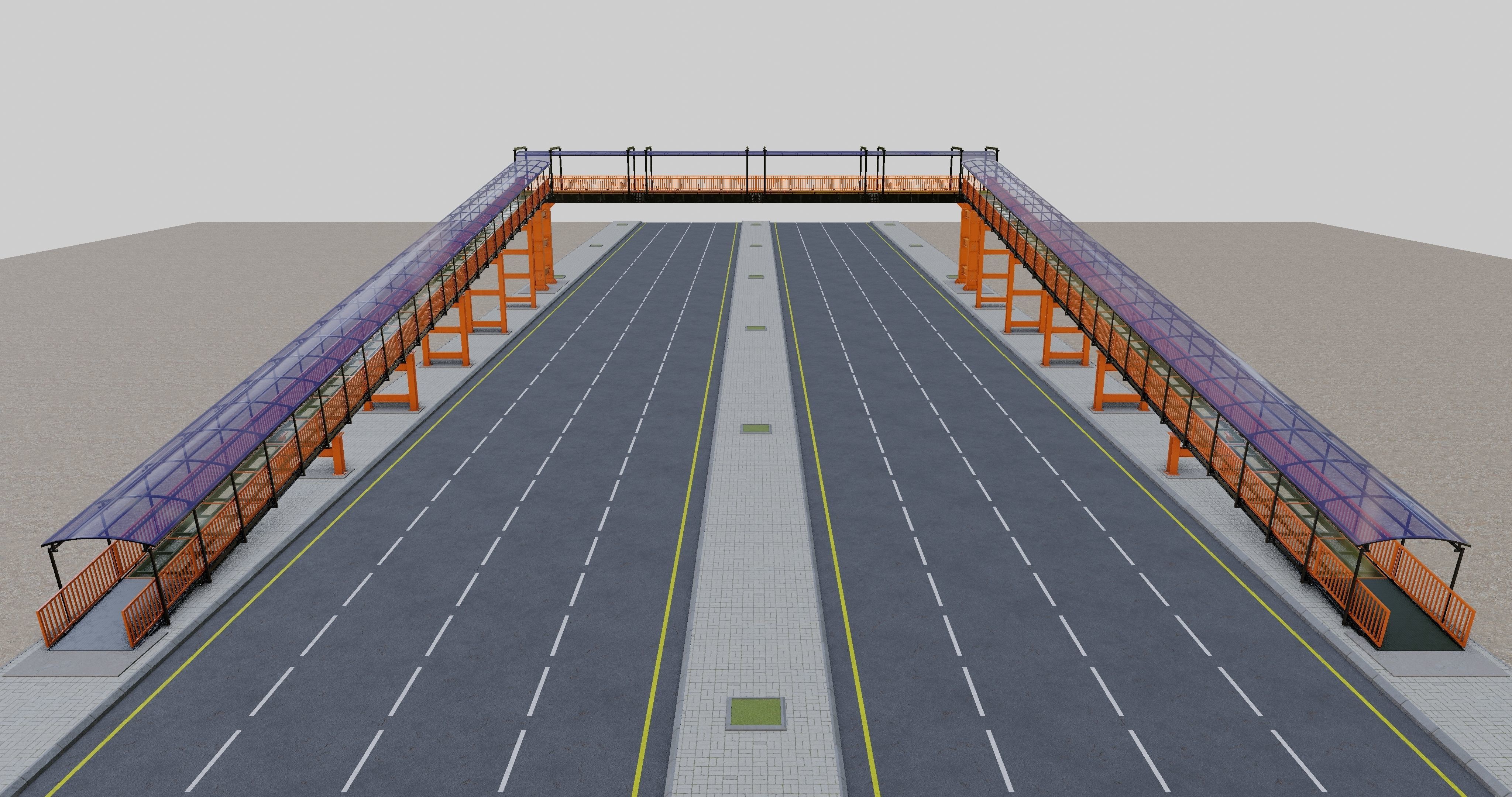

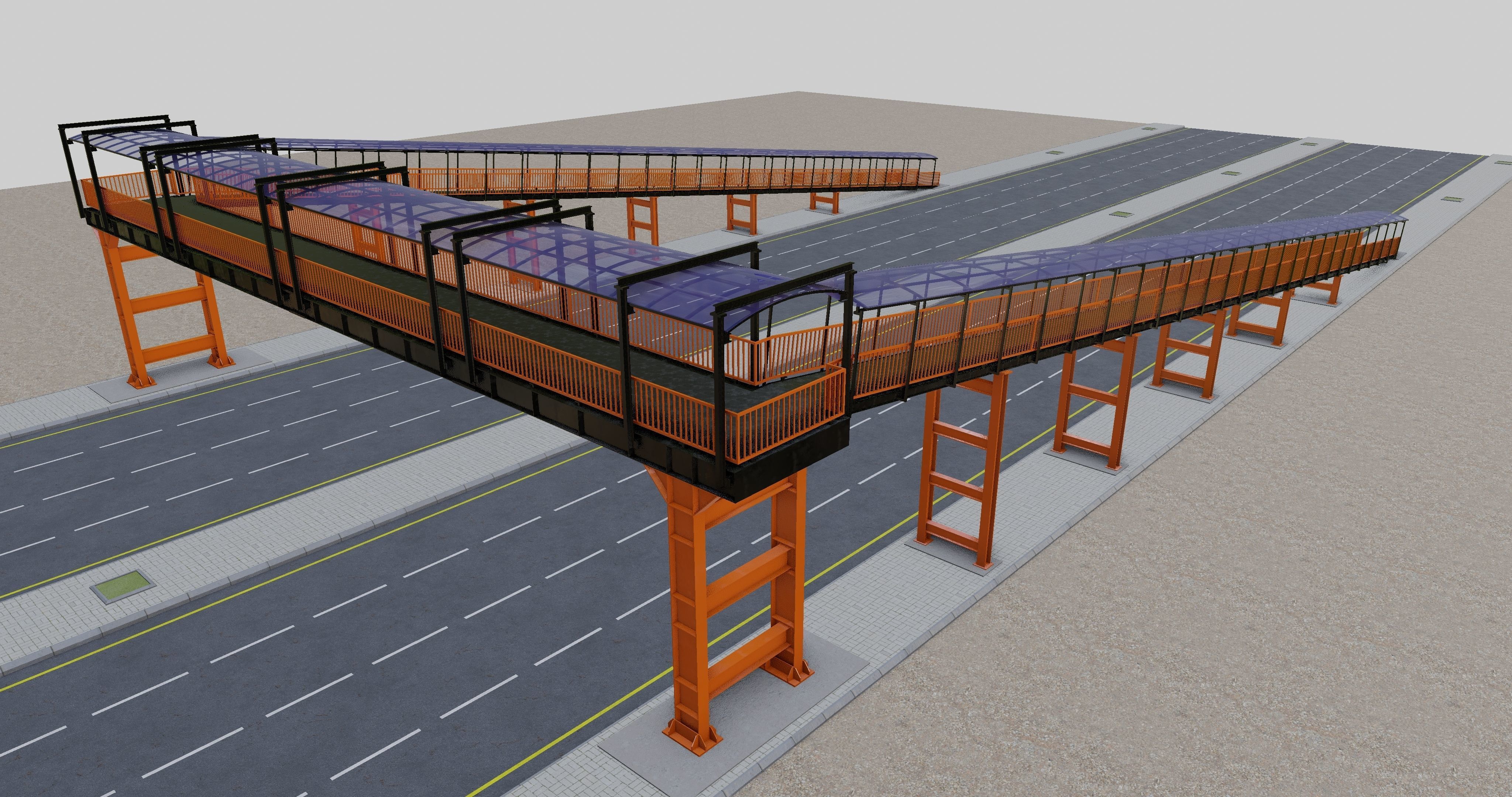

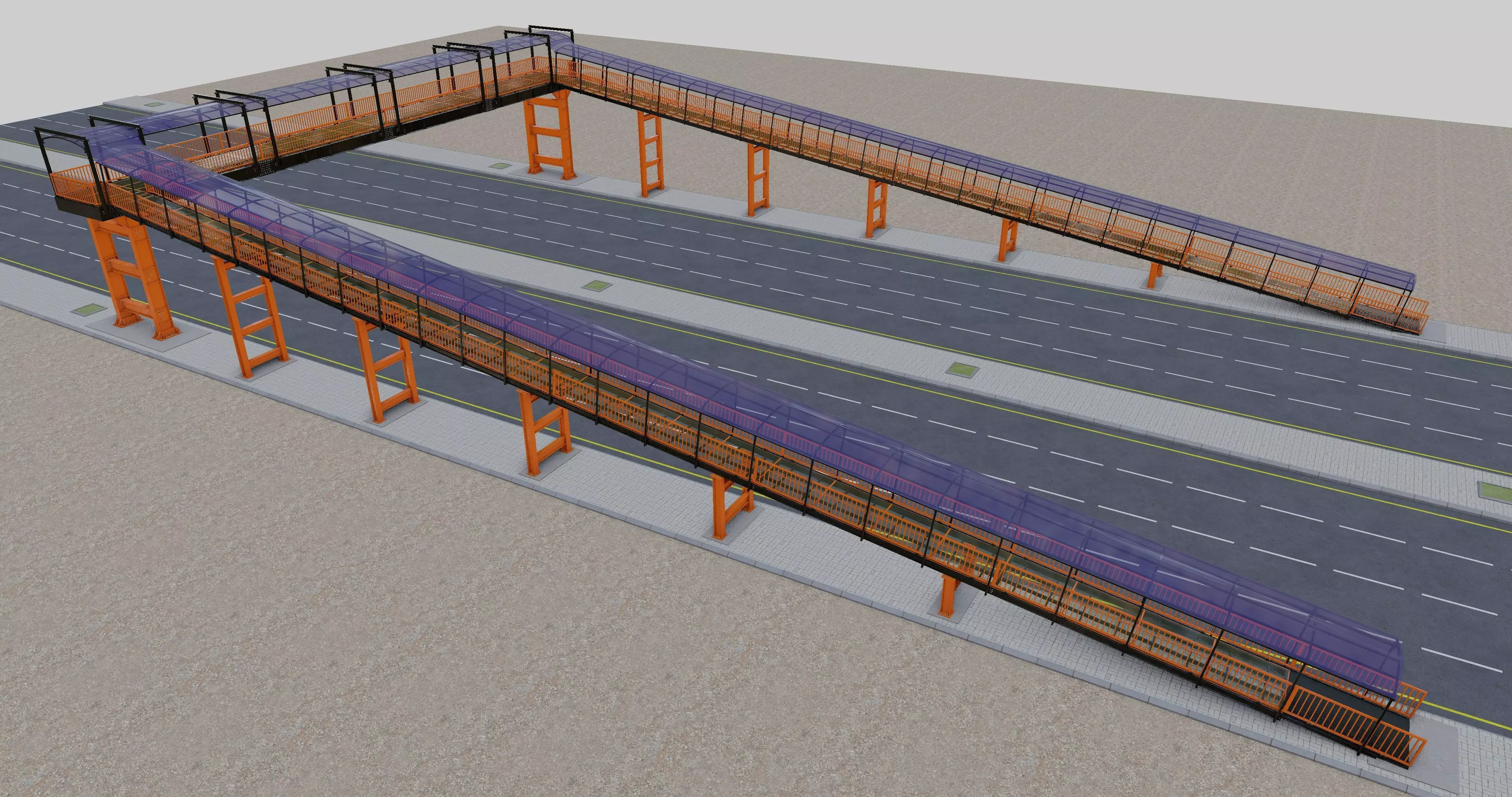

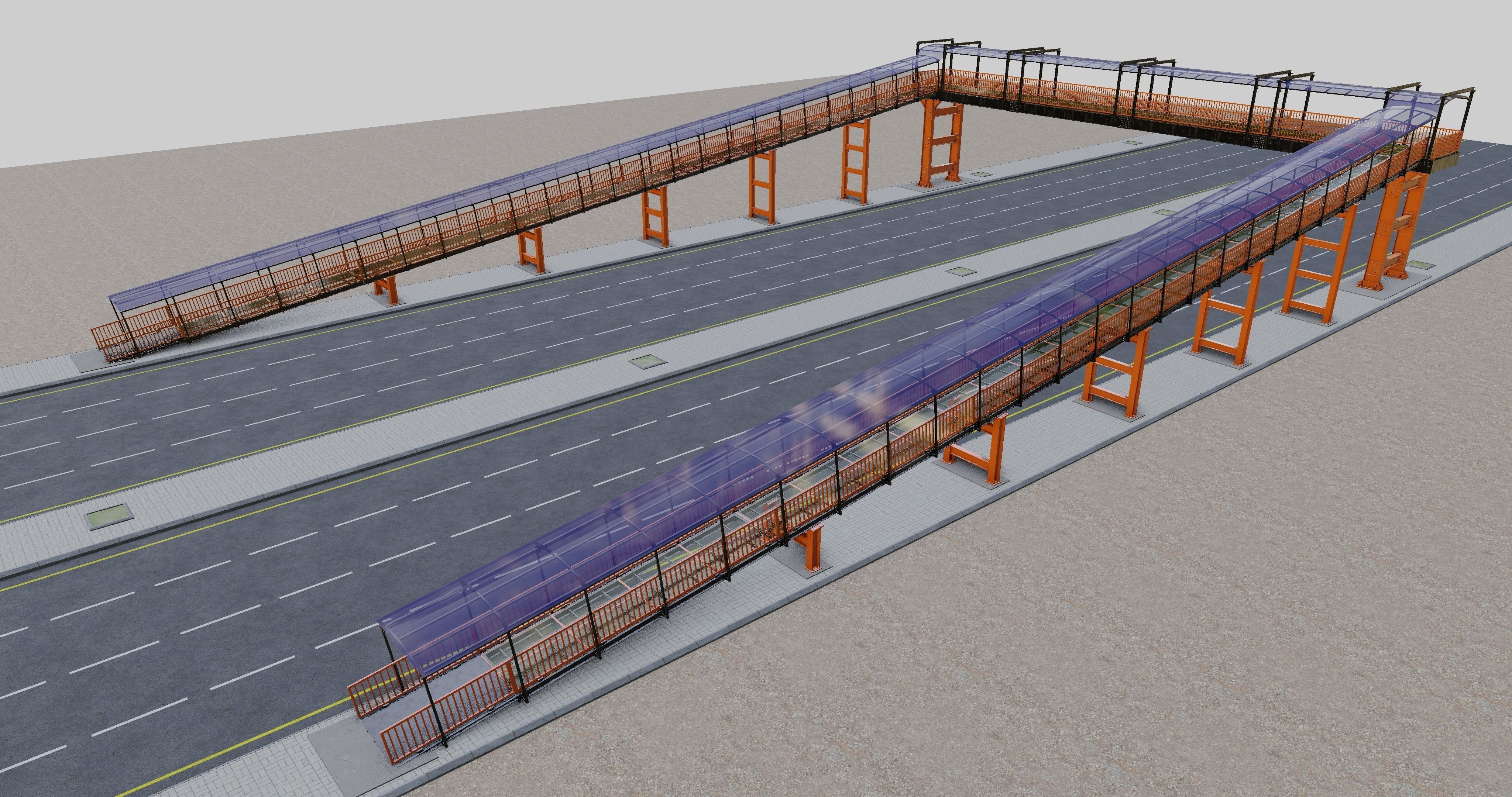

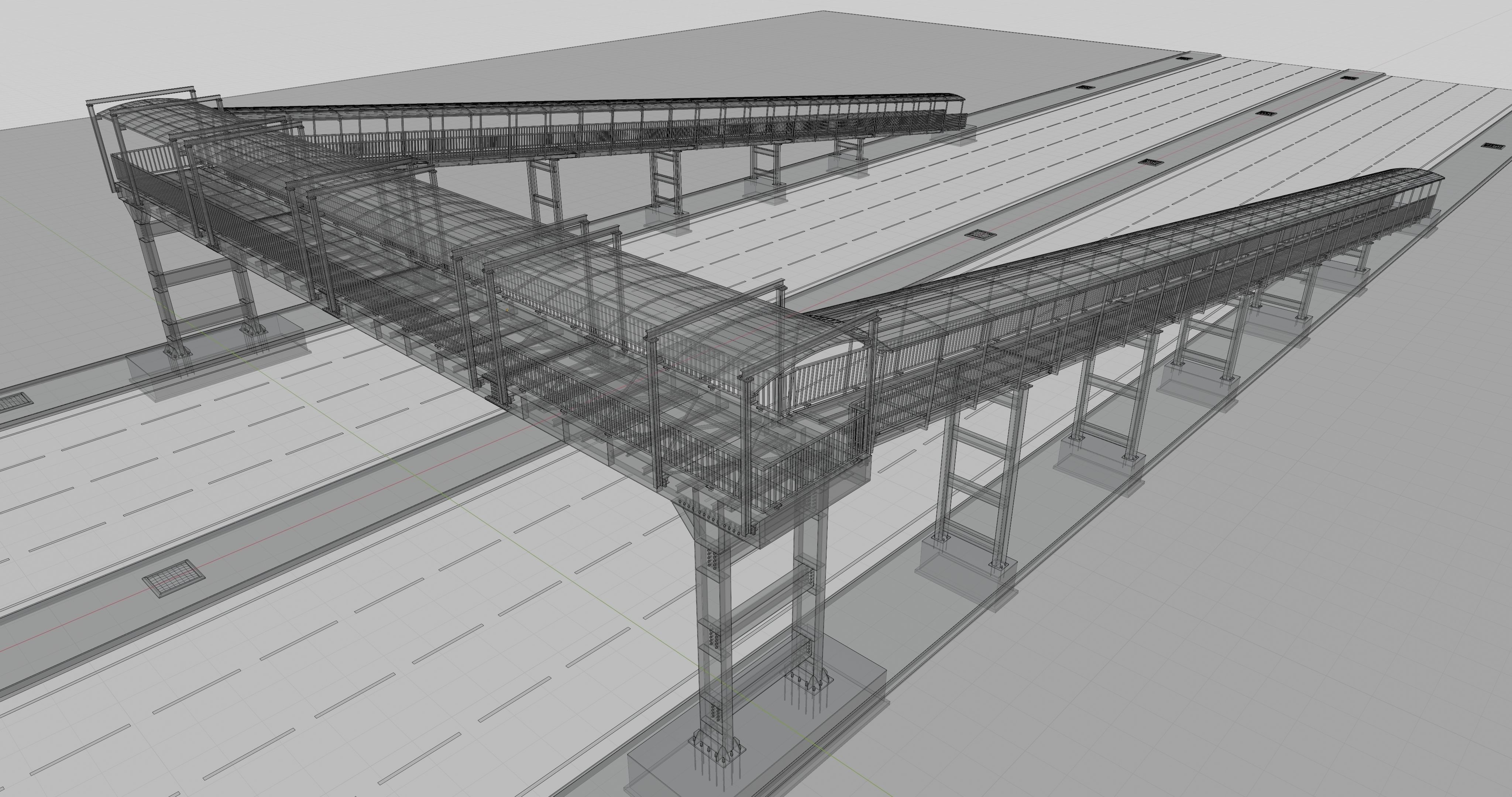

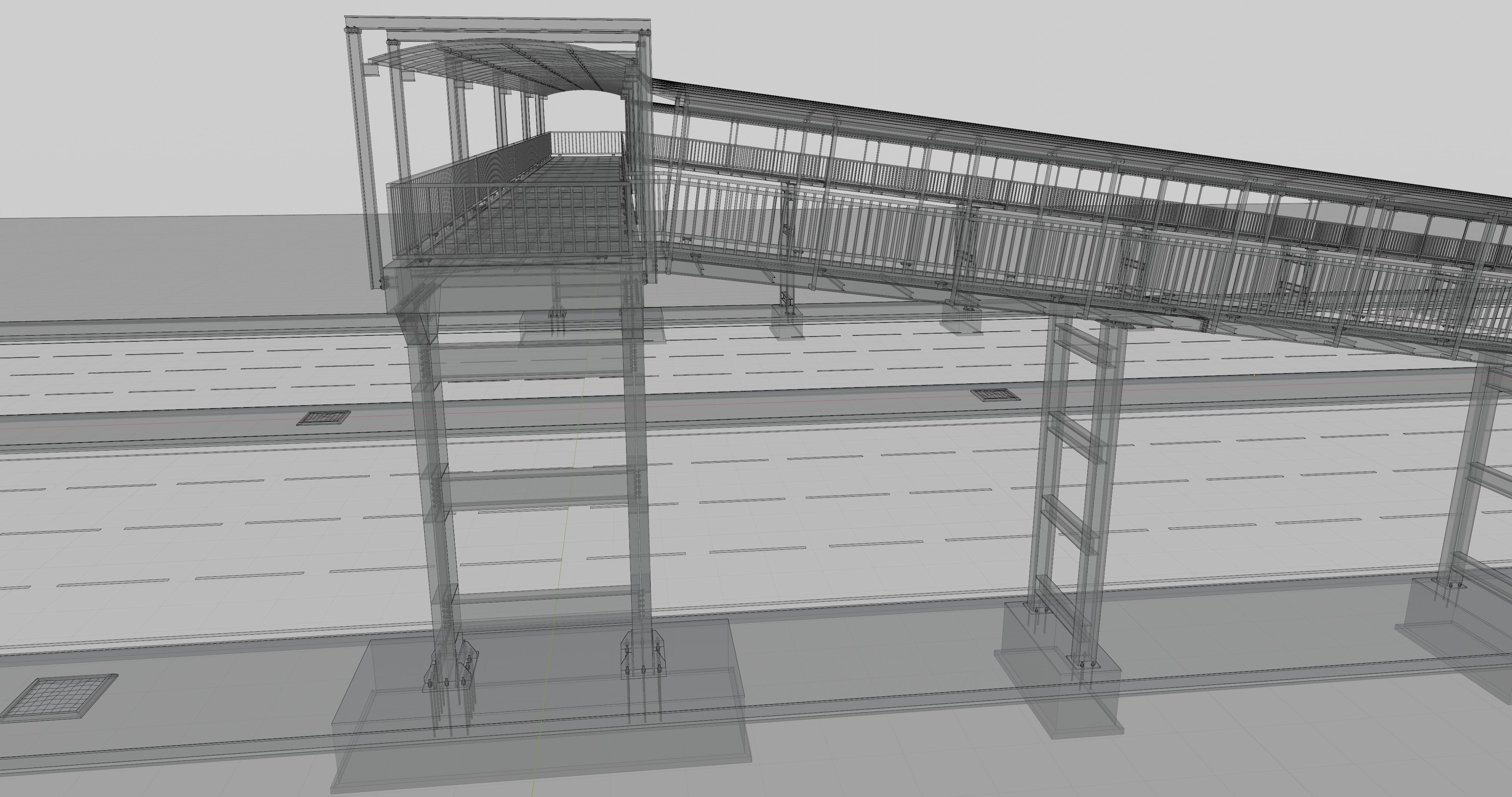

Steel Pedestrian Bridge Type-33 3D model
Steel Pedestrian Bridge- Type.33

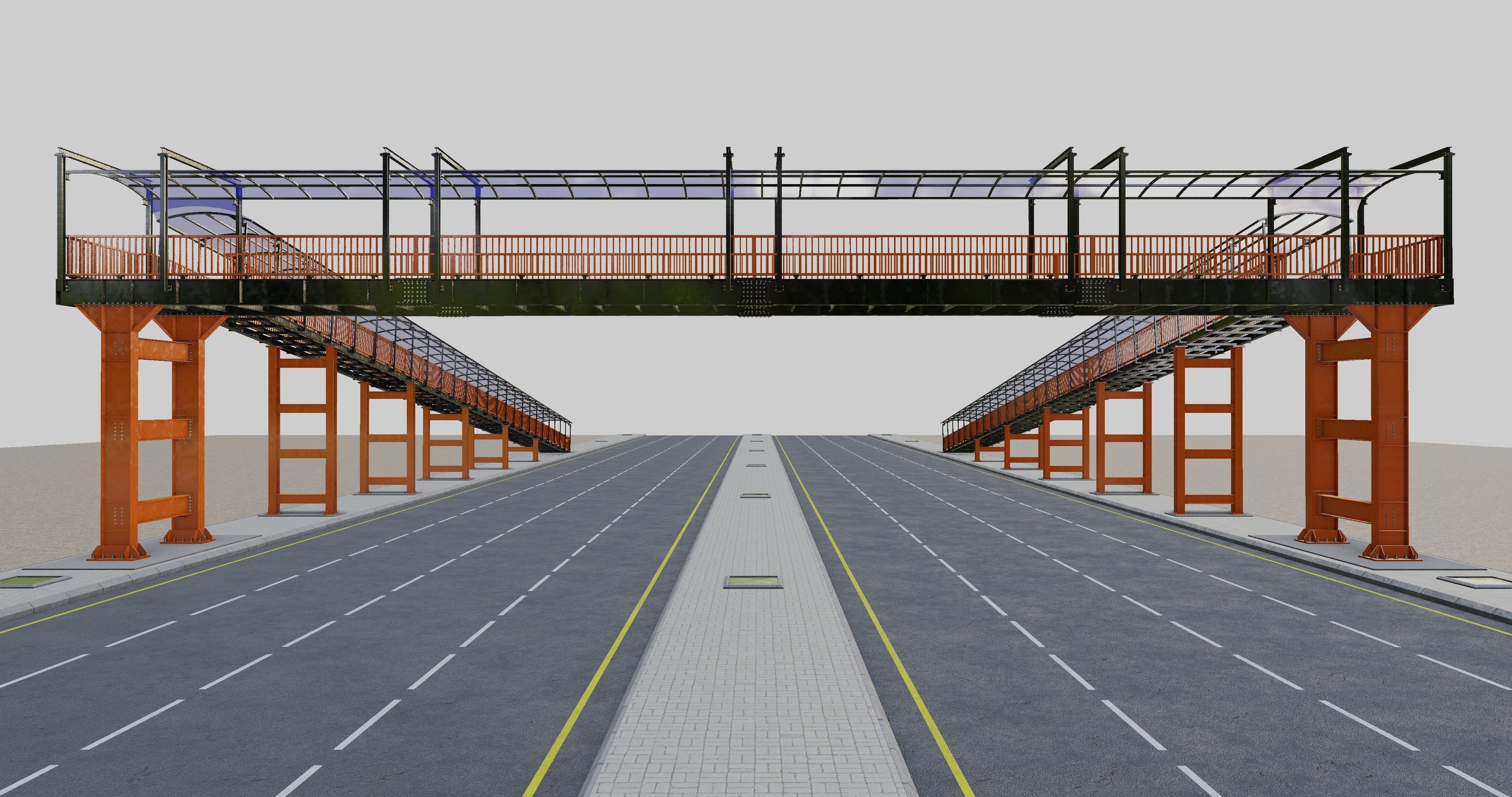

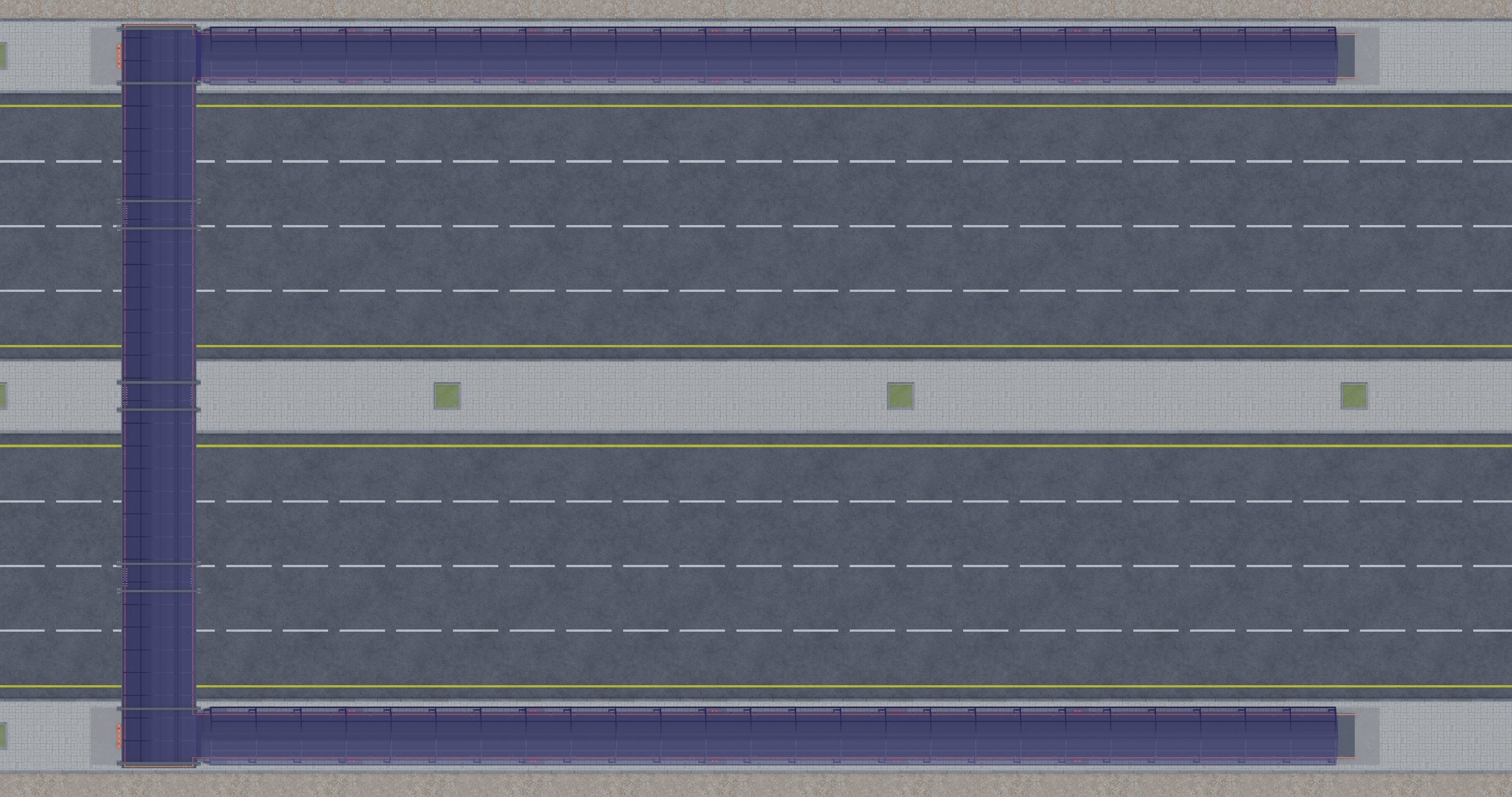

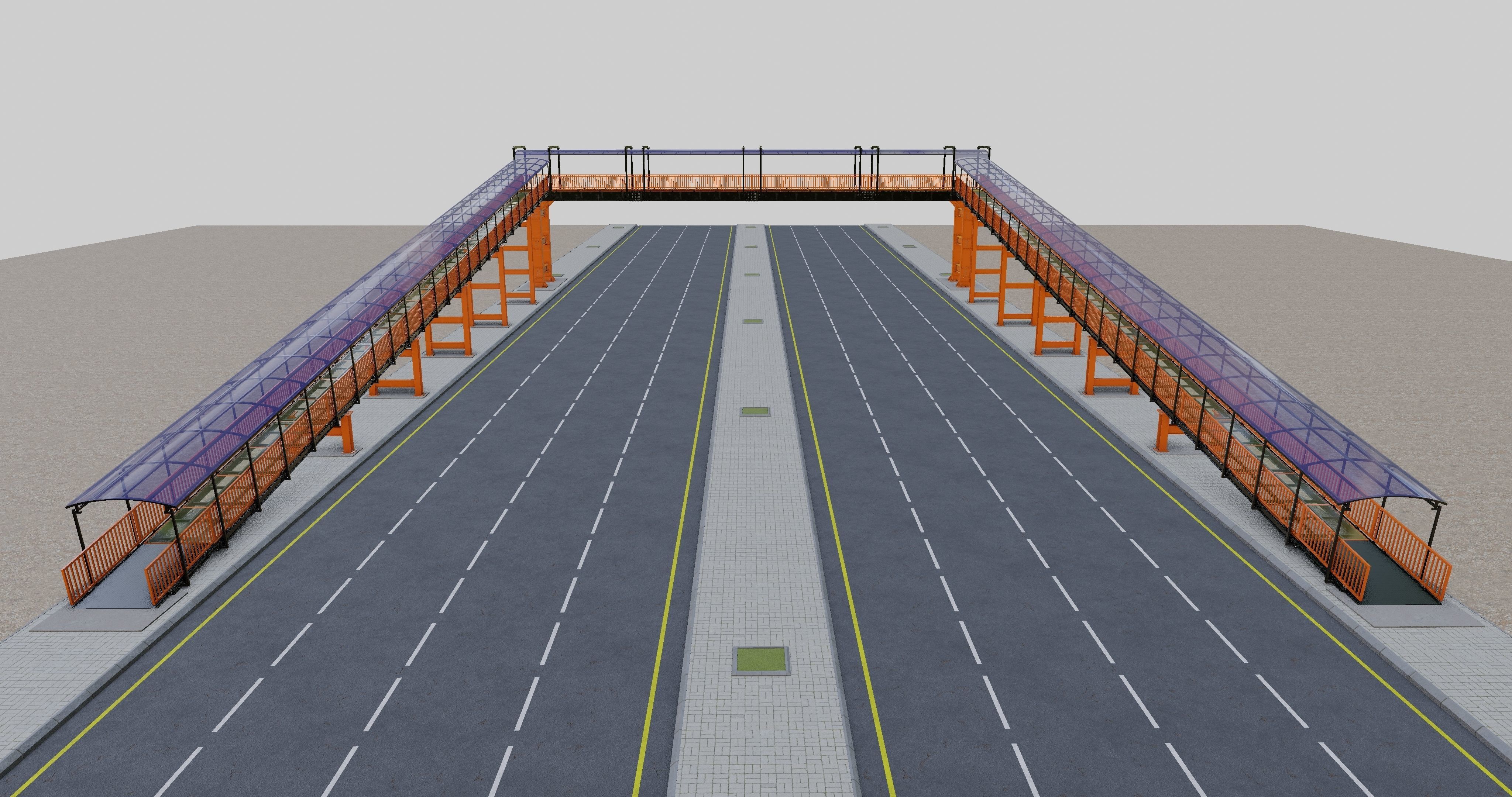

Pedestrian Overpass With Flat Type Ramp

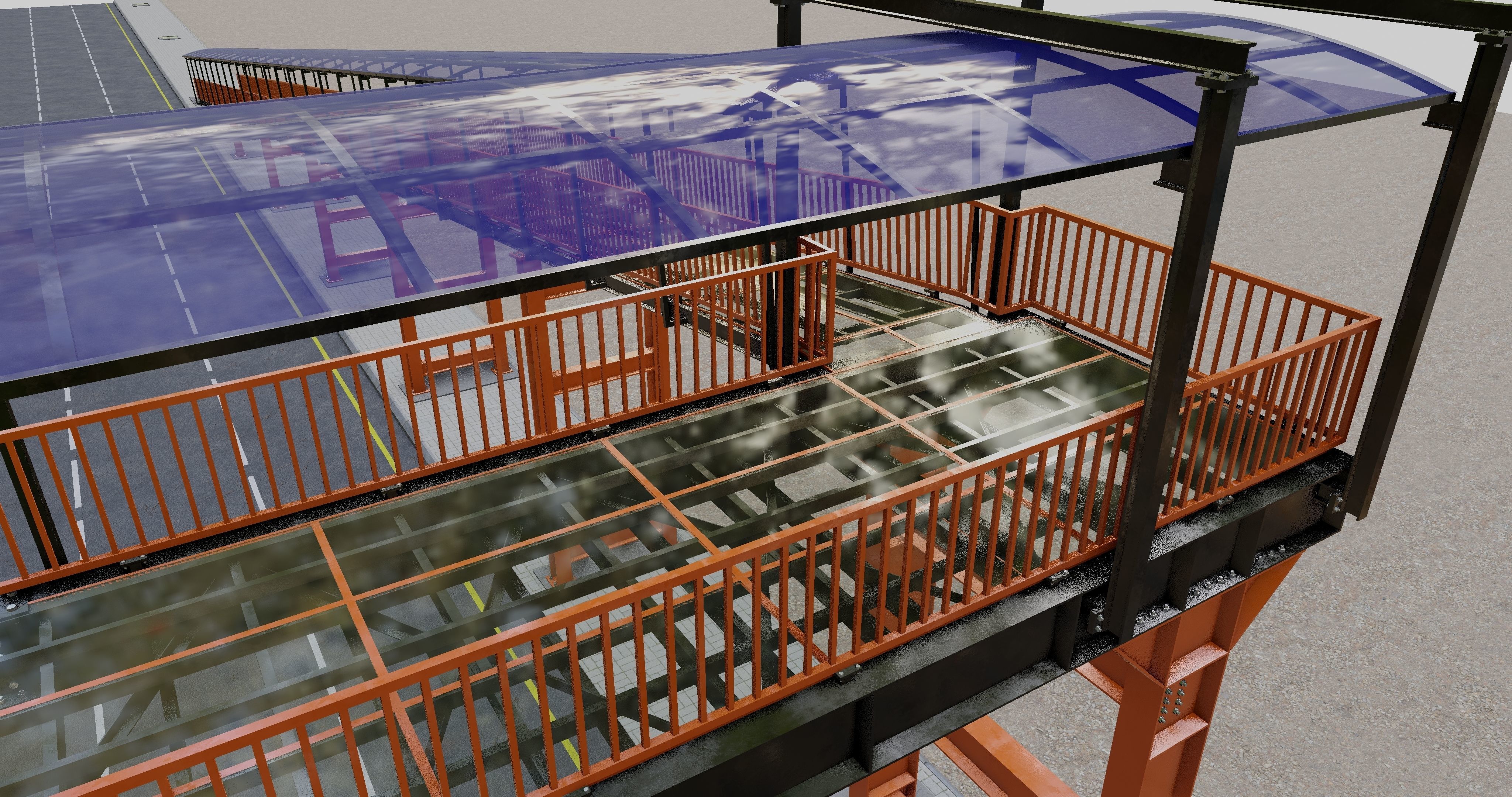

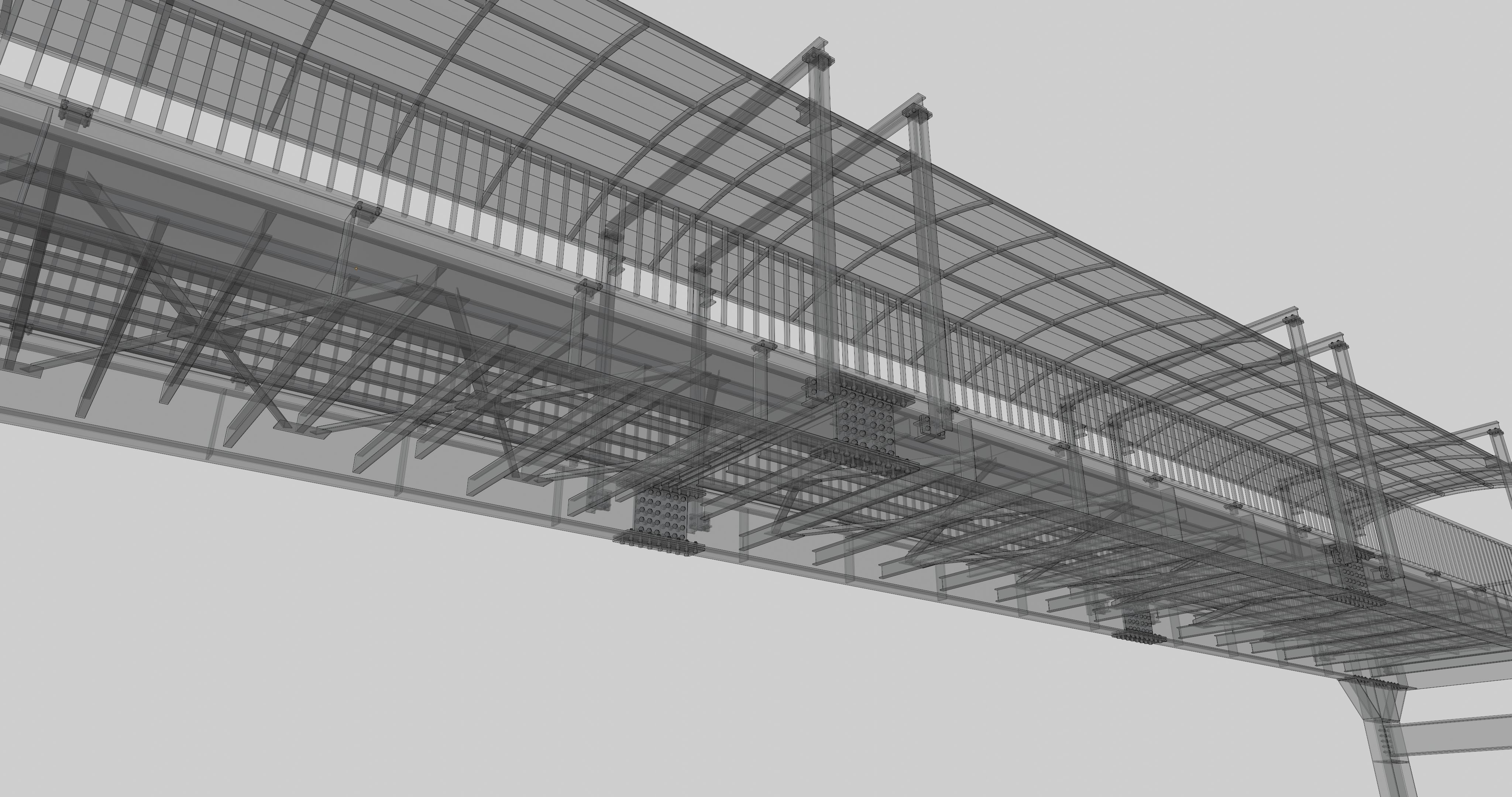

Closed Top Construction
20mm Glass Deck

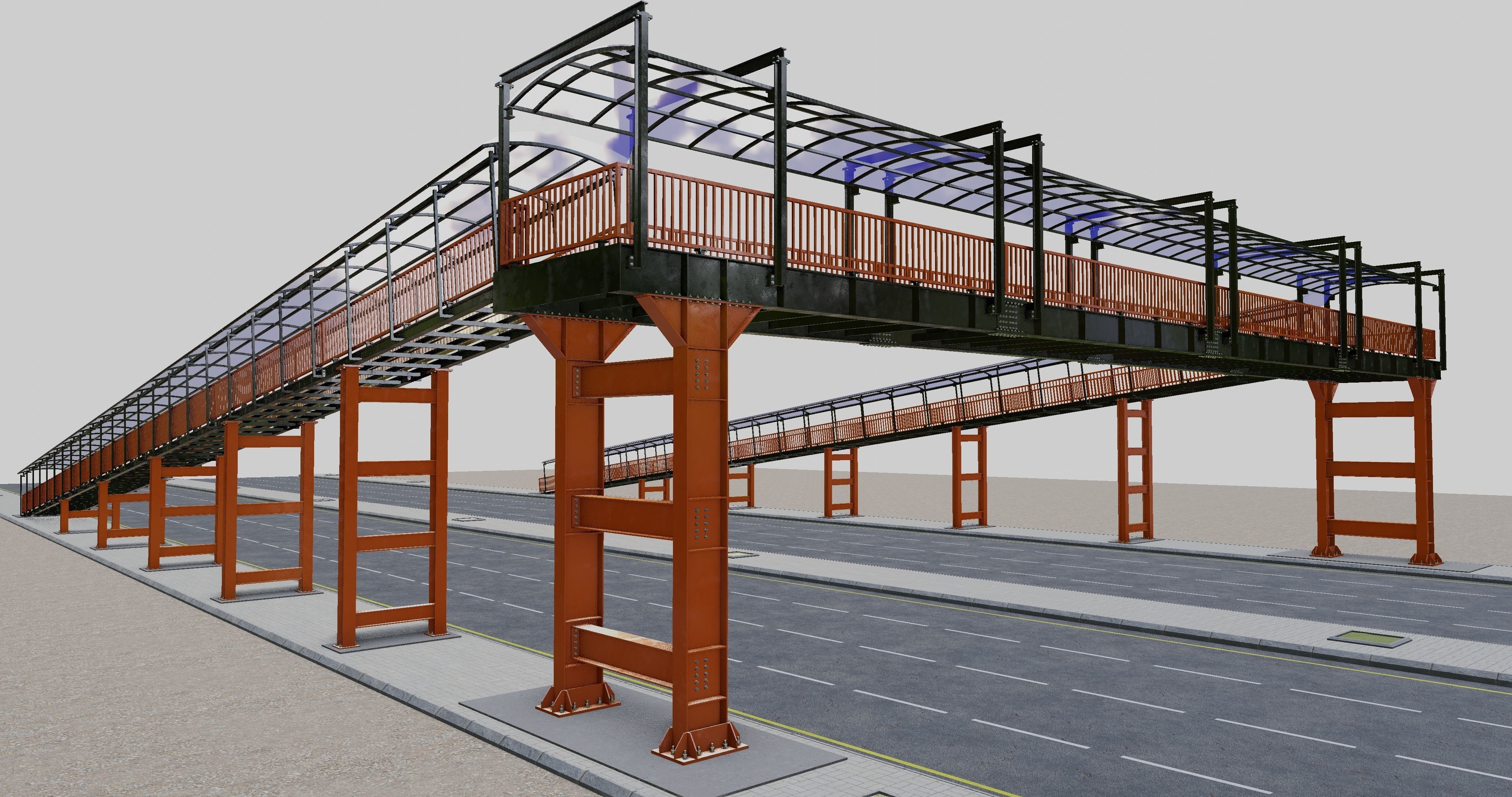

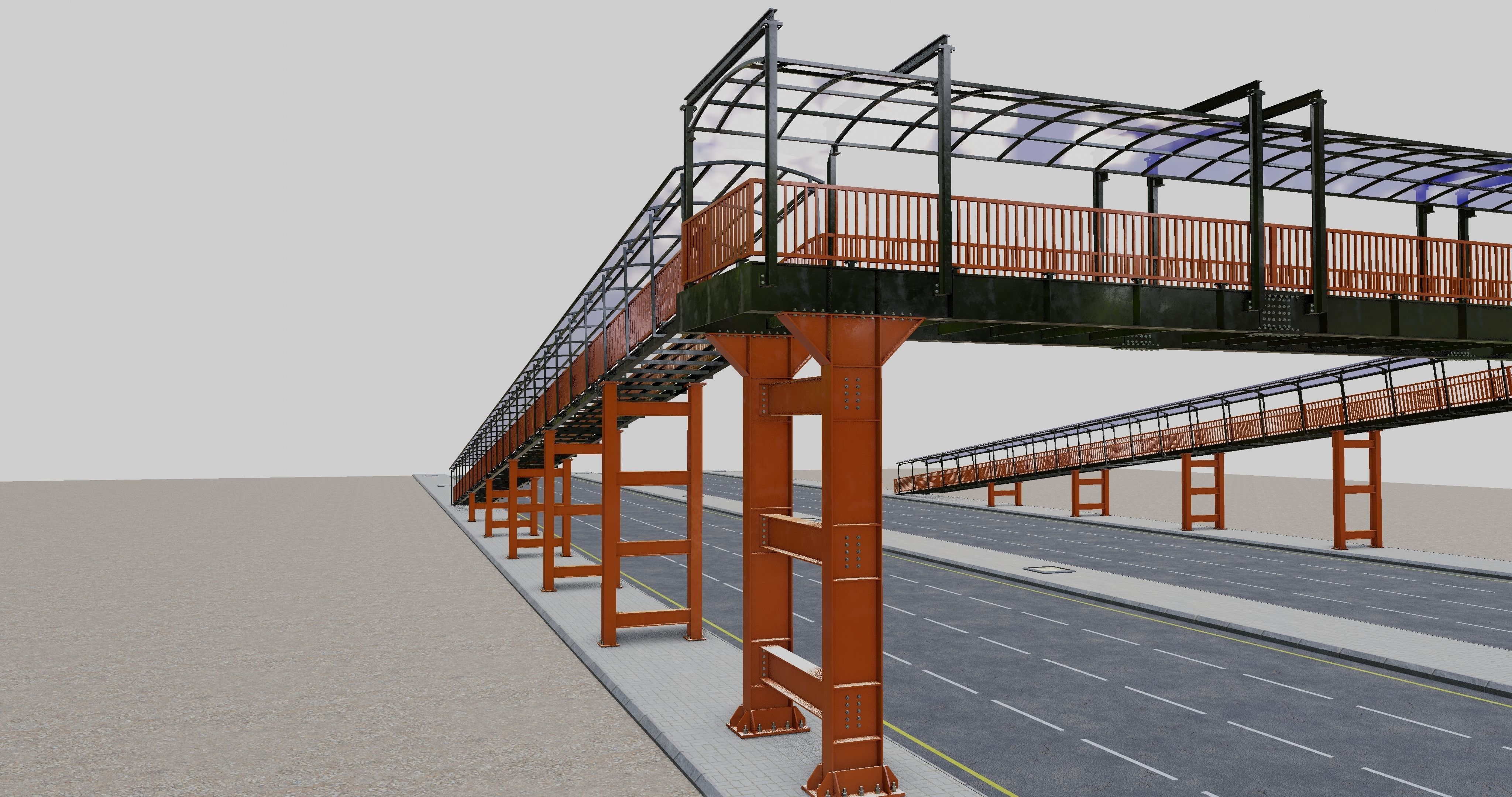

Two Column Type
Open Top Construction
Named Objects
Largest Column Span : 30 mt.
Distance Between Two Columns : 30 mt.
Platform Asphalt Height : 6 mt.
Platform Width : 3 mt.

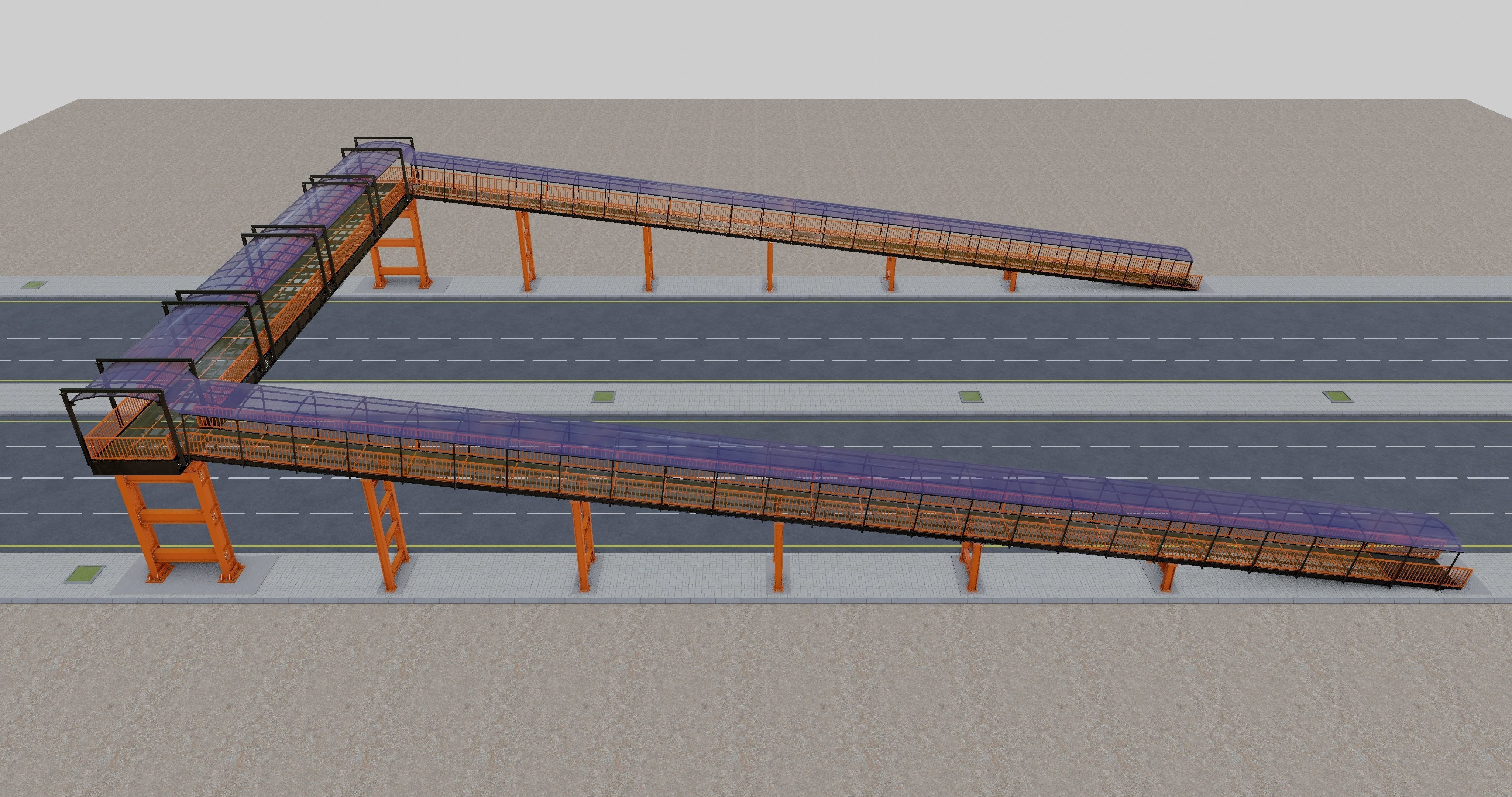

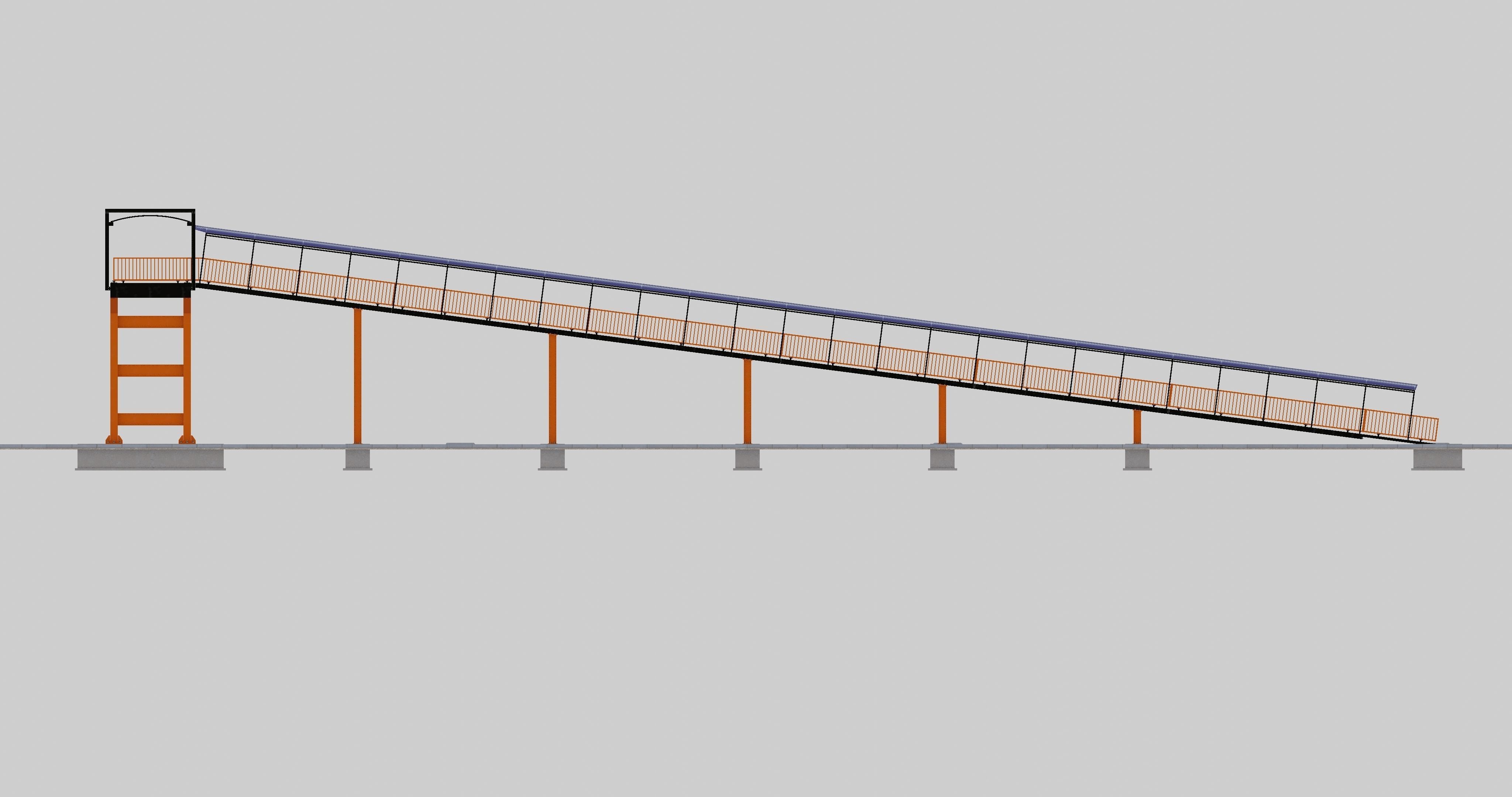

Straight Type Ramp
Ramp Width : 1,8 mt.
Ramp Lenght : 51 mt.
Column Foundation Concrete : width 2,5 mt * length 6 mt. * height 1 mt.
Ramp Foundation Concrete : width 1 mt * length 2,5 mt. * height 1 mt.
Flat Railing Construction
Railings Box Profile

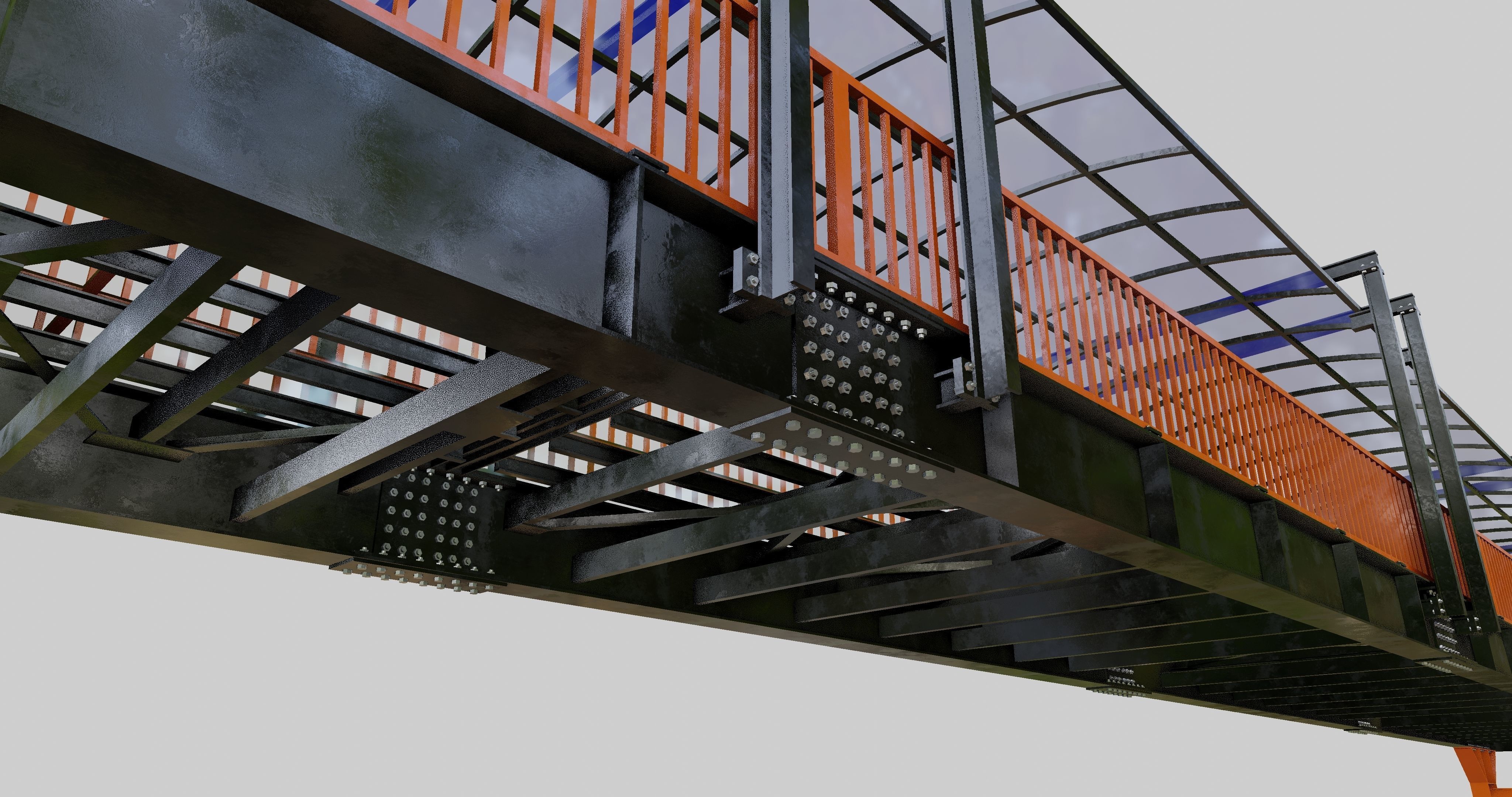

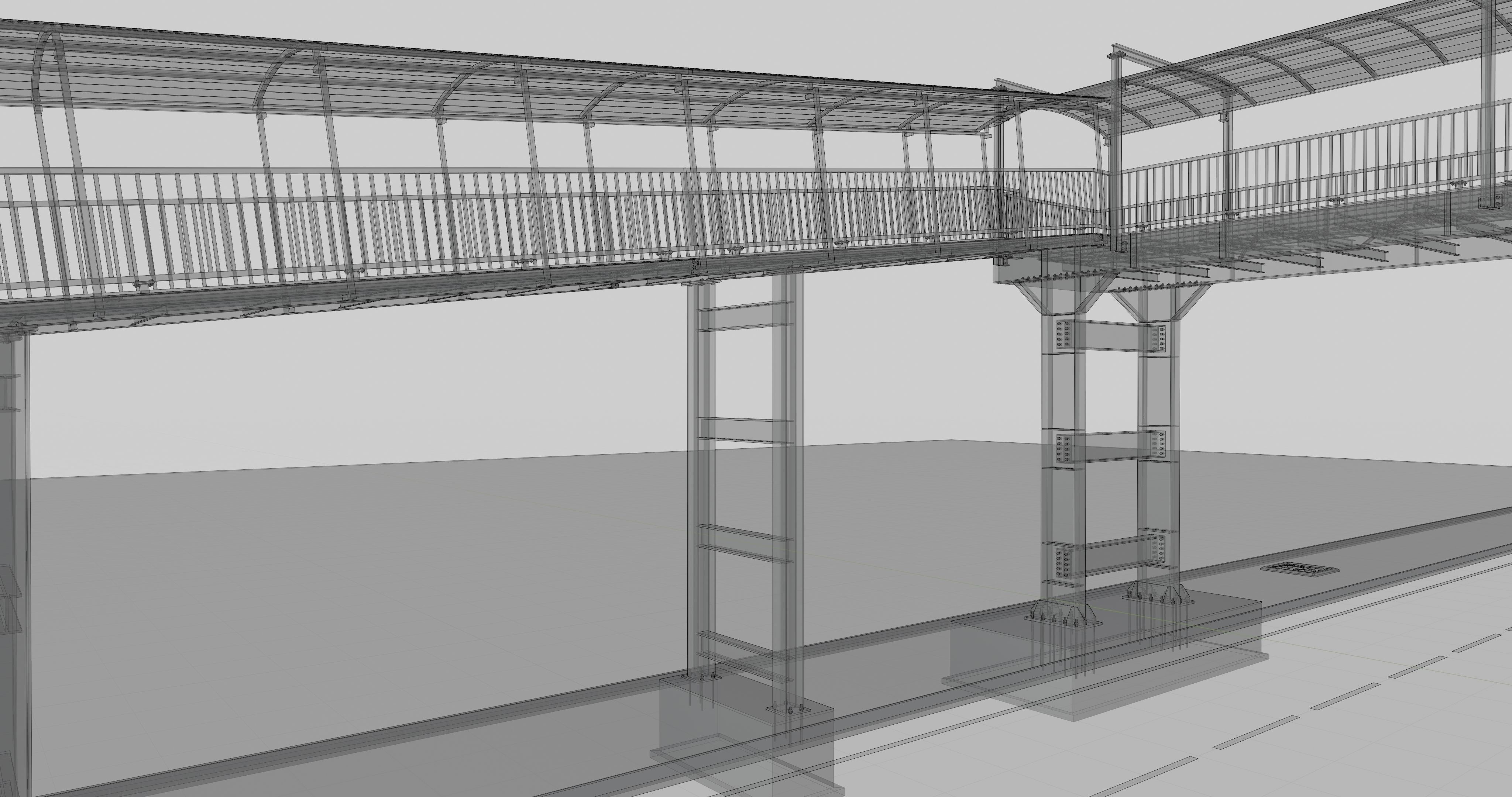

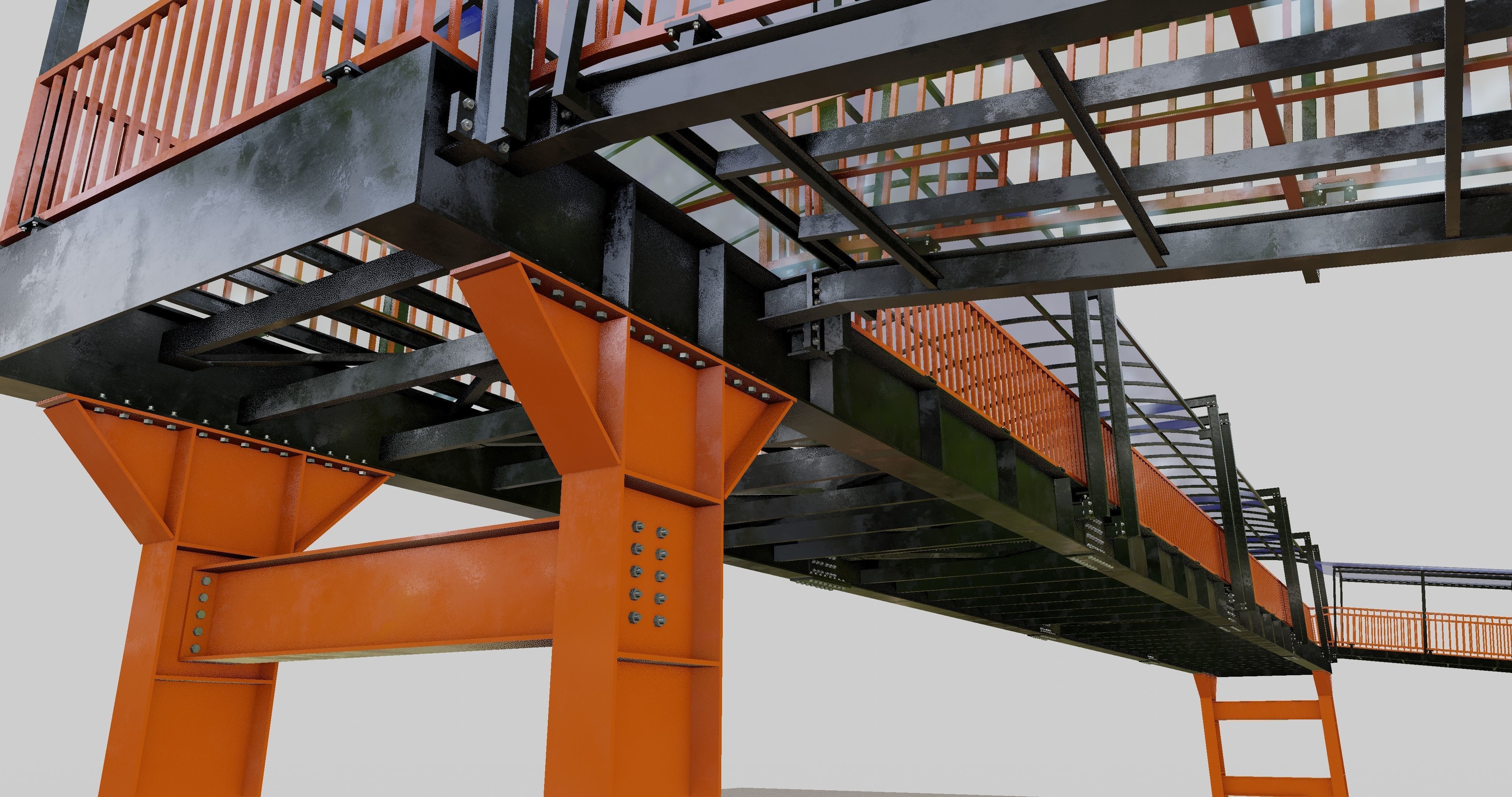

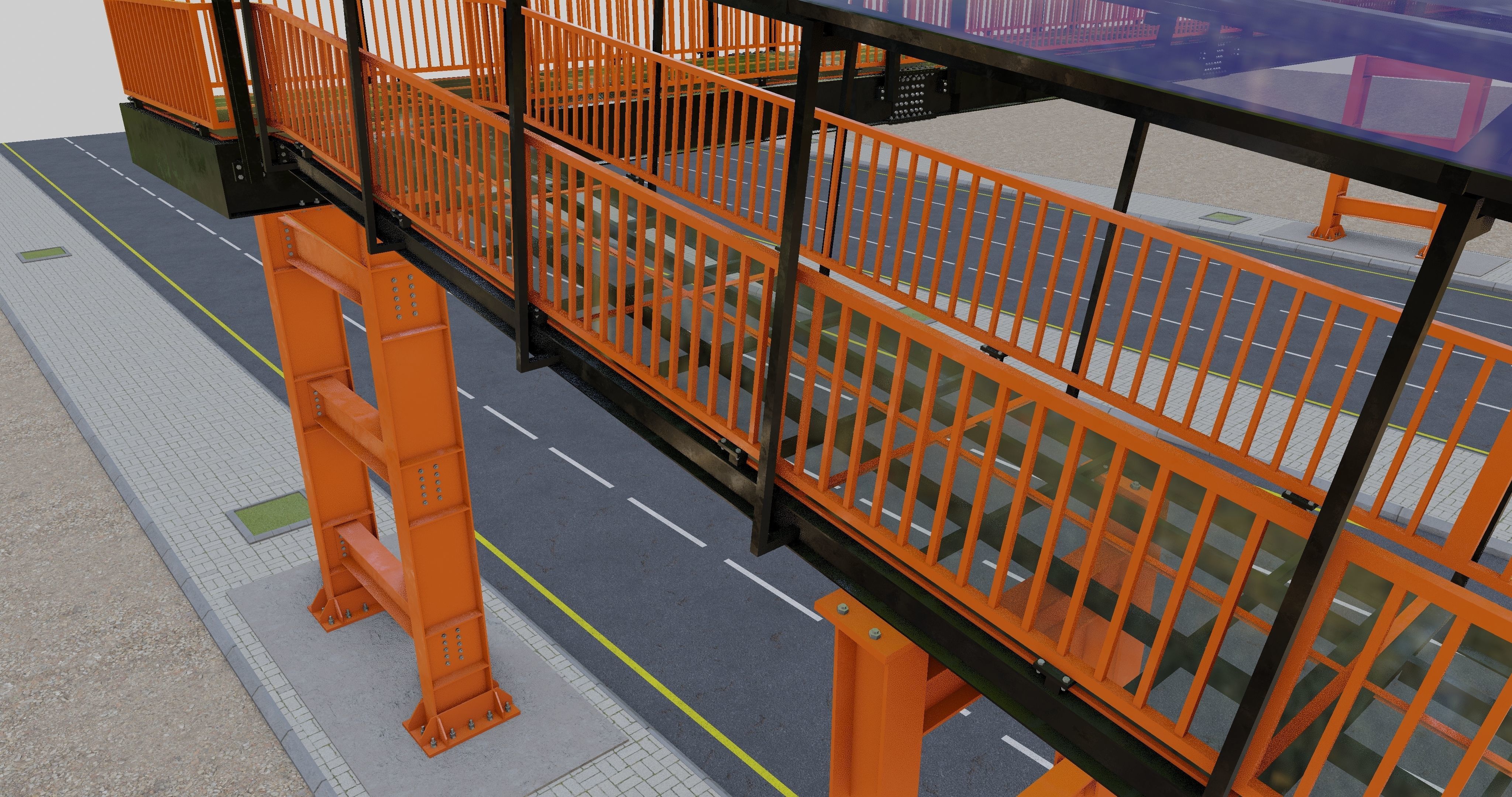

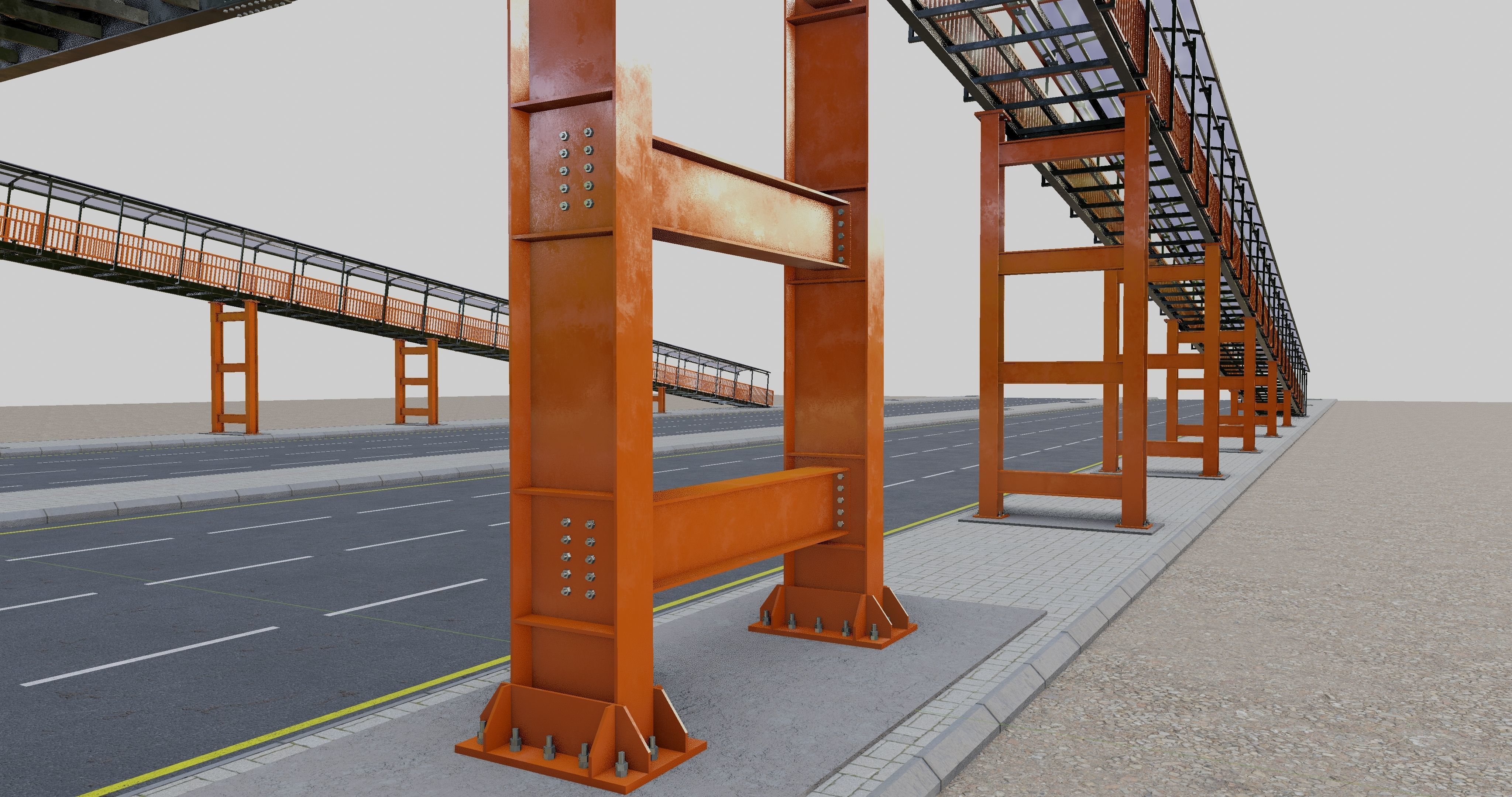

Platform And Columns With Bolted Connection

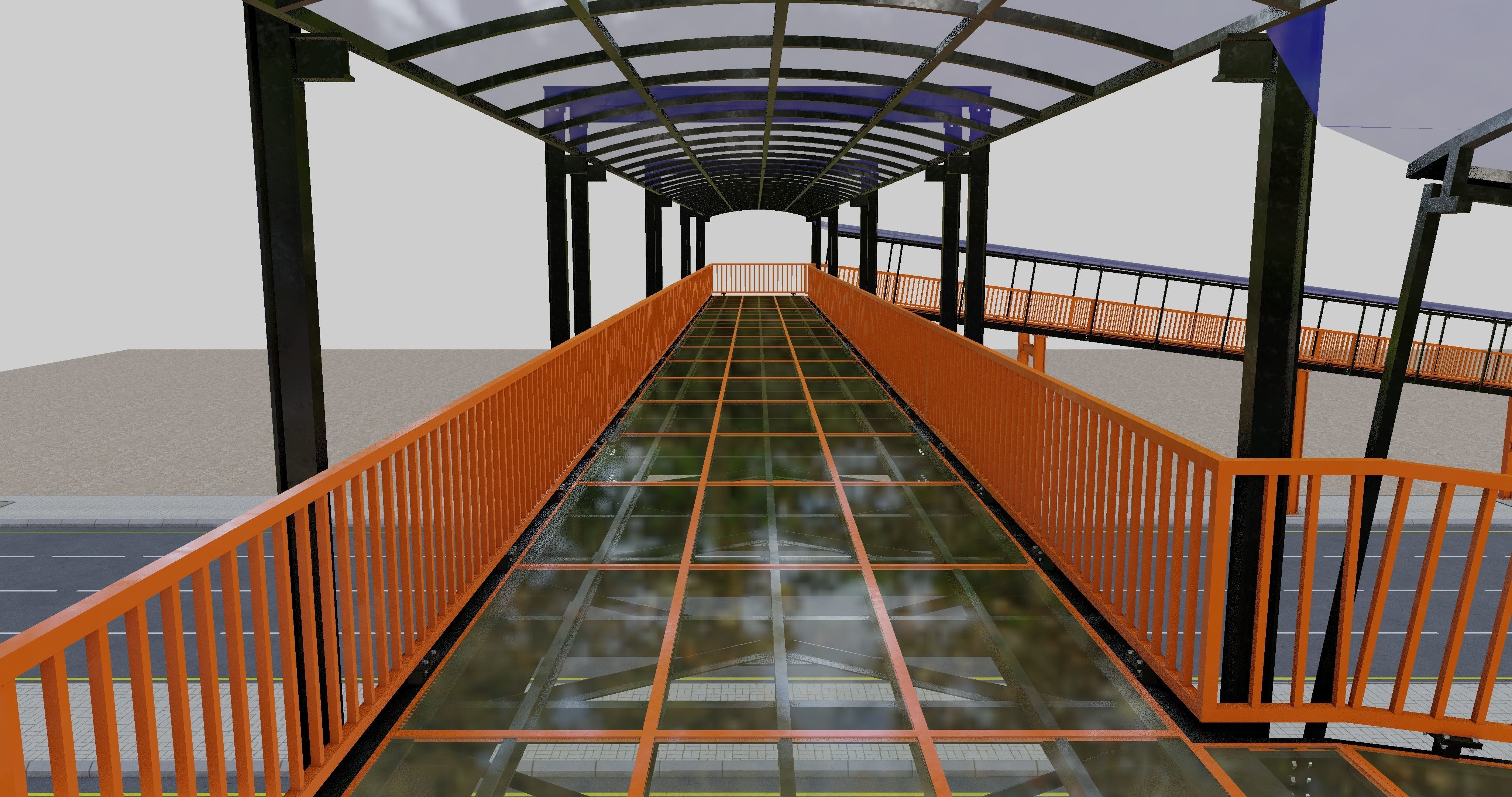

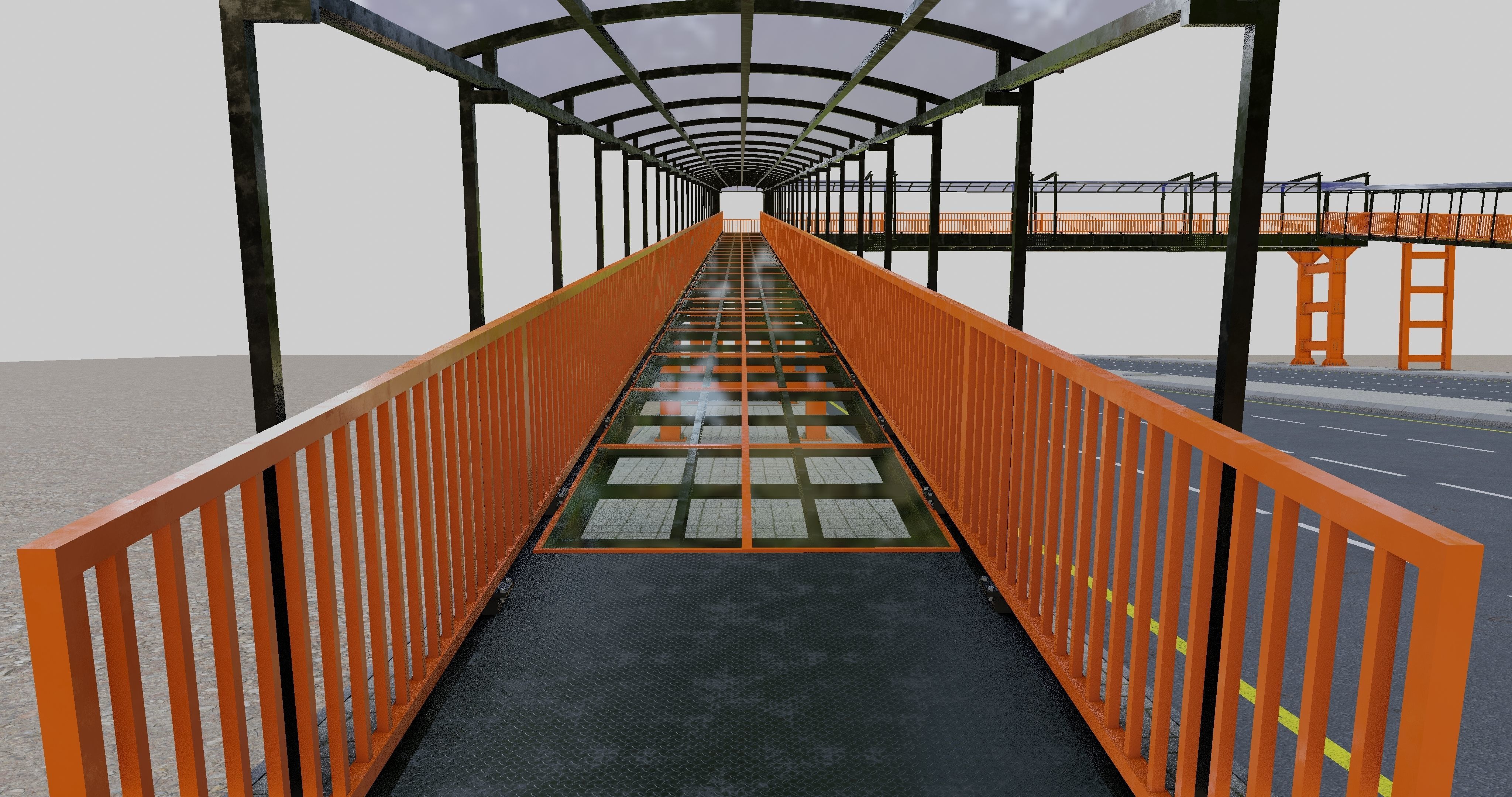

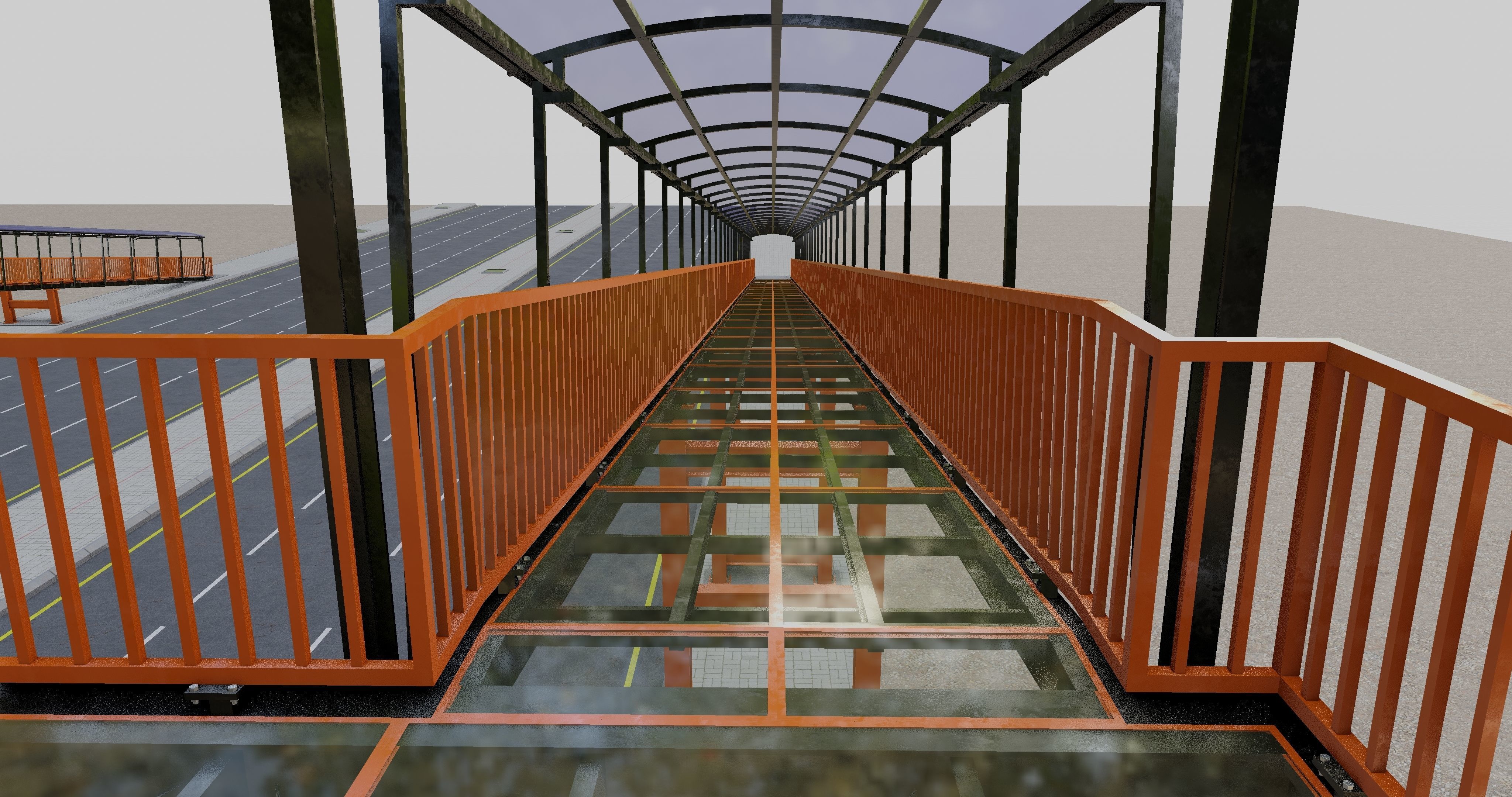

Walking Surface : 20 mm. Glass Deck

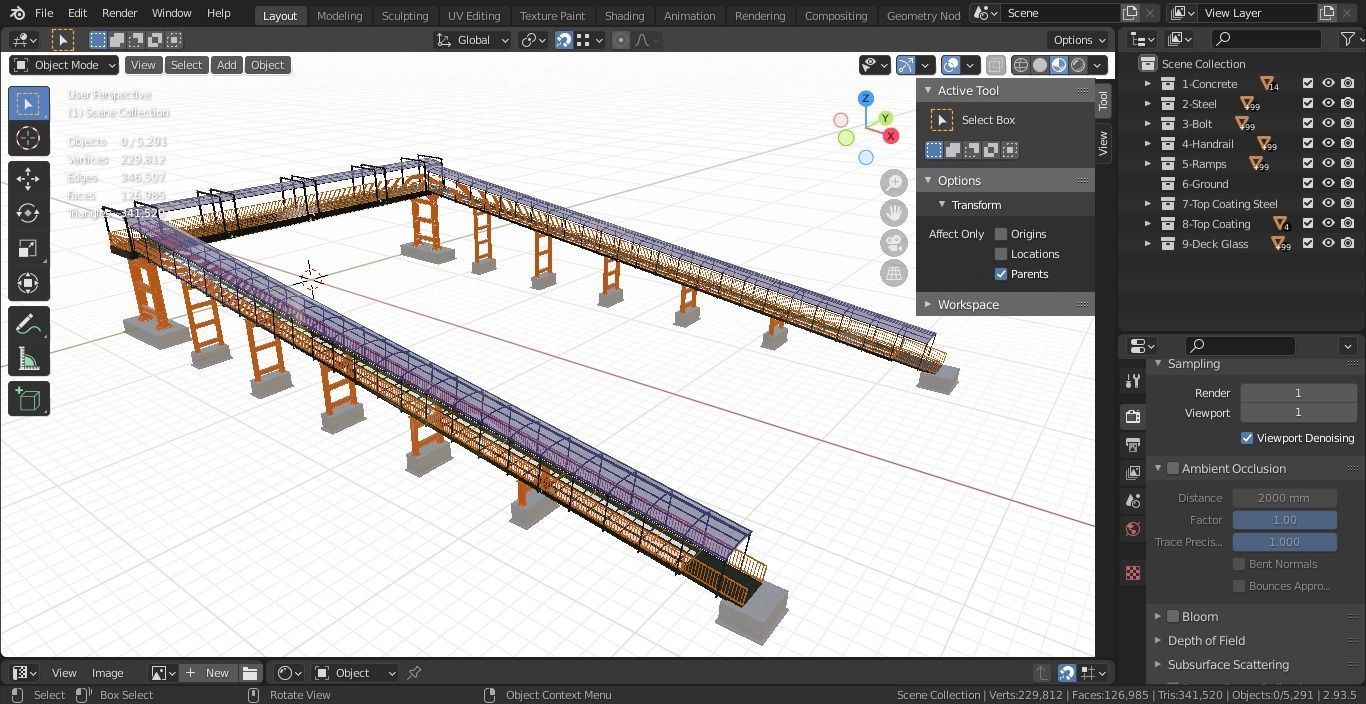

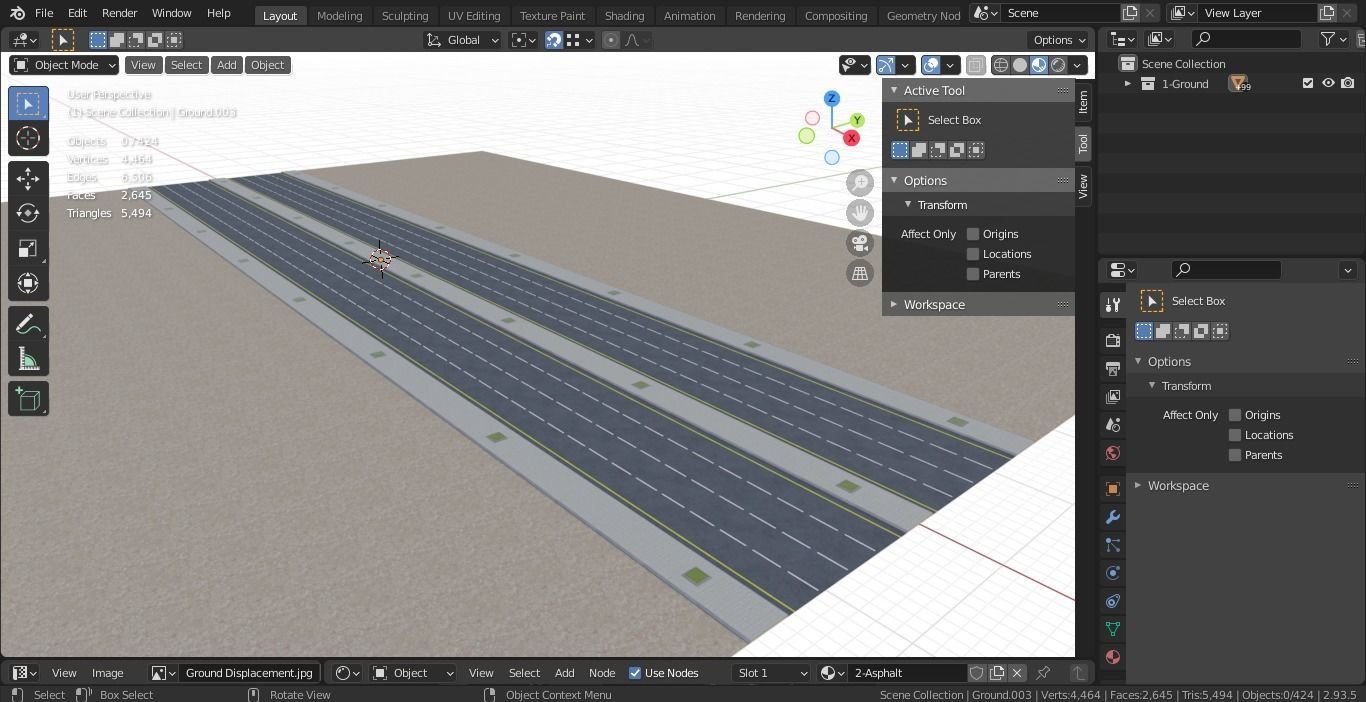

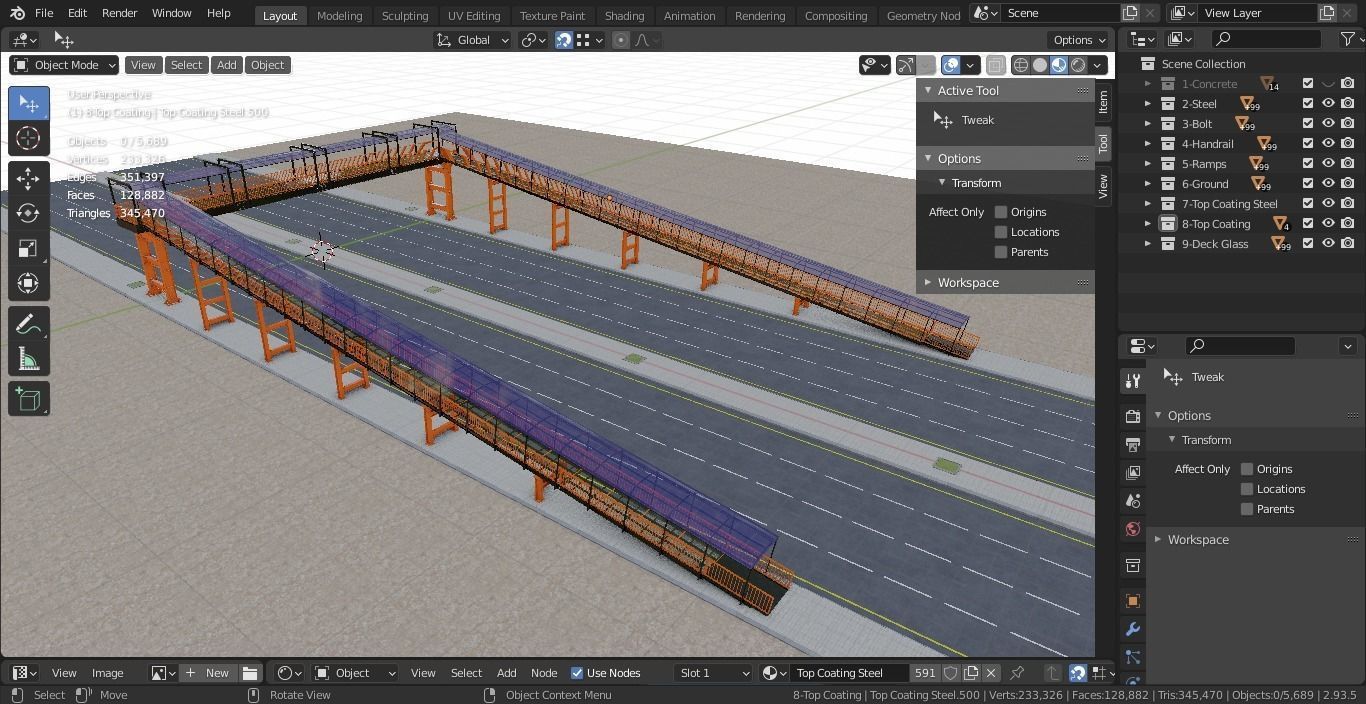

Prepared With BLENDER Version 2.93.5
All Model
Polygons : 129078
Vertices : 233550
Objects : 5703
Steel Model Only
Polygons : 126985
Vertices : 229812
Objects : 5291
3D Model formats
Format limitations
- Blender (.blend) (3 files)95.4 MBVersion: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5Version: 2.93.5Renderer: Eevee 2.93.5
3D Model details
- Publish date2023-10-25
- Model ID#4861367
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 129,078
- Vertices 233,550
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
