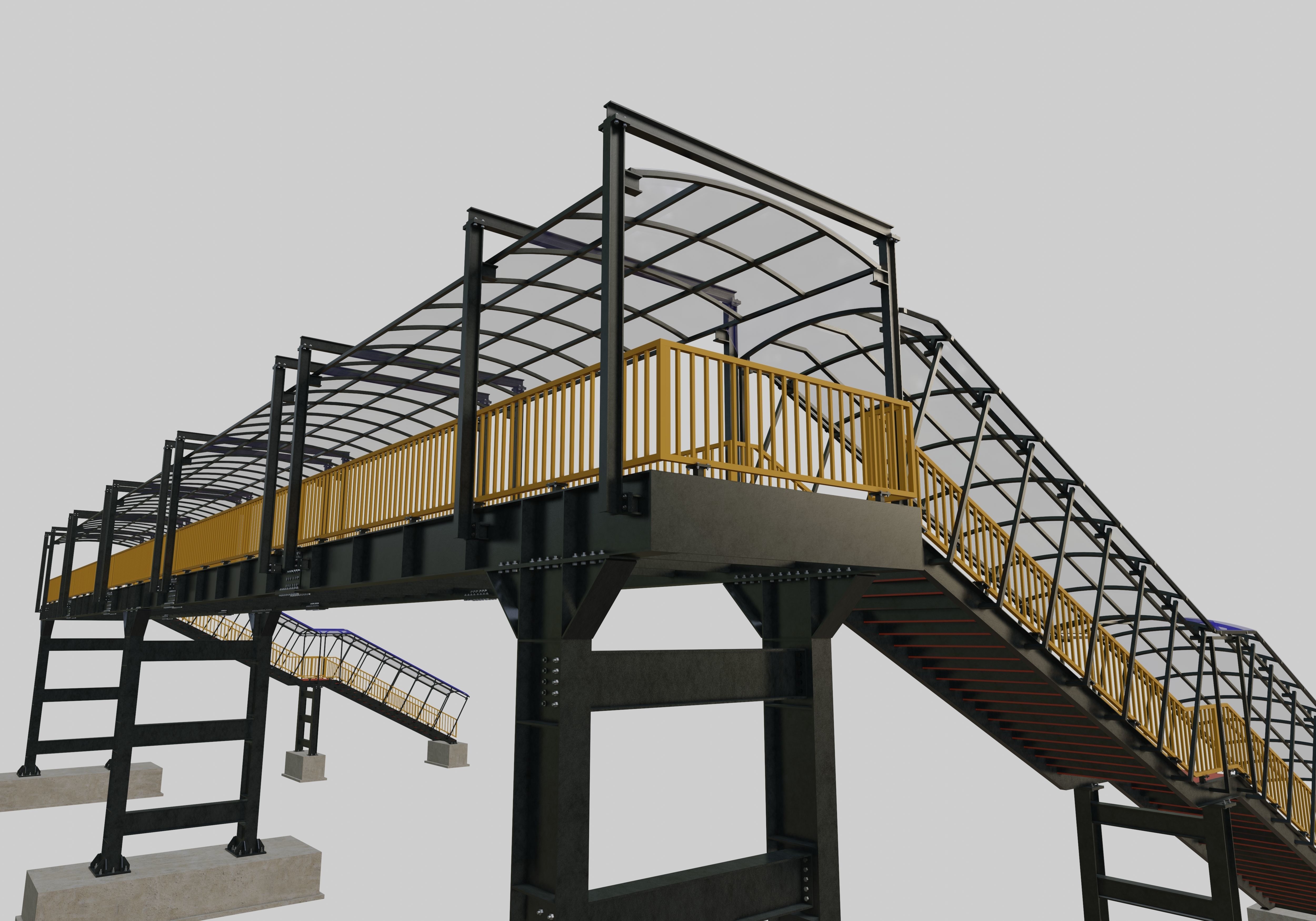

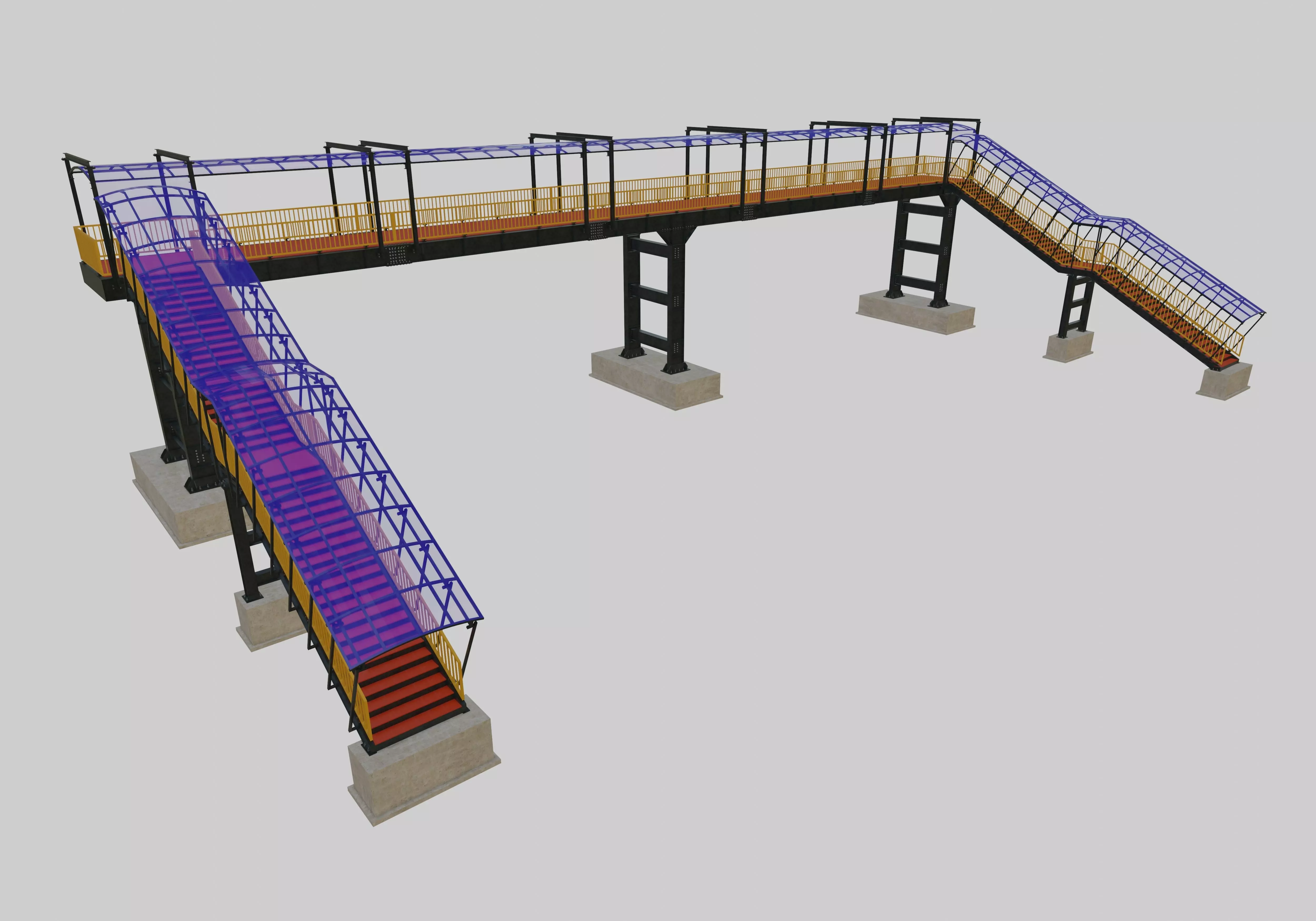

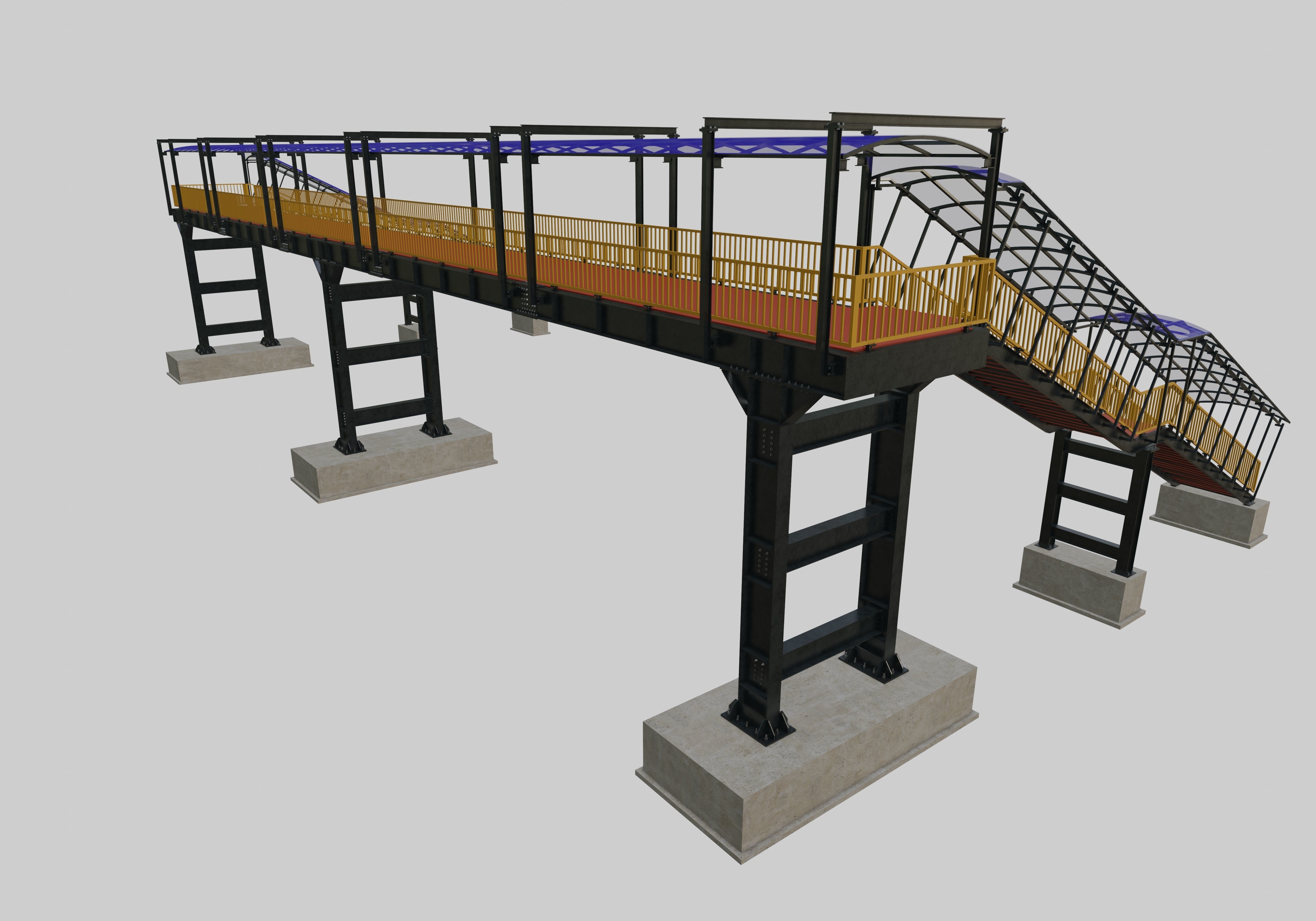

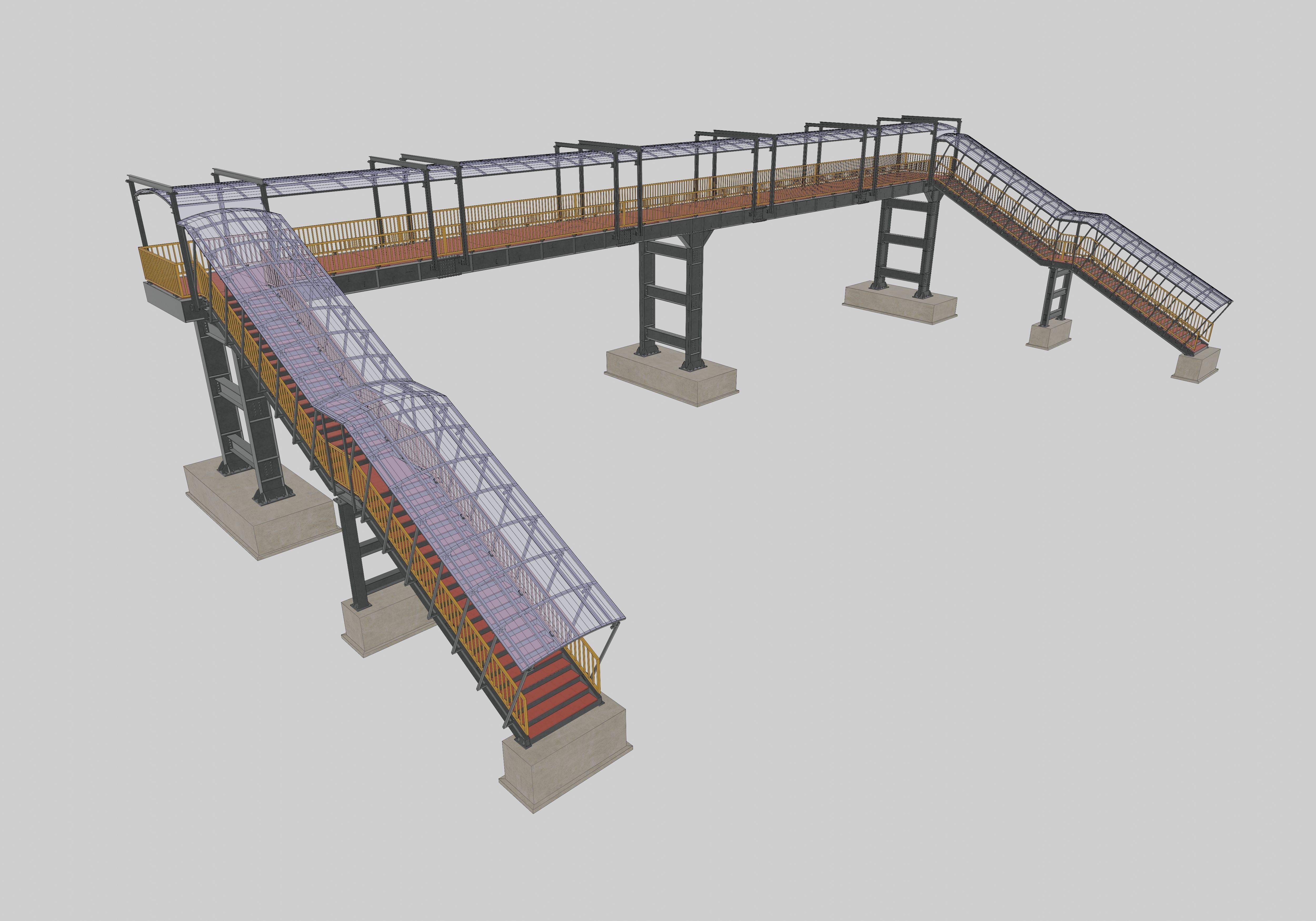

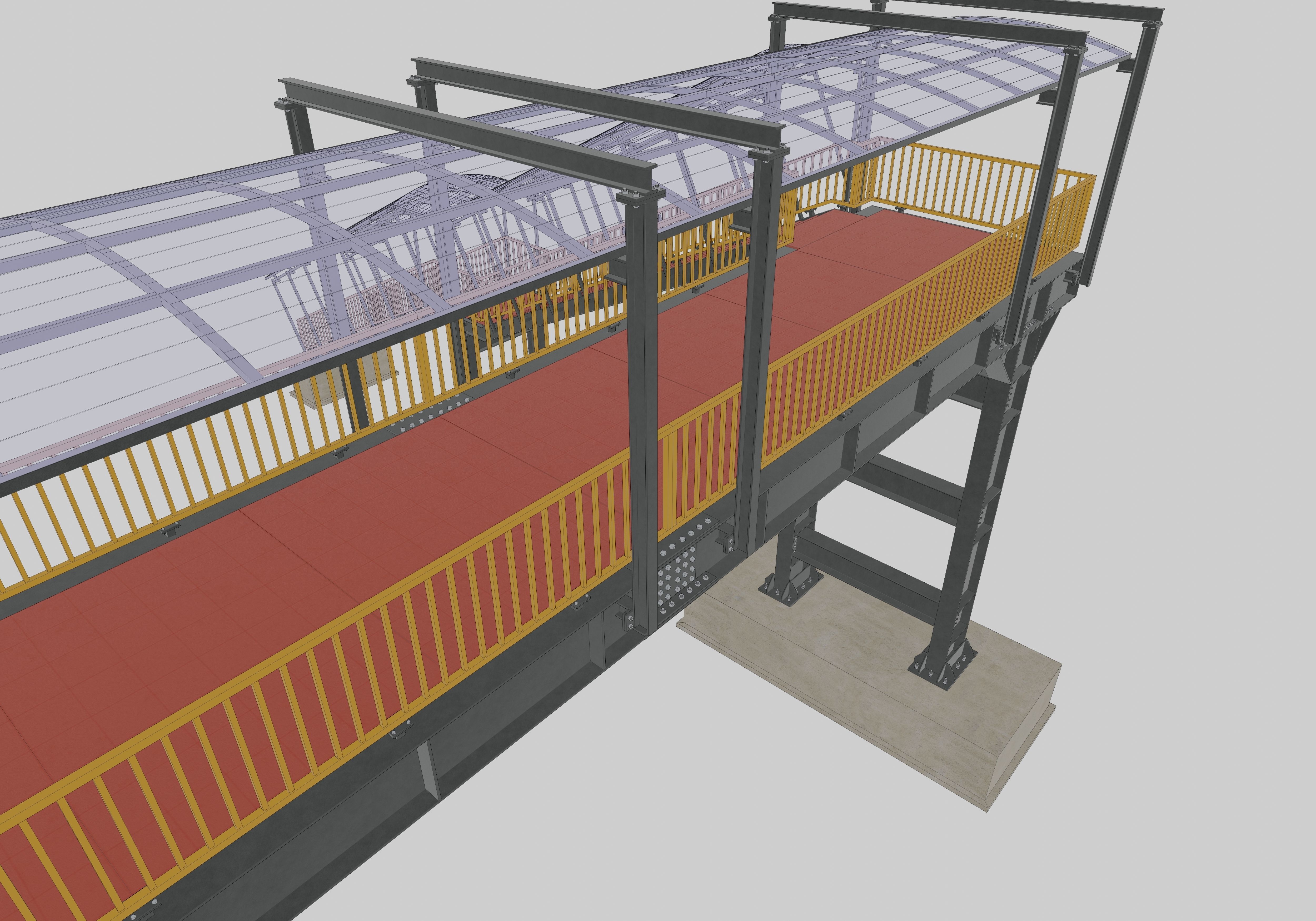

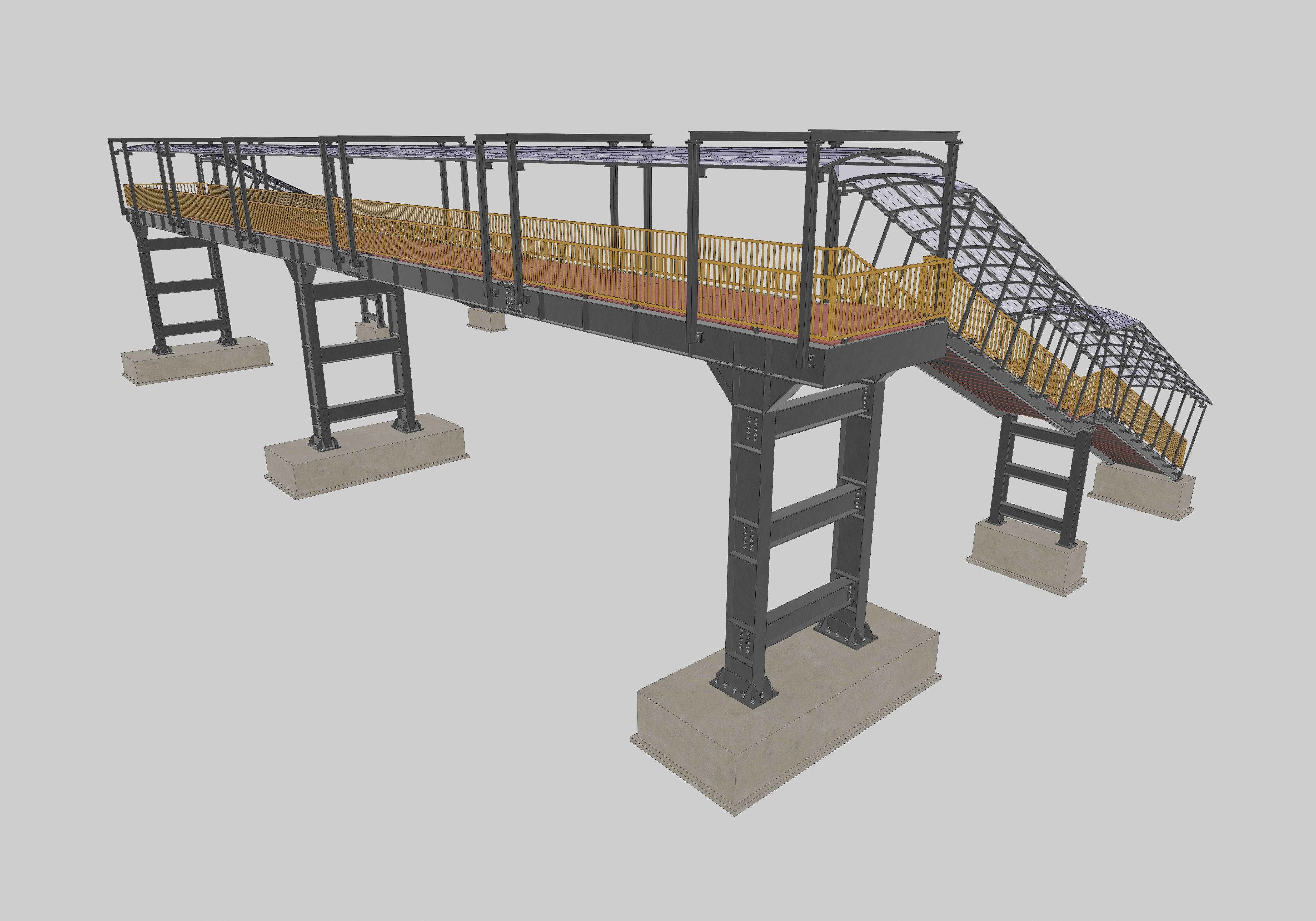

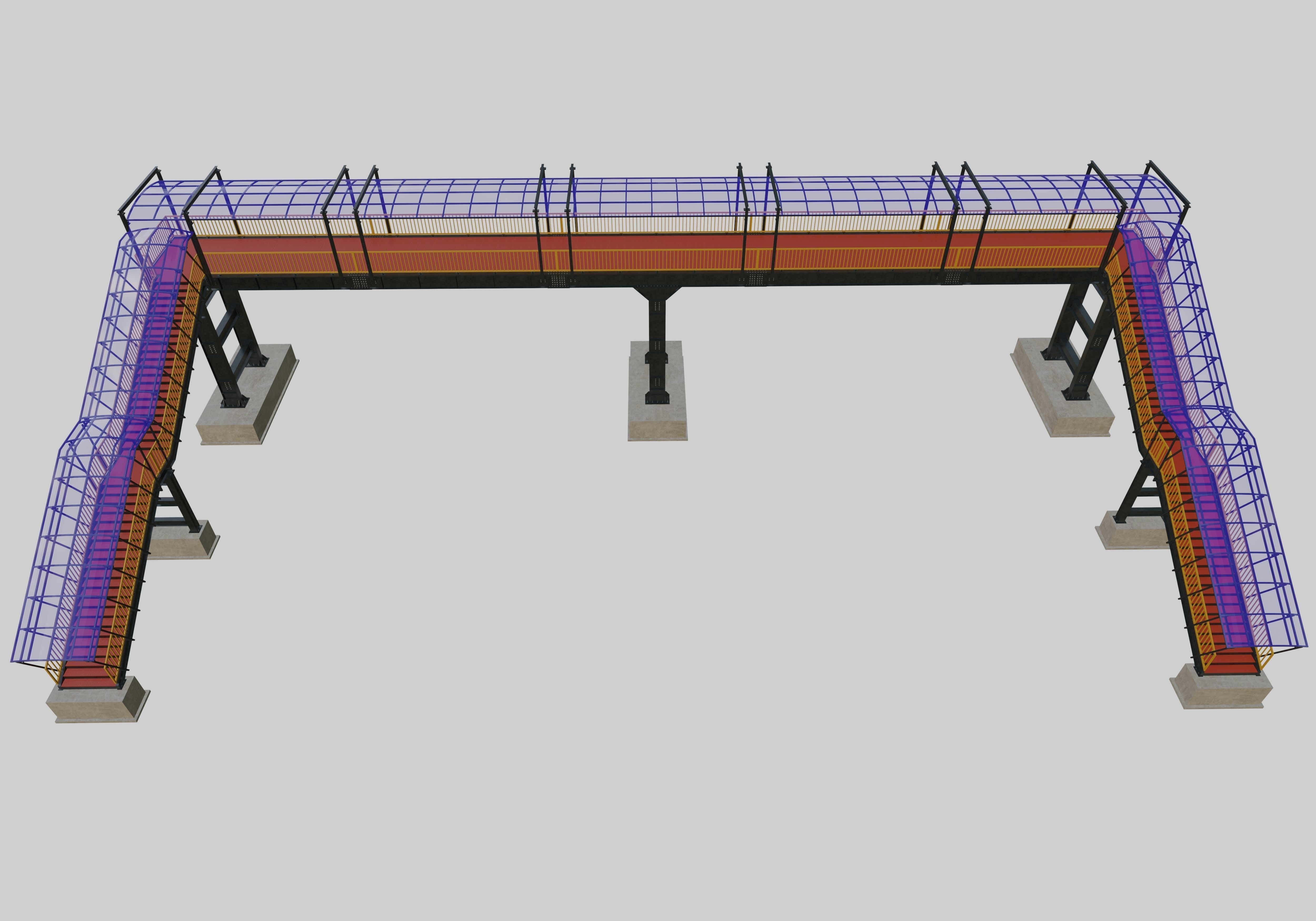

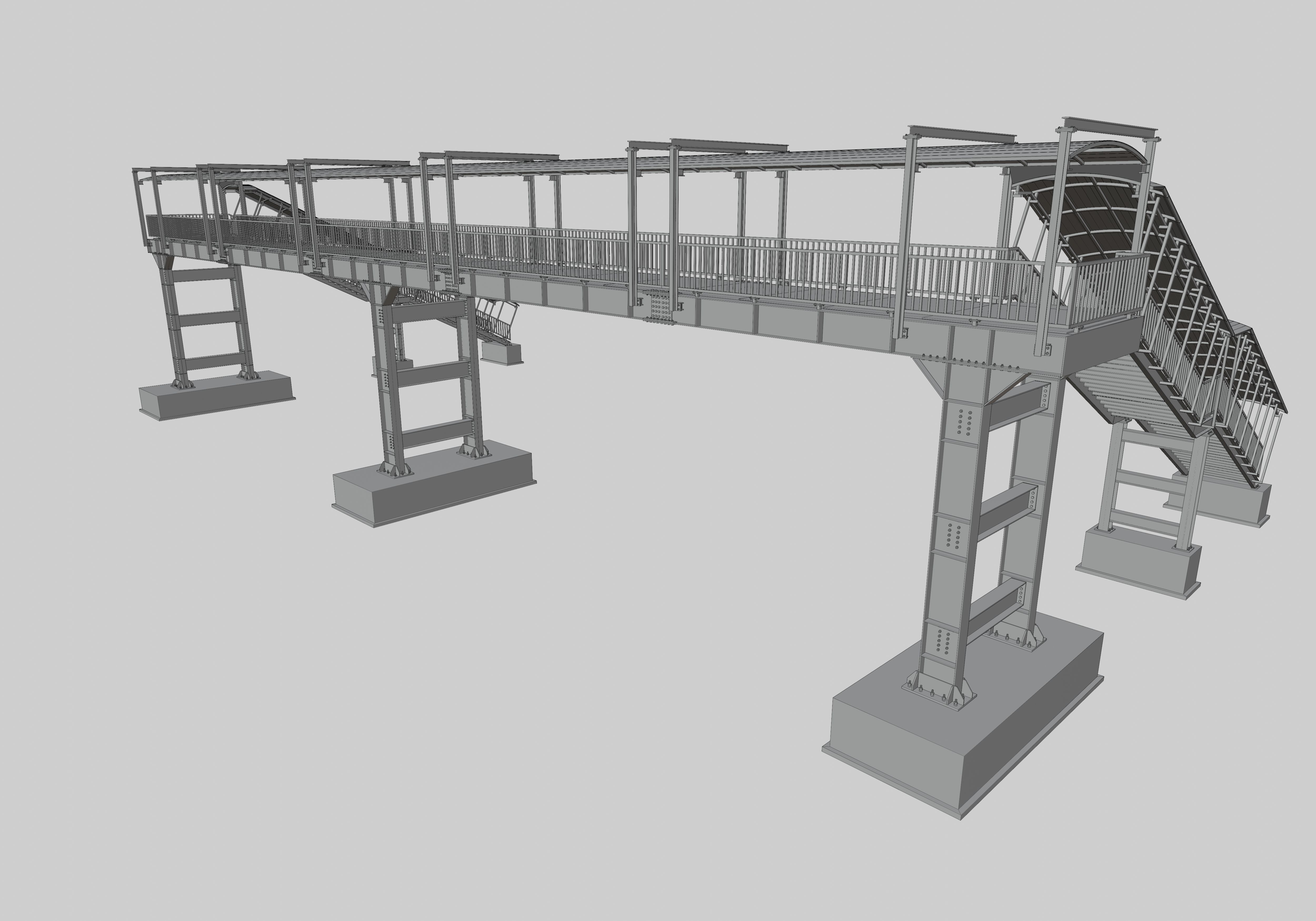

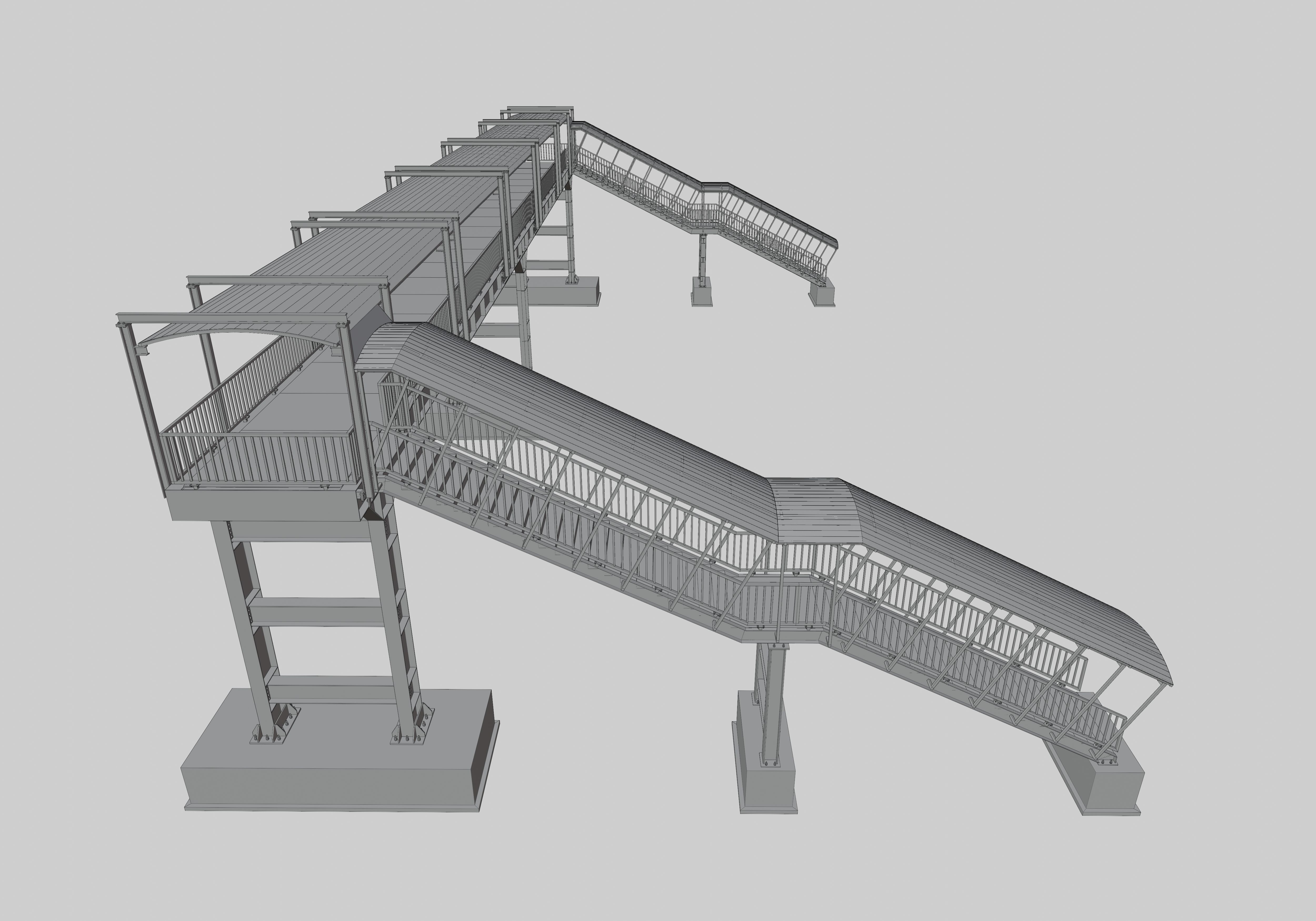

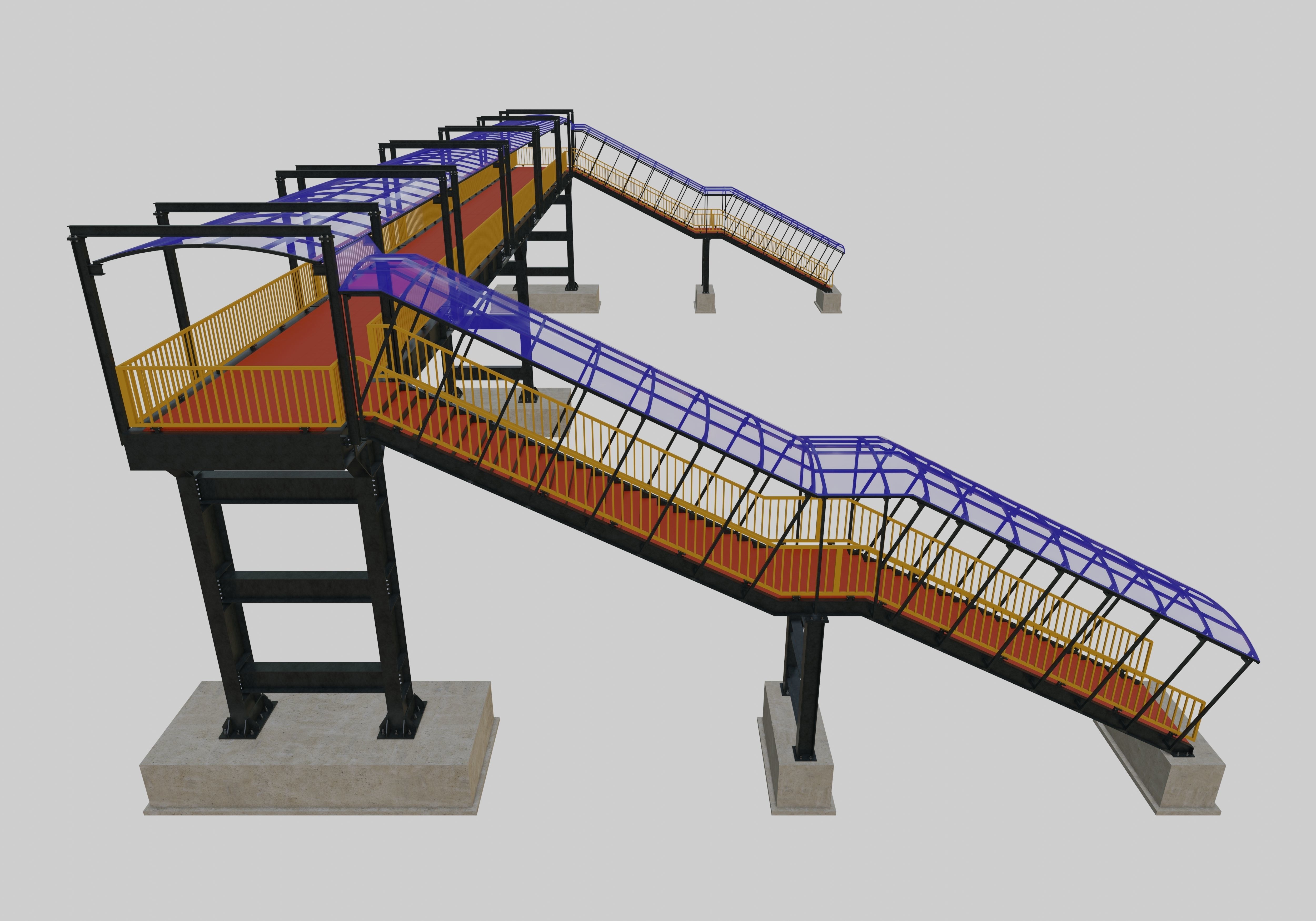

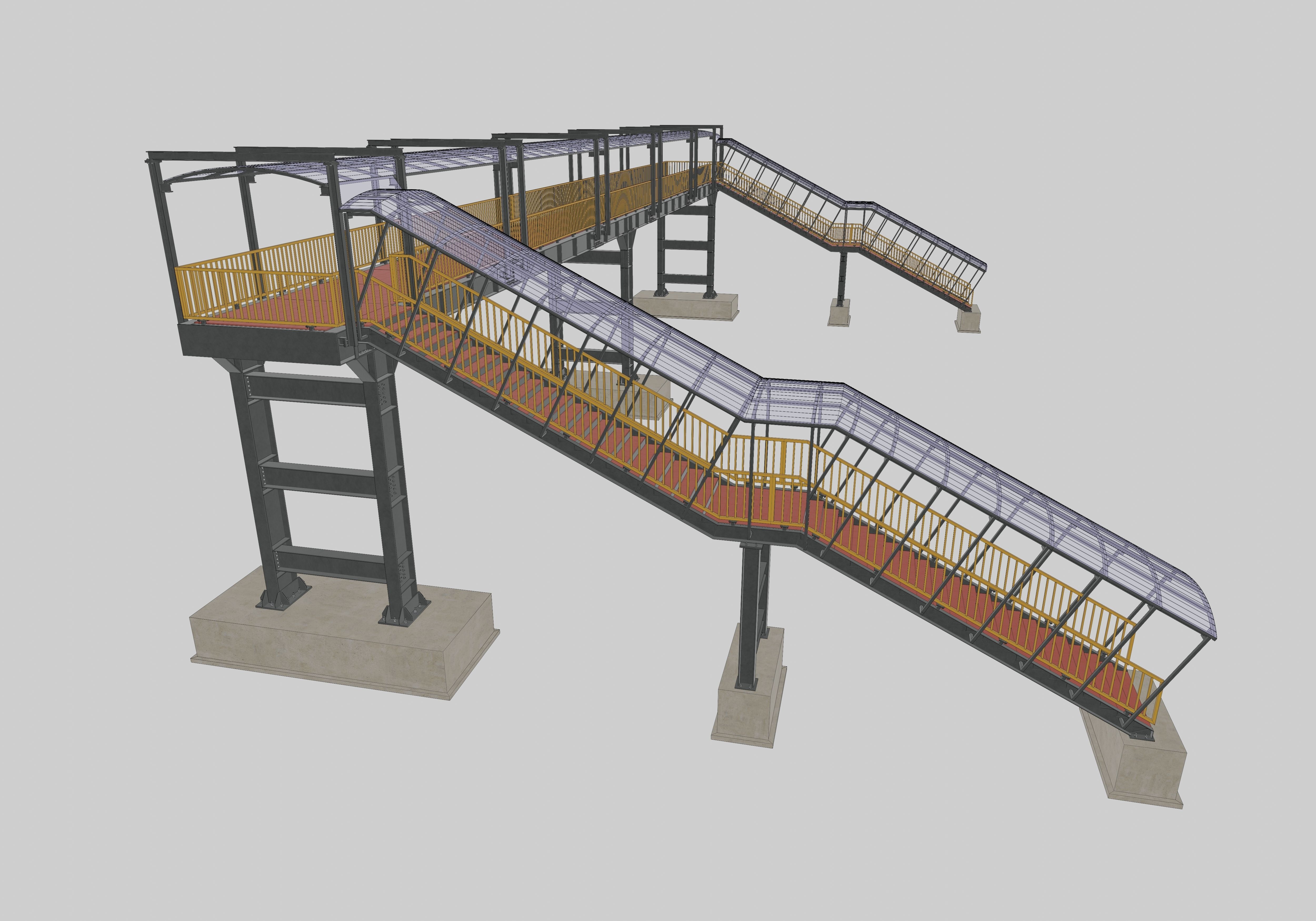

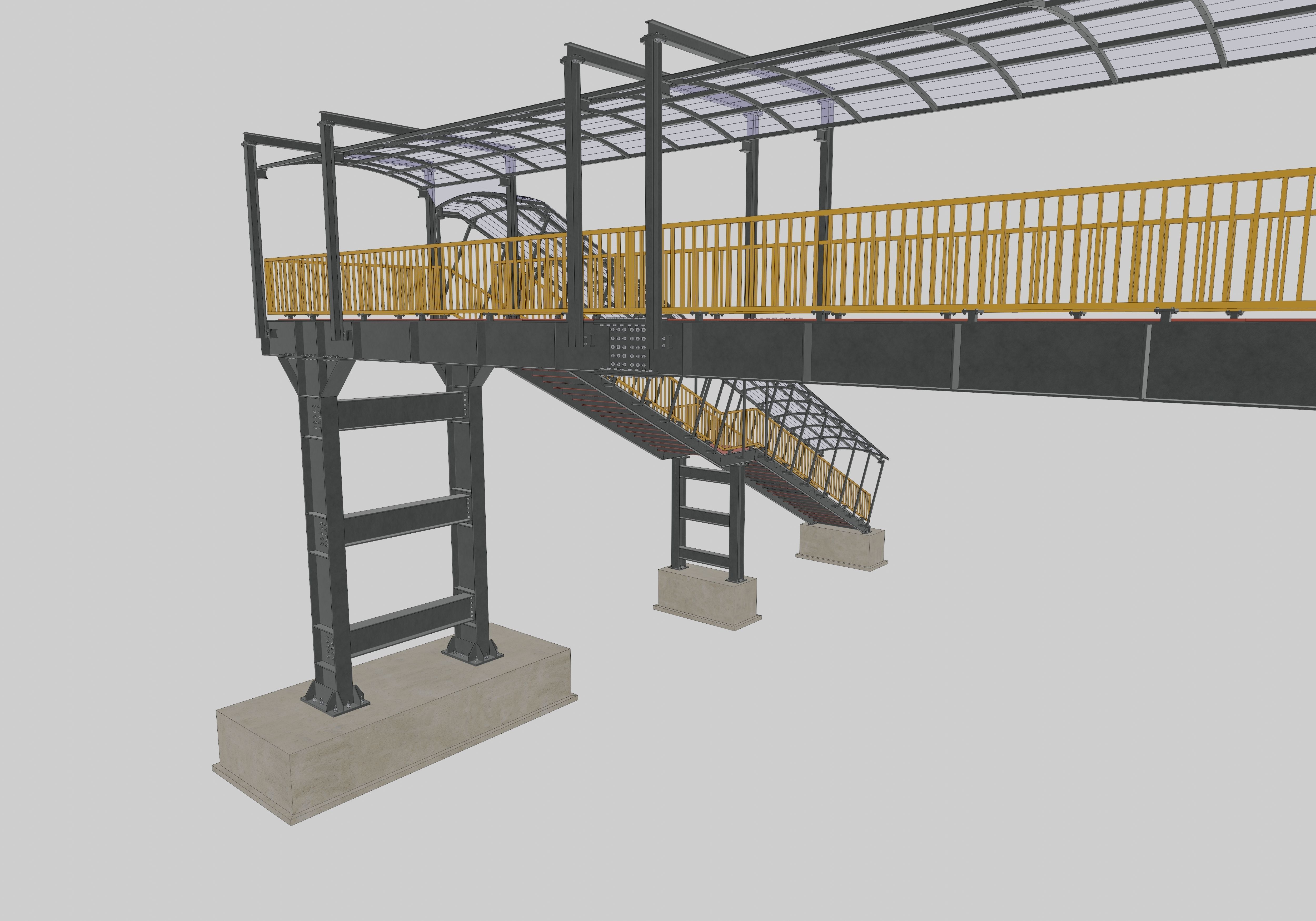

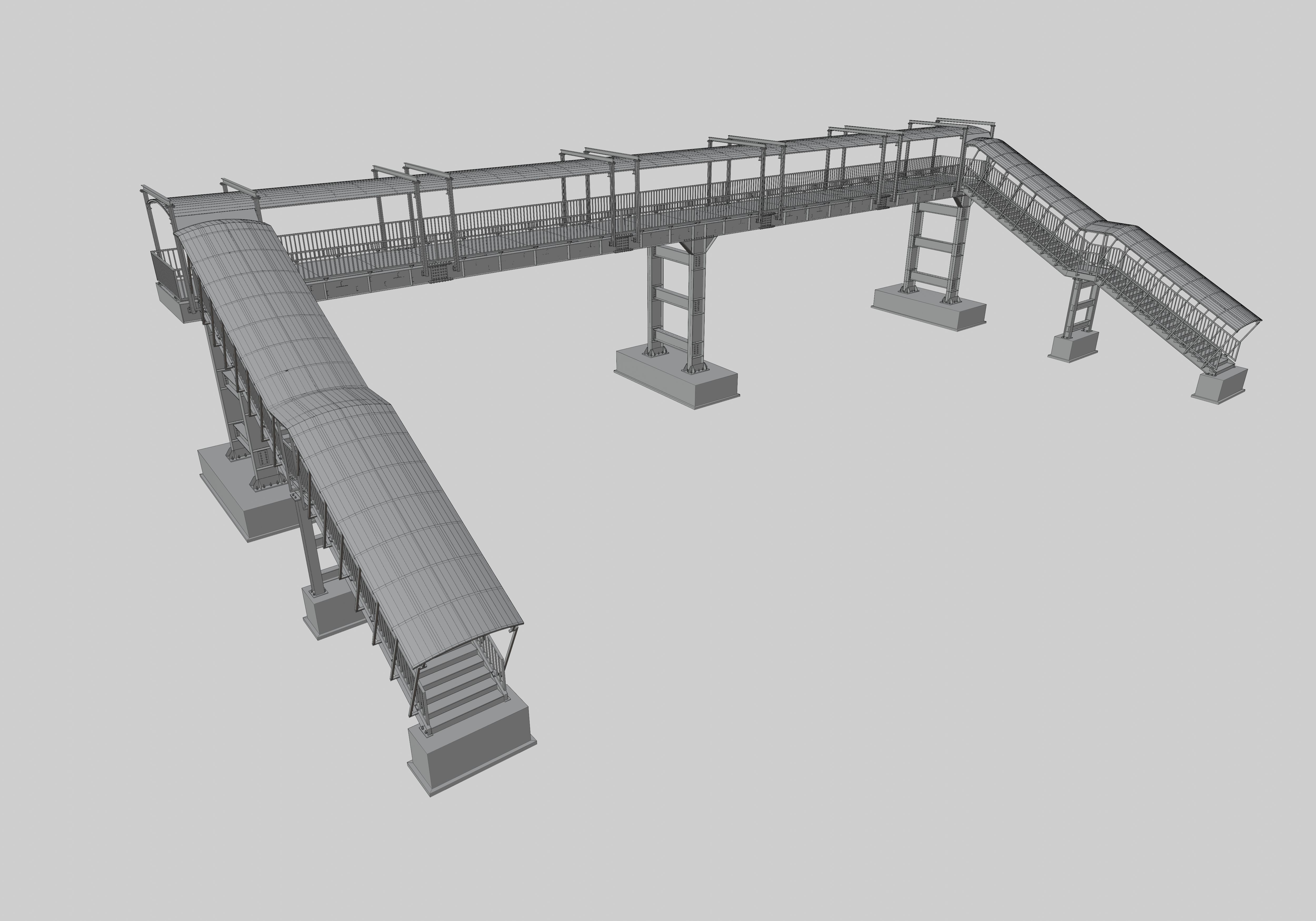

Steel Pedestrian Bridge

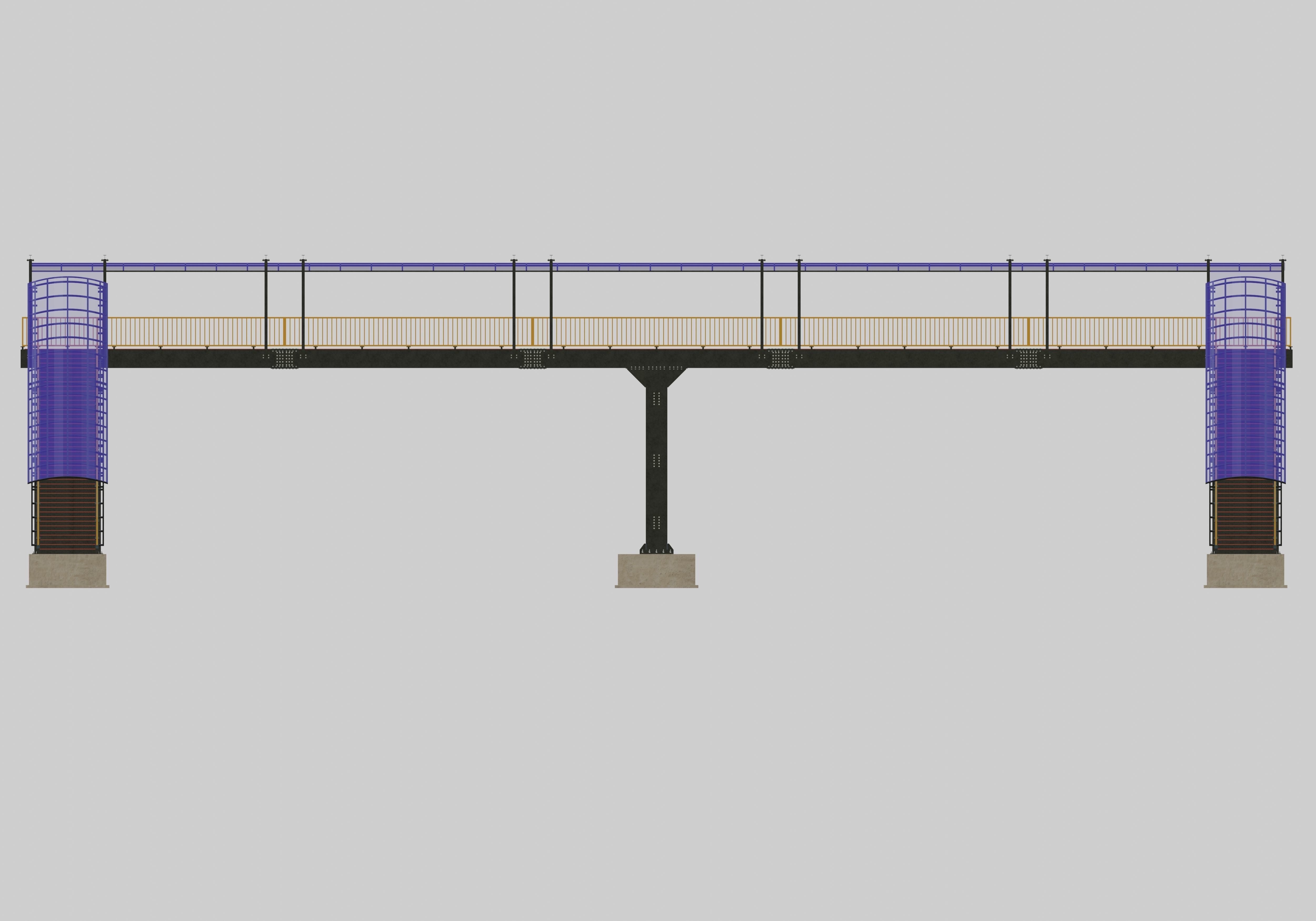

Three Column Consruction
Closed Top Construction
Straigth Beam Type
Straight Column Type
Named Objects

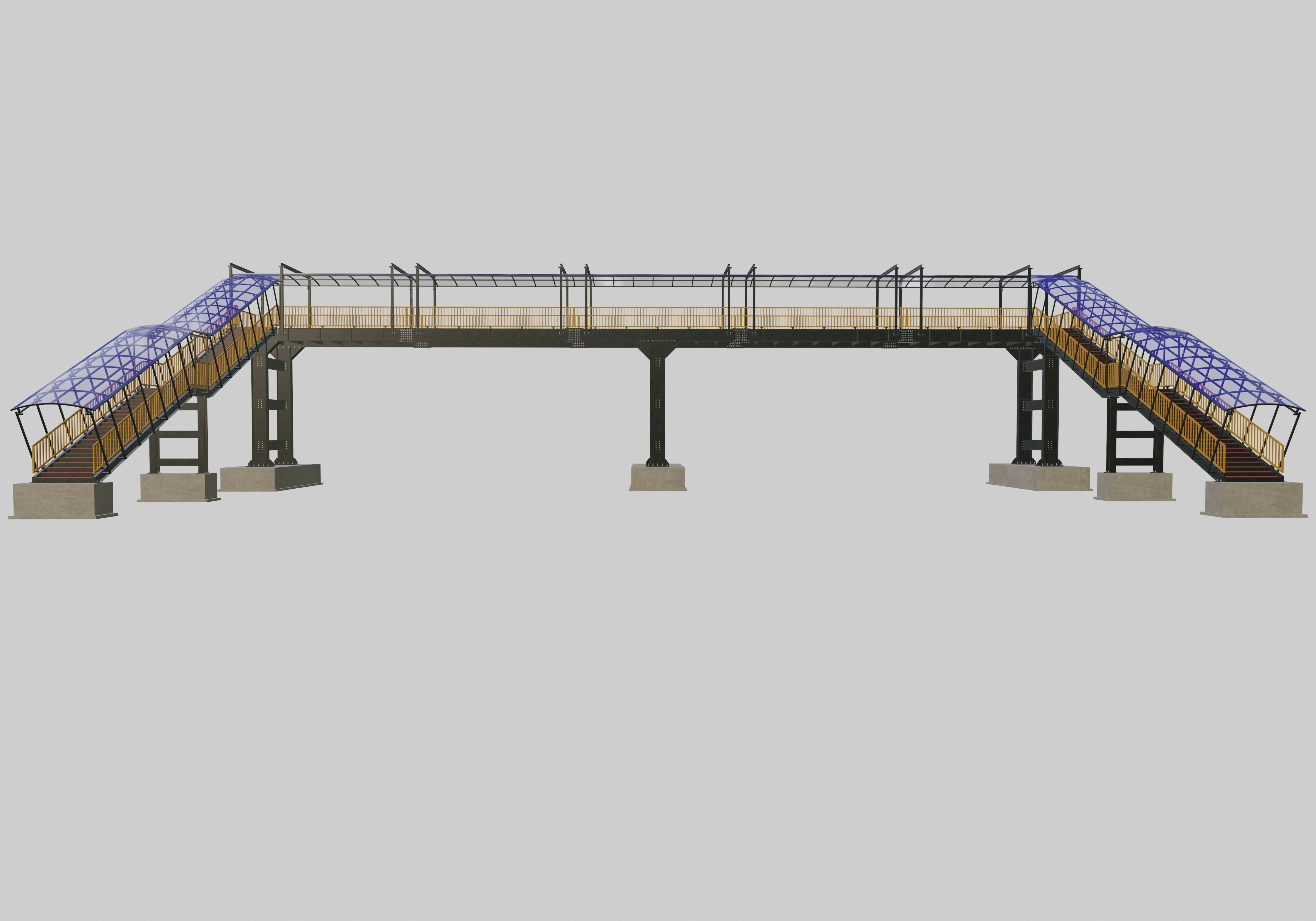

Largest Column Span : 38 mt.
Distance Between Two Columns : 19 mt.
Platform Asphalt Height : 6 mt.
Platform Width : 3 mt.

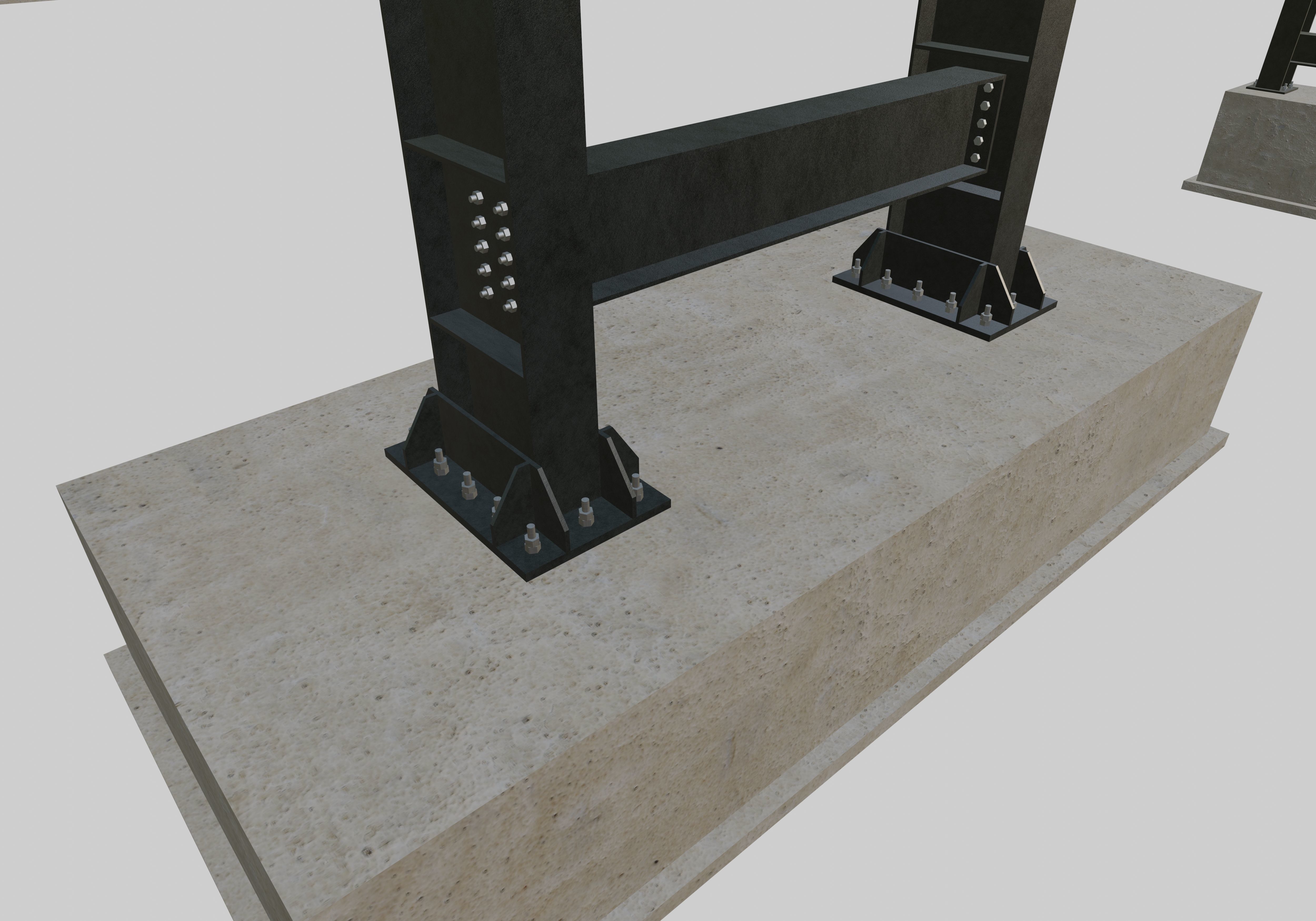

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.
Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

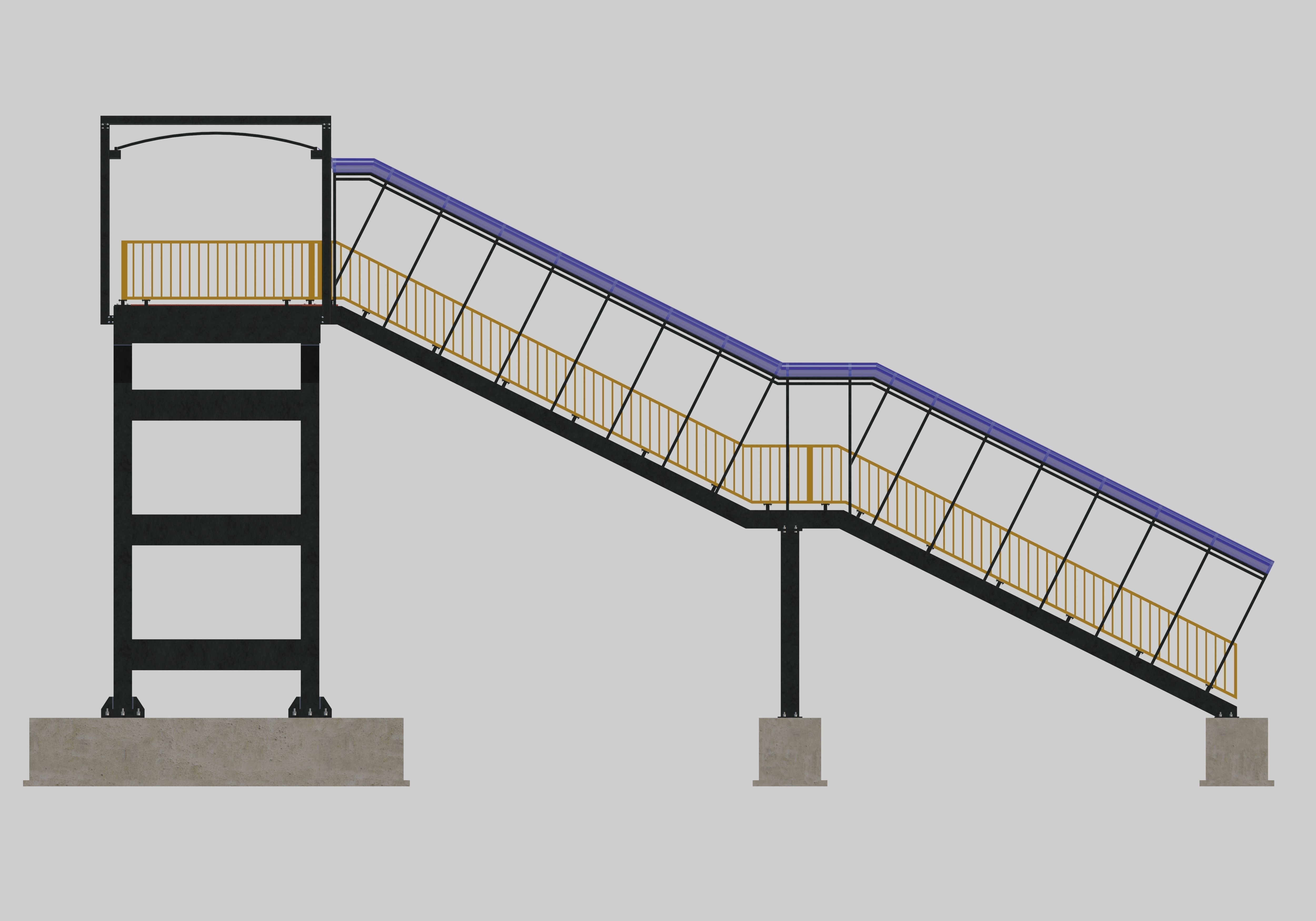

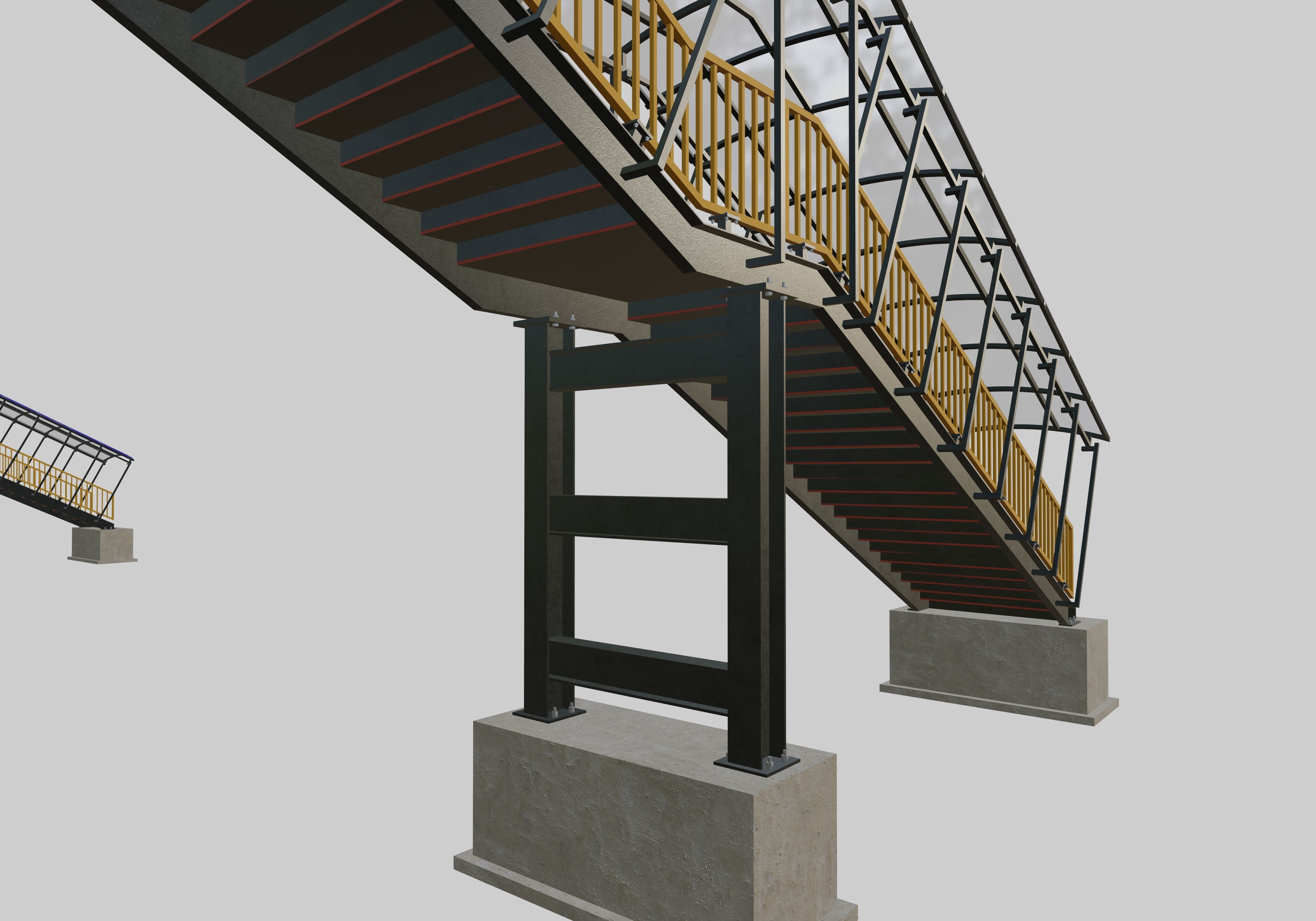

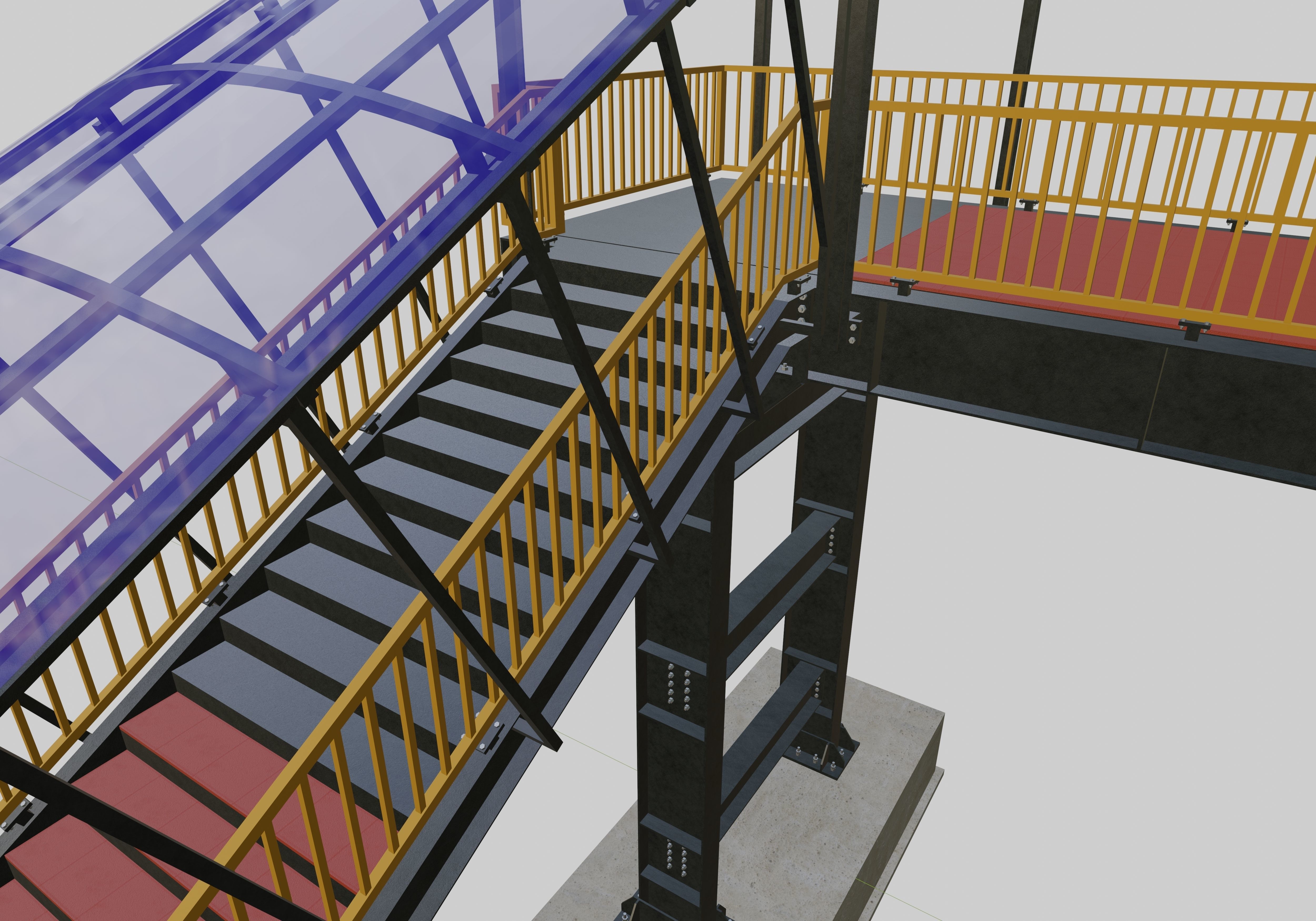

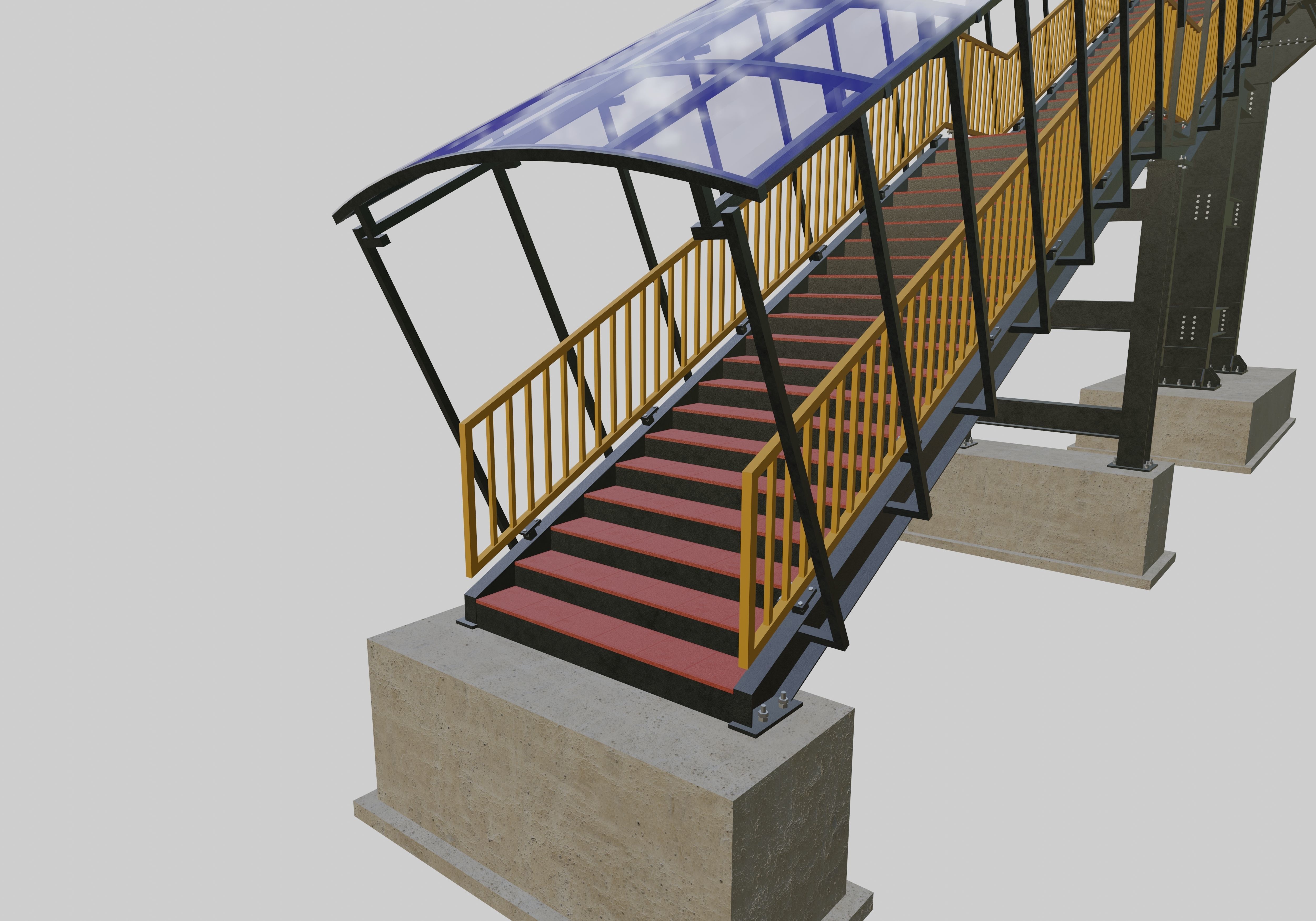

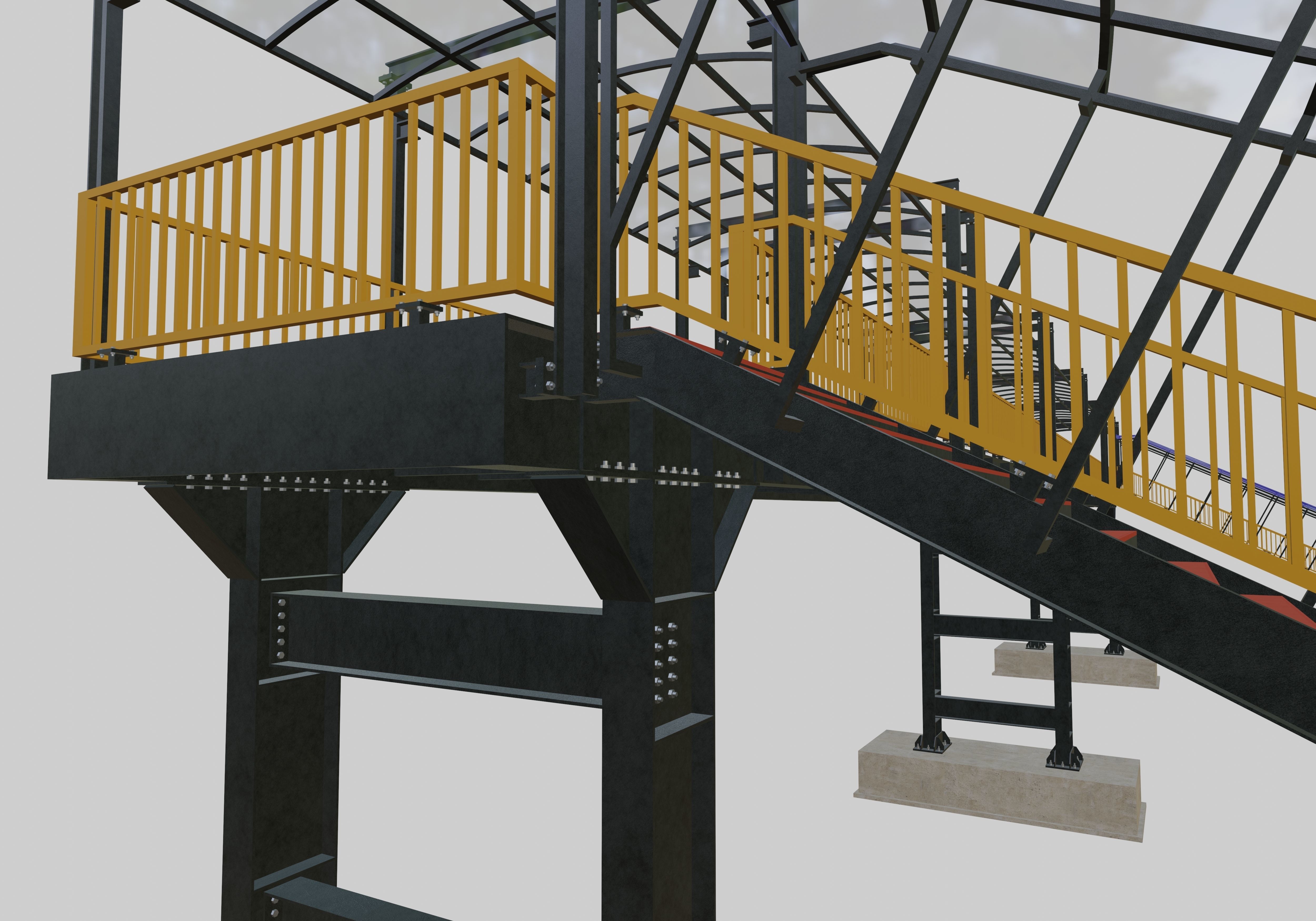

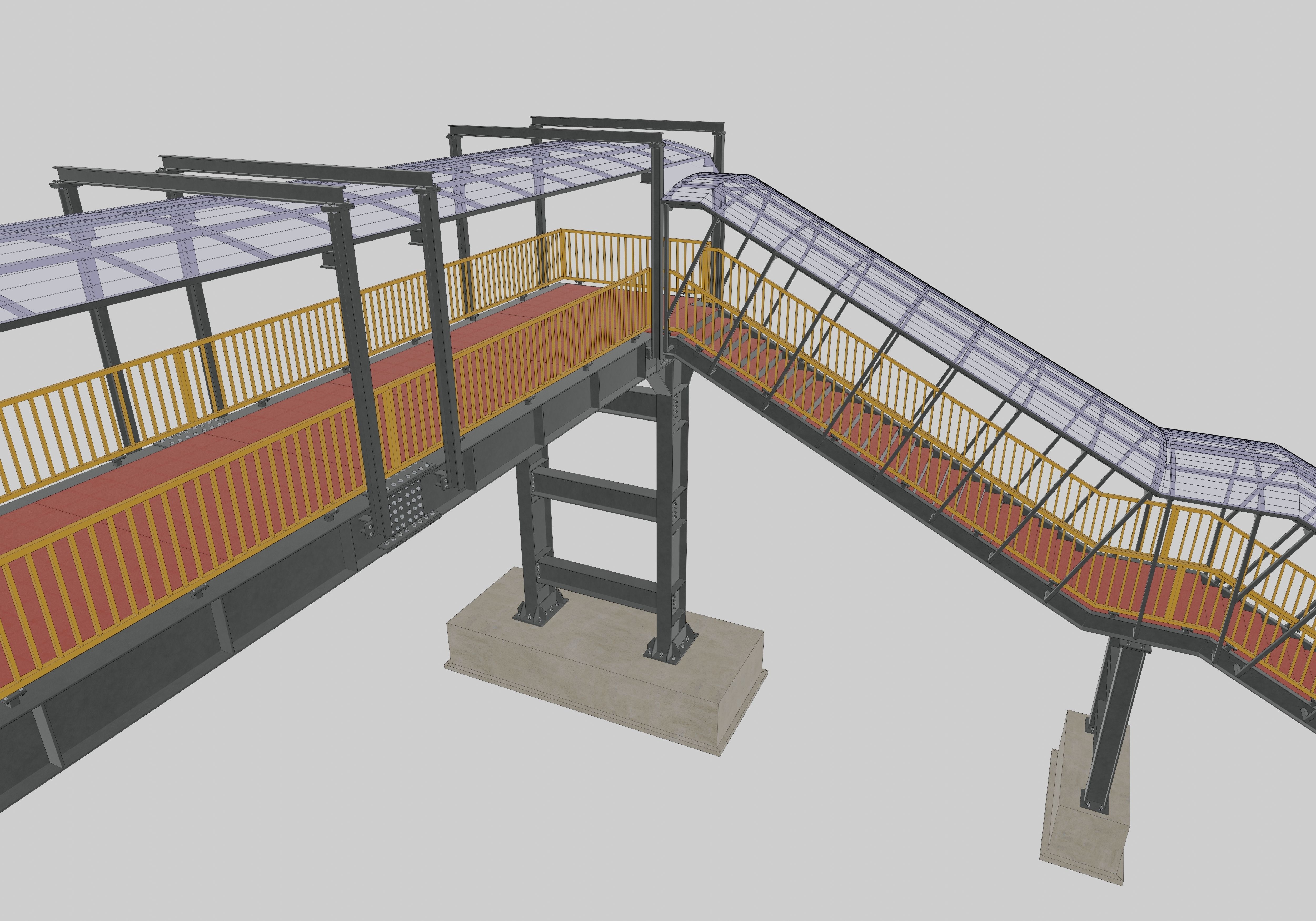

Stairs Straight Type
Stair Step Width : 1,8 mt.
Step Sizes : 300 mm. * 150 mm.
Flat Railing Construction
Railings Box Profile

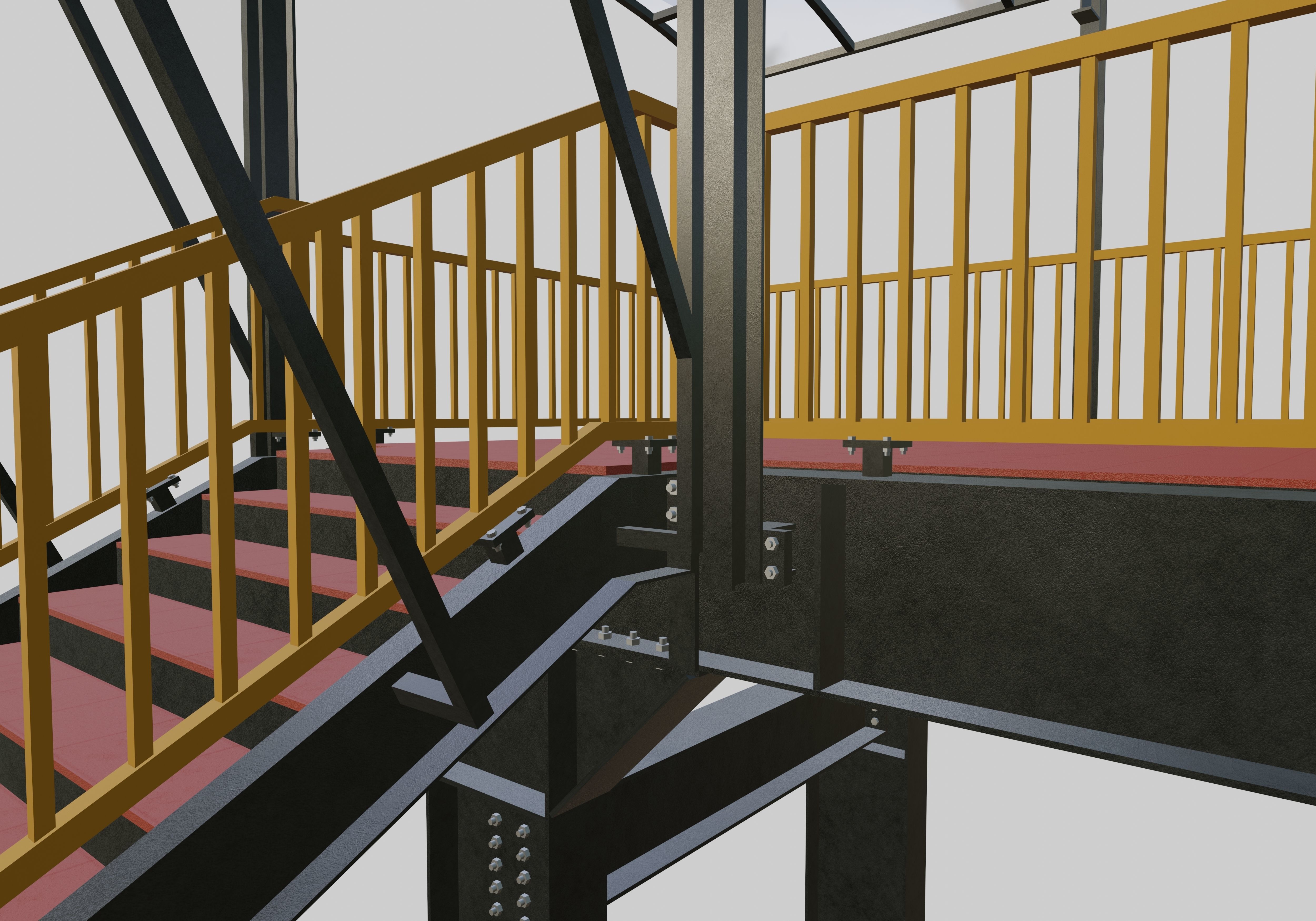

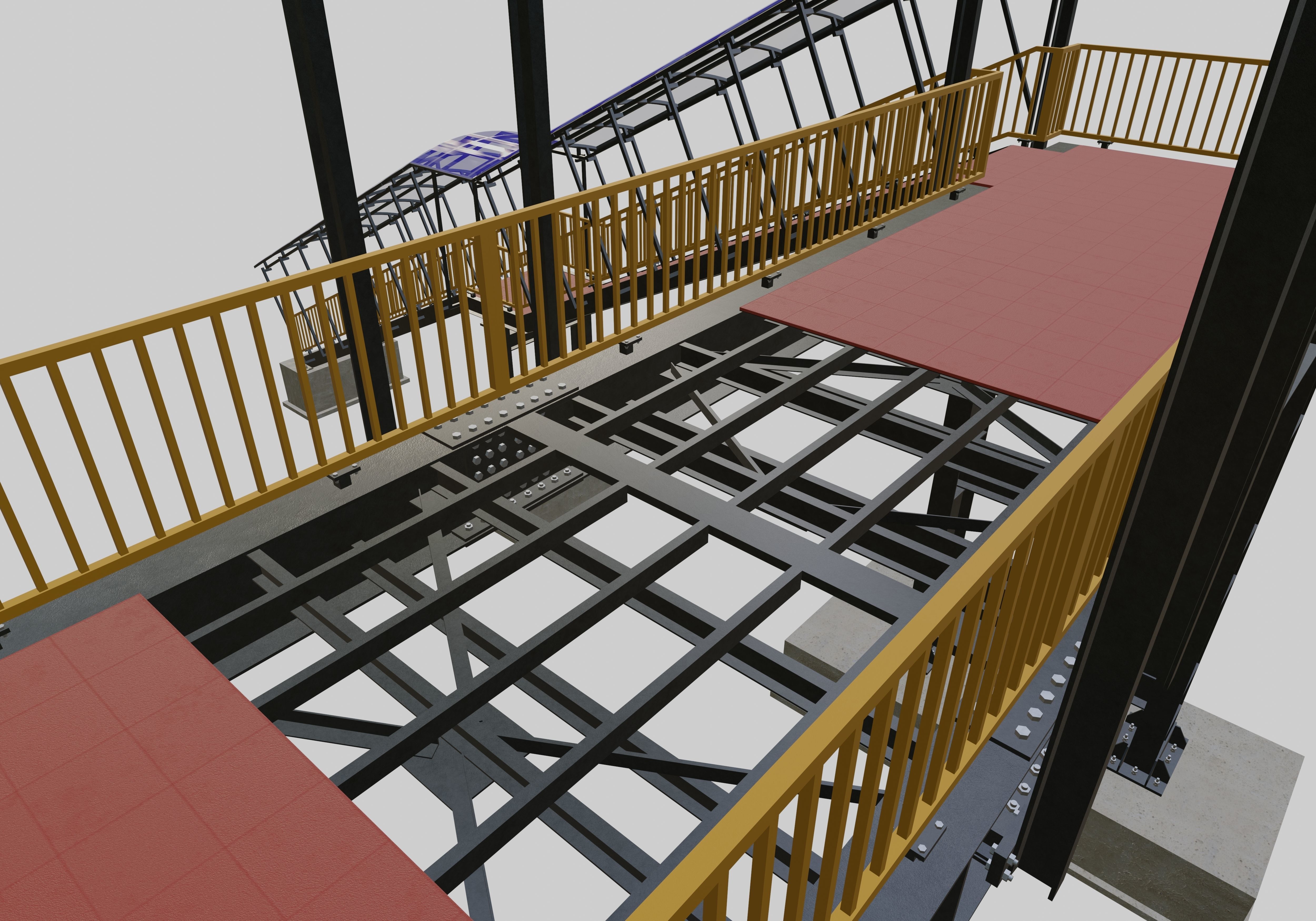

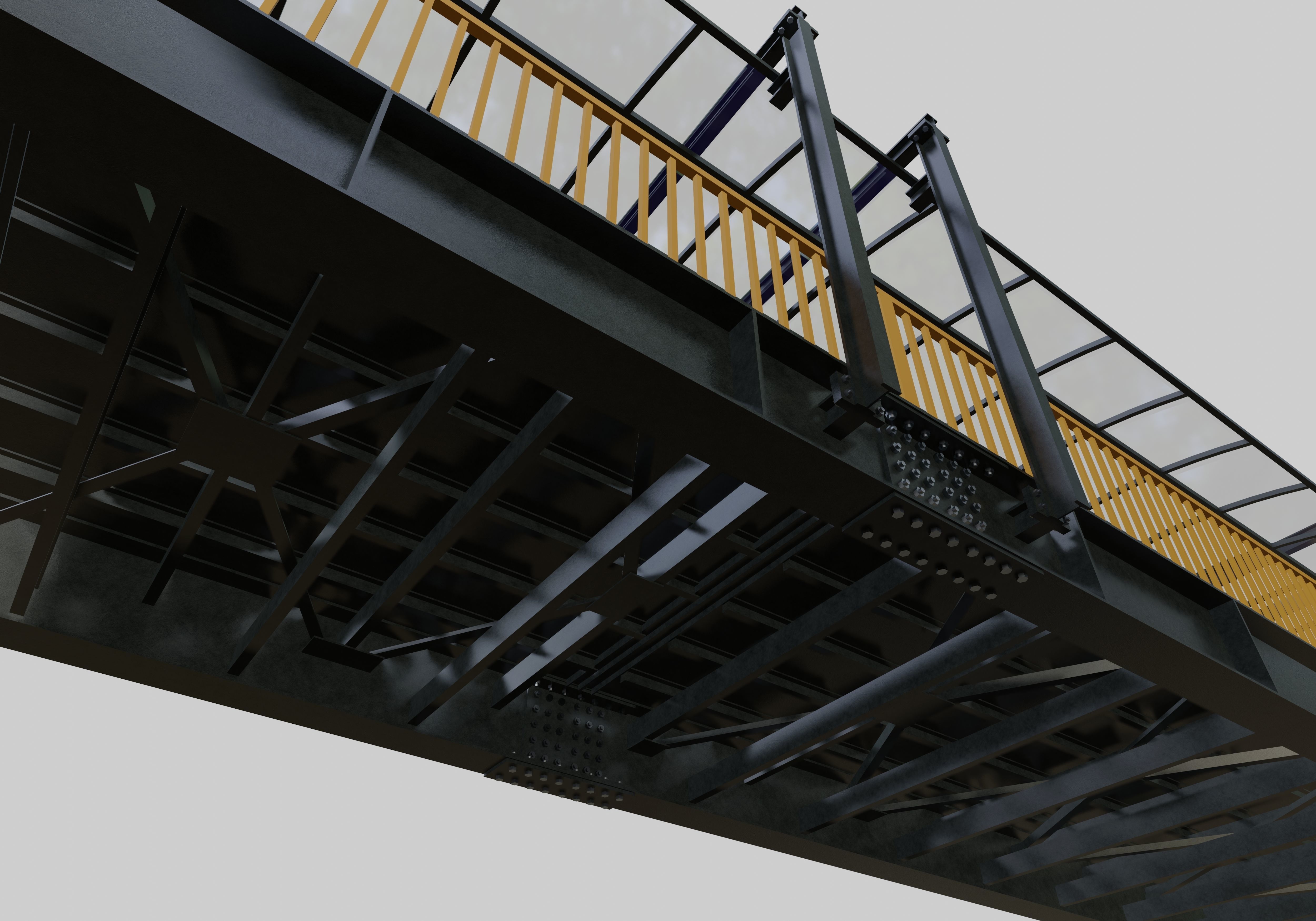

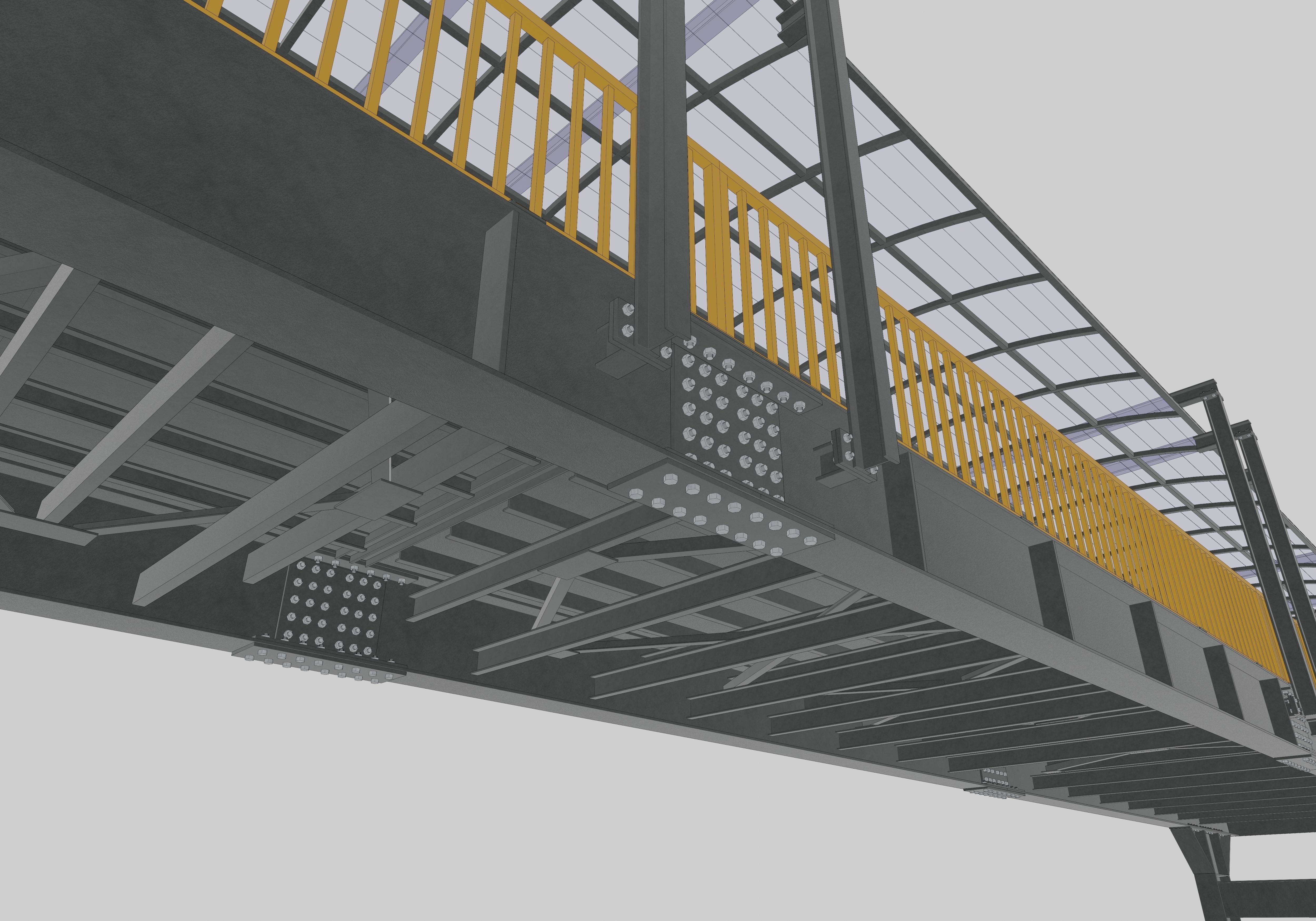

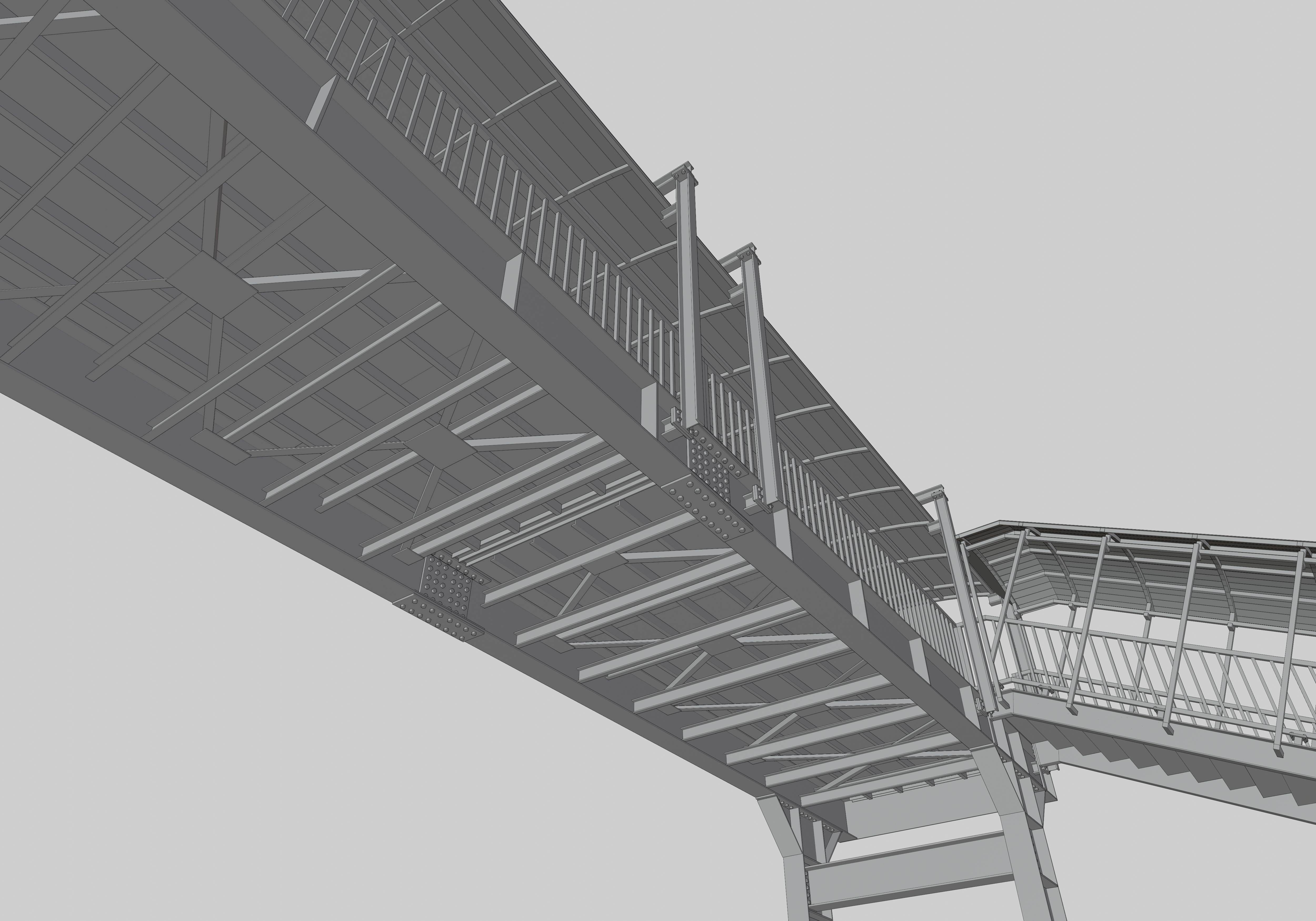

Platform And Columns With Bolted Connection

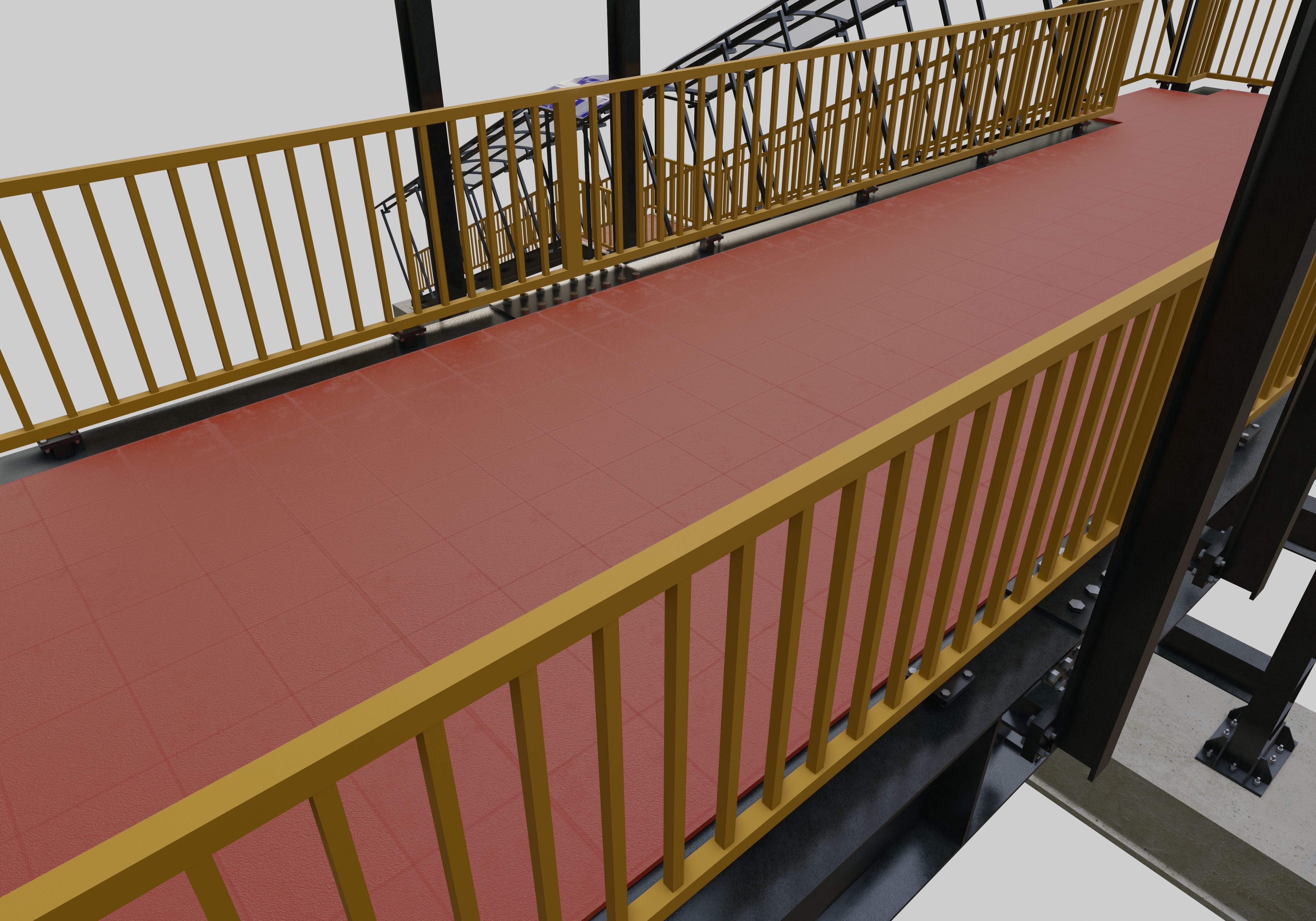

Walking Surface : 2 cm. Rubber Flooring

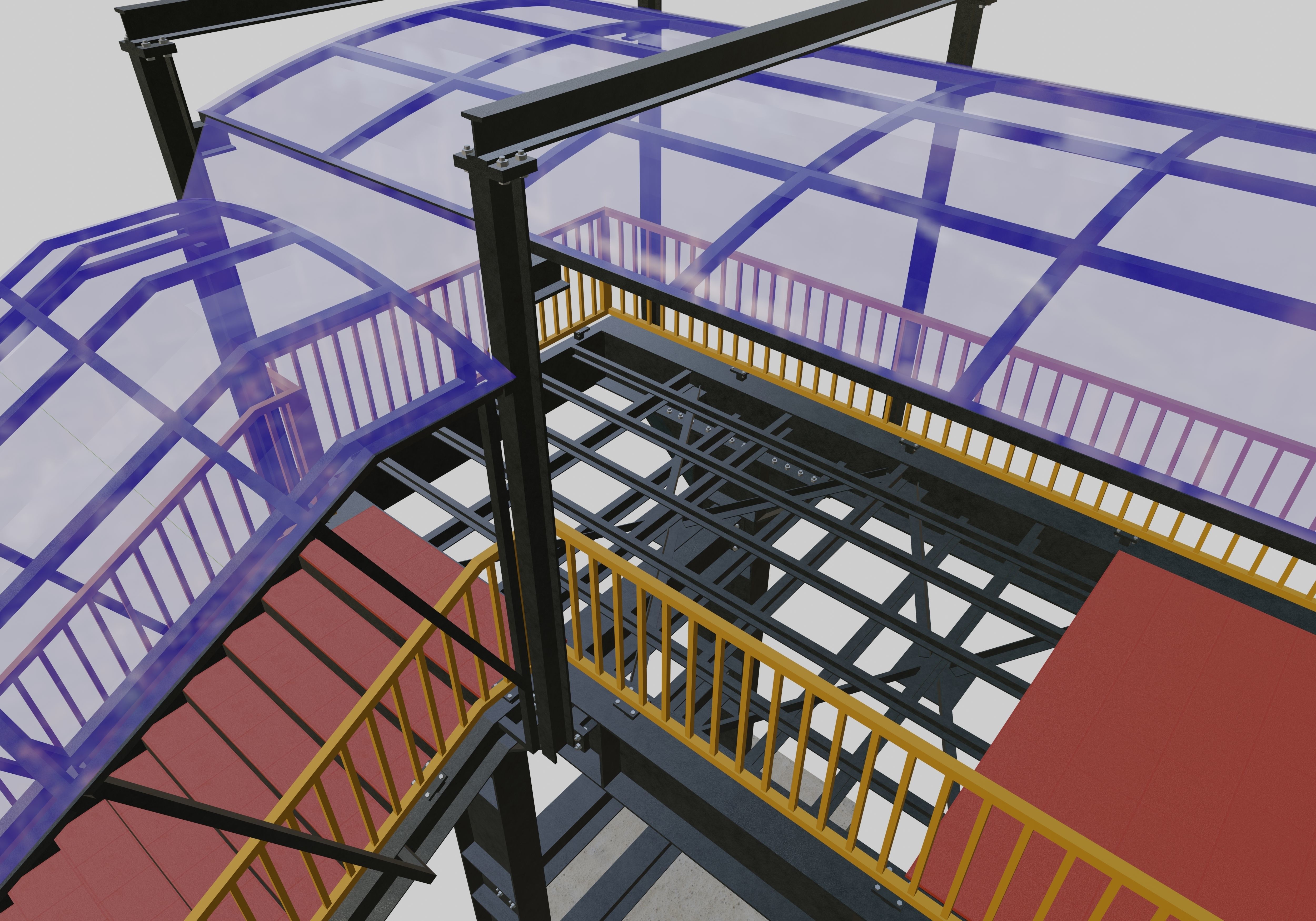

Top Coating Solid Polycarbonate

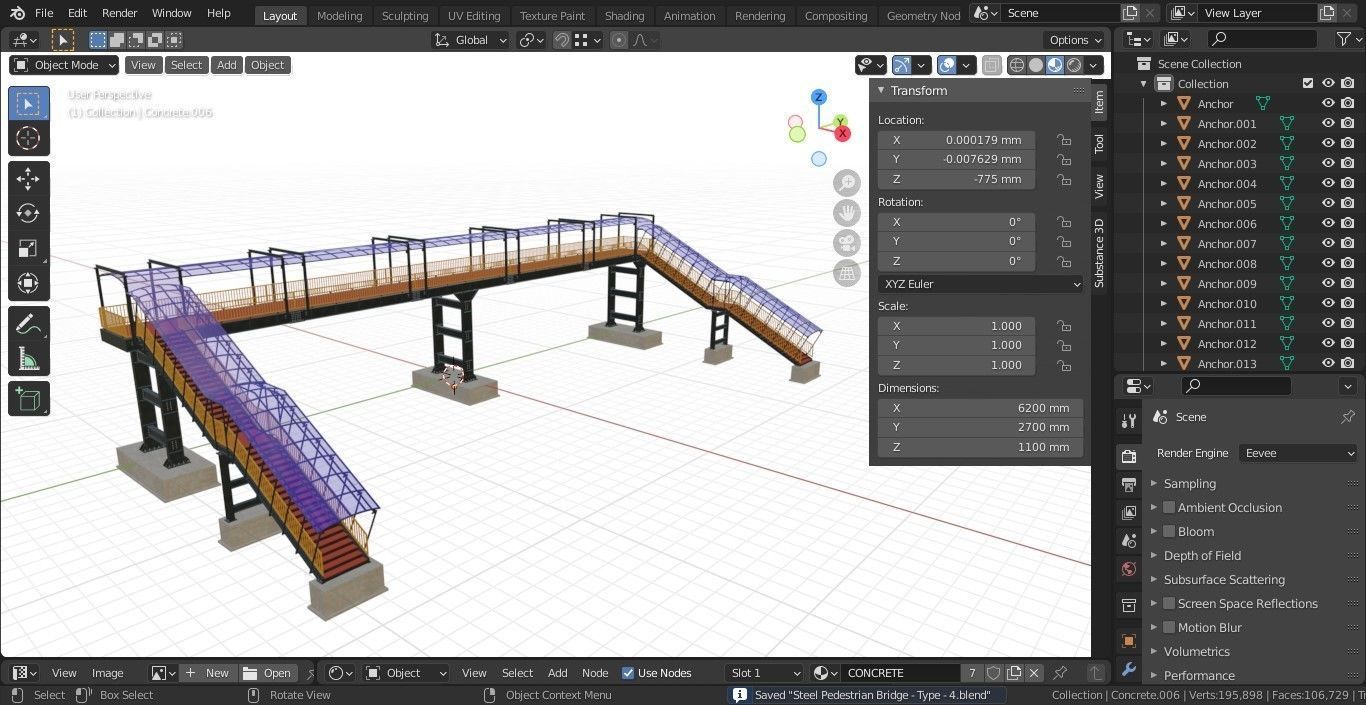

Prepared With BLENDER Version 2.93.5
Polygons : 106729
Vertices : 195898
Objects : 4351
